FTC-U Auto Digitizing Wizard: Turn Simple Clip Art Into Clean Stitches (and Fix the Gaps Before They Cost You)

Auto-digitizing can feel like magic—right up until you stitch it and see gaps, weird background blocks, or details that vanish into the fabric. If you’re using Floriani Total Control U (FTC-U), the Auto Digitizing Wizard is absolutely usable, but only if you treat it like a rough first draft, not a finished production file.

In my 20 years on the production floor, I’ve learned that software promises "one-click wonders," but physics dictates reality. Thread has tension; fabric has grain. In this guide, I’ll walk you through the exact workflow shown in the FTC-U training video (using the dog clip art example), but I will add the safety margins and sensory checks that keep your machine running smoothly. We will cover critical resizing (to 4.00 inches), crucial overlap settings (increasing push compensation from 0.4 to 0.6), and the "5 mm Trim Rule."

And because I’ve watched new digitizers lose hours to "almost good" files, I’ll show you the physical checkpoints—from stabilization to hooping—that prevent the most common stitch-out failures.

Don’t Panic: The FTC-U Auto Digitizing Wizard Is a Drafting Tool, Not a Finished Design

If you’re coming to this wizard because you want to stop paying for designs (a very common motivation), you’re in the right place. However, to save money, you must learn what to fix after the wizard runs.

One viewer of the tutorial summed it up perfectly: they were excited they could finally make their own patterns instead of paying for them. That’s real freedom—but only if your files stitch cleanly and don’t require five failed test runs on expensive polo shirts to become usable.

The Reality Check: Auto-digitizing is a tool for speed, not perfection. It works best when:

• The artwork is "Stitch-Friendly": Simple clip art with hard edges and limited colors (3-6 max).
• The scale is manageable: The design isn’t tiny (micro-details confuse the algorithm).
• You accept the cleanup: You are willing to spend 10 minutes deleting artifacts.

It is a poor fit when:

• The image has gradients, soft shadows, or photographic realism.
• You need production-level consistency across 50+ stretchy garments.

If your end goal is selling stitch-outs (commercial orders), the wizard is just step one. Your profit depends on how fast you can bridge the gap between "generated" and "stitch-ready."

The “Hidden” Prep Before You Click the Wizard Hat: Pick the Right Clip Art and Size It for Detail

The video starts by opening the wizard from the toolbar: click the Wizard Hat icon and choose Auto Digitizing Wizard (the last option on the right).

That part is mechanical. The part that decides whether you’ll love or hate the result is the Input Data.

What the instructor is doing (and why it matters)

• Artwork Selection: They choose a dog clip art image with distinct lines.
• Resizing: They set the design width to 4.00 inches.
• Filtering: They warn against images with high color counts.

Why 4.00 Inches? This is a standard "Left Chest" logo size, but critically, it is large enough for the software to render details like eyes and nose highlights. If you shrink this to 2.00 inches, the software will delete those details because it calculates that a needle cannot physically fit that many stitches in such a small space without breaking.

Expert Insight: Before you digitize, clean your monitor screen. It sounds silly, but you need to see if a "speck" is dust or a rogue pixel in your artwork. Dirty artwork equals dirty embroidery.

Prep Checklist (Do this before the wizard runs)

• Action: Sanitize Image. Check: Is the clip art flat color (vector style) or gradients? Reject gradients.
• Action: Set Target Size. Check: Is the width at least 3.5 - 4.00 inches? Smaller sizes require manual digitizing.
• Action: Identify "Anchors." Check: Locate the micro-details (like eye highlights). Mentally flag them to protect them later.
• Action: Plan Stabilization. Check: Do you have the right backing? Standard Cutaway (2.5oz) is safer than Tearaway for auto-digitized fills.
• Hidden Consumable Check: Have a fresh needle (Size 75/11 Sharp for wovens, Ballpoint for knits) ready. Auto-digitizing often creates dense spots that dull needles quickly.

If you are thinking ahead to production: Your digitizing choices only pay off if the fabric is stabilized and hooped consistently. When you start producing this dog design on 20 shirts, a consistent hooping workflow matters as much as the file itself. This is where an embroidery hooping station becomes a real productivity lever rather than just a luxury—it ensures your perfectly digitized 4-inch design lands in the exact same spot on every shirt.

Color Reduction in FTC-U Auto Digitizing Wizard: Keep White Details Without Turning the Whole Background Into Stitches

After sizing, the wizard shows the color setup. In the video, the palette reduces to four colors: white, brown, tan, and black.

The critical setting here is the checkbox:

• “Fill background color area with stitches”

The instructor checks it specifically to give the tiny white eye dots a chance to be included.

The "Donut Hole" Dilemma

Auto-digitizing software is programmed to assume "White = Transparent/Background." If you uncheck that box, the software will punch a hole where the eye highlight should be, expecting the white fabric to show through.

• The Risk: If you stitch this on a black shirt, your dog will have demon eyes (the black fabric shows through the holes).
• The Tradeoff: Checking the box forces the software to digitize all white areas, including the big square background behind the dog.

Expert Rule of Thumb: Always check the box to capture the detail, and plan to delete the background block later. It is easier to delete a background than to draw an eye highlight from scratch.

The 5 mm Trim Rule in FTC-U: Cleaner Stitching Without “Always” or “Never” Trims

Next, the instructor adjusts trim behavior. They explain they don’t like trims set to “never” (messy jump stitches) or “always” (too much time). Instead, they set trims to occur when the next object is more than 5 mm away:

• Trim Activation Distance: 5 mm


Why 5mm? The Physics of the Machine

• Under 5mm: It is faster for the machine to drag the thread (jump) than to stop, cut, tie off, and restart. Those small jumps are easily snipped by hand or hidden in the nap of the fabric.
• Over 5mm: A jump stitch this long is a snag hazard. A finger or a button can catch on it and rip the design. The machine must trim here.

Sensory Anchor: When running your machine, listen to the rhythm. A trim cycle usually sounds like a mechanical "Clunk-Whirrr-Click." If you hear this every 2 seconds, your trim distance is too low, and you are stressing the cutter.

Warning: Mechanical Safety. Trims and jumps involve rapid needle and hoop movement. Whenever the machine is moving to a new coordinate, keep your hands clear of the hoop area. Never reach under the needle bar to clear a thread while the machine is live.

Setup Checklist (Before you click Finish)

• Verify Width: 4.00 inches (Scale dictates detail).
• Verify Palette: Matches visual reality (4 colors in this case).
• Verify Background: "Fill background color" is CHECKED (to save the eyes).
• Verify Trims: Set to 5 mm (The "Goldilocks" zone—not too many, not too few).
• Verify Pathing: Select "Auto" or "Satin" for borders if available.

The First Result Is Not the Final Result: Review the Auto-Digitized Output Like a Skeptic

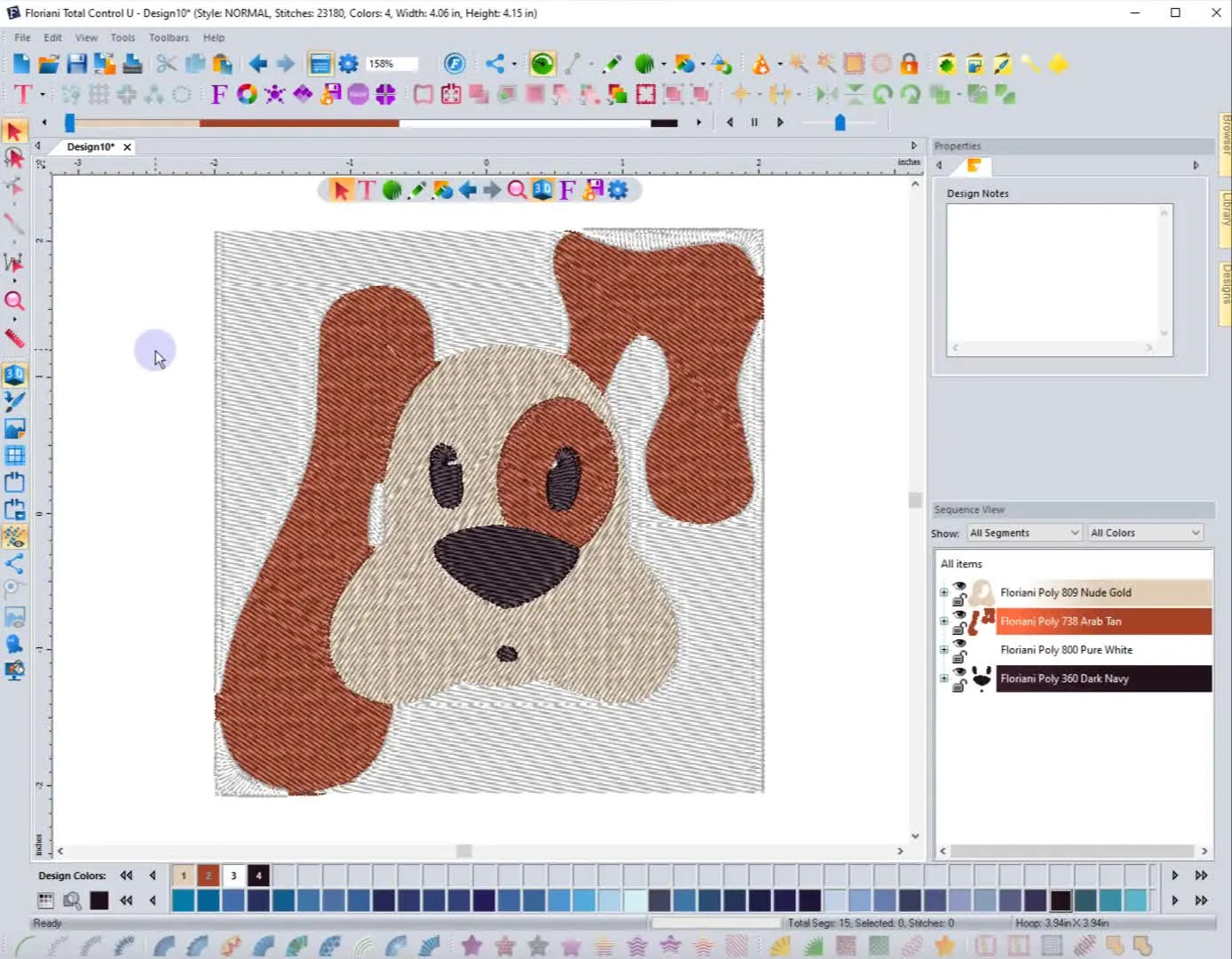

After clicking Finish, the wizard generates the design. The instructor notes it “didn’t do a bad job.”

The Veteran Mindset: The generated file is a suggestion, not a command. Do not hit "Export" yet.

At this stage, turn on your "Skeptic Glasses." You are looking for:

1. Artifacts: Weird blocks of white background stitch.
2. Mergers: Did the nose blend into the face?
3. Physical Impossible Moves: Is it trying to stitch a tiny detail under a massive fill?

If you plan to stitch this on real products (hats, polos, hoodies), remember that fabric moves. The more stretchy the fabric, the more conservative you need to be with your cleanup and stabilization.

Cleanup Pass: Delete the Auto-Created White Background Without Losing the Eye Highlights

The instructor demonstrates the classic cleanup move:

1. Select the large white background square created by the wizard.
2. Delete it.
3. Carefully keep the small white eye highlight objects.


The "Surgical" Deletion Method

This is where novices panic and delete the eyes.

• The Technique: Click the large background area. Look at the selection box. Does it encompass the whole design? If yes, that's the background. Hit Delete.
• The Safety Net: If you accidentally delete the eyes, Ctrl+Z (Undo) is your best friend. Zoom in to 400% to select the tiny eye dots if specific cleanup is needed.

Sequence View in FTC-U: Make Eye Highlights Stitch Last So They Stay Bright

Right after cleanup, the instructor checks sequencing and immediately changes it:

• Action: In Sequence View, drag the white eye highlight layer down to the bottom so it stitches after the black pupils.


The "Icing on the Cake" Principle

Think of embroidery layers like making a bed. You don't put the decorative pillow (eye highlight) under the mattress (black pupil).

• Wrong Order: White first, Black second. The black thread will physically push and trample the white stitches, making them look grey and burying them.
• Right Order: Black first, White second. The white sits on top, catching the light.

This applies to text on logos, borders on patches, and highlights on eyes.

The Gap Problem Everyone Hits: Measure Overlap, Then Fix It (0.7 mm Isn’t Enough)

The instructor turns off 3D view, zooms in, and inspects the boundary between colors. They measure the overlap and find it’s about 0.7 mm.

They explain they want at least 1 mm overlap between objects meant to touch.

The Physics of "Push and Pull"

Here is the truth about thread: When you stitch a column, it gets narrower (Pull). When you fill an area, it pushes fabric out (Push).

• The Symptom: If two shapes touch perfectly on screen (0mm overlap), the fabric will pull them apart during stitching, leaving a visible gap of fabric (the "Grand Canyon" effect).
• The Fix: You must force the shapes to overlap. 0.7mm is okay for stiff denim. For pique polo shirts or t-shirts, you need 1.0mm or more.

If you are doing production runs, you do not want to discover gapping after you have already ruined 12 shirts.

Push Compensation in FTC-U: Change 0.4 to 0.6 to Hit a 1.0 mm Total Overlap Goal

The video shows a scalable, repeatable fix that doesn't require redrawing shapes:

1. Select the fill area (e.g., the dog's face).
2. Open Properties.
3. Go to the Push/Pull area.
4. Change Push Comp from 0.4 to 0.6.




Why this Math Works

• Object A (Face) expands by 0.6mm.
• Object B (Ear) expands by 0.4mm.
• Total Overlap = 1.0mm.

This provides a "Safety Buffer." Even if your stabilizer is slightly loose, the design will likely still connect.

If you find yourself constantly searching for solutions regarding fixing gaps in auto digitized embroidery, this workflow—Measure, Calculation, Compensation—is usually the answer.

When Push Compensation Isn’t Enough: Use Node Editing to Physically Extend the Shape Under the Next Color

The instructor shows a secondary method for stubborn areas:

• Zoom in.
• Node Edit: Click the outline nodes and physically drag the lighter area so it tucks deeply under the black pupil.


This is the "Manual Override." Use this when:

• The gap is only on one side.
• The shape is complex (sharp angles).
• You are stitching on very unstable fabric (like a beanie) and need massive overlap (1.5mm+).

Two Common Failures (and the Fast Fix) From the Video’s Troubleshooting Notes

Here is a structured troubleshooting guide based on the specific failures in the video.

If you generally struggle with Floriani FTC-U Auto Digitizing consistency, these three rows cover 90% of beginner errors.

Operation Checklist: Your “Stitch-Ready” Sign-Off Before You Export

Before you save to USB, run this pre-flight check. It is the cheapest insurance policy you will ever buy.

• Sequence Check: Do highlights stitch LAST? (e.g., White eye shine is at the bottom of the list).
• Artifact Check: Are all background boxes deleted?
• Overlap Check: Zoom in to connection points. Is there ~1mm of overlap?
• Comp Check: Is Push Compensation increased (0.4 → 0.6) for fill areas?
• Trim Check: Is trim distance set to 5 mm?
• Consumable Check: Do you have Temporary Adhesive Spray (like 505) to hold your backing firm?

If you are building a team workflow, stick this list on the wall near your computer. It standardizes your Auto Digitizing settings across different operators.

A Practical Decision Tree: When to Auto-Digitize in FTC-U vs Convert to Artwork First

The instructor mentions they essentially prefer the "Auto Artwork Wizard" approach for more control. Here is how to decide your path:

START: Evaluate Image

1. Is it Clean Vector Art (3-6 colors, hard lines)?
   • YES → Auto Digitizing Wizard. (Follow the steps in this guide).
   • NO → Go to step 2.
2. Is it Complex or Low Res?
   • YES → Auto Artwork Wizard. Convert to vector lines first -> Clean up lines -> Manually assign Stitch Types (Satin/Fill).
3. Is it text or Micro-Logo (<2 inches)?
   • YES → Manual Digitizing. Do not use wizards. Manual entry is the only way to control density and legibility at this size.

The Upgrade Path That Actually Feels Like Relief: From “One-Off Hobby” to Repeatable Production

Once you master the software, the bottleneck shifts. The file is perfect, but the actual stitching process becomes the pain point.

The Pain Point: You just digitized a perfect dog logo. You need to put it on 10 shirts.

• Shirt 1 is perfect.
• Shirt 2 is crooked.
• Shirt 3 has "hoop burn" (shiny ring marks from the plastic frame).
• Your wrist hurts from tightening screws.

The Level-Up Solution: If you are transitioning from hobby to "Side Hustle," your equipment needs to protect your body and your quality.

• Hooping Consistency: Using designated hooping stations ensures that the logo is exactly 7 inches down from the shoulder seam, every single time.
• Hooping Speed & Safety: This is where magnetic embroidery hoops change the game. Instead of wrestling with screws and forcing inner rings into outer rings (which causes hoop burn), magnets simply snap the fabric in place.

Warning: Magnetic Safety. Magnetic hoops use powerful industrial magnets. Pinch Hazard: They clamp instantly—keep fingers clear. Medical: Keep away from pacemakers. Tech: Keep away from phones and credit cards.

For home users on single-needle machines (Brother, Babylock etc.), learning how to use magnetic embroidery hoop systems helps you handle thick items (like towels) that physically won't fit in standard plastic hoops.

And if you find yourself turning down orders because your single-needle machine takes 45 minutes to stitch one design (due to thread changes), look at the SEWTECH multi-needle solutions. They automate color changes, turning a 45-minute babysitting job into a 15-minute reliable production run.

The Real Takeaway: Auto-Digitizing Saves Time Only If You Know Where It Lies to You

The FTC-U Auto Digitizing Wizard works. The video proves it. But it works because the operator knew where to intervene.

Your new workflow:

1. Draft with the Wizard (4.00 inches, 5mm trims).
2. Protect the details (Keep background fill checked).
3. Clean the junk (Delete background blocks).
4. Layer the logic (Highlights last).
5. Compensate for physics (Push Comp 0.6mm).

Do that consistently, and you won’t just be a person clicking buttons—you’ll be a digitizer.

FAQ

• Q: In Floriani Total Control U (FTC-U) Auto Digitizing Wizard, how do I keep small white eye highlights without creating a big white background block of stitches?
  A: Check “Fill background color area with stitches” to capture the white details, then delete the unwanted large background object in cleanup.
  • Action: Enable “Fill background color area with stitches” during the wizard color step so white pixels are not treated as transparent.
  • Action: After the wizard finishes, select the large white square/background object and delete only that object; keep the tiny eye highlight objects.
  • Success check: Zoom in (often 400%) and confirm the eye dots remain as separate small white objects with no large white rectangle behind the dog.
  • If it still fails: Undo (Ctrl+Z), reselect more carefully using the selection box size (background selection usually spans most of the design), then delete again.
• Q: In Floriani Total Control U (FTC-U), how do I set trims to avoid messy jump stitches without slowing the design down with constant trimming?
  A: Set Trim Activation Distance to 5 mm as a balanced default for auto-digitized designs.
  • Action: Open trim settings and set trims to occur when the next object is more than 5 mm away (not “Always” and not “Never”).
  • Action: Stitch a quick test and listen to the trim cycle; excessive trimming usually means the distance is too short.
  • Success check: You should not hear the trim “Clunk-Whirrr-Click” every couple seconds, and long jump stitches over 5 mm should be eliminated.
  • If it still fails: Recheck that trims are not forced to “Always,” and confirm the design does not contain unnecessary tiny separated objects that trigger extra trims.
• Q: In Floriani Total Control U (FTC-U) auto-digitized designs, how do I fix gapping where white fabric shows between two touching fill colors?
  A: Measure overlap and target at least ~1.0 mm total overlap by increasing Push Compensation (example: change 0.4 to 0.6) or by node editing for stubborn areas.
  • Action: Turn off 3D view, zoom in, and measure the overlap where two shapes meet; treat ~0.7 mm as risky on stretchy fabrics.
  • Action: Select the fill object, open Properties → Push/Pull, and increase Push Comp (the video example adjusts 0.4 → 0.6 to reach ~1.0 mm total overlap with the neighboring object).
  • Success check: On-screen boundaries should show visible overlap (about 1 mm) instead of “perfect touching” edges.
  • If it still fails: Use Node Edit to physically extend the lighter shape deeper under the next color, especially on unstable fabrics where larger overlap may be needed.
• Q: In Floriani Total Control U (FTC-U) Sequence View, how do I keep white eye highlights bright instead of getting covered or turning grey?
  A: Make eye highlights stitch last by dragging the white highlight objects to the bottom of the sequence so they stitch after the black pupils.
  • Action: Open Sequence View and locate the white highlight layer/objects.
  • Action: Drag the white highlights to stitch after (below) the black pupil objects.
  • Success check: In the stitch preview and final sew-out, the white “shine” sits on top and looks crisp rather than buried.
  • If it still fails: Confirm the highlight objects were not accidentally merged into a larger white fill, and re-check that the background white block was deleted during cleanup.
• Q: Before running Floriani Total Control U (FTC-U) Auto Digitizing Wizard, what prep steps prevent dirty stitch-outs and missing micro-details at small sizes?
  A: Start with stitch-friendly clip art and set a workable target size (the tutorial uses 4.00 inches) before you click the wizard.
  • Action: Choose simple clip art with hard edges and limited colors; reject gradients/soft shadows for auto-digitizing.
  • Action: Set the design width to 4.00 inches (a common left-chest size) so details like eyes and nose highlights are not deleted by the algorithm.
  • Action: Clean the monitor screen so you can spot rogue pixels versus dust before digitizing.
  • Success check: On-screen, micro-details (eye dots/nose shine) are visible in the artwork at the chosen size before the wizard generates stitches.
  • If it still fails: Increase the design size (rather than shrinking) or switch to a more manual workflow for micro-logos and tiny text.
• Q: What needle and stabilizer choices are a safe starting point for Floriani Total Control U (FTC-U) auto-digitized fill designs that tend to sew dense?
  A: Use a fresh needle and choose a more supportive stabilizer (the blog’s safer callout is standard cutaway 2.5 oz over tearaway for auto-digitized fills).
  • Action: Install a fresh needle before test stitching because auto-digitized files often create dense spots that dull needles quickly.
  • Action: Match needle type to fabric (the blog notes 75/11 Sharp for wovens, Ballpoint for knits).
  • Action: Stabilize with standard cutaway (2.5 oz) as a safer baseline for auto-digitized fills.
  • Success check: The stitch-out should look flatter with fewer gaps/distortion, and the machine should run with fewer thread issues through dense areas.
  • If it still fails: Re-check overlap/push compensation in the file and consider adding temporary adhesive spray to keep backing firm.
• Q: What safety rules should be followed during trimming/jump movement and when using magnetic embroidery hoops to reduce hoop burn and speed up hooping?
  A: Keep hands clear during any trim/jump movement, and treat magnetic hoops as a pinch hazard with strong magnets.
  • Action: During any move to a new coordinate (jumps/trims), keep fingers away from the hoop/needle area and never reach under the needle bar while the machine is live.
  • Action: When using magnetic hoops, keep fingers clear as magnets clamp instantly; handle slowly and deliberately.
  • Action: Keep magnetic hoops away from pacemakers and away from phones and credit cards.
  • Success check: You can complete a full run without near-misses (pinches) and without reaching into the stitch field while the machine is active.
  • If it still fails: Pause/stop the machine before clearing threads, and review the hoop handling routine until it is repeatable and controlled.
• Q: If Floriani Total Control U (FTC-U) Auto Digitizing Wizard outputs are “almost good” but production on 10+ shirts still causes crooked placement and hoop burn, what is the upgrade path from technique to tooling to higher output?
  A: Use a tiered approach: optimize the file/settings first, then improve hooping consistency with better hooping workflow tools, then consider multi-needle production when thread-change time becomes the bottleneck.
  • Action: Level 1 (technique): Standardize the file with 4.00-inch sizing, 5 mm trims, background cleanup, highlights-last sequencing, and push compensation for overlap.
  • Action: Level 2 (tooling): Improve repeatability with consistent hooping methods and consider magnetic hoops to reduce screw strain and hoop burn (shiny ring marks) while speeding hooping.
  • Action: Level 3 (capacity): When single-needle thread changes make one design take too long, consider moving to a multi-needle workflow to automate color changes.
  • Success check: Placement becomes repeatable across multiple garments, hoop marks reduce, and total time per garment drops without increasing rejects.
  • If it still fails: Audit whether the main issue is file physics (gaps/sequence) or handling physics (stabilization/hooping), then fix the dominant failure point first.
