FSL Mummy Gnome Earrings on a Brother Persona-Style Machine: The Loop That Finally Stays Put

The Anatomy of a Perfect Loop: Mastering Free Standing Lace (FSL) Earrings and Eliminating Structural Failure

There is a specific, sinking feeling known only to embroiderers: You spend 45 minutes stitching a pair of Free Standing Lace (FSL) earrings. You trim them. You wash them out. And just as the design dries, the hanging loop—the single most critical structural point—disintegrates in your hands.

It is not just a failed project; it is a betrayal of effort.

In the case study of "Regina’s Mummy Gnome" earrings, the central design stitched flawlessly, yet the attachment loop failed three times consecutively. Her solution was a masterclass in pragmatic problem-solving: rather than fighting the digitizing software, she performed a "digital organ transplant," replacing the failing loop with a proven one from a different file (her bat earrings).

This guide moves beyond simple troubleshooting. We will dismantle the physics of FSL, establish a "Sweet Spot" parameter safety zone, and define the exact workflow required to turn fragile thread into structural jewelry. Whether you are a hobbyist fighting a single-needle machine or a production manager scaling up, this is your blueprint for consistency.

The "My Loop Keeps Falling Apart" Moment: Why FSL Structure Fails

FSL is not embroidery on fabric; it is embroidery as fabric. You are constructing a textile from scratch using nothing but thread and tension. When a loop fails, it is rarely a machine error. It is almost always a failure of anchor points.

In Regina's case, the failure stemmed from two potential culprits:

1. Low-Density Digitizing: The original loop lacked enough "underlay" stitches to support the satin cover.
2. Traumatic Trimming: Cutting the "tie-in" or "tie-off" knots while cleaning up the back of the embroidery.

Regina’s fix—copying a known-good loop from another design—is a technique I call "Component Harvesting." If you have a file that survives the wash every time, that specific element involves the perfect ratio of density (usually 0.4mm spacing) to underlay. Do not gamble on new loops; use what works.

The Foundation: Material Science for "Thread Fabric"

You cannot build a house on quicksand, and you cannot stitch FSL on plastic film. The choice of stabilizer is the single biggest variable in success.

The Stabilizer Protocol

For FSL earrings, there is only one acceptable setup for beginners to intermediates:

• Material: Fibrous Water-Soluble Stabilizer (WSS). This looks and feels like a sheer fabric or dryer sheet.
• Layers: Two (2) Layers, cross-grained (if visible).
• Banned Materials: Do not use clear plastic beat-away film (it perforates and separates too easily) and do not use sticky-back wash-away (the adhesive gums up the needle at high densities).

Why "Fibrous" Matters

Fibrous WSS contains fibers that interlock with your stitch. When the needle penetrates, the fibers grip the thread, creating a solid matrix. Plastic film tends to stretch or tear under the barrage of needle penetrations required for lace, leading to "drift" and misaligned outlines.

Hidden Consumables Check:

• Needle: Chrome Topstitch 75/11. A dull needle will push the stabilizer down rather than piercing it, destroying your tension.
• Spray: A light mist of temporary adhesive between the two stabilizer layers can prevent them from shifting against each other.

Decision Tree: Stabilizer & Setup

use this logic to determine your starting point:

1. Is the design FSL (Jewelry/Ornaments)?
   • YES: Use 2 Layers Fibrous WSS. Tension +1 (slightly tighter upper).
   • NO (Patch/Applique): Use Cutaway or Tearaway depending on fabric.
2. Is your machine behavior aggressive?
   • High Speed (800+ SPM): Danger Zone. Slow down to 600 SPM.
   • Standard Speed: Stick to the beginner sweet spot.


The "Drift" Prevention: Hooping Mechanics

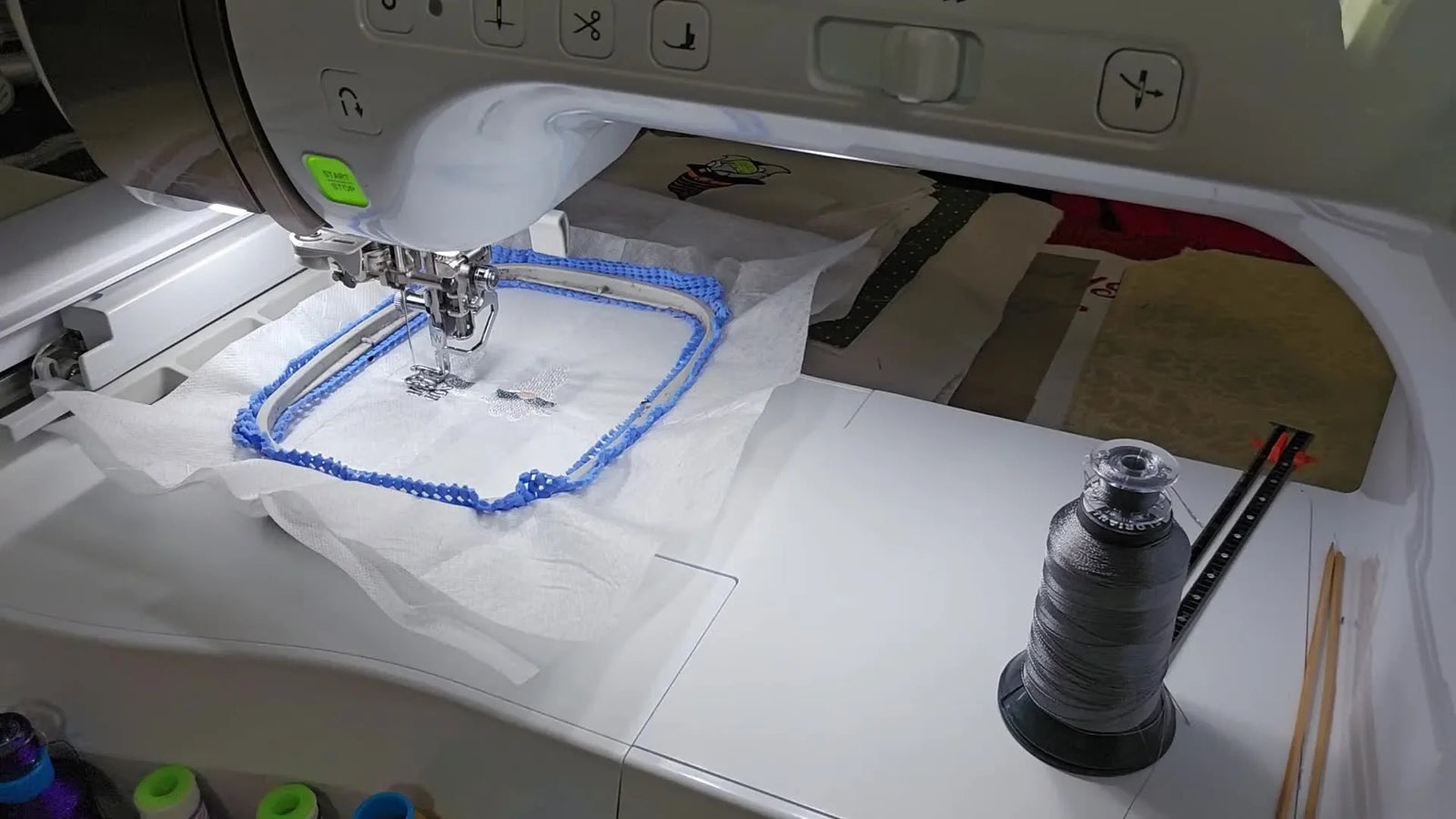

Regina uses a standard 100x100mm (4x4) hoop. However, for FSL, the "drum-skin" rule is absolute. If you push on the stabilizer and it creates a "hill," it is too loose. It must be taut enough to make a dull thump sound when tapped.

The Problem with Standard Hoops

Traditional inner/outer ring hoops rely on friction. With slippery WSS, the stabilizer often pulls inward (called "flagging") as you stitch efficiently. This causes the final satin border to miss the base layer, ruining the earring.

The Solution Path:

• Level 1 (Technique): Wrap the inner hoop ring with binding tape (like athletic tape) to increase friction.
• Level 2 (Tool Upgrade): If you struggle with hand strength or consistency, searching for a brother 4x4 embroidery hoop upgrade often leads professionals to Magnetic Hoops.
  • Why Upgrade? Magnetic hoops clamp strictly from top and bottom. They do not distort the stabilizer by "pulling" it like traditional hoops. This zero-distortion clamping is critical for the geometric precision of earrings.

Warning: Magnetic Safety
If you upgrade to magnetic hoops, treat them with extreme caution. The magnets used in commercial-grade frames are powerful enough to pinch fingers severely. Do not place them near pacemakers or magnetic storage media.

If you are producing batches for sale, consistency is your currency. An embroidery hooping station ensures that every piece of stabilizer is hooped at the exact same tension and angle, reducing the "reject rate" from 20% to near zero.

Prep Checklist (Pre-Flight)

• Stabilizer: 2 layers of fibrous WSS, drum-tight.
• Bobbin: Matching Color wound and ready (Do NOT use white pre-wounds).
• Needle: Fresh 75/11 or 75/11 Sharp.
• Design: Verified that the "Loop" looks substantial in the software preview.


Visualizing the Stitch: The White Base

The machine begins with the white base of the gnome. This is your "Underlay" phase.

Sensory Anchor (Sound): Listen to your machine. It should sound like a rhythmic hum. If you hear a sharp slap-slap-slap, your tension is too loose, or the foot is hitting the hoop.

The Tail Management Rule: As the machine travels, it leaves jump stitches. In FSL, you must trim these immediately. There is no fabric to hide them. If a dark thread tail gets trapped under a white satin fill, it will show through forever like a bruise.

The "Two-Sided" Reality: Bobbin Management

Regina emphasizes a rule that separates amateurs from professionals: Match your bobbin thread.

In standard embroidery, white bobbin thread is fine because it stays on the back. In FSL earrings, there is no back. The earring will twist and turn while worn. Seeing a glaring white stripe on the back of a black gnome destroys the illusion of quality.

Workflow Adjustment:

1. Buy embroidery thread (Polyester 40wt) in your main design colors.
2. Wind specific bobbins for this project.
3. Tension Warning: Bobbin thread is often thinner (60wt) than top thread (40wt). When you put 40wt thread in the bobbin, you effectively increase tension. You may need to lower your top tension slightly to compensate and prevent the bobbin thread from pulling to the top.

Optimization Note: If this constant bobbin swapping drives you crazy, this is a trigger point. High-volume studios use hooping for embroidery machine workflows where they align multiple designs in one large hoop to minimize color changes, but eventually, the sheer number of thread changes justifies moving to a multi-needle machine. Machines like the SEWTECH series allow you to set up all colors at once, drastically reducing the manual labor of threading.

The Layering Sequence: Gray Mustache & Pink Nose

Regina moves to the gray mustache and pink nose.

The "Soft Black" Aesthetic: Regina chooses "Smoky Gray" instead of pure black for the definition lines.

• Why? Pure black thread absorbs light and hides detail. Dark gray reflects just enough light to show the direction of the stitches, adding 3D value to the tiny gnome.
• Forgiveness: Dark gray is also more forgiving. If your registration is off by 0.5mm, it is less jarring in gray than in high-contrast black.


The "Zebra" Inspection Point

Before the final satin stitch, stop the machine. The design currently looks like a loose sketch (Regina calls it a "Zebra").

Critical Inspection (The 3-Second Pause): Look at the edges. Is the stabilizer puckering?

• No Pucker: Proceed.
• Visible Pucker: Your density is too high or stabilizer too loose. You cannot fix this now, but mark it for the next run.

This is also the moment to use tweezers to remove any tiny "fuzz" or tails that might be protruding near the edges. Once the final satin border goes down, those flaws are sealed in cement.

The Structural Exoskeleton: Satin Border

The final border is not just decorative; it is the skeleton. It holds the inner mesh together.

Speed Limit: For this step, slow your machine down to 500-600 SPM. The satin stitch moves the needle side-to-side rapidly. High speeds here create "wobble," causing the needle to miss the edge of the underlay. A missed edge = a hole in your lace.

The Loop: Component Harvesting

We arrive at the critical failure point. Regina’s decision to swap the loop for the "Bat Earring Loop" saved the project.

What makes a "Good" Loop?

1. Multiple Layers: It should stitch a running stitch, then a zigzag, then a satin stitch.
2. Overlap: The loop must penetrate deep into the main body of the hat. A loop that just "kisses" the edge of the earring will tear off. It needs to be anchored at least 2-3mm inside the main structure.

If you are customizing designs, always ensure your attachment points have this deep anchor.

The Surgeon’s Hand: Trimming

You have removed the hoop (or magnetic frame). Now you have a hairy mess of threads on the back.

The Tactile Check: Before you cut ANY thread near the loop: Feel it. Roll the thread between your thumb and finger.

• Loose feel: Safe to cut. It’s a jump stitch.
• Hard "bump": STOP. That is a tie-off knot. If you cut this, the loop unravels.

Warning: Physical Safety
use curved micro-tip scissors. Standard straight scissors are dangerous here. You are cutting millimeters from the structural thread. One slip turns a product into trash.

Efficiency Tip: If you find yourself spending 15 minutes trimming one pair of earrings, your workflow is the bottleneck. The hoop master embroidery hooping station aids in physical alignment, but organizing your workspace with dedicated "trimming zones" (good light, magnifying glass) is the Level 1 fix.

The Chemical Phase: Washout

Regina uses warm water.

• Temperature: Lukewarm tap water is best. Boiling water can sometimes shrink polyester thread slightly, puckering the lace.
• Tactile Goal: You want the piece to feel slightly stiff when dry (like starched shirt collar), not floppy (like a wet rag) and not gummy (like tape).
• The "Stop" Sign: If it feels slimy, rinse more. If it feels floppy, you washed too much stabilizer out (or didn't use enough layers).


Final Validation

Hold the earring to the light. The loop should be opaque (dense). If you see light coming through the satin stitch of the loop, it is weak.

Regina’s result: A firm, matching-sided gnome with a loop that survives tugging.

Troubleshooting Guide: From Symptom to Cure

Symptom A: Project Disintegrates in Water

• Cause 1: Wrong Stabilizer. You likely used film or only 1 layer.
  • Fix: Switch to 2 layers Fibrous WSS.
• Cause 2: Loose Stitching.
  • Fix: Check Bobbin Tension. If the bobbin is pulling loops to the top, the interlocking point is weak.

Symptom B: "Hoop Burn" (Marks on lace) or Distorted Shapes

• Cause: Pulling stabilizer too hard in a standard friction hoop.
  • Fix: Upgrade to a Magnetic Hoop. This eliminates the need to pull/distort the stabilizer. It simply snaps shut.

Symptom C: Eye Strain / Wrist Pain

• Cause: Repetitive manual hooping and re-threading.
  • Fix (Level 1): Use a hoop master embroidery hooping station to let gravity and jigs help you.
  • Fix (Level 2): If production is over 50 pairs/week, the single-needle machine is your limiting factor. Transitioning to a SEWTECH Multi-Needle machine removes the re-threading pauses and utilizes larger, more ergonomic frames.

Operation Checklist (The Finish Line)

• Trimming: Knots verified by touch before cutting.
• Wash: Lukewarm water dive. Sticky residue removed.
• Dry: Air dried flat (do not hang wet, weight stretches the lace).
• Hardware: Jump rings added only after fully dry.

Summary: The Path to Professional Lace

FSL is unforgiving, but it is predictable. By respecting the physics of the stabilizer, matching your bobbin threads, and securing fragile loops with "Component Harvesting," you eliminate luck from the equation.

If you find that your skill has outgrown your tools—if you are spending more time fighting hoops and changing threads than designing—it is time to look at the hardware that supports professional output. Whether that is a simple magnetic hoop upgrade or a full multi-needle workstation, the right tools protect your time and your sanity.

FAQ

• Q: What stabilizer setup should be used for Free Standing Lace (FSL) earrings to prevent the lace from disintegrating during washout?
  A: Use two layers of fibrous water-soluble stabilizer (WSS) and avoid plastic film or sticky-back wash-away for dense lace.
  • Layer: Hoop 2 layers of fibrous WSS, cross-grain if the grain is visible; optionally mist a light temporary adhesive between layers to stop shifting.
  • Avoid: Skip clear plastic “film” wash-away (perforates/tears) and skip sticky-back wash-away (adhesive can gum the needle at high density).
  • Success check: Before stitching, the hooped stabilizer feels drum-tight and makes a dull “thump” when tapped.
  • If it still fails… Re-check that only fibrous WSS was used (not film), and increase setup control by slowing down to the 600 SPM range for better stability.
• Q: How tight should Free Standing Lace (FSL) earrings be hooped in a standard 100x100mm (4x4) embroidery hoop to prevent drift and misaligned satin borders?
  A: Hoop the stabilizer drum-tight; any “hill” when pressed means the hooping is too loose and drift is likely.
  • Test: Press the center—if the stabilizer rises into a hill, re-hoop tighter until it stays flat and taut.
  • Improve grip: Wrap the inner hoop ring with binding/athletic tape to increase friction against slippery WSS.
  • Success check: The stabilizer stays flat with no inward pull/flagging while stitching, and the satin border lands cleanly on the base.
  • If it still fails… Consider switching to a magnetic hoop to eliminate hoop distortion and stabilizer pull-in.
• Q: What embroidery machine speed should be used for the final satin border on Free Standing Lace (FSL) earrings to avoid wobble and edge misses?
  A: Slow down to 500–600 SPM for the satin border because high speed can cause wobble and missed edges that create holes.
  • Set: Reduce speed specifically for the border step (the fast side-to-side motion is where wobble shows up).
  • Listen: Monitor machine sound—sharp “slap-slap-slap” suggests tension/impact issues that can worsen at speed.
  • Success check: The satin border forms a continuous “exoskeleton” with no gaps where the needle missed the underlay edge.
  • If it still fails… Re-check hoop tightness (drum-tight) and stabilizer choice (2 layers fibrous WSS).
• Q: How can Free Standing Lace (FSL) earrings be made truly two-sided so white bobbin thread does not show when the earrings twist while worn?
  A: Match the bobbin thread color to the design because FSL has no hidden back side.
  • Wind: Prepare bobbins in the main design colors instead of using white pre-wound bobbins.
  • Adjust: If using 40wt thread in the bobbin, lower top tension slightly as needed because the thicker bobbin can pull differently.
  • Success check: Flip the finished lace over—no bright white “stripe” appears on the back during normal handling.
  • If it still fails… Make a small test stitch-out and fine-tune top tension until the thread balance looks even on both sides.
• Q: How can Free Standing Lace (FSL) earring loops be digitized or edited so the hanging loop does not tear off after washout?
  A: Use a proven loop structure and anchor it deep into the main body; a loop that only touches the edge will fail.
  • Build: Ensure the loop stitches in layers (running stitch → zigzag → satin stitch) rather than satin alone.
  • Anchor: Overlap the loop into the main design by about 2–3 mm so it is structurally tied into the body.
  • Success check: Hold the dried loop up to light—an opaque, dense loop (not see-through) resists tugging.
  • If it still fails… Replace the loop with a known-good loop element from another design file that consistently survives washout.
• Q: How can trimming be done safely on Free Standing Lace (FSL) earrings without accidentally cutting tie-off knots and causing the loop to unravel?
  A: Identify knots by touch before cutting, and use curved micro-tip scissors to avoid slipping into structural stitches.
  • Feel: Roll the thread with fingers—soft/loose feels like a jump stitch; a hard “bump” is a tie-off knot (do not cut).
  • Tool: Use curved micro-tip scissors for precision; avoid long straight scissors near the loop and border.
  • Success check: After trimming, gently tug the loop—no stitches loosen and no unraveling starts at the attachment point.
  • If it still fails… Stop trimming closer to the loop area and re-check the loop’s anchor depth (it must penetrate into the main body).
• Q: What safety precautions should be followed when using magnetic embroidery hoops/frames for Free Standing Lace (FSL) work?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and magnetic storage media.
  • Handle: Keep fingers clear when closing; let the frame snap shut in a controlled way to avoid severe pinching.
  • Keep away: Do not place magnetic hoops near pacemakers or magnetic storage devices.
  • Success check: The stabilizer is clamped flat with no distortion from pulling, and hooping is consistent piece to piece.
  • If it still fails… Fall back to Level 1 control: increase friction on a standard hoop (binding tape) and re-check drum-tight hooping before upgrading again.
