FSL Gift Tags on a ZSK Sprint 8: The “Drum-Tight” Stabilizer Rule, the Bobbin Check Spring, and Clean Appliqué Edges

Freestanding lace (FSL) is the rigorous "final exam" of machine embroidery. It looks effortless—like magic—but it is actually a feat of structural engineering. Unlike stitching on a shirt, where the fabric supports the thread, FSL requires the thread to support itself. If your tension is off by 10%, or your stabilizer slips by a millimeter, the result isn't just a bad design; it’s a pile of unraveled string.

If you have ever watched a lace design crumble in the wash or shift mid-stitch, know this: the failure usually happens before you press "Start."

Jeff from Madeira USA demonstrates a production-grade workflow for FSL gift tags on a ZSK Sprint 8 using high-end Sensa Green thread and linen appliqué. Drawing from 20 years of floor experience, I am going to deconstruct his method into a Zero-Friction Guide. We will move beyond "hope it works" and into repeatable parameters, focusing on the three pillars of FSL: Drum-Tight Stability, Balanced Tension, and Trimming Discipline.

The Supply Bench That Prevents 80% of FSL Failures (Scissors, Wash-Away, Linen, Thread)

In my studio, we have a rule: "Chaos on the bench equals chaos in the hoop." FSL requires a surgical setup. You are building a structure on a dissolving foundation, so your materials must be flawless.

The "Must-Have" List:

• Fibrous Water-Soluble Stabilizer (WSS): Do not use the thin, plastic-film type (like Solvy) for the base. You need the fibrous, fabric-like variety (often called "wet-n-gone" or similar). You need two layers.
• Needles: Use a fresh 75/11 Sharp (or Microtex) needle. Ballpoints are for knits; here, we need to penetrate linen and stabilizer cleanly without deflection.
• Thread: 40wt embroidery thread. Jeff uses Madeira Sensa Green. Crucially, match your bobbin thread color to your top thread.
• Scissors:
  • Duckbill Scissors: Non-negotiable for appliqué trimming.
  • Standard Snips: For thread tails.
• Hidden Consumables:
  • Tweezers: For holding fabric bits while keeping fingers safe.
  • Temporary Spray Adhesive: Just a light mist can help hold layers if you aren't using magnetic frames.

The Stability Factor: Standard plastic hoops are often the enemy of FSL because they create "hoop burn" or fail to grip thin stabilizer evenly. This is why professionals often upgrade to magnetic embroidery hoops. These tools clamp the stabilizer flat without the "tug and screw" distortion of traditional hoops, ensuring the lace foundation remains undisturbed.

Prep Checklist (Pre-Flight):

• Needle Check: Is the needle brand new? (A burred needle will shred WSS).
• Bobbin Check: Is the bobbin case clean of lint?
• Material: Two layers of fibrous WSS cut 2 inches wider than the hoop on all sides.
• Linen: Pre-cut rectangles are ready.
• Environment: Duckbill scissors are placed on your dominant hand's side.


The Bobbin Case “Check Spring” Rule: Stop Backlash Before It Ruins Your Lace

This is a "Level 2" technical detail that Jeff highlights, and it is the difference between specific, crisp lace and a "birdnest" disaster.

Most commercial machines (like the ZSK) use metal bobbin cases containing a small, often overlooked component: the Anti-Backlash Spring (or Check Spring).

The Physics of Backlash: FSL involves thousands of rapid stops and starts. When the machine stops, the bobbin wants to keep spinning due to inertia. If it spins, it spools out slack thread inside the case. When the machine starts again, that slack creates a loop or a knot on the back.

The Rule:

• Metal Bobbin Cases: Ensure the check spring is installed. It acts as a brake.
• Magnetic Bobbins: Often don't need the spring (the magnet acts as the brake).
• Jeff’s Protocol: Since he is winding his own Sensa Green bobbin (non-magnetic), he must ensure the spring is present.

The Drop Test (Sensory Calibration): To set tension without a generic gauge:

1. Place the bobbin in the case.
2. Hold the thread end and let the case hang like a yo-yo.
3. The Check: It should not drop on its own.
4. The Action: Jerk your wrist strictly once. The case should drop 1-2 inches and stop.
   • Drops to floor? Too loose. Tighten the screw.
   • Doesn't move? Too tight. Loosen the screw.


Warning: Mechanical Safety. Never put your fingers near the needle bar while the machine is powered or in "Ready" mode. When placing the linen appliqué, keep hands well outside the hoop area. If you need to manipulate fabric near the needle, use long tweezers, not your fingertips.

The “Snap + Tap” Test: Hooping Two Layers of Fibrous Wash-Away in a Mighty Hoop

Your stabilizer is not just a backing; for FSL, it is the only thing holding the design together. If it sags, the stitches will not interlock, and the lace will fall apart.

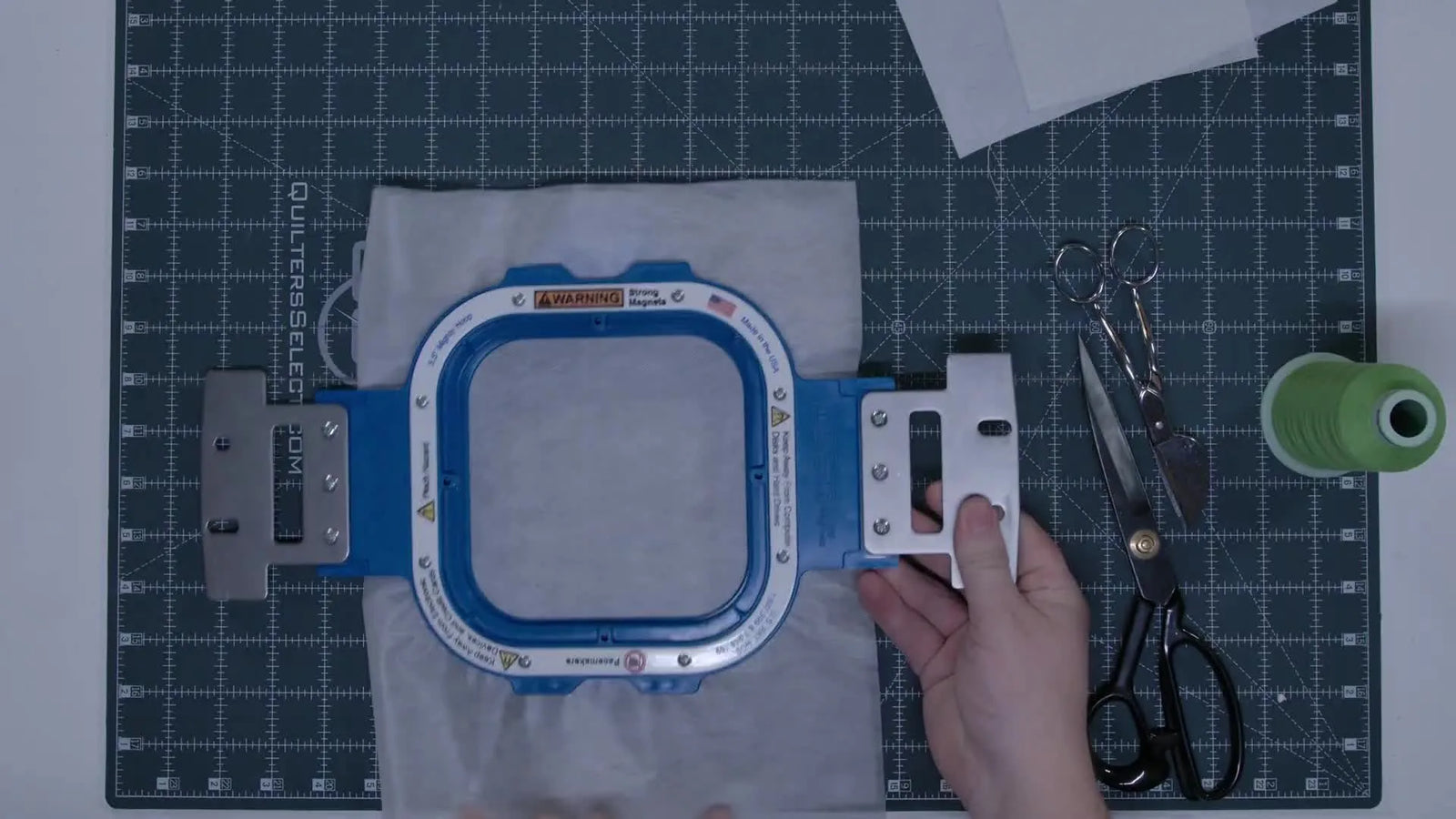

Jeff utilizes a specific tool to guarantee this tension: the mighty hoop.

Why Magnetic Force Wins Here: A traditional hoop requires you to loosen a screw, insert rings, pull the stabilizer (which distorts the grain), and tighten. A magnetic hoop simply "snaps." It captures the stabilizer in its natural, relaxed state but holds it with immense pressure.

The "Tap Test" (Auditory Anchor): Once hooped (2 layers of fibrous WSS), flick the center of the stabilizer with your finger.

• Pass: You hear a high-pitched "Thump" or "Ping," like a snare drum.
• Fail: You hear a dull, paper-like rattle. If it rattles, re-hoop.

If you are producing these tags in volume—say, 50 for a wedding—consistency is key. Manual hooping varies from person to person. Using a dedicated magnetic hooping station ensures that every single sheet of stabilizer is hooped with identical tension and alignment, reducing wrist strain and reject rates.

Setup Checklist:

• Two layers of fibrous WSS are used.
• Hoop passes the "Tap Test" (Drum-tight).
• Bobbin thread matches top thread color.
• Machine speed is reduced to a "Sweet Spot" (Success is more important than speed; start at 600-700 SPM until you trust the file).


The Three-Stop File Workflow on a ZSK Sprint 8: Placement, Cut Line, Then Let It Run

Understanding the architecture of the digital file is as important as the physical setup. Jeff’s file on the zsk sprint embroidery machine follows a logic you should look for in any appliqué FSL design.

The "Stop" Logic:

1. Stop 1 - Placement Line: A single running stitch that draws a box on the stabilizer. This tells you exactly where to put the fabric.
   • Action: Run stitch. Stop. Check alignment.
2. Stop 2 - Tack Down / Cut Line: This creates the boundary.
3. Stop 3 - The Lace Structure: The machine builds the net, the border, and the decorative elements.

Pro Tip: Do not rely on your screen. Watch the needle. When the placement line stitches, ensure your stabilizer isn't "bouncing." If it is, your tension is too loose.

The In-the-Hoop Linen Appliqué Center: Triple-Stitch Cut Line That Forgives Small Nicks

Here is a detail intended to save you from frustration. After you place the linen over the placement line, the machine runs a Triple Stitch (or Bean Stitch) for the Cut Line.

Why a Triple Stitch? A standard running stitch is weak. If you trim too close and snip a thread, the fabric lifts. A triple stitch goes back and forth (Forward-Back-Forward), creating a thick, rope-like barrier.

• Benefit 1: It acts as a visual "Do Not Cross" line for your scissors.
• Benefit 2: It creates a ridge that the final satin stitch can grab onto, creating a "puffy," high-quality edge.

When placing the linen, ensure the grain is straight. Crooked grain in a woven fabric like linen can cause distortions after the first wash.

The Trim That Makes or Breaks the Tag: Duckbill Scissors, Flat Blade, Zero Stabilizer Cuts

This is the high-risk moment. You must trim the excess linen without cutting the stabilizer underneath. If you cut the stabilizer, the lace foundation is gone, and the tag is ruined.

The Technique:

1. The Tool: Use Duckbill appliqué scissors. They have one paddle-shaped blade and one sharp blade.
2. The Orientation: The Paddle (Duckbill) goes down against the stabilizer. The sharp blade is on top.
3. The Action: Glide the paddle along the stabilizer. It acts as a shield, pushing the stabilizer away from the cutting edge while lifting the fabric into the blade.
4. The Goal: Trim as close to the triple stitch as possible—within 1-2mm.

Sensory Check: You should feel the scissors "rail" against the triple stitch ridge. If you are fighting the fabric, your scissors are dull.

Warning: Magnetic Hazard. Powerful tools like the Mighty Hoop contain Neodymium magnets. They can pinch skin severely and damage electronics. Pacemaker Safety: Keep strictly away from individuals with pacemakers. Keep credit cards and phones at least 12 inches away.

Let the Lace Build Its Skeleton: Tack-Down, Decorative Border, Then Personalize

Once trimmed, the machine takes over. It will run an underlay (the skeleton) followed by the dense satin stitches (the skin).

The Personalization Workflow: Jeff demonstrates a "Two-File" system:

1. Run the main Tag file.
2. Load a separate "Name" file to stitch onto the linen center.

Why separate files? In a production environment, you don't want to digitize 50 unique full-tag files. You want one "Master Tag" file and 50 small "Name" files. This efficiency is critical.

Volume Logic: If you are running a single-needle home machine, changing threads and files for every name is a bottleneck. This is the commercial trigger point where many hobbyists upgrade to a multi-needle machine like a SEWTECH, allowing for color changes and continuous production without constant babysitting.

The Cut-Out Discipline: Remove Stabilizer Close—But Don’t Clip Stitches

The stitching is done. Now, extraction.

The "Halo" Rule: Using your standard sharp scissors, cut the tag out of the stabilizer sheet.

• Do: Leave about 1/4 inch (5-6mm) of stabilizer around the edge.
• Do Not: Cut flush to the thread.
  • Why? Simplifing the dissolving process. Less stabilizer = less goo to wash out. But cutting too close risks snipping the structural locking stitches.


The Warm-Water Finish That Keeps Lace Soft: Dissolve Until the “Slime Feel” Is Gone

Stabilizer removal is a chemical process.

• Temperature: Use warm water. Cold water leaves residue; boiling water can shrink the linen.
• The "Slime" Test (Tactile Anchor): Run the tag under the tap and rub it between your thumb and finger. It will feel slippery, like soap or slime.
• The Standard: Keep rinsing until the slime is 100% gone and the lace feels like wet string, not wet gel. If you leave residue, the tag will dry hard and crusty.


Dry Flat, Inspect Edges, and Learn From the “Fuzz”: What the Finished Tag Is Telling You

Once rinsed, blot it dry with a towel. Do not wring it out (this distorts the shape). Lay it flat to dry.

The Post-Mortem Analysis: Look at your dried tag. It tells a story:

1. Fuzzy Edges: You didn't trim the linen close enough to the triple stitch. Solution: Sharpen your duckbills.
2. White Loops on Top: Bobbin tension was too loose (or top tension too tight).
3. Distorted Shape: The stabilizer slipped during stitching. Solution: Switch to magnetic hoops or tighten your hooping technique.


Quick Decision Tree: Stabilizer + Hooping Choice for FSL Gift Tags

FSL is intolerant of variables. Use this logic path to determine your setup:

1. Analyze the Design:
   • Is it 100% Lace? -> Use 2 layers Heavy WSS.
   • Is it Lace + Appliqué (Like this tag)? -> Use 2 layers Fibrous WSS.
2. Select the Hooping Method:
   • Do you have high volume (10+ items)? -> YES: Use hoop master embroidery hooping station or similar to guarantee alignment speed.
   • Do you struggle with hand strength/pain? -> YES: Upgrade to Magnetic Hoops immediately to bypass the screw-tightening friction.
   • Standard setup: Conventional hoop + T-pins around the perimeter to stop slip.

“My Janome Won’t Read the File” and Other Real-World Snags

File Format Frustration: A common panic moment: "I bought the design, but my machine is blank."

• The Reality: Machines represent a fragmented ecosystem. Janome uses JEF, Brother uses PES, ZSK uses DST.
• The Fix: Most professional downloads include DST (the industrial universal language). Check your manual. If your machine is strictly JEF, use free software (like embroidery tool readers) to convert DST to JEF.
• Hardware compatibility: When buying clear blue frames or janome 500e hoops, verify the connection bracket matches your specific model generation. A "Universe" hoop does not exist.

Lettering Clarity: Jeff uses "Python Script." For FSL tags, keep lettering bold and clean. Thin, wispy fonts will get lost in the texture of the linen.

Troubleshooting the Three Most Common FSL Gift Tag Problems

The Upgrade Path That Actually Makes Sense: When Tools Save Time

Embroidery is a journey from "Making it work" to "Making it profitable." Here is how to judge when you need to upgrade your gear.

Phase 1: The Struggle (Pain Point)

• Trigger: You dread hooping because it hurts your wrists, or you have "Hoop Burn" (shiny rings) on your fabric.
• Solution: Magnetic Hoops. They eliminate the friction of inner/outer rings and use vertical magnetic force. This is the single biggest quality-of-life upgrade for FSL.

Phase 2: The Bottleneck (Efficiency)

• Trigger: You have orders for 20 personalized tags. You spend more time changing threads and re-threading needles than actually sewing.
• Solution: Multi-Needle Machine. Moving to a platform like SEWTECH allows you to set up all colors at once. The tubular arm also allows you to hoop difficult items (like bags or small tags) that flat-bed machines can't handle.

Operation Checklist (The "No Surprises" Run Card):

1. [ ] Bobbin: Check spring installed (if metal case); tension passes "Drop Test."
2. [ ] Hooping: 2 Layers Fibrous WSS, passes "Tap Test" (Drum sound).
3. [ ] Stop 1: Run Placement line. Stop.
4. [ ] Action: Place linen. Smooth it out.
5. [ ] Stop 2: Run Cut Line (Triple Stitch). Stop.
6. [ ] Action: Trim with Duckbill scissors (Paddle down!). Do not cut stabilizer.
7. [ ] Stop 3: Run remaining design.
8. [ ] Finish: Trim halo, rinse warm until non-slimy, dry flat.

FAQ

• Q: Why does a freestanding lace (FSL) gift tag design turn into a pile of unraveled thread after washing out the water-soluble stabilizer?
  A: Use two layers of fibrous water-soluble stabilizer and hoop it drum-tight before stitching—most “falls apart in the wash” failures start at setup.
  • Switch to fibrous, fabric-like WSS (not thin plastic-film types) and use two layers cut at least 2 inches larger than the hoop on all sides.
  • Hoop carefully to prevent stabilizer sag or shift; avoid uneven gripping that can distort thin stabilizer.
  • Rinse in warm water until the “slime feel” is 100% gone so residue doesn’t dry crusty and stiff.
  • Success check: after rinsing, the lace feels like wet string (not wet gel) and holds its shape when laid flat.
  • If it still fails: re-check hooping tightness using the tap test and watch for stabilizer “bouncing” during the placement line.
• Q: How do I do the “tap test” to confirm two layers of fibrous wash-away stabilizer are hooped correctly for freestanding lace (FSL)?
  A: Flick the hooped stabilizer center and listen—FSL needs a high-pitched drum sound, not a dull rattle.
  • Hoop two layers of fibrous WSS with even tension across the entire window.
  • Flick (tap) the center with a finger immediately after hooping.
  • Re-hoop if the stabilizer sounds loose or looks wavy—do not “hope it will stitch out.”
  • Success check: a high-pitched “thump/ping” like a snare drum, with no visible sag.
  • If it still fails: consider upgrading hooping pressure (magnetic hooping often reduces slip and hoop distortion).
• Q: How do I prevent birdnesting on the back when stitching freestanding lace (FSL), especially during frequent stop-and-start sequences?
  A: Stop bobbin backlash by ensuring the anti-backlash (check) spring is installed in a metal bobbin case and then re-set bobbin tension with the drop test.
  • Inspect the metal bobbin case for the anti-backlash/check spring and install it if missing (it acts like a brake).
  • Perform the drop test: the case should not drop on its own; a single wrist jerk should drop it 1–2 inches and stop.
  • Tighten the screw if it drops too easily; loosen if it does not move on a wrist jerk.
  • Success check: no loose loops/knots forming on the back right after a stop-start segment.
  • If it still fails: clean lint from the bobbin area and confirm bobbin thread matches top thread color for easier visual diagnosis.
• Q: What needle, thread, and bench setup prevents shredding water-soluble stabilizer and fuzzy edges on freestanding lace (FSL) linen appliqué gift tags?
  A: Start with a fresh 75/11 Sharp (Microtex) needle, 40wt embroidery thread with matching bobbin color, and keep duckbill scissors ready—small prep misses cause big FSL failures.
  • Replace the needle before the run; avoid ballpoint needles for linen + stabilizer stacks.
  • Match bobbin thread color to top thread color so tension issues show clearly during inspection.
  • Stage tools: duckbill scissors for appliqué trimming, standard snips for thread tails, tweezers for safe fabric handling; optionally use a light mist of temporary spray adhesive if not using magnetic frames.
  • Success check: stitches look crisp with no stabilizer shredding, and the appliqué edge trims cleanly without pulling.
  • If it still fails: check for burrs/damage on the needle and verify the bobbin case area is clean of lint.
• Q: How do I trim linen appliqué inside the hoop for an FSL gift tag without cutting the water-soluble stabilizer underneath?
  A: Use duckbill appliqué scissors with the paddle blade down as a shield, and trim to within 1–2 mm of the triple-stitch cut line.
  • Stop after the triple-stitch (bean stitch) cut line completes; do not trim earlier.
  • Place the duckbill paddle against the stabilizer (paddle down) and keep the sharp blade on top cutting fabric only.
  • Glide along the triple-stitch ridge as a guardrail and trim close (about 1–2 mm).
  • Success check: the stabilizer remains uncut and the fabric edge sits cleanly just outside the triple stitch with minimal fuzz.
  • If it still fails: sharpen/replace duckbill scissors—dull blades force lifting and increase stabilizer damage risk.
• Q: What is the safest way to place linen appliqué near the needle area during an in-the-hoop freestanding lace (FSL) gift tag run?
  A: Keep hands out of the hoop area when the machine is powered/ready, and use long tweezers instead of fingers for any close positioning.
  • Power down or ensure the machine is not in “Ready” mode before reaching near the needle zone.
  • Use long tweezers to place/adjust linen rather than fingertips.
  • Position the linen after the placement line stop, then restart only when hands/tools are fully clear.
  • Success check: linen placement is accurate with no need to “chase” fabric while the needle bar can move.
  • If it still fails: slow the process down—rushing appliqué placement is a common cause of unsafe hand positioning.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops for freestanding lace (FSL) hooping?
  A: Treat magnetic hoops as pinch and electronics hazards—keep fingers clear during “snap,” and keep them away from pacemakers and sensitive devices.
  • Keep fingertips out of the closing path and let the hoop clamp shut in a controlled way to avoid severe pinches.
  • Keep magnetic hoops away from people with pacemakers.
  • Keep phones and credit cards at least 12 inches away from the magnets.
  • Success check: the hoop closes without finger contact and stabilizer stays flat without shifting.
  • If it still fails: switch to a slower, two-handed closing method and re-check that stabilizer layers are aligned before snapping shut.
• Q: When do freestanding lace (FSL) gift tag orders justify upgrading from manual hooping to magnetic hoops, and then to a multi-needle embroidery machine like SEWTECH?
  A: Upgrade in levels: fix technique first, move to magnetic hoops when hooping consistency/pain becomes the limiter, and consider a multi-needle machine when thread/file changes become the production bottleneck.
  • Level 1 (technique): standard hooping plus careful alignment and stabilizer tension checks; reduce speed to a safer starting point of 600–700 SPM until results are consistent.
  • Level 2 (tool): move to magnetic hoops when stabilizer slip, hoop burn, or wrist pain makes results inconsistent or hooping is dreaded.
  • Level 3 (capacity): move to a multi-needle platform when frequent color changes and personalization runs (many names) consume more time than stitching.
  • Success check: reject rate drops and each tag stitches with consistent border alignment and clean backs from start to finish.
  • If it still fails: standardize the process with a hooping station for repeatable tension/alignment and re-audit the run card steps (placement, cut line, trim, then final run).
