FSL Candy Cane Gift Tag & Earrings: The Stitch-Order Rules and Stabilizer Setup That Keep Lace From Falling Apart

Mastering Freestanding Lace: The Structural Guide to Candy Cane Tags & Earrings

Freestanding lace (FSL) is the "engineering exam" of the embroidery world. Unlike appliqué or monogramming, there is no fabric cushion to hide imperfections. If your structure fails, your product dissolves down the drain—literally.

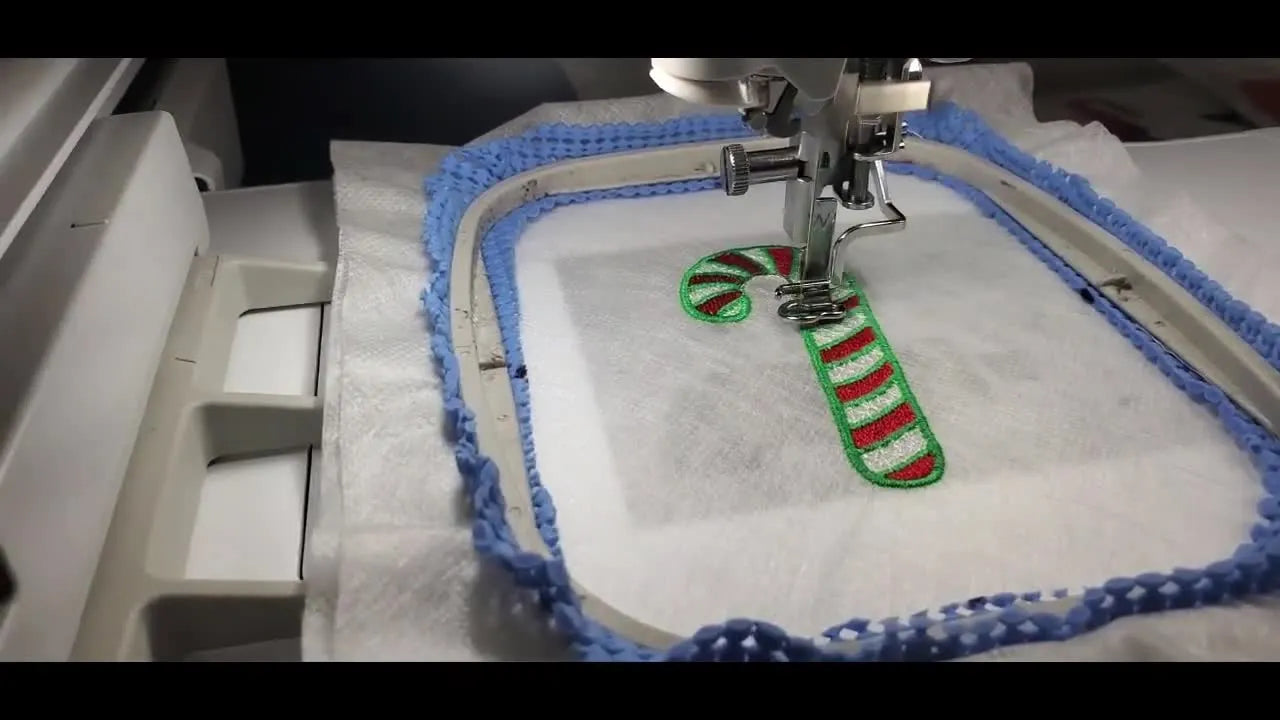

Regina’s project—a festive candy cane gift tag with matching earrings—is the perfect training ground. It forces you to master the two pillars of FSL: Stabilizer Architecture and Sequence Integrity.

If you have ever pulled a piece of lace out of the water only to have it curl like a potato chip or disintegrate at the hanging loop, this guide is your corrective manual.

The "Bridge Building" Mindset: Why FSL Fails

Think of FSL not as sewing, but as construction. You are building a bridge out of thread. Every satin column and underlay stitch must support its own weight.

In this project, the candy cane and earrings rely on a specific three-layer logic:

1. The Foundation: A white base fill that acts as the concrete slab.
2. The Decor: Red stripes that sit on top of the foundation.
3. The Girder: A green outline that travels the perimeter to lock the raw edges and prevent fraying.

The most common failure point for beginners is not the machine; it is the substrate. You must create a rigid surface using only stabilizer.

Preparation: Material Science & The "Double-Layer" Rule

Regina emphasizes one non-negotiable rule: Use two layers of water-soluble stabilizer (WSS).

Why two? A single layer of mesh WSS (like Vilene) or film (like Solvy) has a "grain" or stretch direction. Under the intense pull of thousands of satin stitches, a single layer will distort, turning your circle into an oval.

The "Cross-Hatch" Technique

When prepping your hoop, do usually stack your two layers 90 degrees to each other (cross-grain). This neutralizes the stretch and creates a plywood-effect for maximum stability.

The Consumables Kit:

• Stabilizer: 2 layers of fibrous water-soluble stabilizer (e.g., Pellon Wash-N-Gone). Avoid thin "topper" films for this; they are too weak.
• Needle: Size 75/11 Sharp. Ballpoints can push the lace apart; sharps pierce cleanly.
• Thread: 40wt Polyester. Rayon is beautiful but loses tensile strength when wet (during the rinsing process), which can cause breakage.
• Workstation: An embroidery hooping station is highly recommended here. FSL requires the stabilizer to be drum-tight, and trying to tighten a screw while holding slippery stabilizer is a recipe for hand fatigue.

Prep Checklist:

1. Two layers of WSS are cut 1 inch wider than the hoop on all sides.
2. Bobbin is fully wound (FSL consumes 3x more thread than standard embroidery).
3. Use the same thread in the bobbin as the top if you want the back to look identical to the front (common for earrings).

Warning: Keep fingers, snips, and seam rippers clear of the needle bar. FSL designs often have "long jumps" or rapid travel stitches that can catch a tool and pull your hand into the danger zone.

Hooping Physics: Eliminating the "FSL Sag"

Stitching directly on stabilizer is slippery. The number one cause of bulletproof lace becoming "wavy" is the stabilizer slipping inside the hoop frame during the stitch out.

The Problem with Traditional Hoops

Standard screw-tightened hoops rely on friction. Water-soluble stabilizer is slick. To get it tight enough, you often have to over-tighten the screw, which can strip the threads or hurt your wrists.

The Solution: Magnetic Force

This is the specific scenario where a magnetic embroidery hoop moves from a luxury to a production necessity.

• Trigger: If you notice your stabilizer "sagging" in the middle after the first 1,000 stitches.
• Mechanism: Magnetic hoops clamp the stabilizer vertically with even pressure around the entire perimeter. There is no "screw creep."
• Benefit: For FSL, this ensures the last stitch lands exactly where the first stitch started.

For home users, upgrading to a specific magnetic hoop for brother (or your specific machine brand) solves the slippage issue instantly.

Warning (Magnetic Safety): Magnetic hoops use industrial-strength magnets. They are strong enough to pinch fingers severely. Do not place them near pacemakers, hard drives, or credit cards. Slide them apart; do not try to pry them.

Machine Setup: The "Sweet Spot" Settings

Do not run this design at your machine's top speed.

• Speed: Cap your machine at 600 SPM (Stitches Per Minute). FSL relies on thread "dwell time." If you go too fast, the tension pulls the stabilizer, creating gaps.
• Tension: FSL usually requires slightly tighter top tension than standard embroidery to ensure the knots form clearly on the back.

The Sensory Check

When the machine starts the white base:

• Listen: You should hear a rhythmic thump-thump. A high-pitched slap indicates the stabilizer is loose (flagging).
• Look: The stabilizer should remain perfectly flat. If it starts to "dome" or "tunnel" up around the needle, stop immediately—your hooping is too loose.


Stitching the Body: Watching for "Drift"

Regina notes the three-color structure. As the white base stitches, watch the edges.

If you are thinking about hooping for embroidery machine mastery, FSL is your litmus test.

• Checkpoint A: After the white base finishes, check the alignment. Is it centered?
• Checkpoint B: When the red stripes begin, they must sit on top of the white. If they are sinking into the white, your density is too high or your stabilizer is too weak.


The Structural Perimeter: Why The Outline Matters

Regina demonstrates the green outline. Do not skip this, and do not make it lighter.

This outline is the "locking beam." It performs two functions:

1. Aesthetic: It cleans up the raw edges of the red and white fills.
2. Structural: It binds the X and Y axis threads together. Without this border, the edges of your candy cane would fray immediately upon rinsing.

If the satin border looks "jagged" or misses the edge of the white fill, it is rarely a digitizing error. It is almost always Hoop Drift caused by a single layer of stabilizer stretching.

Visual Inspection: The "Press Test"

Before you unhoop, perform a stress test.

1. Take the hoop off the machine but leave the stabilizer inside.
2. Gently press your finger into the center of the candy cane.
3. Success Metric: It should feel firm, like a patch of dried glue.
4. Failure Metric: If the stitches separate and you see gaps when you push, do not rinse it. It will fall apart. You likely need to increase your stabilizer layers next time.

If you plan to sell these or make 20 sets for a tree, this is the moment to verify your workflow. Standard machine embroidery hoops are fine for one-offs, but for batching, consistency is key.

The Software Danger Zone: The "Color Sort" Trap

Regina opens the software to show the full file (tag + earrings). She issues a critical engineering warning: Do not "Color Sort" or "Resort" this file.

The Logic Under the Hood

Modern software loves to optimize. It thinks: "Why stitch white, then red, then green... then white again? Let's do ALL heavy white first!"

In FSL, this is catastrophic. Layering provides the scaffolding for the next stitch.

• If you stitch the red stripes of the earrings before the white base of the earrings exists, the thread has nothing to grab. It will ball up in the bobbin case (Bird's Nest).
• Rule: Respect the digitizer's sequence. The "inefficiency" is actually structural support.


Safe Customization: The "Swap, Don't Move" Method

You can still change the look without destroying the structure.

1. Select, Don't Drag: Click the specific color block in your software (e.g., the Green Outline).
2. Assign New Thread: Change it to White to see a monochromatic look.
3. Check Sequence: Ensure the order in the list on the right side of the screen has not changed.

If you are using a brother 5x7 magnetic hoop or similar medium-sized frame, you can likely fit two sets of these designs in one hoop. Copy and paste the entire group, but do not merge the color blocks between the two groups.

Decision Tree: The FSL Workflow Selector

Use this logic flow to determine your setup before you cut a single piece of stabilizer.

Start: What is your production goal?

• Path A: Single Gift Tag (Hobby)
  • Stabilizer: 2 Layers WSS.
  • Hoop: Standard Hoop tightened securely.
  • Inspection: Watch the machine constantly.
• Path B: 10+ Sets for Holiday Sale (Production)
  • Stabilizer: 2 Layers WSS + temporary adhesive spray (light mist) to bond layers.
  • Hoop: Magnetic Frame (Crucial to prevent wrist strain and ensure 100% identical tension on every hoop).
  • Machine: If available, use a Multi-Needle machine to avoid 60 manual thread changes per hour.
• Path C: Modified Design (Custom)
  • Action: Modify colors in software.
  • Constraint: LOCK the stitch order prevents accidental resorting.


Troubleshooting Guide: Diagnosis & Repair

The Finishing Touches: Rinsing Protocol

Regina shows the final result: transparency. To get that crisp, professional look:

1. Trim: Cut away the excess WSS, leaving about 1/4 inch of stabilizer around the edge.
2. Soak: Use warm water (not hot).
3. The "Slimy" Stage: When you feel the lace is slightly slimy, STOP if you want stiff lace. The remaining stabilizer acts as starch.
4. Dry: Lay flat on a paper towel. Do not hang dry; gravity will stretch it.


Tools of the Trade: When to Upgrade

If you fall in love with FSL, your tools will define your enjoyment.

• Level 1 (Essential): Curved embroidery snips (to trim threads close to the lace without cutting the knot).
• Level 2 (Workflow): A magnetic hoop for brother, Babylock, or Janome. This eliminates the "hoop burn" marks on stabilizer and speeds up the "sandwiching" of the two layers.
• Level 3 (Scale): If you are selling these, upgrading to a SEWTECH Multi-Needle Machine allows you to set the White/Red/Green cones once and run 10 frames in a row without stopping to re-thread.


3-Phase Checklists for Success

Phase 1: Setup

• File: Loaded original file (No color sorting).
• Needle: Fresh 75/11 Sharp installed.
• Bobbin: Full bobbin, Polyester thread (matching color if possible).
• Stabilizer: 2 layers of WSS, cross-grained, loaded flat.
• Workspace: hoop area clear (FSL moves fast).

Phase 2: Operations

• Base Layer: Checked for flatness/no tunneling.
• Sound Check: Machine is running smoothly (rhythmic sound), speed <600 SPM.
• Jump Stitches: Trimmed manual jump threads between color changes if your machine doesn't auto-trim (prevents them from getting trapped under the next layer).

Phase 3: Post-Production

• Inspection: No gaps in perimeter satin stitches.
• Hardware: Jump ring holes are open and clear of thread obstruction.
• Rinse: Rinsed to desired stiffness (slight slime left for rigidity).
• Drying: Pinned flat to dry.


FAQ

• Q: For Freestanding Lace (FSL) candy cane tags and earrings, should a Brother embroidery machine use one layer or two layers of water-soluble stabilizer (WSS)?
  A: Use two layers of water-soluble stabilizer, stacked cross-grain, because one layer can stretch and distort under dense satin stitches.
  • Cut: Prepare 2 WSS pieces at least 1 inch larger than the hoop on all sides.
  • Stack: Rotate the second layer 90° (cross-hatch) before hooping.
  • Hoop: Tighten to drum-tight so the stabilizer cannot shift during stitching.
  • Success check: Circles and borders stay round/true during the first base fill, not drifting into ovals.
  • If it still fails: Switch from thin film “topper” to a stronger fibrous WSS and re-hoop tighter.
• Q: On a Brother embroidery machine stitching Freestanding Lace (FSL), how can embroidery hooping be checked to prevent stabilizer sag and wavy lace?
  A: Stop early and re-hoop as soon as stabilizer sag appears, because FSL will turn wavy if the stabilizer slips inside a friction hoop.
  • Watch: Inspect the stabilizer after the first ~1,000 stitches for any “middle sag.”
  • Listen: Slow down and listen for a rhythmic “thump-thump” rather than a high-pitched “slap” (flagging).
  • Look: Confirm the stabilizer stays flat—no doming/tunneling around the needle area.
  • Success check: The stabilizer remains perfectly flat and the stitch path stays aligned from start to finish.
  • If it still fails: Upgrade to a magnetic embroidery hoop to eliminate screw creep and uneven hoop pressure.
• Q: For Brother Freestanding Lace (FSL) designs, what is a safe stitching speed and what tension behavior should be monitored to avoid gaps?
  A: Cap speed around 600 SPM and monitor tension behavior closely, because running too fast can pull stabilizer and open gaps.
  • Set: Limit the machine to about 600 stitches per minute for better “dwell time.”
  • Adjust: Use slightly tighter top tension than standard embroidery so knots form clearly on the back.
  • Observe: Stop immediately if the stabilizer starts to dome or tunnel upward.
  • Success check: The white base stitches smoothly with no gaps and the stabilizer remains flat and quiet (no slapping).
  • If it still fails: Re-check hoop tightness first, then confirm the stabilizer is double-layered cross-grain.
• Q: When stitching a combined candy cane tag + earrings Freestanding Lace (FSL) file in Wilcom Hatch (or similar), why should “Color Sort/Resort” be avoided?
  A: Do not color sort/resort FSL files, because changing stitch sequence removes the scaffolding and can cause bird’s nests and structural failure.
  • Keep: Stitch the file in the digitizer’s original order (base first, then decorative layers, then outline).
  • Verify: Check the color/object list to confirm the order did not change after editing.
  • Customize: Swap thread colors by reassigning a block, but do not drag blocks to new positions.
  • Success check: The red stripes sit on top of the white base (not sinking in), and stitching does not “ball up” underneath.
  • If it still fails: Re-load the original file and stitch a test before any further edits.
• Q: On a Brother embroidery machine, what causes “bird’s nest” thread balls under Freestanding Lace (FSL) earrings and how should the issue be fixed?
  A: Bird’s nests in FSL usually happen when stitching starts “into thin air” due to incorrect sequence (often from color sorting), so restore the original stitch order.
  • Confirm: Check whether the file was color sorted/resorted in software.
  • Revert: Use the original file so the white base layer stitches before the decorative stripes.
  • Monitor: Watch the first base section to ensure the thread is building a solid foundation.
  • Success check: The underside shows clean, consistent formation instead of a rapidly growing thread ball.
  • If it still fails: Stop and clean out the nest immediately, then restart after confirming the base layer is first.
• Q: For Brother Freestanding Lace (FSL) candy cane tags, why does the satin outline look jagged or miss the fill edge, and what fixes hoop drift?
  A: Jagged/misaligned outlines are usually hoop drift from stabilizer stretch or slip, so strengthen and stabilize the hooping setup.
  • Upgrade: Use two WSS layers cross-grain to reduce stretch direction.
  • Tighten: Hoop drum-tight; avoid allowing slick stabilizer to creep during long stitch runs.
  • Consider: Use a magnetic embroidery hoop to clamp evenly and prevent mid-design shifting.
  • Success check: The perimeter outline lands consistently on the fill edge all the way around, with no “walking off.”
  • If it still fails: Slow down to about 600 SPM and re-run after re-hooping (do not assume it is a digitizing error first).
• Q: What needle and thread setup is recommended for Brother Freestanding Lace (FSL) earrings to reduce breakage during rinsing?
  A: Use a fresh size 75/11 Sharp needle and 40wt polyester thread, because sharps pierce cleanly and polyester holds strength better during wet finishing.
  • Install: Replace with a 75/11 Sharp (avoid ballpoints that can push lace apart).
  • Choose: Stitch with 40wt polyester; consider matching bobbin thread to top thread for identical front/back on earrings.
  • Prep: Start with a fully wound bobbin since FSL consumes much more thread than standard embroidery.
  • Success check: Stitching forms a firm “glue-like” feel before unhooping and shows consistent coverage without weak, separating areas.
  • If it still fails: Re-check stabilizer strength (use fibrous WSS, not thin topper film) and reduce speed.
• Q: What safety rules should Brother embroidery machine operators follow when stitching Freestanding Lace (FSL) and when handling magnetic embroidery hoops?
  A: Keep hands/tools clear during long jumps and handle magnetic hoops by sliding (not prying) to prevent needle injuries and severe finger pinches.
  • Clear: Keep fingers, snips, and seam rippers away from the needle bar—FSL can make fast travel stitches that snag tools.
  • Pause: Stop the machine before trimming jump stitches or reaching near the needle area.
  • Handle: Slide magnetic hoop parts apart; do not pry them open to avoid pinch injuries.
  • Success check: No tools enter the stitch field during operation, and magnetic parts separate smoothly without sudden snapping.
  • If it still fails: If handling feels unsafe or uncontrolled, switch back to a standard hoop for that job and revisit magnetic hoop technique later.
