FSL Awareness Ribbon Earrings That Look Perfect on Both Sides: Stitch Order, Stabilizer, and the Bobbin Trick Most People Skip

If you’ve ever made free-standing lace (FSL) earrings and thought, “The front is cute… but the back is a disaster,” you are not alone. FSL is the most unforgiving technique in machine embroidery because there is no fabric to hide your crimes. Every jump stitch, every tension wobble, and—crucially—every poor bobbin choice is visible from both sides.

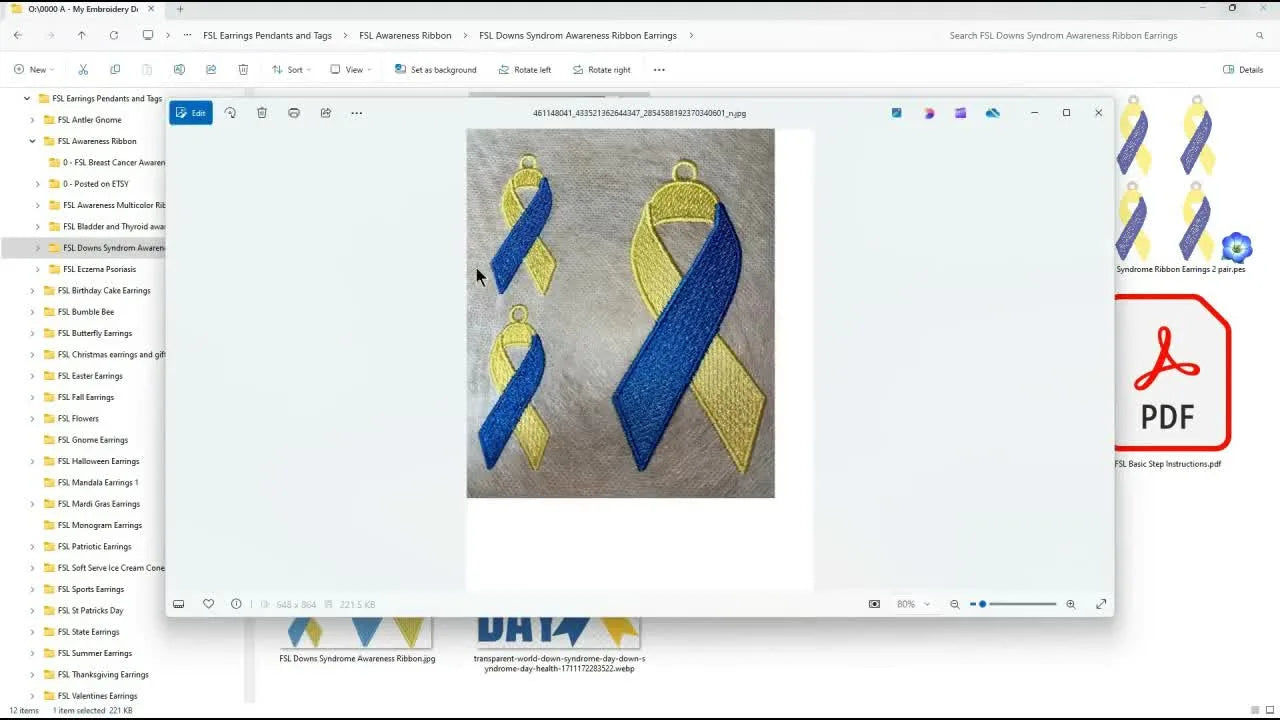

In this guide, we break down Regina’s Down Syndrome Awareness ribbon set. While the design is beginner-friendly, the process requires a shift in mindset from "sewing on cloth" to "manufacturing structure with thread."

Below is the exact engineering logic behind the stitch, the sensory checks you must perform, and the specific tool upgrades that take you from "homemade craft" to "professional boutique quality."

Calm the Panic: Why FSL Looks “Wrong” Until the Last Second

If you are new to FSL, you need to prepare for the "Ugly Duckling" phase. During the first 70% of the stitch-out, your project will look thin, webby, and perhaps even distorted.

Do not panic. FSL relies on the interaction between the water-soluble stabilizer (WSS) and high-density stitching. Until the stabilizer is washed away, the tension will feel stiff and the gaps will look too large.

The Sensory Check:

• Visual: The stitches should sit on top of the stabilizer, not tunnel into it.
• Auditory: FSL puts a heavy load on the needle bar. You might hear a rhythmic logical "thud-thud-thud." However, if you hear a sharp, metallic "clack," stop immediately—your needle is deflecting and hitting the throat plate.

Speed Recommendation: Expert users might run FSL at 800+ stitches per minute (SPM), but for beginners, this is a recipe for bullet-proof (stiff) lace or broken needles.

• Beginner Sweet Spot: 400 to 600 SPM.
• Why? Slower speeds reduce the friction heat that can prematurely melt the stabilizer and cause the lace to detach mid-print.


The Strategic Choice: One-Pair vs. Production Batching

Regina’s file set includes multiple layouts: single tags, one-pair earrings, and two-pair batches.

The Trap: New users often jump straight to the "two-pair" file to save time. This is a gamble. FSL is high-risk; if your thread shreds or your bobbin runs out on the 3rd earring, you ruin the entire hoop.

The Strategy:

1. Run the One-Pair File first: This is your "Calibration Run." Dial in your tension here.
2. Upgrade to Batching only when: You have confirmed your thread choice doesn't shred and your stabilizer hooping is rock solid.

If you are stitching for Etsy or a craft fair, batching is essential for profit margins. However, batching four ribbons at once puts immense stress on the stabilizer. If you notice the stabilizer sagging in the middle of a large hoop, your registration will drift, and the final outlines won't match.

The Foundation: Why Hooping is 80% of the Battle

In standard embroidery, fabric helps hold the stabilizer. In FSL, the stabilizer is the fabric. If it slips 1mm, your earrings are ruined.

Most beginners fail here because they treat WSS like cotton. WSS is slippery and stretches.

The "Drum Skin" Test: When hooped, tap the center of the stabilizer. It should sound like a tight drum. If you push on it and it leaves a dimple (plastic deformation), it is too loose.

The Tooling Gap: This is where standard plastic hoops often fail—they require significant hand strength to tighten the screw enough to hold slippery WSS without popping it out. If you find yourself constantly re-hooping or using pins to secure the stabilizer, your workflow is fighting you.

Many professionals solve this by using a dedicated hooping station for embroidery. This ensures that every layer is tensioned equally before you even lock the hoop, providing the mechanical consistency required for batch production.

The Simulation: predicting the "Stress Points"

Regina runs the simulation to verify the pathing. Watch closely for the travel stitches. In FSL, travel stitches run underneath the dense satin columns to provide a skeleton.

What to look for:

• Underlay: Does the simulation show a grid before the satin stitch? This is vital. If your design lacks underlay, the satin stitch will pull the stabilizer apart.
• Jump Stitches: Note where the long jumps occur. You will need to trim these manually.

Sequence Logic:

1. Loops (Hardware connection)
2. Yellow Ribbon (Base structure)
3. Blue Ribbon (Overlay structure)

This sequence allows the base to stabilize the hoop before the detail work (blue) is added.

The "Blank Canvas" prep: Two Layers or Failure

You are looking at a blank screen, but physical preparation is key.

The Industry Standard for FSL:

• Stabilizer: Heavy-weight Water Soluble (fibrous type, like Vilene) is preferred over the clear film type (Badgemaster) for the base.
• Layers: Always use TWO layers. One layer will perforate around the needle penetration points, causing the design to fall out of the hoop. Two layers with grain directions crossed (if applicable) provide the necessary multidirectional strength.

If you are new to the mechanics of hooping for embroidery machine setups, ensure that your inner and outer rings are perfectly flush. Any "lip" or unevenness allows the stabilizer to creep inward as the stitches pull tight.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Stabilizer: 2 layers of Fibrous Water Soluble Stabilizer (WSS). NOT Tear-away.
• Needle: New Size 75/11 Sharp or Embroidery needle. (Ballpoint needles can push WSS aside rather than piercing it).
• Bobbin: Empty bobbins ready to be wound with Top Thread colors.
• Throat Plate: Cleaned of fuzz (FSL generates a lot of lint).
• Hoop Screw: Tightened with a screwdriver (finger tight is rarely enough for FSL).


The Density Reality: Managing "Pull Compensation"

As the yellow section stitches, it looks incredibly dense. This is intentional. The thread pull will naturally shrink the design.

The Tension Factor: If your tension is too tight (standard setting), the earrings will curl up like a dried leaf once washed.

• Top Tension: Lower it slightly (e.g., from 4.0 to 3.0 or 3.5).
• Test: Pull the top thread through the needle eye. It should feel like pulling dental floss through teeth—smooth resistance, not a struggle.

The Hooping Burn Issue: Because you have to tighten the hoop so much for FSL, users with standard hoops often suffer from hand fatigue or "hoop burn" (permanent creases) on mixed-media projects.

This physical pain point is often the trigger for upgrading to magnetic embroidery hoops. These tools use magnetic force to clamp the stabilizer instantly and evenly across the entire frame, eliminating the need to wrestle with thumbscrews. For FSL, this even clamping prevents the "hourglass" distortion where the center of the hoop pulls in tighter than the edges.

The Bobbin Critical Path: The "Same-Same" Rule

Here is where the simulation meets reality. In standard embroidery, we use white bobbin thread (60wt) because it is thin and invisible.

For FSL Earrings, white bobbin thread is ruinous. When the earring flips over (and it will), a white back looks unfinished and cheap.

The Golden Rule: You must wind a matching bobbin for every single color change.

• Yellow Top Thread = Yellow Bobbin.
• Blue Top Thread = Blue Bobbin.

Troubleshooting Tension on Matching Bobbins: Standard embroidery thread (40wt) is thicker than bobbin thread (60wt). Putting 40wt thread in the bobbin case creates more tension.

• The Fix: You may need to bypass the bobbin tension spring slightly or loosen the bobbin case screw (if you are comfortable doing so) by a quarter turn.

Warning (Mechanical Safety): When changing bobbins frequently, ensure your machine is in "Lockout" mode or powered off. Dropping a screw or needle into the bobbin hook area while the machine is live can cause catastrophic timing failure.

Production Scale: Staging for Success

Regina moves to the combo file (Earrings + Pendant). This layout requires 6 color changes.

The Production Flow: If you are running a single-needle machine, this means 6 manual stops. To maintain your sanity:

1. Pre-wind all 3 bobbins.
2. Line them up next to the machine in stitching order (Silver -> Yellow -> Blue).
3. Visual Cue: Use a dry-erase marker on your machine table to tick off steps.

If you find yourself spending more time changing thread than stitching, you have hit the ceiling of single-needle efficiency. This isn't a failure of skill; it's a limitation of hardware.

While a magnetic frame for embroidery machine speeds up the loading process, the color changes remain a bottleneck. This is the natural pivot point where hobbyists start looking at multi-needle machines (like SEWTECH efficient models) which hold all 6 colors and auto-swap them without stopping.

The Finish Line: Do Not Touch It Yet

At the end of the blue pass, the machine stops.

Common Mistake: Ripping the lace out of the hoop immediately. Correct Action: Inspect the back while hooped.

Lift the hoop and look underneath. Are there loops? Is the bobbin thread showing on top?

• If yes: You can carefully trim threads now while the stabilizer creates tension. Once you unhoop, the lace is floppy and dangerous to trim (you might snip a knot).

Trimming Protocol: Use curved microsnips. Cut the jump threads close, but leave 1-2mm tails if you are nervous—the water dissolve process often hides small tails, but a cut knot is fatal.

Data Interrogation: 11,281 Stitches in 22 Minutes

Regina’s "Design Properties" window is your flight plan.

• Stitches: ~11k. This is high for such a small area. Expect lint buildup.
• Time: 22 mins per hoop.

The Profit Calculation: If you sell these for $15, and they take 22 mins stitch time + 10 mins hoop/thread change time + 30 mins wash/dry time... are you making money? Efficiency relies on minimizing the "downtime" (hooping and thread changes).

The "6 Color Changes" Reality Check

Six stops on a single needle machine is a lot of handling. Every time you touch the hoop to change the bobbin, you risk shifting the magnet or loosening the screw.

Setup Checklist: The Bobbin Audit

• Bobbin 1 (Loop Color): Matches hardware (Silver/Gold).
• Bobbin 2 (Yellow): 40wt Rayon/Poly.
• Bobbin 3 (Blue): 40wt Rayon/Poly.
• Tension Check: Pull test on bobbin case with 40wt thread. If it lifts the bobbin case off the table too easily, it might be too tight. It should lift, then drop slightly as you jiggle it.


The Loop Trick: Hardware Compatibility

Regina uses a separate color stop for the loop. This is brilliant digitizing.

• Silver Hooks: Stitch the loop in Silver Metallic or Grey.
• Gold Hooks: Stitch in Gold Metallic or Yellow-Gold.

Texture Tip: Metallic thread creates a beautiful rigid loop, but it is prone to shredding.

• Adjustment: If using metallic thread for the loop, slow the machine down to 400 SPM and insert a Topstitch 90/14 needle which has a larger eye to reduce friction.


File Selection: The "Safe" Path

Regina provides multiple zipped files.

• Beginner: One Pair. Low risk.
• Pro: Combo or Two Pair. High efficiency.

If you attempt the Two Pair file and find that the earrings on the right side of the hoop are perfect, but the left side is outlined poorly, your issue is Hoop Stability. Standard plastic hoops grip the corners but often bulge in the straight sides.

This mechanical flaw is often solved by embroidery machine hoops of the magnetic variety. Because the magnets provide continuous clamping force along the entire perimeter, the stabilizer is held equally tight at the edge and the center, fixing the registration drift in large batch files.

The Final Protocol: Stabilizer & Bobbin Logic

Regina reinforces the core pillars of FSL success.

Decision Tree: FSL Materials Strategy

Follow this logic path to ensure structural integrity:

1. Is there fabric involved?
   • YES: Use regular Tear-away or Cut-away.
   • NO (100% Thread): Go to Step 2.
2. Select Stabilizer:
   • Primary: 2 Layers of Fibrous Water Soluble (Vilene type).
   • Emergency: 1 Layer Fibrous + 1 Layer Film (Solvy) can work, but 2 Fibrous is safer.
3. Select Bobbin:
   • Visible Back? Use Matching Top Thread (40wt).
   • One-sided use (e.g. applique)? Use White Bobbin Thread (60wt).

Warning (Magnet Safety): If upgrading to magnetic hoops, be aware they use Neodymium magnets. They are incredibly strong. Keep fingers clear of the snapping zone to avoid blood blisters, and keep them at least 6 inches away from pacemakers or computerized machine screens.

The Release: Finishing for Professional Results

The photo shows the earrings wet and drying. This is the "blocking" phase. Wet lace is moldable. Dry lace is permanent.

The Drying Process:

1. Rinse with warm water.
2. Texture Control:
   • Stiff Earrings: Rinse for 30 seconds (leaves dissolved stabilizer in the thread to act as starch).
   • Soft Lace: Soak for 15 minutes (removes all stiffness).
3. Blot: Press between paper towels. Do not wring.
4. Pin to Shape: Pin the loops to a corkboard or drying mat to ensure they dry perfectly round.

Operation Checklist: The Finish

• Trimming: Jump stitches cut flush via curved snips.
• Rinse: Rinse duration timed for desired stiffness.
• Shape: Loops pinned round; ribbons flattened.
• Hardware: Jump rings added only after fully dry.

Embroidery is a mix of art and engineering. While the design provides the art, your management of tension, stabilization, and hooping provides the engineering. For efficient, pain-free production—especially in batch files—consider how tools like embroidery hoops magnetic designs can remove the variables of hand-tightening, allowing you to trust the process and scale up your output.

FAQ

• Q: What stitch speed should a beginner use for free-standing lace (FSL) earrings on a single-needle embroidery machine to avoid broken needles and “bullet-proof” lace?
  A: Use 400–600 stitches per minute (SPM) as a safe beginner range for FSL earrings.
  • Reduce speed before starting dense satin areas, especially if using metallic thread.
  • Stop immediately if a sharp metallic “clack” happens (needle deflection can hit the throat plate).
  • Success check: You should hear a steady, rhythmic “thud-thud,” not a sharp “clack,” and the lace should not look overheated or distorted mid-stitch.
  • If it still fails… Change to a new 75/11 sharp/embroidery needle and re-check stabilizer tightness before increasing speed.
• Q: How do I hoop water-soluble stabilizer correctly for free-standing lace (FSL) earrings so the design does not shift or distort in the hoop?
  A: Hoop two layers of heavy fibrous water-soluble stabilizer “drum tight,” because stabilizer is the fabric in FSL.
  • Cross the two layers (when applicable) to add multidirectional strength.
  • Tighten the hoop screw with a screwdriver (finger-tight is often not enough for slippery WSS).
  • Success check: Tap the center—WSS should sound like a tight drum and should not leave a dimple when pressed.
  • If it still fails… Switch from large batch layouts to a one-pair “calibration run” until hoop stability is consistent.
• Q: What stabilizer and needle setup prevents free-standing lace (FSL) earrings from perforating and falling out of the hoop during stitching?
  A: Use two layers of fibrous water-soluble stabilizer and a new 75/11 sharp or embroidery needle for reliable structure.
  • Avoid tear-away stabilizer for 100% thread lace (it will not support dense stitching correctly).
  • Clean the throat plate area first because FSL generates heavy lint.
  • Success check: Stitches should sit on top of the stabilizer (not tunneling in), and the stabilizer should stay intact around needle penetrations.
  • If it still fails… Re-hoop tighter and confirm the inner/outer hoop rings are perfectly flush with no uneven “lip.”
• Q: Why does free-standing lace (FSL) earring backing look messy when using white 60wt bobbin thread, and what bobbin thread should be used instead?
  A: For FSL earrings, wind matching bobbins with the same top-thread colors (typically 40wt) for every color change so the back looks finished.
  • Wind a yellow bobbin for yellow top thread and a blue bobbin for blue top thread (repeat for each color).
  • Expect thicker 40wt in the bobbin to increase bobbin-case tension; adjust cautiously only if you are comfortable.
  • Success check: When the piece is flipped, the back color matches the front and does not look “white” or unfinished.
  • If it still fails… Inspect the underside while still hooped for loops or imbalance and correct tension before unhooping.
• Q: What safety steps should be followed when changing bobbins frequently during free-standing lace (FSL) earrings to avoid bobbin-hook damage and timing failure?
  A: Power off the embroidery machine (or use lockout mode) before bobbin-case work to prevent catastrophic hook-area accidents.
  • Remove and reinstall the bobbin case slowly and deliberately; keep screws and needles away from the hook area.
  • Do not adjust bobbin-case screws unless you can return to the original position.
  • Success check: The machine resumes stitching without unusual noise, and the hook area stays free of dropped parts.
  • If it still fails… Stop and inspect the bobbin-hook area for obstruction before continuing any stitch-out.
• Q: What magnetic hoop safety precautions are required when using neodymium magnetic embroidery hoops for free-standing lace (FSL) hooping?
  A: Keep fingers clear of the snap zone and keep neodymium magnetic hoops at least 6 inches away from pacemakers and sensitive electronics.
  • Lower the magnetic top piece in a controlled way—do not let it slam onto the frame.
  • Plan hand placement before clamping to avoid pinched skin or blood blisters.
  • Success check: The hoop clamps evenly without sudden snapping, and stabilizer tension stays consistent across the whole frame.
  • If it still fails… Use a slower, staged clamping method and confirm the stabilizer is flat before magnets engage.
• Q: When free-standing lace (FSL) batch files show poor outlines or registration drift on one side of the hoop, how should hoop stability be diagnosed and upgraded?
  A: Treat one-sided outline mismatch as a hoop stability problem first, then upgrade tools only if technique cannot hold tension consistently.
  • Start with Level 1: Run the one-pair file as a calibration run and re-hoop until WSS stays drum-tight with no center sag.
  • Move to Level 2: Use a magnetic hoop/frame if standard plastic hoops bulge on straight sides or require excessive tightening to grip slippery WSS.
  • Consider Level 3: If single-needle downtime from frequent color changes dominates production, evaluate a multi-needle machine for efficiency (hardware limitation, not user failure).
  • Success check: Outlines align evenly across the entire hoop, not just on one side, and the stabilizer does not sag mid-stitch.
  • If it still fails… Reduce batch size and confirm travel/jump stitch trimming is not pulling the piece off-register during handling.
