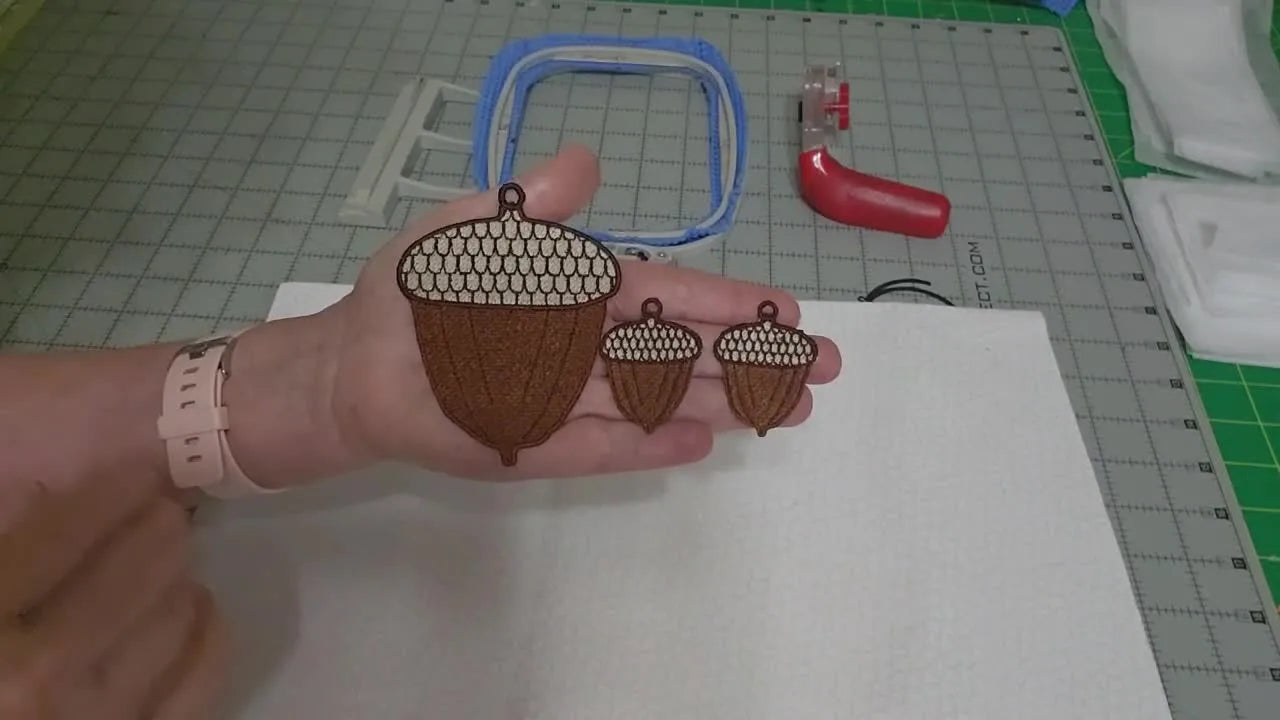

FSL Acorn Earrings on a 4x4 Hoop: The Trim-or-Regret Routine That Makes Freestanding Lace Look Expensive

The Definitive Guide to Freestanding Lace (FSL): From "Spiderweb" Mess to Boutique Jewelry

Freestanding lace (FSL) is the "final boss" for many embroidery enthusiasts. Unlike stitching on denim or cotton, FSL offers no fabric safety net. If your stabilization fails, you don't just get a pucker—you get a structural collapse that looks more like a fuzzy spiderweb than a boutique earring.

But here is the industry secret: FSL is not about luck; it is about physics. It relies on high stitch density to build its own fabric. Once you understand the specific parameters for tension, stabilization, and machine speed, FSL becomes one of the most consistent and profitable items you can produce.

In this white paper, we will dissect Regina’s project—stitching acorn earrings and a pendant—reconstructing her workflow into a repeatable industrial standard. We will cover the "Sweet Spot" settings your manual won't tell you, the sensory checks to prevent failure, and the upgrade paths that turn a hobby into a production line.

1. The Pre-Flight Ritual: Configuring for Structural Integrity

Before you even touch the hoop, we must calibrate the machine for "air stitching." FSL puts unique stress on your thread path because the needle penetrates stabilizer, not fabric.

The "Sweet Spot" Machine Parameters

• Speed (SPM): Do not run FSL at 1000 SPM. The vibration can cause layer shifting.
  • Beginner Safe Zone: 400–600 SPM.
  • Expert Zone: 700-800 SPM (only with a stabilized table).
• Needle Choice: Regina uses a 75/11.
  • Why: A 90/14 leaves holes too large in the water-soluble stabilizer (WSS), weakening the structure. A 65/9 is often too thin for the high density. The 75/11 is the perfect middle ground.
• Bobbin: Matching thread.
  • Crucial Check: You cannot use standard white bobbin thread (60wt) if you want the back to match the front. You must wind a bobbin with the same 40wt rayon or polyester used on top.
  • Tension Note: Because your bobbin thread is now thicker (40wt vs 60wt), you may need to loosen your bobbin case tension screw slightly (think 5 minutes on a clock face) to get a balanced stitch.

Regina’s screen shows a 14-minute run time for the small earring. This is your first production metric. If you are planning to sell these, calculate: 14 mins x 2 earrings + 5 mins changeover = 33 mins/pair. Use this baseline to decide if your current single-needle setup is viable for volume.

2. The Foundation: Stabilization Physics and Hooping

There is only one rule in FSL: The Stabilizer IS the Fabric.

Regina uses two layers of wash-away stabilizer. This is the industry non-negotiable standard. One layer will perforate and rip under the satin borders; two layers provide the cross-directional strength needed.

The Sensory Hooping Check (The Drum Test)

Regina mentions using a shelf liner to help grip. This implies she is fighting hoop slippage. Here is how to ensure your hoop is ready:

1. Sandwich: Place two layers of fibrous or heavy film water-soluble stabilizer in the hoop.
2. Tighten: Tighten the screw finger-tight.
3. The Tactile Check: Push your finger into the center of the hoop. It should yield less than 2mm.
4. The Auditory Check: Tap the stabilizer with your fingernail. It should sound like a tight drum skin (thump-thump), not a loose paper bag (flap-flap).

If you struggle to get this tension without hurting your wrists—or if you notice "hoop burn" marks on your fingers from wrestling the screw—this is a biomechanical warning. Many professionals invest in a machine embroidery hooping station not just for alignment, but to provide the leverage needed to lock hoops tight without physical strain.

Prep Checklist: The "Zero-Fail" Start

• Needle: Brand new 75/11 installed? (Burrs ruin FSL instantly).
• Bobbin: Wound with matching color?
• Bobbin Case: Lint cleared? (FSL creates more lint/dust than fabric).
• Stabilizer: 2 Layers WSS, drum-tight tension confirmed.
• Thread: Colors staged in order (Rust, Tan, Chocolate, Light Brown).


3. The Anchor Stitch: Verifying Stability Before Density

As the machine begins specifically with the outline or basting box, you are watching for movement.

The Visual Check: Watch the gap between the needle foot and the stabilizer. If the stabilizer "bounces" or dramatically lifts up and down with the needle (flagging), your hoop is too loose. Choose to stop now. A loose hoop in minute 1 means a distorted shape in minute 14.

4. Contrast Engineering: Why Colors Merge in Thread

Embroidery is 3D printing with thread. When you layer stitches (like the acorn cap over the base), colors blend visually.

Regina notes the "background fill" starts in the middle and pushes out. This technique, called underlay generation, prevents the lace from curling. However, it also builds bulk.

The "Squint Test" for Contrast: Step back 3 feet from your thread spools and squint. If the reddish-brown (acorn body) and tan (cap base) look similar, they will merge into a muddy blob when stitched. You need high contrast for FSL because you don't have the clean white space of fabric to separate elements.

If you are running production and need to ensure every acorn looks identical, using a tool like a hoop master embroidery hooping station ensures that if you do have to re-hoop or swap frames, your orientation remains perfectly consistent, reducing the chance of user error affecting the design angles.

5. The Base Layer: Edge Integrity

As the reddish-brown satin border stitches, observe the edges.

• Good: The needle penetrates cleanly; the stabilizer stays flat.
• Bad: The stabilizer creates a "sawtooth" jagged edge. This means your needle is dull or your speed is too high.


6. The Contrast Decision: Overcoming the "Invisible Thread" Effect

Regina makes a critical pivot here: switching to Dark Chocolate for the detail lines. The screen might suggest a lighter color, but raw experience dictates that thread absorbs light. A dark brown thread on a medium brown base creates a shadow effect that simulates high-end texture.

7. The "Surgeon's Moment": The Art of the Trim

Regina pauses to trim jump threads that were about to be buried. This is the single biggest difference between amateur and pro FSL.

The Physics of the Trap: FSL has holes. If a jump thread falls across a "negative space" (a hole in the lace) and you stitch the next layer, that thread is locked forever. You cannot cut it later without cutting the structural lace.

The Tool: You need "Squeezers" or double-curved scissors. You are looking for:

1. Micro-Tip: To slide under a thread without poking the stabilizer.
2. Curved Blade: To cut flush against the lace surface.

Warning: Mechanical Safety
Never put your fingers inside the hoop while the machine is live. Always hit STOP and wait for the green light to turn red. A 600 SPM needle moves faster than your human reaction time.

8. Workflow Economics: The Hidden Cost of Single-Needle Machines

Notice the frequent stops in the video. Outline -> Stop -> Change Thread -> Base -> Stop -> Change Thread -> Trim -> Lines...

For a hobbyist, this is meditative. For a business, this is friction. Every thread change takes approximately 45-60 seconds (cut, unthread, rethread, pull through).

• 4 changes x 1 minute = 4 minutes of "dead air" per earring.
• That is nearly 25% of the total production time spent not stitching.

This is the strategic trigger point. If you find yourself dreading the "thread change beep," you have likely outgrown your equipment. Moving to a multi-needle machine (like a SEWTECH 10 or 15-needle model) automates this entirely, reclaiming those lost minutes.

Furthermore, on multi-needle machines, you don't fight the hoop screw as much. However, for those staying on single-needle or flatbed machines, upgrading to a magnetic embroidery hoop can save your hands. These hoops use powerful magnets to clamp the stabilizer instantly—no screws, no wrist torque, just a "snap" and you are drum-tight.

9. Thread Path Hygiene: The Horizontal Spool

Regina changes thread on the horizontal pin.

• Concept: Horizontal pins allow the thread to unwind off the end of the spool (better for cross-wound spools). Vertical pins allow the spool to spin (better for stacked-wound spools).
• Check: Ensure you use a spool cap slightly larger than the spool diameter to prevent the thread from snagging on the plastic rim. Snags = snapped needles.


10. The Tactical Hold: Preventing "Bird Nests"

Regina holds the text tail as the next color starts. Why: The bobbin detects slack. If the top thread is loose at the start, the hook pulls a massive wad of thread to the underside (a bird's nest). Action: Hold the tail with light tension (like flossing teeth) for the first 3-5 stitches, then snip it.

11. Texture Validation: The Scallop Layer

The lighter brown scallops are stitched. Troubleshooting Texture: If your scallops look flat, your top tension is too high (pulling the thread too thin) or your stabilizer has loosened, causing the stitches to sink.

12. The Critical Zone: The Hardware Loop

Regina stitches the attachment loop. This is the structural weak point.

The "Do Not Cut" Rule: Embroidered loops have a "tie-in" and "tie-off" knot (a cluster of micro-stitches).

• The Risk: If you trim the thread tail too close and accidentally snip the knot, the loop will unravel when you attach the metal jump ring later.
• The Fix: Leave a 1-2mm tail on the back of the loop knots. Glue logic involves dabbing a micro-dot of Fray Check seam sealant on the knot after washing away the stabilizer, but leaving a tiny tail is safer.

Warning: Magnetic Field Safety
If you decide to upgrade your workflow with high-end tools, be aware that industrial grade embroidery hoops magnetic systems are incredibly powerful. They can pinch fingers severely and must be kept away from pacemakers and magnetic media (credit cards/hard drives). Treat them with the same respect you treat a rotary cutter.

13. Finishing: The Wash-Away Process

Regina trims the final tails. The post-processing is simple but requires patience.

1. Trim: Cut away excess stabilizer (leave 1/4 inch).
2. Soak: Warm water creates a "jelly" phase.
   • Tip: Do not wash all the stabilizer out. Leaving a slight residue keeps the earring stiff (like starched laundry).
3. Dry: Dry on a flat surface. If it curls, press with a warm iron and a pressing cloth.


14. Scaling Logic: From Earrings to Ornaments

The pendant runs for 18 minutes. Production Tip: If using a hooping for embroidery machine setup efficiently, you would likely hoop a larger frame (e.g., 5x7 or 8x12) and gang multiple designs in one file (e.g., 4 earrings and 1 pendant in one hoop). This reduces your stabilizer waste and hooping time significantly.

15. The Final Inspection: Quality Control Metrics

Hold the finished piece up to the light.

• Pass: Uniform density, no "light leak" holes in the solid areas, crisp edges.
• Fail: "Hairy" edges (stabilizer didn't support the satin), loop feels soft/weak.


16. The Stabilizer Decision Tree: Why Regina Chose Two Layers

Use this logic flow to determine your own stabilizer needs for future FSL projects.

• Step 1: Is the design purely thread-based (FSL)?
  • Yes: Proceed to Step 2.
  • No (Appliqué/Fabric): Stop. Use Cutaway or Tearaway.
• Step 2: Is your Water Soluble Stabilizer (WSS) a thin film (like sandwich wrap) or fibrous (like fabric)?
  • Thin Film: Use 3-4 layers. (Not recommended for dense lace).
  • Fibrous: Proceed to Step 3.
• Step 3: Is it a "Badge" style (dense fill) or "Doily" style (open airy lines)?
  • Dense Badge (Like this Acorn): 2 Layers Required.
  • Airy Doily: 1 Layer might work, but 2 is safer.
• Step 4: Do you have a Magnetic Hoop?
  • Yes: You can use heavy film WSS easily as the magnets grip slick surfaces well.
  • No: Use fibrous WSS in standard hoops; it slips less than film.

Troubleshooting Logic: The "Why Did It Fail?" Matrix

Conclusion: When to Upgrade Your Toolbox

Regina’s video proves that beautiful FSL is possible on a standard 4x4 machine. However, as you master the technique, your tools will eventually become the limiting factor.

1. The "Slipping" Pain: If you waste money on ruined stabilizer because the hoop slipped, investigate Magnetic Hoops. They pay for themselves in saved materials.
2. The "Timing" Pain: If you are stitching batches for sale and cannot afford the 33-minute-per-pair downtime, this is your signal to look at Multi-Needle Machines (like SEWTECH). The ability to set 10 colors and walk away is the difference between a hobby and a business.

Operation Checklist: The Final Run

• Action: Trim jump threads immediately after color change.
• Monitor: Listen for the rhythmic thump-thump. Any squeaking means a dry needle/hook—oil the machine.
• Safety: Keep hands clear during high-speed fills.
• Finish: Leave tiny tails on knots when final trimming.

Mastering FSL is about respecting the materials. Once you control the variables—stabilizer tension, needle sharpness, and color contrast—the machine will deliver perfect lace every time.

FAQ

• Q: For freestanding lace (FSL) on a Brother single-needle embroidery machine, what needle size and machine speed prevent water-soluble stabilizer tearing and design shifting?
  A: Use a new 75/11 needle and slow the Brother embroidery speed to 400–600 SPM to keep the water-soluble stabilizer stable.
  • Install: Put in a brand-new 75/11 needle (dull points cause “hairy” edges fast on FSL).
  • Reduce: Set speed to the 400–600 SPM range before starting (higher speed can increase vibration and layer shift).
  • Test: Run the outline/first minute and watch for stabilizer “flagging” (bouncing).
  • Success check: The stabilizer stays flat with minimal lift while stitching the first outline.
  • If it still fails: Re-check hoop tension (drum-tight) and consider whether the stabilizer layers are sufficient (two layers is the baseline for dense FSL).
• Q: For freestanding lace earrings on a Janome embroidery machine, should the bobbin be wound with matching 40wt thread instead of standard 60wt bobbin thread?
  A: Yes—wind the Janome bobbin with the same 40wt thread used on top if the back must match the front, then rebalance tension.
  • Wind: Use the same 40wt rayon/poly thread in the bobbin (not standard white 60wt) for a matching backside.
  • Adjust: Loosen the bobbin case tension screw slightly (a tiny move—think “5 minutes on a clock face”) as a starting point.
  • Clean: Remove lint from the bobbin area before the run (FSL produces dust even without fabric).
  • Success check: Stitches look balanced with no obvious bobbin thread pull-through on the top and the back color matches.
  • If it still fails: Make smaller bobbin-tension changes and confirm the top tension is not overly tight.
• Q: For freestanding lace (FSL) on a Singer embroidery machine using water-soluble stabilizer (WSS), how do I hoop two layers “drum-tight” to stop hoop slippage and shifting?
  A: Hoop two layers of WSS and tighten until the stabilizer passes the “drum test,” because hoop tightness is the main anti-shift control for FSL.
  • Sandwich: Place two layers of fibrous or heavy film WSS in the hoop.
  • Tighten: Tighten the hoop screw finger-tight, then continue until the center deflects less than ~2 mm when pressed.
  • Tap-test: Tap the hooped stabilizer with a fingernail to confirm a tight thump-thump sound (not flap-flap).
  • Success check: The stabilizer sounds like a drum and does not “bounce” (flag) during the opening outline stitches.
  • If it still fails: Add a grippy shelf liner to reduce slip, or move to a magnetic hoop if hand torque and repeatability are limiting.
• Q: On a Bernina embroidery machine, how do I prevent “bird nest” thread tangles on the underside when starting a new color in freestanding lace (FSL)?
  A: Hold the top thread tail with light tension for the first 3–5 stitches on the Bernina to prevent slack from being pulled into a nest.
  • Hold: Pinch the thread tail like flossing teeth as the machine takes the first stitches.
  • Release: Let go after 3–5 stitches, then trim the tail cleanly.
  • Stop early: If you hear a sudden “chunk” sound at the start, hit STOP immediately and clear the tangle before continuing.
  • Success check: The start of the new color forms clean stitches with no wad of thread building underneath.
  • If it still fails: Re-thread the top path and confirm the thread is not snagging on the spool/rim.
• Q: For freestanding lace (FSL) on a Tajima multi-needle embroidery machine, when should jump threads be trimmed to avoid permanent trapped threads in lace holes?
  A: Trim jump threads immediately after the color change (before the next layer stitches) because FSL holes will lock stray threads forever.
  • Pause safely: Hit STOP and wait until the machine is fully stopped before reaching in.
  • Trim: Use micro-tip curved scissors (or tweezers-style snips) to cut jump threads flush without poking the stabilizer.
  • Inspect: Look across negative spaces (holes) for any thread spanning open areas before resuming.
  • Success check: No visible jump threads cross the lace openings before the next stitching layer starts.
  • If it still fails: Slow down the workflow—trim more frequently and check after every stop/change, not only at the end.
• Q: For a SEWTECH magnetic embroidery hoop used with industrial embroidery machines, what magnetic field safety rules prevent finger injuries and interference with medical devices?
  A: Treat a SEWTECH magnetic embroidery hoop as a high-force clamp—keep fingers clear during closure and keep magnets away from pacemakers and magnetic media.
  • Keep-clear: Guide the frame together from the edges; never place fingertips between the magnetic surfaces.
  • Control: Set the hoop down flat before engaging magnets to prevent sudden snap-closing.
  • Separate: Keep magnetic hoops away from pacemakers and from credit cards/hard drives.
  • Success check: The hoop closes without pinching and the stabilizer is clamped evenly without gaps.
  • If it still fails: Use a slower, two-handed closing technique and reposition the stabilizer before letting magnets fully engage.
• Q: For freestanding lace (FSL) earring production on a Brother single-needle embroidery machine, when is it smarter to upgrade technique, then a magnetic hoop, then a multi-needle machine like SEWTECH?
  A: Start with technique (speed, hoop tension, trimming), upgrade to a magnetic hoop when hooping effort/slip becomes the bottleneck, and consider a SEWTECH multi-needle machine when thread-change downtime dominates runtime.
  • Level 1 (Technique): Run 400–600 SPM, hoop WSS drum-tight, hold thread tails at color starts, and trim jump threads immediately.
  • Level 2 (Tool): Move to a magnetic hoop if hoop screws cause hand strain, inconsistent tension, or stabilizer slippage waste.
  • Level 3 (Capacity): Move to a multi-needle (e.g., SEWTECH) if frequent thread changes and stops make each pair take too long for selling.
  • Success check: Production becomes repeatable—consistent shape, clean edges, and less “dead time” stopping for thread changes and re-hooping.
  • If it still fails: Time a full pair end-to-end (including thread changes and hooping) and identify whether the limiting factor is setup stability or color-change workflow.
