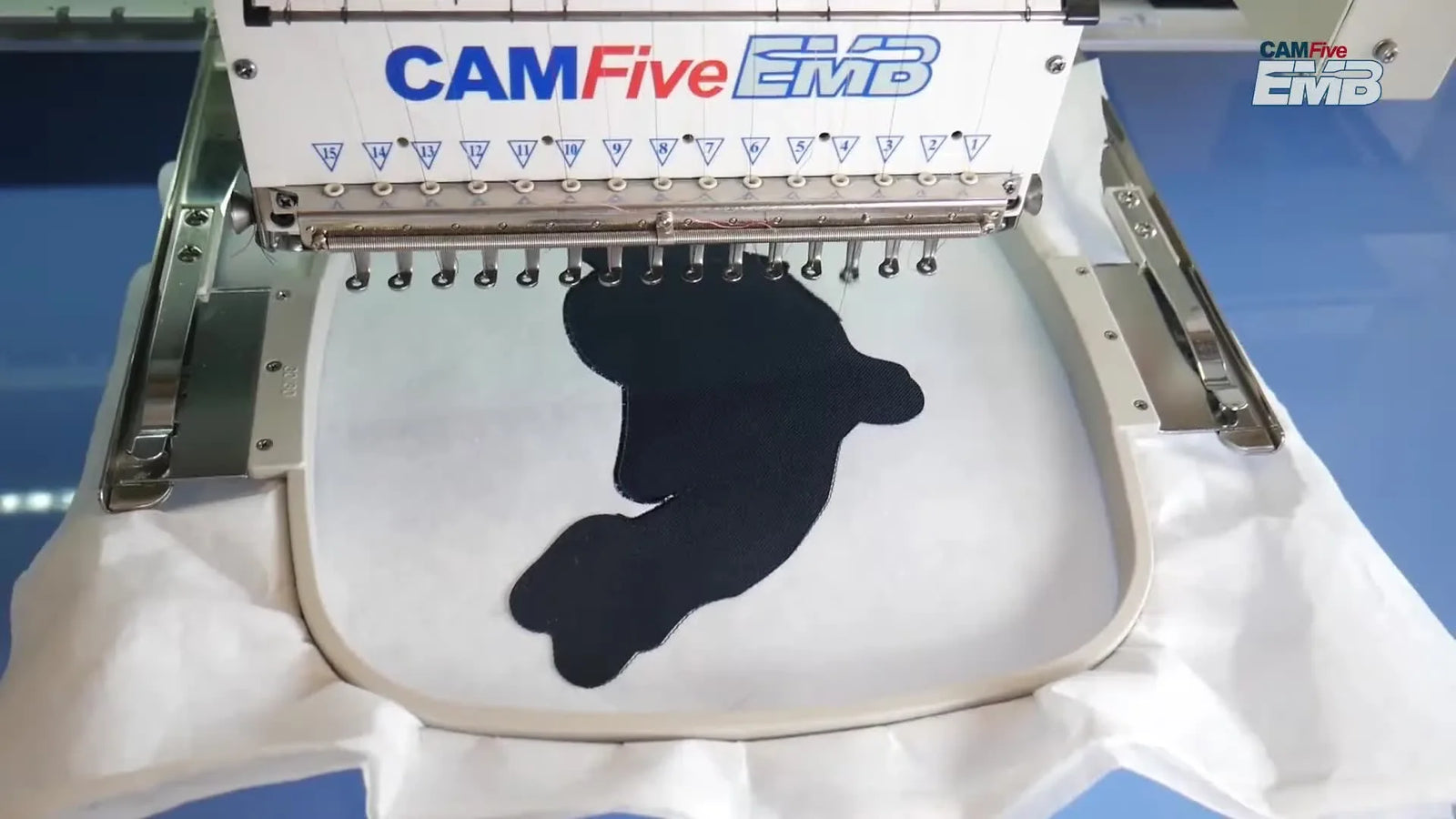

From Wilcom Vector to Heat-Seal Patch: A Production-Ready CAMFive Multi-Needle Workflow That Won’t Bite You Later

Patch orders look simple on paper—until you’re re-cutting edges, chasing registration, or re-pressing glue because one corner didn’t bond.

This workflow is built for people who want repeatable results: a clean satin border, a stable applique base, and a heat-seal backing that actually sticks when the customer wears and washes the garment.

Calm the Chaos: What “Good” Looks Like on a CAMFive EMB Multi-Needle Patch Run

If you’re making patches for customers, your real goal isn’t “a patch.” It’s an engineered textile product that (1) holds its rigid geometric shape, (2) features a satin border that fully encapsulates the raw edge (no fraying), and (3) bonds cleanly without glue bleeding through the garment.

This comprehensive guide breaks down a proven workflow using a CAMFive multi-needle machine, Wilcom digitizing software, the applique method, and a heat press. If you are operating a cam5 embroidery machine, treat this as your baseline production "recipe." You can standardize these variables—then iterate to improve speed.

Here’s the mental model (The Engineering Triangle) I want you to keep:

• Digitizing is the Blueprint: Your "Input C" border decisions in Wilcom determine whether you’ll see stabilizer “snow” (white peekaboo) on the rim later.
• Hooping is the Foundation: If the stabilizer drum-skin tension fails, the placement line and the fabric piece stop agreeing with each other. This is where 90% of registration errors occur.
• Pressing is the Final Seal: Heat-seal backing is unforgiving. A wrong temperature stack-up or missing an inside Teflon barrier can ruin a hoodie in 15 seconds.


The “Hidden” Prep Pros Do First: Materials, Color Choices, and a No-Regret Bench Setup

The video shows a straightforward materials list: stabilizer, felt/twill, scissors, spray adhesive, an embroidery machine, and fusible weft adhesive (thermal adhesive paper), plus a Teflon pillow.

However, based on commercial experience, two details here matter more than most beginners realize:

1. Stabilizer Color Strategy: The video recommends using stabilizer that matches the garment/patch border color. Why? Because even perfect embroidery shifts slightly (0.5mm is common). If you have a black border on white stabilizer, that 0.5mm shift looks like a spotlight. Black stabilizer on a black border makes minor errors invisible.
2. Patch Base Fabric - "Twill" vs "Felt":
   • Tackle Twill: The shiny, tightly woven polyester often used in sports jerseys. It is durable and laser-cuts beautifully but can fray if manual cutting is sloppy.
   • Felt: Matte, stiff, and fibrous. It covers gaps well but absorbs more thread.
   • Note: In the video, the adhesive is described as fusible weft adhesive / thermal adhesive paper. Common commercial equivalents include products like BSN or HeatnBond Ultra. You are looking for "Permanent Heat Seal for Patches," not temporary fusing.

The "Hidden" Consumables List: Make sure you have these within arm's reach before starting:

• Needles: A fresh 75/11 Sharp needle (Ballpoint needles can struggle to penetrate dense Twill cleanly).
• Lighter: For singeing polyester edges (essential for clean borders).
• Permanent Marker: Matching the border thread color (for emergency touch-ups).


Prep Checklist (Do this before you open Wilcom or hoop anything)

• Fabric Inspection: Confirm grain direction if using Twill; verify Felt thickness (1mm-2mm is the sweet spot).
• Stabilizer Selection: Select two layers of Cutaway stabilizer (appx 2.5oz each). Never use Tearaway for the main structural base of a heavy patch.
• Tool Staging: Place scissors, lighter, and marker on the right side of the machine.
• Press Prep: Set Heat Press to 165°C (330°F).
• Adhesive Zone: Designate a spray box or "no-lint" area for adhesive spray so overspray doesn’t stick to your hoops or machine touchscreens.

Warning: Open flame finishing (lighter) requires extreme caution. Synthetic fabrics melt instantly. Use the blue base of the flame, keep it moving constantly, and never linger on one spot. Keep a damp cloth nearby just in case.

Wilcom Digitizing That Actually Seals the Edge: Run Stitch Placement + Input C Satin Border

The video’s Wilcom workflow follows a classic Applique structure. Here is the technical breakdown including the safety parameters meant to prevent failure:

1. Graphic Mode: Open the design.
2. Vectorize: Use the Pen tool to trace a margin around the design. Right-click vectors and select Curve to smooth nodes.
3. DXF Export: Export this vector line as a DXF file if you are using a laser cutter.
4. Embroidery Mode:
   • Placement Line: Right-click the margin vector and Convert to Run. This stitches first to show you where to place the fabric.
   • The "Anchor" (Optional but Recommended): Experienced digitizers often add a Zig-Zag or Tack-down stitch after the placement line to hold the fabric before the final border.
   • The Border: Copy/select the margin again and Convert to Input C. This creates a generic satin column of constant width.

The "Sweet Spot" Settings: Don't just use defaults. Go to Stitch Effect and the Fields tab:

• Width: Set your satin width to at least 3.5mm to 4.0mm. Anything narrower than 3mm risks falling off the raw edge of the fabric.
• Density: Set spacing to roughly 0.40mm. If it's too dense (e.g., 0.30mm), you risk cutting the stabilizer; too loose (0.50mm), and the fabric edge shows through.

If you are researching hooping for embroidery machine workflows, understand that digitizing acts as your insurance policy against bad hooping. A wider border protects you from slightly crooked fabric placement.

Laser Cut vs. Manual Trim: Pick the Fabric-Cutting Method That Matches Your Volume

The video highlights two distinct paths. Your choice dictates your workflow tolerance.

• Method A: Pre-Cut (Laser/Die Cut)
  • Process: You cut the precise shape using the DXF file on a laser cutter before sewing.
  • Pro: Zero trimming at the machine. Perfectly cauterized edges on polyester.
  • Con: Registration must be perfect (less than 1mm error) when placing the fabric in the hoop.
• Method B: Applique Trim (Manual)
  • Process: You hoop stabilizer, stitch the placement line, place a square of fabric, stitch a tack-down line, then stop the machine and cut the excess fabric with curved scissors.
  • Pro: Very forgiving. You don't need to aim perfectly.
  • Con: Very slow. High risk of cutting the stabilizer or the placement stitches.

The Verdict: If you are producing orders of 20+ patches, Method A (Laser/Pre-cut) is the only scalable commercial option.

Hooping Stabilizer on a Tubular Hoop: The Tension Rule That Prevents “Mystery Misalignment”

In the video, the operator places two layers of stabilizer into a standard tubular hoop and tightens the screw.

The Sensory Check: When you tap the hooped stabilizer with your fingernail, it should sound like a drum. If it sounds like a dull thud or feels spongy, your registration will slip during the 10,000-stitch run, leading to a distorted border.

The placement line (Run Stitch) stitched on the stabilizer is your "contract." Everything that follows must land inside it.

If you are using machine embroidery hoops daily, note that standard tubular hoops rely on friction. Over time, plastic hoops can warp from the pressure, creating dead spots where fabric slips. This is the hidden cause of "Mystery Misalignment."

Setup Checklist (Before you run the placement stitch)

• Layering: Ensure two opposing layers of stabilizer (rotate one 90 degrees if using woven backing) for maximum strength.
• Tension: Tighten the hoop screw. Then, checking the outer ring, pull the stabilizer taut. Tighten the screw again.
• Surface Check: Run your hand over the stabilizer. It must be perfectly flat—no ripples, no "soft corners."
• Machine Load: Lock the hoop arms firmly. Listen for the "Click" of the pantograph engaging.
• First Run: Run the placement line (Color 1). Inspect: Is it a smooth, closed loop?


Applique Placement with Laly Spray Adhesive: Align Once, Press Firm, Don’t Chase It

The video demonstrates using Laly adhesive spray onto the back of the pre-cut fabric.

The "Do Not Chase" Rule:

1. Spray the adhesive in a box away from the machine. A light mist is enough; you don't need to soak it.
2. Align the fabric piece inside the stitched placement line.
3. Press from the center outward. This pushes air bubbles out.

If you merely place it gently, the friction of the presser foot usually nudges the fabric by 1-2mm before the first stitch lands. That 2mm shift is enough to ruin the border. Press it like you mean it.

(Note: The video clarifies that the sheet involved at the end is fusible weft adhesive, while the spray is just for temporary hold. Don't mix them up.)

Running the Embroidery: Let the Design Build, Then Let the Satin Border Do Its Job

The machine sequences the main design first, followed by the satin border (Input C) which encapsulates the raw edge.

Speed Management (SPM): While CAMFive machines are fast, for patch borders—especially when going over thick layers—slow down.

• Main Fill: 800 - 950 SPM.
• Satin Border: 600 - 700 SPM.

Why slow down? High speed causes the hoop to vibrate. Vibration causes the fabric edge to "flutter" right as the needle is coming down, leading to skipped stitches or the needle landing outside the fabric edge.

If you are struggling with operator fatigue from constant re-hooping, traditional workflows can feel like a bottleneck. Systems like the hoop master embroidery hooping station are popular because they allow you to hoop accurately off-machine while the machine is running, maintaining a continuous production flow.

Finishing the Patch Edge: Tear-Away Cleanup, Lighter Sealing, and the Marker Trick

After stitching, the operator tears the patch away from the stabilizer. Two layers of good Cutaway/Tearaway combo should pop out cleanly, but fibrous Cutaway requires trimming.

The Lighter Technique (Cauterizing): Holding the lighter, move the blue flame quickly around the edge of the patch.

• Goal: Melt the microscopic polyester "fuzz" from the stabilizer or fabric edge.
• Result: A hard, sealed edge that looks polished.

The Marker Trick (The "Pro" Fix): Even with perfect digitizing, tiny white stabilizer fibers might poke through a black satin border.

• Symptom: White "snow" on the edge.
• Fix: Take a permanent marker (Sharpie) of the same color and gently dot the edge. The ink wicks into the stabilizer, making it disappear instantly. This is standard industry practice.

Warning: When using scissors near dense satin borders, it is very easy to accidentally snip your thread. Always cut with the blade tips pointed away from the stitching, or keep your finger as a guard between the blade and the border.

Heat-Seal Backing at 165°C for 15 Seconds: The Press Stack-Up That Prevents Glue Misses

The video shows a clamshell heat press. The heat-seal backing (Fusible Weft/Adhesive Paper) transforms the patch from a piece of cloth into an iron-on product.

The "Fail-Proof" Pressing Formula:

• Temperature: 165°C (330°F).
• Time: 15 - 20 Seconds.
• Pressure: High/Firm.

The Sandwich Layering (Bottom to Top):

1. Bottom Platen (Rubber mat)
2. Teflon Pillow (Crucial for absorbing the thickness of the satin border so pressure reaches the center).
3. Patch (Face Down).
4. Adhesive Paper (Shiny Glue Side Face Down touching the patch back).
5. Teflon Sheet (Protective cover).

Cut it Bigger: As advised, cut the adhesive paper slightly larger than the patch. It guarantees the glue reaches the very edge of the border. If the glue stops 2mm from the edge, the patch will curl up on the customer's jacket.

Regarding efficiency: If you are upgrading your shop, you might encounter terms like magnetic embroidery hoops. While primarily for hooping garments, their mechanism (clamping down flat without forcing fabric into a ring) teaches a valuable lesson for patches too: flat tension is king. Using tools that keep materials flat prevents the distortion that plagues patch shapes.

Pressing the Patch onto a Hoodie: The Inside-Teflon Move That Saves Garments

Applying the patch to the final garment is the high-stakes moment. Ruin this, and you owe the customer a new hoodie.

The Safety Step:

1. Pre-press the hoodie (5 seconds) to remove moisture and wrinkles.
2. Peel the cool backing paper off the patch (the back should now be glossy).
3. Insert a Teflon sheet or Waxed Paper INSIDE the hoodie. This is non-negotiable. Without it, the glue will melt through the sweatshirt fleece and bond the front of the pocket to the back of the hoodie.
4. Position patch. Cover with Teflon sheet.
5. Press (165°C / 15s).
6. Flip and Press: Flip the hoodie inside out and press for 5-10 seconds from the back. This pulls the glue into the hoodie fibers for a permanent bond.


Operation Checklist (The “Don’t Ruin the Hoodie” List)

• Pre-Press: Did you press the garment for 5 seconds to remove humidity?
• Glue Check: Did you peel the paper backing off the patch? (Is the back shiny?)
• Barrier: Is there a Teflon sheet/separator INSIDE the garment?
• Cool Down: Did you wait 60 seconds before tugging on the patch to test adhesion? (Glue needs to cure).

The Decision Tree I Use in Real Shops: Fabric + Stabilizer + Cutting Method (So You Don’t Guess)

Use this logic flow to stabilize your production setup.

Start: What is your primary base fabric?

A) Tackle Twill (Polyester Sports Fabric)

• Volume: High (50+ patches)?
  • Yes: Use Method A (Laser Cut). Setup: 2 layers Cutaway.
  • No: Use Method B (Manual trim). Note: Use a lighter to seal edges after trimming.
• Risk: Fraying. Ensure Input C Width is >3.5mm.

B) Felt (Wool/Poly Blend)

• Volume: Any.
  • Method: Laser is cleaner, but Manual trim is very easy because felt doesn't fray.
• Risk: Texture bleed. Increase stitch density slightly so felt fibers don't poke through the satin.

Next: Are you seeing stabilizer at the edge after stitching?

• Yes:
  1. Check Hoop Tension (Is it drum tight?).
  2. Check Input C Width (Is it <3mm? Increase it).
  3. Color Match your stabilizer to the border thread next time.

Scaling the Patch Workflow: Where Upgrades Pay Back (Without Buying Random Gadgets)

Once you nail the single patch, the challenge becomes making 100 before lunch without your hands cramping.

Here is the commercial upgrade path based on pain points:

1. Pain Point: Inconsistent Alignment / Slow Hooping
   • Trigger: You spend more time staring at the hoop grid than stitching, or your placement lines are crooked.
   • Solution Level 1: A hooping station for embroidery machine. This creates a mechanical jig to align hoops identically every time.
   • Solution Level 2: A dedicated magnetic hooping station setup. This combines the alignment jig with magnetic frames, drastically reducing the physical time per hoop.
2. Pain Point: Hoop Burn & Wrist Pain
   • Trigger: Your wrists hurt from tightening screws thousands of times, or you see glossy distinct rings (hoop burn) on the hoodies.
   • Solution: Magnetic Hoops. Unlike tubular hoops that pinch and drag fabric, magnetic hoops clamp straight down. This eliminates hoop burn and significantly speeds up the reload process.
3. Pain Point: Capacity Bottleneck
   • Trigger: You are turning away orders because your single-needle machine takes too long to change colors.
   • Solution: Upgrade to a Multi-Needle (like the CAMFive or SEWTECH models). The ability to preset 15 colors and run continuous patch borders allows you to step away and prep the heat press while the machine works.

Warning: Magnetic Safety. Magnetic frames use industrial-grade neodymium magnets. They can pinch fingers severely (blood blisters) and can interfere with pacemakers. Keep them at least 12 inches away from sensitive medical devices and handle with respect.

Quick “Comment Section” Answers (So You Don’t Lose an Afternoon Shopping)

• “What is that adhesive sheet?” The heat-seal backing is Fusible Weft / Thermal Adhesive Paper (like HeatnBond Ultra or BSN). The spray used earlier is just temporary embroidery spray adhesive.
• “I can’t find the fabric.” Search for "Tackle Twill" (for the shiny look) or "Acrylic Felt" (for the matte look).

The Upgrade Result: Fewer Rejects, Cleaner Edges, Faster Turnaround

Patch making is less about art and more about discipline. If you follow the sequence—Wilcom safety width, drum-tight hooping, precise pressing temps, and the "sandwich" protection—you will get a patch that looks factory-made.

And if you decide to scale, remember that tools like magnetic hoops and multi-needle machines aren't just costs; they are time machines. They buy you back the hours you currently spend fighting with screws and trimming jump threads.

FAQ

• Q: For CAMFive multi-needle patch production, what stabilizer setup prevents patch border misalignment during a 10,000-stitch run?
  A: Use two layers of cutaway stabilizer and hoop it drum-tight; most “mystery misalignment” starts with soft hoop tension.
  • Layer: Hoop two layers (about 2.5oz each) and keep the surface perfectly flat (no ripples or soft corners).
  • Tighten: Tighten the hoop screw, pull stabilizer taut, then tighten again before running Color 1.
  • Inspect: Run the placement line first and confirm it forms a smooth, closed loop before placing fabric.
  • Success check: Tap the hooped stabilizer— it should sound like a drum, not a dull thud.
  • If it still fails: Increase satin border width (see Input C settings) and color-match stabilizer to the border thread to hide small shifts.
• Q: In Wilcom Input C satin borders for applique patches, what width and density settings stop raw edges from showing or fraying?
  A: Set Input C satin width to 3.5–4.0 mm and spacing around 0.40 mm to reliably cover the raw edge.
  • Set: In Stitch Effect > Fields, set Width: 3.5–4.0 mm (avoid <3.0 mm for patch edges).
  • Adjust: Set Spacing: ~0.40 mm (too dense like 0.30 mm may cut stabilizer; too loose like 0.50 mm may reveal fabric edge).
  • Add: Include a tack-down/zig-zag after the placement line if fabric shifts before the final border.
  • Success check: After stitching, the satin border fully encapsulates the edge with no fabric edge peeking and no “white snow.”
  • If it still fails: Improve hoop tension (drum-tight) and switch to stabilizer that matches the border color.
• Q: When using manual applique trim on CAMFive patches, how can operators avoid cutting stabilizer or snipping the satin border threads?
  A: Stop after the tack-down, trim slowly with curved scissors, and always cut with blades pointed away from stitching to protect threads.
  • Pause: Stop the machine after the tack-down line, not during the final satin border.
  • Cut: Trim excess fabric carefully without nicking the placement/tack stitches or the stabilizer base.
  • Guard: Keep blade tips pointed away from the border stitches (use a finger as a physical guard if needed).
  • Success check: The fabric edge sits cleanly under the satin border and the stabilizer stays intact (no accidental cuts causing shifting).
  • If it still fails: Switch high-volume work to pre-cut (laser/DXF) shapes to eliminate in-hoop trimming risk.
• Q: For CAMFive patch borders, what SPM speed range reduces skipped stitches and edge “flutter” on thick patch layers?
  A: Slow the satin border down to 600–700 SPM to reduce vibration and keep the needle landing on the edge accurately.
  • Run: Stitch main fills around 800–950 SPM, then reduce speed for the border.
  • Slow: Set satin border to 600–700 SPM, especially over thick twill/felt plus stabilizer.
  • Watch: Monitor the first border segment before walking away from the run.
  • Success check: Satin border stitches stay even with no skips and no edge wobble caused by hoop vibration.
  • If it still fails: Re-check hoop tension (drum-tight) and press fabric firmly into the placement area so it cannot shift 1–2 mm.
• Q: When applying temporary spray adhesive for applique patches, how can users stop the fabric piece from shifting 1–2 mm before the first stitch?
  A: Spray lightly away from the machine, align once inside the placement line, then press firmly from center outward—don’t “float” the fabric.
  • Spray: Mist adhesive in a separate box/area to avoid overspray on hoops and touchscreens.
  • Align: Place the pre-cut piece inside the stitched placement line without sliding it around repeatedly.
  • Press: Press from the center outward to lock it down and push out air bubbles.
  • Success check: The fabric does not move when the presser foot contacts it; the tack-down lands exactly where expected.
  • If it still fails: Add an anchor/tack-down step in the digitizing sequence before the final satin border.
• Q: For heat-seal patch backing at 165°C, what press “sandwich” prevents glue misses and patch edge lifting after washing?
  A: Press at 165°C (330°F) for 15–20s with firm pressure using the correct stack-up and cut adhesive slightly larger than the patch.
  • Stack (bottom→top): Rubber mat → Teflon pillow → patch face down → adhesive paper (shiny glue side down touching patch back) → Teflon sheet.
  • Cut: Cut adhesive paper slightly larger than the patch so glue reaches the border edge.
  • Press: Use firm pressure and full dwell time (15–20 seconds).
  • Success check: Patch backing looks evenly glossy and the patch edge stays flat (no corner curling).
  • If it still fails: Confirm the Teflon pillow is used so pressure reaches the center through the raised satin border.
• Q: When heat-pressing an iron-on patch onto a hoodie, how can operators prevent bonding the hoodie pocket/front to the back layer?
  A: Always insert a Teflon sheet (or separator) inside the hoodie before pressing; skipping this is the fastest way to ruin a garment.
  • Pre-press: Press the hoodie for 5 seconds to remove moisture and wrinkles.
  • Barrier: Insert a Teflon sheet/waxed paper inside the hoodie so glue cannot bleed through and stick layers together.
  • Press: Apply the patch at 165°C for 15s, then flip the garment and press 5–10s from the back.
  • Success check: Hoodie layers separate cleanly after pressing, and the patch cannot be lifted at the edge after a 60-second cooldown.
  • If it still fails: Verify the backing paper was peeled (back is glossy) and re-check time/temperature consistency on the press.
