From Warped Varsity Text to a Clean Stitch-Out: A Ricoma EM-1010 Hoodie Workflow That Survives Thick Collars and Digitizing Traps

If you have ever stared at a heavy hoodie collar jammed under your machine head and felt that sinking sensation in your stomach—thinking, "This is where my project dies"—take a deep breath. You are experiencing a rite of passage.

Embroidery is not just art; it is physics. It is the battle between a flexible material (fabric) and a rigid command (digital file). Courtney’s workflow offers a perfect case study of this reality: a strong design concept, a deceptive test run, a frustrating failure (misregistration), and finally, a recovery driven by better logic and superior tools.

As we deconstruct this project, I won't just tell you what happened. I will explain why it happened and give you the sensory cues—the sounds, feels, and specific numbers—you need to replicate the success without suffering the failure. We will move from the design screen to the reality of the shop floor, where thick garments often expose the limits of basic setups.

Build the Stanford-Style Varsity Layout in Leonardo Design Studio (Warp Tools + Welded Oval That Actually Centers)

Courtney begins by creating the varsity text layout in Leonardo Design Studio. While this is vector design software, not embroidery software, the decisions made here directly impact how the needle interacts with the fabric later.

Here is the "Why" behind her steps: We are building tolerance. By reshaping letters and welding shapes now, we prevent the embroidery machine from making unnecessary jumps or cuts later, which weakens the fabric.

1. Type the main word (“CHEMISTRY”) in a Varsity font.
2. Vertical Compression: She pushes the letters closer and increases the height.
   • Expert Note: Tall, narrow letters are safer on hoodies than wide, sprawling ones because they are less likely to pucker horizontally across the chest.
3. Warp Tools for the Arch: She pulls the middle points upward and brings sides down.
4. Create a Custom Oval: Since a native shape isn't available:
   • Place a rectangle.
   • Add two circles, aligning each to the rectangle's ends.
   • Duplicate and align.
   • Visual Check: Zoom in until pixels are huge to ensure lines overlap perfectly.
5. The "Weld" (Crucial Step): She groups and welds the shapes into a single unit.
   • Embroidery Implication: If you don't weld, the digitizing software might interpret this as three separate objects, creating heavy thread buildup at the overlaps where needles can break.
6. Add the Year (“2026”) & Contrast: Changing colors to simulate the final look.
7. Dark Artboard Switch: To judge the white border accurately.
8. Kerning Fixes: Adjusting the “H” legs specifically so the border doesn't create a "thread trap" (a tiny gap that is impossible to trim cleanly).
9. Contour Creation: She sets a thick white border with sharp corners.
10. Export as SVG: Ready for the digitizer.










Pro Tip (The "1mm Rule"): When planning a varsity look for a thick hoodie, the border is a tolerance test. If your border is narrower than 2mm, it will likely get swallowed by the fleece texture of the hoodie. Bold designs require bold lines.

The "Auto-Digitize" Trap: Why Your Machine Missed the Outline

Courtney imports the SVG into Chroma and uses the Auto-Digitize wizard. The numbers look promising on screen:

• Density: 0.40 (Standard industry baseline).
• Contour Offset: 0.040 in.
• Stitch Count: 20,370 stitches.
• Dimensions: 9.60 in wide x 3.59 in high.




Then comes the specific failure mode that haunts all auto-digitizing users: Misregistration. The outline stitches do not land on the edge of the fill pattern. Instead, they cut through the middle or leave gaps (gapping).

The Physics of the Failure

Why did this happen? It wasn't just "bad luck."

1. Wrong Order: The software stitched the inside fill first. As thousands of stitches pounded into the fabric, they pushed the fabric fibers outward (the "Push" effect).
2. The Gap: By the time the machine came back to stitch the outline, the fabric had physically moved.
3. The Fix: Professional digitizing adds Pull Compensation (intentionally overstitching the edges to account for shrinkage) and organizes the Stitch Order (Center Out) to stabilize the fabric as it goes.

Commercial Insight: Many users reach this frustration point and mistakenly blame their hoops. While upgrading to magnetic embroidery hoops drastically reduces fabric slippage (which we will discuss shortly), even the strongest magnet cannot correct a file with zero pull compensation. Magnets fix physics; they don't fix math.

The “Hidden” Prep: Stabilizer Physics & Machine Safety

Before you even touch the garment, you must create a "Control Sandwich." A hoodie is heavy, stretchy, and textured—the trifecta of difficult embroidery.

Courtney uses Cut-Away Stabilizer. This is non-negotiable for hoodies. Tear-away stabilizer will disintegrate under 20,000 stitches, leaving the heavy jersey knit to distort.

Prep Checklist: The "Don't Break a Needle" Protocol

• Consumable Check: Switch to a Ballpoint Needle (75/11). A sharp needle can cut the knit fibers of a hoodie, leading to holes later.
• Stabilizer Selection: Use a heavy-weight Cut-Away (2.5oz or 3.0oz).
  • Adhesion: Use a light mist of temporary spray adhesive (like 505) to bond the backing to the fleece inside. This prevents "bubble" formation.
• Marking: Locate the center chest. Courtney uses the neck seam marking on the Hoop Master, which is reliable.
• Thread Hygiene: If using a multi-needle machine, trim the tails of your Madeira Classic Rayon (Cherry Pie 1481 / Snow White 1002) so they don't get pulled into the bobbin on the first stitch.

Warning: Mechanical Safety
Thick hoodies have drawstrings, large hoods, and kangaroo pockets. These loose elements are machinery magnets. Before stitching, tape down the drawstrings or tuck them inside the garment. Never stick your fingers near the pantograph (the moving arm) to "hold a sleeve out of the way" while the machine is running at 800 RPM.

Hooping Strategy: Solving the "Wrist Pain" and Alignment Issue

In the video, Courtney uses a Hoop Master station and a magnetic hoop. This is often the turning point where a hobbyist realizes they need professional tools.

Traditional Manual Hooping of a thick hoodie creates three problems:

1. Hoop Burn: Forcing inner and outer rings together crushes the fabric pile, leaving a permanent "ring" mark.
2. Wrist Strain: It takes significant physical force to tighten the screw on thick fleece.
3. Inconsistency: It is hard to get the tension perfectly "drum tight" without distorting the weave.

The Magnetic Advantage

She uses the station as a jig:

1. Base Lock: The bottom magnetic ring locks into the station.
2. Stabilizer Float: The stabilizer is held flat by the station's magnetic flaps (no tape needed).
3. Garment Load: The hoodie floats over. She aligns the neck seam to the station's visual guide.
4. The Snap: The top magnetic hoop snaps down.






This "Snap" is the auditory confirmation of success. The magnets self-level the tension. The fabric is held firmly but not crushed. If you are struggling with placement consistency, the hoop master embroidery hooping station transforms hooping from a variable art into a repeatable process.

Decision Tree: Do You Need Magnetic Hoops?

Use this logic flow to decide if you should upgrade your tooling:

• Are you embroidering thick materials (Hoodies/Jackets/Backpacks)?
  • No (T-shirts/Towels only): Traditional hoops are likely fine.
  • Yes:
    • Problem: Do you see "Hoop Burn" (crushed fibers) or experience wrist pain?
      • Solutions:
        • Level 1: Try "floating" the garment (hoop only stabilizer, stick garment on top). Risk: Lower stability.
        • Level 2: Upgrade to magnetic hooping station systems. Benefit: Zero hoop burn, 5x faster hooping, higher stability.

Warning: Magnetic Force Safety
Magnetic hoops (like Mighty Hoops) use industrial strength magnets. They snap together with enough force to pinch skin severely.
* Do not place fingers between the rings.
* Do not use if you have a pacemaker (consult your doctor).
* Keep away from credit cards and hard drives.

Mounting on the Ricoma EM-1010: The "Bulk Battle"

Courtney moves to the Ricoma EM-1010. Here, the struggle is clearance. Hoodies are bulky.

The video shows a very real moment: The hoop won't lock. The thick hood is bunching up behind the needle bar, physically blocking the hoop arms from clicking into the pantograph bracket. Her solution is exactly right: manual manipulation. You must firmly compress the hood material to make space.

The Ricoma "Lock Check"

For owners of the ricoma embroidery machine em-1010, hearing the bracket engagement is critical.

1. Slide In: Align the hoop arms.
2. Compress: Push the garment bulk back.
3. Listen: You must hear a distinct metallic CLICK on both sides. If it feels "mushy," it is not locked, and your design will shift immediately.

Setup Checklist: The "Pre-Flight" Trace

Before hitting that green button, perform this mandatory sequence:

• Bulldozer Check: Ensure the hood is not sitting in a way that the machine head will "bulldoze" it during movement.
• Trace Operation: Run the Trace function.
  • Visual Check: Does the presser foot come within 10mm of the plastic hoop edge? If yes, adjust position.
  • Height Check: Is the foot dragging heavily on the fleece? You may need to raise the presser foot height slightly for thick garments.
• Speed Governor: Courtney runs at 850 SPM (Stitches Per Minute).
  • Beginner Safety: If this is your first hoodie, slow it down. Set your machine to 600-700 SPM. Stability is worth more than speed.

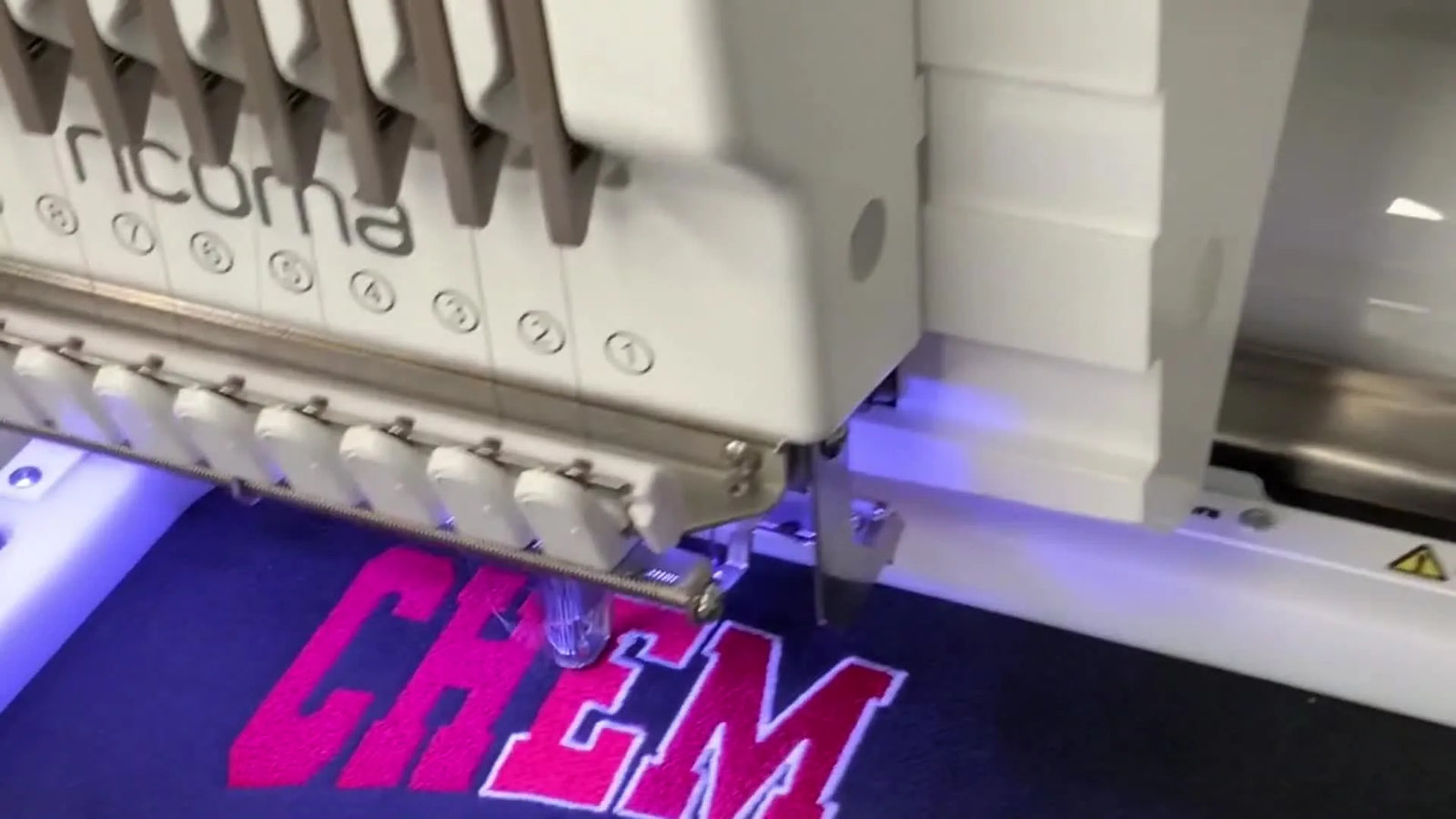

The Stitch-Out: Monitoring the Run

Courtney’s successful run demonstrates what "Good" looks like.

While the machine runs, use your senses:

• Sound: A rhythmic thump-thump-thump is good. A harsh clack-clack or grinding noise usually means the needle is dull or hitting a hard spot (like a seam).
• Sight: Watch the thread path. Is the thread shredding?
• Touch (Gentle): Lightly touch the hoop frame (not near the needle!). It should not be vibrating excessively.

Production Reality: If you have dialed in your placement using mighty hoops for ricoma em 1010, your machine becomes a printer. Your main job shifts from "watching the needle" to prepping the next hoop. This overlap is where profit is made in a business.

Troubleshooting: The "Why" of the Outsourced File

Courtney eventually outsourced the file to Z Digitizing to fix the stitch order. This is a mature move.

Why did the second file work?

1. Center-Out Sequencing: It stitched from the center towards the edges, pushing the fabric smooth rather than trapping bubbles.
2. Underlay: It likely had a "lattice" or "tatami" underlay stitch that glued the fabric to the stabilizer before the visible top stitches were laid down.
3. Pull Comp: The columns were digitized wide enough to shrink back to the correct width.

Note: Even the best ricoma mighty hoops cannot prevent a poorly digitized file from distorting. The hoop holds the edges; the stitches control the middle.

Finishing: Professional Quality Control

Courtney removes the hoop and trims the stabilizer.

Operation Checklist: The Final Polish

• Un-Hooping: Slide the hoop off the arms carefully. Do not yank; this can bend the pantograph arms over time.
• Rough Cut: Use curved scissors to trim the cut-away stabilizer about 0.5 inches (1-2cm) from the stitching.
  • Tip: Do not cut too close! If you cut the stabilizer flush with the stitch, the design will curl up in the wash.
• Lint Removal: Use a lint roller to remove the hoop fuzz.
• Heat Press (Optional): A quick press (with a Teflon sheet) can help settle the stitches into the fleece for a retail-ready look.

The Upgrade Path: From Frustration to Factory Flow

Courtney’s journey highlights the three pillars of embroidery success: Digitizing, Hooping, and Machinery.

If you are a hobbyist making one hoodie a month, you can fight through with manual hoops and patience. But if you have hit a wall—if your wrists hurt, your designs are crooked, or you are turning down orders because they take too long—it is time to diagnose your bottleneck.

1. If alignment is your bottleneck:
   The issue is likely hooping. Upgrading to magnetic frames is the immediate cure for hoop burn and placement stress.
2. If speed is your bottleneck:
   If you are changing threads manually on a single needle machine, you are losing hours. Stepping up to a multi-needle platform (like the SEWTECH ecosystem) allows you to set up 10+ colors and walk away.
3. If quality is your bottleneck:
   Look at your consumables. Are you using the right stabilizer? Are you using ballpoint needles for knits? Are you stabilizing your workflow with robust tools?

Mistakes like Courtney's initial misregistration aren't failures; they are data points. They tell you that your fabric is moving. Once you lock that movement down—with the right cut-away, the right file, and the right hoop—heavy hoodies stop being a gamble and start being your best-selling item.

FAQ

• Q: Why does Chroma Auto-Digitize cause outline misregistration (gapping or the border cutting into the fill) on a thick hoodie embroidery design?
  A: The most common cause is stitch order plus missing pull compensation—after the fill stitches “push” the fabric, the border returns to a moved target.
  • Re-sequence the design so it stitches center-out and stabilizes before the edge finishes.
  • Add proper underlay so the hoodie knit is “glued” to the cut-away before top stitches.
  • Build in pull compensation so columns and borders stitch slightly wider and shrink back correctly.
  • Success check: The border lands cleanly on the fill edge with no visible gaps and no border stitches slicing through the fill.
  • If it still fails: Outsource the file to a professional digitizer to correct stitch order, underlay, and pull comp—no hoop can “fix” a file with zero compensation.
• Q: What stabilizer setup prevents distortion when embroidering a 20,000+ stitch varsity design on a hoodie (heavy fleece knit)?
  A: Use a heavy cut-away stabilizer bonded to the inside of the hoodie—tear-away commonly breaks down and lets the knit move.
  • Choose heavy-weight cut-away (2.5 oz or 3.0 oz) for hoodie density and stitch count.
  • Lightly mist temporary spray adhesive (for example, 505) to bond stabilizer to the fleece and prevent bubbling.
  • Keep the hoodie flat and controlled before hooping to avoid shifting the knit under the stitch load.
  • Success check: The backing stays flat (no bubbles) and the design finishes without waviness or edge gaps.
  • If it still fails: Re-check the digitizing (underlay/pull compensation) because stabilizer cannot fully compensate for a poor stitch plan.
• Q: Which needle type should be used for hoodie embroidery to reduce holes and needle damage on knit fleece?
  A: A 75/11 ballpoint needle is the safer choice for hoodie knit because it parts fibers instead of cutting them.
  • Install a 75/11 ballpoint needle before hooping to avoid piercing and breaking knit threads.
  • Avoid sharp needles on hoodies when possible because they may cut fibers and create holes later.
  • Run a short test or start slower if this is the first hoodie to confirm clean penetration.
  • Success check: Stitches form cleanly with no visible cut holes around columns and no harsh “clack” from needle stress.
  • If it still fails: Slow the machine down and inspect for hard strike zones (seams, bulky folds) that can deflect the needle.
• Q: How can Ricoma EM-1010 users confirm a magnetic hoop is fully locked into the pantograph bracket when a bulky hoodie blocks mounting?
  A: Do not stitch until both sides audibly click—hood bulk can prevent full engagement and the design will shift immediately.
  • Compress and push the hoodie bulk (hood and thick areas) back to clear the bracket path.
  • Slide the hoop arms into position and listen for a distinct metallic CLICK on both sides.
  • Reject a “mushy” feel—remove, clear bulk again, and re-seat the hoop.
  • Success check: Two clear clicks plus a firm, non-wobbly mount when lightly tested.
  • If it still fails: Reduce bulk around the mounting area and re-run the mounting sequence before running any trace or stitch.
• Q: What is the Ricoma EM-1010 pre-flight trace checklist for thick hoodie embroidery to avoid the presser foot hitting the hoop or bulldozing the garment?
  A: Always trace and verify clearance before starting—hoodies reduce clearance and can get dragged into the sew field.
  • Tape down or tuck drawstrings and loose hoodie parts so nothing can be pulled into the moving pantograph.
  • Run the Trace function and watch the full design boundary.
  • Verify the presser foot does not come within about 10 mm of the hoop edge; reposition if it does.
  • Success check: The trace completes with comfortable clearance and the presser foot is not dragging heavily on the fleece.
  • If it still fails: Raise presser foot height slightly for thick garments (then re-trace) and slow down to improve stability.
• Q: What machine safety steps prevent injuries and jams when embroidering a thick hoodie at 800+ SPM on a multi-needle embroidery machine?
  A: Control loose parts and keep hands out—hoodies have drawstrings and bulk that can get grabbed fast at high speed.
  • Tape down drawstrings or tuck them inside the hoodie before stitching.
  • Never place fingers near the pantograph to “hold fabric out of the way” while the machine is running.
  • Start slower (a safe starting point is 600–700 SPM for a first hoodie) and increase only after stable results.
  • Success check: The garment stays clear of moving parts for the entire trace and run, with steady “thump-thump” stitching sounds (not grinding or harsh clacking).
  • If it still fails: Stop immediately and re-route bulk fabric—do not try to correct clearance while the machine is moving.
• Q: What are the magnetic hoop safety rules to prevent pinched fingers and device damage when using industrial-strength magnetic embroidery hoops?
  A: Keep fingers out of the closing path—magnetic hoops snap together hard enough to pinch skin severely.
  • Set the bottom ring in position first, then lower the top ring straight down—do not hover with fingers between rings.
  • Do not use magnetic hoops if the operator has a pacemaker (consult a doctor first).
  • Keep magnetic hoops away from credit cards and hard drives.
  • Success check: The hoop closes with a controlled “snap” while hands remain clear, and the fabric is held firmly without being crushed.
  • If it still fails: Re-train the loading motion and slow the process down—most pinch incidents happen when rushing the final closure.
• Q: When hoodie embroidery results show crooked placement, hoop burn, and slow setup time, what is the upgrade path from technique fixes to magnetic hoops to a multi-needle embroidery machine?
  A: Diagnose the bottleneck first, then upgrade in levels—technique, then hooping tools, then machine capacity.
  • Level 1: Optimize process—use heavy cut-away + adhesive, correct needle type, always trace, and slow speed for first runs.
  • Level 2: Upgrade hooping—use a magnetic hooping workflow to reduce hoop burn, wrist strain, and placement inconsistency.
  • Level 3: Upgrade production—move to a multi-needle platform if thread changes and run time are the true limiter.
  • Success check: Placement becomes repeatable, hoop marks stop appearing, and cycle time drops because the next hoop can be prepped while the machine runs.
  • If it still fails: Re-check digitizing quality (stitch order/underlay/pull comp) because hardware upgrades cannot fully compensate for a flawed file.
