Master the SINGER Legacy: A "Zero-to-Pro" Embroidery Workflow Guide

If your SINGER Legacy is brand new—or if you’ve been staring at it with a mix of excitement and dread after a few shaky test stitches—stop scrolling. This is the operational blueprint where everything finally clicks.

Embroidery isn't magic; it is physics and procedure. The difference between a "bird's nest" of thread and a retail-quality finish usually comes down to three things: Hooping Tension, Path Clearance, and Digital Prep.

In this guide, we are moving beyond the basic manual. We are applying 20 years of production flor expertise to the SINGER Legacy workflow to help you eliminate fear, reduce wastage, and stitch with absolute confidence.

1. The Physical Connection: The "Audible Snap" Protocol

The video begins with the machine ready, but let's pause. The number one reason beginners fail on the SINGER Legacy is Connection Error. This machine relies on a specific physical engagement between the hoop and the carriage unit.

Here is the veteran takeaway: The SINGER Legacy demands the hoop be connected before you get deep into editing. If the machine prompts "Check Frame" or "Change Frame," it is arguably a sensor issue caused by a "soft" insertion.

The "No-Crash" Hoop Attachment Habit

Before you slide that hoop in, you must protect your precision mechanics. A collision between a moving hoop and a lowered presser foot can knock your embroidery arm out of alignment—a costly repair.

Warning: Mechanical Impact Hazard. Always raise the presser foot fully (using the extra lift position) before sliding the hoop under. If the foot is down, the plastic hoop frame will collide with the metal foot, potentially bending the needle bar or breaking the hoop connector.

The Action Protocol:

1. Lift: Raise the presser foot lever. Push it up past the first "stop" to get maximum clearance.
2. Slide: Gently guide the hoop onto the embroidery arm. Do not force or twist it.

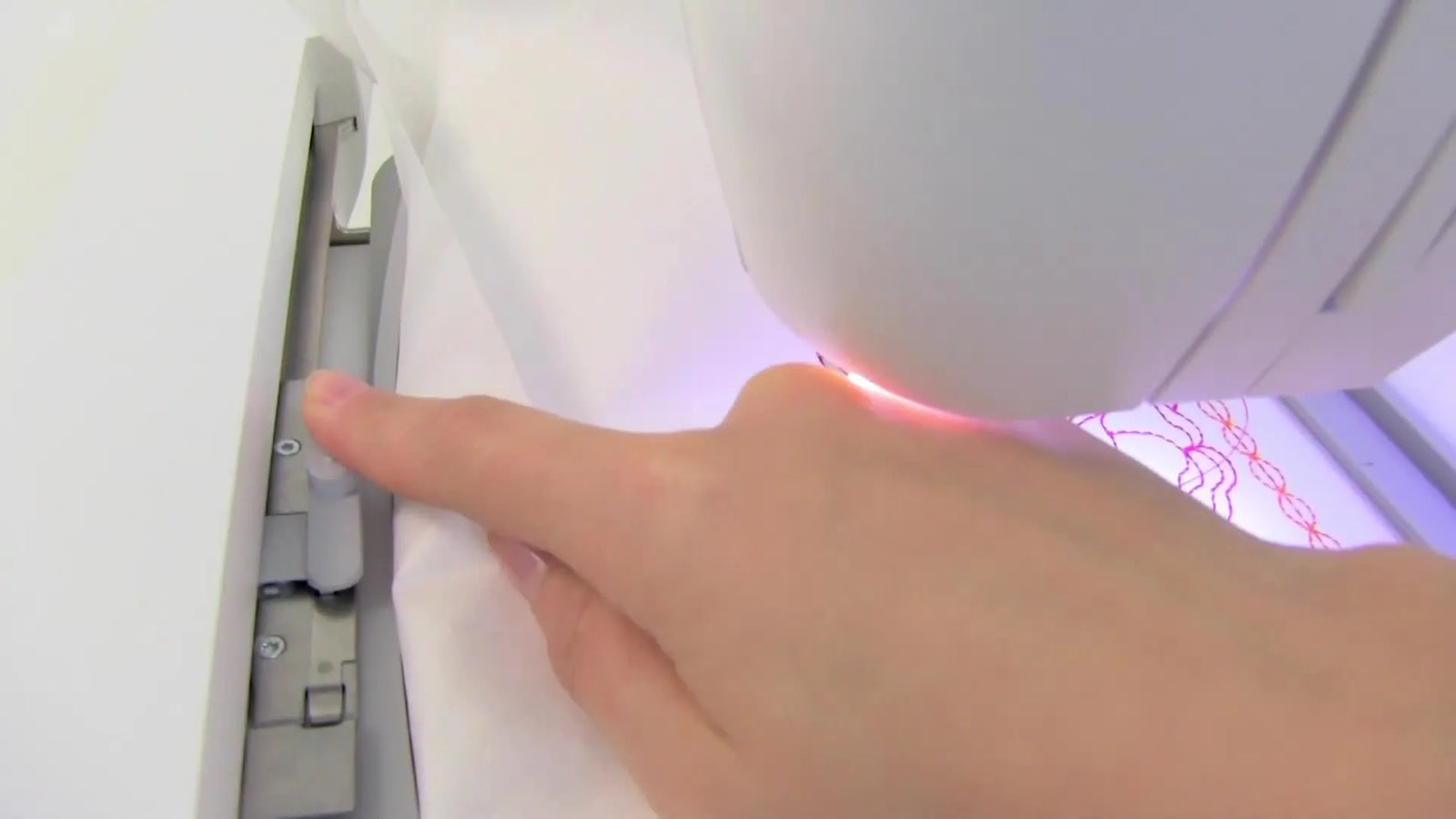

3. Listen: Slide the connector into the assembly until you hear a sharp "Click" or "Snap."

Sensory Check: If it feels "mushy" or you didn't hear the sound, pull it out and try again. It must lock in.

Prep Checklist: The "Pre-Flight" Inspection

• Hoop Tension: Tap the fabric in the hoop. It should sound like a drum skin (taut), not a bed sheet (loose).
• Clearance: Presser foot is raised to maximum height.
• Hygiene: Blow out the bobbin area and hoop connector slot—dust is the enemy of sensors.
• Connection: You heard the Audible Snap when attaching the hoop.
• Stability: The embroidery unit is firmly snapped into the sewing machine base.


2. Navigation Logic: Home is Your Anchor

On the SINGER Legacy LCD, the logic is binary: Top for Designs, Bottom for Fonts.

The host demonstrates the font menu briefly. While straightforward, the pro tip here is navigation discipline. Beginners often get "menu trapped" and start hitting the "Back" button frantically. On this OS, the Home Button is your clean reset. If you get confused, go Home and start fresh.

3. Digital Logistics: Loading Designs Without Chaos

The host inserts a USB stick into the side port.

The Critical Path:

1. Tap Embroidery Design (Top Icon).
2. Select USB Icon (Not the Machine Icon).
3. Open the Design Data folder.
4. Scroll to your file (Video shows design 111).


The "Job Ticket" Workflow

The USB stick contains PDFs of the designs. Do not ignore these. In a professional shop, this is called a "Job Ticket" or "Run Sheet." It tells you the exact color order.

Pro Workflow Tip: If you are setting up a workspace, create a dedicated hooping station zone. Place your Printed PDF, your thread cones lined up in order, and your scissors here. This separates "Thinking Mode" (prep) from "Machine Mode" (action), reducing mistakes by 50%.

4. Built-In Designs: Internal Memory

To use internal designs, return Home, select Embroidery, and choose the Machine Icon. The video loads design 60.

Common Pitfall: If your screen is blank, you are likely looking at the wrong directory (USB vs. Machine). Always check your source icon.

5. Professional Editing: Position, Rotate, and Scale

Once your design is loaded, you enter the Edit Screen. This is where you finalize the physics of the stitch-out.

A) Positioning (The "Beep" Test)

Use the directional arrows to center or offset your design. Sensory Check: When you move the design, listen for a Beep. If the machine beeps and stops moving, you have hit the Stitchable Area Limit. Do not force it. This is the software protecting you from breaking a needle on the hoop frame.

B) Rotation & Mirroring

You can rotate in 90° increments.

• Usage: If your fast-hooping technique leaves the fabric upside down, fix it here rather than re-hooping.
• Mirroring: Essential for symmetrical projects (e.g., left and right shirt collars).

C) Scaling (Density Management)

The machine allows resizing ±20% in 5% steps. Expert Insight: Why only 20%? Because the machine does not recalculate the stitch count (on many legacy formats).

• Scaling Up: Stitches get longer; coverage gets sparse.
• Scaling Down: Stitches get denser. If you shrink too much, you risk a "bulletproof" stiff patch that breaks needles. Stay within the ±10% "Sweet Spot" for best quality.

Setup Checklist: Ready to Stitch?

• Source: Correct design loaded (USB/Internal).
• Orientation: Visually confirmed on screen (Rotation/Mirror).
• Scale: Kept within ±10% unless you are sure of the stitch density.
• Hoop Size: Screen matches the physical hoop (Video: 260 × 150).

6. The "Design Trace" (Trace / Basting): The Ultimate Fail-Safe

Never press 'Start' without Tracing. This step separates the amateurs from the pros.

The Trace Function

The host opens the Info Screen and hits Design Trace. The hoop will travel to the four corners and the center of the design's bounding box. Why do this?

1. Physical Safety: Ensures the needle bar won't hit the plastic frame.
2. Visual Alignment: If you are trying to center a logo on a pocket, this tells you exactly where it will land.

The Basting (Base) Function

The host notes the "Base" function, which stitches a large rectangular outline before the design begins. When to use it:

• Slippery Fabrics: Satin, silk.
• High Pile: Towels (keeps the loops down).
• Floating: If you are floating fabric on top of stabilizer without hooping it.

Workflow Upgrade: If you find yourself relying heavily on basting because you can't get the fabric tight enough in the standard hoop, this is a trigger point. A magnetic embroidery hoop can solve the "slippage" issue mechanically by clamping the fabric with consistent force, often removing the need for basting entirely on standard garments.

Warning: Magnetic Field Safety. If you upgrade to magnetic hoops, be aware they use high-power neodymium magnets. Keep away from pacemakers and cardiac devices. Watch your fingers—the "pinch" is strong enough to cause blood blisters.

Monochrome Mode

Use this to stitch a multi-color design in a single color without stopping. Great for "Redwork" or tone-on-tone quilting effects.

7. The Stitch-Out: Rhythm and Recovery

Setup is done. Now we stitch.

The Sequence:

1. Safety First: Lower the Presser Foot.
2. Ignition: Press Start/Stop.
3. The Trim Pause: The machine stitches ~5 stitches and stops. A "Scissors" icon appears.
4. Action: Raise the foot slightly. Snip the thread tail close to the fabric.
   • Why? If you don't trim this tail, the foot will drag it under the stitches, creating a lump or "nest."
5. Resume: Lower foot. Press Start.

Operation Checklist: The Stitch Cycle

• Foot Down: Always verify before starting.
• Tail Management: Trim the start tail after the locking stitches.
• Sound Check: Listen to the machine. A smooth logical hum is good. A rhythmic "Thump... Thump..." indicates a dull needle or a burr on the hook.

8. Color Changes: The Threading Discipline

When the screen reads "2/2" or similar, the machine stops for a color change.

The Golden Rule of Re-Threading: When changing colors, do not just yank the thread out.

1. Clip: Cut the old thread at the spool pin (top).
2. Pull: Pull the excess thread out through the needle eye.
3. Why? Pulling thread backwards through the tension discs drags lint and wax into the delicate tension springs, leading to inconsistent stitching later.


Sensory Check: When threading the new color, floss it into the tension discs. You should feel a slight resistance, like pulling a hair through tight fingers. If it feels loose, you missed the tension disk.

9. The "3-Stitch Backup" Protocol: Invisible Recovery

Thread breaks happen. It’s not if, it’s when. The host shows how to recover.

The Recovery Sequence:

1. Don't Panic. Stop the machine. Raise the foot.
2. Re-thread. (Use the "Clip and Pull" method).
3. Navigation: Use the +/- Stitch buttons to back up the needle position.
4. The Rule: Go back 3 to 5 stitches before the break occurred.


Why Back Up? If you start exactly where it broke, there will be a tiny gap. By overlapping 3 stitches, you lock the thread ends together, creating a seamless repair that won't unravel in the wash.

10. Breaking Down: Hoop Removal

Unlock the latch, raise the foot to the "Extra Lift" position, and slide the hoop toward you. Do not twist.

11. Troubleshooting: The "Why Is This Happening?" Matrix

When the honeymoon phase ends and reality hits, use this diagnostics table.

Decision Tree: Fabric vs. Stabilizer

This is the #1 cause of poor quality. Choose wisely.

1. Is the fabric stretchy (T-shirt, Polo)?
   • YES: You MUST use Cutaway Stabilizer. (Tearaway will eventually separate, causing the design to distort).
     • Tip: Do not stretch the shirt while hooping; keep it neutral.
   • NO (Denim, Canvas, Towel):
     • Go to Step 2.
2. Is the fabric thick/stable?
   • YES: Use Tearaway Stabilizer.
   • NO (Sheer/Tulle): Use Water Soluble (Wash-away) stabilizer (as noted in user comments).

Hidden Consumables: Stuff You Didn't Know You Needed

• 75/11 Ballpoint Needles: Essential for knits (T-shirts) to avoid cutting holes.
• Curved Embroidery Snips: Specifically allows you to trim tails close to the fabric without gouging it.
• Spray Adhesive (Temporary): Vital for floating items or keeping stabilizer attached to slippery fabric.

12. The Strategic Upgrade Path: When to Spend Money?

The standard SINGER Legacy kit is excellent for learning. However, as your skills grow, you will hit "Production Bottlenecks." Here is how to identify when it is time to upgrade your tools, using the "Pain -> Solution" logic.

Phase 1: The "Design Consistency" Pain

• Symptom: "I spend 10 minutes hooping a shirt, and it's still crooked."
• Solution: Look into a hooping station for embroidery. This allows you to pre-measure and hoop garments on a static board, guaranteeing the logo is in the same spot every time.

Phase 2: The "Hoop Burn" & "Wrist Pain"

• Symptom: Hooping thick towels or Carhartt jackets is physically difficult, screws strip, and delicate velvets get crushed.
• Solution: This is the trigger for magnetic embroidery hoops.
  • Why? They use magnetic force rather than friction. They hold thick items instantly without wrestling screws.
  • Result: Zero hoop burn, 5x faster hooping. Terms like how to use magnetic embroidery hoop are often searched by users at this stage who want to save their wrists.

Phase 3: The "Volume" Pain

• Symptom: You have an order for 50 Polos. Changing thread colors manually (Stop -> Unthread -> Rethread) is taking longer than the actual stitching. You are turning down orders because you can't keep up.
• Solution: You have graduated. This is when a Multi-Needle Machine (like the SEWTECH series) becomes an investment, not a cost. It holds 10-15 colors at once and swaps them automatically.
  • Criterion: If you spend more than 50% of your time changing threads rather than stitching, it is time to scale.

Final Expert Thought: Perfection in embroidery is not about luck; it is about variables control. Control your hooping tension, verify your path with a Trace, and listen to your machine. It will tell you everything you need to know. Now, go load that USB.

FAQ

• Q: How do I stop a SINGER Legacy embroidery machine from showing a repeated “Check Frame” or “Change Frame” message after attaching the hoop?
  A: Re-seat the SINGER Legacy hoop until the connector fully locks with a firm audible click.
  • Lift: Raise the presser foot lever to the extra-lift position for maximum clearance.
  • Slide: Guide the hoop straight onto the embroidery arm—do not force or twist.
  • Listen: Push in until a sharp “Click/Snap” is heard, then gently tug to confirm it is locked.
  • Success check: The SINGER Legacy hoop attachment feels solid (not “mushy”) and the message clears so the design screen proceeds normally.
  • If it still fails… Blow out dust from the hoop connector slot and confirm the embroidery unit is firmly snapped into the machine base.
• Q: What is the correct SINGER Legacy embroidery hooping tension standard to prevent puckering on T-shirts and polos?
  A: Hoop the garment so the fabric is drum-tight without stretching the knit, and pair it with cutaway stabilizer for stretchy shirts.
  • Tap: Hoop until tapping the hooped area sounds like a drum skin (taut), not a loose bed sheet.
  • Choose: Use cutaway stabilizer for stretchy fabrics like T-shirts and polos.
  • Keep neutral: Hold the shirt flat while hooping—do not stretch it tighter than its natural state.
  • Success check: The hooped area feels firm and flat, and the stitched design does not ripple or distort after stitching.
  • If it still fails… Re-hoop for more even tension and re-check stabilizer choice (tearaway can separate on knits and allow distortion).
• Q: How do I prevent a SINGER Legacy embroidery machine from making a “bird’s nest” of thread underneath the fabric?
  A: Re-thread the upper path on the SINGER Legacy and make sure the thread is fully seated in the tension discs.
  • Re-thread: Completely re-thread the top thread path (do not assume it is correct).
  • Floss: Pull the thread firmly into the tension discs so it seats properly.
  • Trim start tail: After the initial locking stitches and trim prompt, snip the thread tail close to the fabric before resuming.
  • Success check: Pulling the upper thread by hand feels slightly resistant (not loose), and the underside shows clean stitches instead of a thread wad.
  • If it still fails… Stop and re-check the threading discipline during color changes (clip at spool, pull out through the needle) to avoid contaminating tension components.
• Q: How do I use SINGER Legacy Design Trace and the “Beep” limit to prevent needle strikes and hoop-frame crashes?
  A: Always run Design Trace before pressing Start, and treat the SINGER Legacy “Beep” as the stitchable-area stop signal.
  • Trace: Open the info screen and run Design Trace so the hoop travels the design boundary.
  • Observe: Confirm the traced path stays inside the hoop opening and away from the plastic frame.
  • Respect limits: When positioning with arrows, stop immediately when the machine beeps—do not force movement beyond the limit.
  • Success check: The traced corners clear the hoop frame with visible space, and positioning changes occur without repeated beeps at the boundary.
  • If it still fails… Verify the on-screen hoop size matches the physical hoop (example shown: 260 × 150) and reposition/resize within safe limits.
• Q: What is the safest way to attach a hoop to a SINGER Legacy embroidery unit to avoid presser-foot collisions and mechanical damage?
  A: Raise the SINGER Legacy presser foot to the extra-lift position before sliding the hoop in, then attach gently—never force the hoop under a lowered foot.
  • Lift fully: Push the presser foot lever past the first stop to maximum height.
  • Slide gently: Guide the hoop straight in without twisting until it locks.
  • Start safely: Lower the presser foot before pressing Start/Stop to stitch.
  • Success check: The hoop slides in without scraping, and there is no collision or “crack” impact sound during attachment.
  • If it still fails… Stop immediately and re-check clearance; repeated impacts can knock parts out of alignment and should be addressed before continuing.
• Q: How do I change thread colors on a SINGER Legacy embroidery machine without contaminating the tension discs and causing inconsistent stitching?
  A: Use the SINGER Legacy “clip and pull” method—cut at the spool, then pull the thread out through the needle eye (never backwards).
  • Clip: Cut the old thread at the spool pin (top).
  • Pull forward: Pull the remaining thread out through the needle eye.
  • Re-thread carefully: Floss the new thread into the tension discs and confirm it seats.
  • Success check: The new thread path feels slightly resistant when pulled (like pulling a hair through tight fingers), indicating the tension discs are engaged.
  • If it still fails… Re-thread again slowly and confirm the thread did not miss the tension discs during the change.
• Q: When should a home-user upgrade from a SINGER Legacy standard hoop to a magnetic embroidery hoop, and when is a multi-needle embroidery machine the next step?
  A: Upgrade in layers: optimize technique first, use magnetic hoops when hooping causes burn/pain or slippage, and consider a multi-needle machine when color-change time dominates production.
  • Level 1 (technique): Improve hooping tension (drum-tight), run Design Trace every time, and use correct stabilizer (cutaway for knits).
  • Level 2 (tool): Consider a magnetic embroidery hoop if hoop burn appears, thick items are hard to hoop, or basting is constantly needed due to slippage.
  • Level 3 (capacity): Consider a multi-needle machine when frequent manual color changes consume more time than actual stitching and limit order volume.
  • Success check: After the chosen upgrade, hooping becomes repeatable and faster, and stitch-outs complete with fewer stops for alignment fixes or re-hooping.
  • If it still fails… Re-check the core failure point first (connection click, tension seating, trace clearance); upgrades work best after fundamentals are controlled.
