From USB to Laser Trace: Building a Clean Composite Layout on the Happy Japan HCH Journey Plus (No Software Needed)

Mastering On-Screen Composites: The HCH Journey Plus Production Guide

If you run a shop, you know the specific anxiety of the "quick favor." A customer wants a name added to a stock logo, you’re standing at the machine, and the thought of firing up your PC, opening digitizing software, saving to USB, and walking back feels like an eternity for a job that should take five minutes.

The Happy Japan HCH Journey Plus is designed to bridge this gap. It allows you to handle that "fast composite" workflow directly on the touchscreen—import a base graphic, add curved lettering, align it cleanly, and laser-trace the sew field.

However, moving from software to on-screen editing requires a shift in discipline. You lose the safety net of a large monitor, so your process must be ironclad. This guide breaks down the workflow using sensory checks and production-grade safety protocols to ensure your "quick edit" doesn't become a "long repair."

The Mindset Shift: On-Board Editing vs. Digitizing

The on-board layout tools on a 7-needle commercial machine like the HCH Journey Plus are not designed to replace professional digitizing software (like Hatch or Wilcom). They are designed to eliminate setup friction.

When you edit on-screen, you are performing "Assembly," not "Creation." You are taking pre-digitized assets (a football logo) and combining them with pre-calculated lettering algorithms.

The Commercial Reality: If you treat this feature as a novelty, it’s slow. If you treat it as a production workflow, it turns a one-off navy polo into a repeatable, profitable template for team orders. The goal is to touch the screen fewer times, get the hoop on the machine, and let the needles do the work.

Pre-Flight Protocol: What Pros Do Before Touching the Screen

Novices rush to the screen; experts rush to the prep table. The success of an on-screen composite is 90% determined by physical variables before you even select a file.

The "Hidden" Consumables Check:

• Needles: Are they sharp? For the knit polo in this guide, ensure you are using a Ballpoint 75/11. A sharp needle on a knit polo will cut fibers, causing holes that appear after the first wash.
• Bobbin: Check the tension. Pull the thread—it should feel like the resistance of flossing teeth (approx. 20-25g tension).
• Stabilizer: For a navy polo (pique knit), a single layer of Cutaway (2.5oz) is non-negotiable. Tearaway will result in design distortion.

Prep Checklist (The "No-Go" Criteria):

• File Verification: Is the .DST or .PES file on the root directory of the USB? (Deep folders slow down retrieval).
• Thread Plan: Physically place your cones (e.g., Brown, White, Gold) on the machine before assigning colors on screen.
• Garment Analysis: Is the polo placket smooth? Do you have the correct hoop size?
• Workstation: If you have multiple operators, using dedicated hooping stations ensures the garment is square before it ever reaches the machine.


Step 1: Importing and Visual Confirmation

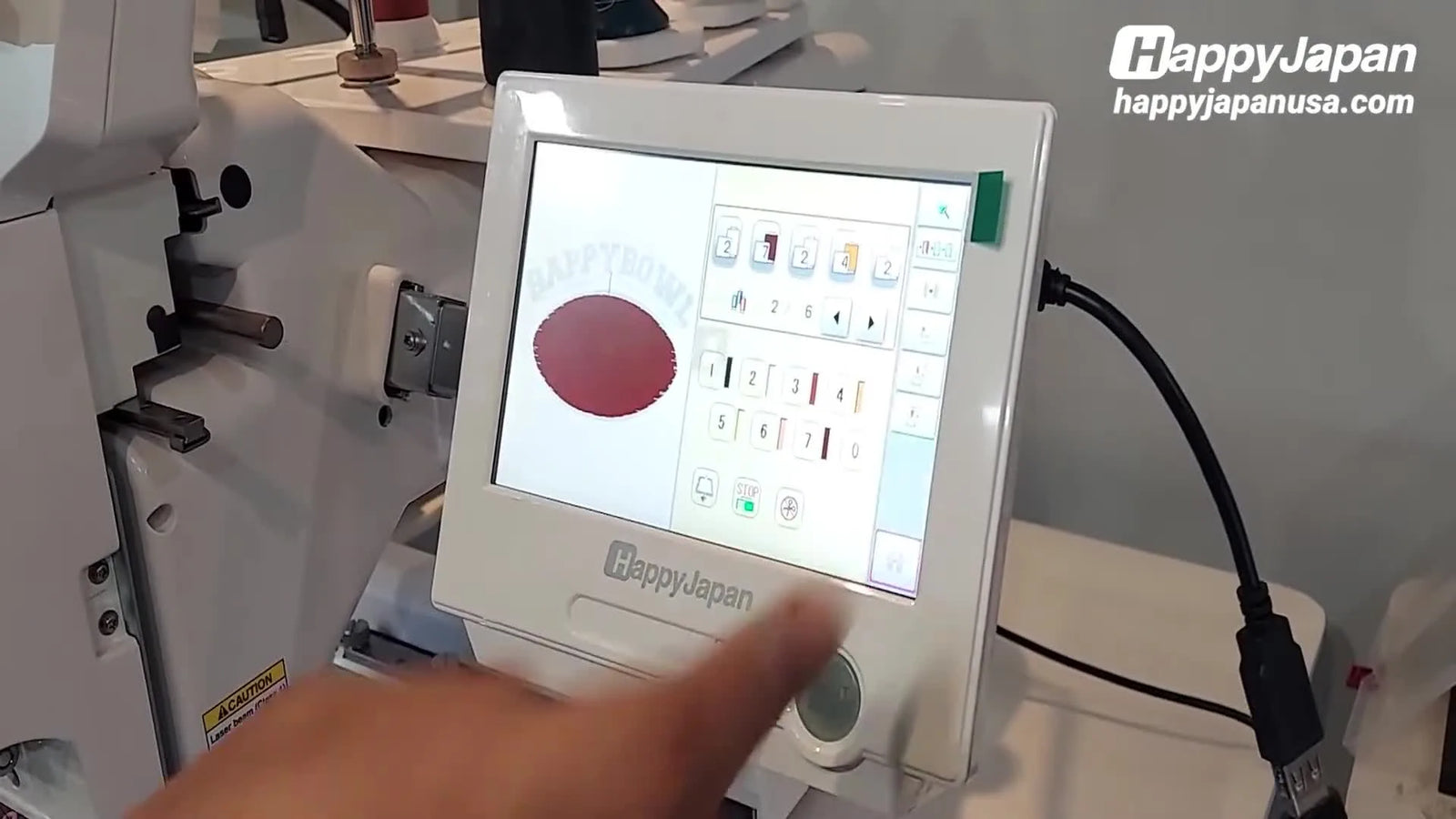

On the touchscreen, the workflow begins with data retrieval. Navigate to the USB drive icon.

The Tactile Check: When inserting the USB, wait for the machine to acknowledge the drive. Do not tap menu icons until the drive light stops blinking. Rapid tapping causes OS lag.

Select your football file. You are looking for a visual transition from the file list to the Design Preview window.

Expected Outcome: You see the raw wireframe or block view of the football. If the screen is blank or shows an error, your file format may be incompatible or the file name contains special characters the machine cannot read.

Step 2: Tactical Color Mapping

The machine does not know you are stitching a football; it only knows "Stop 1," "Stop 2," etc. You must map these stops to the specific needles holding your thread.

In our example, the design has five sequences.

• Needle 1: Assigned to Brown (Tatami fill).
• Needles 2-7: Assigned to White and Gold for outlines and lacings.

Expert Tip on Color Efficiency: Map your colors based on flow, not just aesthetics. If "Gold" is used in the football and will be used for the text later, assign them to the same needle to save a trim and color change cycle.

Checkpoint: As you map, the grey preview should fill with color. If a section remains grey, you have missed a sequence assignment.

Step 3: Mastering On-Board Lettering Attributes

This is where 80% of mistakes happen. Text on a screen looks different than text on fabric. In the Layout > Lettering menu, we type "HAPPYBOWL."

The "Sweet Spot" Parameters for Knits:

• Font Height: 10 mm. Why? Anything smaller than 6mm on a pique polo will sink into the fabric texture unless you use a water-soluble topping. 10mm is safe and legible.
• Curve Arch: 15 (Upward). This creates a gentle "Varsity" look that frames the logo.
• Character Spacing: 80. Crucial: Default spacing is often too tight for knits. As the needle penetrates, it pushes fabric around. Increasing spacing to 80 ensures letters don't bleed into each other, improving readability.

Expected Outcome: The text transforms from a straight line to a balanced arch in real-time.

Warning: Mechanical Safety Hazard. Keep fingers, scissors, and loose lanyards away from the needle bar area and the moving carriage. When switching from "Layout" to "Trace," the carriage will move rapidly and without warning to center the hoop.

Step 4: Composite Alignment (The "Nudge" Technique)

Now, bring the football graphic into the layout workspace. Initially, the machine will stack the football directly on top of the text.

The Two-Step Alignment Method:

1. Rough Draft (Drag): Use your finger to drag the football roughly under the arch. This gets you 90% there.
2. Precision (Arrows): Switch to the directional arrow keys for the final 10%.

The Visual Anchor: Look at the gap between the bottom of the text and the top of the football. It should be consistent. If the text is arched, the distance from the first letter to the logo and the middle letter to the logo should feel balanced.

Expected Outcome: A unified design where elements complement, rather than crowd, each other.

Step 5: The Contrast Reality Check (Background Simulation)

This step separates the amateurs from the pros. You are stitching on a Navy Blue polo. The default screen background is white. Red text looks great on white; it disappears on Navy.

Action: Change the background simulation color to Navy/Dark Blue immediately.

The Result: The moment Francisco does this in the demo, the flaw is revealed. The red text has low contrast and looks muddy. This simulation saves you the cost of a ruined shirt and the time of picking out stitches.

Step 6: Final Color Adjustment

Based on the simulation, we must pivot. Francisco changes the font color to Gold.

Why Gold?

• Contrast: High visibility against Navy.
• Cohesion: Matches the gold details inside the football logo.
• Brand Safety: Gold/Navy is a classic, premium combination.

Expected Outcome: A preview that pops. If you have to squint to read it on screen, your customer won't be able to read it on the shirt.

Step 7: The Laser Trace (Your Insurance Policy)

Never press start without a trace. The HCH Journey Plus uses a laser crosshair to outline the design's bounding box.

What to Watch For (The "Hawk Eye" Check):

• Placket Clearance: ensure the laser stays at least 15mm away from the buttons/placket.
• Seam Safety: Ensure the design doesn't cross the shoulder seam.
• Hoop Limits: Does the laser get uncomfortably close to the plastic hoop edge? If it hits the hoop, you will break a needle.




The Physics of Hooping: Why Perfect Files Fail on Bad Hoops

You have a perfect file. You have a perfect machine. But if your hooping is bad, you will still fail.

Polos are unstable. They stretch. When using standard tubular hoops (the plastic rings with screws), you have to pull the fabric to get it taut.

• The Risk: If you over-stretch the polo in the hoop, you stretch the fabric grains. The machine stitches on stretched fabric. When you un-hoop it, the fabric relaxes, and your perfect circle becomes an oval. This is called "Hoop Burn" or distortion.

The Tooling Upgrade: This is where tooling solves skill gaps. If you struggle with hand strength or alignment, professionals often switch to magnetic hoops for happy embroidery machine.

• Why? They use magnetic force rather than friction to hold the fabric. This clamps the material flat without forcing you to pull and stretch it. It reduces "hoop burn" marks on delicate navy fabric and ensures the laser trace you saw on screen matches the final stitch-out.

Warning: Magnetic Safety Hazard. Commercial magnetic frames are incredibly powerful. They can pinch fingers severely. Do not place them near pacemakers, insulin pumps, or credit cards. Store them separated by spacers.

Decision Tree: The Polo Stabilization Protocol

Use this decision logic to ensure your physical setup matches your digital layout.

1. Identify Fabric Structure:
   • Loose Pique Knit (Stretchy): MUST use Cutaway stabilizer. Do not stretch in hoop.
   • Heavy Jersey/Fleece (Stable): Can use Tearaway, but Cutaway is still preferred for longevity.
2. Identify Design Density:
   • Heavy Fill (like the Football): Requires strong hoop tension. Consider magnetic embroidery hoops to prevent fabric shifting during the 4,000+ stitches of fill.
   • Light Outline: Standard hoop is acceptable.
3. Identify Production Volume:
   • 1-5 Shirts: Standard workflow.
   • 50+ Shirts: You need a hooping station for machine embroidery to guarantee the logo is in the exact same spot on every shirt (e.g., 7 inches down from shoulder seam).

Troubleshooting Logic: Read the Symptoms

When things go wrong, do not randomly change settings. Follow this diagnostic path (Low Cost to High Cost).

Symptom: Design is off-center or tilted.

• Likely Cause: Poor hooping technique. The fabric was hooped crookedly.
• Fix (Level 1): Re-hoop using a grid.
• Fix (Level 2): Use a hooping station or upgrade to embroidery hoops magnetic which allow for easier adjustments before clamping.

Symptom: Text is sinking into the fabric (looks "eaten").

• Likely Cause: Font is too small (under 6mm) or fabric pile is too high.
• Fix: Use a Water Soluble Topping (Solvy) firmly on top of the polo to hold stitches up.

Symptom: White thread shows on the top of the design.

• Likely Cause: Bobbin tension is too loose or Top tension is too tight.
• Fix: Perform the "Drop Test" on your bobbin case (it should drop 1-2 inches when jerked).

Symptom: Machine makes a "thumping" sound.

• Likely Cause: Old/Dull needle punching through fabric rather than piercing it.
• Fix: Change the needle immediately.

Scaling Up: From One-Offs to Profitable Runs

The on-screen layout feature is a tool for agility, but if you find yourself doing this setup 20 times a day, you have a scale problem.

The Growth Path:

1. Phase 1 (Tooling): Improve the Happy Japan HCH with magnetic hoops to reduce load time.
2. Phase 2 (Capacity): If your order volume exceeds 30-50 pieces per run, consider adding a dedicated multi-needle machine like the SEWTECH line or upgrading to a larger happy journey 7 needle embroidery machine.
3. Phase 3 (Process): A unified shop uses the same hooping ecosystem across all machines. Many shops running a happy japan machine will standardize their hoops so frames are interchangeable between machines, maximizing uptime.

Final Checklists

Setup Checklist (Before Leaving the Screen)

• Composite Verified: Text spacing is 80, Curve is 15.
• Thread Map: Colors 1-7 match the physical cones.
• Simulation: Checked against Navy background; contrast is high.
• Save File: Saved to machine memory (not just USB) in case of power loss.

Operation Checklist (At the Machine)

• Hoop Check: Fabric is drum-tight (listen for the "thump") but not stretched.
• Stabilizer: Cutaway backing is visually present.
• Trace: Laser trace completed; clearance is >15mm from placket/hoop edge.
• Presser Foot: Height set correctly for polo thickness (usually "1.5" or "Standard").
• GO: Press Start.




FAQ

• Q: How do I set the correct needle type on a Happy Japan HCH Journey Plus when embroidering a navy pique knit polo?
  A: Use a Ballpoint 75/11 needle for knit polos to reduce fiber cutting and post-wash holes.
  • Install: Replace the needle before setup if the current needle is unknown or has hours on it.
  • Verify: Confirm the needle is a ballpoint style (not a sharp) for knit structures.
  • Pair: Use cutaway stabilizer so the knit is supported while the ballpoint penetrates.
  • Success check: The machine runs without a “thumping” punch sound and the polo shows no needle-cut holes after stitching.
  • If it still fails… Reduce variables by changing to a fresh needle again and re-check stabilizer choice (cutaway for pique).
• Q: What bobbin tension check should be used on a Happy Japan HCH Journey Plus before starting an on-screen composite?
  A: Do a quick pull test—bobbin tension should feel like flossing teeth (about 20–25 g resistance) before you press Start.
  • Pull: Hold the bobbin thread and gently pull; feel for smooth, consistent resistance (not free-spooling).
  • Observe: Watch for sudden slips or jerky release that suggests inconsistent tension.
  • Confirm: If white bobbin thread is showing on top later, treat it as a tension imbalance signal.
  • Success check: Stitches look balanced with no bobbin thread popping to the top surface.
  • If it still fails… Perform the bobbin-case “drop test” (it should drop 1–2 inches when jerked) and correct from there.
• Q: Why does Happy Japan HCH Journey Plus on-screen lettering look fine on the touchscreen but stitch out unreadable on a navy polo?
  A: Set knit-safe lettering first, then run background simulation—small or tight text that looks fine on screen often sinks into pique knit.
  • Set: Use 10 mm font height for knits, Curve Arch 15 (upward), and Character Spacing 80 as the baseline shown.
  • Simulate: Change the background simulation color to Navy/Dark Blue before committing to thread color.
  • Adjust: If contrast is low (example: red on navy), switch to a higher-contrast color like gold.
  • Success check: The preview is readable without squinting after the navy background simulation is enabled.
  • If it still fails… Add water-soluble topping to prevent text from sinking into the fabric texture.
• Q: How do I prevent a Happy Japan HCH Journey Plus composite design from hitting the polo placket or hoop edge during stitching?
  A: Always run the Happy Japan HCH Journey Plus laser trace and confirm clearances before pressing Start.
  • Trace: Run the laser bounding-box trace after layout is finalized.
  • Check: Keep the trace at least 15 mm away from buttons/placket and avoid crossing shoulder seams.
  • Inspect: Ensure the trace does not get dangerously close to the plastic hoop edge (needle-break risk).
  • Success check: The traced box stays fully inside safe fabric areas with visibly consistent clearance from placket and hoop edge.
  • If it still fails… Reposition the composite using the arrow “nudge” controls and trace again until clearance is safe.
• Q: What causes hoop burn and distortion on polo shirts when using standard tubular hoops on a Happy Japan HCH Journey Plus?
  A: Hoop burn usually comes from overstretching the knit in a screw/tubular hoop—stitching on stretched fabric relaxes into distortion after unhooping.
  • Stop: Do not pull and stretch pique knit just to make it feel “drum tight.”
  • Support: Use a single layer of cutaway (2.5 oz) on navy pique knit as specified.
  • Upgrade: Consider magnetic hoops to clamp fabric flat with less forced stretching if hooping consistency is a struggle.
  • Success check: After unhooping, circles stay round (not oval) and the fabric shows minimal ring marks.
  • If it still fails… Re-hoop using a grid or a hooping station to keep the garment square and repeatable.
• Q: What should I do if text is sinking into the fabric on a Happy Japan HCH Journey Plus navy pique knit polo?
  A: Treat sinking text as a topping/size issue—use water-soluble topping and avoid tiny lettering on pique.
  • Add: Apply water-soluble topping firmly on top of the polo before stitching.
  • Set: Keep lettering at a knit-safe size (the guide uses 10 mm as the stable target).
  • Space: Increase character spacing (the guide uses 80) to reduce knit push-in and crowding.
  • Success check: Letters sit “on top” of the knit texture and remain readable at normal viewing distance.
  • If it still fails… Re-evaluate the design for too-small text (under 6 mm is high-risk on pique) and re-test with topping.
• Q: What safety precautions are required when switching from Layout to Trace on a Happy Japan HCH Journey Plus embroidery machine?
  A: Keep hands and loose items away—when Happy Japan HCH Journey Plus switches to Trace, the carriage can move rapidly without warning.
  • Clear: Remove fingers, scissors, lanyards, and tools from the needle bar and carriage path.
  • Pause: Visually confirm the hoop area is unobstructed before initiating Trace.
  • Control: Stand to the side so you can hit Stop quickly if clearance looks wrong.
  • Success check: The carriage completes the trace smoothly with nothing near the moving head/needle-bar area.
  • If it still fails… Stop immediately and re-check hoop positioning and surrounding clearance before attempting Trace again.
• Q: What magnetic hoop safety rules should be followed when using commercial magnetic embroidery frames on a Happy Japan HCH Journey Plus?
  A: Treat commercial magnetic hoops as pinch hazards and keep them away from medical devices and magnetic-sensitive items.
  • Handle: Keep fingers out of the closing path; magnets can clamp suddenly and severely pinch.
  • Separate: Store magnetic frames with spacers so they do not snap together unexpectedly.
  • Protect: Keep frames away from pacemakers, insulin pumps, and credit cards.
  • Success check: The frame closes under control without finger pinches and stays securely clamped during stitching.
  • If it still fails… Stop using the magnetic frame until safe handling is consistent, and revert to standard hoops while refining the hooping process.
