From USB to First Stitch on the CAMFive A15 Control Panel: The Calm, Repeatable Workflow That Prevents Needle Strikes

If you’ve ever stood in front of an industrial embroidery machine like the CAMFive A15 with a design ready to go—and that tiny voice in your head saying, “If I press Start, am I about to break a needle or ruin this jacket?”—you’re not alone. That fear is valid, but it is manageable.

The CAMFive A15 panel looks complex, but it operates on a strict logic. This guide rebuilds the workflow from Know Your Embroidery Machine Pt. 4, but adds the "shop-floor" sensory details and safety checks that manuals usually leave out.

The “Don’t Panic” Moment: Powering On and The Patience Protocol

The first habit of a professional is patience during the boot sequence. When you flip the main switch, the machine isn't just turning on a light; it is loading an operating system and initializing servo motors.

The Expert Workflow:

1. Action: Turn on the main power switch.
2. Sensory Check: Listen for the internal fans to hum. Do not touch the screen yet.
3. Wait: Watch the A15 control panel load the logo, model number, and finally the interface.
4. Safety Check: Ensure the area around the needle bar is clear. When the machine initializes, the heads often do a "home seek" move. A screwdriver left on the needle plate can become a projectile.

Warning: Keep hands, tools, and loose clothing at least 6 inches away from the needle area during power-on. Industrial heads move with high torque and no hesitation—a small bump can result in a bent needle bar or finger injury.

The USB Import Ritual (Tab 1): The "Buffer" rule

New users often try to stitch directly from the USB stick. This is risky. If the connection vibrates loose during high-speed stitching (600+ SPM), the machine will crash or corrupt the design. Always copy to the brain (Internal Memory).

Step-by-Step:

1. Insert: Plug the USB drive into the side port.
2. Wait: Give it 3-5 seconds to recognize the drive.
3. Tab 1 (File Management): Tap the top-left icon.
4. Select: Tap the USB icon, find your .DST file.
5. Copy: Press the Save/Input to Memory icon (computer with an arrow).
6. Verify: Go to the internal memory folder and confirm the file is there before pulling the stick.

Shop Floor Reality: USB drives are consumable items. If you are running a cam5 embroidery machine daily, standard practice is to replace your transfer sticks every 6-12 months. Corrupted data is the #1 cause of "ghost" stops where the machine halts for no reason.

Prep Checklist: The "Clean Start" Protocol

• Machine boot cycle completed without error messages.
• Needle throat plate is clear of lint/birdnesting from previous runs.
• File is successfully copied to Internal Memory (never run from USB).
• Bobbin check: Visually confirm you have enough bobbin thread (white thread should be visible).

Tab 2 Design Editing: The Physics of Rotation

Tab 2 is for manipulating the design. Beginners think this is just visual; experts know this changes the physical stress on the fabric.

The Action Plan:

1. Tab 2: Access design tools.
2. Rotation ("P"): Rotate your design if needed.
3. Mirror X/Y: Flip the design for specific garment placements.
4. Rep Mode: For patches, set your rows and columns here.


The Expert Insight (Why this matters): Fabrics have a "grain." When you validly rotate a design 90 degrees, you are pushing the stitches against a different grain resistance.

• The Risk: A design that stitched perfectly horizontal might pucker when rotated vertical because the fabric stretches differently.
• The Fix: If you rotate a dense design, ensure your stabilizer is robust enough (e.g., Cutaway) to handle the pull in the new direction.

Whenever you are setting up embroidery machine hoops for a job that involves rotation, you must re-check your boundaries. A rotated design usually requires a wider safety margin within the hoop.

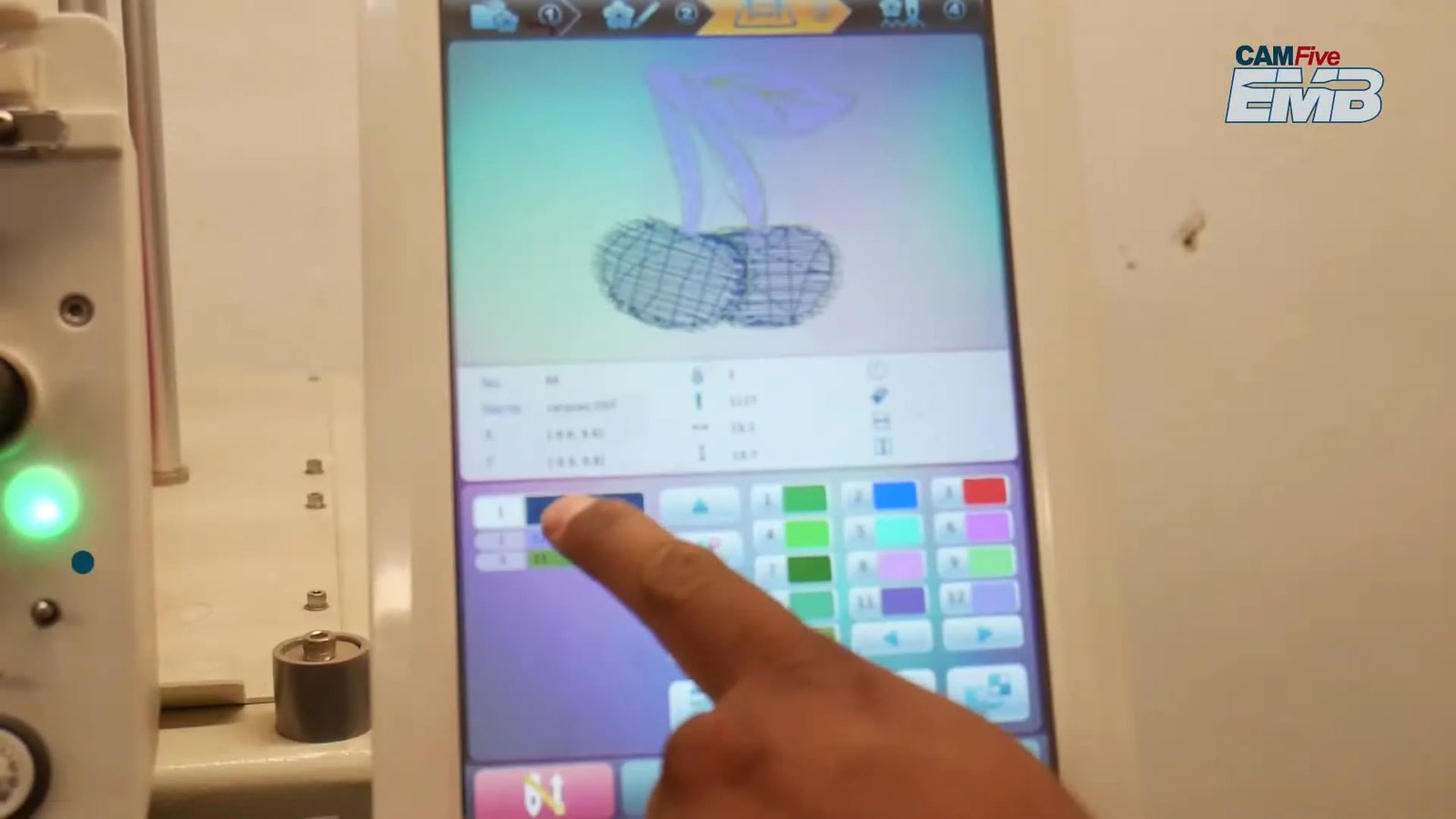

Tab 3 Color Sequence: The "Needle Map"

The machine is color-blind. It only knows "Needle 1," "Needle 2," etc. Tab 3 is where you translate the digital color to the physical needle.

Step-by-Step:

1. Tab 3 (Palette): Open the sequence view.
2. Assign: For Color Block 1, type the needle number (e.g., 3).
3. Verify: Look at the physical thread rack. Is the thread on Needle 3 actually the color you want?

Pro Tip - The "Standard Rack" Strategy: To reduce errors, standardize your thread setup (e.g., Needle 1=White, Needle 2=Black, Needle 3=Red). Keep a printed "Needle Map" taped to the machine head. This reduces the mental load of re-mapping every single job.

Tab 4 Hoop selection: The "Anti-Collision" System

This is the most critical safety step. The machine assumes you are telling the truth. If you tell the screen you have a large hoop (Hoop E), but you physically clipped on a small hoop (Hoop A), the machine will slam the needle bar into the plastic frame at 800 stitches per minute.

The Safety Sequence:

1. Tab 4: Open parameters.
2. Select Hoop: Tap the yellow magnifying glass.
3. Match Letter: Select the letter (A-H) that corresponds exactly to the hoop currently clicked into the pantograph arms.
4. Visual Check: The green box on the screen represents the safe zone. Your design must be inside it.




The "Hoop Burn" Problem: Standard hoops require you to screw them tight—often "drum skin" tight.

• Trigger: If you see "hoop burn" (crushed fabric marks) that won't steam out, or if your wrists hurt from constant tightening.
• Criteria: If you are doing delicate moisture-wicking polos or production runs of 50+ shirts.
• Solution: This is why professionals switch to magnetic embroidery frame systems. They snap on instantly, hold tension without crushing the fabric fibers, and eliminate the "screw-tightening" fatigue.

Warning: Magnetic frames are industrial-strength. They can pinch fingers severely. Never place magnetic hoops near pacemakers or sensitive electronics.

The Lock-and-Start Sequence: The Final Countdown

You are ready to commit. Do not rush this.

Step-by-Step:

1. Lock In: Tap the Embroidery Mode/Confirm icon (lower right). The design is now locked.
2. Trace (Optional but Recommended): Press the trace button to watch the pantograph outline the area.
   • Sensory Check: Watch the presser foot. Does it come dangerously close to the plastic hoop ring? If it's within 2mm, stop and resize or re-hoop.
3. Start: Press the physical green button.

Speed Recommendation:

• Beginner Sweet Spot: 550 - 650 SPM (Stitches Per Minute).
• Production Speed: 750 - 900 SPM.
• Rule: Start slow. If the machine sounds rhythmic ("thump-thump-thump"), you can increase speed. If it sounds harsh or clunky, slow down.


Setup Checklist (The "Pre-Flight" Check)

• Physical Hoop matches the Screen Hoop Letter. (Critical!)
• Design is centered within the green boundary box.
• Color sequence matches the physical thread cones.
• No loose straps or fabric hanging near the pantograph arm.
• Start Speed is set to a safe range (Start at 600 SPM).

When the Job Changes: Caps and Large Fields

Different jobs carry different risks.

Caps (The Danger Zone): Caps are curved and rigid. The margin for error is tinier.

• Always use the dedicated cap hoop for embroidery machine setting on the panel.
• Warning: Never trace a cap design with the needle down. The bill of the cap can hit the head.


Large Frames: When using giant hoops (like jacket backs), the pantograph travels far. Ensure the garment isn't heavy enough to drag on the arm, which causes registration errors (outlines not matching fill). You may need to support the garment with a table extension.

The "Hidden" Prep: Stabilizer Logic & Sensory Checks

The video shows the buttons, but the distinct "crispness" of a pro design comes from consumables.

Stabilizer Decision Tree:

1. Is the fabric stretchy (T-shirt/Polo)?
   • Yes: You must use Cutaway stabilizer. (Tearaway will result in a distorted design).
   • Logic: The stabilizer stays forever to support the stitches.
2. Is the fabric stable (Denim/Canvas)?
   • Yes: Tearaway is acceptable.
3. Is there pile (Towel/Fleece)?
   • Yes: You need a Water Soluble Topping (Solvy) so stitches don't sink in.

Sensory Troubleshooting:

• Sound: A sharp "Snap!" usually means a thread break. A grinding noise means a needle strike.
• Feel: The bobbin thread tension should feel like pulling a spiderweb—very little resistance. The top thread should feel like flossing teeth—firm resistance.

Scaling Up: When to Upgrade Your Tools

If you master this A15 workflow, you will eventually hit a wall: Time. You will find the machine stitches faster than you can hoop the next shirt.

• Trigger: You have 50 shirts due tomorrow, and your wrists are aching.
• Criteria: If idle machine time > running time.
• Level 1 Context: Use a hooping station for machine embroidery. This ensures every logo is in the exact same spot without measuring every shirt.
• Level 2 Context: Advanced shops use a hoopmaster hooping station to standardize placement across different employees.
• Level 3 Context: If one single-head machine can't keep up, look at SEWTECH multi-head solutions. Moving from one head to two doubles your profit per hour without doubling your labor.

Troubleshooting Quick-Reference

Operation Checklist (The "First 30 Seconds")

• Keep finger near the Stop button for the first 100 stitches.
• Listen: Is the sound rhythmic and smooth?
• Look: Is the fabric flat (not flagging/bouncing)?
• Inspect: Check the back of the first finished letter. Is the tension balanced (1/3 white bobbin thread visible)?

Once you internalize these steps, the fear disappears. The machine becomes just a tool, and you become the craftsman.

FAQ

• Q: On a CAMFive A15 embroidery machine, why is it risky to stitch directly from a USB drive instead of copying the DST file to Internal Memory?
  A: Always copy the DST file to CAMFive A15 Internal Memory first, because a loose or unstable USB connection can cause crashes or corrupted designs during stitching.
  • Insert: Plug in the USB drive and wait 3–5 seconds for recognition.
  • Copy: Use Tab 1 file management to select the DST file and press “Save/Input to Memory.”
  • Verify: Open the Internal Memory folder and confirm the file is present before removing the USB.
  • Success check: The DST file name appears in Internal Memory and loads normally without random stops.
  • If it still fails… Replace the USB drive (they wear out) and re-export the DST file from the design software.
• Q: On a CAMFive A15 embroidery machine, what safety checks should be done during power-on to avoid needle bar injury or tool strikes?
  A: Keep the needle area clear and hands away during CAMFive A15 boot-up, because the heads can move automatically to home position with high torque.
  • Wait: Let the panel fully load (logo/model/interface) before touching the screen.
  • Clear: Remove screwdrivers, scissors, and loose items from the needle plate/throat area.
  • Check: Keep hands, tools, and loose clothing at least 6 inches from the needle bar area during initialization.
  • Success check: The machine completes the boot cycle with no unexpected contact, noise spikes, or error messages.
  • If it still fails… Power off and inspect for obstructions around the needle bar/pantograph, then refer to the machine manual for startup error guidance.
• Q: On a CAMFive A15 embroidery machine, how can hoop selection in Tab 4 prevent hoop collisions and “Limit Error” messages?
  A: Match the CAMFive A15 on-screen hoop letter to the physical hoop installed, because the machine assumes the selected hoop is correct and can slam into a smaller frame.
  • Select: Go to Tab 4 and choose the exact hoop letter (A–H) that is clipped into the pantograph arms.
  • Verify: Confirm the green boundary box fully contains the design before locking in.
  • Trace: Run a trace to watch the pantograph outline and check clearance near the hoop ring.
  • Success check: The trace completes smoothly with safe clearance (no near-miss within a couple millimeters) and no “Limit Error.”
  • If it still fails… Reduce design size or re-hoop so the design sits safely inside the hoop’s real stitch field.
• Q: On a CAMFive A15 embroidery machine, how can a beginner set a safe starting stitch speed and judge if the machine is running smoothly?
  A: Start a CAMFive A15 embroidery job around 550–650 SPM and increase only if the machine sounds smooth and rhythmic.
  • Set: Choose a beginner range (about 550–650 SPM) before pressing the physical green Start button.
  • Monitor: Keep a finger near Stop for the first 100 stitches.
  • Listen: Increase speed only if the sound is steady (“thump-thump-thump”), and slow down if it becomes harsh or clunky.
  • Success check: The first stitches form cleanly with flat fabric (no bouncing/flagging) and stable sound.
  • If it still fails… Stop and check hooping stability, thread path, and for any needle strike sounds before resuming.
• Q: On a CAMFive A15 embroidery machine, what is a fast “first 30 seconds” tension check using the back of the embroidery?
  A: Use the CAMFive A15 first-letters back-side check: balanced tension typically shows about 1/3 white bobbin thread visible behind the stitches.
  • Start: Run the first few letters and pause early if anything looks off.
  • Inspect: Flip or feel the underside area you can access and look for balanced bobbin visibility (not all top thread, not all bobbin).
  • Adjust: If the underside is messy (loops/clumps), stop and correct before continuing the full design.
  • Success check: The back of the first finished letter shows roughly 1/3 bobbin thread with no heavy looping or snarls.
  • If it still fails… Re-thread completely and clean the bobbin area before chasing tension settings.
• Q: On a CAMFive A15 embroidery machine, how do you troubleshoot birdnesting (thread clumps under the fabric) after starting a design?
  A: For CAMFive A15 birdnesting, stop immediately and check upper tension first, then confirm the bobbin is seated cleanly and correctly.
  • Stop: Hit Stop as soon as clumping begins to avoid worsening the jam.
  • Tighten: Increase upper tension if the top thread is too loose and “falls in” underneath.
  • Clean: Remove lint and debris from the bobbin case area and re-seat the bobbin.
  • Success check: After restarting, the underside shows controlled stitching (not a growing thread wad) and the fabric stays flat.
  • If it still fails… Re-thread the entire upper path and inspect for leftover lint from previous runs on the needle plate/throat area.
• Q: When should an embroidery shop upgrade from standard screw-tight hoops to magnetic embroidery hoops, and when does it make sense to consider a SEWTECH multi-head embroidery machine?
  A: Upgrade in layers: optimize setup first, switch to magnetic hoops when hoop burn or hooping fatigue becomes frequent, and consider a SEWTECH multi-head machine when machine idle time becomes longer than stitching time.
  • Level 1 (Technique): Standardize placement with a hooping station so every garment loads consistently without constant measuring.
  • Level 2 (Tool): Choose magnetic hoops if hoop burn marks won’t steam out, wrists hurt from tightening, or delicate polos get crushed by screw hoops.
  • Level 3 (Capacity): Consider SEWTECH multi-head options if you cannot hoop fast enough and deadlines require continuous production.
  • Success check: Idle time drops (less waiting between garments) while finished pieces show fewer hoop marks and fewer placement rejects.
  • If it still fails… Re-check workflow bottlenecks (hooping, thread changes, file handling) before scaling equipment.
