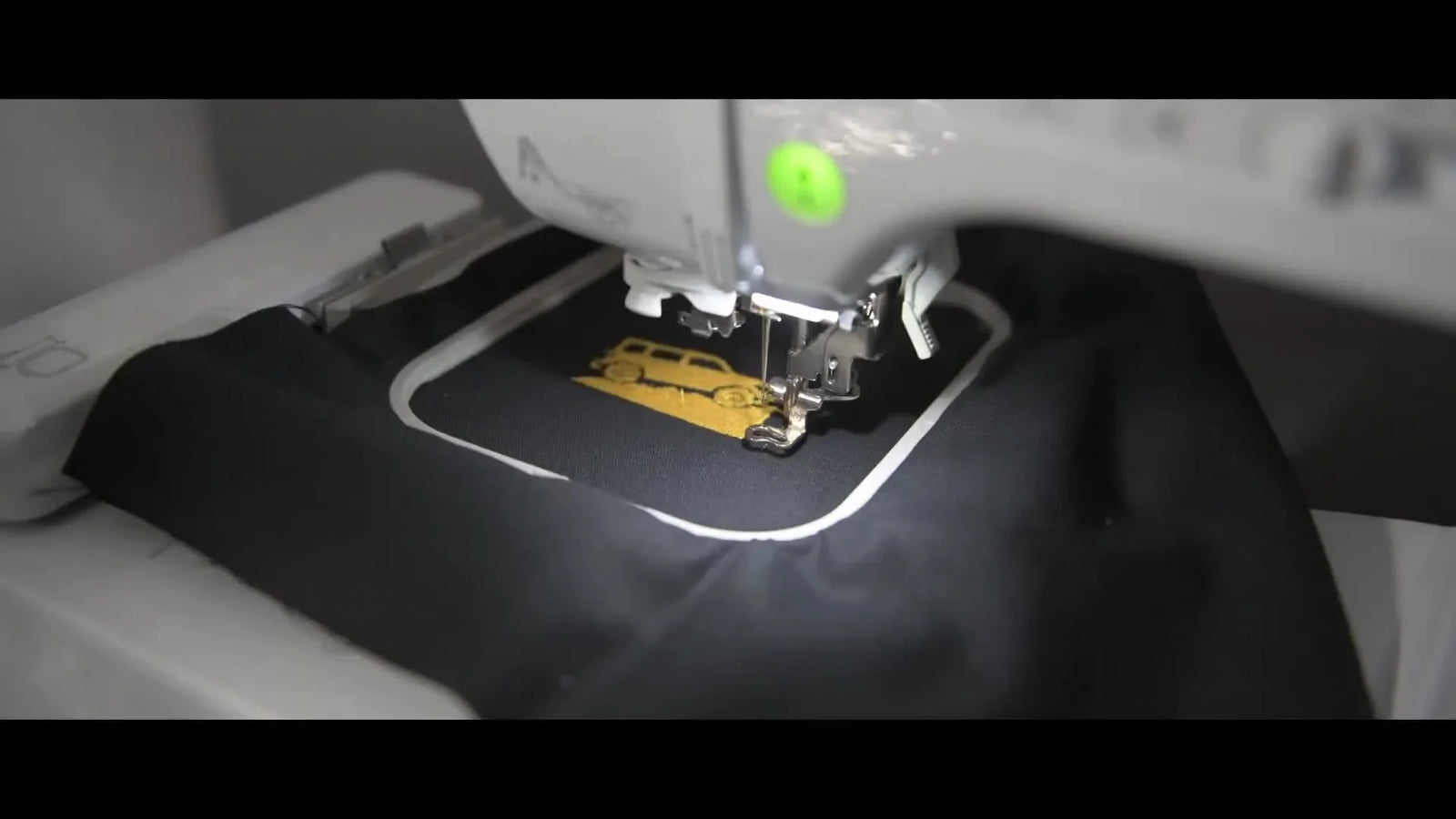

From SVG to a Clean Patch on the Brother LB5000: Drum-Tight Hooping, Fewer Jams, Better Results

If you have ever stared at your Brother screen, watched the first few stitches land, and thought, “Please don’t birdnest on me today,” you are not alone. Patch-making is the crucible of machine embroidery—it is one of the fastest ways to level up your skills, but it is also where hooping mistakes and lazy tension habits show up immediately.

This post rebuilds the exact workflow from the video: design → convert to .PES → prep tear-away + black backing → hoop it using the "drum-tight" standard → thread the Brother LB5000 → confirm placement → stitch → trim → recover from thread jams. Along the way, I will add the “20-years-in-the-trenches” details known as Sensory Anchors—the specific sounds and feelings that keep patches consistent and keep your hands from fighting that hoop screw every single time.

The Patch Mindset on a Brother LB5000: Calm First, Then Control

A patch is basically a dense, self-contained embroidery job. That density is why it looks bold on jackets and bags—but it is also why small setup errors (slack fabric, unstable backing, messy thread tails) turn into thread breaks and ugly edges.

In the video, the design runs about 10,539 stitches. The machine estimates 26 minutes, but the creator correctly notes it can take longer with stopping and restarting. That is normal.

Beginner Sweet Spot: If your machine allows speed adjustment, do not run a fresh patch design at max speed (usually 710 SPM on this class of machine) immediately. Dial it back to 500-600 SPM. High speed creates high vibration; until your hooping technique is perfect, speed is the enemy of quality.

What matters is this: you are not “bad at embroidery” if you have to stop. You are just missing a repeatable setup routine.

SVG to .PES Without Guesswork: Illustrator → Inkscape → USB

The video’s digitizing workflow is straightforward:

1. Create the graphic in Adobe Illustrator.
2. Export it as an SVG.
3. Open the SVG in Inkscape (a free, powerful tool).
4. Scale it to fit the 4x4 hoop boundary (approx. 100mm x 100mm).
5. Export as a .PES file (the native language of Brother machines).
6. Save the .PES to a USB flash drive for the Brother LB5000.

One practical habit required here: before you export, pause and check the Stitch Density. For patches, standard fills often sit around 0.4mm spacing. If you go denser (0.3mm or lower), you risk cutting your fabric.

If you are searching for a repeatable workflow like hooping for embroidery machine, treat the file step as “locked” once it fits the hoop—then put your energy into materials and hoop tension, because that is where 90% of patch failures actually come from.

Tear-Away Stabilizer + Black Backing Fabric: The Simple Sandwich That Works

In the video, the creator uses:

• Tear-away stabilizer (cut slightly larger than the hoop).
• Black woven fabric as the patch base/backing (Twill is the industry standard for patches due to its diagonal weave strength).

And they call out the key rule:

• Stabilizer is always on the bottom.

Here is the “why” in physics terms: Embroidery stitches pull fabric inward towards the center (The Push/Pull Effect). Stabilizer resists that pull. If the stabilizer is too small, too loose, or not fully captured by the clamp, the fabric will shift, and you will see white gaps between your outline and your fill.

Prep Checklist (Materials + Sanity Check)

• Tear-away stabilizer: Cut at least 1 inch wider than the hoop on all sides.
• Patch Base Fabric: Woven/Twill, cut to match the stabilizer size.
• Hoop: 4x4 hoop ready (inner + outer ring checked for cracks).
• Scissors: One heavy pair for materials, one precision snip (curved tip is best) for threads.
• Hidden Consumable: A can of Temporary Spray Adhesive (optional but highly recommended to bond the fabric to the stabilizer so they move as one unit).
• Bobbin: Pre-wound brightness (white 60wt or 90wt) installed correctly.
• Needle: 75/11 Embroidery Needle (Check the tip—run it over a fingernail; if it scratches, replace it).

The “Drum-Tight” Moment: Hooping a Brother 4x4 Hoop Without Hand Pain

The video shows classic manual hooping:

1. Loosen the outer hoop screw.
2. Place the fabric + stabilizer sandwich on a flat, hard surface.
3. Set the inner hoop into the outer hoop.
4. Align the side grooves/notches (listen for the plastic accepting the fit).
5. Press down evenly with palms, not fingertips.
6. Tighten the thumbscrew while gently pulling the fabric edges to remove slack.
7. Check tautness by tapping the surface.

The creator’s benchmark is perfect for beginners: “Tight like a drum.”

Here is the expert nuance: “Drum-tight” is not about stretching the fabric until it distorts. It is about removing slack so the fabric cannot ripple when the needle penetrates at speed.

Sensory Check (The Tap Test):

• Touch: When you tap the hooped area with your fingernail, it should sound like a dull thud-thud, not a flabby flap-flap.
• Sight: Look at the weave of the fabric. The grid lines of the fabric should be straight, not bowed/curved (which indicates over-stretching).

The Pain Point: If you are using a standard plastic brother 4x4 embroidery hoop and you find yourself fighting the screw knob every time, that is a real productivity bottleneck. The friction against your wrist accumulates, leading to fatigue and "good enough" hooping that ruins designs.

Warning (Safety): Keep fingers clear of the gap between rings when pressing the inner hoop into the outer ring to avoid pinching. Never trim thread tails near a moving needle—stop the machine fully and wait for the green light before bringing hands near the needle bar.

A Practical Upgrade Path (When Hooping Becomes the Problem)

Manual hooping works, but it causes "Hoop Burn" (shiny crush marks on fabric) and wrist strain during repeated jobs.

• Scene Trigger: You just finished a run of 10 patches and your wrist hurts, or you ruined a shirt because the hoop left a permanent ring mark.
• Judgment Standard: If hooping takes longer than threading, or you are re-hooping more than once per patch to get it straight, you are losing money/time.
• Option (Level 2 Upgrade): A magnetic hoop for brother (like the SEWTECH MaggieFrame series) can reduce hooping time by 50-70%. These frames use magnets to clamp fabric instantly without a screw mechanism, eliminating hoop burn and wrist strain.

If you are running a home single-needle today but thinking about production later, magnetic frames are one of the few upgrades that improve both quality consistency (no fabric distortion) and operator comfort immediately.

Threading the Brother LB5000: Follow the Numbers, Then Respect the Take-Up Lever

The video’s upper-threading sequence is clear. Follow it exactly:

1. Mount: Put the spool on the pin and lock it with the spool cap (The cap must be slightly larger than the spool diameter to prevent snagging).
2. Guide: Feed the thread through the numbered path 1 through 6 printed on the machine casing.
3. The Critical Turn: Go down the right channel, make a U-turn up the left channel.
4. The Anchor: At the top of the left channel, make sure the thread slips into the Take-Up Lever eyelet.
5. Finish: Bring it down to the needle hook and use the automatic needle threader lever.


Sensory Check (The Dental Floss Test): Before you thread the needle eye, pull the thread gently near the tension discs (Step 3). You should feel a smooth, consistent resistance, similar to pulling dental floss from the container. If it feels loose or rattles, the thread is not in the tension discs—re-thread immediately.

Two “Old Tech” truths that prevent specific jams:

• If the thread misses the take-up lever, the thread will not pull up the slack after a stitch, causing a massive "birdnest" instantly.
• If the spool is distinctively cross-wound (diamond pattern) vs. stack-wound (parallel), it may feed better from a stand than the horizontal pin.


If you are trying to get more consistent results with a magnetic embroidery hoop, keep in mind: a better hoop won't fix a missed take-up lever. Hooping stabilizes the canvas; threading fuels the brush. Treat them as separate failure points.

The On-Screen “Real Estate” Check: Don’t Stitch Until the Brother Preview Looks Right

In the video, the creator:

1. Enters Embroidery mode.
2. Selects the design.
3. Checks the design preview inside the hoop boundary.
4. Notes the machine estimate (26 minutes) and stitch count (10,539).
5. Uses the screen to confirm they are “well within the boundaries.”


This is the "Measure Twice, Cut Once" of embroidery.

• Visual Check: Ensure the design is centered. If your patch is off-center in the hoop, you might waste fabric or struggle to cut a clean shape later.
• Boundary Check: If your design touches the grey safety line on the screen, shrink it by 5% or re-hoop. Hitting the frame with the needle bar is a violent, expensive mistake.

Start Clean: Presser Foot Down, Light Turns Green, Trim the Tail Early

The video shows the correct start sequence:

1. Lower the presser foot lever (the red light turns green).
2. Press Start.
3. Crucial Step: After 5-10 stitches, press Stop.
4. Trim the starting thread tail close to the fabric.


Why trim early? If you leave that long tail, the moving foot will eventually drag it under the needle, stitching it into the patch or causing a jam.

Setup Checklist (Before You Hit Start)

• Design Check: Preview confirmed inside the 4x4 boundary?
• Mechanical: Hoop checked—is it clicked/locked into the embroidery arm?
• Clearance: Nothing behind the machine that the hoop will hit when moving back (walls, coffee mugs)?
• Safety: Presser foot lowered (Green Light on)?
• Action: Hold the thread tail gently for the first 3 stitches to create tension.

When the Thread Jams Mid-Run: The “Full Re-Thread” Reset That Actually Works

The video demonstrates the reality of embroidery: jams happen.

• A thread break/jam occurs.
• The creator suspects tension/thread.
• The Solution: They re-thread from scratch.


The Golden Rule of Troubleshooting: When you get a jam and you are not 100% sure what caused it, do not half-fix it.

Perform a "Clean Reset":

1. Stop the machine.
2. Cut the upper thread at the spool.
3. Pull the excess thread out through the needle end (don't pull it backward up the machine, which drags lint into the tension discs).
4. Remove the bobbin case, blow out any lint, and re-seat it.
5. Re-thread the entire upper path.

Why this works: A jam often leaves tiny slack loops or mis-seated thread in a guide you can't see. A full reset clears the "ghosts" in the machine.

If you are building a workflow around embroidery hoops for brother machines, this reset routine is the difference between “I hate patches” and “I can run patches reliably.”

Troubleshooting Map (Symptom → Likely Cause → Quick Fix)

The Physics Behind “Drum-Tight”: Why Hooping Tension Controls Stitch Quality

Let’s connect the dots the video demonstrates physically.

When the needle penetrates fabric thousands of times, the fabric wants to:

1. Flag: Lift up with the needle on the upstroke.
2. Push: Move away from the needle penetration.
3. Pull: Draw inward as stitches tighten.

A drum-tight hoop reduces Flagging. Less flagging means the loop forms correctly for the hook to catch. If the fabric bounces (flags), you get skipped stitches or nests.

If you are considering how to use magnetic embroidery hoop options for patch work, the real benefit is Radial Consistency. Magnetic clamping allows even tension across all sides of the hoop without the "pinch and drag" distortion of manual screws. That consistency is what reduces re-hooping and ensures your patch serves as a perfect circle, not an oval.

Warning (Magnetic Safety): Magnetic frames (like the MaggieFrame) are powerful industrial tools. Keep them away from pacemakers or medical implants. Keep fingers clear when snapping them shut (Pinch Hazard). Store away from credit cards and screens.

Tear-Away vs. Cut-Away for Patches: A Decision Tree You Can Actually Use

The video uses tear-away stabilizer successfully because the black base fabric is likely stable (heavy cotton or twill).

Use this decision tree for your future projects:

Decision Tree: Stabilizer Choice for Patches

1. Is your patch base fabric stable (Woven, Denim, Twill, Felt)?
   • YES: Use Tear-Away (2 layers if the design is >10,000 stitches). Why? It allows clean edges.
   • NO (T-shirt material, Jersey, Knit): Go to Step 2.
2. Is the base fabric stretchy?
   • YES: Use Cut-Away stabilizer (aka Mesh).
   • Why? Tear-away will disintegrate under needle perforations on knits, causing the design to distort into a football shape.
   • Note: For patches, you almost always want a non-stretch base (Step 1).
3. Are you seeing edge distortion even with drum-tight hooping?
   • YES: Switch to Cut-Away or add a layer of adhesive spray.
   • NO: Continue with Tear-Away.

In a professional shop, stabilizer is not where you “save pennies.” It is where you buy consistency.

Clean Jump Stitch Trimming and Patch Finish: Make It Look Like You Meant It

The video shows trimming thread tails early. That is the right instinct.

A few finishing standards that separate "Hobby" patches from "Sellable" patches:

• Trimming: Trim jump stitches (the lines connecting different letters) as you go, but only when the machine stops for a color change or you hit pause.
• The Back: When the creator says the back “looks a little crazy,” that is normal for dense embroidery.
• Consumable: Use Iron-On Adhesive (like HeatnBond) on the back of the patch. This seals the "crazy" threads and prepares the patch for application.


Operation Checklist (During the Stitch-out)

• Action: Trim the starting tail after stitches 5-10.
• Safety: If you pause to trim jumps, keep hands away until the Green Light is on.
• Monitor: Watch for the first signs of trouble—sudden looping sound or "thumping."
• Recovery: If a jam happens, utilize the Full Re-Thread Reset (do not just pull thread).

The Finished Patch Reveal—and the Smart Upgrade Path When You Want Speed

The video ends with a clean reveal of the finished “E-LIFE Nomad” patch in the hoop. It is solid, legible, and ready for a jacket.

Now the business reality: Patches are commodity products. If you plan to make more than a few, your bottleneck won't be “how do I export a file.” Your bottleneck will be Hooping Time and Color Change Time.

That is where upgrades should be logical, not impulsive. Diagnose your pain point before buying:

1. Pain Point: Sore wrists / Hoop burn / Crooked hooping.
   • Solution: Level 2 Upgrade. Use a hooping station for machine embroidery combined with Magnetic Hoops. This standardizes placement so every patch is centered exactly the same way.
   • Tool: SEWTECH or similar Magnetic Frames.
2. Pain Point: Changing thread colors takes longer than stitching.
   • Solution: Level 3 Upgrade. Move to a Multi-Needle Machine (like the SEWTECH 1501 or Ricoma series). These machines hold 10-15 colors at once and switch automatically.
   • Trigger: If you are getting orders for 50+ patches, a single-needle machine will burn out your motor and your patience.

If you are currently researching a hoop master embroidery hooping station or similar pro-level gear, think of it as a consistency tool. It doesn’t make the design better, but it makes the setup repeatable—exactly what patch production demands.

Final thought: Mastering the LB5000 makes you a better embroiderer because it forces you to understand tension and stabilization manually. Once you can make a perfect patch here, you can make it on any machine in the world.

FAQ

• Q: What supplies should be checked before stitching a Brother LB5000 patch with tear-away stabilizer and black twill backing?
  A: Use a short pre-flight checklist so patch failures do not start with preventable basics.
  • Cut tear-away stabilizer at least 1 inch larger than the Brother 4x4 hoop on all sides, and cut the black woven/twill backing to match.
  • Install a correctly seated pre-wound white bobbin (60wt or 90wt) and confirm the bobbin area is free of lint.
  • Replace the 75/11 embroidery needle if the tip scratches a fingernail, and keep two scissors ready (one heavy, one precision/curved tip).
  • Add temporary spray adhesive if the fabric and stabilizer tend to shift as separate layers.
  • Success check: The fabric + stabilizer behaves like one “sandwich” when handled, with no sliding and no puckers before hooping.
  • If it still fails: Re-check hoop condition (cracks/warping) and re-evaluate stabilizer choice (tear-away vs cut-away) for the fabric type.
• Q: How do you hoop a Brother 4x4 embroidery hoop “drum-tight” without stretching the fabric for patch making?
  A: Remove slack, not shape—aim for taut, flat fabric that cannot ripple when the needle hits.
  • Place the fabric + stabilizer sandwich on a hard flat surface, then press the inner hoop into the outer hoop evenly with palms (not fingertips).
  • Tighten the Brother 4x4 hoop screw while gently pulling the fabric edges just enough to remove slack.
  • Avoid over-stretching by watching the weave/grid lines; stop tightening if the weave starts bowing or curving.
  • Success check: Tap the hooped area with a fingernail—listen for a dull “thud-thud,” not a loose “flap-flap.”
  • If it still fails: Re-hoop from scratch; repeated re-hooping usually means the stabilizer is too small/loose or the sandwich is not fully captured by the hoop ring.
• Q: How can Brother LB5000 upper-threading be verified to prevent immediate birdnesting when starting a patch?
  A: Confirm the thread is seated in the tension discs and the take-up lever before pressing Start.
  • Follow the Brother LB5000 numbered threading path (1–6) exactly and make the U-turn correctly through the channels.
  • Confirm the thread is actually in the take-up lever eyelet; missing the take-up lever commonly causes instant birdnesting.
  • Perform the “Dental Floss” resistance test near the tension area before threading the needle.
  • Success check: The thread pulls with smooth, consistent resistance (not loose or rattly) before it reaches the needle.
  • If it still fails: Re-thread the entire upper path again and verify the spool cap is slightly larger than the spool to prevent snagging.
• Q: What is the safest way to clear a Brother LB5000 thread jam mid-run and restart cleanly on a patch?
  A: Do a full reset—partial fixes often leave hidden slack loops that re-jam immediately.
  • Stop the Brother LB5000, cut the upper thread at the spool, then pull the thread out through the needle end (do not pull backward through the machine).
  • Remove the bobbin case, clear lint, and re-seat the bobbin case correctly.
  • Re-thread the entire upper threading path from the start, then restart.
  • Success check: After restarting, stitches form without a sudden looping sound or new nesting underneath in the first few seconds.
  • If it still fails: Suspect missed take-up lever seating or the upper thread not being in the tension discs; re-do the “Dental Floss” test and re-thread again.
• Q: What does “birdnest on the bottom” mean on a Brother LB5000, and what is the fastest fix?
  A: Bottom birdnesting usually means the Brother LB5000 upper thread has effectively zero tension because it is not in the tension discs.
  • Stop immediately to avoid packing thread into the hook area.
  • Re-thread the entire upper path and confirm the thread is seated correctly using the “Dental Floss” resistance feel.
  • Resume and monitor the first 5–10 stitches, then stop briefly to trim the starting tail.
  • Success check: The underside shows controlled bobbin thread lines, not a wad of loose top thread.
  • If it still fails: Remove the bobbin case to clear lint and re-seat it, then repeat a full upper re-thread.
• Q: What safety rules should be followed when pressing a Brother 4x4 hoop together and trimming thread tails near the needle?
  A: Prevent pinch injuries and needle accidents by stopping fully and keeping hands out of moving zones.
  • Keep fingers away from the gap between the inner and outer hoop rings while pressing the hoop together to avoid pinching.
  • Stop the Brother LB5000 completely before trimming thread tails; never trim near a moving needle bar.
  • Wait for the machine’s safe/ready indication (green light) before bringing hands near the needle area.
  • Success check: Hands never enter the needle/presser-foot area while the machine is actively stitching or moving.
  • If it still fails: Slow the workflow down and build a routine: stitch 5–10 stitches, stop, trim tail, then continue.
• Q: When patch production on a Brother LB5000 is slowed by hooping time or hoop burn, when should the upgrade move to a magnetic hoop or a multi-needle machine?
  A: Upgrade based on the bottleneck: fix technique first, then choose magnetic hoops for hooping pain, and choose multi-needle when color changes dominate time.
  • Level 1 (Technique): Standardize “drum-tight” hooping, early tail trimming (after 5–10 stitches), and full re-thread resets after jams.
  • Level 2 (Tool): Move to a magnetic hoop when hoop burn, wrist strain, slow screw-tightening, or repeated re-hooping is the main problem.
  • Level 3 (Capacity): Move to a multi-needle machine when thread color changes take longer than stitching, especially as orders grow.
  • Success check: Setup time becomes predictable and repeatable, with fewer re-hoops and fewer restarts per patch run.
  • If it still fails: Add a hooping station to standardize placement and centering before investing further.
