From Simple Cut to Janome .JEF: The Appliqué Workflow That Actually Catches the Fabric Edge (Mirror Style + Offset Done Right)

Here is the rewritten guide, calibrated for clarity, safety, and professional growth.

If you have ever watched a decorative border stitch preview in your software and thought, “That looks perfect,” only to end up with fabric fraying after the first wash or an appliqué edge that never actually got caught by the needle—take a deep breath. Nothing is “wrong with you.”

Appliqué is not just art; it is engineering. Most appliqué failures do not happen because you lack talent; they happen because of two quiet, mechanical settings that most beginners skip: stitch orientation (is the stitch biting into the fabric or the air?) and offset (how far does the needle travel from the raw edge?).

This master class uses Simple Cut Software to convert a basic cut-file shape (a star) into a production-ready embroidery appliqué file, then exports it for a Janome machine format. While we will stay faithful to the workflow, we are going to add the “Shop Floor Reality” layer: the specific safety margins, the sensory checks, and the equipment upgrades that turn a hobbyist’s frustration into a professional’s consistency.

Open the Simple Cut “Star Sample” Cut File Without Breaking Your Workflow Momentum

The video demonstrates a critical efficiency habit: Asset Reuse. In a professional shop, we never redraw what we have already created.

1. Launch & Load: In Simple Cut, select Open existing.
2. Locate: Browse to the file created in the previous lesson (select star sample) and click Finish.
3. Visual Confirmation: Confirm you see the green star appear on the canvas.

The Sensory Check: When you click 'Finish', you should see the grid refresh instantly. If the screen flashes but the canvas remains white, do not just click wildly. Stop. Verify you are in the "Design" tab and not the "Cut" tab.

The “Blank Object Properties” moment is normal—here’s the fix

This is the number one panic moment for new digitizers. You open the file, look at the Object Properties panel on the right to change the stitch type, and... it is completely grayed out (blank).

It is not a software bug. It is a logic gate. The computer does not know what you want to edit until you tell it.

• The Action: Click directly on the green star shape in the workspace.
• The Visual Anchor: You must see a bounding box (a dashed line with small black squares or "handles") appear around the star.
• The Result: The Object Properties panel instantly populates with active menus.


Warning: Software "Ghost" Edits
Never attempt to change stitch settings (length, density, type) while nothing is selected. In many embroidery programs, changing a setting with no object selected changes the global default, meaning every future object you create will inherit that accidental setting. Always select your object first.

Prep Checklist (Pre-Flight Protocol)

Before you even think about stitch types, run this 10-second mental diagnostic:

• Visual: The green star is centered on the canvas.
• Selection: The bounding box and handles are clearly visible around the star.
• Panel: The Object Properties panel is active (text is black, not gray).
• Format Check: If you are using a specific machine, ensure you know your target file extension (e.g., .JEF for Janome, .PES for Brother/Babylock).

Turn a Vector Outline Into Running Appliqué Stitches Using the Pencil Tool (Simple Cut)

Once the star is selected, we move from "Drawing Mode" to "Stitch Generation Mode."

1. Select the Tool: Click the Pencil tool.
2. Define the Category: In the properties area, ensure the Running option is selected (as opposed to Satin or Fill).
3. Reveal the Library: Once Running is active, a visual ribbon of stitch types appears at the bottom of the screen.


Pro Tip: The instructor is using the Cut and Embroidery mode (setup in Lesson 1). This is a "Hybrid Workflow." In a production environment, we love this because it keeps the cutting line (for your plotter) and the stitch line (for your machine) mathematically linked. If you resize the star now, both the cut file and the stitch file scale together.

If you are stitching this on a specific janome embroidery machine, consistency is your best friend. Always use the same startup profile so your screen looks identical every time you sit down to work.

Pick a Decorative Running Stitch Border (Stitch 04, 08, Letters) and Inspect It Like a Pro

The stitch library in Simple Cut is vast—over 300 stitches. It is easy to get overwhelmed. The video demonstrates selecting:

• Stitch 04: A standard decorative run.
• Stitch 08: A circle motion stitch.
• Letters: Using font characters as a border pattern (a creative but advanced technique).






How to evaluate a running appliqué stitch before you ever sew it

Do not trust the 100% zoom view. On a computer screen, a stitch line looks like a thick, solid marker. In reality, it is a microscopic piece of thread.

Zoom In to 400% or 600%. You are looking for "The Bite."

1. Edge Capture: Does the stitch swing across the vector line? (The vector line represents the raw edge of your fabric). If the stitch stays on one side of the line, it is not holding anything down.
2. Corner Logic: Look at the tips of the star. Does the stitch turn cleanly, or does it turn into a glob of thread knots?
3. Density: Running stitches are low density. If you need a heavy "satin" look that covers a raw edge completely, you typically need a specific "Satin Serial" or "Column" tool, not a decorative run.

The "Satin" Confusion: Many beginners ask, "How do I make the nice thick satin border?" In this specific tool (Running Stitch), you are applying a decorative line. If your goal is a heavy, patch-like satin border, that is often a different tool category in professionalizing software. For this lesson, we are creating a raw-edge or decorative appliqué finish, which is lighter and more flexible—perfect for vintage looks or children's wear.

The Mirror Style Switch: Fix Greek Key Stitch 92 So It Sits Inside the Appliqué Edge (Not Outside)

This section contains the critical engineering concept of the entire tutorial.

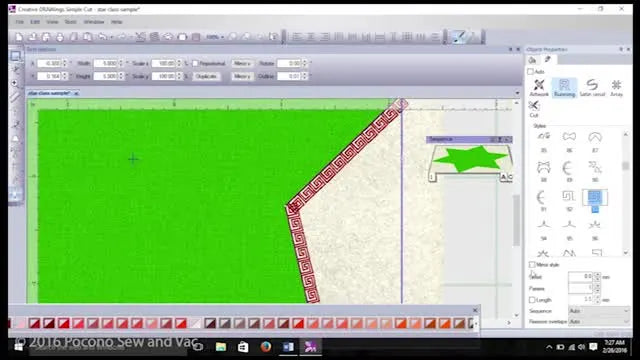

The instructor selects Stitch 92 (a geometric Greek Key). Immediately, you should see a problem. The bulk of the decorative pattern is sitting on the outside of the star's outline.

Why is this a failure point? If you stitch this, the needle will perforate the background fabric outside your appliqué shape. The raw edge of your appliqué fabric will be barely touched, leading to immediate fraying and lifting.

The Fix:

1. Locate the Mirror style checkbox in the properties panel.
2. Check it.
3. Watch the stitch flip. The pattern now sits on the inside of the green star line.


Why Mirror style matters in real fabric (not just on screen)

Appliqué relies on Compression Physics. You need the thread to compress the appliqué fabric against the stabilizer.

• Outside Stitch: Compresses background fabric (Result: Appliqué peels off).
• Inside Stitch: Compresses appliqué fabric (Result: Secure bond).

If you are running a business—making 50 team patches or school logo shirts—checking this "Mirror" box is the difference between a satisfied client and a return/refund nightmare.

Offset 0 vs Offset 5.0: The Small Number That Decides Whether Your Appliqué Frays

After mirroring, we must fine-tune the position. This is controlled by Offset.

• Offset 0: The spine of the stitch sits exactly on the vector line.
• Offset 5.0: The stitch moves 5.0mm away from the line.


How to think about Offset like a technician

In the video, increasing the offset pushes the stitch away. For appliqué, this visualizes the relationship between the Cut Line and the Sew Line.

The "Sweet Spot" Data (Expert Recommendation): While the video shows large movements for demonstration, in a real appliqué scenario, you often want a Negative Offset (or a mirrored specific offset) of about -0.5mm to -1.0mm inside the cut edge.

• Why? If your physical fabric placement is off by even a millimeter (human error), a stitch that rides exactly on the edge (Offset 0) might fall off and miss the fabric entirely.
• The Safety Margin: Pulling the stitch slightly inward ensures that 100% of the stitches pierce the appliqué fabric.

Consumable Note: This precision demands stability. If your fabric shifts in the hoop, your offset is useless. This is why professionals obsess over hooping. Using magnetic embroidery hoops can significantly reduce the "hoop burn" and fabric distortion that throws off these precise offset calculations.

The “Pre-cut” Fabric Trim Setting: Make the Machine Stop So You Can Place the Cut Piece

A standard embroidery file just sews from start to finish. An Appliqué file needs a brain; it needs to know when to stop so you can work.

1. Select the Bucket tool (Fill properties).
2. Locate Fabric Trim.
3. Change the dropdown to Pre-cut.




What this does physically: It inserts a STOP command into the machine code after the placement line (if setup) or before the main border. This allows you to:

1. Machine sews a guide line (optional).
2. Machine STOPS.
3. You place your pre-cut star fabric (held with spray adhesive).
4. You press Start.
5. Machine sews the decorative border to lock it down.

Setup Checklist (The "Don't Sew Your Fingers" Check)

• Command Check: Verify "Pre-cut" is selected so the machine actually pauses.
• Materials: Have your appliqué fabric star cut and ready nearby.
• Adhesive: Have a can of temporary spray adhesive (like Odif 505) or a glue stick to tack the fabric in place during the stop.
• Clearance: Ensure your hoop path is clear.

Warning: Mechanical Safety
When the machine stops for appliqué placement, keep your hands aware. Do not place your fingers under the needle bar. Use tweezers to adjust fabric edges if possible. On some machines, if you lean on the "Start" button while your hand is in the hoop, the needle bar will descend with force.

Save As Janome .JEF: Export the Embroidery File (Not the .DRAW Working File)

To the software, your design is a collection of vectors and properties (.DRAW). To your machine, it must be a set of X/Y coordinates (.JEF).

1. Go to File > Save As.
2. Name your file (Pro Tip: Include the size in the name, e.g., Star_Applique_4x4_JEF).
3. Change file type to Janome .jef.
4. Select Janome Generic Macro if prompted.
5. Verification: The software confirms the stitch count (e.g., 3411 stitches).




Operation Checklist (The First Stitch-Out)

• Transfer: load the .jef file to your USB stick.
• Hooping: Fabric is "drum tight" (creates a thumping sound when tapped) but not stretched out of shape.
• Speed: Lower your machine speed to 400-600 SPM (Stitches Per Minute) for the first test around the corners.
• Observation: Watch the "Mirror" alignment. Does the stitch land inside the fabric edge as planned?

A Stabilizer-and-Hooping Decision Tree for Pre-Cut Appliqué (So Your Edge Stays Clean)

Software is perfect; physics is not. Your choice of stabilizer and hoop determines if the star remains a star or becomes a distorted blob.

Decision Tree: Stabilizer & Hooping Strategy

1. Is your base background fabric stretchy (T-shirt, Hoodie)?
   • Yes: You MUST use a Cut-Away stabilizer. Tear-away will result in gap-toothed stitches on a knit.
   • Pro Move: Do not pull the knit fabric. Lay it flat. If you struggle with stretching it while clamping, use an embroidery magnetic hoop. It clamps straight down without the "pull and screw" friction that distorts t-shirt collars.
2. Is your base fabric stable (Denim, Canvas, Twill)?
   • Yes: Tear-Away stabilizer is acceptable, but Cut-Away always feels more premium. Hoop firmly.
3. Are you doing "Float" method (not hooping the garment)?
   • Yes: Hoop the stabilizer tightly. Use spray adhesive to stick the garment to the stabilizer.
   • Risk: If the garment lifts, the appliqué registration will fail.
4. Are you producing volume (10+ items)?
   • Yes: Consistency involves fatigue management. If your wrists hurt from screwing hoops tight, your quality will drop on the 10th shirt. A hooping station for embroidery aids in placing the logo in the exact same spot on every chest, while magnetic frames reduce physical strain.

Troubleshooting the Two Most Common “Why Did This Fail?” Moments (and the Fast Fix)

When things go wrong, do not panic. Consult this table.

Extra “Shop Reality” Checks

• The "Squint Test": Look at the screen. If the border looks thin, it will be thinner on fabric.
• The Thread Path: If you see loops on top, re-thread your top thread. If you see loops on the bottom, check your bobbin.

The Upgrade Path: When Better Hooping Tools Beat More Software Tweaks

You can master Simple Cut software perfectly, but if you cannot hold the fabric still under the needle, the software doesn't matter.

If you are a hobbyist doing one shirt a month, standard hoops are fine. Be patient. However, if you are moving into production or finding that traditional hooping hurts your hands or marks your fabric ("hoop burn"), it is time to look at your hardware.

• The Problem: Traditional hoops require you to pull fabric to create tension, which distorts the grain. When you unhoop, the fabric relaxes, and your perfect appliqué star puckers.
• The Solution Level 1: Better Stabilizers (Cut-Away).
• The Solution Level 2: magnetic hoops for janome embroidery machines. These hold fabric with vertical magnetic force rather than friction. This eliminates "hoop burn" and significantly reduces distortion because you aren't dragging the fabric.
• The Solution Level 3: If you are hooping hundreds of items, a magnetic hooping station ensures that every star lands in the exact same position on every shirt, cutting your prep time in half.

Warning: Magnet Safety
Modern magnetic hoops use high-power Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise fingers. Handle with intent.
2. Medical Devices: Keep them at least 6 inches away from pacemakers or insulin pumps.

If your volume has grown to the point where single-needle thread changes are eating your profits (changing colors for the star, then the border, then the text), you might be ready for the ultimate upgrade: a SEWTECH multi-needle machine. But for now, mastering the hooping process is the highest ROI skill you can learn.

One Last Reality Check Before Lesson 4: Your Best Appliqué Is the One You Can Repeat

This lesson’s core workflow is your safety net:

1. Open existing file (Don't redraw).
2. Select object (Wake up the properties).
3. Pencil + Running (Choose the tool).
4. Select Style & Inspect (Zoom in).
5. Mirror (Essential: Stitch Inside, Not Outside).
6. Offset (Fine-tune the bite).
7. Pre-cut (Tell the machine to stop).
8. Export .JEF (Translate for the machine).

If you follow these steps, you eliminate the "Why didn't it catch?" mystery. You move from "hoping it works" to "knowing it will work." Now, go stitch a test piece—on a scrap, not the final garment!

FAQ

• Q: Why is the Simple Cut Object Properties panel blank/greyed out when editing a running appliqué stitch for a Janome embroidery machine export?
  A: This is common—Simple Cut shows blank properties when no object is selected; click the green star until the bounding box handles appear.
  • Click the green star shape on the canvas (not the background grid).
  • Confirm a dashed bounding box with small handles appears around the star.
  • Adjust stitch type/offset only after the panel text turns active (not grey).
  • Success check: The Object Properties menus become clickable immediately after the bounding box appears.
  • If it still fails: Stop “random clicking,” and verify the software is on the Design tab (not the Cut tab).
• Q: How do I stop Simple Cut running appliqué stitches from landing outside the appliqué edge when using Stitch 92 (Greek Key) for a Janome .JEF file?
  A: Turn on Mirror style so the decorative pattern flips to the inside of the appliqué outline.
  • Select Stitch 92 and inspect where the bulk of the pattern sits relative to the outline.
  • Check the Mirror style option in the properties panel.
  • Re-zoom and confirm the stitch now sits inside the green star line (the raw-edge reference).
  • Success check: At high zoom, the stitch “bites” across/inside the outline instead of perforating outside fabric.
  • If it still fails: Re-check that the correct object is selected (bounding box visible) before toggling Mirror style.
• Q: What offset should be used in Simple Cut to reduce appliqué fraying when exporting a Janome .JEF appliqué border?
  A: A safe starting point is often a slightly negative offset (about -0.5 mm to -1.0 mm) so stitches land inside the cut edge and actually catch the appliqué fabric.
  • Set offset inward instead of leaving it at Offset 0 if edge-miss is happening.
  • Zoom in to 400%–600% and inspect whether stitches cross the edge line rather than running beside it.
  • Test-stitch on scrap at slower speed before committing to a garment.
  • Success check: After stitching, the border consistently penetrates the appliqué fabric all around, especially at star tips.
  • If it still fails: Improve fabric stability first (re-hoop tighter and/or switch to a more supportive stabilizer), because shifting fabric defeats precise offset.
• Q: How do I make a Janome embroidery machine pause for pre-cut appliqué placement when digitizing in Simple Cut?
  A: Set Fabric Trim to Pre-cut so the file includes a stop point for placing the pre-cut fabric piece.
  • Select the Bucket tool (Fill properties) and find Fabric Trim.
  • Change the dropdown to Pre-cut before exporting the embroidery file.
  • Prepare the pre-cut fabric and temporary adhesive so placement is quick during the stop.
  • Success check: During the stitch-out, the machine visibly stops at the intended step before the border stitches begin.
  • If it still fails: Check the color/stop sequence on the machine screen before starting; the pause must appear in the stitch sequence.
• Q: What is the correct hooping “success standard” for pre-cut appliqué so the design does not pucker or distort during stitching?
  A: Hoop the fabric “drum tight” (tight but not stretched out of shape) and match stabilizer to fabric type to prevent puckering and registration drift.
  • Tap the hooped area and aim for a firm “thumping” sound without pulling the grain off-square.
  • Use Cut-Away stabilizer for stretchy knits (T-shirts/hoodies); tear-away may cause gaps and distortion on knit.
  • If floating (not hooping the garment), hoop stabilizer tightly and bond the garment flat with temporary spray adhesive.
  • Success check: After unhooping, the appliqué outline stays the intended shape (no wavy edge, no pulled corners).
  • If it still fails: Re-hoop tighter and upgrade stabilizer support before changing software settings like offset.
• Q: How do I troubleshoot stitches “hanging in mid-air” on a Simple Cut running stitch appliqué border before exporting to Janome .JEF?
  A: Diagnose at 400%–600% zoom and fix stitch orientation first (Mirror style and/or a negative offset) so the border actually bites into the appliqué fabric.
  • Zoom in to 400%–600% and inspect whether stitches cross the outline or stay on one side.
  • Enable Mirror style when the decorative bulk is on the outside of the outline.
  • Adjust offset inward if stitches ride on the edge and sometimes miss due to placement variance.
  • Success check: On-screen at high zoom, the needle path clearly penetrates the appliqué side of the edge around the full shape.
  • If it still fails: Re-check hooping stability—fabric shift can make a correct stitch plan look wrong on the finished sew-out.
• Q: What needle-area safety steps should be followed during the appliqué placement stop on a Janome embroidery machine?
  A: Treat the pause like an active machine state—keep hands clear of the needle bar area and use tools for fine placement.
  • Prepare the pre-cut piece and adhesive before starting so the stop is short and controlled.
  • Keep fingers out from under the needle bar; use tweezers to nudge edges when needed.
  • Confirm the hoop path is clear before pressing Start again.
  • Success check: The fabric is placed flat without your hands entering the needle zone, and the restart happens without snagging.
  • If it still fails: Pause, re-center the fabric with tweezers, and only restart once clearance is confirmed.
• Q: When should an embroidery business upgrade from standard hoops to magnetic hoops or a magnetic hooping station for more consistent appliqué placement?
  A: Upgrade when hooping distortion, hoop burn, or operator fatigue is causing repeatability failures—tools can solve stability and consistency before changing software.
  • Level 1 (Technique/consumables): Improve stabilizer choice and re-hooping for firm, even tension.
  • Level 2 (Tool upgrade): Switch to magnetic hoops to reduce fabric drag, hoop burn, and distortion from “pull and screw” hooping.
  • Level 3 (Production consistency): Add a magnetic hooping station when doing volume (often 10+ items) to place designs in the exact same spot repeatedly.
  • Success check: Registration becomes repeatable across multiple items, and the appliqué border consistently lands where the preview shows.
  • If it still fails: Re-evaluate the workflow sequence (Mirror style, offset, and pre-cut stop) and run a controlled test stitch-out at reduced speed.
