If you sell patches, you already know the unvarnished truth: the embroidery is only half the job. The profit—and your reputation—is made in the **finishing**. Clean trims, flat backs, crisp borders, and an application method your customer cannot mess up are what separate a $5 patch from a $15 patch.
This guide rebuilds the classic production patch workflow into a repeatable, scalable system. We aren't just giving you instructions; we are giving you the "physics" and "feel" behind professional patch making. Whether you are crafting a dozen patches today or scaling to hundreds, this is your blueprint for zero-defect production.
[FIG-01]
## The “Don’t Panic” Primer: Why Patch Finishing Fails After a Perfect Stitch-Out on a Ricoma Multi-needle Embroidery Machine
A patch can stitch beautifully and still fail within 24 hours of reaching the customer. The failure points are rarely in the design file; they are in the physical finishing steps.
**The Four Horsemen of Patch Failure:**
1. **Jump Stitches:** Left behind, they catch, fuzz, and scream "amateur."
2. **Adhesive Failure:** Corners lift after the first wash because pressure was guessed, not measured.
3. **The "Halo" Cut:** Borders cut too far away leave a white halo; cut too close, and you nick the structural satin stitch, causing the patch to unravel like cheap yarn.
4. **Vague Instructions:** Telling a customer to "just iron it on" is a recipe for a bad review.
Our goal here is simple: fewer variables, fewer returns, and a process so robust you could teach it to an assistant in 20 minutes.
[FIG-02]
## The “Hidden” Prep Pros Don’t Skip: Twill + Two Layers of Cutaway Stabilizer + Heat-Seal Backing
In the embroidery world, simplicity is the ultimate sophistication. In the source workflow, the materials are kept intentionally basic to ensure repeatability.
**The Holy Trinity of Materials:**
1. **Fabric:** Uncoated Tackle Twill (Polyester). *Why?* It doesn't shrink, it doesn't fray easily, and it holds satin stitches without puckering.
2. **Stabilizer:** **Two layers** of Cutaway. *Why?* Tearaway is too weak for the high stitch density of a patch border. You need the structural integrity of cutaway to prevent the patch from warping into a "potato chip" shape.
3. **Adhesive:** Commercial Heat-Seal (e.g., HeatnBond Ultra or Twill USA P600).
**The "One Reach" Rule:**
If you are running patches on a high-speed **ricoma embroidery machine** or a similar multi-needle workhorse, your efficiency dies every time you walk across the room. Keep your finishing tools (tweezers, snips, curved scissors, lighter) staged at the same table. This stops finishing from becoming your bottleneck.
> **Hidden Consumables Checklist:**
> * **Lint Roller:** To clean the patch face before photos.
> * **Lighter Fluid:** To refill your lighter *before* you run out mid-batch.
> * **Scrap Fabric:** To test your iron/press settings before committing the patch.
### Prep Checklist (Do this **before** you touch a single jump stitch)
* **Inspection:** Confirm patch sheet is stitched. Look for "bird nesting" on the back that might create lumps.
* **Tension Check:** Keep the patch sheet **secured and taut** in the hoop. Do not unhoop yet if you plan to trim jump stitches.
* **Tool Muster:** Gather tweezers, spring cutters/snips, heavy-duty scissors, Gingher curved embroidery scissors, heat-seal adhesive sheet, Teflon sheet, pressing pillow, and lighter.
* **Surface Hygiene:** Wipe down your work surface. A stray thread snippet sticking to the back of your adhesive sheet will create a permanent bump.
[FIG-03]
## The Clean-Trim Ritual: Removing Jump Stitches While the Patch Sheet Is Still Tight in a Mighty Hoop 10x10
Most beginners unhoop the fabric and then try to trim. **This is a mistake.** Trimming on loose fabric is like trying to cut a steak that is sliding around on the plate.
Romero’s workflow keeps the sheet tight in the magnetic hoop. That tightness provides the resistance your scissors need to slice cleanly rather than chew the thread.
**The Magnetic Advantage:**
If you are using a **mighty hoop**, treat it as a *finishing jig*. The strong magnetic force holds the twill drum-tight. This stability allows you to get your snips under the thread with millimeter precision without snagging the fabric weave.
> **Warning: Magnetic Safety**
> Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely or damage mechanical watches. **Always** keep fingers clear of the snapping zone, and keep the hoops away from pacemakers and magnetic media.
### The Two-Pass Trimming Method (Action-First Guide)
**Pass 1: The Rough Lift**
1. **Action:** Use tweezers in your left hand to lift the jump stitch loop.
2. **Sensory Cue:** You should feel the tension in the thread.
3. **Cut:** Make a quick cut on *one* side of the loop so the thread stands up like a hair.
**Pass 2: The Precision Cut**
1. **Action:** Pull the standing thread **straight up** and tight with tweezers.
2. **Action:** Slide your fine spring cutters or snips down to the very base of the fabric.
3. **Cut:** Snip flush against the twill.
4. **Success Metric:** Run your finger over the spot. If you feel a "stubble," it’s not close enough. It should feel smooth.
**Checkpoint:** After Pass 2, you should not see "whiskers" standing up between objects. The patch face must look clean *now*, because you cannot fix it easily after the adhesive is applied.
> **Warning: Blade Safety**
> Keep your non-cutting hand behind the blades. Work in high-lumen light (an LED desk lamp is mandatory). Curved scissors are unforgiving; a slip can cut skin or nick the satin border, ruining 30 minutes of machine time.
### Pro Tip: The Needle Variable
People often ask what needle is used for small letters. A common expert standard is a **65/9 needle with 60 weight thread.** Standard 40wt thread is often too thick for text under 5mm. Always confirm compatibility with your machine manual.
[FIG-04]
## Heat Press Setup That Prevents Lifting Corners: Heat Press Nation Black Series + “Medium Feel” Pressure
Adhesive fails for two reasons: **Cold Spots** or **Weak Pressure**.
Before the adhesive goes on, we must maximize the surface contact. Stitches have texture; the back of a patch is a landscape of mountains (bobbin thread) and valleys (fabric). A flat platen will only hit the mountains.
**The Solution? The Pressing Pillow.**
Placing a foam pressing pillow under the patch sheet allows the stitches to "sink" into the foam. This ensures the heat platen contacts the *substrate* (the twill) where the adhesive actually needs to bond.
**Defining "Medium Pressure":**
"Medium" is vague. Let's make it concrete.
* **The Paper Test:** Place a sheet of standard copy paper in your cold press and clamp it locally. Pull the paper.
* *Light Pressure:* Paper slides out easily.
* *Medium Pressure:* Paper pulls out but with significant drag/resistance.
* *High Pressure:* Paper rips before it moves.
* **Target:** You want distinct resistance (Medium).
[FIG-05]
[FIG-06]
### Setup Checklist (Right before you fuse adhesive)
* **Heat Check:** Press is warmed up to **320°F (160°C)**. Verification: Use an infrared gun if your press is old; element drift is real.
* **Pressure Check:** Set to "Medium" via the Paper Test.
* **Foundation:** Pressing pillow is placed under the patch sheet.
* **Pre-Flight:** Pre-press the raw embroidery face-down for **5 seconds**. *Why?* To drive out steam moisture and flatten the fiber memory.
## The “Sticky Side Down” Rule: Fusing Heat-Seal Adhesive at 320°F for 10–12 Seconds Without Guesswork
This step marries the glue to the patch. If this marriage fails, the patch falls off the customer's jacket.
**The Procedure:**
1. **Position:** Place the adhesive sheet **sticky-side (shiny side) down** against the *back* of the embroidery.
2. **Protection:** Cover with a **Teflon sheet**. *Why?* To prevent adhesive bleeding from ruining your heat platen.
3. **Action:** Press at **320°F** for **10–12 seconds**.
*Note on Temperature:* While some manufacturers suggest a range of 330–350°F, Romero’s empirical sweet spot is **320°F**. This effectively activates the glue without scorching white polyester thread (which turns yellow at high heat).
[FIG-07]
[FIG-08]
[FIG-09]
### Why This Works (The Physics of Adhesion)
* **Coverage:** If adhesive doesn’t reach the absolute edge (the satin border), that edge becomes a peel point.
* **Time:** 10-12 seconds is the "Liquefaction Zone." Shorter, and the glue is just tacky. Longer, and the glue becomes too runny and soaks *into* the thread rather than sitting *on* it.
If you are building a production workflow around a **magnetic embroidery hoop**, use this time to reload your hoops. The heat press cycle times should define your production rhythm.
> **Warning: Thermal Hazard**
> Heat presses and freshly fused adhesive are hot enough to cause second-degree burns instantly. Let the sheet cool for 30-60 seconds on a flat surface before handling. Do not peel the carrier paper while hot unless the adhesive instructions explicitly say "Hot Peel." (Most are Cold Peel).

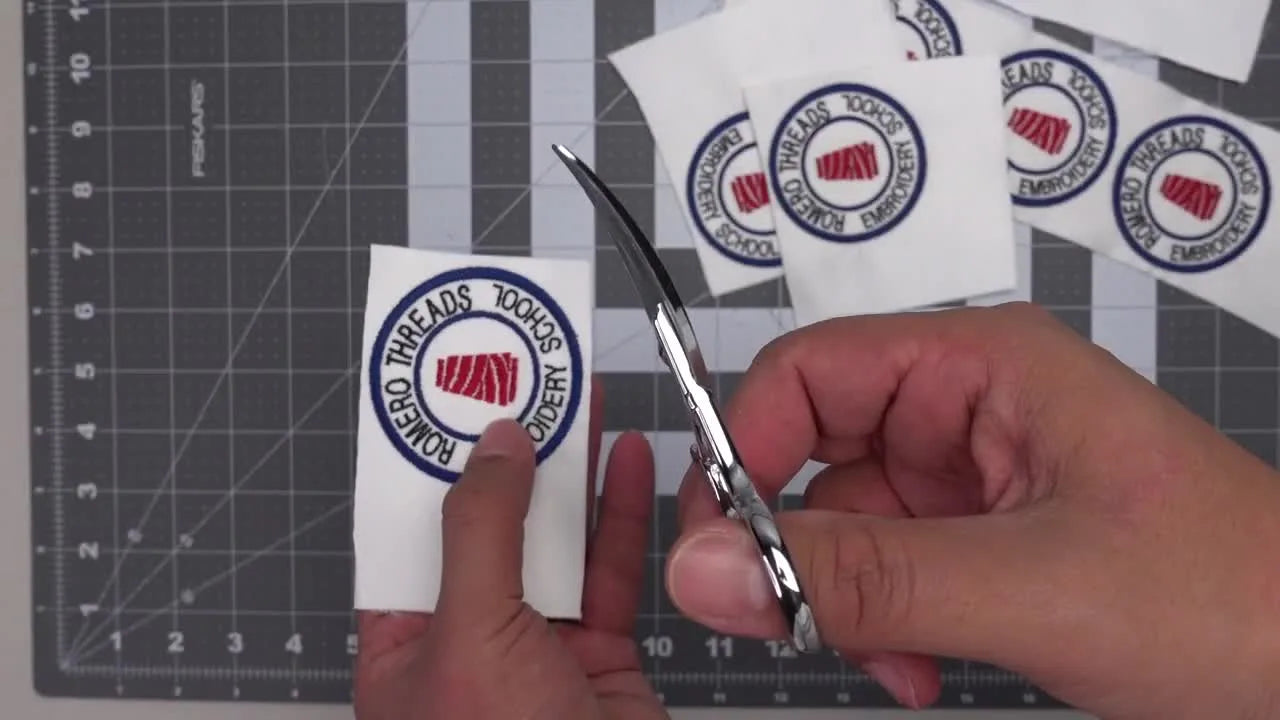

## The Cut That Sells the Patch: Heavy-Duty Rough Cut First, Then Gingher Curved Scissors for the Border
Do not try to cut the final border while the patches are still attached to the big sheet. You will lose leverage.
**Phase 1: The Rough Cut**
Use heavy-duty shears to separate the sheet into manageable individual squares.
**Phase 2: The Detail Cut**
Use **Gingher Curved Scissors** (or similar high-quality double-curved shears).
* **The Geometry:** The curve of the blade gently bends *away* from the patch surface, allowing you to glide around rounded corners without the handle hitting the table or the patch.
* **The Technique:** Don't "chomp" (open/close/open/close). Instead, make a cut, hold the blades partially open, and **glide** (push) the sharp crotch of the scissors through the twill. This yields a buttery smooth edge.
[FIG-10]
[FIG-11]
[FIG-12]
### The “Close, But Don’t Touch” Rule
* **Target:** Cut 1mm to 1.5mm away from the satin stitch.
* **Danger Zone:** Do **not** snip the satin threads. If you cut the bobbin thread holding the satin column, the entire border will unwind.
* **Checkpoint:** You should see a clean edge of twill, but the structural integrity of the border MUST remain intact.
### Q&A: “Why Not Use a Hot Knife?”
A hot knife seals as it cuts, which is great. However, it creates fumes, requires ventilation, and leaves a hard, "scratchy" melted edge that some customers dislike on clothing. The Scissor + Lighter method creates a softer, more comfortable edge.
## The 5-Second Edge Insurance Policy: Sealing Fraying Threads with a Lighter
After cutting, microscopic polyester fibers are exposed. Over time, these fuzz out.
**The Fix:**
Run a standard lighter flame quickly around the edge.
* **Sensory Cue:** Move fast. You are not trying to light a candle; you are trying to kiss the fabric.
* **Visual Cue:** Use the **blue base** of the flame, not the yellow tip. The yellow tip deposits soot (black carbon) onto your pristine white patch. The blue base is clean heat.
[FIG-13]
**Checkpoint:** The edge should look "cauterized" and smooth, not hairy. This creates a professional finish that rivals die-cut factory patches.
## Customer-Proof Placement: Using an Embroidery Helper Guide to Hit the “Large” Polo Position Every Time
You aren't just selling patches; you are selling the *result*. If the customer irons it on crooked, they subconsciously blame the patch quality.
**The Fix:**
Remove the guesswork. Romero uses an **Embroidery Helper** placement guide.
1. Align the guide on the placket.
2. Select the **Large** alignment (standard left chest placement).
3. Place the patch.
[FIG-14]
Standardizing placement reduces support emails asking, "Where does this go?"
## The Home Iron Method That Actually Sticks: Rowenta 1700W, High Heat, 20 Seconds, Firm Pressure
Industrial heat presses apply ~60 PSI of pressure. A human hand with an iron applies ~5-10 PSI. To compensate for low pressure, we need **High Heat** and **Time**.
**The Customer Protocol:**
1. **Prep:** Peel the paper backing. Place patch.
2. **Shield:** Cover with a thin scrap cloth (cotton pillowcase works). *Why?* To prevent the iron's soleplate from melting the polyester thread of the patch.
3. **Tool:** Use a home iron (Standard is 1700W). Set to **Max/Cotton/Linen**. Steam **OFF**.
4. **Action:** Press with **High Pressure** (lean your body weight into it) for **20 seconds**. Do not wiggle the iron; press straight down.
5. **Focus:** Keep the solid center of the iron over the patch. The tip often has steam holes which equals *zero pressure*.
[FIG-15]
[FIG-16]
**Important:** If the iron is weak (travel iron or cheap hotel iron under 1700W), increase time to 30-40 seconds.
**Suggestion:** Print a small business card with these exact steps and include it in the package.
### Operation Checklist (The Customer-Facing Version)
* **Surface:** Use a granite counter or solid wood table. (Ironing boards are often too soft).
* **Alignment:** Use a ruler or guide to verify straightness.
* **Protection:** Cover patch with a thin cloth/Teflon sheet.
* **Heat:** Iron on **High/Max**. **NO STEAM.**
* **Pressure:** Body weight down.
* **Time:** **20-30 Seconds** depending on iron wattage.
* **Cool Down:** Let it cool completely before testing adhesion.
## Decision Tree: Choosing Stabilizer + Pressing Method
Use this decision logic to avoid ruining garments or patches.
**Start → What is the destination fabric?**
* **Scenario A: Cotton/Poly Polo (Standard)**
* *Patch Base:* Twill + **2 Layers Cutaway**.
* *Adhesive:* Standard Heat-Seal.
* *Method:* High heat, 20 sec, thin cover cloth.
* **Scenario B: Heavy Canvas/Denim/Hoodie**
* *Patch Base:* Twill + 2 Layers Cutaway.
* *Adhesive:* Standard Heat-Seal (Consider Ultrahold).
* *Method:* Heat transfer is slow through thick fabric. **Iron the garment first to heat it up**, then apply patch. Increase press time to 30-40 sec.
* **Scenario C: Nylon/Synthetics (Heat Sensitive)**
* *Problem:* High heat melts the jacket.
* *Method:* **DO NOT IRON.** Sew/Stitch the patch on. Heat seal adhesive bond is unreliable on water-resistant nylon coating anyway.
**Next → Production Volume?**
* **< 20 patches/week:** Scissors + Home Iron instructions are adequate.
* **> 50 patches/week:** Time is money. Standardize with a dedicated Heat Press station. Consider upgrading hooping tech to reduce fatigue.
## Troubleshooting the Two Most Common Patch Complaints
These are the "Emergency Room" fixes for when things go wrong.
| Symptom | Likely Cause | The Fix | Prevention |
| :--- | :--- | :--- | :--- |
| **Fraying Edges** | "Chewing" the fabric with dull scissors or skipping the seal. | **Lighter Trick:** Quickly run a blue flame around the edge to melt fibers. | Use sharp curved scissors; don't "saw" firmly. |
| **Patch Won't Stick** | Iron not hot enough or **Steam was Left On**. (Steam = Moisture = Glue Failure). | **Re-Press:** Increase time by 10s. Lean harder. Ensure steam is OFF. | Instruct customer: "Max Heat, No Steam, Hard Surface." |
## The Upgrade Path: When to move from "Craft" to "Commercial"
If you are finishing patches one by one, the workflow above is robust. But once you start selling consistently, your enemy changes. Your enemy is no longer "quality"; your enemy is **Handling Time.**
Here is the logic for upgrading your studio gear:
**1. The "Hoop Burn" & Pain Threshold**
* **Trigger:** You stop enjoying embroidery because screwing hoops tight hurts your wrists, or you are tired of scrubbing "hoop burn" marks off delicate polo shirts.
* **The Upgrade:** **Magnetic Hoops**.
* **Why:** Terms like **magnetic embroidery hoop** are the gateway to efficient production because they eliminate the need to tighten screws. They clamp automatically, reducing wrist strain and virtually eliminating hoop burn.
* **Commercial Option:** For industrial settings, a **mighty hoop for ricoma** or similar industrial frames allow you to hoop a garment in 5 seconds flat.
**2. The Volume Threshold**
* **Trigger:** You are turning down orders because your single-needle machine takes too long to change colors (thread breaks/swaps).
* **The Upgrade:** **SEWTECH Multi-Needle Machines**.
* **Why:** A multi-needle machine doesn't just hold more thread; it runs faster and stabilizes patches better.
* **Criteria:** If you are producing batches of 20+ patches regularly, a single-needle machine is costing you more in "babysitting time" than the monthly payment on a multi-needle machine.
**3. The Education Threshold**
* **Trigger:** You want to master production nuances.
* **The Upgrade:** Your knowledge base. Learning proper **hooping for embroidery machine** techniques—whether on standard or magnetic frames—is the software that runs the hardware.
If you’re already running a consistent side hustle, look at your bottleneck. Is it the stitching? (Upgrade Machine). Is it the prep? (Upgrade Hoops). Is it the finishing? (Upgrade Scissors/Press). Fixing the right bottleneck is how you scale profit without scaling stress.
---
*Do you primarily patch hats, polos, or backpacks? Drop a comment below—the stabilizer choice changes for each, and I can help you dial in that specific recipe.*
FAQ
-
Q: When finishing twill patches, why should jump stitches be trimmed while the patch sheet is still tight in a Mighty Hoop 10x10 magnetic hoop?
A: Trim jump stitches while the patch sheet is still hooped and drum-tight because stable tension lets scissors cut cleanly instead of chewing or snagging fabric.
- Action: Keep the patch sheet clamped in the magnetic hoop and work under bright LED light.
- Action: Use the two-pass method—lift the loop with tweezers, cut one side, then pull the standing thread straight up and snip flush at the base.
- Action: Avoid unhooping until jump stitches are removed, especially around dense satin borders.
- Success check: Run a fingertip across the area—there should be no “stubble” or whiskers between objects.
- If it still fails: Switch to finer spring cutters/snips and recheck that the fabric is truly taut before trimming.
-
Q: What is the correct heat press setup to prevent heat-seal patch corners lifting when using a Heat Press Nation Black Series with “medium feel” pressure?
A: Use 320°F (160°C), verified “medium” pressure via the paper test, and a pressing pillow so the platen bonds to the twill—not just the stitch ridges.
- Action: Warm the press to 320°F and verify temperature with an infrared gun if the press is older.
- Action: Set “medium pressure” using the paper test (paper pulls out with strong drag, not freely and not ripping).
- Action: Place a pressing pillow under the patch sheet and pre-press face-down for 5 seconds to remove moisture and flatten.
- Success check: After fusing and cooling, patch backing looks evenly bonded with no loose edge areas or visibly “dry” corners.
- If it still fails: Recheck pressure first (most corner lift is weak pressure) and confirm the pressing pillow is actually under the work during the fuse cycle.
-
Q: How do you fuse heat-seal adhesive to an embroidered patch at 320°F for 10–12 seconds using the “sticky side down” rule without guesswork?
A: Place the adhesive shiny/sticky-side down against the back of the embroidery, cover with a Teflon sheet, and press at 320°F for 10–12 seconds, then cool before handling.
- Action: Position adhesive sticky-side (shiny side) down directly onto the patch back so coverage reaches the edge near the satin border.
- Action: Cover with a Teflon sheet to protect the platen from bleed-through.
- Action: Press 10–12 seconds, then let the sheet cool flat for 30–60 seconds before peeling if using cold-peel materials.
- Success check: Adhesive is fused uniformly with no unmelted “dry” zones and no overrun glue soaking into thread.
- If it still fails: If corners peel, increase pressure (not just time) and confirm adhesive reaches the border edge area.
-
Q: How close should embroidered patch borders be cut with Gingher curved scissors to avoid a “halo” cut or unraveling satin stitches?
A: Cut about 1.0–1.5 mm away from the satin stitch—close enough to look clean, but never into the satin column that holds the border together.
- Action: Rough-cut the sheet into manageable squares first using heavy-duty shears.
- Action: Detail-cut with curved scissors using a glide technique (don’t “chomp” repeatedly) to keep the edge smooth.
- Action: Maintain a consistent 1.0–1.5 mm margin around the satin border.
- Success check: The edge shows a thin, even ring of twill with the satin border fully intact and not nicked.
- If it still fails: If a white “halo” shows, you cut too far out; if the border starts to unwind, you likely nicked satin/bobbin structure—adjust margin and slow down at tight curves.
-
Q: How do you stop embroidered patch edges from fraying after cutting using the 5-second lighter sealing method without leaving soot marks?
A: Move a lighter quickly around the edge using the blue base of the flame to melt micro-fibers, and avoid the yellow tip that can deposit soot.
- Action: Hold the patch securely and “kiss” the edge with the flame—do not linger in one spot.
- Action: Use the blue base of the flame for clean heat and keep the yellow tip away from light-colored thread.
- Action: Seal the entire perimeter right after cutting while fibers are freshly exposed.
- Success check: The edge looks smooth and cauterized with no hairy fuzz and no black soot specks.
- If it still fails: Replace dull scissors (dull blades cause chewing) and repeat a faster, lighter pass around the edge.
-
Q: Why does a heat-seal embroidered patch not stick when a customer uses a home iron (Rowenta 1700W), and what exact home-iron fix should be followed?
A: Most “won’t stick” cases are caused by low heat, steam left on, or weak pressure—use max heat with steam OFF, press straight down hard for 20 seconds on a hard surface.
- Action: Set the iron to Max/Cotton/Linen with steam OFF and work on granite or solid wood (avoid soft ironing boards).
- Action: Cover the patch with a thin scrap cloth to protect polyester thread from direct soleplate heat.
- Action: Press straight down with body weight for 20 seconds (30–40 seconds if the iron is underpowered); do not wiggle the iron.
- Success check: After full cool-down, the patch edge cannot be lifted with a fingernail and feels uniformly bonded.
- If it still fails: Re-press for +10 seconds with more pressure and confirm the iron’s solid center (not the tip/steam holes) is centered over the patch.
-
Q: What safety precautions should be followed when using magnetic embroidery hoops and when trimming jump stitches with curved scissors during patch finishing?
A: Treat magnetic hoops as pinch hazards and scissors as cut hazards—keep hands out of the snap zone, protect medical devices, and keep the non-cutting hand behind the blades.
- Action: Keep fingers clear when closing magnetic hoops; strong magnets can pinch severely.
- Action: Keep magnetic hoops away from pacemakers, mechanical watches, and magnetic media.
- Action: Trim under high-lumen LED light and keep the non-cutting hand behind the cutting path at all times.
- Success check: Hoop closes without finger contact, and trimming is controlled with no fabric snags or accidental nicks to satin borders.
- If it still fails: Slow the workflow—reset hand position, improve lighting, and stage tools so you are not reaching across the work while cutting.
-
Q: When patch production time becomes the main bottleneck, what is the upgrade path from technique optimization to magnetic hoops to SEWTECH multi-needle embroidery machines?
A: Upgrade in layers: fix finishing variables first, then reduce hooping strain/time with magnetic hoops, then move to a multi-needle machine when color changes and volume create constant babysitting.
- Action: Level 1 (Technique): Standardize trimming-in-hoop, pressing pillow use, and verified press pressure/temperature to reduce defects and rework.
- Action: Level 2 (Tooling): Switch to magnetic hoops when screw-hooping causes wrist pain or hoop burn and hooping speed limits output.
- Action: Level 3 (Capacity): Move to a multi-needle setup when frequent color changes and batch runs (often 20+ patches regularly) make single-needle production too slow.
- Success check: Total handling time per patch drops noticeably, and defect-related redo work becomes rare.
- If it still fails: Identify the true constraint—if hooping is slow, prioritize magnetic hoops; if stitching time and color swaps dominate, prioritize a multi-needle machine.
