From Power-On to Perfect Placement: Running the PROEMB BF1500 Touchscreen Like a Shop Owner (Not a Nervous Beginner)

If you’ve ever stood in front of a new commercial machine with that “I hope I don’t break anything” feeling—you’re not alone. The PROEMB BF1500 is a powerhouse, but like any 15 needle embroidery machine, the touchscreen workflow can feel like a cockpit until you understand the logic behind the buttons.

This isn’t just a summary of a video; it’s an operational blueprint. We are going to rebuild the exact on-screen flow—from power-on to a finished logo—but we are adding the shop-floor sensory checks and safety protocols that keep you from destroying garments or breaking needles.

The First 60 Seconds on the PROEMB BF1500 Control Panel: Power-On Without Panic

The video starts with a simple truth: your best “troubleshooting” is a calm, repeatable startup routine. Panic causes errors; routine creates profit.

1. Power on the machine at the side switch. Listen for the fans to engage.
2. Wait for the boot sequence. Do not touch the screen until the UI fully loads.
3. Move straight to settings before you even think about importing designs.

Why this order matters: When language or time settings are wrong, operators get frustrated. They poke around, back out, re-enter menus, and accidentally change tensions or speed limits. Set the foundation first, then touch the files.

Warning: CRUSH HAZARD. Keep fingers, long hair, lanyards, and loose sleeves away from the needle area and the moving pantograph arm before you press Start. A commercial head accelerates instantly, and “just checking something” while the machine is live is the #1 cause of shop floor injuries.

The “Hidden” Prep Pros Do Before Touching the Screen: Thread, Stabilizer, and Hooping Reality

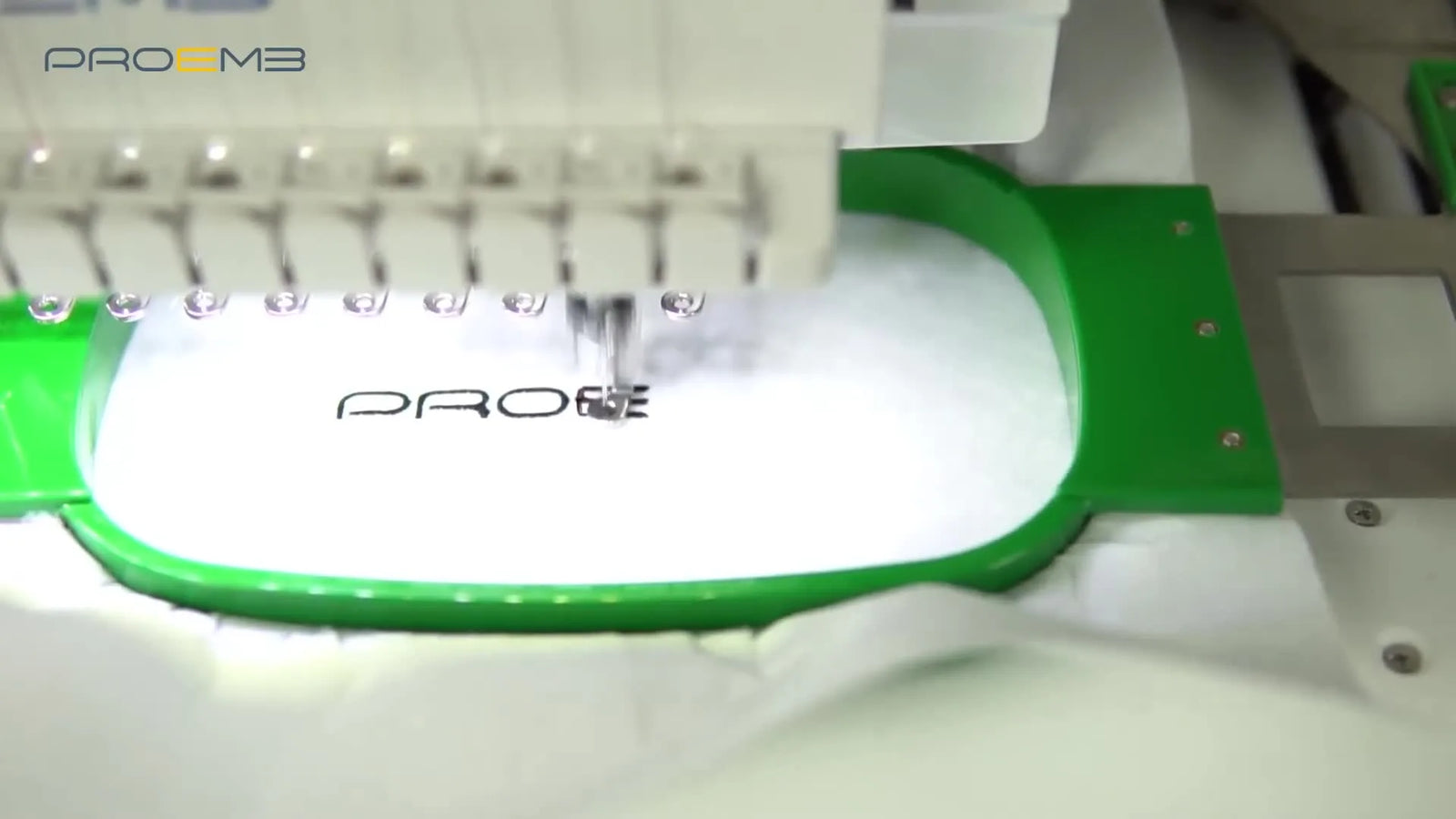

The video demonstrates using a white fabric swatch with stabilizer to stitch the PROEMB logo in black thread. That’s a smart demo because it controls variables. But in your shop, variables are the enemy.

In real production, the variables that ruin your first run are almost never the touchscreen—they’re hooping tension, stabilizer choice, and whether the fabric is actually held flat.

If you are still using standard plastic machine embroidery hoops, here is the Sensory Rule of Thumb: The hoop must hold the fabric/stabilizer stack firmly enough that it makes a dull thud (like a drum skin) when tapped, but not so tight that you stretch the fabric grain (which creates puckers once removed).

Hidden Consumables You Need Nearby

• Fabric Pen/Chalk: For marking center points.
• Spray Adhesive (Temporary): Crucial for floating stabilizers.
• Appliqué Scissors/Snips: For trimming jump stitches cleanly.
• Spare Needles (75/11): Because you will break one eventually.

Prep Checklist (Do Only BEFORE Importing Design)

• Stabilizer Match: Confirm stabilizer weight matches stitch density (Standard: 2.5oz Cutaway for shirts).
• Hoop Integrity: Check the inner ring for cracks or burrs that could snag delicate fabric.
• Thread Path: Verify thread cones are feeding continually; pull a few inches of thread—it should flow with slight, consistent resistance (like flossing).
• Clearance: Ensure the table is clear of scissors or spare bobbins that could jam the pantograph.
• Manual: Keep your instruction manual open (the video ends by showing it for a reason—it is your safety net).


System Setup on the BF1500: Language Flags and Time Settings That Save Your Sanity Later

In the video, Rebecca taps the gear icon creates the digital environment.

• The Flag Icon changes the interface language (15 options available).
• The Clock Icon sets the date/time (YY/MM/DD).

Why this matters for business: Correct timestamps are your audit trail. When you are looking back at file history to see "which version of the logo did we run on Tuesday?", the time stamp is your only clue.

A comment pointed out the screen was set to Chinese while addressing an English audience. The practical takeaway: Set the language immediately. When a customer is waiting and a thread break sensor goes off, you do not want to be translating error codes in your head.

USB Import on the PROEMB BF1500: Listen for the Beep, Then Touch the Right Icon

The video shows a specific mechanical handshake:

1. Insert the USB drive into the side port.
2. PAUSE. Wait for the auditory signal (Beep).
3. Tap the USB icon to view patterns.

The "Handshake" Rule: That beep is the machine saying, "I have mounted the drive and read the file structure." If you tap the icon before the beep, the machine may freeze or show an empty directory. If you don't hear a beep after 5 seconds, remove the drive, blow out port dust, and re-seat it.

Note on Formats: As mentioned in the comments, stick to .DST files. This is the industry standard for commercial machines and contains the X/Y coordinate data the machine craves.

File Management on the BF1500 Screen: Rename, Delete, and Export Without Making a Mess

Rebecca demonstrates three actions that define a clean shop workflow:

1. Rename a file

• Tap file name -> Keypad -> Rename -> Listen for Confirmation Beep.
• Tip: Use short coding like "Nike_L_Chest" rather than "File1."

2. Delete a file

• Select pattern -> Confirm deletion.
• Discipline: Delete test files immediately after the job is approved to prevent re-running a bad version later.

3. Export to USB

• Moves files from machine memory back to the drive.

The Storage Trap: Do not treat your machine’s internal memory as a hard drive. It is a working memory. Overloading it with 500 designs can slow down the UI. Keep it lean.

Pattern Editing on the BF1500 Touchscreen: Flip (“P”), Rotate 20°, and Scale Up to 120%—Safely

The video shows pattern edits on the touchscreen:

1. Select a pattern.
2. Go to Page Two.
3. "P" Icon: Mirrors/Flips the design (essential for T-shirts vs. towels).
4. Angle: Rotates the design (Rebecca inputs 20 degrees; always preview this).
5. Scaling: Adjusts X/Y size.

The 20% Safety Rule

The video mentions scaling between 80% and 120%. This is a hard physical limit, not just a suggestion.

• Why? A .DST file does not recalculate stitch count.
  • Scaling DOWN <80%: Density increases. Needles may struggle to penetrate, causing thread shreds or "bulletproof" stiff embroidery.
  • Scaling UP >120%: Density decreases. You will see fabric showing through the stitches.
• The Fix: If you need to change size by more than 20%, go back to your digitizing software and resize/recalc stitches there.

Warning: Proper hooping for embroidery machine technique requires you to finalize edits before you physically hoop difficult locations unless you are using a laser alignment system.

Needle Color Mapping on a 15-Needle Head: Don’t Guess—Match the Numbers

On Page Three, the video shows the needle assignment. This is the biggest mental shift from single-needle home machines.

• Digital: The screen shows "Color 1 (Blue)."
• Physical: You must tell the machine "Color 1 = Needle Bar 6."

The "Write It Down" Tactic: Don't trust your memory. If Needle 1 is Black, Needle 2 is White, and Needle 3 is Red, write "1-BLK, 2-WHT, 3-RED" on a piece of masking tape and stick it to the machine head. This simple visual aid prevents 90% of "wrong color" ruins.

Hoop Selection on the PROEMB BF1500: Confirm the Pattern First, Then Choose Hoop C

The sequencing here is critical for collision avoidance:

1. Confirm Pattern.
2. Enter Hoop Menu.
3. Visual Match: Rebecca selects Hoop C on screen because she has physically attached the green Hoop C.

The Crash Prevention Logic: The machine has software limits ("soft limits") based on the hoop you select. If you physically attach a small hoop (Hoop A) but tell the screen you are using a large hoop (Hoop E), the machine will happily drive the needle bar straight into the plastic frame of Hoop A. Shattered plastic and broken active bars are expensive.

The Upgrade Path: Solving the "Hooping Pain"

If you are struggling with standard plastic rings—fingers hurting, fabric slipping, or "hoop burn" (shiny marks on fabric)—this is where tools matter more than technique.

• Level 1 (Technique): Wrap your plastic hoop inner rings with bias tape for grip.
• Level 2 (Tool): Switch to magnetic embroidery hoops. These use powerful magnets to sandwich the fabric without forcing an inner ring into an outer ring.
  • Result: Faster hooping, zero hoop burn, and less strain on your wrists. For production runs of 50+ shirts, these pay for themselves in labor savings.


Warning: MAGNET SAFETY. Magnetic hoops are industrial tools with crushing force.
* Pinch Hazard: Do not put fingers between the magnets.
* Medical Safety: Keep magnets away from pacemakers (>6 inches).
* Electronics: Keep away from credit cards, phones, and the machine's LCD screen.

Centering and Manual Positioning: Fix the Red Off-Center Preview Before You Waste a Blank

In the video, the design appears explicitly off-center (red box) inside the green hoop boundary.

1. Center Icon: Auto-aligns the X/Y axis to the absolute center.
2. Directional Arrows: Fine-tunes the physical position of the pantograph.

The "Trace" Logic: Before stitching, experienced operators always run a Trace (often a button looking like a square with arrows). This moves the hoop around the outer boundary of the design without stitching.

• Look for: Does the presser foot come dangerously close to the plastic hoop edge?
• Listen for: Any straining sounds from the motors.

If you are doing volume production, manual centering is slow. This is why pros search for a hooping station for machine embroidery. These stations allow you to hoop the garment in the exact same spot every time, meaning you only have to set specific coordinates on the screen once for the whole batch.

Decision Tree: From Fabric to Hooping Strategy

Use this logic flow to determine your setup before you even touch the Start button.

START: What is your fabric?

• A. Stable Woven (Denim, Twill, Canvas, Caps)
  • Stabilizer: Tearaway (2 layers) or Cutaway (1 layer).
  • Hooping: Standard plastic hoop or Clamp Frame.
  • Needle: 75/11 Sharp.
• B. Unstable Knit (Polyester, T-Shirts, Performance Wear)
  • Stabilizer: MANDATORY Cutaway (No Tearaway!).
  • Hooping: Magnetic Hoops are superior here (prevents stretching).
  • Needle: 75/11 Ballpoint.
• C. High Pile (Towels, Fleece, Velvet)
  • Stabilizer: Tearaway backing + Water Soluble Topping (on top).
  • Hooping: Magnetic Hoop (prevents crushing the pile).
  • Technique: Slow machine speed down to 600 SPM.

The Start Button Moment: What to Watch During the First 30 Seconds of Stitching

The video returns to the main screen. Rebecca presses the green physical Start button. STOP. Do not walk away.

The 30-Second Rule: Stay within arm's reach for the first 30 seconds.

• Listen: You want a rhythmic thump-thump-thump. A distinct clack-clack indicates a needle hitting a throat plate or hoop.
• Watch: Check the "Bird's Nest." Look under the hoop. If you see a gather of thread growing, HIT STOP immediately.
• Monitor: Ensure the design isn't "walking" (shifting) due to loose hooping.


Operation Checklist (The "Pre-Flight" Ritual)

• File: Correct file loaded and renamed?
• Colors: Needle numbers on screen match thread cones on top?
• Hoop: Screen hoop selection matches physical hoop?
• Path: "Trace" completed successfully with no collisions?
• Speed: Speed set to "Safe Mode" (600-750 SPM) for the first run?
• Safety: Hands clear?


“It Stitches—But It’s Not Right”: Fast Troubleshooting for Common BF1500 Workflow Mistakes

Even with the best prep, things happen. Here is your rapid-response guide based on typical symptoms.

The Upgrade Path That Actually Makes Sense: When Hooping Tools Beat “More Practice”

Comments on the video often ask about pricing and where to buy—a sign that viewers are looking for production capability, not just a hobby toy.

If you are running a business, your bottleneck is never the machine speed (1000 SPM is fast enough). Your bottleneck is Changeover Time.

Here is how to calculate your next upgrade:

1. The "Alignment" Bottleneck: If you spend 5 minutes measuring every shirt, you need a hoopmaster or similar embroidery hooping station. Consistency is king.
2. The "Hoop Burn" Bottleneck: If you spend time steaming out hoop marks or struggling to hoop thick jackets, upgrade to Magnetic Hoops. The time saved on un-hooping pays for the frames.
3. The "Thread Change" Bottleneck: If you are on a single-needle machine and want to leverage the workflow in this video (15 colors ready to go), look into SEWTECH multi-needle machines. The jump from 1 needle to 15 is the difference between a "hobby" and a "factory."


The Manual Isn’t Optional: Use It Like a Technician, Not Like a Student

The video ends with the host holding up the instruction manual. This is the most honest part of the clip.

The touchscreen gets you 90% of the way there. The manual saves you from the 10% of edge cases that cause machine codes. Keep it clean, keep it nearby, and trust the process.

Final Setup Checklist (Do not skip)

• Language: English (or native).
• Time: Current.
• Bobbin: Full and seated correctly.
• Thread Tree: No tangles or "pigtails."
• confidence: High.

You have calibrated the machine. You have checked the safety paths. Now, press Start.

FAQ

• Q: How do I power on the PROEMB BF1500 control panel without causing touchscreen workflow mistakes?
  A: Use a calm, repeatable startup order: power on, wait for full boot, then set language/time before importing any design.
  • Wait: Let the UI fully load before touching the screen.
  • Set: Change the interface language (flag icon) and set date/time (clock icon) first.
  • Avoid: Do not “poke around” in menus while frustrated—this is how accidental settings changes happen.
  • Success check: The touchscreen is responsive, the language is correct, and date/time displays correctly before any file is opened.
  • If it still fails: Open the machine instruction manual and follow the panel setup section step-by-step before running production.
• Q: What is the correct USB import “beep handshake” workflow on the PROEMB BF1500 to avoid “No File” or an empty directory?
  A: Insert the USB, pause, and wait for the confirmation beep before tapping the USB icon.
  • Insert: Plug the USB drive into the side port.
  • Pause: Wait up to 5 seconds for the audible beep.
  • Tap: Only after the beep, tap the USB icon to view patterns; use .DST files as a safe standard.
  • Success check: The machine shows the pattern list instead of a blank/empty folder.
  • If it still fails: Remove and re-seat the drive, blow out port dust, and try again; if no beep occurs, test a different USB drive.
• Q: How do I judge correct hooping tension on the PROEMB BF1500 when using standard plastic embroidery hoops to prevent fabric slip and puckers?
  A: Hoop the fabric/stabilizer stack firm like a drum—tight enough to hold flat, but not so tight that the fabric grain stretches.
  • Tap-test: Tap the hooped area; aim for a dull “thud” (drum-skin feel), not a loose flutter.
  • Inspect: Check the inner ring for cracks or burrs that could snag fabric.
  • Mark: Use a fabric pen/chalk to mark center points before stitching.
  • Success check: The fabric stays flat with no visible distortion of the weave/knit lines, and the design does not “walk” during the first stitches.
  • If it still fails: Tighten hooping consistency or switch to magnetic hoops to reduce slipping and stretching, especially on knits.
• Q: What is the safe scaling limit on the PROEMB BF1500 touchscreen (80%–120%), and what happens if a .DST design is scaled beyond 20%?
  A: Keep touchscreen scaling between 80% and 120%; resizing beyond 20% should be done in digitizing software because .DST does not recalculate stitch count.
  • Reset: Return scale to 100% if the design looks overly dense or too open.
  • Understand: Scaling down below 80% increases density and can cause shredding or stiff “bulletproof” embroidery; scaling up above 120% reduces coverage and shows fabric.
  • Rebuild: If you need more than ±20%, resize and recalculate stitches in your PC digitizing software.
  • Success check: Stitches lay smoothly with normal needle penetration—no excessive stiffness, no fabric showing through fill areas.
  • If it still fails: Reduce speed for the first run and verify stabilizer choice matches stitch density before re-running.
• Q: How can I prevent a hoop strike (“Bang!” collision) on the PROEMB BF1500 when selecting Hoop A/B/C/E on the screen?
  A: Always match the on-screen hoop selection to the physically installed hoop before starting—wrong hoop selection removes the correct soft limits.
  • Confirm: Select/confirm the pattern first, then enter the hoop menu.
  • Match: Visually verify the hoop type/size installed matches the hoop selected on the touchscreen.
  • Trace: Run a trace (boundary run) before stitching to check edge clearance.
  • Success check: During trace, the presser foot stays safely inside the hoop boundary with no contact and no motor strain sounds.
  • If it still fails: Stop immediately, re-check physical hoop attachment and re-select the correct hoop size on the screen before attempting another trace.
• Q: What is the “30-second rule” on the PROEMB BF1500 to stop bird’s nesting early and avoid wasting garments?
  A: Stay within arm’s reach for the first 30 seconds and stop immediately if nesting starts under the hoop.
  • Listen: A steady rhythmic “thump-thump” is normal; a sharp “clack-clack” can indicate a strike risk.
  • Look: Check under the hoop for a growing thread wad (bird’s nest) and hit STOP immediately if seen.
  • Monitor: Watch for design shifting (“walking”), which usually signals loose hooping.
  • Success check: The first stitches are clean on top, and the underside shows controlled bobbin formation—not a rapidly growing thread mass.
  • If it still fails: Re-hoop with firmer tension and confirm stabilizer choice; for repeated slipping on knits, magnetic hoops often help.
• Q: What are the key safety hazards on the PROEMB BF1500 needle area and pantograph arm before pressing Start?
  A: Treat the needle zone as a crush hazard—keep fingers, hair, lanyards, and loose sleeves away before pressing Start because the head accelerates instantly.
  • Clear: Remove hands and tools from the needle/presser-foot area and the moving pantograph path.
  • Secure: Tie back long hair and remove dangling items (lanyards, hoodie strings, loose sleeves).
  • Pause: Do not “just check something” near the needle while the machine is live.
  • Success check: The machine can trace and start without any operator reaching into the movement zone.
  • If it still fails: Stop the machine first, then make adjustments with the head fully safe and stationary, following the instruction manual’s safety guidance.
• Q: What are the magnetic embroidery hoop safety rules for PROEMB BF1500 production hooping to avoid pinch injuries and device risks?
  A: Magnetic hoops have strong pinch force—keep fingers out of the magnet gap and keep magnets away from pacemakers and sensitive electronics.
  • Handle: Separate and place magnets deliberately; never slide fingers between magnet faces.
  • Protect: Keep magnets more than 6 inches away from pacemakers and avoid placing them near phones, credit cards, or the machine’s LCD.
  • Upgrade wisely: Use magnetic hoops when hoop burn, fabric stretching, or slow changeovers are limiting production.
  • Success check: Hooping is fast, fabric stays flat without shiny hoop marks, and operators can mount/unmount without finger pinches.
  • If it still fails: Step back to technique first (consistent placement and support) and consult the machine manual for safe handling practices around the work area.
