From Power-On to Perfect Letters: Running the Happy Voyager HCS 1201-30 Without Broken Thread or Hoop Collisions

Commercial embroidery feels intimidating the first time you stand in front of a 12-needle head—especially when the pantograph starts moving and you’re thinking, “Please don’t crash into the hoop.” I have spent two years telling new operators that the machine is just a robot; it has no brain, only orders. The anxiety you feel is normal.

The good news: the workflow on the Happy Voyager HCS 1201-30 is straightforward once you build a repeatable routine. In this guide, I will deconstruct the sequence—power on, mount the hoop, float the backing, software transfer, needle selection, tracing, and stitching—into a low-friction, high-safety protocol. We will move beyond "button pushing" to understanding the feel and sound of a dialed-in machine, preventing the two most expensive beginner mistakes: thread nests and hoop strikes.

Know Your Happy Voyager HCS 1201-30 Controls Before You Touch “Start”

If you’re new to a commercial head, treat the first five minutes like a pre-flight check. On the happy voyager embroidery machine, the machine will happily do exactly what you told it to do—even if something is in the way. Unlike a home machine that might beep and stop, a commercial motor has the torque to bend metal.

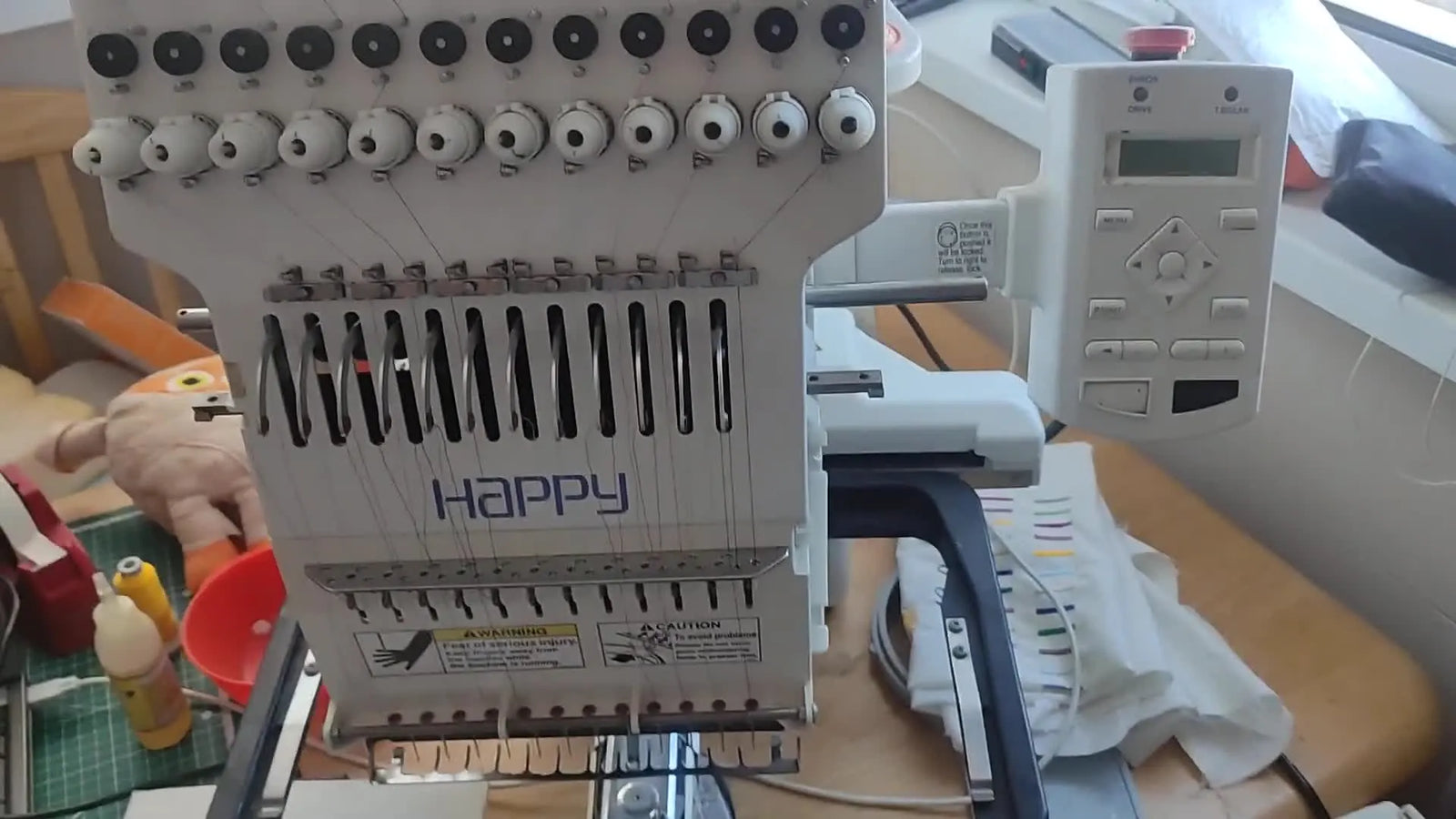

The Anatomy of Control (In Plain Language):

• Head + Needle Bars (12 Needles): This is the business end. It moves stationary left-to-right to change colors.
• Pantograph Arms (X-Y Carriage): The moving "robot arms" that drive the hoop. This is the danger zone—never put your hands here while the machine acts active.
• Tubular Hoop Brackets: The metal "ears" on your hoop that slide into the pantograph slots.
• Control Panel (LCD + OK/Enter): Your cockpit. This is where you confirm prompts, select needles (colors), and police your speed.

Operator Mindset that Saves Blanks: The machine doesn’t “feel” your hoop. If the design boundary is wrong, it can hit the plastic frame. Most thread breaks are not “mystery tension.” They are physics problems: a missed guide, a bad path, or unstable fabric/backing combinations.

The Red Safety Lock + Clear Pantograph Space: Your Power-On Ritual

The video demonstrates a simple but critical sequence that is unique to this class of machine. You cannot just flip a switch; you must disengage the mechanical lock.

The Power-On Sequence:

1. Remove the Red Mechanical Safety Lock: Located on the left side of the head. This physically prevents the main shaft from turning during transport. Store it safely; you will need it if you move the machine.
2. Press the Rocker Power Switch: Found on the side of the control panel box.
3. Clear the Deck: Visually confirm nothing (scissors, thread cones, coffee cups) is obstructing the pantograph area.
4. Press OK/Enter: When the screen prompts, confirm to initialize.
5. Watch the Homing Cycle: The pantograph will seek its X-Y limits and center itself.

Sensory Check (Auditory/Visual):

• Listen: You should hear a smooth whirring of motors, not a grinding noise.
• Look: The pantograph should move freely.

Warning: Keep fingers, scissors, and loose clothing away from the needle area and pantograph travel path during power-on and tracing. Commercial heads move at 10+ inches per second during jumps and do not stop gently.

Why This Matters: If anything blocks the pantograph during homing, you can knock the calibration out of alignment. This leads to "drift," where your outline doesn't match your fill later in the design.

Loading the Standard Tubular Hoop on the Pantograph Arms (No Wiggle Allowed)

In the standard workflow, the hoop is mounted by sliding the brackets into the pantograph arms. The video shows a single-handed mount, which is common, but accuracy is more important than style.

The Mounting Protocol:

1. Level Approach: Hold the standard tubular hoop perfectly parallel to the floor.
2. Slide and Seat: Guide the hoop brackets into the pantograph arms.
3. The "Click" Factor: Ensure both left and right notches settle into the metal pins/wheels.

Sensory Check (Tactile): Gently try to wiggle the hoop left and right by hand. You should feel firm mechanical engagement. It should feel like a solid part of the machine, not a loose rattle.

Expert Insight: The "Hoop Burn" Dilemma Standard tubular hoops work by friction and pressure. To hold a thick garment securely, you must tighten the screw significantly. This often leaves a permanent ring ("hoop burn") on delicate fabrics or velvet, and the physical act of forcing the inner ring into the outer ring causes significant wrist strain over time.

The Commercial Upgrade Path (Trigger → Solution): If you find yourself struggling to hoop thick items (like Carhartt jackets) or you are doing production runs of 50+ shirts, your wrists will become the bottleneck. This is where professionals switch to Magnetic Hoops.

• Level 1 (Technique): Use "floating" (see below) to minimize hoop burn.
• Level 2 (Tooling): Upgrade to Magnetic Hoops (such as Sewtech or MaggieFrame). These use powerful magnets to clamp the fabric without forcing a ring insert. They eliminate hoop burn, reduce wrist strain to zero, and drastically speed up the reloading process.


The “Floating Backing” Move: Stabilizer Under the Hoop Without Re-Hooping

"Floating" is a technique where the stabilizer is not hooped with the fabric but slid underneath. The video demonstrates a specific variation where the fabric is hooped, and a stabilizer sheet is added underneath for support.

The Execution:

1. Hoop the fabric (or the garment).
2. Pulse Check: Pull the fabric out of the stitching zone so it is taut (like a drum skin) but not stretched out of shape.
3. Take a loose sheet of tear-away stabilizer.
4. Slide it underneath the hoop, between the fabric and the needle plate.

Decision Tree: Stabilizer Selection Strategy Using the wrong backing is the #1 cause of puckering. Don't guess; follow this logic:

• Is the fabric stretchy (T-shirts, Polos, Knits)?
  • Action: Do NOT rely solely on floating tear-away. Knits need structure. Use Cut-Away stabilizer. If you must float, use temporary adhesive spray (like 505) to bond the stabilizer to the fabric, or the fabric will shift as the needle pounds it.
• Is the fabric stable (Woven shirts, Denim, Canvas)?
  • Action: Tear-Away is usually sufficient. The floating method shown in the video works well here.
• Is the fabric "lofty" (Towels, Fleece)?
  • Action: You need a Water Soluble Topping (Solvy) on top to prevent stitches from sinking, plus tear-away backing below.

Operator Trick: If you are experimenting with floating embroidery hoop techniques (where only the stabilizer is hooped and the garment is stuck to it), you must use a basting box (perimeter stitch) to lock the fabric down before the detailed stitching starts.

HAPPY Link on the PC: Sending a DST File Without the “Why Won’t It Connect?” Headache

The video’s transfer workflow is digital, but the friction is often in the drivers.

The Transfer Sequence:

1. Open HAPPY Link on your PC.
2. The Green Light: Confirm the USB connection indicator is green. If it is gray, the machine is not talking to the PC.
3. Open your design file (e.g., martin.DST). Note: DST files do not carry color information, only coordinates.
4. Click Send Pattern (icon looks like a printer sending data).
5. Watch the LCD: It should read “Receiving Stitches”.

Troubleshooting Connectivity (The Real World): A viewer asked for the installation program, and the creator noted it's online. In reality, modern Windows updates frequently break older USB serial drivers.

• Action: Use a dedicated, high-quality USB cable. Avoid loose hubs.
• Prevention: If you operate a business, keep the installation executable (.exe) on a localized flash drive, not just in the cloud, so you can reinstall drivers instantly if they corrupt.


Confirm the Design Size Before You Stitch: 148mm × 164mm Is Not “Close Enough”

In the video, the design preview shows dimensions Width: 148mm, Height: 164mm, and a stitch count of 12,455.

Why Data Verification Prevention Rework:

• Size vs. Hoop: You must mathematically verify that the design fits. A 148mm wide design in a 150mm hoop leaves only 1mm clearance on each side. That is dangerous. I recommend a 10mm safety margin minimum for beginners.
• Stitch Count: 12,000 stitches at 600 SPM is roughly 20 minutes of run time. This helps you plan your day.

If you are running a single head embroidery machine for paid client work, "Close Enough" is expensive. Always cross-reference the digital size with the physical hoop restrictions.

Needle 5 Selection + Thread Path Verification: The Fastest Way to Stop Thread Breaks

The video uses a single-color design assigned to Needle 5.

The Setup:

1. On the control panel, select Needle 5 (LCD displays “Nd: 5”).
2. Physical Setup: Place your thread cone on the corresponding stand pin for bar #5.

The "Dental Floss" Tension Check: This is how an expert threads a machine. Don't just put the thread through the holes; feel it.

• The Path: Through top guides -> Pre-tension -> Tension Disk -> Check Spring -> Take-up Lever -> Ceramic Eyelet -> Needle Eye.
• Sensory Check (Tactile): After threading, pull the thread near the needle. It should pull with smooth, consistent resistance, similar to pulling dental floss out of the container or between tight teeth.
  • Too loose? Loops on the back.
  • Too tight? Snapped thread.
  • Ratchet feeling? You missed a guide or the thread is caught on the cone.

Why this prevents breaks: A missed guide changes the friction coefficient. At 600 stitches per minute, low friction causes loops, and high friction causes snapping. If you operate a happy voyager 12 needle embroidery machine hcs 1201 30, verify the path before you touch the tension knobs.

Set Speed to 600 SPM—Then Earn the Right to Go Faster

The video sets the machine to 600 stitches per minute (SPM).

The Sweet Spot Strategy:

• Beginner (450-600 SPM): Run here for your first 10 hours. It gives you reaction time to stop if a sound changes.
• Intermediate (700-800 SPM): The machine's efficient cruising altitude.
• Advanced (850+ SPM): Only for well-digitized files on stable backing.

Why Slower is Profitable: Faster isn’t “more professional” if it breaks the thread every 2 minutes. A steady 600 SPM run that never stops finishes faster than a 1000 SPM run with three thread breaks.

The Perimeter Trace That Saves Hoops: Watch the Presser Foot vs. the Frame

The "Trace" function moves the pantograph around the outer rectangular box of the design without stitching. This is your final fail-safe.

The Execution:

1. Initiate Perimeter Trace via the control panel.
2. Eyes on the Gap: Watch the distance between the presser foot (the metal foot jumping up and down) and the plastic inner wall of the hoop.
3. Backing Check: Ensure your floating backing doesn't get pushed away by the machine arm.

Warning: If you upgrade to magnetic hoops for happy embroidery machine, be aware they are slightly thicker and have strong magnetic fields. Keep magnets away from pacemakers. Also, watch your fingers—these magnets snap together with enough force to pinch skin severely (blood blister hazard).

Success Metric: The foot should never come closer than 3-5mm to the hoop edge. If it looks close, stop and resize or re-hoop. A hoop strike can break a needle bar, costing hundreds in repairs.

Press Start and Babysit the First 20 Seconds (That’s Where Quality Is Won)

The 20-Second Rule: Expert operators do not press start and walk away. They stay for the first 20 seconds.

1. Press Start.
2. Listen: Listen for a rhythmic "thump-thump-thump." A sharp "click-click" or "slap" indicates a thread path error.
3. Watch: Watch the "tail" of the thread. Did it catch? Is the fabric "flagging" (bouncing up and down)?

If you see the fabric bouncing (flagging), your hoop is too loose. Pausing at stitch 50 allows you to tighten/fix it. Pausing at stitch 5,000 means the garment is ruined.

Close-Up Stitch Quality Check: Catch Problems While They’re Still Cheap

The video shows teal lettering being stitched.

Quality Audit (Visual):

• Top Thread: Should look smooth and "plump."
• Columns: Letter edges (satins) should be crisp, straight, and aligned.
• Bobbin Show: Flip the hoop over after the run. You should see a white strip of bobbin thread taking up the center 1/3 of the column, with top thread wrapping around the sides.
  • All White on back? Top tension too tight.
  • All Color on back? Top tension too loose.


Manual Jump Stitch Trimming With Precision Scissors (Cleaner Letters, Better Photos)

Unlike modern multi-needles that auto-trim every jump, the HCS 1201-30 (depending on settings) may leave jump stitches.

The Finishing Protocol:

1. Wait for a complete stop.
2. Use Curved Precision Scissors (squeezers). The curve prevents you from snipping the fabric.
3. Trim the "jump" threads connects the letters.
4. Back Clean-up: Trim the stabilizer close to the design, leaving about 1/4 inch border. Do not chop it messily; clients judge the back of the shirt as much as the front.


Prep Checklist (Before You Power On)

• Safety Lock: Red lock removed?
• Clearance: Pantograph travel zone is free of obstructions?
• Hooping: Fabric is drum-tight? (Unless using magnetic hoops, then flat and secure).
• Consumables: Stabilizer selected based on fabric stretch (Decision Tree)?
• Tools: Precision scissors/nippers accessible?


Setup Checklist (Before You Send the Design)

• Connection: Happy Link indicator is GREEN?
• File: Correct DST loaded?
• Needle: Panel set to correct needle number (e.g., Nd 5)?
• Thread Path: "Dental Floss" tension check passed?
• Color Mapping: Thread cone on the stand matches the needle assignment?


Operation Checklist (Right Before Stitching)

• Speed: Set to Safe Zone (600 SPM)?
• Trace: Completed perimeter trace with visual clearance confirm?
• Support: Floating backing is positioned fully under the field?
• The 20-Second Rule: Ready to monitor startup sounds/tension?


Troubleshooting the Two Problems Everyone Hits: USB Connection and Thread Breaking

Here is a structured troubleshooting map. Follow the sequence Low Cost -> High Cost.

When to Upgrade Your Workflow (Without Buying Random Accessories)

If you are a hobbyist, the standard tubular hoop and floating tear-away are acceptable. However, commercial embroidery is a game of efficiency.

The Productivity Ladder:

1. Level 1: Consumables: Use high-quality polyester thread (like Simthread or Madeira) and the correct backing (Cut-away for knits).
2. Level 2: Tooling (The biggest ROI): If hooping takes you longer than 60 seconds, or you are fighting wrist pain, Magnetic Hoops are the solution. They self-align and clamp instantly. For a commercial machine like this, they are a tax-deductible productivity tool.
3. Level 3: Scaling: If you are rejecting orders because you can't stitch fast enough, look at a 12 needle embroidery machine update. Brands like SEWTECH offer multi-needle reliability that allows you to run concurrent jobs.

If you are running a happy japan embroidery machine, you have a workhorse. Respect the startup sequence, verify your threading physically, and protect your hoops. Do that, and the machine will print money for you.

FAQ

• Q: What is the safe power-on sequence for the Happy Voyager HCS 1201-30 to avoid pantograph crashes during homing?
  A: Power on the Happy Voyager HCS 1201-30 only after removing the red mechanical safety lock and clearing the pantograph travel area.
  • Remove the red mechanical safety lock on the left side of the head and store it.
  • Switch on the rocker power switch on the control panel box.
  • Clear the pantograph zone (no scissors, cones, cups, or fabric in the travel path).
  • Press OK/Enter to initialize and let the homing cycle finish hands-free.
  • Success check: the pantograph homes with smooth motor sound (no grinding) and free movement with no obstructions.
  • If it still fails: stop immediately and re-check for physical blockage during homing because obstruction can cause drift/misalignment.
• Q: How can a Happy Voyager HCS 1201-30 operator confirm a standard tubular hoop is seated correctly on the pantograph arms with “no wiggle”?
  A: Seat both hoop brackets fully into the pantograph pins/wheels so the hoop feels like a solid part of the machine.
  • Hold the tubular hoop level and slide both brackets into the pantograph slots evenly.
  • Push until both left and right notches “click”/settle into place.
  • Wiggle-test the hoop gently left-right by hand before stitching.
  • Success check: the hoop has firm mechanical engagement with no rattling or shifting.
  • If it still fails: remove and re-mount the hoop with a level approach—partial seating is a common cause of movement and potential hoop strikes.
• Q: When should a Happy Voyager HCS 1201-30 operator use floating backing, and how should stabilizer be chosen to prevent puckering?
  A: Use floating backing as a technique option, but choose stabilizer based on fabric type because wrong backing commonly causes puckering.
  • Identify fabric type first: knits (stretchy), wovens (stable), or loft (towels/fleece).
  • Use cut-away for knits; if floating is necessary, bond stabilizer to fabric with temporary adhesive spray to reduce shifting.
  • Use tear-away for stable wovens; floating a sheet under the hooped fabric often works well.
  • Add water-soluble topping for lofty fabrics to prevent stitches sinking, with backing underneath.
  • Success check: fabric stays drum-taut without bouncing/flagging, and the stitched area lies flat without ripples.
  • If it still fails: add a basting box (perimeter stitch) when testing floating methods so the fabric cannot creep before detail stitching.
• Q: What should a Happy Voyager HCS 1201-30 operator do when HAPPY Link shows a gray (not green) USB connection indicator and the design will not send?
  A: Treat a gray indicator as a PC-to-machine communication problem and fix cable/driver basics before changing anything else.
  • Swap to a different USB port and avoid loose USB hubs.
  • Reboot the PC with the embroidery machine powered ON, then re-open HAPPY Link.
  • Reinstall the correct driver if the indicator remains gray (Windows updates can break older drivers).
  • Success check: HAPPY Link shows a green connection indicator and the machine LCD shows “Receiving Stitches” after sending.
  • If it still fails: try a dedicated high-quality USB cable and keep a local copy of the installer so driver recovery is fast.
• Q: How can a Happy Voyager HCS 1201-30 operator prevent thread breaks when selecting Needle 5 by verifying the full thread path before touching tension knobs?
  A: Re-thread Needle 5 and perform the “dental floss” pull test at the needle—most breaks are path/physics issues, not mystery tension.
  • Select Needle 5 on the control panel (Nd: 5) and place the thread cone on stand pin #5.
  • Thread through all guides in order (top guides → pre-tension → tension disks → check spring → take-up lever → ceramic eyelet → needle eye).
  • Pull the thread near the needle to feel smooth, consistent resistance like dental floss.
  • Success check: the pull feels steady (not ratchety), and stitching starts without snapping or looping.
  • If it still fails: change the needle and re-check for a missed guide or snag point before adjusting tension.
• Q: What is the fastest safe fix for a “bird nest” (thread ball under the needle plate) on the Happy Voyager HCS 1201-30?
  A: Stop immediately and fully re-thread the top path because bird nests commonly come from zero tension or losing the thread path.
  • Press stop as soon as the nest starts; do not let the machine keep punching.
  • Cut thread carefully and remove the tangle—do not yank thread out aggressively.
  • Re-thread the top path completely with the presser foot UP (to open the tension discs).
  • Success check: after restarting, the underside shows controlled bobbin presentation rather than a growing thread wad.
  • If it still fails: verify the thread is seated in the tension discs and confirm the needle is not damaged from the jam.
• Q: How can a Happy Voyager HCS 1201-30 operator use perimeter trace to prevent hoop strikes, and what clearance is considered safe?
  A: Always run perimeter trace and visually confirm presser-foot-to-hoop clearance before stitching to prevent expensive hoop strikes.
  • Initiate perimeter trace from the control panel before pressing Start.
  • Watch the presser foot travel relative to the hoop inner wall and corners.
  • Confirm floating backing stays fully under the stitch field and does not get pushed away.
  • Success check: the presser foot never comes closer than about 3–5 mm to the hoop edge during trace.
  • If it still fails: stop and resize the design or re-hoop for more clearance—do not “chance it.”
• Q: When is it worth upgrading from standard tubular hoops to magnetic hoops for commercial embroidery production, and what magnetic hoop safety rules should be followed?
  A: Upgrade to magnetic hoops when hooping speed, wrist strain, or hoop burn becomes the bottleneck, but handle magnets carefully to avoid pinch injuries and medical risks.
  • Diagnose the pain point: if hooping takes longer than ~60 seconds, causes wrist pain, or leaves hoop burn on delicate fabrics, magnetic hoops may be the next step.
  • Start with Level 1: reduce hoop burn by floating/backing techniques where appropriate.
  • Move to Level 2: use magnetic hoops to clamp quickly and reduce forcing inner/outer rings.
  • Follow safety: keep magnets away from pacemakers and keep fingers clear because magnets can snap together and pinch severely.
  • Success check: reloads become faster with consistent holding power and fewer fabric marks, while trace clearance remains safe.
  • If it still fails: slow down and re-check trace clearance because magnetic hoops can be thicker and may reduce edge clearance on tight designs.
