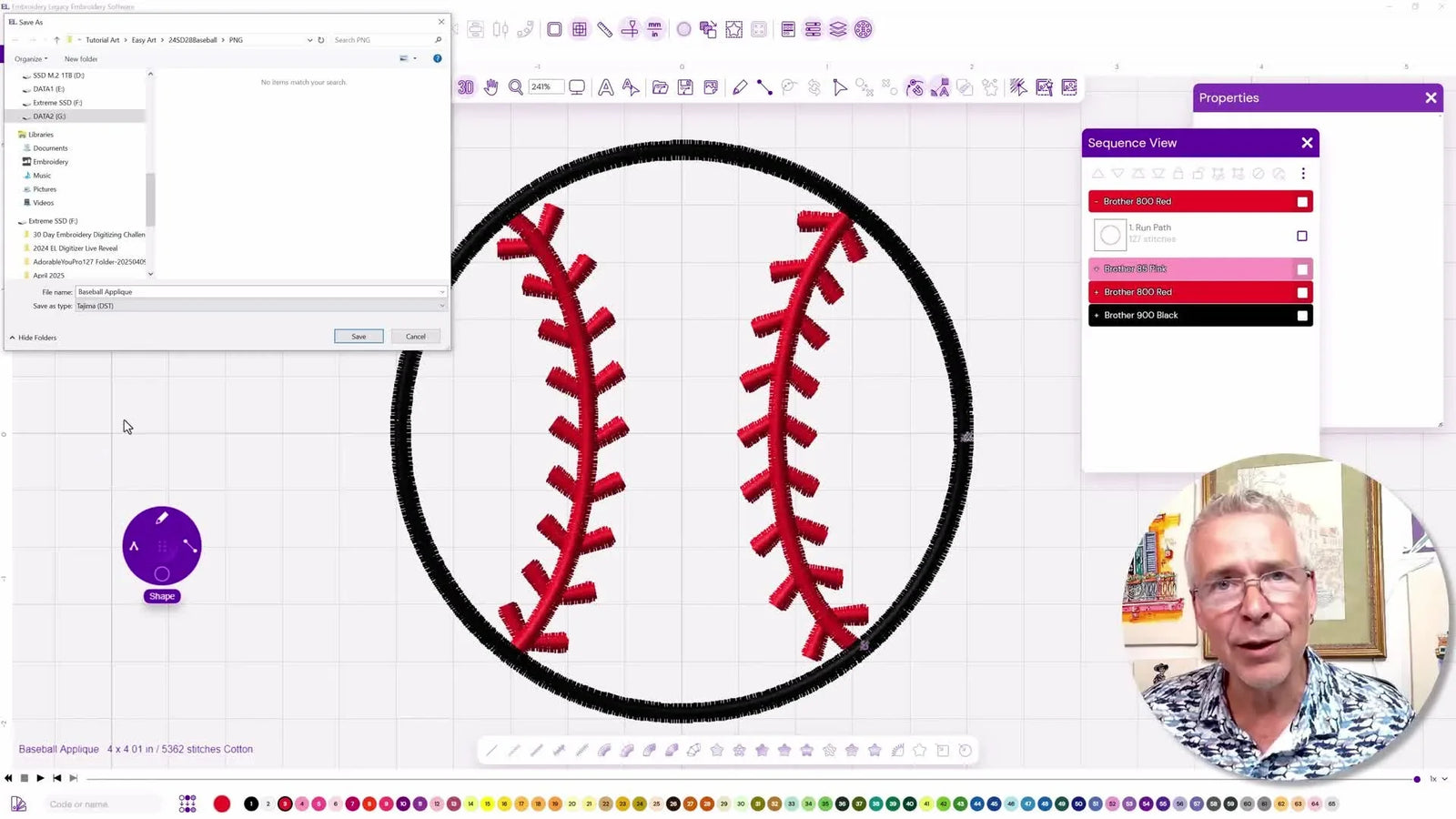

From PNG to Patch: Digitize a Baseball Appliqué That Sews Clean on a Tajima Sai with a 5.5" Magnetic Hoop

Appliqué looks “simple” on screen: a circle, some red lines, and a border. But when you hit start on the machine, reality hits back. The border misses the raw edge by a millimeter, the laces sink into the fabric, or—worst of all—the patch shifts right when you stop to trim, ruining a $20 garment.

If you have ever stared at a finished baseball patch and thought, “My digitizing looked perfect on the screen—why does the stitch order look wrong in real life?” take a deep breath. You are not alone. Machine embroidery is an experience science, not just computer logic.

This baseball appliqué lesson is the perfect “lab experiment” to bridge that gap. It forces you to master the three pillars of production-quality embroidery:

1. Symmetry: Because the human eye is a relentless detector of unevenness.
2. Physics settings: Changing width and density so the machine can digest the file.
3. Resequencing: Programming the machine to stop exactly when you need it to.


Calm the Panic: When an Appliqué Sew-Out Looks “Off,” It’s Usually Stitch Order (Not Your Machine)

Appliqué failures often trigger a panic response: “Is my machine broken? Is my timing off?”

Before you grab a screwdriver, look at your file. Failures in appliqué—fraying edges, "smiling" gaps where the border misses the fabric—are almost always sequence errors or stabilization failures. In this workflow, the secret isn't in drawing the shapes; it's in the Order of Operations: Placement → Tackdown → STOP (Trim) → Interior Details (Laces) → Final Satin Border.

On a multi-needle machine like a SEWTECH or the Tajima Sai used in this breakdown, the machine is a blind robot. It executes commands at 800+ stitches per minute (SPM). Your job is to be the architect who accounts for the physics of thread pulling on fabric.

Expert Rule of Thumb: For appliqué, speed kills quality. While your machine might rate 1000 SPM, I recommend capping appliqué speeds at 600-700 SPM. Listen to your machine; a smooth, rhythmic hum produces better borders than a frantic, high-speed rattle.

The “Hidden” Prep Pros Do Before They Touch the Backdrop Tool

Amateurs open software and start clicking. Professionals start with the "Physical Stack." Before you import a single pixel, you must define the physical reality of your project.

In this lesson, the target material is PVC Twill.

• The Pro: PVC Twill is durable and creates that high-end sports look.
• The Con: It is unforgiving. Unlike felt, which hides needle holes, PVC Twill shows every perforation. If you make a mistake and unpick it, the holes remain forever.

This material choice dictates your workflow. Because PVC is stiff, you need a hooping system that won't let it slip when you manually trim the excess. If you are doing this all day, traditional screw-tightened hoops can lead to hand fatigue and inconsistent tension ("hoop burn").

This is where a magnetic hooping station transforms from a luxury to a necessity. In a production environment, you need the 50th patch to be hooped with the exact same tension as the 1st. Magnetic systems clamp the backing and fabric instantly without the "tug-of-war" adjustment required by standard hoops.

Prep Checklist (Physical Setup):

• Size Target: Confirm 4" diameter (Standard patch size).
• Material: PVC Twill (or substitute with stiff felt for practice).
• Needle: 75/11 Sharp/Ballpoint (Use Sharp for woven twill, Ballpoint for knits).
• Hidden Consumable: Spray Adhesive (Temporary) to hold the appliqué material flat before the tackdown stitch.
• Scissors: Double-Curved Micro-Serrated Scissors. Standard office scissors will fail here; you need to trim 1mm from the stitches without cutting them.

Warning: Appliqué trimming is the #1 cause of injury in embroidery shops. Never put your fingers near the needle bar even when stopped—accidental start button presses happen. Always remove the hoop from the machine to trim if you are a beginner.

Backdrop Properties in Embroidery Legacy Digitizing Software: Resize to 4" and Make It Traceable

The video demonstrates a critical workflow: never digitize blindly over raw artwork.

1. Load Backdrop: Import your PNG.
2. Scale Immediately: Select the image and set the size to 4 inches. If you digitize at a huge scale and shrink it later, your densities will compress, leading to thread breaks and needle breakage.
3. Visual Comfort: Reduce Opacity to 50%. You need to see your stitches over the artwork, not fight for visual dominance.

Visual Anchor: Align the center of the baseball image to the exact (0,0) center of your grid. If the artwork is slightly lopsided (common with scanned images), ignore the artwork's imperfections and trust the grid. We are building a geometrically perfect patch, not tracing a flawed drawing.

The Symmetry Shortcut: Digitize One Lace Set, Then Mirror for a Cleaner Baseball

Your eye is better at detecting asymmetry than it is at measuring distance. If the left laces look slightly different from the right laces, the whole patch looks "cheap."

The most efficient (and accurate) method is:

1. Digitize the left set of laces perfectly.
2. Copy and Paste.
3. Horizontal Flip.

This guarantees mathematical symmetry. It also cuts your work time in half. In professional digitizing software (like Hatch, Wilcom, or the Embroidery Legacy software shown), use your "Duplicate" hotkeys. Muscle memory for these shortcuts is what separates a hobbyist taking 2 hours from a pro taking 15 minutes.

Build the Appliqué Base Circle: Appliqué Brush + Circle Shape + 3.0 mm Width

The instructor uses the Appliqué Brush tool to automate the tedious parts. This tool generates three distinct layers in one go:

1. Placement Line: (Running stitch) "Put fabric here."
2. Tackdown: (Open zigzag or double run) "Hold fabric down."
3. Cover Border: (Satin stitch) The pretty edge.

The Expert Adjustment: The default satin width is often 2.5 mm. The instructor wisely increases this to 3.0 mm.

• Why? The "Safety Margin."
  When you trim your fabric with scissors, you are human. You might leave a 1mm tag of fabric sticking out. A 2.5mm border might not cover it. A 3.0mm border covers a multitude of trimming sins. It provides a cleaner finished edge and accounts for slight fabric shrinkage.


Setup Choices That Prevent Puckers: Fabric Recipe, Underlay Expectations, and Stabilizer Logic

The software asks for a "Fabric" setting (stating 'Cotton' in the video). This calculates "Pull Compensation"—how much the software overstitches to account for thread tension pulling the fabric in.

However, software cannot feel the fabric; you can. You must choose the right stabilizer.

Decision Tree: Stabilizer for a 4" Appliqué Patch

1. Are you stitching a standalone patch (Badge)?
   • Yes: Use 2 layers of Heavy Tearaway or 1 layer of stiff Cutaway. You need rigidity so the circle stays a circle.
2. Are you stitching directly onto a shirt (Direct Appliqué)?
   • Yes: Cutaway Stabilizer (2.5oz or 3.0oz) is non-negotiable. Tearaway will disintegrate during the satin stitching, causing the border to separate from the shirt.
3. Is the base fabric stretchy (Performance Wear)?
   • Yes: Use Fusible Mesh Cutaway (PolyMesh) to prevent distortion, AND a Magnetic Hoop.

Standard hoops require you to pull the fabric to create tension. On stretchy fabrics, this causes "Hoop Burn" (permanent rings) and distortion. A magnetic embroidery hoop clamps the fabric vertically without pulling it horizontally, preserving the grain of the fabric and preventing the "funhouse mirror" effect on your finished round baseball.

Digitize the Baseball Laces Fast: Classic Satin + Run Stitch + Hotkeys (1 and 2)

Laces are the detail that sells the realism. The instructor uses a "Run-Satin-Run" workflow.

• Tool: Classic Satin (Column B/Satin Column).
• Input Method: Line Input (Left click for corners, Right click for curves).
• Density: Standard is usually 0.40mm. For laces that pop, ensure you aren't going too dense (e.g., 0.30mm) or you will cut the PVC fabric.

Crucial Technique: The "Travel" Stitch Don't trim between every single lace. Trims take 6-10 seconds on a machine and leave risky thread tails.

1. Digitize a lace segment (Key 2).
2. Digitize a Run Stitch (Key 1) to travel to the start of the next lace.
3. Digitize the next lace.

• Note: Ensure the run stitch travels under where the satin border will eventually go, or keep it short so it’s buried in the PVC texture.

Tactile Check: When refining the satin, ensure the "Ends" of the laces slightly overlap. Threads shrink; if you just touch them tip-to-tip on screen, they will pull apart on fabric, leaving a gap.

The Classic Mistake That Creates “Tiny Circles”: Switch Back to Line Input After Using the Circle Tool

• Symptom: You try to draw a lace, but the screen spawns a weird, tiny donut shape.
• Cause: You last used the "Circle Tool" for the baseball base. The software "remembered" that input method.
• Fix: Look at your toolbar. Switch explicitly from Shape/Circle input back to Line/Freehand input.

This is a cognitive trap. We get into the flow and forget to reset our tools. Always glance at your cursor icon before starting a new segment.

Mirror and Connect Without Trims: Copy/Paste + Flip + “Digitize After” Run Stitch

Efficiency is about continuity.

1. Select all Left Laces.
2. Copy -> Paste -> Mirror Horizontal.
3. Position them visually.

Now, you have a gap between the Left Set and the Right Set. If you do nothing, the machine will Trim, Jump, and Lock—wasting time.

• The Pro Move: Select the last object of the Left Set. Select "Digitize After". Create a running stitch that travels along the perimeter (where the black border will eventually hide it) to the start of the Right Set.


Resequence Like a Pro: Break Apart Appliqué So Laces Stitch After Tackdown but Before the Satin Border

This is the most critical step in the entire tutorial. If you miss this, your patch fails.

The default "Appliqué Tool" groups everything together: Placement -> Tackdown -> Border. If you leave it like this, your machine will stitch the Red Laces on top of the finalized Black Border, or stick them under the appliqué fabric.

The Required Logic:

1. Break Apart the Appliqué Group (Right Click -> Break Apart).
2. Isolate the Cover/Satin Border.
3. Move the Laces in the sequence view so they sit AFTER the Tackdown but BEFORE the Cover Border.

Final Sequence Check:

1. Placement (Run)
2. Tackdown (ZigZag)
3. [MACHINE STOP / TRIM FABRIC]
4. Red Laces (Satin)
5. Black Border (Satin)


The Underlay Choice That Makes Borders Behave: Add Contour (Edge Run) Underlay to the Final Satin

A 3mm satin stitch without support is floppy. It looks ragged. You need a foundation.

Go to the Object Properties of your final black satin border and enable Underlay.

• Select: Contour (also called Edge Run).
• Why? This puts a running stitch track along both edges of the circle before the satin starts zigzagging. It acts like the rails of a railroad track, giving the satin stitches something to hold onto. This ensures your circle stays perfectly round and doesn't distort into an oval.


Sew-Out on a Tajima Sai with a 5.5" Magnetic Hoop: What to Watch During the Trim Stop

The video demonstrates the sew-out on a Tajima Sai (an excellent pro-sumer multi-needle machine). They use a 5.5" magnetic hoop.

Why Magnetic Hoops for Appliqué? Appliqué requires you to stop the machine, take the hoop off (usually), trim the fabric with scissors, and put the hoop back on.

• The Risk: If you bump the fabric or the hoop shifts even 0.5mm during this process, the final border will miss the fabric edge.
• The Solution: Many professionals upgrading their workflow search for magnetic hoops for tajima because the clamping force is vertical. The fabric does not shift when you handle the hoop. It locks in and stays in.

During the Trim Stop:

1. Wait for the machine to stop fully.
2. If you remove the hoop, handle it by the outer ring only.
3. Use your curved scissors. Lay the blades flat against the stabilizer.
4. Glide the scissors. Do not "hack."

Warning: Magnetic Force Safety
Professional magnetic hoops contain high-power Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and mechanical watches. When storing, use the provided spacers.

If you are running a business, consistency is money. Leveraging tajima magnetic hoops eliminates the variable of "operator hand strength" on screw hoops, ensuring the 100th baseball looks identical to the first.

Operation Notes: The Stop-Trim-Resume Rhythm That Keeps Appliqué Looking Expensive

The "Rhythm" of appliqué is distinct.

• Click-Clack (Placement) -> Action: Place Fabric.
• Zig-Zag (Tackdown) -> Action: Remove & Trim.
• Hummmmm (Laces & Border) -> Action: Watch.

If you notice the fabric "flagging" (bouncing up and down) before the final border, your tackdown wasn't tight enough, or you forgot the spray adhesive.

For those scaling up production, this stop-and-go workflow is the bottleneck. Using a quick-change system like a 5.5 mighty hoop compatible frame allows you to hoop the next garment while the current one is stitching. This "Run and Gun" style is how profitable shops operate.

Operation Checklist (The "Live" Run):

• Bobbin: Is it full? (Running out during a satin border is a nightmare).
• Needle: Is it straight? (Roll it on a flat table to check).
• Thread Path: Is the thread feeding smoothly? (Pull it; it should feel like flossing teeth—firm but smooth).
• Hoop: Is the magnetic frame fully seated? Listen for the solid "Clunk" when attaching to the machine arms.


Troubleshooting the “Scary” Stuff: Symptoms → Likely Cause → Fix

When things go wrong, don't guess. Use this diagnostic table.

The Upgrade Path When You Want to Sell Patches: Faster Hooping, Cleaner Output, Less Rework

You have digitized the file. You have stitched a sample. Now, a local team wants 50 of them.

This is the "tipping point" where hobbyist gear struggles.

• The Pain: Hooping 50 items with a screw hoop hurts your wrists. Trimming 50 patches takes hours.
• The Upgrade:
  1. Software: Master the "Break Apart" and "Mirror" skills to cut digitizing time.
  2. Hardware: Moving to a multi-needle machine (like the SEWTECH series) means you aren't baby-sitting thread colors.
  3. Stability: Investing in mighty hoop tajima or tajima embroidery hoop systems (or compatible sizes for your specific machine) secures your consistency.

Final Export Checklist:

• Center Design: Ensure the design is centered (X=0, Y=0).
• Format: Export to DST (Industrial) or PES/JEF (Home) as needed.
• Color Stop: Verify the machine recognizes the "Stop" command after the Tackdown (in DST files, this is often a color change command).
• Test: Always, always sew one test on a scrap of the actual fabric before running the final batch.

Embroidery is a journey from "hoping it works" to "knowing it will work." With the right file structure, the right stabilizer, and a solid magnetic hoop, that baseball patch will be a home run every time.

FAQ

• Q: What is the correct stitch sequence for a baseball appliqué patch to prevent the satin border from missing the fabric edge on a Tajima Sai multi-needle embroidery machine?
  A: Use the appliqué “Order of Operations”: Placement → Tackdown → STOP (trim) → Laces → Final Satin Border.
  • Break apart the appliqué group so the cover satin border becomes a separate object.
  • Resequence the red laces to stitch after tackdown but before the black satin border.
  • Insert a clear stop (often a color-change stop) right after tackdown so trimming happens at the right time.
  • Success check: after trimming and resuming, the final black satin border lands fully on the raw edge with no “smiling” gaps.
  • If it still fails: check for hoop movement during the trim stop and stabilize/hoop more securely.
• Q: What embroidery speed (SPM) is recommended for appliqué on a SEWTECH multi-needle embroidery machine to avoid rough borders and misalignment?
  A: Cap appliqué speed at 600–700 SPM even if the SEWTECH machine is rated higher.
  • Slow the machine down specifically for tackdown, trim-stop transitions, and the final satin border.
  • Listen for a smooth, rhythmic hum rather than a frantic rattle during the border.
  • Success check: the satin border looks even and round, with no wobble or ragged edges.
  • If it still fails: review stitch order and confirm stabilizer choice is rigid enough for a 4" patch.
• Q: What prep tools and consumables are required for trimming a 4-inch PVC twill baseball appliqué patch cleanly without fraying?
  A: Use temporary spray adhesive plus double-curved micro-serrated scissors to hold and trim the appliqué material precisely.
  • Apply temporary spray adhesive to keep the appliqué material flat before the tackdown stitch.
  • Trim with double-curved micro-serrated scissors, keeping the blades flat against the stabilizer and gliding (do not hack).
  • Keep the trim margin tight (about 1 mm) so the satin border can fully cover the raw edge.
  • Success check: no fabric tags poke out after the final satin border; edges look sealed and clean.
  • If it still fails: increase satin border width (for example, from 3.0 mm toward 3.5 mm) and recheck trimming distance.
• Q: How do I choose stabilizer for a 4-inch appliqué patch so the circle stays round and the border does not separate during satin stitching?
  A: Match stabilizer to the project type: rigid for badges, cutaway for garments, and mesh cutaway for stretch fabrics.
  • Use 2 layers of heavy tearaway or 1 layer of stiff cutaway for standalone badge-style patches.
  • Use cutaway stabilizer (2.5 oz or 3.0 oz) when stitching directly onto a shirt to prevent border separation.
  • Use fusible mesh cutaway (PolyMesh) for performance/stretch fabric to reduce distortion.
  • Success check: the sewn circle stays a circle (not an oval), and the border sits tight without puckers.
  • If it still fails: reduce hoop-induced distortion (often by switching to a magnetic hoop on stretch fabrics).
• Q: How can a magnetic embroidery hoop reduce hoop burn and fabric distortion compared with a screw-tightened hoop on stretchy performance wear appliqué?
  A: A magnetic embroidery hoop clamps vertically without pulling the fabric sideways, which helps prevent hoop burn and grain distortion.
  • Clamp the fabric and stabilizer evenly instead of “tugging” to create drum-tight tension.
  • Recheck that the frame is fully seated before stitching so it does not shift during a stop-and-trim.
  • Use the magnetic hoop especially when the design must stay perfectly round (like a baseball patch).
  • Success check: no permanent hoop ring marks and the finished baseball remains symmetrical and round.
  • If it still fails: confirm stabilizer is fusible mesh cutaway for stretch fabric and slow the appliqué speed.
• Q: What should I do if Embroidery Legacy digitizing software creates “tiny donut circles” when I try to draw lace lines after using the Circle tool?
  A: Switch the input method back from Shape/Circle to Line/Freehand before digitizing lace segments.
  • Look at the toolbar and explicitly select Line Input (or Freehand/Line) for the satin lace objects.
  • Redraw one lace segment to confirm the cursor is placing line points (not spawning shapes).
  • Continue with the run-satin-run workflow only after the input mode is correct.
  • Success check: clicking creates a clean path/line for a lace column, not a small ring shape.
  • If it still fails: cancel the object, reselect the Classic Satin tool, and re-verify the input icon before clicking.
• Q: What safety steps should beginners follow when trimming appliqué at the machine during a stop, especially when using magnetic hoops with strong neodymium magnets?
  A: Remove risk first: keep hands away from the needle area and handle strong magnetic hoops carefully to avoid pinches and hazards.
  • Remove the hoop from the machine to trim if you are a beginner, and keep fingers away from the needle bar even when the machine is stopped.
  • Handle the hoop by the outer ring only to avoid shifting fabric and to keep hands clear of pinch points.
  • Keep strong magnetic hoops away from pacemakers, credit cards, and mechanical watches; store with spacers.
  • Success check: trimming is controlled and injury-free, and the hoop returns without any design shift before resuming.
  • If it still fails: pause and reset the workflow—do not rush; speed is a common cause of both mistakes and accidents.
• Q: When producing 50 appliqué patches, how should an embroidery shop escalate from technique fixes to magnetic hoops to a SEWTECH multi-needle embroidery machine to reduce rework and hooping fatigue?
  A: Escalate in three levels: optimize stitch file and operation first, then stabilize hooping with magnetic frames, then upgrade production capacity with a multi-needle machine.
  • Level 1 (Technique): resequence to Placement → Tackdown → STOP → Laces → Border, cap speed at 600–700 SPM, and add contour/edge-run underlay to the final satin border.
  • Level 2 (Tooling): switch from screw hoops to magnetic hoops to reduce hoop burn, prevent shifting during trim stops, and standardize clamping tension across operators.
  • Level 3 (Capacity): move to a SEWTECH multi-needle embroidery machine to avoid constant color babysitting and keep output consistent at scale.
  • Success check: the 50th patch matches the 1st in border coverage, symmetry, and trimming consistency with fewer rejects.
  • If it still fails: run one test sew-out on the actual materials and verify the stop command is recognized (often via a color-change stop after tackdown).
