From Planet Applique to Your Brother SE400: The USB-Cable Transfer Routine That Stops “Where Did My Design Go?” Panic

If you have ever downloaded a design, swore you copied it correctly, and then stared blankly at your Brother screen thinking, “Why isn’t it showing up?”—you are not alone. This is the single most common frustration point for digital embroidery, inducing a specific type of panic I call "Format Fatigue."

The good news is that the fix is almost never “buy a new machine” or “learn advanced digitization software overnight.” It is a repeatable, strict file-transfer routine. Through 20 years of teaching this workflow, I’ve found that success relies on establishing a "Digital Chain of Custody."

This post rebuilds the exact workflow shown in the video: grabbing a free design from Planet Applique, managing the compressed data, and physically bridging the gap to a Brother 4x4 machine (like the SE400/LB6800 series).

Along the way, I will add the specific sensory checks and "hidden" consumables that experienced stitchers use automatically—because those checks are what keep beginners from wasting an entire evening.

Calm the Panic First: Your Brother SE400 USB Transfer Is Usually Fine—It’s the ZIP File That’s Tripping You Up

When a design won’t appear on the machine, most beginners instinctively blame the hardware. They assume the USB port is broken or the machine’s memory is full. In my experience diagnosing thousands of "failed" transfers, the machine is innocent 95% of the time.

The three actual failure points are almost always:

1. The "Tupperware" Effect: The design file is still locked inside a compressed .ZIP folder. Your machine cannot "open the lid" to get the file; you must do it first.
2. Format Mismatch: You copied a file meant for a Janome (.JEF) or commercial machine (.DST) because the icon looked similar. Your Brother machine speaks only .PES.
3. The 100mm Hard Limit: The design is technically 4x4 inches, but the file size is 100.2mm. The machine’s safety protocol blocks it immediately to prevent the needle from hitting the frame.

If you are working with a brother 4x4 embroidery hoop styled machine, you are operating within a strict geometric box. The machine offers zero wiggle room for files larger than 100mm x 100mm. Troubleshooting this starts with recognizing that computers and sewing machines speak different dialects.

The “Hidden” Prep Pros Do: Confirm Hoop Size + File Type Before You Click Download on Planet Applique

In our video case study, the host navigates to planetapplique.com, selects Free Appliques, then Simple Goldfish Applique.

Here is where the rookie touches the "Stitch" button mentally, but the pro touches the "Info" button. Before you download, you must perform a Pre-Flight Data Check. This saves you from the heartbreak of falling in love with a design your machine physically cannot stitch.

Look for two non-negotiable data points:

1. Hoop sizes available: The page lists 4x4, 5x7, 6x10.
2. File types available: Look specifically for PES.

Pro Tip on Consumables: Before you even download, check your physical inventory. Do you have 75/11 Embroidery Needles (sharp enough for cotton, ballpoint for knits)? Do you have Bobbin Fill (60wt or 90wt)? A successful download is useless if you break a needle five minutes later because you are using a dull universal needle from 2019.

Prep Checklist (Do this BEFORE dragging files)

• Verify Field Size: Confirm your specific machine's limit (e.g., Brother SE400 is exactly 100x100mm).
• Verify Design Dimensions: Does the website explicitly state "4x4" or a dimension under 3.93 inches?
• Verify Format: Is .PES listed in the pack?
• Establish a "Landing Zone": Create a folder on your Desktop named "Embroidery_Inbound" rather than letting files drown in your Downloads folder.
• Check Applique Requirements: If this is an applique (like the Goldfish), ensure you have fabric scraps ready for the placement lines.

Download the Simple Goldfish Applique in Mozilla Firefox Without Creating an Account

The procedure for acquiring the digital asset needs to be clinical. The video demonstrates using Mozilla Firefox, which is excellent for its visual download cues.

1. Click: Hit the Download button on the specific design page.
2. Watch: Look for the download arrow (usually top right) to bounce or turn blue.
3. Locate: Click the folder icon next to the file name.

Note: Planet Applique allows guest downloads for free items. This reduces friction—you don't need to manage passwords just to test a design.

The Desktop Trick: Move the ZIP Out of Downloads So You’re Not Digging Through Folders Later

The host drags the zipped folder from Downloads onto the Desktop.

This is not just "tidying up"—it is Cognitive Load Management. When you are standing at the machine, holding stabilizers and scissors, your brain is busy. If you have to hunt through a "Downloads" folder containing 500 PDFs and JPEGs, your frustration levels spike.

The Golden Rule: Isolate the target file. By moving the ZIP to the Desktop (or your dedicated "Inbound" folder), you clear the workspace for the critical next step: extraction.

Don’t Fight the Zipper Icon: Extract All on Windows So You Can Actually Access the PES File

Here is the step that trips up 50% of my students. You see a folder with a zipper on it. You can double-click it and see the files inside. But to a machine, those files are hallucinations—they don't exist yet.

You must "unzip" the container to make the files solid.

Action Sequence (Windows):

1. Right-Click the folder with the zipper icon.
2. Select "Extract All..."
3. Listen/Watch: You shouldn't hear anything, but a new window will pop up asking for a destination.
4. Click "Extract".

The Visual Confirmation: You should now see two folders on your desktop. One has a zipper (delete this or archive it). The new one is an open folder. Only work from the open folder.

Why this matters (The "Old Hand" Explanation)

Embroidery machines rely on simple file operating systems. They expect a "flat" file. Feeding a machine a ZIP file is like trying to feed a vending machine a wallet instead of a dollar bill—it knows the value is inside, but it cannot process the container.

The USB Cable Method for Brother SE400/LB6800: Watch for “Removable Disk (F:)” to Appear

Many older or hybrid Brother models (like the SE400 or LB6800) use a direct cable connection rather than a thumb drive. This is a "Tethered Transfer."

The Physical Connection:

1. Connect the USB-B (square) end to the machine.
2. Connect the USB-A (rectangle) end to your PC.
3. Turn the machine ON. (The PC cannot see a sleeping machine).

Sensory Check:

• Auditory: Listen for the Windows "Device Connect" chime (getting-gung sound).
• Visual: Open "This PC" or "My Computer." Watch specifically for a new drive labeled Removable Disk (often F: or E:).


Warning: Mechanical Safety
When the machine is tethered to your computer and powered on, the embroidery arm is "live." Keep hands, loose hair, and coffee mugs away from the carriage. If you accidentally hit the "Start" button or the calibration sequence triggers, that arm moves with enough torque to bruise knuckles or knock items over. Treat the machine as a loaded weapon, even when you are just moving files.

Setup Checklist (The Connection Protocol)

• Cable Integrity: Ensure the USB cable is fully seated (you should feel a tactical "click" or firm resistance).
• Power State: Machine is ON and in "Embroidery Mode" (if required by your screen).
• Drive Detection: Validated that "Removable Disk" has appeared in your file manager.
• Clean Slate: Open the Removable Disk drive. Is it full? If so, delete old .PES files to make room (embroidery machines have tiny internal brains).

The Only File Your Brother Needs: Drag the .PES Design to the Removable Disk Drive

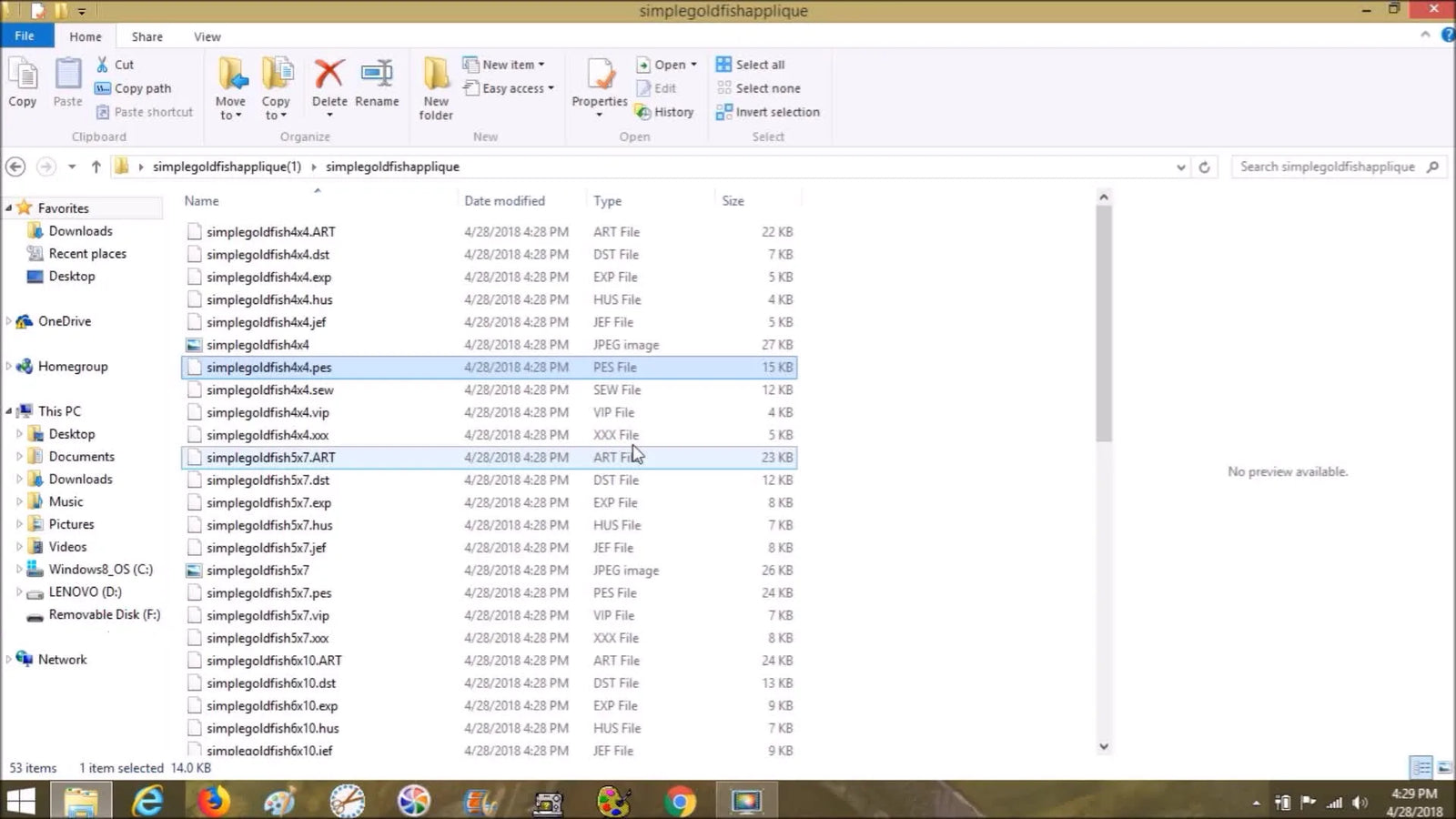

Enter the unzipped folder. You will likely see a confusing list: .DST, .EXP, .HUS, .JEF, .PES. This is the "industry standard" pack.

The Filter: Your eyes must scan only for .PES. Everything else is noise.

The Transfer:

1. Click and Hold on the .PES file.
2. Drag it over to the Removable Disk (F:) icon.
3. Drop it.

Success Metric: Look for the green progress bar or the file name appearing instantly in the F: drive list.

Operation Checklist (The "Did I Actually Do It?" Check)

• Extension Verification: Read the file name in the F: drive. Does it end in .PES?
• Size Check: Right-click the file in the F: drive -> Properties. Is the file size >0KB? (0KB means a corrupted transfer).
• Unplug Protocol: "Eject" the drive in Windows before pulling the cable to prevent data corruption.
• Machine Verification: Look at your Brother LCD screen. Does the Goldfish icon appear?

When the File Transfers but the Design Preview Is Missing on the Brother Screen: The “Tiny Fraction Too Big” Problem

This is the silent killer of enthusiasm. You did everything right. The file is there. But the button to sew it is greyed out, or the preview is invisible.

The Diagnosis: Brother 4x4 machines have a hard software limit of roughly 100mm x 100mm. Some "4x4" designs are digitized at 3.96 inches, which converts to roughly 100.5mm. That 0.5mm excess causes the machine to reject the file to protect the hoop frame.

The Fix:

• Level 1 (Machine): Try rotating the design 90 degrees on the machine screen (sometimes helps with orientation limits).
• Level 2 (Software): You must take the file into software (like SewWhat-Pro or Embrilliance) and shrink it by 2-3%.
• The Hardware Workaround? There is none. You cannot force a large design into a small field.

The Hooping Reality Check: Bigger Hoops, Repositional Hoops, and Why File Discipline Still Matters

A viewer comment touched on a massive pain point: trying to bypass size limits with "Repositionable Hoops" or "Multi-Position Hoops."

If you browse for a brother repositional hoop, understand that this is a physical tool that requires digital splitting. It allows you to stitch a 5x7 design on a 4x4 machine by splitting the design into two files (Top and Bottom).

The Pivot to Quality: However, usually, the struggle isn't size—it's Hoop Burn. This is the permanent white ring or "crushing" texture left on delicate fabrics (like velvet or dark knits) when you clamp a standard plastic hoop too tight.

If you are fighting to hoop thick items (towels) or delicate items (performance polos) without damage, the solution is rarely a different plastic hoop. The industry solution is a Magnetic Hoop. These rely on magnetic force rather than friction, holding fabric flat without crushing the fibers.

A Simple Decision Tree: Choose Stabilizer + Hoop Strategy Before You Stitch the Applique

We have the file. Now we need to stitch it. 90% of "bad embroidery" is actually "bad stabilization."

Use this decision tree to match your fabric to the correct consumables.

Warning: Magnet Safety
If you upgrade to Magnetic Hoops, treat them with extreme caution. These are industrial neodymium magnets.
* Pinch Hazard: They snap together with enough force to crush fingers or blood blisters. Never let them snap freely.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place them directly on your laptop hard drive or credit cards.

The Efficiency Angle Nobody Mentions Early Enough: Your File Workflow Is a Production Skill

Production isn't just for factories. "Production" implies that you can finish a gift for your niece without crying.

By mastering this file workflow (Download -> Unzip -> Transfer -> Verify), you are building muscle memory. The time you save not looking for lost files is time you can spend ensuring your thread tension is correct (aim for the bobbin thread to show 1/3 width on the back of a satin column).

If you eventually scale up—perhaps moving from a single needle to a multi-needle beast—this data discipline becomes mandatory. You cannot manage a 6-needle machine like the SEWTECH commercial line if your files are a mess.

The Next Logical Upgrade After You’ve Nailed Transfers: Hooping Stations, Magnetic Frames, and When Multi-Needle Makes Sense

Once the computer side is easy, the physical side becomes your bottleneck. You will likely hit the "Production wall":

1. Wrist Pain: From tightening hoop screws.
2. Re-Hooping Fatigue: Trying to get the logo straight on the 5th shirt.
3. Color Change Boredom: Sitting there changing thread 12 times for one goldfish.

Here is how you upgrade intelligently, based on your pain point:

• Pain: "I can't get anything straight."
  • Solution: A machine embroidery hooping station. This acts as a jig to align garments perfectly every time.
• Pain: "My wrists hurt / The fabric is marked."
  • Solution: Search for specific how to use magnetic embroidery hoop tutorials. Upgrading to a generic magnetic hoop compatible with your Brother machine eliminates the disruption of tight screws and protects fabric integrity.
• Pain: "I am spending all day changing threads."
  • Solution: This is the trigger for specific hardware. If you are doing runs of 10+ items, a single-needle machine is costing you money. High-speed multi-needle machines (which automatically swap colors) become an investment, not a luxury.

embroidery machine hoops are the tires of your car—they are the only thing touching the road (fabric). If you are struggling, check your "tires" before replacing the "engine."

A final, practical note before you move to the next applique video

In the next stage of your journey, you will likely cut applique fabric by hand. Later, you might buy a Cricut to cut it for you.

But for today, celebrate the small win. If you can:

1. Interpret the Planet Applique data sheet,
2. Safely extract the PES file,
3. And hear that satisfying "chime" of the USB connection...

...you have conquered the hardest part of modern embroidery. The rest is just thread and physics.

FAQ

• Q: Why does a Brother SE400/LB6800 embroidery machine not show a design after copying it from a computer?
  A: Most of the time the Brother SE400/LB6800 embroidery machine is fine—the design is still inside a ZIP file or the wrong format was copied.
  • Extract the download first: Right-click the ZIP folder (zipper icon) → Extract All → work only from the new unzipped folder.
  • Copy only the Brother-compatible file: Look for the .PES file (ignore .DST/.JEF/.HUS/.EXP).
  • Check the size limit: Confirm the design is under the Brother 4x4 limit (about 100mm x 100mm).
  • Success check: The design icon/preview appears on the Brother LCD and the sew option is available.
  • If it still fails: Re-check that the file on the machine ends in .PES and is not a ZIP, and confirm the design is not slightly over 100mm.
• Q: How do I unzip a downloaded embroidery design on Windows so a Brother SE400 can read the PES file?
  A: A Brother SE400 cannot read files “inside” a ZIP—Windows must extract the folder so the PES file becomes a normal file.
  • Right-click the ZIP folder (the one with a zipper) → choose Extract All… → click Extract.
  • Open the newly created unzipped folder and locate the .PES file.
  • Ignore the zipped version after extraction (archive it or delete it later); copy only from the unzipped folder.
  • Success check: You see two folders on the desktop—one zipped and one normal—and the PES file is visible in the normal folder.
  • If it still fails: Download again and repeat extraction (a partial download can unzip incorrectly).
• Q: What is the correct USB cable transfer method to make “Removable Disk (F:)” appear for a Brother SE400/LB6800 embroidery machine?
  A: A Brother SE400/LB6800 needs a live, powered-on tethered connection before Windows will show the machine as a removable drive.
  • Connect USB-B (square end) to the machine and USB-A to the PC.
  • Turn the Brother machine ON (a sleeping/off machine will not mount as a drive).
  • Open This PC / My Computer and look for Removable Disk (often E: or F:).
  • Success check: You hear the Windows device-connect chime and a new Removable Disk drive appears.
  • If it still fails: Re-seat the cable firmly and confirm the machine is in the required embroidery mode for file transfer (follow the machine’s on-screen prompts/manual).
• Q: Which exact embroidery file should be copied to a Brother SE400 4x4 machine when a download includes DST, EXP, HUS, JEF, and PES?
  A: Copy only the .PES file to the Brother SE400/LB6800 removable disk—everything else is for other brands or commercial formats.
  • Open the unzipped design folder and visually scan for the filename ending in .PES.
  • Drag-and-drop that .PES file onto the machine’s Removable Disk drive.
  • Eject the removable drive in Windows before unplugging to avoid corruption.
  • Success check: The .PES filename appears in the removable disk list and is not 0KB in Properties.
  • If it still fails: Confirm the copied file extension still ends in .PES (not .zip) and re-copy if the file size shows 0KB.
• Q: Why does a Brother 4x4 embroidery machine show a transferred PES file but the design preview is missing or the sew button is greyed out?
  A: This usually means the design is a tiny fraction over the Brother 4x4 limit (roughly 100mm x 100mm), so the machine blocks it for safety.
  • Try rotating the design 90° on the Brother screen (sometimes orientation changes what fits).
  • Open the design in embroidery software and shrink it by 2–3% if needed.
  • Choose a version explicitly labeled 4x4/under 100mm when downloading.
  • Success check: After rotating or resizing, the preview appears normally and the machine allows stitching.
  • If it still fails: Assume the file truly exceeds the field and download a smaller size rather than forcing it.
• Q: What “hidden consumables” should be checked before downloading and stitching an applique on a Brother SE400/LB6800?
  A: Before downloading and stitching, confirm the basics are ready—because a perfect file transfer still fails if needles or bobbin thread are wrong or worn.
  • Check needles: Use 75/11 embroidery needles (sharp for cotton, ballpoint for knits) and replace dull needles.
  • Check bobbin thread: Have bobbin fill (60wt or 90wt) available and loaded correctly.
  • Check applique prep: Stage fabric scraps for placement/tackdown lines before starting.
  • Success check: The machine runs the first minutes smoothly without needle breaks and stitches form cleanly.
  • If it still fails: Stop and change the needle first (needle condition is a common hidden cause of breakage and ugly stitchouts).
• Q: What are the key safety rules when transferring files by USB cable to a Brother SE400/LB6800, and when using magnetic embroidery hoops?
  A: Treat the Brother SE400/LB6800 as “live” when powered on and tethered, and handle magnetic hoops as pinch-hazard tools.
  • Keep clear of motion: Keep hands, loose hair, and objects away from the embroidery arm/carriage while the machine is on.
  • Control magnets: Never let magnetic hoop parts snap together freely; guide them together slowly to avoid finger injuries.
  • Respect medical/electronics risk: Keep magnets at least 6 inches away from pacemakers and avoid placing magnets directly on sensitive electronics/cards.
  • Success check: File transfer is completed without any unexpected arm movement incidents and magnets are handled without pinches.
  • If it still fails: Power the machine off before re-positioning anything around the carriage, and reset your work area so nothing can be struck if the arm moves.
