From Plain $50 Varsity Jacket to a Premium Mixed-Media Back Piece: Ricoma EM1010 Embroidery + Layered Rhinestones (Without the Hooping Headache)

You’re not crazy—varsity jackets are one of the easiest garments to ruin fast if you treat them like a flat tee.

They are the "final boss" of garment embroidery: thick, bulky, prone to hiding extra fabric under the hoop, and they punish sloppy stabilization with immediate distortion. But when executed correctly, the payoff is massive. Embroidery provides the high-value structure, and rhinestones add the "premium" sparkle that justifies a 300% markup.

This post completely rebuilds Patrice’s workflow into a repeatable, production-grade logic: treating the jacket as an engineering challenge first, and an art project second. We will embroider first on a Ricoma EM1010, then apply a multi-layer rhinestone design with precision heat pressing.

The $50-to-Premium Reality Check: Why a Varsity Jacket Back Is a Different Beast

Patrice starts with a budget-friendly varsity jacket (65% cotton / 35% polyester) but treats it with the respect due a high-stakes client job. The sequence is non-negotiable: Embroider First, Bling Second.

Why? Because rhinestones under a hoop are a disaster waiting to happen. The uneven surface causes needle deflection (breaking needles) and makes it impossible to get the fabric taut using standard hoops.

If you are doing this for clients, define "success" correctly. It isn't just about the machine finishing the design. Success means:

1. No Distortion: The jacket back doesn't ripple or wave.
2. No Hoop Burn: The thick fabric isn't permanently crushed by the hoop ring.
3. Perfect Registration: The rhinestone layers stack without gaps or overlaps.

The Business Shift: If you look at a varsity jacket and feel fear, you are essentially looking at lost revenue. This is a mixed-media product that commands premium pricing, but it requires a tight process. If you are running a home-based shop and want to scale, mastering this heavy-duty workflow is your gateway to team orders.

The Hidden Prep Patrice Does First: Stabilizer, Adhesive, and a No-Surprises Work Area

Before you even touch the hoop, you must stabilize the physics of the jacket. Thick knits and fleece linings have "give." If they stretch during stitching, your outline will not match your fill.

Patrice uses a Heavy Cutaway Stabilizer. You cannot use tearaway here—the stitch density of a varsity letter needs permanent support.

The Sensory Anchor: Patrice sprays temporary adhesive (like KK100 or similar) on the stabilizer, not just the jacket.

• Touch Test: After spraying, touch the stabilizer. It should feel tacky like a Post-it note, not wet or gummy.
• Action: Smooth the jacket onto the stabilizer. It should act as a single unit. If the stabilizer slides against the jacket lining, stop. Re-spray.

Workstation Hygiene: Treat this like surgery.

• Clear the table. Sleeves and heavy snaps will drag the hoop if they catch on clutter.
• Visualise the "Drag Zone." Where will the heavy hood or sleeves hang when the machine moves? Pre-fold them out of the way.

If you are still learning the nuances of efficient hooping for embroidery machine, remember that thick jackets multiply the impact of small prep errors. A loose hoop on a t-shirt is a nuisance; on a jacket, it's a destroyed garment.

Prep Checklist (Do this OR fail)

• Stabilizer Choice: Heavy Cutaway (2.5oz - 3.0oz). Never Tearaway.
• Adhesion Check: Temporary spray is tacky; jacket and stabilizer move as one unit.
• Needle Check: Fresh 75/11 Sharp needles (Ballpoint works for knits, but Sharps pierce the canvas/fleece combo cleanly).
• Clearance: Table surface is clear of snag-hazards; sleeves make clipped or folded back.
• Tool Prep: Adjustment screwdriver is within arm's reach.


The “Screwdriver Moment”: Hooping a Thick Varsity Jacket Without Hoop Slip

Patrice uses a standard rectangular sash hoop and utilizes a screwdriver to tighten the tension screw.

This is a controversial but necessary move with standard hoops. Thick seams resist compression. If you rely on finger-tightness, the hoop will likely pop open mid-stitch.

The "Sweet Spot" Tension:

• Too Loose: The jacket shifts. The design outline will be off by millimeters (which looks like miles).
• Too Tight: You cause "hoop burn" (crushed fibers that never bounce back) or strip the hoop screw.
• The Check: Tighten with the screwdriver until you feel firm resistance, then stop. Tap the fabric in the hoop like a drum. It should sound relatively dull but feel taut, with no "bubbling" when you run your hand over it.

Tool Upgrade: The Professional Solution

Using a screwdriver on a plastic hoop puts immense stress on your equipment and your wrists. If you find yourself fighting to hoop thick garments (like Carhartt jackets or heavy fleece) and dealing with "hoop burn," this is the trigger point to upgrade your tools.

This is where magnetic embroidery hoops become a production necessity, not a luxury.

• The Fix: Magnetic hoops self-adjust to the thickness of the fabric. They hold the gripping force without crushing the fibers violently like a thumbscrew hoop.
• The Business Case: If you are doing a run of 20 jackets, the time saved by snapping a magnet versus wrestling a screw creates a measurable ROI. Plus, it eliminates hoop burn almost entirely.


Warning: Mechanical Safety. Keep fingers clear when pressing the inner ring into a thick jacket hoop. The force required to seat a standard hoop can cause slips. Never trim jump threads while the machine is running—needle strikes and sudden starts can cause serious medical injury.

Expert Hooping Physics (Why this works)

A varsity jacket is a sponge. It absorbs the pressure of the inner hoop. When the machine runs, the needle creates vibration (drag). If that vibration overcomes the friction of your hoop, the fabric walks. Tightening the screw after the hoop is seated (Patrice's method) compensates for the fabric's "rebound" effect, locking that sandwich in place.

The Clearance Sweep That Prevents Disaster: Mounting the Ricoma EM1010 Hoop Safely

Patrice slides the hooped jacket onto the machine arm and performs the most critical safety maneuver in embroidery: The Under-Sweep.

She physically reaches her hand under the hoop to confirm nothing is trapped between the needle plate and the garment.

Why this matters: She admits to stitching items together in the past. We all have. With a reversible jacket or heavy sleeves, gravity pulls the excess fabric underneath.

• The Sensation: Your hand should pass freely between the machine arm and the back of the garment. If you feel a lump, stop. It's likely a sleeve or pocket lining.


The Trace Function Is Your Insurance Policy: Avoiding Hoop Collisions on Ricoma EM1010

Patrice runs a trace on the control panel. She watches the needle position relative to the hoop frame. She traces twice.

She mentions being "traumatized" by past mistakes—this is the mark of an experienced operator.

The Safety Envelope: A trace check protects you from:

1. Needle-to-Frame Collision: This breaks needles, ruins hoops, and knocks the machine out of timing.
2. Design Clip: Ensuring the design doesn't run off the edge of the stabilizer.

Expected Outcome: The needle bar (specifically needle #1) should travel the perimeter of the design with at least a finger-width of clearance from the plastic hoop edge.

If you are building a repeatable workflow for a ricoma em 1010 embroidery machine or any similar multi-needle unit, tracing is not optional. It is your "Pre-Flight Check."

Stitch First, Bling Second: Running the “CHARGERS” Text Cleanly (Speed & Settings)

Patrice stitches the arched “CHARGERS” text. She uses gold/yellow thread, likely a high-sheen Polyester (40wt) which is the industry standard for durability on outerwear.

Speed Recommendations (SPM - Stitches Per Minute): While machines can go faster, thick jackets introduce bounce.

• Beginner Sweet Spot: 600 - 700 SPM.
• Pro Production: 800 SPM (only if stabilization is perfect).
• Why? Slowing down reduces friction on the thread and minimizes thread breaks on dense seams.

Handling Imperfections: Patrice notices a small issue, likely from a bobbin change. Her decision to trim and move on is a business instruction: Don't let perfect be the enemy of profitable. If a tiny flaw is invisible from 3 feet away (the viewing distance of a jacket back), it passes quality control.

Clean-Up and Comfort: Trimming Threads, Cutting Stabilizer, and Planning Tender Touch

After embroidery, remove the hoop.

1. Trim Threads: Support the fabric with your non-cutting hand. Do not snip the jacket.
2. Trim Cutaway: Leave about 1/2 inch of stabilizer around the design. Do not cut flush to the stitches—this compromises the structure. Round the corners to prevent irritation.

The "Comfort" Consumable: Patrice mentions Sulky Tender Touch (a fusible backing). This is essential for user experience. Rough stabilizer rubbing against a sweaty back is uncomfortable. Ironing a layer of Tender Touch over the back of the embroidery seals it and makes it soft. This small detail separates "Home-Made" from "Boutique."

The Brushing Technique That Makes Rhinestones Fast: Filling Templates Without Losing Your Mind

While the machine is running (multitasking!), Patrice brushes stones into the template.

The Technique:

• Pour: Dump a generous amount of SS6 or SS10 stones onto the template.
• Action: Use a rhinestone foam brush in circular motions.
• Physics: Circular motion keeps the stones rolling until gravity drops them into the holes. Straight sweeping tends to "plow" them out or flip them upside down.
• Clean Up: Sweep excess stones off the template completely before applying transfer tape.


The “Taco” Mask Trick: Lifting Stones Cleanly and Catching Missing Adhesive

Patrice applies the KTM transfer mask using the "Taco Method": hold the mask in a U-shape (taco shape), touch the center down first, then roll it out to the edges. This prevents air bubbles and static shifts.

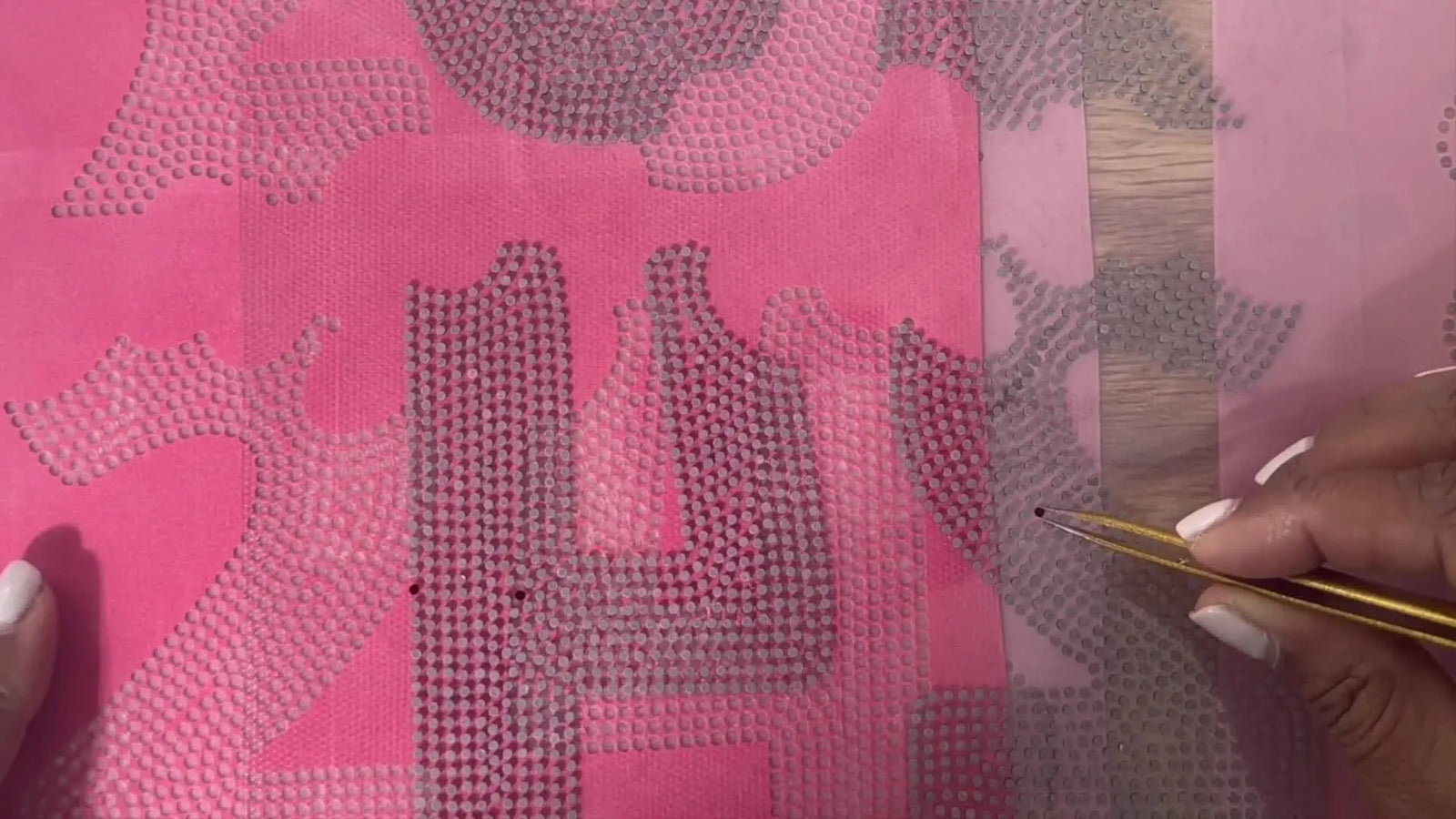

The Life-Saving Inspection: Flip the transfer tape over and look at the back of the stones. Patrice finds stones with missing adhesive backing (grey cement).

• The Fix: Use fine-point tweezers to pluck the bad stones and drop in good ones.
• The Cost: If you miss this, those stones will fall off the customer's jacket within a week.

If you are using a hooping station for machine embroidery or a dedicated crafting table, proper lighting here is essential to see that grey adhesive glue.

Heat Press Layering on a Varsity Jacket: Temperatures & Times

Patrice transitions to the heat press. Varsity jackets are bulky, so heat distribution is tricky.

Settings (General Guidelines):

• Pre-Press: 5-10 seconds to remove moisture and flatten the fibers.
• Temp: Video shows ~325°F - 350°F. (Standard rhinestone temp is 325°F - 335°F).
• Time: 10-15 seconds per press.
• Pressure: Medium-Firm.

The Layering Logic:

1. Shadow Layer (First): Determines the alignment for everything else. Press, then peel.
2. Inner Layers: Stacked inside the shadow.
3. Tactile Check: Patrice rubs her hand over the stones before pressing. She is feeling for "High Spots"—stones that have accidentally overlapped. If you press an overlapping stone, you will crush it or crack it.


Warning: Magnetic Hazard & Heat. If you upgraded to magnetic hoops or are using magnetic alignment guides on your heat press, keep them away from pacemakers. Also, beware of pinch hazards—strong magnets snap together instantly with crushing force. Always let the jacket cool slightly before peeling if using "Warm Peel" transfers to avoid lifting.

Why overlapping stones are a production killer

An overlap creates a pressure point. The heat press platen is rigid; if one stone is high, the stones next to it get zero pressure and won't stick. The "Rub Test" is your zero-cost quality control.

Color, Contrast, and the 3D Look: Choosing Stone Layers That Read From Across the Gym

Patrice notes that her color choice is subtle. For commercial work, High Contrast sells better.

• If the jacket is black, use Clear Crystal or AB (Aurora Borealis) stones for maximum pop.
• Metallic stones (like Hematite) look expensive but are subtle.

The Budget/Scale Strategy: She mentions doing more jackets for students.

• Option A (Premium): Full multi-layer rhinestone fill. High time cost, high price.
• Option B (Standard): Embroidery outline + "Shadow Layer" of stones only.
  • Fewer presses = less risk of scorching.
  • Lower material cost.
  • Faster production.


Stabilizer Decision Tree for Thick Jackets (So You Don’t Guess and Pray)

Use this logic flow to stop guessing.

Start here: How does the jacket back behave?

1. Stable Canvas/Heavy Wool:
   • Solution: Heavy Cutaway + Spray + Standard Hoop (Screw tightened).
2. Stretchy Knit/Loose Fleece:
   • Solution: Heavy Cutaway + Fusible Interfacing on the fabric itself + floating a tearaway layer under the hoop.
3. Bulky Seams interfering with Hoop:
   • Solution (Standard): Struggle with screwdriver; risk hoop popping.
   • Solution (Upgraded): magnetic hoops for embroidery machines . The magnets accommodate the seam bump without losing grip on the rest of the fabric.
4. Slippage during Stitching (Design Distortion):
   • Likely Cause: Stabilizer wasn't bonded to fabric.
   • Fix: More adhesive spray or switch to sticky-back stabilizer.


The “Sellable Finish” Standard: What Makes This Look Like a $225+ Jacket

Patrice’s final reveal shows why this mixed media approach works. Use the "3D Effect" as a selling point.

To scale this model, you must remove the friction points. If hooping a thick jacket takes you 10 minutes of wrestling, you are losing money.

• Level 1 Operation: Single needle, standard hoops. Great for learning.
• Level 2 Operation: SEWTECH-class Multi-needle Machine + magnetic hoops for embroidery machines . This setup allows you to hoop in 30 seconds, align perfectly, and stitch at higher speeds without fear of shifting.

Setup Checklist (Before you press rhinestones)

• Surface: Jacket is pre-pressed (moisture removed is critical for adhesion).
• Heat: Press set to manufacturer spec (e.g., 335°F).
• Alignment: Embroidery is cool; stones are aligned relative to text.
• Inspection: Hand "Rub Test" confirms no overlapping stones.
• Defect Check: Transfer mask inspected for missing gray adhesive backing.

Troubleshooting the Problems Patrice Actually Hit (Structured Fixes)

Symptom: Stones lift or fall off after pressing

• Likely Cause: Missing adhesive (factory defect) OR uneven pressure due to jacket seams.
• Immediate Fix: Re-press with a Teflon pillow inserted inside the jacket to raise the design area above the seams.
• Prevention: Inspect stone backs before pressing.

Symptom: Accidental "Sew-Shut" (Jacket stitched together)

• Likely Cause: Gravity pulling garment under the arm.
• Immediate Fix: Seam rip carefully.
• Prevention: The "Under-Sweep" sensory check before every start.

Symptom: Needle strikes the hoop frame

• Likely Cause: Design center was not calibrated to the physical hoop center.
• Immediate Fix: Emergency Stop. Re-center.
• Prevention: The "Trace" function (run it twice).

Symptom: Heat Press Mat Slides

• Likely Cause: Heavy garment dragging the lightweight silicone mat.
• Fix: Rotate the jacket 90 degrees so the heavy waist/hood hangs off the sides, not the front.

Operation Checklist (The "No-Regrets" Run)

• Structure: Embroider first. Never hoop over rhinestones.
• Hooping: Tighten screw with screwdriver (firm, not crushed) OR use Magnetic Hoop.
• Safety: Under-sweep to clear obstructions.
• Check: Trace boundary 2x.
• Stitch: Run at 600-700 SPM for safety.
• Clean: Trim threads and stabilizer; apply Tender Touch if available.
• Fill: Brush stones (circular motion).
• Inspect: Taco method for masking; check for glue backing.
• Press: Pre-press garment -> Align -> Rub Test -> Press -> Cool -> Peel.

By standardizing your workflow, you move from "hoping it works" to "knowing it will sell." Whether you are using a starter machine or running a fleet of SEWTECH equipped multi-needles, the physics remain the same: Stability equals Quality.

FAQ

• Q: How do I choose the correct stabilizer for varsity jacket back embroidery on a Ricoma EM1010 so the design does not ripple or distort?
  A: Use heavy cutaway stabilizer as the default for varsity jacket backs, because dense lettering needs permanent support.
  • Apply: Choose a 2.5–3.0 oz heavy cutaway; avoid tearaway for this application.
  • Bond: Spray temporary adhesive onto the stabilizer, then smooth the jacket onto it so both behave like one unit.
  • Add: If the jacket back is very stretchy, add fusible interfacing on the fabric and (if needed) float an extra tearaway layer underneath.
  • Success check: The jacket and stabilizer do not slide against each other when you tug gently, and the stitched area stays flat with no waviness.
  • If it still fails: Switch to sticky-back stabilizer or increase adhesive coverage to prevent fabric walking.
• Q: How tight should a standard rectangular sash hoop be when hooping a thick varsity jacket to avoid hoop slip and hoop burn?
  A: Tighten the hoop screw to firm resistance after seating the hoop, but stop before crushing the fibers.
  • Seat: Hoop the jacket first, then tighten using a screwdriver only until you feel solid resistance.
  • Test: Tap the hooped area like a drum and hand-sweep for any “bubbling” or loose pockets.
  • Protect: Avoid over-tightening, which can permanently crush thick fabric and strip the hoop screw.
  • Success check: The fabric feels taut and stable, with a relatively dull “drum” sound and no shifting when rubbed.
  • If it still fails: Upgrade to a magnetic embroidery hoop, which self-adjusts grip force on bulky layers and seams.
• Q: How do I prevent sewing a varsity jacket sleeve or lining shut when mounting a hooped jacket on a Ricoma EM1010 embroidery machine?
  A: Do an “under-sweep” by hand before starting, every time—this is the fastest way to catch trapped fabric.
  • Reach: Slide a hand under the hoop area to confirm nothing is trapped between the needle plate area and the garment.
  • Fold: Pre-fold or clip sleeves and heavy sections away from the machine’s moving zone.
  • Clear: Keep the table clear so snaps/sleeves do not snag and pull fabric underneath.
  • Success check: Your hand passes freely under the hoop with no lumps, tight spots, or unexpected layers.
  • If it still fails: Stop immediately, unmount the hoop, and re-check gravity-draped areas (sleeves, pockets, reversible layers).
• Q: How do I use the Ricoma EM1010 trace function to prevent needle-to-hoop-frame collisions on varsity jacket back designs?
  A: Run a trace before stitching and confirm a safe clearance boundary around the hoop frame.
  • Trace: Use the control panel trace and watch needle #1 travel the design perimeter.
  • Repeat: Trace twice to catch edge cases and confirm nothing shifts after the first pass.
  • Verify: Confirm the design stays within the stabilizer area and does not approach the hoop edge.
  • Success check: There is at least a finger-width of clearance between the traced needle path and the hoop frame.
  • If it still fails: Emergency stop, re-center the design relative to the physical hoop center, then trace again before restarting.
• Q: What stitch speed (SPM) is a safe setting for embroidering dense varsity jacket lettering on a Ricoma EM1010 to reduce thread breaks and bounce?
  A: Start at 600–700 SPM for thick varsity jackets; increase only if stabilization is flawless.
  • Set: Run 600–700 SPM as a beginner-safe range for bulky outerwear.
  • Increase: Move toward ~800 SPM only when hooping is solid and the jacket is not bouncing.
  • Monitor: If a small flaw occurs (often around a bobbin change), trim and continue if it is not visible at normal viewing distance.
  • Success check: Stitching runs without repeated thread breaks and the lettering edges stay clean without shifting.
  • If it still fails: Re-check hoop stability and stabilizer bonding before changing needles or speed again.
• Q: How do I stop rhinestones from lifting or falling off after heat pressing a layered rhinestone design on a varsity jacket?
  A: Inspect stone adhesive first, then fix pressure and seam height so the press contacts stones evenly.
  • Inspect: Flip the transfer mask and remove stones missing the gray adhesive backing using fine-point tweezers.
  • Level: Insert a Teflon pillow inside the jacket to raise the design area above bulky seams for even pressure.
  • Control: Pre-press 5–10 seconds, then press about 10–15 seconds at roughly 325–350°F with medium-firm pressure (follow consumable guidelines).
  • Success check: After cooling and peeling (as required by the transfer type), stones do not shift under a firm hand rub and edges stay fully bonded.
  • If it still fails: Re-press with improved leveling and re-check for overlapping “high spots” before pressing.
• Q: What safety steps prevent finger injuries when hooping thick varsity jackets with standard hoops or using magnetic embroidery hoops?
  A: Keep hands clear of pinch zones and stop the machine before any trimming—most injuries happen during rushed adjustments.
  • Guard: Keep fingers away from the inner ring seating area on thick garments; the hoop can slip while snapping into place.
  • Stop: Never trim jump threads while the embroidery machine is running; sudden starts and needle strikes can cause serious injury.
  • Separate: If using magnetic hoops or magnetic alignment tools, keep magnets away from pacemakers and avoid letting magnets snap together uncontrolled.
  • Success check: Hands stay outside pinch points during hoop seating, and all thread trimming happens with the machine fully stopped.
  • If it still fails: Slow the process down and change the setup to reduce force (often a magnetic hoop reduces the wrestling and pinch risk).
