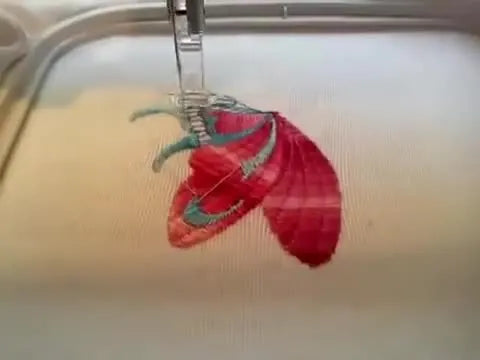

From Pink Fill to Teal Detail: A Single-Needle Butterfly Stitch-Out That Teaches You Better Hooping Habits

The "Stress Test" Butterfly: A Master Class in Precision, Tension, and Why Your Fills Pucker

If you have ever watched a clean stitch-out on YouTube and thought, "Why does mine never look that smooth?" you are not alone. Machine embroidery is deceptive. A design like this butterfly looks simple—two colors, basic shapes—but to an experienced eye, it is actually a structural stress test.

It combines large fill areas (which aggressively pull fabric inward) with crisp satin details (which require a perfectly stable surface). It is the perfect scenario to expose weaknesses in your hooping technique or stabilization choices.

This guide moves beyond basic "how-to" steps. We are going to break down the physics of the stitch, the sensory cues you need to watch for, and the commercial-grade habits that turn a hobbyist into a pro. Whether you are running a home unit or a single head embroidery machine, the principles here are your roadmap to perfection.

Don’t Panic—This Is Physics, Not Magic

A butterfly wing fill is essentially a "controlled tug-of-war." The machine lays down a textured fill (tatami or similar) which physically shrinks the fabric area as thousands of stitches interlock. This creates "Pull."

Later, the machine lays down the teal satin outline. If the fabric has shifted due to the fill's pull, the outline won’t line up. You get gaps. This isn't usually the machine's fault; it's a stability failure.

Your Goal: Create an environment where the fabric cannot move, regardless of how hard the thread pulls.

Phase 1: The Hidden Prep (Fabric + Stabilizer + Hoop Physics)

In the video, you see the machine running, but the battle was won hours before the start button was pressed. 90% of embroidery failures happen at the prep station.

The "Hidden Consumables" Checklist

Before we even touch the hoop, ensure you have these often-overlooked essentials:

• Fresh Needle: A universal 75/11 is standard, but for dense fills on woven fabric, a Topstitch 80/12 is often better because it has a larger eye (less friction) and a sharper point.
• Temporary Spray Adhesive (505 spray): Vital for floating fabric or securing backing to the garment to prevent "creeping."
• Pre-wound Bobbins: Ensure you have a full bobbin. Running out mid-fill is a nightmare for registration.

The Tactile Hoop Test: "Drum vs. Trampoline"

The most common advice is "hoop it tight as a drum." This is dangerous advice for beginners because it leads to stretching the fabric during hooping.

The Sensory Anchor: When you hoop, the fabric should be taut, but the grain lines must remain straight.

1. Tap it: You should hear a dull, crisp thud.
2. Push it: If you press your finger in the center, it should deflect slightly but bounce back immediately.
3. Pull it (The Floss Test): If you pull on the fabric edge after the hoop is tightened, it should feel immovable. If it slides, your hoop tension is too loose.

Warning: Keep fingers, hair, jewelry, and loose sleeves away from the needle area while the machine is running. Never reach under the presser foot to “help” the fabric—pause the machine first. Needle strikes can cause serious injury and shatter parts of the needle plate.

Prep Checklist: The "Pre-Flight" Inspection

• Fabric State: Is the fabric ironed flat? Wrinkles under scanning turn into permanent creases under stitches.
• Obstruction Check: Is the embroidery arm clear of walls/furniture for the full range of motion?
• Thread Path: Floss the top thread through the tension disks. You should feel resistance. If it pulls freely, the thread is not seated, and you will get a "bird’s nest."
• Bobbin Case: Blow out any lint. Even a small dust bunny can alter tension by 10-20%.

Phase 2: Setup & Stabilization Strategy

The video shows a standard plastic hoop. While effective, standard hoops are the #1 cause of "Hoop Burn" (permanent friction marks/rings) on delicate items or dark polys.

This is often the moment hobbyists get frustrated and professionals look for tools like a magnetic embroidery hoop.

• The Pain Point: Friction rings, wrist strain from tightening screws, and fabric slipping.
• The Criteria: If you are hooping difficult items (thick towels, bags) or need to preserve the fabric nap (velvet, performance wear), friction hoops fight you.
• The Option: Magnetic hoops use vertical clamping force rather than friction. They secure the fabric without crushing the fibers and allow for much faster re-hooping.

Warning: SEWTECH and other industrial-style magnetic hoops contain extremely powerful Neodymium magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep magnets away from pacemakers, ICDs, and implanted medical devices. Store away from credit cards and phones.

The Stabilizer Decision Tree

Do not guess. Use this logic flow to select your backing for a dense design like this butterfly.

• Q1: Is the fabric stretchy (T-shirt, Knit, Polo)?
  • Yes: You MUST use Cutaway stabilizer. No exceptions. Tearaway will disintegrate under the fill, causing the design to distort.
  • No (It is a stable woven/denim/canvas): Go to Q2.
• Q2: Is the design very dense (high stitch count, full coverage)?
  • Yes: Use a Medium Weight Cutaway or two layers of high-quality Tearaway bonded with spray adhesive.
  • No (Open line work): Tearaway is sufficient.
• Q3: Is the item going to be worn against skin?
  • Yes: Use Cutaway, but consider a "fusible mesh" style for softness, or cover the back with "Cloud Cover" post-stitch.

Setup Checklist: Lock It In

• Select Stabilizer: Based on the decision tree above.
• Hoop Geometry: Ensure inner and outer rings are flush. If the inner ring pops up, your fabric will slip.
• Clearance Spin: Manually rotate the handwheel (or use the trace function) to ensure the needle bar doesn't hit the hoop frame.

Phase 3: The Pink Wing Fill (00:00–01:09)

The first layer sets the stage. This is the pink/magenta wing base.

The Physics of the Fill

As the machine runs, watch the fabric inside the hoop.

• Visual Check: If you see a "wave" of fabric moving in front of the foot, your fabric is too loose.
• Auditory Check: A happy machine makes a rhythmic, sewing-machine hum. A loud CLACK-CLACK-CLACK usually means the hoop is bouncing (banging against the needle plate) or the needle is too dull to penetrate effortlessly.

Speed Control: The Beginner's Sweet Spot

Factory machines run at 1000+ SPM (Stitches Per Minute). However, friction and heat build up at high speeds, causing thread breaks.

• Recommendation: Set your speed to 600–700 SPM. This is the "Sweet Spot" where tension is most stable and risk of breakage drops significantly.

Checkpoints for Phase 3

Checkpoint A: The First 500 Stitches

• Look for: "Looping" on top. If you see loops, your top tension is too loose.
• Look for: White dots on top. If you see bobbin thread pulled to the top, your top tension is too tight (or bobbin is too loose).

Checkpoint B: The Edge Definition

• Look for: Crisp edges. If the edges look "ragged," your needle might be damaged/burred. Change it immediately.

Phase 4: The Teal Transition & Details (01:10–End)

This is the "Make or Break" moment. The machine stops. You change thread.

The Risk: Bumping the hoop. A shift of just 1mm will ruin the registration of the outline. The Fix: When changing thread, support the hoop gently with your left hand if the carriage feels loose. Do not lean on the machine arm.

Visualizing the Details

The teal thread creates the body (satin stitch), the antennae, and the wing veins (running stitch).

Troubleshooting "Gaps" (Registration Errors)

If the teal outline does not land exactly on the edge of the pink fill (leaving a white gap), this is Push/Pull Compensation.

• Physics: The pink fill pulled the fabric inward. The fabric is now physically smaller than it was when you started.
• The Solution: This is usually fixed in digitizing (adding overlap). However, distinct mechanical solutions exist:
  1. Starch: heavy starching of fabric before hooping reduces fiber movement.
  2. Adhesive: Using spray adhesive to bond the fabric to the stabilizer creates a laminate structure that resists shrinking.

Phase 5: Troubleshooting Matrix

If your result doesn't look like the video, find your symptom below. Approach fixes in order of Cost/Effort (Low to High).

Phase 6: Scaling Up – Tooling for Consistency

If you are doing one butterfly for a hobby, standard tools are fine. But if you are doing 50 corporate logs or selling on Etsy, consistency becomes your currency.

Professional shops don't rely on luck; they rely on upgraded tooling.

1. Hooping Efficiency: Using a hooping station for machine embroidery allows you to align garments precisely and consistently, reducing the "trial and error" of finding the center chest.
2. Grip Consistency: embroidery machine hoops that utilize magnets remove the variable of "hand strength." A screw-tightened hoop is tight in the morning and loose in the afternoon as your hand fatigues. A magnetic hoop provides the exact same clamping force every time.
3. Throughput: If you find yourself spending more time changing thread colors than actually stitching, it is the classic sign you are outgrowing a single-needle machine. Multi-needle machines (which hold 6-15 colors ready to go) are the ultimate productivity unlock.

Finishing Like a Pro

The job isn't done when the machine stops.

1. Unhoop: Release the tension immediately.
2. Trim: Cut jump stitches close to the fabric (curved embroidery scissors help avoid snipping the knot).
3. Remove Stabilizer: If Tearaway, support the stitches with your thumb while tearing to prevent distorting the design. If Cutaway, trim to 1/4 inch from the design.
4. Press: Steam (do not wipe) the design from the back side, resting on a fluffy towel. This re-fluffs the thread and removes hoop marks.

Conclusion: Rhythm and Routine

This butterfly design is a beautiful teacher. It demands you respect the physics of fabric.

Your Final Operation Checklist:

• AUDIT: Hear the rhythmic "thump-thump," not a "clack-clack."
• WATCH: Monitor the first 60 seconds of fill for shifting.
• MAINTAIN: Clean the bobbin area after every 3-4 large designs.

If you are struggling with hoop burn or consistency, consider that it might not be your technique—it might be your tools. Many professionals eventually transition, and learning how to use magnetic embroidery hoop systems can be a transformative step in your embroidery journey.

Keep stitching, keep testing, and don't fear the fill.

FAQ

• Q: How do I hoop fabric for a dense butterfly fill using a standard screw embroidery hoop without stretching the fabric grain?
  A: Hoop the fabric taut but not stretched, using the “drum vs. trampoline” tactile test as the standard.
  • Tap: Listen for a dull, crisp “thud,” not a loose, hollow sound.
  • Push: Press the center; allow slight deflection, then confirm it bounces back immediately.
  • Pull: Tug the fabric edge after tightening; confirm the fabric feels immovable and does not slide.
  • Success check: The fabric grain lines stay straight (not bowed) while the surface feels uniformly taut.
  • If it still fails: Re-hoop with spray adhesive to prevent creeping, or move to a magnetic embroidery hoop for more even clamping.
• Q: What needle and “hidden consumables” should be prepared before stitching a dense butterfly fill on a home embroidery machine?
  A: Use a fresh needle and prep consumables before pressing Start, because most failures begin at the prep station.
  • Install: Start with a Universal 75/11; for dense fills on woven fabric, a Topstitch 80/12 is often a safer starting point due to the larger eye and sharper point.
  • Confirm: Use a full pre-wound bobbin (running out mid-fill can ruin registration).
  • Secure: Use temporary spray adhesive (e.g., 505-type) when floating fabric or bonding stabilizer to reduce shifting.
  • Success check: The first stitches run smoothly without thread fraying, looping, or sudden tension changes.
  • If it still fails: Clean lint from the bobbin area and re-thread the top path to ensure the thread is seated in the tension disks.
• Q: How do I choose cutaway vs. tearaway stabilizer for a dense butterfly design to prevent puckering and outline misregistration?
  A: Follow a simple decision tree: stretchy fabric requires cutaway; dense fills need stronger support even on woven fabrics.
  • Decide: If the fabric is stretchy (T-shirt/knit/polo), use cutaway—no exceptions for dense fills.
  • Reinforce: If the fabric is stable woven but the design is very dense, use medium-weight cutaway or two layers of quality tearaway bonded with spray adhesive.
  • Consider: If the item will touch skin, choose a softer cutaway option and consider covering the back after stitching.
  • Success check: The fill area finishes flat with minimal wrinkling and the satin outline lands cleanly on the fill edge.
  • If it still fails: Add spray adhesive to create a “laminated” fabric+stabilizer structure, or re-hoop tighter and verify the hoop rings sit flush.
• Q: How do I stop bird’s nesting under the needle plate on a single-needle embroidery machine when stitching a large fill?
  A: Stop immediately and re-thread the top thread correctly—bird’s nests commonly happen when the top thread misses the take-up lever.
  • Stop: Halt the machine right away to avoid jamming and damaging thread paths.
  • Remove: Cut the nest carefully and clear the thread from the bobbin area.
  • Re-thread: Re-thread the top path completely and “floss” the thread into the tension disks so resistance is felt.
  • Success check: The machine forms balanced stitches without tangles and the underside shows normal bobbin lines (not a wad of thread).
  • If it still fails: Inspect the bobbin case for burrs and replace the needle if it may be damaged.
• Q: Why does bobbin thread show on top during the first 500 stitches of a butterfly wing fill, and what tension fix should be tried first?
  A: Treat bobbin thread showing on top as a top-tension/bobbin-seating issue and start with a full re-thread before adjusting dials.
  • Re-thread: Completely re-thread the top path and confirm the thread is seated between the tension disks (you should feel resistance when pulling).
  • Check: Verify bobbin orientation and that the bobbin is correctly seated in the case.
  • Adjust: If needed, lower the top tension slightly (a small change is usually enough; follow the machine manual as the reference).
  • Success check: The top surface shows clean top thread coverage without white bobbin “dots” appearing through the fill.
  • If it still fails: Clean lint from the bobbin area because even small buildup can shift tension noticeably.
• Q: What safety steps prevent needle injury and needle breaks during dense fill embroidery on a home or single-head embroidery machine?
  A: Keep hands and loose items away from the needle area and never “help” fabric while the machine is stitching.
  • Pause: Stop the machine before reaching near the presser foot or needle area—do not guide fabric by hand during stitching.
  • Clear: Keep hair, jewelry, and loose sleeves away from moving parts at all times.
  • Replace: If needle breaks or penetration sounds harsh, replace the needle and confirm it is installed correctly.
  • Success check: The stitch sound stays rhythmic (no harsh clacking) and the machine runs without sudden impacts or needle snaps.
  • If it still fails: Use the machine’s trace/clearance check to ensure the needle bar will not strike the hoop frame.
• Q: What magnetic embroidery hoop safety rules should be followed when using industrial-strength neodymium magnetic hoops?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical implants and sensitive electronics.
  • Protect: Keep fingers out of the snapping zone when closing the hoop to avoid pinching.
  • Separate: Keep magnetic hoops away from pacemakers, ICDs, and implanted medical devices.
  • Store: Store away from credit cards and phones to reduce magnet-related damage risk.
  • Success check: The hoop closes controllably without sudden hand “snap” events, and fabric stays clamped without screw over-tightening.
  • If it still fails: Slow down the closing motion and reposition hands for a controlled, two-handed placement before letting magnets engage.
• Q: When puckering, hoop burn, or frequent re-hooping happens on repeated butterfly-style fill designs, what is the best upgrade path: technique, magnetic hoops, or a multi-needle embroidery machine?
  A: Upgrade in layers: optimize technique first, then improve hooping consistency with magnetic hoops, then consider multi-needle capacity when color changes dominate time.
  • Level 1 (Technique): Re-hoop using the tactile hoop test, bond stabilizer with spray adhesive, and run at a steadier 600–700 SPM to reduce heat/friction-related issues.
  • Level 2 (Tooling): Switch to a magnetic hoop when hoop burn, screw fatigue, or fabric slippage keeps recurring despite correct stabilization.
  • Level 3 (Production): Move to a multi-needle machine when thread/color changes consume more time than actual stitching on repeat jobs.
  • Success check: Repeated stitch-outs look consistent—flat fills, clean outlines, and fewer restarts due to shifting or marking.
  • If it still fails: Add a basting stitch box and verify hoop ring fit (inner/outer rings flush) before assuming the design file is the only cause.
