From PES to SVG Without the Headache: Clean Trace Lines, Perfect Offsets, and Appliqué Cuts That Actually Match Your Stitch File

The Ultimate Guide to Perfect Appliqué Cut Files: Converting PES to SVG in Silhouette Studio

If you have ever spent an entire evening hand-cutting appliqué pieces with scissors—only to watch raw fabric edges peek out from under your satin stitches later—you know the specific heartbreak of "manual drift." The pain isn't just wasted time; it's the realization that your hands cannot compete with the mathematical precision of a digital cutter.

But here is the hurdle: Making a cut file that perfectly matches your embroidery file in size, margin, and behavior on fabric is an engineering challenge, not just an artistic one.

This white paper reconstructs the workflow demonstrated in the reference material, elevating it with 20 years of embroidery production experience. We will use Silhouette Studio Designer Edition to trace a design image, clean the vectors, create "safety" offsets, and execute a precise cut.

The Calm-Down Truth: Why Your .PES Won't Open (And Why It Doesn't Matter)

Let’s address the first panic point. You bought Silhouette Studio Designer Edition (SSDE). You try to drag and drop your .PES embroidery file into it. You get an error message: "File type not supported."

Do not panic. This is a feature reality, not a user error. While Designer Edition Plus claims embroidery file compatibility, the industry reality is that direct conversion often creates messy, unusable vector nodes. The most reliable method—used by professionals—is the "Trace Method."

The Professional Workflow:

1. Embroidery Software: Capture a high-contrast JPEG of the specific appliqué layer.
2. Silhouette Studio: Trace that JPEG to create a cut line.
3. Silhouette Studio: Apply offsets for stitching insurance.

Understanding this separates the hobbyist from the pro. You aren't trying to "convert" a stitch file; you are trying to replicate its geometry. This mindset shift is critical. It also brings into focus why tools like hooping stations exist—because once you achieve digital precision in your cut file, you need physical precision in your hooping to match it.

Phase 1: The "Hidden" Prep (Inputs Determine Outputs)

Before you even open Silhouette Studio, we must secure the raw data. The quality of your cut file is 100% dependent on the quality of the image you trace.

Step 1: Isolate and Capture

In your embroidery software (Embrilliance, Wilcom, PE-Design, etc.), isolate the Placement Line or the Tack-down Line of your appliqué. Turn off all other layers (satin stitches, decorative fills).

• Visual Check: You want a black line on a white background. No grids, no 3D rendering, no fabric backgrounds.
• Action: Export this view as a JPEG or take a high-resolution screenshot.

Step 2: The Medium Decision (The Physics of Cutting)

You must decide now what you are cutting, as it changes the workflow.

• Heat Transfer Vinyl (HTV): Moves heavily. Requires mirroring.
• Fabric (Cotton/Poly): The most common source of frustration. Raw fabric is "fluid"—it shifts under the blade.

The "Stiffener" Rule: Never cut raw fabric on a digital cutter. The blade will drag the fibers, creating a jagged, chewed-up edge. You must apply a fusible backing, such as HeatnBond Lite, before cutting.

• Tactile Check: The prepared fabric should feel like cardstock or stiff paper, not like a limp t-shirt.
• Auditory Check: When properly adhered, tapping the fabric should produce a dull, paper-like thud, not a rustle.

Warning: Digital cutting blades are surgically sharp and unforgiving. Keep fingers clear of the cutting carriage path. Never reach under the bar while the machine is initialized. Use tweezers—not fingers—to weed small intricate pieces to avoid nicks.

Phase 1 Checklist: Pre-Flight

• Software: Confirm you are using Silhouette Studio Designer Edition (Basic edition lacks the SVG tools needed).
• Image: You have a high-contrast JPEG of only the appliqué shape.
• Consumables: If using fabric, HeatnBond Lite is fused to the back.
• Blade Check: Inspect your blade tip. If it has snagged fabric debris from a previous cut, clean it now.


Phase 2: Import and Trace (The Digital Foundation)

Step 1: Import the JPEG

Open Silhouette Studio. Go to File > Open and select your capture. Ignore size for now. Drag the corner handle to make the image large on your screen. We need visual clarity for the trace; we will fix the dimensions later.

Step 2: High Pass Tracing

This is where we tell the software: "Ignore the white noise, find the black lines."

1. Open the Trace Panel (Butterfly icon).
2. Click Select Trace Area and draw a box around your image.
3. Crucial Setting: Turn High Pass Filter UP.
   • Beginner Sweet Spot: Set the value to 300.00.
4. Threshold Adjustment: Slide the Threshold bar until the yellow highlight completely fills the black lines of your design.
   • Visual Anchor: You want "Solid Gold." Speckled yellow means a weak trace. Bloated yellow means too much noise. Look for a solid, crisp yellow fill that matches your shape.

Click Trace. (Do not use "Trace Outer Edge" unless you want to lose the holes in letters like A, B, or O).

Phase 3: The Surgical Cleanup

Move your original JPEG aside. You are now looking at red vector lines. They are likely double lines (an inside and outside of your original pen width).

1. Release Compound Path: Right-click the design -> Release Compound Path. This breaks the design into individual editable vector pieces.
2. Delete the Garbage: You will see "artifact" lines—tiny specks or double rims you don't need.
   • Decision: Keep the outermost line for the maximum coverage area. Select and press Delete on the inner noise.

Expert Insight: This cleanup capability is why shops investing in high-volume production eventually look for hardware solutions to match this software precision. If you are cleaning up files for 50 team jerseys, you cannot afford to have the fabric shift during the actual stitch-out. This is frequently the "tipping point" where producers search for embroidery hooping station setups to standardize their physical workflow to match their digital one.

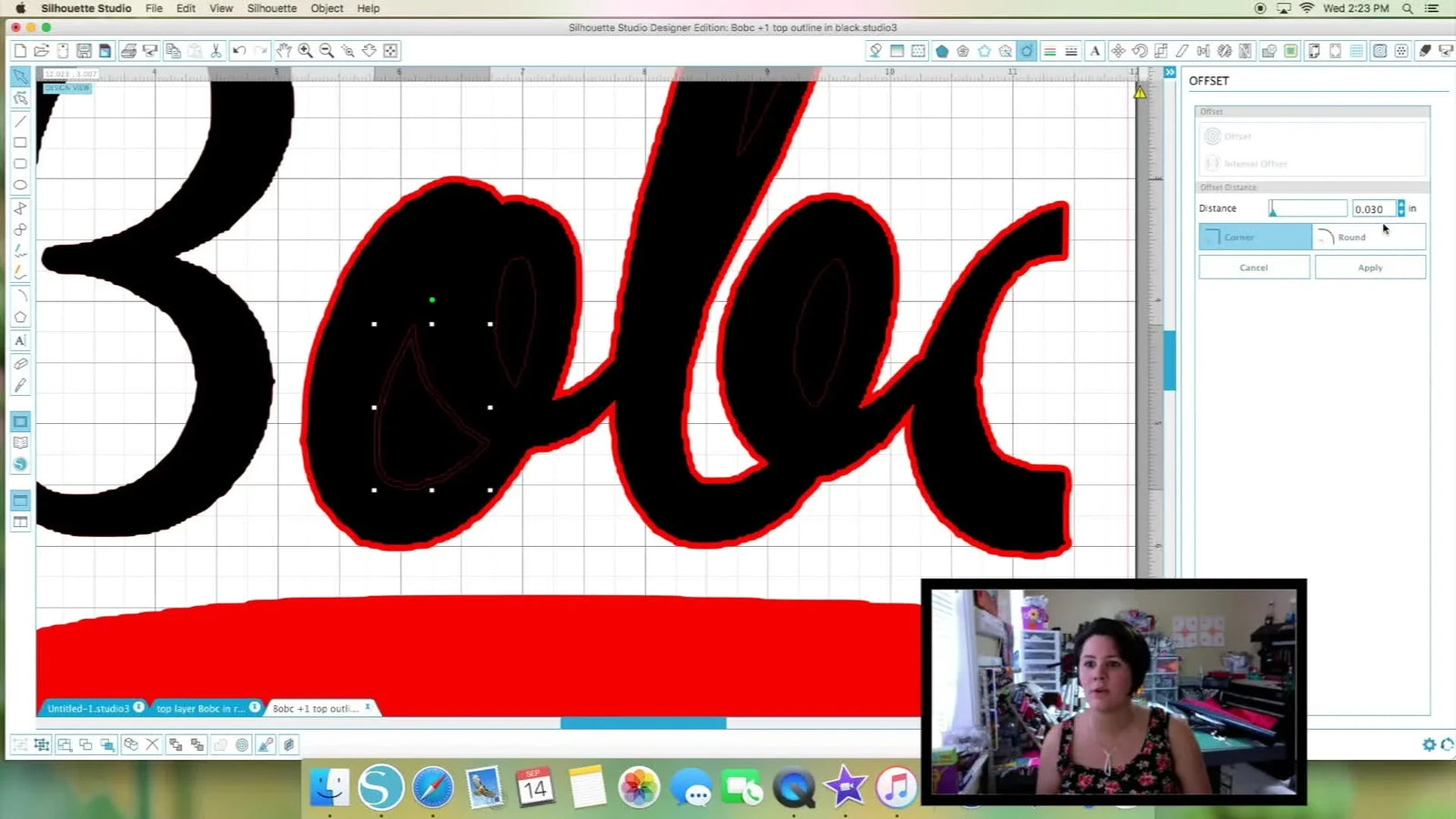

Phase 4: The Double Offset Strategy (The Secret Sauce)

This is the most critical section of this guide. Beginners cut the exact line. Experts cut a line that lives safely inside the Satin Stitch.

We will use a "Two-Step" Offset method to create a safety margin.

Step 1: The "Buffer" Offset (0.05 inches)

1. Select your clean vector shape.
2. Open the Offset Panel (Star/Target icon).
3. Select Offset (Outer).
4. Distance: Set to 0.050 inches (approx 1.27mm).
5. Corner: Set to Sharp/Corner (not Round, unless your design is bubbly).
6. Click Apply.

Why? This outer line acts as a "containment wall." It ensures your geometry is expanded slightly before we shrink it, smoothing out any jagged pixelation from the trace.

Step 2: The "Cut Line" Internal Offset (0.030 inches)

Now, we create the actual line the blade will travel.

1. Select the new offset you just created.
2. Select Internal Offset.
3. Distance: Set to 0.030 inches (approx 0.76mm).
4. Click Apply.
5. Delete the 0.050" outer guide. Keep only this new internal line.

The Engineering Logic: A standard satin stitch is roughly 3mm to 4mm wide. By cutting your fabric just slightly inside the placement line, you ensure the satin stitch "bites" both the appliqué fabric and the base garment.

• If the fabric is too big: It pokes out (whiskers).
• If the fabric is too small: The stitching falls off, leaving a raw gap.
• The Sweet Spot: This 0.030" inset is the industry "Safe Zone."

Hardware Reality Check: Even with a perfect 0.030" inset, if your hooping is loose, the fabric will pull away from the stitches. This is known as "flagging." To combat flagging without over-tightening (which causes hoop burn), many commercial embroiderers utilize magnetic embroidery hoops. These clamps provide uniform downward pressure across the entire perimeter, reducing the "pull" distortion that ruins appliqué alignment.

Step 3: Color Fill Verification

Select your final lines and use the Fill Color panel to turn them black.

• Visual Anchor: If the shape fills solid black, it is a closed loop. Good.
• Trouble: If it doesn't fill, you have a "broken path" (gap) that needs closing.


Phase 5: The "Millimeter Mandate" (Sizing with Precision)

Embroidery machines think in metric. Silhouette Studio (in the US) defaults to Imperial. This mismatch is the #1 cause of "It didn't fit."

Do not try to convert 128.5mm to inches in your head. You will be wrong.

The Metric Switch

1. Go to the Preferences Gear icon (bottom right).
2. Select General -> Unit of Length -> Millimeters.
3. Select your design.
4. Look at the dimensions bar.
5. Click the Padlock Icon to UNLOCK aspect ratio. (Controversial, but necessary).
6. Type the EXACT height and width from your embroidery software into Silhouette Studio.

Why Unlock? Sometimes a trace is 0.5mm off in one direction due to pixel fuzz. By unlocking, you force the vector effectively to "snap" to the exact grid of your embroidery hoop.

Setup Checklist: The "Go/No-Go"

• Trace: High Pass Filter verified (approx 300.00).
• Cleanup: Compound paths released; artifacts deleted.
• Geometry: Double Offset strategy applied (0.05" out -> 0.030" in).
• Units: Software switched to Millimeters (mm).
• Scale: Exact Width and Height entered; aspect ratio managed.


Phase 6: Simplify and Cut (Blade Health)

Step 1: Simplify Nodes

A raw trace has thousands of tiny "dots" (nodes). A cutter trying to hit all of them sounds like a jagged zipper—zrzzt-zrzzt-zrzzt.

1. Double click your shape to see the dots.
2. Open the Point Editing panel.
3. Click Simplify.

Success Metric: The cutter should sound like it is humming, not grinding. Smooth curves equal clean fabric edges.

Step 2: Welding (Optional)

If your design has overlapping letters (like script text), use the Weld tool to merge them into one single cut piece. This prevents the blade from cutting into the middle of a connecting letter.

Step 3: Batch Layout

If you are doing production runs (e.g., 20 shirts), replicate the design across the mat area.

• Pro Tip: This is the moment to consider your entire workflow. If you are cutting 20 pieces perfectly, are you hooping 20 pieces perfectly? Inconsistency here kills profit margins. Standardizing your holding method using tools like the hoop master embroidery hooping station ensures that the placement is identical on every shirt, justifying the time you just spent creating a perfect cut file.


Operation: The Cut

The Orientation Rule:

• Fabric: Place fabric "Pretty Side Up" on the mat. Do NOT Mirror.
• HTV: Place shiny side down. Mirror Design.

Operation Checklist: Final Verify

• Mirror Check: Is this HTV (Mirror: YES) or Fabric (Mirror: NO)?
• Nodes: Did you run "Simplify"?
• Layering: Do you have the correct layer? (Don't cut the bottom fill if you need the top!).
• Mat Stickiness: Is your mat sticky enough to hold fabric? (Use masking tape on corners if unsure).


Decision Tree: The Materials Matrix

Use this logic flow to determine your setup for every job.

START: What enters the cutter?

1. Is it HTV ( Vinyl)?
   • Action: Mirror Design -> Cuts on carrier sheet -> Iron on later.
   • Focus: weeding ease.
2. Is it Fabric?
   • Question: Is it backed?
     • No (Raw): STOP. Apply HeatnBond Lite. Raw fabric will ruin the cut.
     • Yes (fused): Proceed.
   • Question: How will you hold it in the embroidery machine?
     • Standard Hoop: Watch for "Hoop Burn" on delicate fabrics (velvet, performance wear).
     • Production Volume: If doing 10+ items, switch to magnetic hoops for embroidery machines.
       • Why: Magnetic frames allow you to float the appliqué fabric or clamp thick fused pieces without "unscrewing" the hoop every time. This saves wrist strain and reduces fabric scarring.

Troubleshooting: The "Why Is This Happening" Guide

The Comment Section Reality: "Can I just Convert SVG to PES?"

We often see this question: "Can Silhouette Studio make embroidery files?" The Answer is No. Silhouette Studio is a vector engine (lines). Embroidery files are coordinate instructions (stitches). They are different languages. You can convert PES to SVG (as shown here), but you cannot turn an SVG into a PES without dedicated Digitizing Software.

The Commercial Upgrade Path: From Craft to Commerce

If you successfully execute this guide, you have moved from "eye-balling it" to "engineering it." But as your software skills improve, mechanical bottlenecks will appear.

Here is how to identify when it is time to upgrade your toolkit:

1. The "Hoop Burn" Trigger: If you are spending time steaming out ring marks from your hoops, or if your perfectly cut appliqué is puckering because of hoop distortion, safe-guard your quality with magnetic hoops.

Warning: High-grade magnetic hoops use Neodymium magnets. They are incredibly strong. Keep them away from pacemakers. Do not let them snap together without a buffer layer, or they can pinch fingers severely.

1. The "Thread Change" Trigger: Appliqué requires stops: Placement -> Stop -> Tack down -> Stop -> Satin. On a single-needle machine, this is agonizing.
2. The Solution: If you find yourself cutting 20 perfect appliqué pieces but dreading the stitching time, look into SEWTECH Multi-needle Machines. These systems handle the color stops automatically and offer larger embroidery fields, allowing you to appliqué logos on jacket backs that standard machines simply cannot reach.

Final Thought: Precision is a habit. By forcing your cut files to obey the 0.030" internal offset and the millimeter rule, you remove "luck" from the equation. Your appliqué will stop looking homemade, and start looking manufactured.

FAQ

• Q: Why does Silhouette Studio Designer Edition show “File type not supported” when importing a Brother PES embroidery file for appliqué?
  A: This is common—Silhouette Studio Designer Edition typically will not open PES directly, so use the JPEG trace method instead.
  • Export a high-contrast JPEG screenshot of only the appliqué Placement Line or Tack-down Line from embroidery software (black line on white background).
  • Import the JPEG into Silhouette Studio and trace it (use Trace, not “Trace Outer Edge” if you need inside holes like A/B/O).
  • Build the cut line using offsets (0.050" outer buffer, then 0.030" internal cut line).
  • Success check: The traced vector is a clean closed loop that fills solid when colored.
  • If it still fails… Re-capture the JPEG without grids/3D/fabric textures and re-trace with High Pass Filter increased.
• Q: What High Pass Filter and Threshold settings should Silhouette Studio use to trace a high-contrast JPEG for an appliqué cut line?
  A: Use High Pass Filter as a safe starting point at 300.00, then adjust Threshold until the highlight becomes solid and crisp on the black line.
  • Open Trace Panel → Select Trace Area around the design.
  • Increase High Pass Filter (start at 300.00).
  • Slide Threshold until the yellow overlay fully covers the black line without speckling or bloating.
  • Success check: The preview looks “solid gold” over the line, and the traced result is smooth—not broken or noisy.
  • If it still fails… Re-export a cleaner black-on-white JPEG and delete background artifacts before tracing again.
• Q: How do I stop jagged or fuzzy fabric edges when cutting appliqué pieces with a Silhouette cutter from a traced design?
  A: Most jagged cuts come from unfused fabric or too many trace nodes—fuse the fabric first and simplify the cut path before cutting.
  • Fuse a backing like HeatnBond Lite to the fabric before cutting (do not cut raw fabric).
  • Open the shape’s points and run Simplify to reduce excessive nodes.
  • Inspect and clean the blade tip/housing if fabric debris is present; use a dedicated fabric blade (don’t mix paper and fabric).
  • Success check: The cutter sounds like a smooth hum (not a grinding “zipper”), and the cut edge looks clean instead of chewed.
  • If it still fails… Re-trace with better settings and re-do cleanup (release compound path, delete tiny artifacts/double rims).
• Q: How do I fix appliqué size mismatch between embroidery software measurements and Silhouette Studio cut lines caused by inches vs millimeters?
  A: Switch Silhouette Studio to millimeters and type the exact width/height from embroidery software—don’t hand-convert units.
  • Change Preferences → Unit of Length → Millimeters (mm).
  • Select the traced vector and unlock the aspect ratio padlock if one direction is slightly off from tracing.
  • Enter the exact width and height numbers shown in embroidery software.
  • Success check: The on-screen dimensions in Silhouette Studio match the embroidery software exactly in mm.
  • If it still fails… Re-capture the placement/tack-down line image and re-trace; pixel fuzz can skew one axis slightly.
• Q: What offset settings should Silhouette Studio use to create a safe appliqué fabric cut line that sits under a satin stitch?
  A: Use the two-step offset method: apply a 0.050" outer offset, then an internal offset of 0.030", and keep only the final internal line.
  • Offset the cleaned shape outward by 0.050" (acts as a smoothing buffer).
  • Offset that new outline inward by 0.030" to create the actual cut line.
  • Delete the 0.050" guide line and keep only the 0.030" internal cut line.
  • Success check: The final cut line is a closed loop that fills solid, and it is slightly inside the original placement geometry (not outside it).
  • If it still fails… Verify you cleaned double lines/artifacts first (release compound path, delete inner noise), then re-apply offsets.
• Q: What are the correct mirror and fabric-side rules when cutting appliqué fabric vs HTV in Silhouette Studio?
  A: Don’t mirror fabric cuts (pretty side up), and do mirror HTV (shiny carrier side down).
  • Identify the material first: fabric or HTV—this decides mirror behavior.
  • Place fabric pretty side up on the mat and cut without mirroring.
  • Place HTV shiny side down and mirror the design before cutting.
  • Success check: The cut orientation matches the intended finished face (fabric motif faces correctly; HTV weeds correctly from the carrier).
  • If it still fails… Stop and re-check the material type before re-cutting; wrong mirroring is a common one-cut mistake.
• Q: What safety precautions should be followed when cutting appliqué pieces on a digital cutter and handling strong magnetic embroidery hoops?
  A: Treat both the cutter and high-strength magnets as injury risks—keep hands clear of moving parts and prevent magnets from snapping together.
  • Keep fingers away from the cutting carriage path; never reach under the bar while the cutter is initialized; use tweezers for weeding small pieces.
  • Keep strong magnetic hoops away from pacemakers and medical implants.
  • Avoid letting magnetic hoop parts snap together without a buffer layer to prevent severe pinching.
  • Success check: Hands stay clear during motion, and magnetic parts are controlled—no sudden snap or pinch.
  • If it still fails… Pause the job, reset the workspace for clearance, and follow the machine/manual safety guidance before continuing.
