From PES to Perfect Appliqué Cuts: The Brother Dream Machine + ScanNCut PHC Workflow (Without the Confusion)

Appliqué can feel “mysteriously hard” on the Brother Dream Machine—especially if you’ve owned it for years and never quite grasped the relationship between PHC files, placement stitches, and why your ScanNCut sometimes leaves tiny uncut bridges of fabric.

As someone who has trained thousands of embroiderers, from hobbyists to factory floor managers, I see the same look of frustration when technology doesn't play nice. If you watched the video and thought, “Did I miss Part 1?”, you didn’t. The missing piece is simply that the Dream Machine hides Embroidery Edit logic behind the standard Embroidery workflow. The entire "magic trick" relies on re-labeling your placement stitch stops so the machine generates precise cutting data rather than just stitching instructions.

Below is the complete, master-class workflow to go from a PES design on your Dream Machine to perfectly cut appliqué fabric on your ScanNCut. I will also include the sensory details—what to look for, listen for, and feel—to prevent wasted expensive fabric and unnecessary re-cuts.

Calm the Panic: Why the Brother Dream Machine “Embroidery Edit” Feels Like It’s Missing (and Where It Actually Lives)

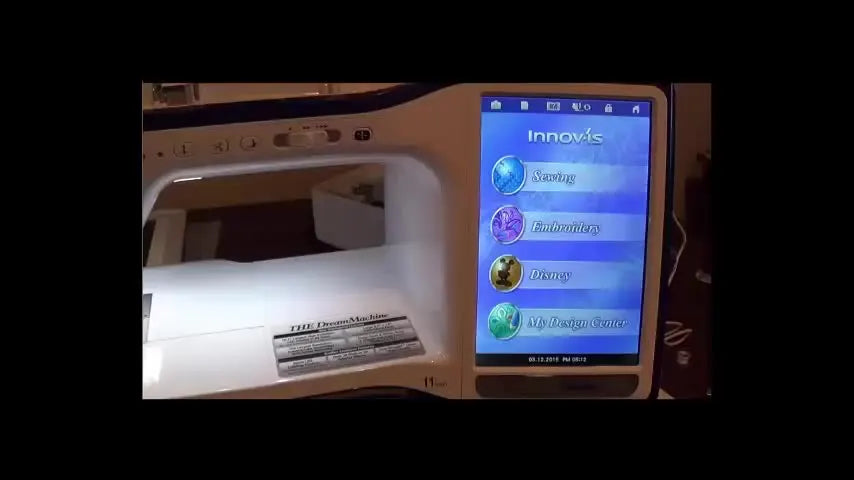

On the Dream Machine home screen, you won’t see an obvious “Embroidery Edit” button. That’s the primary reason experienced owners get stuck: you can edit, but only after you enter the standard Embroidery mode, load your design, and then tap Edit.

Think of this process not as "digitizing," but as data tagging. You are simply telling the Dream Machine's brain: "Hey, see Color Stop #1? That isn't just thread; that is the roadmap for my cutting blade." By flagging these stops, the machine generates a PHC file—a specific language the ScanNCut understands.

If you are running a brother embroidery machine for standard monogramming or logos, this is likely a feature you have never touched. It is a specialized gateway used almost exclusively to bridge the gap between stitching and automated cutting.

The “Hidden” Prep Pros Do First: USB, Fabric Scraps, and a Mat Setup That Won’t Waste Your Good Batik

Before you touch a single screen, we must set the physical stage. 80% of cutting failures happen here, not in the software.

You’ll need:

• Brother The Dream Machine (Innov-is)
• Brother ScanNCut
• USB flash drive (Max 32GB recommended for stability)
• Standard tack adhesive mat (scanning/cutting mat)
• Hidden Consumable: Fusible web (like HeatnBond Lite) applied to the back of your fabric. Do not skip this. Raw fabric frays; fused fabric cuts like paper.
• Hidden Consumable: A brayer or old credit card to smooth fabric down.
• Appliqué fabric scraps (Batik cotton is used in the example, which cuts beautifully).
• Small microsurgery scissors.

The Sensory Check: Touch your cutting mat. It should feel tacky, similar to a new Post-it note, but not aggressive like duct tape. If it feels smooth or has lint build-up, use a baby wipe to clean it or use a Zig 2 Way Glue pen to refresh the tack. If the fabric shifts during the scan, your alignment will fail.

Prep Checklist (do this before you start):

• USB Check: Drive is empty or organized, formatted to FAT32, and physically seated in the machine.
• Fabric Prep: Iron fusible web to the back of your fabric scraps. Peel the paper backing before sticking it to the mat.
• Mat Hygiene: Ensure the mat is sticky enough to hold the fabric flat without curling edges.
• Clearance: Ensure there is 12 inches of clear space behind your ScanNCut so the mat doesn't hit a wall while feeding.


Turn a PES Design into Appliqué Cut Data: Assigning “APPLIQUE MATERIAL” on the Dream Machine Without Guessing

This is the core of the method: loading the PES file and flipping specific "switches" in the software.

What the video does on the Dream Machine

1) Load the PES file:

• Go to Embroidery (ignore the urge to look for Edit on the main menu).
• Choose USB as the input.
• Select the floral PES design and press Set.

2) Enter Edit and open the color list:

• Now, tap Edit.
• Tap the Color Change button (icon usually looks like a spool or color palette).
• You’ll see a sequential thread list with up/down arrows.

3) Identify the placement stitch:

• Scroll through the thread stops. You are looking for the first run of a shape—the outline that tells you where to place the fabric.
• Expert Tip: If you cannot visually identify it, check your digitizer's PDF worksheet.

4) Change that stop to “APPLIQUE MATERIAL”:

• Select the special tile labeled APPLIQUE MATERIAL (often an icon of a shield or a patch).
• Repeat this for every section needing a cut (Pieces A, B, and C in the demo).

Expected outcome: In the thread list, the icon for those specific stops will change to the appliqué symbol. This confirms the machine has tagged them for export.

Warning: Physical Safety Hazard. When you eventually stitch this out, keep fingers clear of the needle zone. Appliqué workflows involve frequent stops, trims, and hand placement. Do not attempt to smooth fabric while the machine is running. A needle through the finger is a common injury when rushing placement.

Save the PHC File to USB: The One Tap That Makes ScanNCut “See” Your Appliqué Pieces

Once the tagging is done, you must save the modified file. The standard PES file does not contain the cutting coordinates in a way the ScanNCut prefers; the PHC file does.

What the video does

1) Tap Memory. 2) Choose the USB icon.

Expected outcome: The Dream Machine saves the design to the USB. Visually, nothing dramatic happens, but a new PHC file is written to a specific subdirectory on your drive.

Find the PHC File on ScanNCut (Yes, It’s in the bPocket Folder)

This is the number one reason users rage-quit this process. The file does not sit in the root directory.

On the ScanNCut: 1) Tap Pattern. 2) Tap Saved Data. 3) Choose USB. 4) CRITICAL STEP: Navigate to the folder named bPocket. This is the proprietary folder the Dream Machine creates. 5) Select the floral design.

Expected outcome: You should see a thumbnail of your design. Upon clicking it, the machine will display the appliqué components (A, B, C) as separate, selectable parts.

Build the Cut Layout: Isolating Parts A, B, and C So You Don’t Cut the Wrong Thing

Your ScanNCut now sees the shape of the appliqué. You need to load them onto the virtual mat.

What the video does

• Select A → tap OK → Set → Add
• Select B → tap OK → Set → Add
• Select C → tap OK → Set

Expected outcome: All three vector shapes appear on the screen. They may look piled up; that is normal.

The 1 mm “Insurance Policy”: Resizing Appliqué Pieces So Satin Stitch Actually Covers the Edge

This is the step that separates “homemade craft” from “boutique quality.”

In the video, each appliqué piece is increased by exactly 1 mm. For example, Part A goes from 59 mm to 60 mm.

The Physics of Why:

Embroidery adds tension. When satin stitches penetrate fabric, they utilize that tension to pull inward. Additionally, raw fabric edges can fray.

• The Stitch Bite: The final satin stitch needs something to "bite" into. If your cut is the exact size of the placement line, the satin stitch might fall off the edge, revealing the raw fabric cut.
• The Buffer: Adding 1mm ensures the fabric extends slightly under the satin stitch, trapping it securely.

What the video does

1) separate the pieces on the screen so you can select them individually. 2) Tap Edit → Resize. 3) Tap + to increase dimensions by 1 mm (typically 2-4 clicks depending on your increment settings).

Setup Checklist (before you scan/cut):

• Inventory: confirm pieces A, B, and C are on the layout.
• Resize Check: Have you added the +1 mm buffer to ALL pieces?
• Boundary Check: Ensure no red warning squares appear (indicating the shape is outside the cut zone).
• Consumable Check: Is your blade depth set correctly? (Start with standard settings: Auto Blade is usually fine, generic blades may need a depth of 3.5-4 for cotton with fusible).

Pro Tip: If you are doing volume production, consistency is key. Many shops looking to standardize this workflow eventually investigate a hooping station for machine embroidery. While cutting consistency is solved by the ScanNCut, placement consistency on the garment relies on your hooping station.

Scan the Fabric on the Mat: The Trick That Makes Your Cuts Land Exactly on Your Scraps

This feature is why you bought a ScanNCut. Instead of guessing where the fabric is, you will take a picture of it.

What the video does

1) Affix fabric scraps to the physical mat. Use your brayer/credit card to ensure no air bubbles exist. 2) On-screen, press OK. 3) Press the physical Scan button.

Expected outcome: The screen will buzz and whir. The background white grid will be replaced by a pixelated image of your actual mat. You can see exactly where your green and purple batik scraps are sitting.

Align, Cut, Start: The Exact Button Sequence That Prevents Mis-cuts

Now that you have the "Map" (the scan) and the "Car" (The vector shape), you just need to park the car in the garage.

What the video does

1) Stylus in hand, drag the shapes (A, B, C) over the corresponding fabric scraps on the screen. 2) Ensure the cut lines are well inside the fabric borders. 3) Press OK. 4) Press Cut. 5) Press Start.

Sensory Check: Listen to the machine. A precise cut sounds like a zipper being pulled quickly (zip-zip-zip). A dull tearing sound or a rhythmic "thump" usually means your mat is dirty, the blade is dull, or the fabric is shifting.

Weed the Negative Space Cleanly: Removing the “Skeleton” Without Stretching Your Cut Pieces

"Weeding" is the act of removing the excess material.

What the video does

• Peel away the large "skeleton" of fabric surrounding your shapes.
• Leave the cut shapes on the mat for now.

Tactile Advice: Peel slowly at a sharp angle. If you pull straight up, you risk lifting the appliqué piece or fraying the edge. The fusible web backing should keep the cut crisp.

When ScanNCut Doesn’t Cut All the Way Through: The Open-Vector “Hanging Thread” Fix

Sometimes, technology hiccups. The video highlights a common annoyance: a "hanging thread" or a tiny bridge of uncut fabric.

What’s happening

The PHC data from the embroidery machine might interpret a shape as an "Open Path" (like a horseshoe) rather than a "Closed Path" (like a circle). The blade stops one millimeter short of closing the loop.

The Fix

• Don't rip it! Ripping causes fraying, which satin stitches cannot hide.
• Use your small embroidery scissors to snip the single thread connecting the piece.


The “Why It Works” (and How to Avoid Rework): Placement Stitches, Coverage Margin, and Production Thinking

Let’s look at the bigger picture to ensure your success is repeatable.

1) Data Flagging vs. Color Changes

Remember, changing the stop to APPLIQUE MATERIAL changes the file type behavior, not just the color. It is a functional command.

2) The 1 mm Tolerance is Your Safety Net

Embroidery is not exact. Fabric pushes and pulls. The +1 mm buffer compensates for the fact that your fabric might shrink slightly when the needle hits it.

3) The Hooping Bottleneck

You have now solved the cutting problem. Your cuts take seconds. However, if it takes you 5 minutes to hoop your garment, your machine is sitting idle. This is where professional shops upgrade their tooling.

• The Problem: Traditional hoops force you to wrestle with screws and inner rings.
• The Solution: Many intermediates search for terms like magnetic embroidery hoop to solve this. These hoops use magnets to clamp fabric instantly without the "screw-tightening" fatigue.
• The Result: Faster turnover. If you are doing repetitive appliqué jobs, a magnetic hoop for brother dream machine (or generic brother magnetic embroidery frame) can reduce hold-ups between runs.

Warning: Magnet Safety. Industrial magnetic hoops are extremely powerful. They can pinch skin severely if snapped together incorrectly. Keep them far away from pacemakers, ICDs, and magnetic storage media.

A Quick Decision Tree: Choosing a Cutting-and-Stitching Setup That Matches Your Volume

Do not over-invest if you are a hobbyist, but do not under-invest if you are running a business.

Decision Tree (volume → best next upgrade):

• Volume: 1–5 items/month (Hobbyist)
  • Focus: Technique.
  • Tool: Use standard hoops + ScanNCut.
  • Consumable: Buy high-quality Fusible Web (HeatnBond).
• Volume: 5–50 items/month (Side Hustle)
  • Focus: Efficiency & Ergonomics.
  • Tool: Upgrade to Magnetic Hoops (Sewtech or similar) to save your wrists and reduce hoop burn on shirts.
  • Strategy: Batch cut all appliqué pieces on Saturday; stitch all day Sunday.
• Volume: 50+ items/month (Business)
  • Focus: Scalability.
  • Tool: This volume struggles on a single-needle flatbed. Consider a multi-needle machine (like Sewtech or Brother PR series) to prep the next garment while the current one stitches.

Troubleshooting Map: Symptom → Likely Cause → Fix

Use this table when things go wrong to avoid panic.

The Upgrade Moment: When Cutting Is Solved, Make Hooping Faster

Once you master this PHC workflow, you will realize that cutting is no longer your slow point. The slow point is now hooping.

If you find yourself dreading the hoop-burn marks on delicate pique polo shirts, or if your wrists hurt from tightening the screws on standard hoops, it is time to look at the hardware.

• Level 1 Fix: Use "Float" technique with sticky stabilizer (messy, but works).
• Level 2 Fix: Acquire embroidery hoops magnetic. These allow you to float or clamp thick items (like towels or jackets) that are impossible to frame in standard plastic hoops.
• Level 3 Fix: If consistent placement is still a struggle even with magnetic hoops, a hooping station for embroidery helps align the hoop to the garment in the exact same spot, every single time.

Operation Checklist (right before you press START on the embroidery machine):

• Placement Logic: Have you stitched the placement line before putting the fabric down?
• Adhesion: Did you iron the appliqué piece down (if using fusible) or use spray adhesive?
• Clearance: Is the foot height set correctly (usually 1.5mm - 2mm) so it doesn't drag the appliqué fabric?
• Stop Command: Does your machine know to stop after the tack-down stitch so you can trim (if needed) or check edges?

Follow the data path: Assign Appliqué -> Save to USB -> Open in bPocket -> Resize +1mm -> Scan & Cut. Master this chain, and your Dream Machine will finally live up to its name.

FAQ

• Q: Why can’t Brother Dream Machine owners find the “Edit” button for appliqué PHC exporting in the main menu?
  A: Brother Dream Machine “Edit” only appears after entering Embroidery mode and loading a design, so the fix is to load the PES first, then tap Edit.
  • Go to Embroidery → choose USB → select the PES design → tap Set
  • Tap Edit (now it appears) → open the Color Change list
  • Tag the placement-stop(s) as APPLIQUE MATERIAL, then save to USB
  • Success check: the tagged stops show the appliqué symbol in the thread/stop list
  • If it still fails: confirm the design actually contains separate placement/tackdown steps (some files won’t show a clear placement run)
• Q: Why does Brother ScanNCut say “No File” when loading Brother Dream Machine appliqué cut data from a USB drive?
  A: Brother ScanNCut usually cannot “see” the Dream Machine cut file until the USB is opened inside the bPocket folder.
  • Tap Pattern → Saved Data → USB
  • Open the bPocket folder (not the USB root directory)
  • Select the saved design thumbnail and load the appliqué parts
  • Success check: a design thumbnail appears and the appliqué components (such as A/B/C) are selectable
  • If it still fails: re-save from the Dream Machine to USB after tagging stops as APPLIQUE MATERIAL (a plain PES may not create the expected cut data)
• Q: What prep items prevent Brother ScanNCut appliqué fabric shifting and misalignment when cutting fused cotton scraps?
  A: Most mis-cuts come from mat and fabric prep, so fuse the fabric, clean/refresh mat tack, and press the fabric down flat before scanning.
  • Iron fusible web (e.g., HeatnBond Lite) to the back of the fabric, then peel the paper backing before placing on the mat
  • Clean lint from the mat and refresh tack if needed (a baby wipe or Zig 2 Way Glue pen can help)
  • Smooth fabric down with a brayer/credit card so edges do not curl
  • Success check: the mat feels “Post-it tacky” (not slick), and fabric stays flat with no bubbles during scan
  • If it still fails: replace the mat or re-position scraps farther from the mat feed path and ensure there is clear space behind the ScanNCut for mat travel
• Q: How do Brother Dream Machine + Brother ScanNCut users prevent satin stitch from missing the appliqué edge on finished embroidery?
  A: Add a +1 mm resize buffer to every appliqué cut piece on the ScanNCut before cutting so the fabric extends under the satin stitch.
  • Load all appliqué parts onto the ScanNCut mat layout
  • Use Edit → Resize and increase each piece by exactly 1 mm (example: 59 mm → 60 mm)
  • Keep shapes inside the cut boundary (avoid out-of-bounds warnings)
  • Success check: after stitching, satin stitches fully cover the fabric edge with no raw edge showing
  • If it still fails: verify every piece (A, B, C, etc.) was resized, not just one, and confirm fabric did not shift during cutting
• Q: What does a red box around an appliqué shape mean on Brother ScanNCut, and how do Brother ScanNCut users fix it before cutting?
  A: A red box usually means the shape is outside the cut zone, so move the shape inward on the screen before pressing Cut/Start.
  • Drag the appliqué shape away from the grid edge until the warning clears
  • Re-check that all parts are still on the layout after moving and resizing
  • Scan the mat again if the background image changed or scraps were repositioned
  • Success check: no red warning boxes appear and the shape sits fully within the usable mat area
  • If it still fails: reduce the layout crowding by separating parts or loading fewer shapes per cut session
• Q: Why does Brother ScanNCut sometimes leave a tiny uncut bridge (“hanging thread”) on appliqué pieces imported from Brother Dream Machine PHC data?
  A: This can happen when the cut path behaves like an open vector, so the safest fix is to snip the tiny bridge with small scissors instead of ripping.
  • Weed the surrounding “skeleton” fabric first, leaving pieces on the mat
  • Locate the tiny uncut bridge and snip it with small embroidery scissors
  • Peel slowly at a sharp angle to avoid lifting or stretching the appliqué piece
  • Success check: the appliqué piece lifts cleanly with a crisp edge and no frayed tear marks
  • If it still fails: check blade sharpness/mat tack and listen for clean “zip-zip” cutting sounds (dull tearing or thumping often points to shifting or a dull blade)
• Q: What needle-and-hand safety rule should Brother Dream Machine appliqué users follow during frequent stops for fabric placement and trimming?
  A: Keep hands completely out of the needle zone whenever the Brother Dream Machine is running—appliqué stop-and-place steps make needle injuries more common when rushing.
  • Stop the machine fully before placing fabric, smoothing edges, or trimming threads
  • Use tools (tweezers/scissors) instead of fingers near the presser foot area when possible
  • Plan the sequence: placement stitch → stop → place fabric → tack-down → stop → trim/check edges
  • Success check: fabric adjustments happen only while the needle is stationary and the machine is not actively stitching
  • If it still fails: slow down the workflow and re-check that the machine is set to stop where you expect (mis-tagged stops can cause unexpected motion)
• Q: When Brother Dream Machine appliqué production feels slow, how should a shop choose between technique changes, magnetic hoops, and a multi-needle machine?
  A: Use a volume-based approach: optimize workflow first, then upgrade hooping speed with magnetic hoops, then consider a multi-needle machine when single-needle output becomes the bottleneck.
  • Level 1 (low cost): batch tasks—cut all appliqué pieces first, then stitch in runs; keep mat tack and fusible prep consistent
  • Level 2 (tool upgrade): switch to magnetic embroidery hoops when screw-hooping causes delays, wrist fatigue, or hoop-burn marks on garments
  • Level 3 (capacity): move to a multi-needle embroidery machine when monthly volume is high enough that re-threading and single-needle downtime limits throughput
  • Success check: the slowest step shifts away from hooping/re-threading and the machine spends more time stitching and less time waiting
  • If it still fails: time each step (cutting, hooping, stitching) to find the true bottleneck before buying upgrades
