From Paper to Perfect Stitches: Scanning Line Art in Brother My Design Center / Baby Lock IQ Designer (Without the Usual Gotchas)

Mastering “My Design Center” & “IQ Designer”: The definitive guide to turning sketches into stitches (without the tears)

I have spent 20 years on the shop floor and in the classroom, watching brilliant creators get defeated by their own top-of-the-line machines. You buy a Brother Dream Machine or a Baby Lock Destiny with high hopes, but when you scan a simple drawing, the result looks like a chaotic mess of jump stitches and jagged edges.

Here is the truth: Digital converting tools like My Design Center (Brother) and IQ Designer (Baby Lock) are not magic wands. They are literal translators. If your input language (your drawing) is “mumbled,” the machine’s output (the embroidery) will be incoherent.

In this deep-dive guide, we are going to dismantle the fear of auto-digitizing. We will walk through Geri’s “Teddy Bear” project, but we will look at it through the lens of a professional digitizer. We will verify the numbers, establish safety protocols, and introduce the tools that separate hobbyist frustration from professional consistency.

The “Garbage In, Garbage Out” Rule: Why Source Art Matters More Than Settings

Geri begins by showing a stunning, variegated thread stitch-out. It looks complex, but the file structure is simple. The secret wasn't a hidden button; it was the clarity of the source image.

Computers do not “see” a teddy bear. They see contrast boundaries. They look for where white pixels stop and black pixels start.

The Sensory Check: The “Squint Test”

Before you even walk to your machine, hold your drawing at arm’s length and squint.

• Visual: If the lines disappear or look grey, the scanner will fail.
• Action: Use a fine-point black marker (Sharpie Ultra Fine works well) to trace your lines. You want a solid, confident black line on bright white paper. Photocopying a sketch to increase contrast is a standard professional trick.


Phase 1: The Physical Prep (The Scanning Frame)

Geri places the drawing on the scanning mat. This step seems trivial, but it is where 50% of errors occur.

If a piece of paper lifts by even 1 millimeter during the scan, the machine sees a shadow. That shadow becomes a double line, which becomes a messy stitch later. Geri uses the green magnetic strips to secure the edges.

This brings us to a critical industry concept: Stability Control. In scanning, we use magnets to prevent the paper from shifting. In actual embroidery, we face the same battle with fabric. If you have ever fought to hoop a thick sweatshirt or delicate silk, you know the pain of "hoop burn" or slipping fabric.

This is why experienced embroiderers eventually migrate to a magnetic frame for embroidery machine. Just as Geri uses magnets to keep her paper perfectly flat for the "eye" of the scanner, a magnetic embroidery frame uses clamping force to keep your fabric "drum-skin tight" for the needle, without the physical strain of twisting a screw or bruising the fabric fibers.

Pre-Flight Checklist: Scanning Prep

• Contrast Check: Is the artwork strictly Black & White (no pencil shading)?
• Surface Check: Is the scanning mat free of lint or old thread scraps? (Debris = unwanted stitches).
• Anchor Check: Are the magnetic strips placed on the very edge of the paper?
• Safety Zone: Are the magnets clearly outside the drawing area?

Phase 2: The Scan & Crop (Digital Hygiene)

On the screen, Geri selects “Line” mode (best for sketches) rather than “Illustration” (best for solid color blocks).

The frame moves. This is a mechanical process.

Crucial Step: Cropping. Geri drags the red crop handles to isolate the bear. You must crop out the green magnets. If you don’t, the machine will try to turn those rectangular magnets into satin stitches.

Warning: Mechanical Safety
When the scanning frame is active, keep your hands and objects clear of the moving arm. The carriage moves with torque. Interfering with its path can strip internal gears or cause calibration errors that require a technician to fix.

Phase 3: The Cleanup (The Art of the "Undo")

Geri zooms in. She sees "noise"—little speckles that the scanner picked up. She selects the Eraser tool.

Here is the cognitive trap: You want to rush. Do not rush. If you drag the eraser in one long continuous motion and accidentally slice through the bear's ear, hitting "Undo" deletes everything you just did.

The "Short Stroke" Technique:

• Action: Tap-drag-lift. Tap-drag-lift.
• Why: By making short erasing strokes, the "Undo" button becomes a precise surgical tool rather than a nuclear option.

Phase 4: Shape Splitting & Parameter "Sweet Spots"

Geri uses the Select Tool to draw a line across the bear's waist. She is splitting the single object into two closed shapes.

The Physics of the Split: Your dividing line must touch the black outline on both sides. Think of it like a water container; if there is a gap, the "digital water" (the fill stitch) will leak out.

Dialing in the Texture: Stippling

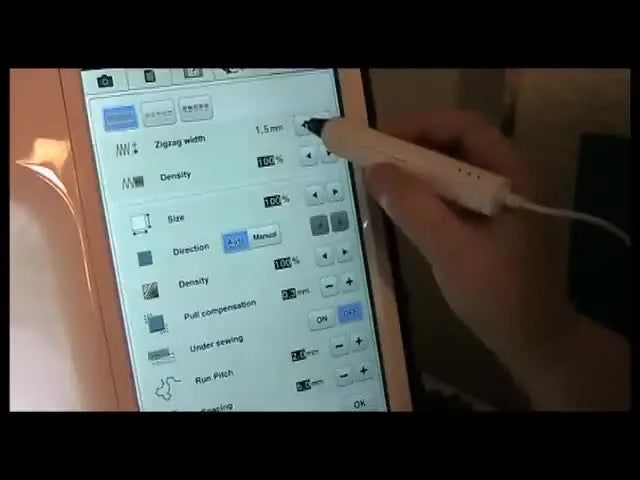

Geri applies a stippling (meandering) fill. Then she goes to the properties menu to tighten it up.

Let’s analyze her numbers and establish a Safe Range for you.

Hidden Consumables Alert:
Do you have the right needle? For a design with this much texture (stippling + satin), a dull needle will cause "birdnesting." Install a fresh size 75/11 embroidery needle before you start stitching.

Setup Checklist: Before You Press "Set"

• Closure Check: Are all your split shapes fully closed? (Do they fill with color when tapped?)
• Artifact Sweep: Did you zoom into the corners to erase stray pixels?
• Memory Save: STOP. Save the design to the machine's pocket memory now. Once you leave this screen, you cannot edit the vector lines again.

Phase 5: Building the Appliqué Label (The Layering Logic)

Geri navigates to the embroidery touch screen. She is building a "Manual Appliqué" label. This confuses many beginners because it requires thinking in layers.

The Logic:

1. Placement Layer: A running stitch that shows you where to put the fabric.
2. Tack-down Layer: A running stitch that holds the fabric down so you can trim it.
3. Cover Layer: A satin stitch that hides the raw edges.

Geri creates a rounded rectangle (Placement). She positions it.

Pro Tip: instead of trying to draw a second identical rectangle, she duplicates the first one and changes the color. This guarantees the "Tack-down" layer is mathematically identical to the "Placement" layer.

Finally, she adds the third rectangle, changes it to a Satin Stitch, and widens it to cover the previous two lines.

Text Centering

She types "BABY" and centers it. Visual Anchor: Do not trust your eyes at 100% zoom. Use the zoom function to look at the gap between the letter "B" and the satin border. The gap should be equal on left and right.

Phase 6: The "Production Mindset" Upgrade

If you are doing one teddy bear for a grandchild, the standard hoops included with your machine are fine. But if you are doing 50 of these for a craft fair, the standard hoops will become your bottleneck.

The Pain Point:

• Traditional hoops require perfect thumb pressure.
• "Hoop burn" (the ring mark) is hard to remove from velvet or corduroy.
• Re-hooping takes 2-3 minutes per garment.

The Professional Solution: This is when you look for a magnetic hoop for brother dream machine or babylock magnetic hoops. These tools use magnetic force to self-level the fabric.

• Speed: Hooping drops from 3 minutes to 15 seconds.
• Quality: No hoop burn.
• Ergonomics: No twisting screws with tired wrists.

Many specialized shops use a hooping station for embroidery to ensure the design lands in the exact same spot on every shirt. If you are struggling with alignment, this is the tool class you need to investigate.

Warning: Magnetic Safety
magnetic embroidery hoops for brother (and other brands) use powerful industrial magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Pacemakers: Keep these magnets at least 6 inches away from implanted medical devices.
* Electronics: Do not place them directly on your laptop or the machine's LCD screen.

Phase 7: The Stitch Out & Troubleshooting

You are ready to stitch.

Sensory Monitoring during Stitching:

• Sound: You should hear a rhythmic thump-thump-thump. If you hear a sharp clack-clack, your needle is dull or hitting a burr.
• Touch: The top thread should flow smoothly. If it jerks, check your spool cap.

Troubleshooting: The "Why Did It Fail?" Matrix

Decision Tree: Stabilizer Strategy

Scanning and auto-digitizing create "node-heavy" designs which can be dense. Proper stabilization is non-negotiable.

START HERE: What is your fabric?

• A. Stretchy (T-shirt, Knit, Polo)
  • Action: YOU MUST USE CUTAWAY STABILIZER.
  • Why: Tearaway will disintegrate under the stippling, causing the bear to distort into a kidney bean shape.
  • Upgrade: Use a fusible mesh cutaway to keep it soft against the skin.
• B. Stable (Denim, Canvas, Heavy Cotton)
  • Action: Use TEARAWAY (Medium to Heavy Weight).
  • Why: The fabric supports itself. The stabilizer just adds rigidity for the satin edges.
• C. Fluffy (Towel, Fleece, Velvet)
  • Action: Use CUTAWAY on the back + WATER SOLUBLE TOPPER on top.
  • Why: The topper prevents the stitches from sinking into the pile and disappearing.

Conclusion: From Fear to Flow

Geri’s final bear is textured, clean, and professional.

The difference between a "home-made" look and a "pro" look wasn't the machine—it was the setup. By using high-contrast lines, precise cropping, the right active stabilizers, and perhaps upgrading your holding method to magnetic embroidery frames, you remove the variables that cause failure.

Embroidery is 20% art and 80% engineering. You have mastered the engineering; now go create the art.

Final Verification Checklist (Operation)

• Bobbin: Is it full? (Running out mid-satin stitch is a nightmare).
• Hoop: Is the fabric "drum-tight" but not stretched?
• Speed: For the heavy satin border, slow the machine down to 600-700 SPM for cleaner edges.
• Watch: Don't walk away during the appliqué framing steps!

FAQ

• Q: How do I get clean auto-digitizing results in Brother My Design Center or Baby Lock IQ Designer when a scanned sketch turns into jagged edges and jump-stitch chaos?
  A: Use high-contrast black lines on white paper and remove “noise” before converting—auto-digitizing only follows contrast boundaries.
  • Trace the artwork with a fine-point black marker and avoid pencil shading.
  • Squint-test the drawing at arm’s length; if the lines look grey or disappear, redraw or photocopy to boost contrast.
  • Zoom in and erase speckles in short strokes (tap–drag–lift) so Undo stays precise.
  • Success check: the preview shows smooth, continuous outlines with no pepper-like dots that would become extra stitches.
  • If it still fails: rescan after securing the paper fully flat so shadows do not create double lines.
• Q: How do I prevent Brother My Design Center or Baby Lock IQ Designer from stitching the scanning magnets or mat edges after scanning?
  A: Crop tightly so only the artwork remains—anything left in the scan area can be converted into stitches.
  • Drag the crop handles to isolate the drawing and remove the magnets from the captured area.
  • Recheck the corners of the crop box before confirming the scan.
  • Success check: the final cropped image contains only the teddy bear lines—no rectangles, borders, or dark blocks near the edges.
  • If it still fails: rescan with magnets placed on the very edge of the paper and clearly outside the drawing area.
• Q: How do I stop “Data too large” errors in Brother My Design Center or Baby Lock IQ Designer after scanning line art?
  A: Remove tiny scan artifacts—too many small nodules can overload the design data.
  • Zoom to high magnification and erase dust-like specks and stray pixels, especially in corners and along outlines.
  • Use short eraser strokes so one mistake does not wipe out all cleanup work.
  • Success check: at high zoom, the background is clean and solid with no scattered dots outside the intended lines.
  • If it still fails: rescan from cleaner, higher-contrast art (solid black on white) to reduce artifacts at the source.
• Q: How do I split shapes correctly in Brother My Design Center or Baby Lock IQ Designer so the fill stitch does not “leak” through an open outline?
  A: Make the split line fully connect to the outline on both sides so each area becomes a closed shape.
  • Draw the dividing line so it touches the black outline at both ends—no gaps.
  • Tap-fill each section to confirm it becomes a closed, color-filled region.
  • Success check: each split area fills cleanly without spilling into neighboring sections.
  • If it still fails: zoom in and repair tiny breaks in the outline where the split meets the border.
• Q: What is a safe starting point for satin and fill settings in Brother My Design Center or Baby Lock IQ Designer to avoid sinking satin stitches or “bulletproof” density?
  A: Start with the blog’s beginner sweet spots and test-stitch before committing to dense areas.
  • Set satin width in the 2.5–3.5 mm range (3.0 mm is a safe default).
  • Keep run pitch around 2.0–2.5 mm (2.4 mm is standard).
  • Start spacing around 3.0 mm for a first test; reduce only if coverage is insufficient.
  • Turn Pull Compensation ON (Low) especially for knits to reduce gaps.
  • Success check: satin columns look smooth (not disappearing into fabric) and fills look even without stiff, board-like fabric.
  • If it still fails: switch to stronger stabilization (for knits, cutaway) before increasing density.
• Q: What stabilizer should I use for auto-digitized Brother My Design Center or Baby Lock IQ Designer designs on knits, denim/canvas, and towels/fleece/velvet?
  A: Match stabilizer to fabric type—node-heavy auto-digitized designs demand proper support.
  • Use cutaway on stretchy knits/T-shirts/polos; tearaway may distort under stippling.
  • Use medium-to-heavy tearaway on stable denim/canvas/heavy cotton.
  • Use cutaway backing plus a water-soluble topper on fluffy towel/fleece/velvet to prevent sink-in.
  • Success check: the stitched bear keeps its shape (no “kidney bean” distortion) and details stay visible on pile fabrics.
  • If it still fails: reduce fabric movement by improving hooping/holding method and recheck Pull Compensation.
• Q: What safety rules should be followed when using the moving scanning frame in Brother My Design Center or Baby Lock IQ Designer, and when handling industrial magnetic embroidery hoops?
  A: Keep hands clear of moving mechanisms and treat embroidery magnets as pinch-hazard tools.
  • Keep fingers and objects away from the scanning carriage while it moves to avoid mechanical damage and injury.
  • Handle magnetic hoops by separating/placing magnets deliberately; do not let them snap together on fingers.
  • Keep strong magnets at least 6 inches away from pacemakers and implanted medical devices.
  • Avoid placing magnets directly on electronics like laptops or embroidery machine LCD screens.
  • Success check: scanning completes without interference and magnets are controlled without sudden snapping or pinching.
  • If it still fails: stop the process immediately and reset—do not force the carriage or fight magnets near sensitive items.
• Q: How do I reduce hoop burn, speed up re-hooping, and improve alignment on production runs when stitching Brother Dream Machine or Baby Lock Destiny appliqué labels?
  A: Optimize technique first, then upgrade holding tools if re-hooping is the bottleneck.
  • Level 1 (technique): hoop fabric drum-tight without stretching and slow down to 600–700 SPM for heavy satin borders.
  • Level 2 (tool): use a magnetic embroidery hoop to reduce hoop burn and cut hooping time dramatically.
  • Level 3 (process): add a hooping station when consistent placement/alignment is the recurring failure point across many garments.
  • Success check: hoop marks are minimal on sensitive fabrics and placement lands consistently from item to item.
  • If it still fails: reassess stabilizer choice and confirm fabric is not shifting during stitching (especially on knits and thick garments).
