From Paper Sketch to Perfect Repeat: Building an End-to-End Quilting Line in Premier+2 Create (Without the Re-Hooping Headache)

Mastering End-to-End Quilting: The Zero-Anxiety Guide to Perfect Repeats in Premier+2

If you’ve ever tried to quilt a large area in-the-hoop and felt your stomach drop at the thought of re-hooping, you are not alone. End-to-end quilting is an "optical illusion" technique: it looks simple on screen, but it relies heavily on composite precision. If your second hooping lands even 2mm off, the join screams at you, and the illusion of a continuous long-arm finish is broken.

However, the workflow Linda demonstrates in Premier+2 is solid, repeatable, and very forgiving once you understand the physics behind the software. You don’t need fancy artwork. A clean, continuous line and disciplined node alignment will get you professional-looking results.

This guide will deconstruct the process into an industrial-grade Standard Operating Procedure (SOP), ensuring that both your digital file and your physical machine are perfectly synced.

The Calm-Down Truth: Why Quilting Designs Fail (And How to Fix It)

When users panic with end-to-end quilting, it is rarely "user error" in the traditional sense. It is usually a mismatch between intent and physics. Failures happen for three specific reasons:

1. Wrong Stitch Type: Using standard digitizing tools (like ExpressDesign Trace) creates Satin or Tatami stitches, which are too heavy for quilting. You need a Single Run stitch.
2. Geometry Drift: The start and end points do not sit on the exact same X/Y axis plane.
3. Hoop Distortion: The software file is perfect, but the fabric was stretched during re-hooping.

Linda’s approach fixes the first two inside the software, then utilizes the Endless Wizard to handle the third (alignment).

Expectation Setting: This is an intermediate workflow. If you are comfortable with basic editing but get lost in Precise Create, this guide is your roadmap. We will focus heavily on running stitch settings (the "how") and node discipline (the "where").

Phase 1: The "Hidden" Prep (Paper, Geometry, and Scanners)

Before you touch a mouse, the repeat quality is decided on your drafting table. Digital tools cannot fix a fundamentally flawed sketch without significant labor.

The Margin Strategy

Linda starts with a standard 8.5" x 11" sheet of paper. Action: Draw a 1-inch physical margin all the way around the paper using a ruler.

• Why: This margin is your "Safety Zone." It ensures that when you digitize, you have room to manipulate placement without crashing into the hard plastic limits of your embroidery hoop.

The Golden Rule of Continuity

Linda highlights the single most important design rule for end-to-end quilting: Your start point and end point must sit on the same parallel horizontal line.

If Point A (Start) is at Y=0, Point B (End) must also be at Y=0. If they deviate, your quilt pattern will "stair-step" up or down the fabric with every repeat, eventually running off the edge of the quilt.

In this example, the effective drawing area is 9 inches wide by 6.5 inches tall. These specific numbers are crucial because they dictate the scale you will enter into the software.

Scanner Hygiene: Reducing Signal Noise

Scanners are sensitive. They pick up paper grain, shadows, and eraser marks. Action: When importing your sketch, select the option to reduce the image to 2 Colors (Black/White) in the import wizard.

• Sensory Check: Look at the preview. Do you see crisp, jagged pixel lines (Good), or fuzzy gray edges (Bad)? You want crisp lines. This reduces "Node Clutter"—finding 500 nodes where you only need 50. Fewer nodes equal smoother curves and less thread breakage.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Sketch created on 8.5" x 11" paper with a confirmed 1" margin.
• Start/End points verified to be on the same horizontal plane (use a ruler).
• Target dimensions confirmed: 9" Width x 6.5" Height.
• Line path is continuous (no pen lifts or breaks).
• Scan settings: High contrast, reduced to 2 colors.

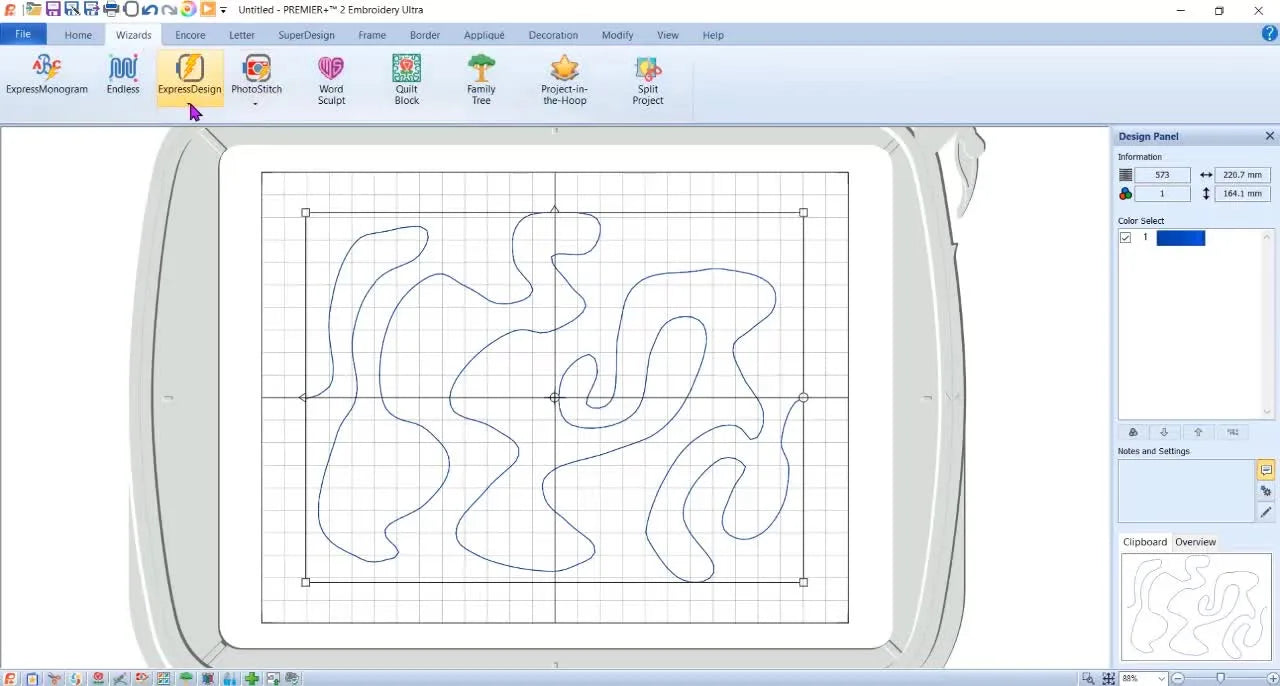

Phase 2: Software Setup (Evading the ExpressDesign Trap)

Linda is very direct: Do NOT use ExpressDesign for quilting.

ExpressDesign helps you make logos quickly. It defaults to fill patterns and varying line weights. Quilting requires a single, uniform thread path that behaves like a hand-guided needle.

Action:

1. Click the Flower Icon to open the Create Module.
2. Select “Load a picture into the paint window”.

This keeps you in control of the stitch type from the very first click.

The 90-Degree Shift

In the import wizard, Linda rotates the scanned image 90 degrees. Why: Western embroidery machines and software logic favor a Left-to-Right workflow. It is cognitively easier to visualize the quilt "feeding" through the machine from left to right.

Critical Detail: Drag the crop handlebars so the margin box you drew on paper is excluded. You only want the quilting line itself.

The Hoop-First Logic

Novices often scale the design first, then pick a hoop. This is dangerous. Correct Order:

1. Set the Hoop Size: 260mm x 200mm.
2. Enter Design Width: 9 inches (Software will convert to mm).

By setting the boundary (Hoop) before the object (Design), you prevent scaling artifacts.

Phase 3: Precise Create & Stitch Physics

Now we enter the technical core. This section determines how the thread interacts with your quilt sandwich (Top + Batting + Backing).

Setting the Stitch Length

In Precise Create:

1. Select Running Stitch.
2. Ensure Pattern Fill is set to "None" or "No Fill."
3. Open Fill Area and Line properties.
4. Set Length to 3.0mm.

Expert Insight: The industry standard for standard embroidery is 2.0mm - 2.5mm. However, for quilting, 3.0mm is the sweet spot.

• Why: A standard 2.0mm stitch will disappear into the loft of the batting, making the quilt look "pinched." A 3.0mm stitch sits slightly on top of the fabric loft, mimicking the look of traditional long-arm quilting.


Warning (Mechanical Safety): Keep hands clear of the needle bar during test stitch-outs. Quilting often involves bulky fabric bundles. Ensure the bulk of your quilt does not drag against the carriage arm or get caught under the needle clamp, which can cause needle deflection and catastrophic shattering.

Tracing the Path: Node Discipline

Linda traces the background line by clicking to place nodes. Technique: Place fewer nodes than you think you need.

• Left Click: Square node (Straight line).
• Right Click: Round node (Curve).

Sensory Anchor: You are not tracing a map; you are driving a car. You don't turn the steering wheel for every pebble (pixel). You aim for the smooth curve of the road. If you place a node every 2mm, your machine will sound like a machine gun (stuttering braking) rather than a smooth hum.

Troubleshooting: If your screen looks different than Linda's (missing tools), check the View Tab. Panels specifically regarding hooping for embroidery machine parameters or grid visibility are often toggled off by default in fresh installations.

Phase 4: The Anchor Point Strategy (Grid Alignment)

This step separates amateur experiments from professional production.

Action: Enter Edit Mode (Right-Click) and drag the Start Node and End Node to snap specifically to the Grid Lines.

• The concept: The grid is your absolute truth. If the Start Node is on Grid Line Y=4 and the End Node is on Grid Line Y=5, your quilt pattern will tilt.
• The Fix: Snap both to Grid Line Y=0 (or whichever line serves as your center).


The Physical Reality Check

Digitizing a perfect straight line is easy. Getting fabric to stay straight is hard. Fabric is fluid; it stretches and warps. If you are struggling with "drifting" repeats where the pattern starts slightly higher or lower each time, the issue is likely Hoop Distortion or "Hooping Tension Variance."

Tool Upgrade Path: This is where magnetic embroidery hoops become essential for quilters. Traditional screw-tightened hoops force you to pull and distort the fabric to get it taut ("drum tight"). Magnetic hoops clamp straight down without pulling, preserving the grain line of your fabric. If you cannot get your repeats to match despite perfect software files, the variable tension of your physical hooping is the culprit.

Phase 5: Verification & Transfer

Linda uses the Design Player to preview the stitch-out. Visual Check: Watch the virtual needle. Does it flow continuously from Left to Right? Does it jump back? Does it cross over itself? If it looks smooth here, it will sound smooth on the machine.

Transfer to Embroidery Module

1. Copy Embroidery from Create.
2. Open Premier+2 Embroidery (ensure a new window).
3. Set Hoop to 260mm x 200mm.
4. Crucial: Change Orientation to Natural.
5. Paste the design.




This workflow bypasses complex export dialogs and places the design exactly where the machine expects it.

Phase 6: The Endless Wizard (Automating Alignment)

This is the feature that removes the guesswork from re-hooping. Action: Go to Wizards Tab > Endless.

The software automatically injects Alignment Stitches (usually crosshairs or corner brackets) at the very start and very end of the file.

• Workflow:
  1. Machine stitches the Start Markers.
  2. Machine stitches the Quilt Pattern.
  3. Machine stitches the End Markers.
  4. You re-hoop the fabric.
  5. You use the machine's laser or needle drop to match the new Start Markers to the previous End Markers.

This turns vague "eyeballing" into a precise mechanical process, utilizing the concept of an endless embroidery hoop workflow without requiring expensive specialized frames.

Setup Checklist (Software Finalization)

• Stitch length verified at 3.0mm.
• Start/End nodes snapped to the same grid line.
• Jump Stitch Trim Command disabled (optional: prevents knots at connection points, see below).
• Endless Wizard successfully applied alignment markers.

Phase 7: Physical Production & Materials (The Hidden Consumables)

Software perfection means nothing if your materials fail.

Handling Starts and Stops

Linda mentions that Create adds tie-offs (knots) by default. For seamless quilting, knots at the connection points can be visible lumps. Advanced Fix: Turn off Jump Stitch Trim Command.

• Result: The machine will stop but not cut/knot. You can then pull the bobbin thread up manually and hand-knot it later for a truly invisible museum-grade finish.

Decision Tree: Stabilizer & Hooping Strategy

"Quilting" typically implies you are stitching through three layers: Top Fabric + Batting + Backing. Do you need stabilizer?

Follow this logic:

1. Is the quilt sandwich thick (high loft batting)?
   • Yes: You may not need stabilizer. The batting supports the stitch.
   • Action: Use a hooping station for embroidery to ensure all three layers are smooth, then clamp.
2. Is the fabric slippery/stretchy (Minky, Silk, Jersey)?
   • Yes: You MUST use stabilizer.
   • Recommendation: Use Poly-Mesh Cutaway. It minimizes bulk but prevents the "stretch distortions" that ruin alignment keys.
3. Are you experiencing "Hoop Burn"?
   • Symptom: Permanent ring marks on delicate fabrics (velvet/satin) from tightening the hoop screw.
   • Solution: This is a hardware limit. Professional shops switch to embroidery hoops magnetic systems immediately for these fabrics to eliminate burn marks entirely.

Warning (Magnet Safety): High-power magnetic frames are industrial tools. They pose a severe pinch hazard. Keep fingers away from the contact zone when snapping them shut. strictly clear of pacemakers and medical implants. Store away from credit cards and machine data screens.

Troubleshooting: From Symptom to Solution

The Scale-Up Strategy: When to Upgrade

If you are quilting occasionally, this software-based workflow is perfect. However, if you are moving into production or finding physical limitations, consider the following upgrades based on your bottlenecks:

1. Bottleneck: Wrist Pain / Hooping Speed
   • Solution: Magnetic Hoops. They are faster to load and significantly reduce strain on the operator's wrists. Terms like magnetic hooping station describe systems that allow you to prep the next hoop while the machine is running, doubling your efficiency.
2. Bottleneck: Throat Space
   • Solution: Multi-Needle Machine (SEWTECH/Ricoma style). Domestic machines have limited "throat space" (the gap between needle and motor). Rolling a King Size quilt into a small domestic throat is a nightmare. Semi-industrial machines offer open architecture, making end-to-end quilting feasible for large items.
3. Bottleneck: Alignment Accuracy
   • Solution: Laser Alignment Systems. While the Endless Wizard uses stitch markers, higher-end machines with built-in laser crosshairs make matching those markers 5x faster.

By combining Linda's digital precision with disciplined physical preparation, you transform your embroidery machine into a quilting powerhouse. Remember: The software handles the math; tight hooping handles the reality.

FAQ

• Q: In Premier+2 Create Module, why does ExpressDesign Trace create heavy quilting that looks “packed” instead of a light quilt line?
  A: Avoid ExpressDesign Trace for quilting and digitize the line as a Single Run (Running Stitch) with no fill.
  • Action: Open the Create Module (flower icon) and choose “Load a picture into the paint window” instead of ExpressDesign.
  • Action: Set stitch type to Running Stitch and set Pattern Fill to None/No Fill.
  • Success check: The preview shows one clean continuous line path (not satin columns or tatami areas).
  • If it still fails: Re-import the artwork as high-contrast black/white to prevent the software from “finding” unwanted shapes.
• Q: In Premier+2 Precise Create, what running stitch length should be used for in-the-hoop quilting so stitches do not disappear into batting loft?
  A: Set the Running Stitch length to 3.0 mm as a safe quilting starting point.
  • Action: Open Fill Area and Line properties and set Length to 3.0 mm.
  • Action: Keep the design as a continuous single run (no fill).
  • Success check: On a test stitch-out, the line sits visibly on top of the quilt surface instead of looking thin and “buried.”
  • If it still fails: Increase slightly (for example, toward 3.5 mm) and re-test, and confirm the batting is not excessively high-loft.
• Q: In Premier+2 end-to-end quilting repeats, what causes “stair-stepping” drift up or down after each re-hoop even when the design looks aligned?
  A: Stair-stepping usually happens when the Start Node and End Node are not on the exact same grid line in Edit Mode.
  • Action: Enter Edit Mode (right-click) and drag Start Node and End Node to snap to the same grid line (same Y position).
  • Action: Confirm the original sketch rule: start point and end point must be on the same horizontal line before digitizing.
  • Success check: In preview, the start and end of the repeat sit perfectly level; on fabric, each repeat lands without creeping upward/downward.
  • If it still fails: Check for hoop distortion from re-hooping tension variance (fabric stretching during clamping).
• Q: When scanning a quilting sketch for Premier+2, how can excessive nodes and “dirty” tracing be reduced before using Precise Create?
  A: Re-import the scan using a strict 2-color (black/white) setting to remove gray noise and reduce node clutter.
  • Action: In the import wizard, select the option that reduces the image to 2 Colors (Black/White).
  • Action: Crop out the hand-drawn margin box so only the quilting line remains.
  • Success check: The preview edges look crisp (not fuzzy gray), and tracing needs fewer nodes for smooth curves.
  • If it still fails: Re-scan with better contrast and cleaner paper (erase smudges/shadows before scanning).
• Q: In Premier+2 Endless Wizard end-to-end quilting, what causes a 1–3 mm gap between repeats after re-hooping, and what is the fastest fix?
  A: A small gap is most often fabric slip during stitching or inconsistent hoop tension during re-hooping.
  • Action: Add stabilization support (for example, float a sheet of tear-away) to improve grip and reduce shifting.
  • Action: Re-hoop with consistent clamping pressure and keep the fabric grain straight (avoid stretching “drum tight”).
  • Success check: The new Start Markers match the previous End Markers cleanly, and the stitched join is visually seamless.
  • If it still fails: Upgrade the hooping method to reduce distortion (magnetic clamping often helps because it clamps down without pulling).
• Q: What mechanical safety steps should be followed when test-stitching bulky in-the-hoop quilting on an embroidery machine to prevent needle deflection or needle breakage?
  A: Keep hands clear and reduce risk from bulk drag—bulky quilt bundles can deflect and snap needles.
  • Action: Keep fingers away from the needle bar area during stitching, especially during test-outs.
  • Action: Manage the quilt bulk so it cannot drag on the carriage arm or catch under the needle clamp.
  • Success check: The machine runs with a smooth, steady sound and no “thumping” or sudden fabric snagging.
  • If it still fails: Slow the machine down (the blog’s example is 600 SPM for thick quilts) and re-check for seam thickness under the needle path.
• Q: What magnet safety rules should be followed when using industrial magnetic embroidery hoops for quilting alignment to avoid pinch injuries and device interference?
  A: Treat magnetic hoops as high-force tools: prevent pinch points and keep magnets away from sensitive devices.
  • Action: Keep fingers out of the contact zone when snapping the magnetic frame closed (pinch hazard).
  • Action: Keep magnetic frames strictly away from pacemakers/medical implants and away from credit cards.
  • Success check: The frame closes in a controlled way without finger strain, and fabric remains flat without being stretched.
  • If it still fails: Switch to a slower, two-handed closing technique and reorganize the workspace so the hoop can be set down and aligned safely.
• Q: For end-to-end quilting repeats that still misalign after perfect Premier+2 grid snapping and Endless Wizard markers, what is the “pain–diagnosis–prescription” upgrade path?
  A: Start with technique, then reduce hoop distortion with better clamping, then upgrade machine capacity if throat space is the bottleneck.
  • Action: Level 1 (Technique): Re-check Start/End nodes on the same grid line and verify stitch length at 3.0 mm.
  • Action: Level 2 (Tool): Reduce re-hooping distortion by switching from screw-tight hoops to magnetic hoops that clamp without pulling fabric grain.
  • Action: Level 3 (Capacity): If rolling large quilts into a small domestic throat is causing handling drift, consider moving to a multi-needle machine with more throat space.
  • Success check: Repeats land consistently across multiple hoopings with no visible drift or gaps.
  • If it still fails: Add alignment aids (laser/needle-drop matching to the stitched markers) and re-evaluate fabric stability (slippery/stretchy fabrics may require Poly-Mesh Cutaway).
