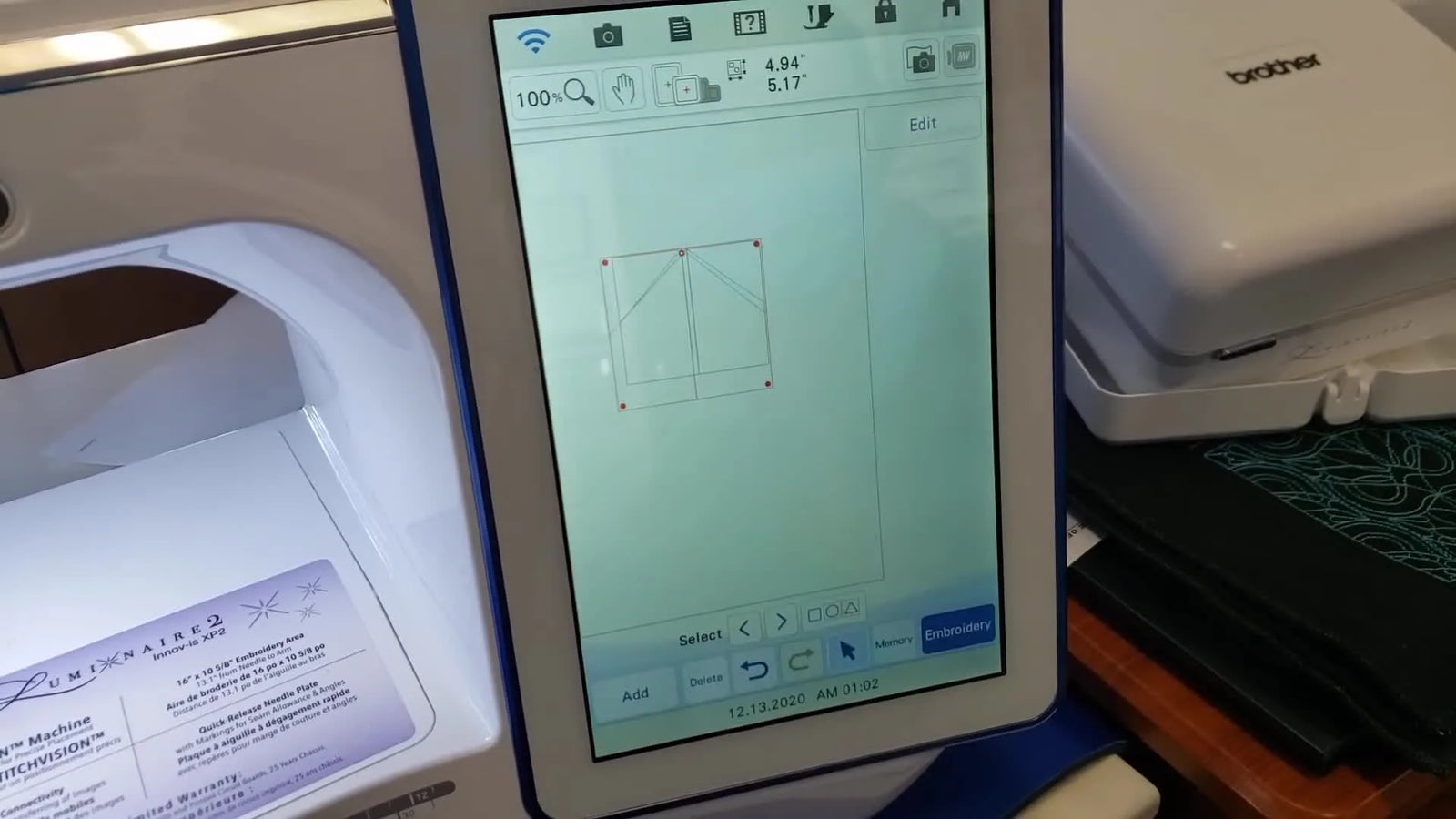

From Paper Sketch to Perfect Appliqué on a Brother Luminaire: The 3-Layer IQ Designer Workflow That Actually Lines Up

How to Master IQ Designer Appliqué: The Zero-Frustration Guide

The Gap Between "Hand-Drawn" and "Machine-Ready"

If you’ve been binge-watching tutorials and still can’t get a simple line drawing to behave, you’re not alone. I’ve seen experienced stitchers lose hours because one tiny menu choice (or one tiny erased pixel) turns a “quick appliqué” into a mess of rework. The frustration is real: you drew it perfectly, but the machine stitches a disaster.

This post rebuilds the exact workflow shown in the video—scanning a hand-drawn illustration, stripping it of noise, and creating a robust 3-layer appliqué file inside the Brother Luminaire’s IQ Designer (or My Design Center). However, I will add the veteran-level safety checks that prevent the most common failures: misaligned layers, "ghost" scan artifacts, and outlines that break right when the needle is moving at 800 stitches per minute.

1. Calm the Panic: It’s Not Your Drawing, It’s the "Scan Mode"

The whole method hinges on one binary decision at the very beginning. When you enter IQ Design Center / My Design Center and tap Scan, you are presented with options. If you choose wrong here, no amount of editing will save you.

The Action: You must choose Scan Type: Line Design.

The Logic:

• Line Design: The machine looks for high-contrast edges and converts them into vector paths. This is what we need for appliqué outlines.
• Illustration: The machine tries to recognize colored areas to create fills (satins/tatami). This creates a heavy, messy file you don't want.
• Image Scan: This merely puts a picture on the screen as a background; it creates zero stitch data.

So if your previous attempts felt “mysteriously wrong,” it wasn’t your artwork skills—it was the machine trying to process a line as a shape.

2. The "Hidden" Prep Pros Do: Paper, Mechanics, and Gravity

Before you press that blue "Start" button, we need to talk about physics. The scanner is sensitive; if your paper breathes, shifts, or curls by a millimeter, your outline will look like a seismograph reading.

The Professional Setup

• Artwork: Use a black permanent marker on white paper. High contrast is non-negotiable.
• The Frame: Use the dedicated Scanning Frame.
• Stabilization: This is where amateurs use tape and pros use physics.

In the video, the presenter uses green magnets to hold the paper. Note her hesitation: she doesn't use them unless she has to. Why? Because magnets can create shadows that the scanner interprets as "ink," forcing you to erase them later.

However, if you are working in a room with a ceiling fan (drafts) or using curled paper, you must secure the artwork. This need for "secure holding without obstruction" is exactly why serious embroiderers eventually look for tools like a brother luminaire magnetic hoop for their actual embroidery. The principle is the same: if the material moves, the design fails.

Warning (Magnetic Safety): High-power magnets (neodymium) used in embroidery are industrial strength. Keep them away from pacemakers, insulin pumps, and sensitive electronics (like screens). They can pinch skin severely—never let two magnets slam together with your finger in between.

Prep Checklist: The "Pre-Flight" Scan

• Contrast Check: Is the line drawing bold, continuous, and closed? (Faint pencil lines will fail).
• Frame Check: Is the Scanning Frame clicked securely into the carriage? Listen for the mechanical "snap."
• Magnet Check: If using magnets, are they placed at the extreme edges of the paper, far away from the drawing?
• Safety Check: Ensure no magnets are stacking or interfering with the machine head's movement path.

3. Magnet Placement: The "Far-Edge" Rule

In the video, the magnets are positioned at the bottom of the frame, inches away from the bird drawing. This is critical.

The Symptom: If you place magnets close to the line art, the scanner sees them as dark blobs. The Fix: Treat your drawing like a VIP zone. Nothing enters its perimeter.

This concept of "obstacle avoidance" is crucial. In production shops, we use specific jigs or a magnetic hooping station to ensure that every time we load a garment or a piece of paper, it lands in the exact same distinct spot, free from interference. Consistency reduces the cleanup time from minutes to zero.

4. Crop + Grayscale: Tight Enough to Clean, Loose Enough to Keep

Once the scan completes, you are faced with the result. It usually looks grainy. Don't panic; this is raw data.

Step A: The Crop

Drag the red arrows to crop the scan area.

• Goal: Crop out the magnets and the edge of the paper.
• Risk: Do not crop off the "tail feathers." In the video, the crop is tight (4.07" x 4.76") but leaves a margin around the ink.


Step B: The Grayscale Slider

This is your Threshold control.

• Action: Slide it toward "Darker" or "Lighter" while watching the preview window.
• Visual Anchor: Look for the moment your sketched lines turn solid black. If you go too far, the texture of the paper might start appearing as "speckles" (noise). If you don't go far enough, the lines will look like dashed Morse code. Find the sweet spot where the line is solid but the background is white.

Pro Tip: As soon as you hit OK, save the file to the machine's memory. This is your "Save Game" point. If the power blinks, you don't want to re-scan.

5. The "False Vision" Trap: Zero Opacity is Mandatory

This is the single most valuable technical tip in the entire workflow.

After the scan processes, your screen will show your digitized lines superimposed over the original scanned image. The Trap: Your brain sees the original image and thinks the lines are connected. They might not be. The Fix: You must reduce the Background Image Opacity to Zero.

When you fade out the background, you are left with only what the machine sees. You will suddenly spot the gaps, the disconnects, and the messy pixels that were hiding in plain sight.

6. Fast Cleanup Strategy: Bulk Delete vs. Surgeon's Scalpel

You don't want to tap the screen 500 times to erase noise. Use the efficient method shown in the video.

Phase 1: The Sledgehammer (Select Point Tool)

Use the Select Point tool (often looks like a lasso or box selector).

1. Draw a box around the "garbage" (scan noise, magnet shadows, or parts of the drawing you don't want, like the feet/beak if separating them).
2. Hit Delete.
3. Result: 90% of the cleanup is done in 5 seconds.


Phase 2: The Scalpel (Eraser at 400% Zoom)

Now, switch to the Eraser tool.

1. Zoom: Pinch-to-zoom to 400% (or max).
2. Hunt: Look for "nubs"—tiny stray pixels sticking out of your smooth line.
3. Technique: Start erasing away from the line and move toward it. If you start on the line, you risk cutting it.


Warning (Mechanical Safety): When transitioning from screen editing to stitching, ensure your hands are clear of the needle case. Also, never leave a stylus or pen on the machine bed; vibrations can walk it right into the moving hoop mechanism.

The "Invisible" Pixel

In the video, the presenter accidentally breaks the main outline by erasing one pixel too many. She notes it "doesn't matter" for a run stitch, but be warned: if you want to use the Paint Bucket fill tool later, that line must be watertight. A single missing pixel causes the "color" to leak out and fill the entire background.

Visual Check: Trace the entire perimeter with your eyes at 400% zoom. Ensure the road is unbroken.

7. The 3-Layer Appliqué Stack: Placement, Tack, Finish

We do not redraw the bird three times. We use the "Retrieve from Memory" function to stack perfect copies. This guarantees perfect registration (alignment).

Layer 1: The Target (Placement Stitch)

1. With your clean bird on screen, open Line Property.
2. Select Single Run Stitch.
3. Color: Red (Industry standard for "Stop and Look").
4. Use the Paint Bucket to apply this to the line.
5. Press Set.




Layer 2: The Anchor (Tack-Down)

1. In the Embroidery Edit screen, tap Add.
2. Go back to IQ Designer, retrieve the same saved bird shape.
3. Do Not Move It. This is critical. It must sit exactly on top of the previous layer.
4. Open Line Property > Select Bean Stitch (Triple Run).
   • Why Bean Stitch? It runs back-and-forth (1-2-1), creating a thicker, stronger knot that holds the fabric down securely against the pull of the satin stitch later.
5. Color: Blue.
6. Paint Bucket > Set.




Layer 3: The Beauty (Satin Finish)

1. Tap Add one last time.
2. Retrieve the bird again.
3. Open Line Property > Select Satin Stitch.
4. Adjust visual settings (Width: 3.0mm - 3.5mm is a good starting safe zone).
5. Color: Teal/Yellow (Final color).
6. Use the Fill Tool to color in solid areas like the beak.
7. Set.




You now have a professional-grade appliqué file created entirely on-screen.

8. The Physical Reality: Fabric, Hoops, and "Hoop Burn"

You have a perfect digital file. Now, physics takes over. Appliqué fails when the fabric slips between Layer 1 (Placement) and Layer 2 (Tack-down).

The Struggle with Traditional Hoops

Traditional inner/outer ring hoops rely on friction. To hold fabric tight, you have to torque the screw.

• The Pain: This leaves "hoop burn" (crushed fibers) on delicate fabrics or velvet.
• The Risk: If you don't tighten enough, the fabric ripples during the tack-down, creating permanent wrinkles under the satin stitch.

This is exactly why many Brother Luminaire users switch to magnetic hoops for brother luminaire. These frames use vertical magnetic force rather than horizontal friction. They clamp the fabric without crushing the fibers and, crucially, they make it much easier to float appliqué materials without distorting the grain.

9. Troubleshooting Guide: Symptom → Cause → Fix

10. Decision Tree: Stabilizer & Tool Strategy

Scenario: What are you stitching on?

• A. T-Shirt / Stretchy Knit:
  • Stabilizer: Fusible No-Show Mesh (Cutaway).
  • Hooping: Do not stretch the shirt. Here, magnetic embroidery hoops for brother are superior because they don't force-stretch the knit during hooping.
  • Needle: Ballpoint 75/11.
• B. Quilting Cotton / Woven:
  • Stabilizer: Tear-away (Medium weight).
  • Hooping: Standard tightness (sound of a drum tap).
  • Needle: Universal or Sharp 75/11.
• C. Towel / Fleece:
  • Stabilizer: Cutaway (bottom) + Water Soluble Topping (top).
  • Action: The topping prevents the satin stitch from sinking into the pile.

Hidden Consumables: Always keep temporary spray adhesive (like KK100 or 505) and a water-soluble marking pen on hand. They are the duct tape of the embroidery world.

11. The Upgrade Path: Moving from Hobby to Production

Once you master this workflow, you might find that your bottleneck isn't designing—it's doing.

Level 1: Workflow Efficiency

If you are doing production runs (e.g., 20 team shirts) and dread the re-hooping process, a brother magnetic embroidery frame is the logical first upgrade. The ability to just "snap and go" reduces wrist strain and setup time by about 30%.

Level 2: Machine Capability

If you find yourself constantly changing thread colors or fighting with thick seams that your single-needle machine can't clear, consider that you may be outgrowing your current setup.

• The Sign: You are turning down orders because they "take too long."
• The Solution: Multi-needle machines (like those from SEWTECH or Brother) allow you to set up 6-10 colors at once. Combined with a magnetic frame for embroidery machine, you transform from a "crafter" into a "manufacturer."

Operation Checklist: The Stitch-Out Sequence

• Thread Up: Ensure bobbin has enough thread for the satin stitch (running out mid-satin is a nightmare).
• Layer 1 (Placement): Run the Red line. machine stops.
• Action: Spray back of appliqué fabric lightly with adhesive, place over the red line.
• Layer 2 (Tack-down): Run the Blue Bean stitch. Machine stops.
• Action: Remove hoop (or slide out if supported), trim fabric 1mm from the stitching line. Use curved appliqué scissors.
• Layer 3 (Finish): Return hoop. Run the Satin stitch.
• Success: Remove and inspect.

By respecting the scan type, forcing visibility with opacity settings, and securing your materials physically, you turn a frustrating hour of editing into a 10-minute victory lap. Consistency is key—happy stitching!

FAQ

• Q: How do I choose the correct Brother Luminaire IQ Designer Scan Type for hand-drawn appliqué line art (Line Design vs Illustration vs Image Scan)?
  A: Select Scan Type: Line Design because it converts high-contrast edges into stitchable line paths.
  • Tap Scan in IQ Designer / My Design Center and choose Line Design (not Illustration, not Image Scan).
  • Draw using black permanent marker on white paper to maximize contrast before scanning.
  • Re-scan immediately if the preview looks “heavy” or filled when only an outline was intended.
  • Success check: The result behaves like clean editable line paths, not a photo background and not dense fill regions.
  • If it still fails: Re-check paper contrast and redo the scan after securing the paper so it cannot shift or curl.
• Q: How do I prevent Brother Luminaire scanning magnets from creating blobs or “ghost” artifacts in IQ Designer scans?
  A: Keep magnets at the extreme edges and crop them out so the scanner never “sees” them as ink.
  • Place magnets inches away from the drawing area (treat the artwork as a no-go zone).
  • Crop the scan tightly to exclude magnets and paper edges before adjusting grayscale.
  • Adjust the grayscale/threshold until lines go solid black without background speckling.
  • Success check: The scanned outline contains no dark blobs near the art and the background stays clean white.
  • If it still fails: Remove magnets entirely and flatten the paper using the scanning frame setup (shadows can be interpreted as marks).
• Q: Why does Brother Luminaire IQ Designer show connected lines during editing, but the embroidery outline breaks or the fill “leaks” later?
  A: Set Background Image Opacity to zero so only the true digitized stitches are visible and gaps are obvious.
  • Reduce Background Image Opacity all the way down before any cleanup decisions.
  • Zoom to 400% and visually trace the entire perimeter to find tiny breaks or stray pixels.
  • Use Undo if an eraser pass removes a critical pixel that needs to stay closed for fills.
  • Success check: With opacity at zero, the outline remains continuous with no gaps anywhere along the perimeter.
  • If it still fails: Re-run grayscale adjustment and re-clean using box-select delete first, then eraser refinement.
• Q: What is the fastest cleanup method for Brother Luminaire IQ Designer scan noise without tapping the screen hundreds of times?
  A: Delete in bulk first with Select Point, then refine at high zoom with the Eraser.
  • Box-select large unwanted areas (noise, shadows, unwanted parts) using Select Point and press Delete.
  • Zoom to 400% and use the eraser to remove “nubs” (tiny stray pixels) that snag satin edges.
  • Erase from outside toward the line to avoid cutting through the outline.
  • Success check: The line looks smooth at maximum zoom and does not have spikes, dots, or accidental breaks.
  • If it still fails: Lower background opacity to zero again and repeat cleanup—most misses are hidden by the scan image overlay.
• Q: How do I build a 3-layer appliqué file on Brother Luminaire IQ Designer so the placement stitch, tack-down, and satin finish stay perfectly aligned?
  A: Use Retrieve from Memory to stack the same saved shape three times and never move Layer 2 or Layer 3.
  • Create Layer 1: Set Single Run Stitch (often colored red) for placement, then Set.
  • Tap Add, retrieve the same design, and create Layer 2: Set Bean Stitch (Triple Run) (often colored blue) for tack-down.
  • Tap Add again, retrieve the same design, and create Layer 3: Set Satin Stitch and start with 3.0–3.5 mm width as a safe starting point.
  • Success check: The second and third layers sit exactly on top of the first with no visible offset in the preview/edit screen.
  • If it still fails: Delete the shifted layer and re-retrieve from memory—manual dragging during the Add phase is the most common cause.
• Q: How do I stop appliqué fabric from shifting between the Brother Luminaire placement stitch and tack-down stitch (puckers or wrinkles under satin)?
  A: Improve physical control: stabilize correctly and secure the appliqué fabric before the tack-down runs.
  • Match stabilizer to fabric: use cutaway for knits; use tear-away (medium) for woven cotton; use cutaway + water-soluble topping for towel/fleece.
  • Apply temporary spray adhesive lightly to the back of the appliqué fabric before running the tack-down.
  • Avoid over-torquing traditional hoops on delicate fabrics to reduce hoop burn; magnetic clamping may help hold without crushing fibers.
  • Success check: After the tack-down, the appliqué fabric lies flat with no ripples before trimming and satin finishing.
  • If it still fails: Upgrade stabilizer support first; if hoop pressure is causing distortion or hoop burn, consider switching to a magnetic hoop system for more even holding.
• Q: What safety rules should embroidery operators follow when using high-power magnetic embroidery hoops/frames and when transitioning from on-screen editing to stitching?
  A: Treat magnets and moving hoops as industrial hazards: protect hands, electronics, and medical devices before running the machine.
  • Keep neodymium magnets away from pacemakers, insulin pumps, and sensitive electronics (including screens).
  • Prevent pinch injuries: never allow two magnets to snap together with fingers between them.
  • Clear the work area before stitching: keep hands away from the needle case and never leave a stylus/pen on the machine bed where vibration can push it into the hoop path.
  • Success check: The hoop path is unobstructed, hands are clear, and magnets are controlled/secured before pressing Start.
  • If it still fails: Stop the machine immediately and re-check magnet placement and bed clearance before resuming.
