From Paper Note to Stitches on a Brother Stellaire/Luminaire: The Clean, Fast Way to Digitize Handwriting in My Design Center (Without Ugly Blobs)

A handwritten note is one of those fragile treasures you think you’ll keep forever—until it fades in the sun, tears in a move, or disappears into the chaos of a junk drawer. Thread, however, is permanent.

If you own a Brother Innov-is embroidery machine in the Stellaire or Luminaire family (or a Baby Lock with the same IQ Designer ecosystem), you have the power to immortalize that handwriting without spending a dime on external digitizing software. But here is the hard truth from twenty years on the shop floor: Software is only 50% of the battle.

Catherine’s workflow in the source video is brilliant and beginner-friendly, but as we move through her process, I am going to add the "invisible" safety checks—the sensory details, the stabilizer physics, and the hooping realities—that make the difference between sweet, legible sentiment and a distorted, unreadable mess.

Below is your "White Paper" guide to this process: scanning, cleaning, stitch conversion, and finally—the part most people get wrong—mechanically stabilizing a zipper pouch so the machine doesn't eat it.

The calm-first reality check: Brother My Design Center handwriting can look amazing—if you control the scan

Handwriting embroidery usually fails for two predictable reasons: the scan is "dirty" (low contrast), or the stitch settings are too heavy for the delicate lines of a pen.

Catherine starts with a child’s note (“To Mama…”) and turns it into stitches using the machine’s built-in Line Mode. The cognitive shift you need to make here is simple: You are not creating a photograph. You are telling the machine to recognize the edges of the ink.

If you are already feeling that tightening in your chest—the fear of "mystery stitches" or missing punctuation—take a breath. The machine is a binary creature; it sees contrast or it sees nothing. Your job is simply to feed it a clean, high-contrast source and then thin the stitch line so it mimics the flow of ink rather than the blockiness of a marker.

The “hidden” prep that saves you an hour: scan clean, name the file, and keep the paper honest

Catherine’s first move is to scan the physical note to a computer as a JPEG, then put that JPEG on a USB stick. In the video, this happens in seconds. In real life, this is where 30% of quality issues are born.

The "Invisible" Consumables: Before you start, grab a microfiber cloth and glass cleaner.

What experienced operators do (that isn't always in the manual):

1. Clean the Bed: Wipe dust off your scanner glass. To a high-sensitivity scan, a speck of lint looks exactly like a period or a dot on an 'i'.
2. Flatten the Source: If the note is crumpled, iron the paper (on low heat, no steam) or tape it flat. Shadows from wrinkles will convert into jagged stitch lines that you'll have to erase later.
3. Boost Contrast: If the note is written in faint pencil, go over it with a black fine-tip marker first, or adjust the contrast in your computer's scanning software before saving.

Prep Checklist (Pass/Fail):

• Format Check: The file is saved as a JPEG (not a PDF or PNG).
• Visual Check: Scaling the image to 100% on your PC screen shows clear separation between paper and ink.
• Media Check: The USB drive is 32GB or smaller (larger drives sometimes lag or aren't read by older firmware).
• Hardware Check: You have your stylus ready—fingers are too clumsy for the pixel-level editing we are about to do.


Import the JPEG from USB into Brother My Design Center / IQ Designer—don’t pick the wrong scan mode

Catherine inserts the USB and navigates to My Design Center (or IQ Designer). She chooses Line scan mode.

Why this matters:

• Line Mode: Looks for thin skeletons. Perfect for text, line art, and sketches.
• Region Mode (Illustration): Looks for closed shapes to fill with color. If you use this for handwriting, you will get blobby, bubbly letters that look illegible.

Video-accurate steps:

1. Insert the USB stick into the machine port.
2. Tap the Leaf icon (or Import icon) in My Design Center.
3. Select the USB source.
4. Tap your JPEG file.

If you are eventually planning to stitch this on a difficult item, you might be researching hoops for brother embroidery machines to make the physical part easier. But right now, ignore the hoop. Focus entirely on the digital signal. If the signal is bad, the best hoop in the world won't save the project.

Crop and size the handwriting on-screen so you can actually edit it (and so it fits your pouch)

Once the JPEG is loaded, you will see a crop box (red arrows). Catherine uses these to tighten the frame around the text. Then, she uses the Size tool to enlarge the design.

The "Why" behind the step: By cropping out the empty margins of the paper, you reduce the processing load on the machine and eliminate the chance of a "rogue pixel" in the corner becoming a stitch.

Expert Tip on Sizing: Don't just size it for visibility; size it for the final product now. Scaling a stitch file up by 20% later is risky (density issues). Scaling the image up now before conversion is safe.

Remove the background image so you’re judging stitches—not the photo underneath

Catherine taps the All Clear (or opacity) setting to hide the background image.

Sensory Check: This is your "X-Ray moment." When the background photo vanishes, you are left looking at the naked stitch data. It will look thinner and jerkier than the photo. This is good. It means you are seeing exactly what the needle will do. If you leave the background image on, your brain will "fill in the gaps" and you won't notice that a letter is broken until the machine is sewing air.

Pencil tool touch-ups: rebuild missing punctuation before it becomes a permanent “why is this wrong?” moment

Catherine zooms in (using the magnification glass, usually to 400% or 800%) and notices her colons and dots are missing.

This is simple physics: The scanner didn't see enough contrast in those tiny dots, so it ignored them.

The Fix:

1. Select the Pencil tool.
2. Choose a plain running stitch (or the setting that matches your lines).
3. Tap to create dots. Do not drag. A tap creates a point; a drag creates a line.

Psychological Safety: It is normal to lose about 10-15% of your details during the conversion. You didn't do anything wrong. This is the "handshake" between analog paper and digital motors. Just tap them back in.

Small Square Eraser cleanup: delete smudges without destroying the lettering

After a quick scan, Catherine spots a stray artifact—a smudge that became a stitch. She selects the Eraser, chooses the Small Square shape, and taps the artifact.

The "Old Hand" Advice: Never use the "Large Round" eraser near text. You will accidentally clip the tail of a 'y' or the cross of a 't'. The Small Square gives you surgical precision.

Visual Anchor: Look for "floaters"—tiny specks that aren't attached to any letter. These will cause your machine to trim, jump, stitch one dot, trim, and jump again. It creates a "bird's nest" of thread on the back. Erase them all.

Warning: Safety First. When your machine is running these test stitches or jumps, keeping your hands clear is mandatory. A machine moving at 600 stitches per minute (SPM) does not feel resistance; it only feels coordinates. Never chase a thread tail with scissors while the machine is active. Usage of the "Stop/Start" button is your best safety protocol.

Bucket tool fills: add color to closed shapes (like hearts) without changing the handwriting lines

Catherine decides to fill the drawn hearts with red. She selects the Bucket tool (Fill), chooses a red color, and taps inside the heart.

Troubleshooting Fills: If you tap the heart and the entire screen turns red, it means there is a gap in the heart's outline.

1. Undo.
2. Zoom in.
3. Use the Pencil to close the gap in the outline.
4. Try the Bucket again.


The chain-link trick: globally thin satin width to 0.040" so it still reads like handwriting

This is the most critical technical step in the entire tutorial.

Catherine goes to the editing screen. She uses the Chain Link icon to select all the handwriting objects at once (ignoring the hearts). She then reduces the Satin Stitch Width to 0.040" (approx 1mm).

The Physics of Stitch width:

• > 0.080": Looks like a chunky marker. Hard to read small text.
• 0.040" - 0.060": The Sweet Spot. It mimics a ballpoint or gel pen.
• < 0.030": Danger Zone. The column is so thin the needle might perforate the fabric, causing the thread to pull out or the fabric to tear (creating a "cut" line).

Expert Note: Catherine chooses Satin stitch. For very tiny text, a Triple Run (Bean Stitch) is sometimes safer, but Satin gives that raised, premium look. At 0.040", you are safe on canvas, but if you were sewing on a t-shirt, you would need significant stabilization.

Save it twice on purpose: flexible file for edits, then a locked stitch file for production

Catherine saves the design twice.

1. The Project File: Saved within My Design Center (editable). If you notice a mistake later, you can open this and move lines around.
2. The Embroidery File: Saved to the machine memory (stitch data). This is "baked." You can resize it slightly, but you can't erase a specific dot anymore.

Video-accurate workflow:

1. Save to machine pocket (Project/Working file).
2. Press Set.
3. Press Embroidery.
4. Save again (Stitch file).


Hooping a zipper pouch without distortion: where most ‘handwriting’ projects get ruined at the last minute

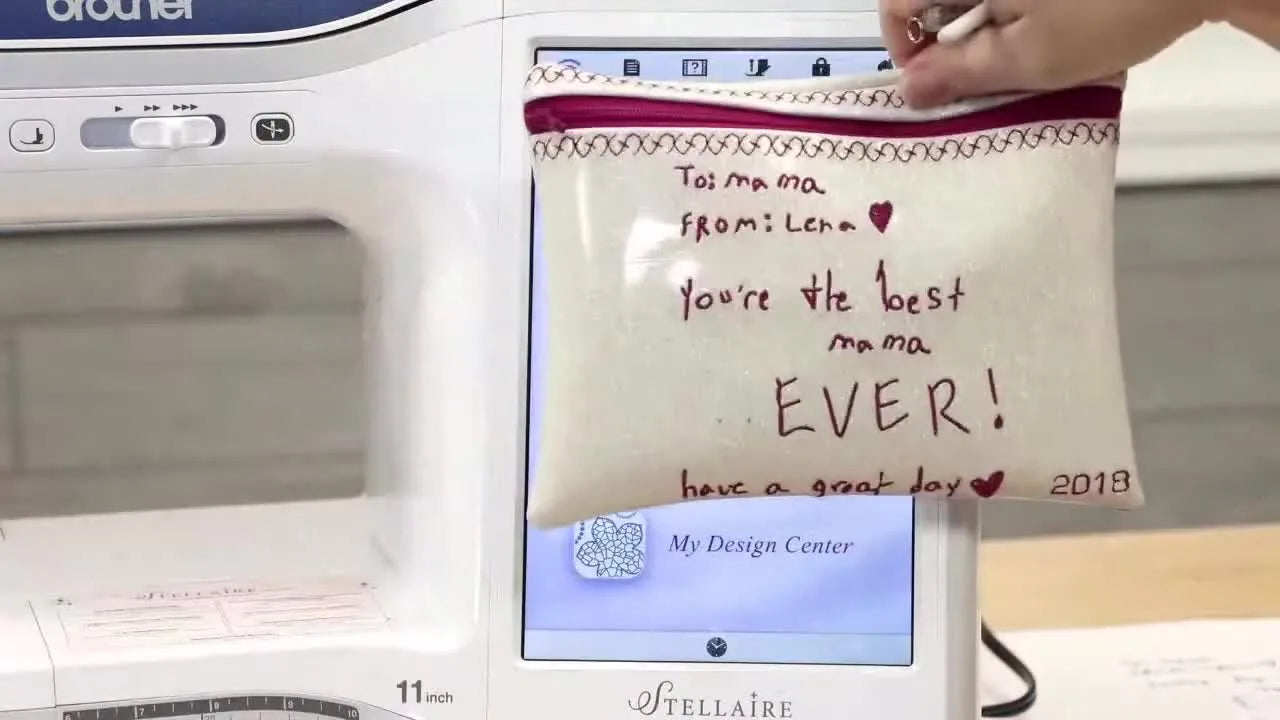

The video ends with Catherine ready to stitch on a canvas zipper pouch. This is the moment where the digital perfection meets physical resistance.

Zipper pouches are notorious. They have thick seams, a zipper that unevenly lifts the hoop, and multiple layers of fabric. The "Hoop Burn" struggle is real—you tighten the screw to hold the heavy canvas, and you end up with a permanent white ring or a crushed zipper coil.

If you are struggling with hooping for embroidery machine limitations on premade blanks like these, you have reached the limits of friction-based plastic hoops.

A simple stabilizer decision tree for handwriting on a canvas pouch

Handwriting is low-density but high-risk; if the fabric shifts 1mm, the text looks drunk.

Decision Tree (Fabric + Load → Stabilizer):

• Scenario A: Rigid Canvas Pouch (The Video Case)
  • Stabilizer: Medium Tear-Away or Cut-Away.
  • Method: Float the pouch (hoop the stabilizer, use spray adhesive/pins to float the pouch on top) to avoid crushing the zipper in the hoop.
• Scenario B: Soft Cotton/Linen Pouch
  • Stabilizer: Fusible No-Show Mesh (Cut-Away).
  • Why: The fabric will stretch under the satin stitches. Mesh holds it rigid.
• Scenario C: Production Run (50+ Pouches)
  • Tool: Upgrade to a clamping system or magnetic frame.

When magnetic hoops make sense (and when they don’t)

For finished items like zipper bags, many professionals switch to magnetic embroidery hoops.

The Logic: Standard hoops require you to shove the inner ring inside the bag. With a zipper pouch, this distorts the shape. Magnetic hoops clamp from the top and bottom with powerful magnets.

• Benefit: Zero "hoop burn."
• Benefit: You can hoop over thick seams and zippers without forcing the screw.
• Benefit: Speed. You can hoop a bag in 10 seconds vs. 60 seconds.

If you are searching for a magnetic hoop for brother Luminaire or Stellaire, verify the total sewing field. For a pouch, a 5x7" or 8x8" magnetic frame offers the best control. Brands like SEWTECH offer high-strength magnetic frames compatible with these specific Brother mounts, providing a massive quality-of-life upgrade for anyone doing bulk gifts.

Warning: Magnetic Safety. These are not refrigerator magnets. They are industrial neodymium magnets. They can pinch fingers severely. Do not use if you have a pacemaker. Keep credit cards, phones, and USB sticks at least 12 inches away from the magnets to avoid data loss.

Setup Checklist (Digital to Physical)

• Preview Check: Colons present? Hearts filled?
• Needle Check: Use a fresh 75/11 Embroidery Needle. A dull needle will deflect on canvas, causing crooked text.
• Bobbin Check: Use a full white bobbin (60wt or 90wt depending on your machine setup).
• Obstruction Check: Rotate the handwheel physically to ensure the needle bar won't hit the bulky zipper pull.
• Hoop Check: If floating, is the pouch secured with enough spray adhesive or pins (away from the stitch path)?


Troubleshooting the two most common “why did my scan do that?” problems (and the fast fixes)

Even with the best prep, ghosts in the machine appear. Here is how to exercise them quickly.

The upgrade path that actually matters: speed, consistency, and repeatability for gift orders or small-batch sales

If you only do one pouch a year for a heartfelt gift, the built-in Brother tools and a standard hoop are perfect. The effort is part of the love.

But if you find yourself making these for Etsy, wedding parties, or local boutiques, your bottleneck will never be the scanning—it will be the hooping and the needle count.

The Commercial Reality:

• The Tool Upgrade: If you are fighting with bulky items daily, magnetic hoops for embroidery specifically for your machine model (like those from SEWTECH) will save your wrists and reduce your reject rate (waste).
• The Machine Upgrade: If you are tired of stopping to change thread colors (Black text... stop... Red heart... stop... Pink flower...), or if cutting jump threads is taking hours, this is the trigger point for a Multi-Needle machine. A 15-needle machine doesn't just sew faster; it holds all your colors at once and handles tubular items (like bags/hats) naturally without fighting gravity.

Operation Checklist (The Final Countdown):

• Speed: Machine speed set to 600 SPM or lower (slower is smoother for satin text).
• Verification: Trace the design area (Trial Key) to ensure it fits on the pouch.
• Clearance: Zipper pull is taped down or moved far outside the stitch zone.
• Backup: You have saved the editable Project file just in case.

Catherine’s method is a gateway drug to embroidery design. It empowers you to take something analog and precious and make it permanent. Treat the machine with respect, keep your glass clean, and remember: the goal isn't perfect geometry; it's capturing the imperfect wobble of a hand that wrote "I love you."

If you are ready to stabilize your workflow for finished goods, look into brother luminaire magnetic hoop options—because the only thing that should be "touching" about this project is the sentiment, not the struggle of the hoop.

FAQ

• Q: How do I scan a handwritten note for Brother My Design Center / IQ Designer so punctuation stitches out clearly?
  A: Scan a clean, high-contrast JPEG so the machine “sees” ink edges instead of shadows and lint.
  • Clean: Wipe the scanner glass with microfiber + glass cleaner before scanning.
  • Flatten: Tape or gently iron (low heat, no steam) wrinkled paper to remove shadow lines.
  • Boost: Darken faint pencil with a black fine-tip marker or increase contrast in the scanner software before saving as JPEG.
  • Success check: At 100% zoom on a computer screen, dots on “i” and punctuation are clearly separated from the paper background.
  • If it still fails: Re-scan and then zoom to 400–800% on the machine and rebuild missing dots with the Pencil tool (tap, don’t drag).
• Q: Which scan mode should I choose in Brother My Design Center / IQ Designer to convert handwriting without “blobby” letters?
  A: Use Line Mode for handwriting; Region/Illustration mode usually makes text look thick and illegible.
  • Select: Choose Line scan mode when importing the JPEG from USB.
  • Avoid: Do not use Region/Illustration for handwriting unless the goal is filled shapes, not thin strokes.
  • Success check: The preview shows thin line strokes (not filled-in “bubble” lettering) after conversion.
  • If it still fails: Restart the import and conversion using Line Mode; blocky Region results typically don’t edit back into clean handwriting.
• Q: How do I fix missing colons, dots, or tiny punctuation after converting handwriting in Brother My Design Center / IQ Designer?
  A: Rebuild missing punctuation with the Pencil tool by tapping single points where the dots should be.
  • Zoom: Magnify to 400% or 800% so the dot placement is precise.
  • Tap: Use the Pencil tool and tap to create dots; dragging usually creates unwanted lines.
  • Match: Keep the same simple running-style line setting used for the handwriting strokes.
  • Success check: With the background image hidden, the punctuation dots appear as actual stitch points in the stitch view (not just visible in the photo).
  • If it still fails: Improve contrast on the original note (fresh black pen) and re-scan, because low-contrast dots may keep dropping out.
• Q: How do I remove random “specks” that cause trims and bird’s nests when stitching Brother My Design Center handwriting designs?
  A: Delete “floater” artifacts with the Small Square Eraser so the machine doesn’t jump-trim-stitch tiny dots.
  • Hide: Turn off the background image so only stitch data is visible.
  • Erase: Use the Eraser with Small Square shape and tap specks not connected to letters.
  • Crop: Tighten the crop box around the writing to reduce rogue pixels converting to stitches.
  • Success check: No isolated single stitches remain outside the lettering, so the design won’t force extra jumps/trims.
  • If it still fails: Re-clean the scanner glass and re-scan; dust and paper texture often reintroduce specks.
• Q: What satin stitch width should I use for Brother My Design Center handwriting so it reads like ink instead of a chunky marker?
  A: Set the handwriting satin width to 0.040" (about 1 mm) as a reliable starting point for clean, legible script.
  • Select: Use the Chain Link icon to select all handwriting objects at once (exclude filled hearts if needed).
  • Set: Reduce Satin Stitch Width to 0.040".
  • Avoid: Don’t go below 0.030" because columns can become fragile and may perforate fabric.
  • Success check: The stitched line looks like ballpoint/gel ink—thin and readable—without shredding or cutting the fabric.
  • If it still fails: If the fabric is soft or stretchy, add stronger stabilization (for example, fusible no-show mesh cut-away is often a safe choice) and test at a slower speed.
• Q: What stabilizer method should I use to stitch Brother My Design Center handwriting onto a canvas zipper pouch without distortion or hoop burn?
  A: Hoop the stabilizer and float the zipper pouch on top to prevent the zipper and seams from warping the hoop.
  • Choose: Use medium tear-away or cut-away stabilizer for a rigid canvas pouch.
  • Hoop: Hoop only the stabilizer, then secure the pouch on top with spray adhesive or pins kept clear of the stitch path.
  • Check: Tape down or move the zipper pull away from the sewing field before running the trace.
  • Success check: The pouch lies flat without the hoop crushing the zipper coil, and traced needle path clears seams and hardware.
  • If it still fails: Consider a clamping-style solution such as a magnetic hoop for finished items, because friction hoops can struggle on bulky, pre-made goods.
• Q: What safety rules should I follow when test-stitching or running jumps on a Brother embroidery machine, especially when using magnetic hoops?
  A: Keep hands and tools away from the moving needle area, and treat magnetic hoops as industrial pinch hazards.
  • Stop: Use the machine’s Stop/Start button before reaching near the needle—never chase thread tails while the machine is running.
  • Clear: Rotate the handwheel by hand to confirm the needle bar won’t strike a bulky zipper pull or seam before stitching.
  • Respect: Handle magnetic hoops slowly; strong magnets can pinch fingers severely and should not be used with pacemakers.
  • Success check: The machine can trace and start stitching with no obstructions, and hands never enter the hoop/needle zone during motion.
  • If it still fails: Reposition the pouch or hardware and re-trace the design area before restarting—don’t “muscle through” contact risks.
