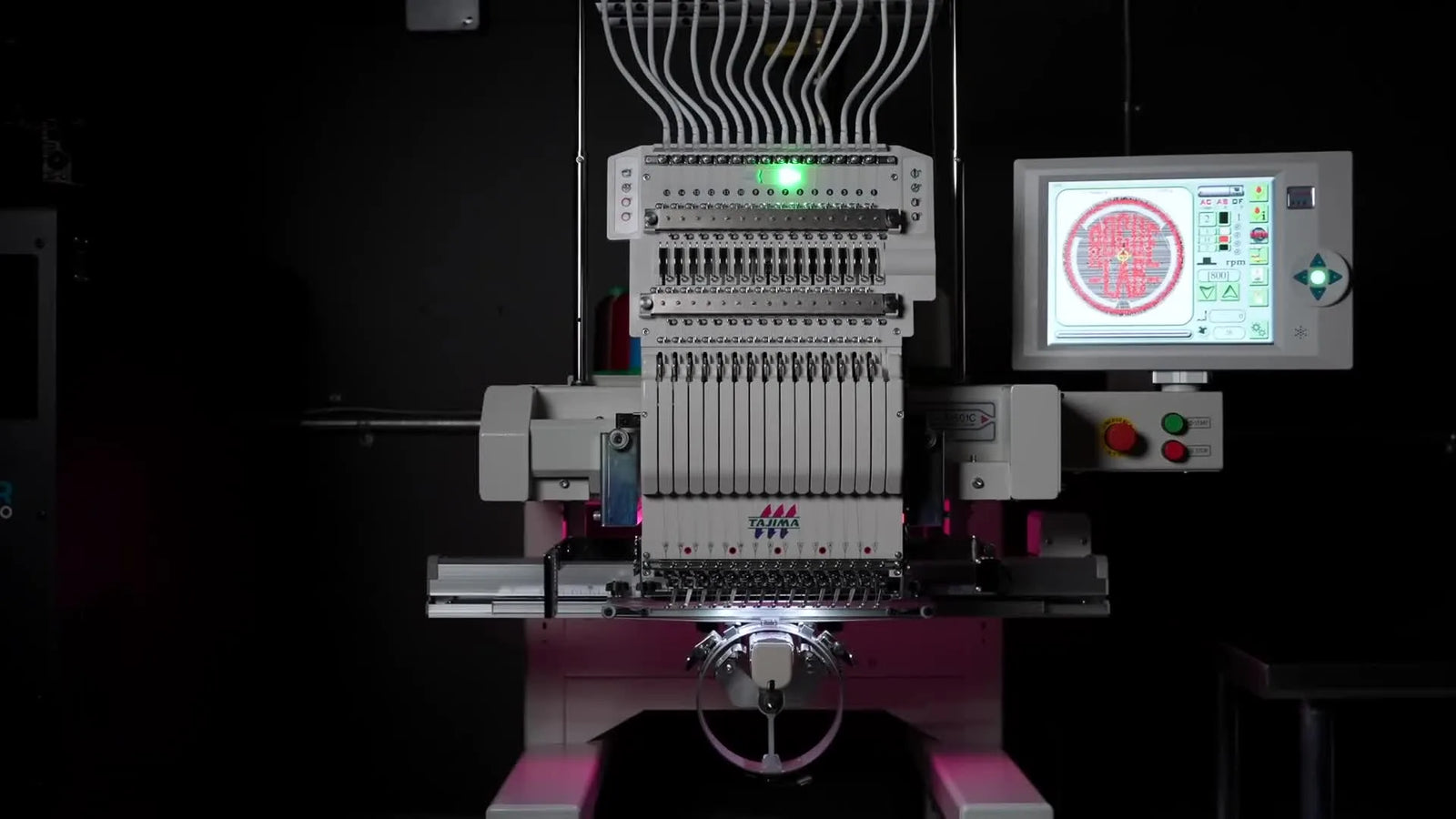

From Melco EMT16X Chaos to Tajima TMEZ-S1501C Confidence: A Real-World Hat Registration Stress Test (and the Setup Habits That Keep It That Way)

If you’ve ever watched a hat run go sideways—the rhythmic thump-thump-thump suddenly turning into a sharp snap, followed by the silence of a thread break—you know the feeling. It’s not just a "bad stitch-out." It is wasted inventory, lost profit, and a direct hit to your confidence.

Lee Stuart’s experience mirrors the emotional arc of almost every embroidery shop owner: starting on a machine that "should" work (in his case, a Melco EMT16X), getting acceptable results on flat garments, and then hitting a wall of frustration when attempting structured hats. The breaking point wasn’t a single failure; it was the lack of repeatability. A machine that stitches a perfect circle at 10:00 AM but an oval at 10:15 AM is not a production tool; it is a liability.

The turning point? A transition to industrial reliability—specifically, a Tajima TMEZ-S1501C—calibrated with professional training. But this article isn’t just a reaction to a video. It is a reconstruction of that success into a Master Class Protocol.

We will strip away the hype and focus on the physics of embroidery: tension, stability, and hoop control. Whether you are running a single-needle home machine or a 15-needle beast, the laws of physics are the same. Here is how to stop hoping for good results and start engineering them.

The “Hat Embroidery Panic” Is Real—Here’s the Calm Truth Before You Touch Anything

Hats are the ultimate lie detector for your embroidery setup. A t-shirt lies flat and forgives minor tension errors. A structured cap is a 3D object being forced flat, with a center seam that acts like a speed bump for your needle.

In the video, the "Melco era" was defined by thread breaks and needle deflection. This happens due to Flagging—when the fabric lifts up with the needle on the upstroke. If the fabric isn't held down firmly (by the presser foot or the hoop), it creates a trampoline effect. The loop acts crazily, the hook misses it, and you get a break. Or worse, the fabric shifts, and your border doesn't line up with the fill.

If you are researching the melco emt16x embroidery machine, looking for its capabilities, understand this: success on hats requires more than just a specific brand. It requires a machine system rigid enough to conquer the "trampoline effect" of 3D embroidery.

Unboxing the Industrial Standard: The Physics of Mass and Stability

The first step in stability is mass. You cannot produce precision results on a wobbly table. Lee’s setup begins with a heavy-duty stand and leveling feet.

Why does this matter? Vibration = Registration Errors. If your machine shakes at 800 stitches per minute (SPM), that energy transfers to the pantograph. On a hat, this vibration amplifies the movement of the cap driver, causing outlines to drift.

The "Rock Test"

Before you turn your machine on, grab the stand. Try to rock it. If it moves an inch, your registration will be off by millimeters. Adjust the leveling feet until the machine feels like it is bolted to the Earth's core.

Warning: Industrial machine heads are top-heavy and deceptively dense. Never attempt to lift a multi-needle head onto a stand alone. Use a pallet jack or a two-person lift team. Keep hands clear of the pinch points between the head and the rubber mounts.

The Spec Check: Verify Your Toolset

Don't assume your machine arrived configured correctly. Lee checks the model plate to confirm it is the TMEZ-S1501C.

For you, the "Spec Check" means verifying your work area. If you are shopping for a tajima tmez sc1501, or any high-end machine, verify:

• Needle Depth: Is it set for caps or flats? (They differ slightly).
• Hook Timing: Standard timing is usually fine, but cap specialists often retard the timing slightly to catch the loop easier on rotary hooks.
• Included Hoops: Did you get the standard flimsy plastic hoops, or upgraded double-height hoops?


The Interface: Reducing "Brain Friction" with Touchscreens

Embroidery requires thousands of micro-decisions. Lee notes the shift from a "Laptop + Cable + Dongle" setup to a built-in touchscreen. This isn't just aesthetic; it's operational safety.

Every cable is a point of failure. Every time you have to alt-tab on a laptop to check a color sequence, you risk a mistake. A dedicated interface locks you into the production mindset.

Pro Tip: If your machine allows it, save your color palettes into the machine's memory. Don't rely on the file alone. Manually verifying "Needle 1 = White, Needle 2 = Gold" on the screen before pressing start is the cheapest insurance policy you can buy.

The Technical Solution: i-TM and DCP Explained (The "Why" It Works)

Lee highlights two proprietary features that solved his hat problems. Let's decode them into universal embroidery principles.

1. i-TM (Intelligent Thread Management) vs. The Tension Knobs

Old school: You turn a knob to squeeze two metal discs (tension). New school (i-TM): The machine calculates exactly how much thread is needed for the next stitch based on the file data and feeds exactly that amount. The Benefit: It eliminates the "tug of war" between the thread and the fabric. On a hat, where sticking to the stabilizer is hard, this prevents the thread from being pulled too tight (puckering) or too loose (looping).

2. DCP (Digitally Controlled Presser Foot)

This is the game changer for hats. The Problem: Standard presser feet run on a spring. When they hit a thick seam on a hat, they bounce. When they bounce, the fabric flags (bounces up). The Solution: DCP is motor-driven. You tell it "stay 2mm above the needle plate," and it stays there, crushing the hat seam with mechanical force so it cannot flag.

If you are comparing a 15 needle embroidery machine to others, asking "does it have a motorized presser foot?" is more important than asking about max speed. Speed means nothing if the foot is bouncing.

The "Hidden" Prep: Consumables and The Pre-Flight Check

Before the machine runs, Lee stages his consumables. This is where 50% of errors are made. You cannot fix cheap thread or wrong backing with machine settings.

The "Hidden Consumables" Kit:

1. Spray Adhesive: Essential for floating backing on hats.
2. 75/11 Sharp Needles: Ballpoints are for t-shirts. Hats need sharps to pierce the buckram.
3. Tweezers: For threading and grabbing bobbin tails.
4. Silicon Oil: A drop on the needle pad can prevent thread shredding on metallic runs.

Prep Checklist (The "Save Your Sanity" Protocol)

• Needle Check: Run your fingernail down the tip of the needle. If it catches, change it. A burred needle shreds thread.
• Bobbin Case: Clean the lint from under the tension spring. A tiny lint bunny can drop your tension to zero.
• Thread Path: Pull the thread manually. It should feel smooth, with resistance similar to flossing your teeth. If it jerks, it’s caught on a guide.
• Design Orientation: Is the hat logo flipped 180 degrees? (Crucial for cap drivers).
• Substrate Selection: Do not start on a structured hat. Start on fleece or felt to verify the digitized file first.


The Hooping Revolution: Magnetic vs. Mechanical

At 05:44, Lee uses a blue magnetic hoop. This is critical. Traditional hoops work by friction. You tighten a screw, which strains your wrist and creates "hoop burn" (permanent rings on delicate fabric).

Magnetic Hoops (The Efficiency Hack): Whether you are on a Tajima or a home Brother SE1900, magnetic embroidery hoops change the physics of hooping.

• Vertical Pressure: Magnets clamp straight down. No "pulling" the fabric sideways.
• Speed: Snap and go. No unscrewing.
• Safety: Holds thick seams (like hoodies/jeans) without popping open.

If you are fighting to hoop a thick Carhartt jacket, stop fighting. The screw will strip or the hoop will pop. A magnetic frame solves the thickness issue instantly.

Warning: High-end magnetic hoops (like Mighty Hoops or Sewtech equivalents) use neodymium magnets. They snap shut with over 100lbs of force. Never place your fingers between the rings. People with pacemakers should consult their doctor before handling these frames.

The Validation: Unstructured vs. Structured

Lee runs a test on an unstructured hat. It looks good. Expert Note: Don't trust it. Unstructured hats are soft. They are easy. Real validation happens on a Structured 6-Panel Snapback. Why? The "Buckram" (the stiff mesh inside) fights the needle. The center seam is often 4mm thick. If your machine's timing or presser foot is off, the needle will deflect off the seam, snap, or leave a gap in the design.

The Stress Test: 12,000 Stitches, 800 RPM, Concentric Circles

Lee runs a specific design to break the machine:

• Geometry: Concentric circles. The hardest shape to stitch. If the material shifts 0.5mm, the circles turn into ovals or touch each other.
• Density: 12,000 stitches. High stitch counts creates "push" (fabric expanding).
• Speed: 800 RPM.

Newbie Safety Buffer: Lee runs at 800 RPM because his machine is dialed in. You should not.

• Beginner Sweet Spot: 550 - 650 RPM.
• Intermediate: 700 - 850 RPM.
• Expert: 1000+ RPM.

Start slow. Friction generates heat. Heat snaps thread. Only increase speed when you have zero breaks at 600 RPM.

The Side-by-Side: Analyzing the Failure Points

Comparing the Old (Melco) vs. New (Tajima):

• The Flaw: On the old run, the front panel "caved in." The circles weren't round.
• The Physics: This is caused by excessive pull compensation. The digitizer (or user) likely tightened the tension so much to prevent loops that they crushed the hat.
• The Fix: The new machine uses DCP to hold the fabric down without relying on thread tension to do the holding.


The "Why" Behind the Circles: Stabilization Logic

You cannot fix a stability problem with software. You fix it with stabilizer (backing).

Stabilizer Decision Tree for Hats

1. Is the Hat Structured (stiff front)?

• YES: Use Tear-away Cap Backing (approx 2.5oz or 3oz). You need crisp edge definition.
  • Tip: If the hat is very cheap/thin, use two layers of tear-away.
• NO (Dad Hat / Unstructured):
  • Option A: Cut-away Backing (2.5oz). This creates a "false front" structure.
  • Option B: Tear-away + Spray Adhesive. Stick the hat to the backing to prevent sliding.

2. Are you stitching on a center seam?

• YES: You must increase the presser foot height slightly to clear the bump, or use a machine with auto-sensing (DCP).
• NO: Standard settings apply.

If you are using a tajima cap frame, ensure the "strap" (the metal band going over the bill) is ratchet-tight. 90% of registration errors come from the hat moving inside the cap frame.

Setup Habits: The "Pilot's Walkaround"

Lee spent two days training. You can replicate this with a disciplined startup routine.

Setup Checklist (Do this every morning)

• Oil Check: One drop on the rotary hook. (Listen for a smooth "hiss" sound, not a dry "clack").
• Tension Test (The "I" Test): Stitch a capital "I" or "H" with satin columns on a scrap. Flip it over. You should see 1/3 bobbin thread in the center and 1/3 top thread on each side.
  • Too much bobbin? Top tension is too tight.
  • No bobbin? Top tension is too loose.
• Checking the Path: Ensure no thread has jumped out of the take-up lever eyelet.




Metallic Thread: The Final Boss

Lee swaps to Metallic Gold. Metallic thread is a flat ribbon, not a twisted rope. It hates twisting. Survival Guide for Metallics:

1. Needle: Use a Metallic Needle (large eye to reduce friction).
2. Tension: Loosen top tension significant.
3. Speed: Slow down to 500-600 RPM.
4. Thread Path: If possible, bypass the felt pads on your machine to reduce drag.

Troubleshooting: The "Low Cost to High Cost" Method

When things go wrong (and they will), follow this logical path to save money.

Scenario: Thread keep breaking.

1. Level 1 (Free): Re-thread the machine. Check if the needle is inserted fully.
2. Level 2 ($1.00): Change the needle. (It’s likely bent or burred).
3. Level 3 ($5.00): Swap the cone of thread. (Bad batch? Old thread?).
4. Level 4 (Time): Check the digitized file. Are the stitches too small (<2mm)?
5. Level 5 (Hardware): Check hook timing or call a tech.

Never start at Level 5. Most issues are a $1.00 needle problem.

The Upgrade Path: Knowing When to Scale

Lee didn't upgrade for vanity; he upgraded for solvency. How do you know it's time to move from a home machine or entry-level commercial unit to a pro setup?

The "Tool Upgrade" Matrix:

If you are struggling with hooping speed, you don't necessarily need a $20,000 machine. Often, a set of Magnetic Hoops for your existing machine allows you to hoop a garment in 10 seconds instead of 60, doubling your throughput for a fraction of the cost.

Summary: Control the Variables

Lee’s success wasn't magic. It was the removal of chaos. He removed vibration (Heavy stand). He removed tension variance (i-TM). He removed flagging (DCP). He removed hooping inconsistency (Magnetic hoops).

If you are using tajima hat hoops or generic frames, your goal is the same: Reduce variables. Lock the machine down, lock the hat down, and use the best consumables you can afford.

Operation Checklist (The Final Sign-Off)

• Design Check: Is the file specifically digitized for a hat? (Center-out sequencing).
• Physical Check: Is the cap frame locked tight to the driver? (Give it a tug).
• Safety Check: Are fingers clear of the needle bar area?
• Speed: Is the machine set to a safe speed (600-800 RPM) for this specific fabric?

Embroidery is a game of millimeters. With the right routine and the right tools, you can win that game every time.

FAQ

• Q: What should embroidery shops prepare in a Tajima TMEZ-S1501C hat embroidery “pre-flight kit” to reduce thread breaks and shredding?
  A: Prepare the same small consumables every time—most “machine problems” on hats start here, and this is common.
  • Stage spray adhesive, 75/11 sharp needles, tweezers, and a small amount of silicon oil for demanding runs (especially metallic).
  • Inspect the needle tip by dragging a fingernail across it, and replace the needle if it catches.
  • Clean lint from under the bobbin case tension spring before the first cap of the day.
  • Success check: thread pulls smoothly by hand through the full thread path with consistent resistance (no jerks), and the first few hundred stitches run without fuzzing.
  • If it still fails, re-thread the entire path and confirm the needle is inserted fully before changing any timing settings.
• Q: How can embroidery operators use the “I test” to set correct top tension for hat embroidery on a Tajima cap setup?
  A: Use a quick satin-column test and judge the underside—do not guess tension by feel alone.
  • Stitch a capital “I” or “H” with satin columns on scrap material before running hats.
  • Flip the sample over and look for the balance: about 1/3 bobbin thread in the center and 1/3 top thread showing on each side.
  • Adjust only enough to achieve that balance; avoid “cranking tight” just to hide loops on the top.
  • Success check: the underside shows a clean, centered bobbin line rather than bobbin thread taking over the whole column or disappearing completely.
  • If it still fails, remove lint from the bobbin case tension spring and verify no thread has jumped out of the take-up lever eyelet.
• Q: How do embroidery operators stop hat embroidery flagging and needle deflection on structured 6-panel caps using a Tajima DCP (Digitally Controlled Presser Foot) concept?
  A: Control fabric lift first—flagging is usually a hold-down problem, not a “more tension” problem.
  • Reduce bouncing at the seam by keeping presser-foot clearance controlled instead of relying on spring pressure alone.
  • Increase presser-foot height slightly when stitching directly over a center seam so the foot clears the bump without hopping.
  • Lock the hat down firmly in the cap frame and avoid letting the hat move inside the frame.
  • Success check: the cap panel does not “trampoline” upward with the needle on the upstroke, and borders stay aligned to fills across the seam.
  • If it still fails, slow the machine down and re-check stabilizer choice and cap-frame tightness before changing hook timing.
• Q: What stabilizer should be used for structured hats versus unstructured dad hats in cap embroidery to prevent registration drift and soft front-panel collapse?
  A: Match backing to hat structure—stabilizer is the primary fix for stability problems.
  • Use tear-away cap backing (about 2.5 oz or 3 oz) for structured hats to keep edges crisp; use two layers if the hat is very cheap/thin.
  • Use 2.5 oz cut-away backing for unstructured hats to create a “false front” structure, or use tear-away plus spray adhesive to prevent sliding.
  • Tighten the cap-frame strap (the metal band over the bill) so the hat cannot creep during stitching.
  • Success check: concentric-circle or outline tests stay round and do not drift into ovals, and the front panel does not cave in.
  • If it still fails, drop speed to a safer range (especially for newer operators) and confirm the design is digitized specifically for hats (center-out logic).
• Q: What is the safest way to handle industrial-strength magnetic embroidery hoops (neodymium magnetic frames) to avoid finger injuries and pacemaker risks?
  A: Treat magnetic hoops like pinch tools—keep fingers out of the closing path and take medical precautions.
  • Close the magnetic rings by guiding from the outside edges, never between the rings.
  • Keep hands, tools, and loose items clear before the magnets snap shut (the closing force can be extremely high).
  • Avoid handling magnetic hoops if the operator has a pacemaker unless a doctor confirms it is safe.
  • Success check: fabric is clamped evenly with no sideways distortion and no need to “yank” the material into place.
  • If it still fails, stop and re-seat the hoop—do not force it closed against bulky seams with fingers in the gap.
• Q: In Tajima cap frame embroidery, how can operators prevent hat registration errors caused by vibration and a wobbly stand (the “rock test”)?
  A: Remove movement before adjusting embroidery settings—vibration becomes outline drift on hats.
  • Perform the rock test: grab the stand and try to rock it before powering on.
  • Adjust leveling feet until the stand feels rigid and does not shift under pressure.
  • Keep the work surface stable because vibration at production speeds transfers into the pantograph and cap driver.
  • Success check: outlines track consistently and do not drift between runs at the same speed and design.
  • If it still fails, reduce speed and re-check cap-frame lockup and strap tightness before blaming digitizing.
• Q: How should embroidery shops troubleshoot repeated thread breaks on hat embroidery runs before calling a technician for hook timing on a Tajima-style rotary hook machine?
  A: Troubleshoot from low-cost to high-cost—most repeated breaks are caused by threading or a $1 needle, not timing.
  • Re-thread the entire machine and confirm the needle is inserted fully.
  • Change the needle immediately if there is any doubt (bent, burred, wrong point style).
  • Swap to a different cone of thread to rule out a bad batch or old thread.
  • Success check: the same design section runs at a conservative speed without snapping, and the thread does not feel “jerky” when pulled through the path by hand.
  • If it still fails, review the design for overly small stitches (under 2 mm) and only then consider hook timing or a service call.
