From Mac Download to Pro-Stitcher USB: The Calm, Foolproof File-Transfer Routine (and the Folder System You’ll Thank Yourself For)

There is a specific kind of panic that hits when you stand in front of your $20,000 longarm setup or high-end embroidery machine, ready to stitch a project you’ve spent weeks planning, only to find the machine staring back at you, blank. It cannot see your design.

You know the file is on the USB drive. You saw it on your Mac. Yet, the machine acts as if the drive is empty.

In my 20 years of diagnosing production floor issues—from single-head home studios to 50-head industrial factories—this "Mac to Machine" gap is responsible for more lost production hours than thread breaks. It feels mysterious, but it is purely mechanical. It comes down to file structures, hidden hidden extensions, and the specific way macOS handles data versus how Windows-based industrial tablets (like the Pro-Stitcher) read it.

Adam’s video walkthrough provides a solid visual foundation for this process. However, to ensure you never face that blank screen again, we need to layer on the engineering protocols: the "why" behind the steps, the sensory checks that confirm success before you unplug, and the safety habits that protect your expensive equipment.

This is your definitive white paper on bridging the gap between macOS and Pro-Stitcher.

Find the Right Handi Quilter Pro-Stitcher USB Port First—So You Don’t Panic at the Machine

Before we touch the software, we must anchor ourselves in physical reality. A common point of failure for beginners is simply plugging the drive into a localized port that doesn’t communicate with the tablet’s brain.

Pro-Stitcher systems vary by generation and model. Adam highlights the critical distinctions, and I will add the tactile cues you need to look for:

• Standard Pro-Stitcher (Tablet-Based): The valid USB ports are often located on the black carriage box behind the tablet or on the side of the tablet itself. Sensory Check: When inserting the USB, verify you are not forcing it into an HDMI or power port. A USB port has a rectangular tongue; you should feel a firm, sliding resistance, not a "crunch."
• Handi Quilter Infinity: The magic port is located under the front handlebars, near the power button. It is designed for accessibility but can be hard to see.
• Pro-Stitcher Lite: The connection is typically direct to the tablet on the side.

The "Phantom Drive" Issue: If you plug into a port meant for diagnostics or power-only (like some auxiliary ports on carriage hubs), the USB will light up (getting power) but won't transfer data. This looks exactly like a corrupted drive. Always verify your specific machine's manual for the "Data Port" location.

Warning: Mechanical Safety Protocol. Power down or engage the machine's "E-Stop" lock before reaching behind tablets or carriage boxes. These machines have powerful servo motors. Reaching blindly behind a machine to find a port puts your fingers near moving belts and needle bars. A rushed reach-around is the primary cause of bent needles and damaged communication cables.

The Download Moment on a Mac Browser: Catch the ZIP and Don’t Lose It

When Adam downloads the "Kelly" design from a Quiltable email, he points out the animation in the browser toolbar. This fleeting visual cue is your first audit point.

The "Suitcase" Analogy: You are typically downloading a ZIP file. Think of a ZIP file as a locked suitcase. Inside the suitcase are the clothes (the stitch files: HQV, DST, EXP).

• The Mac: Your Mac is smart; it can see inside the suitcase without opening it.
• The Machine: Your Pro-Stitcher is industrial and literal. If you put the locked suitcase (ZIP) on the USB, the machine cannot open it. It will see nothing.

The Visual Check:

1. Click Download.
2. Watch the top-right corner of Safari or Chrome.
3. Auditory/Visual Cue: Wait for the progress bar to complete. Do not close the browser until the animation stops.

Production Layout Strategy: This download moment is where organization begins. In a professional shop, we don't just dump files; we stage them. This digital staging mirrors how you should organize your physical workspace. Just as a cluttered desktop leads to lost files, a cluttered hoop table leads to crooked embroidery.

Many efficient studios designate a "staging area." Digitally, this is a "To Be Stitched" folder. Physically, this often involves a dedicated magnetic hooping station to ensure that once the design is loaded, the fabric is framed with equal precision. If your digital life is messy, your physical production usually suffers too.

Use macOS Finder Like a Quilter (Not Like an IT Person): Go Straight to Downloads

Adam opens Finder (the blue/white face icon). For Windows converts, this is your "File Explorer."

Action Steps:

1. Open Finder.
2. Navigate immediately to Downloads in the left sidebar.
3. Crucial View Change: Switch your view to Columns (View > as Columns, or Command+3).

Why Columns View? In my workshops, I mandate "Columns View" for all Mac users. Unlike "Icon View" (which is just pretty pictures), Columns View separates the file hierarchy from left to right. It allows you to trace the "breadcrumbs" of where a file lives. You can instantly see: Macintosh HD > Users > Name > Downloads > Design.zip.

This eliminates the "Where did it go?" anxiety. You have visual confirmation of the path.

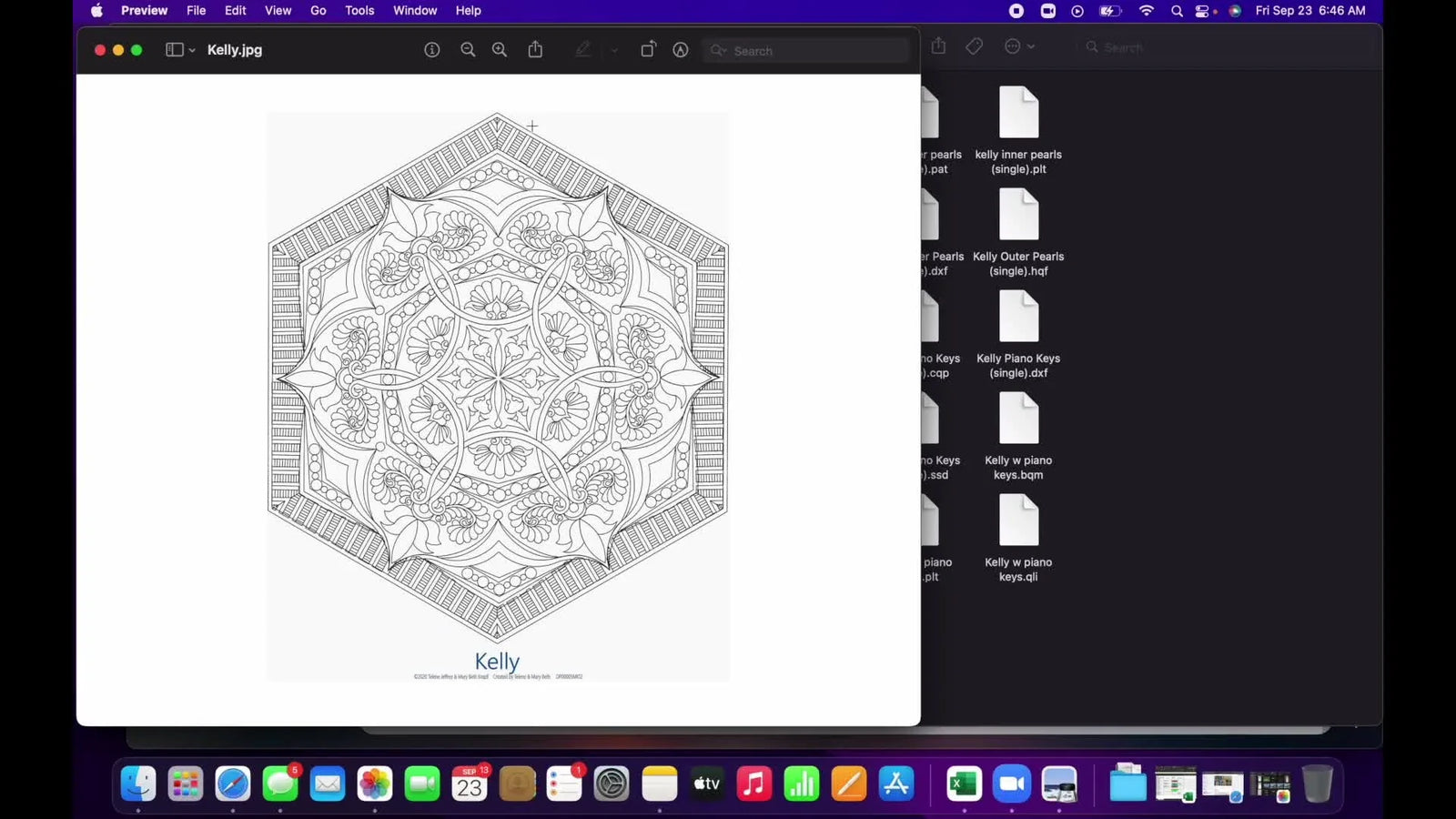

Preview the “Kelly” Design PDF Before You Transfer—It’s Your Quality Checkpoint

Adam previews the "Kelly" whole cloth design PDF. He treats this as a casual look, but I want you to elevate this to a "Pre-Flight Check."

In aviation, pilots walk around the plane before takeoff. In embroidery and quilting, we check the PDF.

• Verify Orientation: Is the design horizontal or vertical? This dictates how you load your quilt or hoop your garment.
• Verify Instructions: Does the set require a specific start point (center vs. corner)?
• Verify Completeness: Are all file formats present?

The "Hidden Consumable" Check: While looking at the PDF, check the stitch count and dimensions.

• Criterion: Is the design 40,000 stitches? You will need a full bobbin.
• Criterion: Is it dense satin stitching? You will need to check your stabilizer inventory.

This is fundamentally about preventing downtime. It connects directly to physical prep. For example, if the PDF shows a complex continuous border, you know alignment will be critical. This is the moment a professional decides: "Do I handle this manually, or do I need the stability of a machine embroidery hooping station to ensure my borders connect perfectly?"

The “Hidden” Prep: USB Drive, Adapter/Dongle, and a Folder Plan That Won’t Collapse Later

Adam notes a friction point common to modern Apple users: The Dongle Reality. Most new MacBook Pros and Airs only have USB-C (Thunderbolt) ports. Your Pro-Stitcher likely requires a standard USB-A (rectangular) drive.

Hardware Requirements:

• The Dongle: You need a high-quality USB-C to USB-A adapter. Avoid cheap, unbranded hubs—they often cause data dropouts.
• The Drive: Use a reputable brand (SanDisk, Samsung) USB 2.0 or 3.0 drive.
• Capacity Sweet Spot: 2GB to 8GB is ideal. Avoid massive 64GB+ drives; older industrial operating systems often struggle to index large partitions, causing the machine to freeze.

The Formatting Trap (Vital for Mac Users): Adam skips this, but I must visualize it for you. Macs often default to "Mac OS Extended" format. Pro-Stitcher (Windows-based) cannot read this.

• Action: Open "Disk Utility" on your Mac.
• Check: Is your USB formatted as MS-DOS (FAT) or FAT32? If not, you must Erase and Reformat it to MS-DOS (FAT) before starting. This is the #1 reason machines don't see USB drives.

Prep Checklist (Do this before copying)

• Format Check: USB drive is confirmed as MS-DOS (FAT) / FAT32.
• Physical Connection: Adapter/Dongle is secure (listen for the "click").
• Visibility: The drive appears in Finder Sidebar (e.g., named "TACO 2").
• Download: The progress bar in the browser is gone; the file is fully landed.
• Consumables: You have a working spare USB drive within reach just in case.


Build the USB Folder Hierarchy in Finder: Quiltable → Lady Jane → Kelly (Exactly Like Adam)

Organization is not a personality trait; it is a specialized tool for efficiency. Adam demonstrates a "Nested Hierarchy" structure directly on the USB:

The Path: USB Drive > Vendor (Quiltable) > Designer (Lady Jane) > Project (Kelly)

Why This Structure is Non-Negotiable: When you are at the machine, the screen is small, and the touch response is often resistive (pressure-based), not capacitive (like an iPhone). Scrolling through a list of 500 loose files on a resistive screen is a nightmare.

• Chunking: By grouping files, you reduce visual noise.
• Context: Knowing the Designer helps you find the matching PDF instructions later if you get stuck.

This logic parallels physical organization. In a high-volume embroidery shop, we don't throw all hoops in a pile. We organize by size and type (magnetic vs. clamp). We use tools like a hooping station for embroidery to standardize the framing process. Your digital files deserve the same respect as your physical tools.

Copy & Paste the Full Design Set (Adam Copies 42 Items)—Without Overthinking ZIP Tools

Adam copies the files from Downloads to the USB. Here, we must address the "Unzip" Nuance.

In the video, Adam drags files without explicitly "unzipping." This is likely because:

1. He is using Safari.
2. Safari has a setting: "Open 'safe' files after downloading."
3. This automatically turns the Kelly.zip into a Kelly folder upon arrival.

If you use Chrome or Firefox: You will likely still see a .zip file. The Fix: Double-click the .zip file in Finder first. It will expand into a blue folder. Open that folder and copy the contents (the .hqv, .pdf, .jpg files) to your USB. Do not copy the ZIP file itself.

Copy/Paste vs. Drag/Drop: Adam uses Copy (Cmd+C) and Paste (Cmd+V).

• Why strict Copy/Paste is better: It leaves the original file on your Mac as a backup. Dragging sometimes "Moves" the file, deleting it from your computer.
• Sensory Confirmation: When you paste, watch the small pie-chart progress bar next to the file name in Finder. Wait for it to disappear.

Setup Checklist (Right before you paste)

• Unzip Verify: You are copying individual files (icons look like documents), NOT a single file with a zipper on it.
• Destination: You are inside the Quiltable > Lady Jane folder on the USB.
• Selection: You have selected the entire set (PDF included), not just the stitch file.
• Action: You used "Copy" so your backup remains on the hard drive.


The Backup Habit: When to Store Designs on Mac vs. When to Treat the Mac as a Transfer Station

Adam discusses treating the USB as a shuttle, not a warehouse. This is a critical distinction for data safety.

The "Shuttle" Philosophy: USB drives are volatile. They get dropped, stepped on, and lost. Never let the only copy of a customer's design live on a USB drive.

• The Repository: Keep a master library on your Mac or Cloud (Dropbox/Google Drive).
• The Shuttle: The USB is only for the 10-minute walk from computer to machine.

Scaling Your Workflow: If you are moving from hobbyist to business, every minute spent searching for a "lost" design is lost revenue. We calculate this in "Time Motion" studies.

• Digital Motion: Searching for files takes ~3-5 minutes per job if disorganized.
• Physical Motion: Hooping a garment takes ~2-4 minutes if fighting with clamps.

To reclaim this time, you standardize. You build a digital library. Physically, you might upgrade to magnetic embroidery hoops to slash hooping time by 50% and reduce the wrist strain associated with traditional screwing mechanisms. The mindset is the same: eliminate friction.

The Non-Negotiable: Safely Eject the USB Drive (Wait Until It Disappears)

This is the step where 90% of file corruption happens. Mac OS writes data to USB drives using "Write Caching." This means even if the copy bar is finished, the computer might still be organizing the data in the background.

The Physical Act of Ejecting:

1. Locate: Find the tiny "Eject" triangle next to the USB name in Finder.
2. Click: Click it once.
3. The "Ghost" Period: The drive name might turn gray. DO NOT PULL yet.
4. Visual Confirmation: Wait until the text line completely vanishes from the sidebar. Only then is the electrical connection severed safely.

If you yank the drive early, you sever the "Table of Contents" of the drive. The machine will see the drive, but it won't be able to read the files inside—the classic "corrupted file" symptom.

Operation Checklist (Before walking to the machine)

• files Check: Open the USB folder one last time to confirm files are there.
• Eject: Click Eject in Finder.
• Wait: Count to 3 after the icon disappears.
• Removal: Physically unplug the drive.


If Your Mac Has No USB-A Port, the Fix Is Simple: Use a USB-C Adapter/Dongle

Adam’s solution is pragmatic: Buy the dongle.

Pro-Tip on Dongles: Treat this adapter as a permanent part of your embroidery kit. Do not "borrow" the one you use for your iPad. Buy a dedicated one for your embroidery station.

• Why? Constant plugging/unplugging wears out connectors. A loose connection during a file transfer equals a corrupted file.

This is a "Tooling Up" moment. Just as you wouldn't use dull scissors to trim applique, don't use flaky adapters for data. It’s a small investment for reliability. This falls into the same category as upgrading to magnetic embroidery hoops. It’s not "glamorous," but it solves a foundational friction point (in that case, hoop burn and arthritis pain) that plagues your daily work.

Warning: Magnet Safety Protocol. While magnetic accessories are excellent for workflow, they are powerful industrial tools. Pacemaker Warning: Keep strong magnetic hoops at least 6 inches away from implanted medical devices. Pinch Hazard: Keep fingers clear when snapping magnets together; they seek each other with significant force.

The Hard Truth About Running Pro-Stitcher Designer/Simulator on Mac: Parallels vs. a Dedicated PC

Adam addresses the "Pink Elephant": Pro-Stitcher software is Windows-native.

The Reality of Virtualization: You can run Windows on a Mac using Parallels or Boot Camp.

• The Cost: requires a Parallels license + Windows license + RAM allocation.
• The Experience: Often laggy. USB passthrough (getting the Windows side to see the Mac USB) is notoriously finicky.

The Production Decision Tree: Use this logic to decide if you need a hardware change.

• Scenario A: "I just stitch."
  • Action: Stick with Mac + USB transfer. It is free and simple.
• Scenario B: "I edit and digitize occasionally."
  • Action: Parallels is acceptable, but expect setup friction.
• Scenario C: "I run a business/production."
  • Action: Buy a cheap, dedicated Windows laptop ($300 range) just for the machine.

Scaling Up: If you reach the level of "Scenario C," you are likely hitting other bottlenecks too.

• Bottleneck 1 (Software): Mac incompatibility. -> Solution: Dedicated PC.
• Bottleneck 2 (Hooping): Inconsistent placement on bulk orders. -> Solution: A placement jig system, like a hoop master embroidery hooping station or similar alignment tool, which ensures every logo lands in the exact same spot on every shirt.
• Bottleneck 3 (Speed): Single-needle speed limits. -> Solution: Multi-needle machines (like SEWTECH) that allow you to queue colors without manual changes.


The “Why This Works” Layer: Reduce Human Error with One Digital Routine and One Physical Routine

Adam’s method works because it is a Routine. It removes decision fatigue.

• Download -> Finder -> Column View -> Copy -> Eject.

In high-stress production environments, we survive by standardizing variables. We control the humidity for the thread. We control the tension. We control the file transfer.

The Unified Theory of Consistency: When a user asks me, "How do I get professional results?" I tell them it is about Repeatability.

• Digital Repeatability: Using the same folder structure prevents lost files.
• Physical Repeatability: Using standard setups prevents errors. Whether you are using a hoopmaster system to align chests logos or upgrading to magnetic frames to handle thick towels without wrestling with screws, the goal is to make the process boringly predictable. Boring is good. Boring makes money.


Quick Troubleshooting: Symptoms → Likely Cause → Fix (Mac + USB + Pro-Stitcher)

If it fails, do not guess. Follow this diagnostic path, moving from cheapest fix (user error) to most expensive (hardware failure).

A Final Pro Habit: Name Your USB Like a Tool, Not Like a Mystery

Adam names his drive "TACO 2." It’s funny, but functional. It is distinct.

The "Tool Labeling" Protocol: In a shared studio or serious shop, generic names lead to mistakes.

• Bad: "NO NAME" or "USB DISK"
• Good: "HQ_XFER" (Handi Quilter Transfer) or "CLIENT_A"

Treat the data drive as a labeled tool in your workshop. You wouldn't throw an unlabeled bobbin into a bin of mixed weights. You wouldn’t leave your hooping station setup unmarked. If you use a hoopmaster hooping station fixture, you likely mark your settings with tape or logs. Apply that same discipline to your digital assets.

Name the drive. Clear the drive weekly. Eject it safely. These small habits are the difference between a panicked hobbyist and a calm professional.

FAQ

• Q: Why does a Handi Quilter Pro-Stitcher system show a USB drive but display no design files copied from a Mac?
  A: The most common cause is copying a ZIP file (or the wrong level of folders) instead of the unzipped design files the Pro-Stitcher can read.
  • Unzip first: In macOS Finder, double-click the .zip so it expands into a normal folder.
  • Copy contents: Open the expanded folder and copy the individual design files (plus PDF), not the .zip itself.
  • Paste into a simple folder path on the USB (e.g., Vendor > Designer > Project) to avoid hunting on a small screen.
  • Success check: On the Pro-Stitcher, the folder opens and real stitch files appear (not a single “zipper” file).
  • If it still fails… Confirm the USB is formatted as MS-DOS (FAT) / FAT32 and try a smaller 2–8GB drive.
• Q: What USB format should a Mac use so a Handi Quilter Pro-Stitcher (Windows-based) can read the USB drive reliably?
  A: Format the USB drive as MS-DOS (FAT) / FAT32, because Pro-Stitcher cannot read Mac OS Extended formats.
  • Open Disk Utility on the Mac and check the USB format before copying any designs.
  • Erase/Reformat to MS-DOS (FAT) if the drive is in a Mac-only format (backup files first).
  • Use a reputable, smaller USB (often 2–8GB) to reduce indexing/freezing issues on older systems.
  • Success check: The USB drive appears on the Pro-Stitcher and browsing folders does not freeze.
  • If it still fails… Try a different USB stick and verify the correct Pro-Stitcher “data” USB port is being used.
• Q: How do you safely eject a USB drive from macOS to prevent Handi Quilter Pro-Stitcher file corruption?
  A: Always eject in Finder and wait until the drive disappears, because macOS may still be writing in the background even after copying looks finished.
  • Click the Eject icon next to the USB name in Finder.
  • Wait for the “ghost period” to finish (the drive name may gray out briefly).
  • Do not unplug until the USB entry fully vanishes from the Finder sidebar.
  • Success check: The USB drive is no longer listed in Finder, then the drive can be removed cleanly.
  • If it still fails… Re-copy the files after a proper eject; early removal can damage the drive’s file “table of contents.”
• Q: Why does a Handi Quilter Pro-Stitcher freeze when reading a USB drive prepared on a Mac?
  A: A very common cause is an oversized USB drive/partition (often 32GB+), which some industrial tablets struggle to index.
  • Switch to a smaller, simple USB stick (often 2–8GB) from a reputable brand.
  • Format the USB as MS-DOS (FAT) / FAT32 before transferring designs.
  • Keep the USB organized into a few folders instead of hundreds of loose files at the root.
  • Success check: The Pro-Stitcher opens the USB quickly and scrolling/browsing stays responsive.
  • If it still fails… Test a second known-good USB drive to separate “drive problem” from “tablet/software problem.”
• Q: What are the “gibberish” files starting with ._ on a Mac USB drive, and will they break Handi Quilter Pro-Stitcher file loading?
  A: Those ._Filename items are hidden macOS companion files; they are common and can be ignored while selecting the real stitch files.
  • Scroll past files that start with ._ and look for the actual design files and folders.
  • Use a clean folder hierarchy (Vendor > Designer > Project) so the real files are easier to spot.
  • Avoid dumping everything into one folder where ._ files visually clutter the list.
  • Success check: The correct stitch file type opens normally even if ._ files are present in the folder.
  • If it still fails… Re-check that the design set was unzipped and that Pro-Stitcher software/firmware supports that design file version.
• Q: What mechanical safety steps should be followed before plugging a USB drive into the Handi Quilter Pro-Stitcher carriage box or tablet ports?
  A: Power down or engage the machine’s E-Stop/lock before reaching behind the tablet or carriage, because fingers can get near moving belts/needle areas and cables.
  • Stop motion: Power down or lock out movement before reaching around the carriage box.
  • Insert carefully: Align the USB and confirm it is a true USB port (do not force into HDMI/power).
  • Use the correct port: Confirm the Pro-Stitcher “data” USB port location for the specific model/generation.
  • Success check: The USB slides in with firm, smooth resistance (no “crunch”), and the tablet recognizes the drive for data (not just power).
  • If it still fails… Try another known data-capable USB port on the correct Pro-Stitcher module (not an auxiliary power-only/diagnostic port).
• Q: When should a Mac-based embroidery/quilting workflow upgrade from basic USB transfer to a dedicated Windows laptop for Handi Quilter Pro-Stitcher Designer/Simulator?
  A: If editing/digitizing becomes frequent or Parallels/USB passthrough friction starts costing real time, a dedicated low-cost Windows laptop is often the most reliable step.
  • Level 1 (optimize): Standardize the routine—Download → Finder → Unzip → Copy → Safe Eject—so transfers are repeatable.
  • Level 2 (reduce friction): Use a dedicated, high-quality USB-C to USB-A adapter and keep a spare formatted USB ready.
  • Level 3 (upgrade workflow): For production use, run Pro-Stitcher Designer/Simulator on a dedicated Windows laptop to avoid virtualization lag and USB pass-through issues.
  • Success check: Designs transfer and open consistently without repeated retries, freezes, or “missing file” surprises at the machine.
  • If it still fails… Update Pro-Stitcher software/firmware to resolve file-version mismatches before assuming hardware is at fault.
