From Kimberbell CD to Brother Luminaire (or Baby Lock Solaris): Transfer PES Files to USB or Send Wirelessly Without the Tech Headache

Mastering the Digital Thread: From Confusing CDs to Flawless Production

By the Chief Embroidery Education Officer

If you have ever stared at a Kimberbell CD—or any digital embroidery library, for that matter—and felt a wave of anxiety, you are not failing. You are simply encountering the friction point where creative texture meets rigid computer logic. I have watched seasoned stitchers, people who can maneuver a complex appliqué blindfolded, freeze up when a file extension doesn't look "right."

File management is the unglamorous backbone of modern embroidery. It is not just about organizing folders; it is about protecting your time. When you are working on a complex project like Kimberbell’s Red, White & Bloom, the last thing you need is to send a cutting file to your embroidery machine and watch it crash.

This guide converts the abstract confusion of "CD to USB" into a tangible, repeatable workflow. We will move beyond basic copying and discuss how professional shop floors manage these assets to ensure that when you press "Start," the machine sings rather than stalls.

The Cognitive Reset: Why Your Files Look "Broken" (But Are Fine)

When you insert a design CD, you might see icons that look like Google Chrome or Microsoft Edge web pages. This often triggers a panic response: "Did I download a shortcut instead of the file?"

Here is the technical reality: Your computer is not corrupted. Specialized embroidery and cutting files (like SVGs) are based on XML code, which web browsers can read. Because you likely don’t have professional vector software (like Adobe Illustrator) installed, Windows defaults to the next best thing it knows: a web browser icon.

The Golden Rule: Never judge a file by its icon. Judge it by its extension.

• .SVG = Scalable Vector Graphics (Cutting data).
• .PES/.DST/.EXP = Embroidery Stitch Data (Coordinate data).

Deleting SVGs because they "look like internet links" is a common, painful mistake. These are your precision cutting instructions. If you are building a professional library, establish a strict protocol now: The CD is the Master Vault. Never work directly from it. Copy to a staging area first.

The "Cockpit" Setup: Enabling the Navigation Pane

Cognitive friction happens when you can't see "where" you are in the computer. We need to turn on the "Navigation Pane" in Windows File Explorer. Think of this as the GPS map on the left side of your screen. Without it, you are driving blind.

Execute this visualization setup:

1. Locate: Click the yellow folder icon on your taskbar.
2. Act: Click the View tab at the top.
3. Verify: Click Navigation pane and ensure the checkmark is visible.

Sensory Check: You should immediately see a tree structure appear on the left. It visually anchors you, allowing you to drag files from the CD drive (Source) to the USB drive await (Destination) without opening multiple windows.

Prep Checklist: The Zero-Friction Start

Before you attempt a transfer, verify these physical and digital conditions:

• Source: External CD/DVD reader connected (listen for the drive spinning up/stabilizing).
• Destination: USB stick inserted. Visual Check: Does it appear as Drive (D:), (E:), or (F:)?
• Environment: Navigation Pane is visible in File Explorer.
• Clean Slate: Create a specific folder on the USB (e.g., “Batch_01_Lemons”)—never dump loose files into the root directory.
• Hidden Consumables: Have a notebook ready to record which file matches which hoop size (write it down now, thank yourself later).

Locating the Data: Finding Drive "KD809"

In the left Navigation Pane, scroll to This PC. You are looking for the optical drive. In our case study, it is labeled KD809.

Upon opening, you will typically see a triage of folders. This is standard industry architecture:

• Double Hooping: (Advanced alignment instructions).
• Embroidery Files: (The actual stitching data).
• SVG Files: (The cutting data).


Pro Tip: If you are setting up your physical workspace—what pros call a hooping station for embroidery—I recommend organizing your digital files to match your physical zones. Create a folder aimed at your cutting machine (ScanNCut/Cricut) and a separate folder aimed at your embroidery machine. Physical separation prevents the accidental loading of an SVG file into an embroidery machine, which causes immediate error messages.

SVG vs. PES: differentiating the Data Stream

Let's drill down into the file types.

• SVG Files: These carry vector paths. If you open the SVG folder, standard Windows settings may show browser icons. Ignore the icon. These are for your digital cutter or specific software like Kimberbell’s Orange Pop Rulers.
• Embroidery Files: These contain coordinate movements (X, Y axis) and commands (Trim, Stop, Color Change).

Expert Insight: Mixing these files in one folder is a recipe for production failure. When you are rushing to finish a gift or an order, the filenames often look identical (e.g., Lemon_Main.svg vs Lemon_Main.pes). If your machine can’t read the file, 90% of the time, you have tried to load the cutting file.

The Spec Sheet: Precision Matters

Within the SVG/Documentation folder, there is usually a PDF sizing chart. Open this via Adobe Acrobat.

In the Life Is Sweet example, the cut file is 2.756 x 2.798 inches. Why three decimal places? Because precision is the difference between a quilt block that lies flat and one that puckers.

Decision Tree: To Pre-Cut or Trim Later? Novices often ask if they should pre-cut all fabrics using these measurements.

• The Hobbyist Approach: Cut as you go. It is safer but slower.
• The Production Approach: If you trust your machine's calibration, batch cutting (using the SVGs) saves massive amounts of time. However, verifying the first cut is mandatory. Measure the physical output against the PDF specs before cutting expensive fabric.

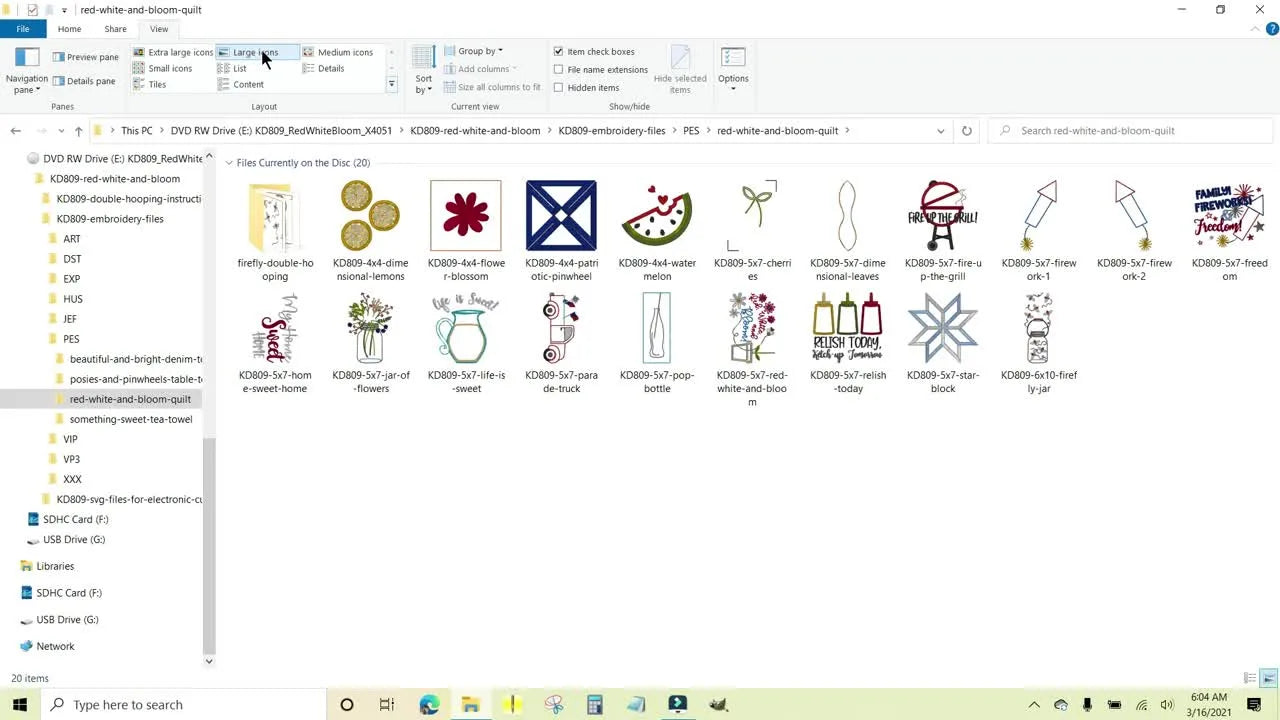

Making the Invisible Visible: Thumbnails

Navigate to Embroidery Files -> PES (for Brother/Baby Lock).

If you see generic white icons, your brain has to work harder to read filenames. We want to reduce that load. Action: Go to View -> Large icons.

If you still only see generic machine icons, this indicates your computer lacks the codec to render embroidery files. The video recommends Embrilliance Thumbnailer.

Efficiency Note: Thumbnailer is not design editing software; it is a viewing utility. Think of it like putting on glasses. It allows you to visually identify "The Lemon" vs "The Pitcher" instantly, drastically reducing the chance of selecting the wrong file during a high-volume transfer.

The Transfer: The "Tactile" Drag-and-Drop

We are now moving the asset to the USB stick.

The Multi-Select Maneuver:

1. Click the first file (Lemons).
2. Sensory Anchor: Press and hold the Ctrl key. You should feel the key bottom out. Keep holding.
3. Click the second file (Pitcher). Both should now be highlighted in blue.
4. Release Ctrl.
5. Click the blue highlighted area, hold the mouse button, and drag left toward your USB drive in the Navigation Pane.
6. Visual Confirmation: Wait for the specific USB folder to change color (highlight) or expand.
7. Release: Drop the files.


Always click on the USB drive afterwards to visually confirm the files arrived.

Setup Checklist: The Integrity Verify

• Structure: Are files inside a folder? (Storing 500 loose files on a USB root makes newer machines lag).
• Format: Did you copy the .PES file (or your machine's specific format)?
• Isolation: Did you leave the SVGs behind? (Don't clutter the embroidery USB).
• Master Copy: Is the CD safely back in its case?

Warning: Data Corruption Risk
Never pull a USB stick out while the light is flashing or immediately after a file drop. Windows uses "write caching," meaning it might say the file is moved, but it is still finishing the data stream in the background. Wait 10 seconds after the transfer bar disappears, or use the "Eject" function. Pulling too early corrupts the file header, leading to machines skipping stitches or crashing.

Wireless Injection: The Luminaire/Solaris Shortcut

If you have invested in a top-tier machine (Brother Luminaire XP1/XP2 or Baby Lock Solaris), manual USB transfer is obsolete. You can use Embrilliance as a bridge.

1. Open the design in Embrilliance on your PC.
2. Drag the file from the Explorer window onto the "virtual hoop" on screen.


3. Navigate to Utility -> Send to Solaris/Luminaire.
4. Name the file (e.g., "Lemons_Run1").




Prerequisites for specific hardware:

• Machine must be powered ON.
• Machine must be on the same 2.4GHz or 5GHz Wi-Fi network as the PC.
• Crucial Step: The machine must have completed its startup "dance" (where the arm moves to calibrate). If it is sleeping, the transfer will fail.

Workflow Context: Wireless transfer pairs exceptionally well with modern production tools. For example, if you are using magnetic hoops for brother luminaire, you can send the next design file wirelessly while your hands are busy hooping the next garment at your station. This parallel processing (sending while hooping) is how home businesses scale up.

The Physical Interface: Hoop Sizes & Stabilization

The software (Embrilliance) reveals a critical physical constraint:

• The Lemons fit a 4x4 hoop.
• The Pitcher requires a 5x7 hoop.


The Economy of Scale: While you can stitch the small lemon in the large 5x7 hoop, you are wasting stabilizer and fabric. In a hobby setting, this costs cents. in a production run of 50 items, it costs dollars.

This moment—selecting the hoop—is also where many users experience the physical pain of embroidery: "Hoop Burn" (fabric markings) and wrist fatigue from tightening screw mechanisms.

If you are struggling with a traditional brother 4x4 embroidery hoop—specifically if you find yourself unable to get thick fabrics taut or you are damaging delicate linens with hoop rings—this is your "Trigger" to evaluate your tools.

Decision Tree: Substrate & Stabilizer Strategy

Selecting the right foundation is more important than the file transfer.

Software Edits vs. Stitch Engineering

A common question arises: "Can I move these lemons around?" The creator explains that Embrilliance Essentials allows for composition (layout changes, merging, color sorting), but not true "Digitizing" (altering the path of individual stitches).

Think of it this way:

• Essentials: Arranging furniture in a room.
• Digitizing Software: Building the furniture from wood.

For most users, Essentials is sufficient to delete a tagline, add a name, or combine two small designs into one hoop.

The Upgrade Path: Solving the " bottlenecks"

Once you master file transfer, your bottleneck shifts from the computer to the machine. You will notice that hooping takes longer than stitching.

The Workflow Audit:

1. The Trigger: Are you doing repetitive work (e.g., 20 quilt blocks)? Are your wrists hurting? Are you rejecting items due to "hoop burn"?
2. The Standard: A production cycle should be fluid. Hooping should take less than 60 seconds.
3. The Options:
   • Level 1: Upgrade your hooping surface (mats, alignment grids).
   • Level 2: Upgrade the hoop. Many search for terms like how to use magnetic embroidery hoop because they offer a "lay-and-snap" workflow that is faster and gentler on fabric than screw-tightened rings.
   • Level 3: Upgrade the machine. If you are constantly changing thread colors on a single-needle machine, the downtime is killing your profit. Multi-needle machines (which almost always use magnetic framing systems) solve this.

Warning: Magnetic Field Safety
If you choose to upgrade, be aware that high-end magnetic hoops utilize industrial-strength magnets (often Neodymium).
1. Pinch Hazard: They snap together with immense force. Keep fingers clear of the contact zone.
2. Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not rest the magnets directly on your laptop or the embroidery machine's LCD screen.

Operation Checklist: The Final Flight Check

You have the files. You have the hoop. You are ready to stitch. Run this final mental loop to prevent a crash:

1. [ ] File Logic: Does the file on the machine match the hoop size currently attached? (Trying to stitch a 5x7 file in a 4x4 area will cause a frame collision).
2. [ ] Bobbin Check: Do you have enough bobbin thread for the density of this design? (The hidden consumable that stops projects halfway).
3. [ ] Needle Status: Is the needle fresh? (A burred needle ruins the precise satin stitches typical in Kimberbell designs).
4. [ ] Path Clearance: Is the wall/table behind the machine clear? The embroidery arm will travel backward—don't let it hit the wall.
5. [ ] Wireless Verification: If you sent the file effortlessly via Wi-Fi, verify it appears in the specific "Pocket" or "Wireless Download" tab on your Brother/Baby Lock screen.

If you are scaling up your operation, perhaps integrating magnetic hoops for babylock embroidery machines into your process, these checks become even more vital. Speed is useless without safety.

By treating your files with the same respect you treat your fabric, you eliminate the "Ghost in the Machine." The file is just data; you are the craftsman/craftswoman. Configure your environment correctly, and that anxiety about "CDs and USBs" will vanish, replaced by the rhythm of a machine running smoothly.

FAQ

• Q: Why do Kimberbell SVG files show Google Chrome or Microsoft Edge icons on Windows, and is it safe to copy Kimberbell SVG files to USB?
  A: This is common—Windows is simply using a web browser icon because SVG files are XML-based, so the file is usually fine.
  • Check: Look at the file extension (for cutting it must end in .SVG, not just “look like a link”).
  • Do: Keep the Kimberbell CD as the master and copy files to a staging folder on the computer or USB instead of working directly from the CD.
  • Do: Separate folders on the USB for “Embroidery” and “SVG/Cutting” to prevent loading the wrong file type into a machine.
  • Success check: The SVG files remain present in the SVG folder and open in the intended cutter/software workflow, not deleted due to the icon.
  • If it still fails: Turn on file extensions in Windows and re-check that the file truly ends in .SVG (not a browser shortcut or renamed file).
• Q: How do I turn on the Windows File Explorer Navigation Pane to drag Kimberbell embroidery files from a CD drive to a USB drive without getting lost?
  A: Enable the Navigation Pane so the left-side “tree” shows both the CD drive and the USB drive at the same time.
  • Do: Open Windows File Explorer (yellow folder icon).
  • Do: Click the View tab, then select Navigation pane and ensure it is checked.
  • Do: Drag files from the CD drive in the left tree directly onto the target USB folder.
  • Success check: A left-side folder/drive tree appears immediately, and the USB drive highlights when dragging files over it.
  • If it still fails: Close extra File Explorer windows and try again with one window so the source (CD) and destination (USB) stay visible together.
• Q: Why does a Brother or Baby Lock embroidery machine show an error or refuse to load when a Kimberbell SVG file is on the embroidery USB stick?
  A: The USB likely contains a cutting file (.SVG) instead of an embroidery stitch file (.PES/.DST/.EXP)—most embroidery machines cannot read SVG.
  • Check: Confirm the embroidery USB folder contains the correct stitch format for the machine (for Brother/Baby Lock, look for .PES in this workflow).
  • Do: Keep SVG cutting files in a separate cutter-only folder (or leave them off the embroidery USB entirely).
  • Do: Use clear folder names (example: “Embroidery_PES”) so the correct file type is selected under time pressure.
  • Success check: The embroidery machine displays the design in its design list and allows selection without an immediate “cannot read” type failure.
  • If it still fails: Re-copy the file from the CD to USB (do not rename extensions) and confirm the machine is browsing the correct folder, not the SVG folder.
• Q: How do I verify Kimberbell PES files actually copied to a USB drive correctly, and how do I avoid USB file corruption from Windows write caching?
  A: Copy into a folder, then confirm the files appear on the USB and wait before unplugging (or eject) to avoid header corruption.
  • Do: Create a project folder on the USB (do not dump hundreds of loose files into the USB root).
  • Do: Drag-and-drop the selected .PES files into that folder, then click the USB folder to confirm the files are visible.
  • Do: Wait about 10 seconds after the transfer bar disappears or use Windows “Eject” before removing the USB.
  • Success check: The USB folder shows the expected files and filenames, and the embroidery machine loads the design without crashing or acting “glitchy.”
  • If it still fails: Re-transfer using a fresh copy from the CD and avoid removing the USB while any activity light is flashing.
• Q: Why do Kimberbell PES designs show generic white icons on Windows, and how can Embrilliance Thumbnailer help prevent choosing the wrong file?
  A: If Windows cannot render embroidery previews, switch to Large icons and use Embrilliance Thumbnailer to visually identify designs fast.
  • Do: In File Explorer, set View → Large icons to reduce filename-only mistakes.
  • Do: Install and use Embrilliance Thumbnailer as a viewing utility (not editing software) to display design thumbnails.
  • Do: Use thumbnails to confirm you are selecting “the lemon” vs “the pitcher” before copying or sending wirelessly.
  • Success check: The File Explorer folder shows recognizable design thumbnails instead of generic icons, and the correct design is selected on the first try.
  • If it still fails: Verify the files are truly .PES (not SVG/PDF) and re-open the folder after changing the view setting.
• Q: What are the critical “final flight check” steps before stitching a Kimberbell design on a Brother Luminaire or Baby Lock Solaris to avoid hoop collisions and mid-design stops?
  A: Confirm hoop size matches the file, check bobbin and needle condition, and clear the arm travel path before pressing Start.
  • Check: Match the design requirement to the installed hoop (example from this workflow: Lemons fit 4x4; Pitcher requires 5x7).
  • Check: Verify enough bobbin thread for the design density and confirm the needle is fresh (a worn needle can ruin satin stitches).
  • Do: Clear space behind the machine so the embroidery arm cannot hit a wall or object during backward travel.
  • Success check: The machine accepts the design with the installed hoop and runs the first part of stitching without frame collision warnings or sudden stops.
  • If it still fails: Stop immediately, re-check hoop/file match on-screen, and re-load the correct design file for the attached hoop.
• Q: What are the magnetic embroidery hoop safety rules for neodymium magnetic hoops to prevent finger pinches and medical/electronics risks?
  A: Treat magnetic hoops as industrial-strength tools—keep fingers clear, keep magnets away from medical devices, and do not place magnets on sensitive electronics.
  • Do: Keep fingers out of the contact zone when the magnetic frame snaps together (pinch hazard is real).
  • Do: Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Do: Avoid resting magnets directly on a laptop or an embroidery machine LCD screen.
  • Success check: The hoop closes without trapping skin, and there is no unintended snapping near the machine screen or personal medical device.
  • If it still fails: Pause the workflow, separate the magnets slowly with controlled leverage, and re-hoop with a deliberate “hands-clear” placement routine.
