From JPG to Stitch File in IDS: The Fast Workflow—Plus the Manual Fixes That Make It Actually Sew Clean

Auto-Digitizing Masterclass: Turning "One-Click" Promises into Shop-Floor Reality

Auto-digitizing is the industry's most seductive promise. It feels like magic—right up until the first stitch-out puckers your fabric, small lettering turns into a bird’s nest, or a satin column snaps your thread every thirty seconds.

If you are reading this, you are likely in one of two distinct psychological camps:

1. The Efficiency Seeker: You already digitize, but you need speed. You want to reduce the "design time tax" that kills your profit margins.
2. The Small Business Owner: You run a boutique shop, perhaps with a single-needle machine, and you are terrified that your software limit is capping your income.

This guide reconstructs a standard Intelligent Digitizing Software (IDS) workflow—importing, vectorizing, editing, and lettering. However, as a seasoned embroidery educator, I will not just tell you what buttons to click. I will explain the physics of the stitch, the sensory cues you must look for, and the safety margins that keep your machine running.

1. Calm the Panic: The "80/20" Rule of Auto-Digitizing

Is auto-digitizing "real" embroidery? Yes. Is it a "Press Go and Profit" button? Absolutely not.

Here is the truth based on 20 years of production data: Auto-digitizing gets you 80% of the way there on simple artwork. The final 20%—edge quality, stitch direction, density management, and letter Kerning—is where clean sew-outs are won or lost.

The Expert Mindset: Do not view auto-digitizing as a finished product. View it as a Draft Generator. It creates the structure, but you must be the architect who ensures the building stands up.

2. The Import Phase: Garbage In, "Thread Nests" Out

The video workflow begins by clicking the Insert Image icon to select a JPEG (the JMU bulldog logo). This moment is critical. The way you process the raster (pixel-based) image determines whether your machine hums or jams.

In the Image Processing dialog, we select Graphic Type: Simple Artwork. Why? Because embroidery is low-resolution art. We cannot stitch gradients easily. We need blocks of color.

The "Pre-Flight" Artwork Audit

Before you even open the software, look at your source JPG.

• Resolution: Is it at least 300 DPI?
• Clean Edges: Zoom in tight. Are the edges crisp, or are there "fuzzy" pixels? Fuzzy pixels create "micro-objects"—tiny, 3-stitch islands that cause thread trimmers to engage unnecessarily, leading to bird's nests.
• Color Count: Does the image have 50 shades of grey? Reduce it to 2 or 3 solid colors in your graphics editor first.

Action Steps:

1. Click Insert Image.
2. Select Simple Artwork to force the software to ignore noise.
3. Manually limit colors: If the logo looks like it has 4 colors, force the software to see only 4. Do not let it auto-detect 12 shades.
4. Press OK.

Sensory Check: Look at the retraced image. It should look "flat" and "cartoonish." If it looks photo-realistic, stop. You will fail later.

3. The "Resize" Danger Zone: Physics vs. Algorithms

The Resize Image dialog appears next. The demonstrator sets the design to 163 mm x 127.4 mm (approx 6.4" x 5").

The Experienced Digitizer’s Rule: Software recalculates math, but it does not account for physics.

When you resize a design:

• Scaling Up: A satin stitch column might become too wide (over 7-8mm), causing loops that snag.
• Scaling Down: A 4mm text column becomes 2mm. The underlying density essentially doubles relative to the space. This is how you break needles.

The Safety Interval:

• Safe Zone: +/- 10% scaling is usually safe without manual intervention.
• Caution Zone: +/- 20% requires checking density.
• Danger Zone: >20% scaling requires re-digitizing or heavy manual editing.

Warning: Never blindly resize a design containing text smaller than 5mm in height. The software will shrink the letters, but the needle diameter (0.75mm for a #75/11 needle) stays the same. The result is a hole cut in your fabric.

4. The Hidden Prep: Physical Stability Before Digital Stitching

All the software wizardry in the world cannot fix a physical setup error. Before we auto-generate stitches, we must secure our canvas.

If you are using standard machine embroidery hoops, you are relying on friction to hold the fabric tension.

The "Drum Skin" Test

1. Hoop the Fabric: Place your stabilizer and fabric in the hoop.
2. Tighten: Tighten the screw.
3. Tactile & Auditory Check: Tap the fabric with your finger. You should hear a dull thump-thump, like a drum.
   • Too Loose: The fabric riffles (puckering imminent).
   • Too Tight: The fabric grain is distorted (oval circles imminent).

Decision Tree: Stabilizer Selection

• Stable Woven (Denim, Canvas): Tearaway is acceptable.
• Unstable Knit (T-Shirts, Polos): Cutaway is mandatory. No exceptions. The stretch of the knit will distort the design without permanent backing.
• High Stitch Count (>15,000 stitches): Use a heavy weight Cutaway + a spray adhesive (temporary adhesive) to bond the fabric to the stabilizer.


5. Generating Stitches: The "Lightning Bolt" Moment

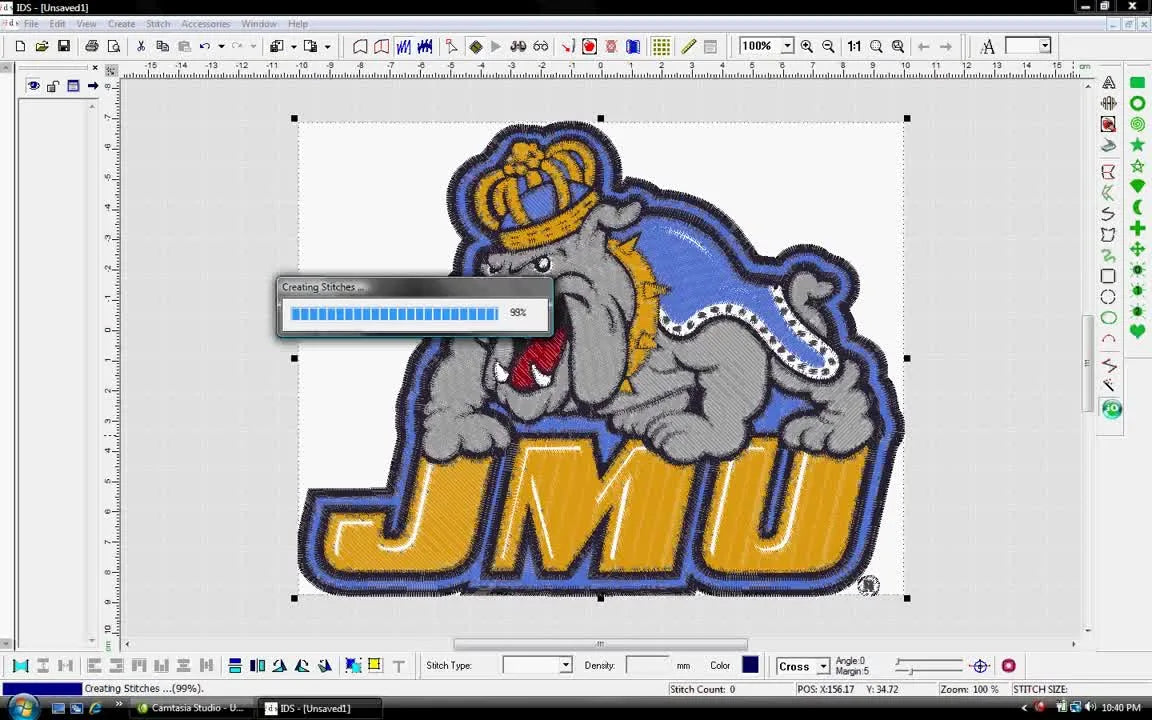

Click the Go (lightning bolt) button. IDS now processes the vector shapes into stitch commands: coordinates, density, and underlay.

The "Why" Behind the Processing: The software is calculating "Pull Compensation." When a needle penetrates fabric, it pulls the threads together, slightly shrinking the object. IDS adds extra width to compensate. This is why auto-digitized shapes often look "fat" on screen—they need to be, so they sew out correctly.

Expected Outcome: The logic bar finishes, and distinct stitch blocks appear.

6. Rentering the "Matrix": The Visual Audit

Switch to Rendered View (3D Preview). This is your cheapest opportunity to catch errors. Do not just look at the pretty picture; look for structural integrity.

The Digital Inspection Checklist:

1. Look for "Thin" Satins: Are there borders that look like a single thread? Change these to a "Run Stitch" (Bean Stitch) or thicken them to at least 1.5mm satin.
2. Look for "Black Holes": Are there areas where 3+ colors overlap? This will create a "bulletproof" stiff patch on the garment.
3. Check Sequence: Does the design stitch from the center out? (Ideal for caps). Or top to bottom? (Ideal for flats).


7. Stitch Physics: Converting Satin to Pattern Fill

The video demonstrates changing the large letter "J" from a Satin Stitch to a Pattern Fill. This is not just an aesthetic choice; it is a mechanical necessity for large areas.

The Logic: A Satin Stitch is a long thread jumping from side to side. If that jump exceeds 7mm to 10mm (depending on the machine), the thread becomes loose and snag-prone. A Pattern Fill breaks long threads into shorter, interlocking stitches.

The "Sweet Spot" Data (Manual Entry):

• Density: The video shows 0.40mm.
  • Beginner Advice: Stick to 0.40mm - 0.42mm. Going lower (e.g., 0.30mm) packs thread too tightly, causing stiff "cardboard" patches.
• Travel (Min Step): 0.20mm.
• Stitch Direction: 30 degrees. Always angle fills to avoid pushing fabric in a straight line, which causes ripples.

Action Steps:

1. Select the object (the “J”).
2. Open Stitch Properties.
3. Switch to Pattern Fill.
4. Listen to your machine: If your machine sounds like it is hammering in one spot, your density is too high. Increase the value (e.g., to 0.45mm).


8. Vector Splicing: Controlling the "Push"

The video shows splitting the "M" object into three separate shapes using Outline View/Nodes.

Why do this? If the "M" is one object, the stitch direction might flow horizontally across the whole letter, pushing the legs apart. By splitting it into three (left leg, right leg, specific center), you can set the stitch angle for each leg to run perpendicular to the column.

Rule of Thumb: Stitch fibers should almost always run perpendicular to the column length (like rungs on a ladder).

Visual Check: In the preview, ensure the little lines representing stitch direction (inclination lines) are crossing the columns at 90 degrees.

9. The Lettering Life-Saver: TrueType vs. Auto-Tracing

The video inserts "James" using Arial Black at 25.4 mm (1 inch).

Crucial Distinction:

• Auto-Tracing Text: Never, ever auto-trace text if you can avoid it. It creates jagged, uneven letters.
• TrueType / Pre-Digitized Fonts: Use the text tool. It has built-in logic for "kerning" (spacing) and "swapping" (underlay).

Beginner Limit: If you are using an embroidery machine for beginners, do not attempt text smaller than 6mm (0.25 inches) until you have mastered density and underlay. Small text requires 60wt thread and a smaller needle (#65/9), or it will look like a blob.

10. Text Manipulation: Spacing and Distortion

The video demonstrates spacing, stretching, and mirroring.

The "Legibility" Check: When you arc or stretch text, standard spacing gets crushed.

• The Check: Look at the gap between letters at their closest point.
• The Metric: You need at least 1mm of clear fabric between letters. If they touch on screen, they will merge into an unreadable lump on the machine.

Action: Use the spacing handles to spread the text slightly wider than you think looks "grammatically" correct. Thread adds bulk; pixels do not.

11. Arcing the Path: The 3-Click Rule

The arc tool in IDS follows a specific rhythm:

1. Click: Start Point.
2. Click: End Point.
3. Click: Height of the Arc.

If you struggle here, it's usually because you are dragging instead of clicking.

Visual Alignment: Ensure the text is centered optically. Sometimes a capital "J" or "T" makes text look off-center even if it is mathematically centered. Trust your eye.

12. Troubleshooting: Converting Symptoms to Solutions

Even with perfect software prep, things go wrong. Here is your Low-Cost to High-Cost troubleshooting table.

13. The Commercial Pivot: When to Upgrade Your Tools

You can master the software, but if your physical workflow is slow, your business will fail. We see three distinct "pain boundaries" where upgrading hardware is cheaper than struggling.

Pain Point 1: The "Hoop Burn" Struggle

Traditional hoops require high pressure to hold fabric, often leaving "hoop burn" (shiny crushed rings) on delicate performance wear or velvet.

• The Fix: magnetic embroidery hoops. These use high-force magnets to hold fabric without the friction-abrasion of inner rings. They are essential for protecting high-value garments.

Warning: Magnetic hoops contain powerful Neodymium magnets. They pinch hard. Keep them away from pacemakers, credit cards, and children.

Pain Point 2: Alignment Fatigue

If you are running a batch of 50 shirts, hooping each one squarely on a table is exhausting and prone to human error.

• The Fix: A hooping station for machine embroidery. This ensures every logo lands in the exact same spot on every shirt, reducing the mental load on the operator.

Pain Point 3: The Single-Needle Bottleneck

If you are using a single-needle brother embroidery machine (or similar), you are swapping threads manually for every color change. If a design has 6 colors and takes 10 minutes to sew, you are chained to that machine.

• The Fix: This is the trigger to upgrade to a SEWTECH multi-needle ecosystem. A multi-needle machine changes colors automatically, allowing you to walk away and digitize the next job while the machine works.

14. Pre-Flight Checklist: The Last 5 Minutes

Before you press start, utilize this checklist to prevent 90% of failures.

The "Hidden Consumables" Check

• Needle: Is it fresh? A dull needle pushes fabric instead of piercing it.
• Bobbin: is there enough thread for the job? (Don't play "bobbin chicken").
• Scissors: Do you have curved snips for trimming jump stitches?
• Oil: Has the rotary hook been oiled today? (1 drop only).

The Software Check

• Size: Is the design size < 80% of your hoop's sewing field? (Leave safety clearance).
• Density: Are fills set to ~0.40mm?
• Text: Is any lettering smaller than 6mm? (If yes, slow machine speed down).
• Underlay: Is Centre Run or Edge Run enabled for stabilizers?

Final Reality Check

IDS allows you to move from image to stitch file in minutes. But the software is just a tool—like a hammer. You are the carpenter.

Use auto-digitizing to build the frame, then use your manual editing skills to refine the details. When the digitization is solid, support it with the right stabilizers and hooping techniques. And when manual processes slow you down, look to professional tools like magnetic frames and hooping stations to reclaim your time.

Now, go run a test stitch on a scrap piece of fabric. Always test before you trust.

FAQ

• Q: How do I know standard machine embroidery hoops are hooped correctly before auto-digitizing stitches (the “Drum Skin” test)?
  A: Hoop to “drum-tight” tension—firm and flat, not rippled or distorted.
  • Hoop: Layer stabilizer + fabric, tighten the screw, and smooth the surface evenly.
  • Tap: Tap the hooped fabric with a finger to evaluate tension.
  • Success check: A dull “thump-thump” sound with a flat surface; no ripples (too loose) and no grain distortion/warping (too tight).
  • If it still fails: Switch to the correct stabilizer (knits need cutaway) and re-hoop; do not try to “fix” bad hooping with software settings.
• Q: What stabilizer should I use for knit shirts (T-shirts/polos) to prevent puckering and gaps in auto-digitized embroidery designs?
  A: Use cutaway stabilizer for knits—this is the baseline that prevents stretch distortion.
  • Choose: Use cutaway for unstable knits; tearaway is only acceptable for stable wovens like denim/canvas.
  • Reinforce: For high stitch counts (over 15,000), use a heavy cutaway and bond fabric to stabilizer with temporary spray adhesive.
  • Success check: After stitching, the fabric stays flat around the design and the shape does not “grow” or wave when released from the hoop.
  • If it still fails: Reduce stitch density (for example, move fills toward 0.45mm) and re-check hoop tension with the drum test.
• Q: How much can embroidery digitizing software resize a design safely without causing thread snapping or distorted satin columns?
  A: Keep resizing within about ±10% unless you are ready to manually check density and stitch types.
  • Stay safe: Treat ±10% as the usual safe zone; ±20% needs density review; over 20% often requires re-digitizing or heavy editing.
  • Protect satins: If scaling up makes satin columns exceed roughly 7–10mm, convert large areas to a pattern fill.
  • Success check: In preview, satins look structurally “supported” (not overly wide/loopy), and the sew-out does not hammer or snag.
  • If it still fails: Rebuild the problem areas (convert satin to pattern fill, adjust density) instead of forcing extreme scaling.
• Q: How do I prevent bird’s nests (tangles under fabric) on an embroidery machine during auto-digitized sew-outs?
  A: Re-thread the top thread correctly and replace the needle first—most bird’s nests start there.
  • Re-thread: Completely re-thread the top thread with the presser foot UP.
  • Replace: Install a fresh needle (the guide references a #75/11 as a standard baseline).
  • Success check: The underside shows controlled bobbin lines rather than a tangled wad, and the machine runs without sudden thread piles forming.
  • If it still fails: Verify the design is not creating excessive trims from noisy artwork (tiny “micro-objects”) and simplify the source image/colors before re-digitizing.
• Q: How do I fix white bobbin thread showing on top of embroidery (bobbin tension symptom)?
  A: Clean the bobbin case first, then make very small bobbin screw adjustments.
  • Clean: Remove lint from the bobbin case area.
  • Adjust: Tighten the bobbin screw in tiny steps (about 1/8 turn).
  • Success check: Top stitching shows the intended top thread color, with bobbin thread no longer surfacing on the face of the design.
  • If it still fails: Re-check top threading and needle condition before making further tension changes.
• Q: What should I do when embroidery thread keeps snapping (the “pop” sound) on satin or dense areas?
  A: Start with a fresh needle and remove friction points in the thread path.
  • Change: Replace the needle (fresh #75/11 is the referenced starting point).
  • Inspect: Check the thread path for burrs or rough spots that can cut thread.
  • Listen: If the machine sounds like it is hammering in one spot, increase fill density value (for example, toward 0.45mm) to reduce over-packing.
  • Success check: No repeated “pop” sounds, and the stitch formation stays consistent through dense sections.
  • If it still fails: Convert oversized satin areas to pattern fill to avoid long snag-prone thread spans.
• Q: What are the safety warnings for magnetic embroidery hoops when using Neodymium magnets on garment production?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive items and people.
  • Handle: Keep fingers clear when closing the hoop—magnets can pinch hard.
  • Separate: Keep away from pacemakers, credit cards, and children.
  • Success check: The garment is held firmly without excessive pressure rings, and the hoop can be opened/closed without finger pinches.
  • If it still fails: If hooping still causes marks or instability, slow down and re-hoop carefully; do not force alignment under magnet pressure.
• Q: When does it make business sense to upgrade from standard hoops and single-needle workflow to magnetic hoops, a hooping station, or a SEWTECH multi-needle machine?
  A: Upgrade when time loss or garment damage becomes repeatable—fix technique first, then upgrade the bottleneck.
  • Level 1 (technique): Tighten hooping (drum test), use cutaway on knits, and keep fill density around the 0.40–0.42mm starting range.
  • Level 2 (tool): Use magnetic hoops when hoop burn is damaging delicate garments; add a hooping station when batch alignment is fatiguing or inconsistent.
  • Level 3 (capacity): Move to a multi-needle system when manual color changes on a single-needle machine keep you tied to the machine during multi-color jobs.
  • Success check: Fewer re-hoops/rejects, consistent placement in batches, and less operator “babysitting” during color changes.
  • If it still fails: Track where time is actually lost (hooping marks, alignment rework, thread-change downtime) and upgrade the tool that removes that specific constraint first.
