From JPEG to Hat-Ready Stitches in Wilcom 4.5: The 3-Decision Workflow That Prevents Gaps, Bulky Density, and “Why Doesn’t It Pop?”

Most beginners stare at their embroidery machine screen, confused why the machine won't just "print" the JPEG image they loaded. They hit start, and the result is a bird’s nest of thread, a broken needle, and a ruined cap.

Here represents the harsh reality of machine embroidery: A JPEG is artwork; a stitch file is a command.

Your machine is blind. It doesn't see "a logo." It only follows x/y coordinates. It needs exact instructions: where to drop the needle, how fast to move, and when to trim. This "giant step in between" is digitizing. It is the engineering difference between a clean, retail-ready cap and a dense, gappy mess that puckers the fabric.

This guide rebuilds the professional workflow from the Romero Threads Wilcom Embroidery Studio e4.5 demo, but we are going to apply a layer of "shop floor reality." I will walk you through the sensory cues, the safe parameter ranges, and the specific tools—like upgrading to a SEWTECH multi-needle machine or using magnetic frames—that turn a frustration into a profitable business.

Artwork vs. Stitch File: The Moment You Stop Treating a JPEG Like It’s “Ready to Sew”

In the video, the host calls out the industry's biggest misconception: having the artwork is not the same as having a stitchable file. Digitizing is programming the physics of the sew-out. You are controlling the Push and Pull of the fabric.

When a needle penetrates fabric, it pushes fibers apart (distorting the fabric outwards) and the thread tension pulls it together (shrinking the fabric inwards). If you don't program your file to account for this, circles become ovals and outlines fail to meet the fill.

On hats, this stakes are higher. Caps are curved, structured, and unforgiving. If your sequence is wrong, the "push" of the fabric accumulation will cause:

• Gaps: White space appearing between the black outline and the blue fill.
• Bird-nesting: A "thump-thump" sound followed by a machine error, caused by bulletproof density.
• Drift: Registration that looks perfect on your computer screen but shifts 2mm on the actual cap.


The “Hidden” Prep Pros Use in Wilcom 4.5 Before They Trace Anything

The video moves quickly into software, but the "Pre-Flight" preparation is where you win or lose the battle. Beginners often skip this to "save time," only to spend hours picking out stitches later.

1) Confirm you’re starting with a *good* JPEG (or better)

The host’s first requirement is quality artwork. He zooms in to about 3000% to visually inspect the edges.

Sensory Check: Look at your monitor. Do the edges of the logo look like a staircase (pixelated) or a smooth slide? If they look like stairs, you are guessing where the curve is. Digitizing is about precision; guessing leads to wobbly satin stitches.

Pro Tip: If you can't get a vector file (EPS/AI), and your JPEG is pixelated, do not just "trace faster." Redraw the lines in your software using the Bezier tool to create a clean path before generating stitches.

2) Make peace with simplification (especially for caps)

In the video, the design is sized to 2.75 inches (approx. 70mm). The host decides to omit a white border detail because the design is getting small. This is not laziness; it is physics.

The "1mm Rule": As a general safe zone for beginners, any column stitch narrower than 1mm typically causes thread breaks or looks like a messy line of thread. On a hat, high density in small areas creates a "bulletproof" patch that refuses to bend with the cap, causing the needle to deflect and break.

3) Decide your production target *now*

You must answer this before you touch the first node:

• Is this a structured cap (stiff buckram front)?
• Is it an unstructured dad hat (floppy)?
• Is it a flat patch?

The video focuses on a structured cap with a cap driver. This means we must stitch from the center out (bottom-up, center-out) to push the fabric smoothly against the curve.

Tool-Upgrade Trigger (The Hooping Bottleneck): If you are struggling to hoop thick structured caps, or if you notice "hoop burn" (shiny rings left on the fabric from clamping too hard), your tools might be the limiter.

• Level 1: Use a "steamer" to remove rings (slow).
• Level 2: Upgrade to a magnetic hooping station. These fixtures hold the cap identically every time.
• Level 3: Use Magnetic Hoops. They snap on without "unscrewing" and "tightening," reducing wrist strain and fabric damage.

Prep Checklist (Do this before you click "Digitize")

• Visual: Zoom artwork to 3000%. Is it crisp?
• Measure: Is the final height locked (e.g., 2.75 inches)?
• Edit: Have you deleted details smaller than 1mm?
• Substrate: Are you set up for a Cap Driver (Center-Out logic)?
• Consumables: Do you have the right needle? (Recommendation: 75/11 Titanium Sharp for structured caps).


The 3 Decisions That Make or Break Hat Digitizing: Layers, Objects, Sequence

The host teaches a mental model known as the "Construction Logic." It applies to Wilcom, Hatch, Embrilliance, or any pro software.

Decision #1: What’s on top of what? (Layer hierarchy)

He identifies the layers visually:

1. Background: Baby blue circle.
2. Mid-ground: Body/Shirt.
3. Foreground: Wrench.

If you mess this up, you get "hidden" stitches underneath the top layer, creating a lump of thread that snaps needles.

Decision #2: Break the artwork into digitizable objects

He "chops" the logo into distinct shapes. He notes that the facial highlights must be separate objects.

Beginner mistake: Trying to digitize the whole image as one complex fill with holes in it. Expert fix: Create solid shapes and layer them. This is easier to edit later and flows better on the machine.

Decision #3: Choose the order of operation (sequence + travel)

Sequence isn't just about colors; it's about stability. On a hat, you want to lay down the background (the foundation) to tack the fabric to the stabilizer (backing).

Travel Lines: Plan your route to minimize standard jumps. Even if your machine has auto-trimmers, a machine takes 6-10 seconds to trim, move, and restart. 100 trims = 10+ minutes of lost production time.

Setup in Wilcom Embroidery Studio e4.5: Dimming Artwork and Locking Size Before You Digitize

In the video, the host dims the artwork to trace cleanly. Then he makes the critical decision: Locking size at 2.75 inches.

Why lock it now? Because Stitch Density is relative to size.

• If you digitize a satin column at 4 inches wide, it looks great.
• If you shrink that same file to 2 inches, the stitches are forced twice as close together. This causes bird-nesting.

The Density Safe Zone: For standard polyester thread (40wt), a standard fill density is 0.40mm to 0.42mm. Do not go tighter (e.g., 0.30mm) on a hat unless you know exactly what you are doing.

Watch out (from the comments): "My file won't load!" This is usually a file format error. If you get an import error, open your artwork in a basic viewer (like Paint or Preview) and "Export As" a standard PNG or BMP. Do not rename a .jpg to .dst manually—that does not work.

Warning (Mechanical Safety): When running test sew-outs, keep your hands clear of the needle bar. A 1000 SPM machine moves faster than your reflexes. Never reach into the hoop area to grab a loose thread while the machine is running (green light is on).

Building the Base Layer: Digitizing the Background Circle as a Fill (Tatami) Without Creating Bulk

The host selects the baby blue circle. He uses a Tatami (Fill) Stitch. Unlike a Satin stitch (which jumps from edge to edge), a Tatami places needle penetrations in the middle of the shape to cover large areas.

The Physics of Underlay: You cannot just sew the top blue thread; it will sink into the fabric. You need a foundation, called Underlay.

• Edge Run: Traces the outline to hold the shape.
• Tatami Underlay: A loose mesh zig-zag that pins the fabric of the hat to the heavy cutaway stabilizer.

How to think about it: Imagine painting a wall. The Underlay is the Primer. The Top Stitch is the Paint. If you skip the primer, the paint looks terrible.

• Action: Set Underlay on.
• Setting: Edge Run + Tatami (Density ~2.0mm).


Digitizing the Foreground Details: Making the Wrench the Focal Point (and Why It Works)

The host tackles the wrench. He makes a deliberate choice:

• He keeps it one solid color object.
• He uses a "Full Sand Stitch" (a dense combination of Tatami and Satin logic) to make it stand out.


This creates Texture Contrast. The background is flat and smooth; the wrench is raised and textured. This is how you get a "premium" look without adding 10,000 extra stitches.

“Why didn’t you use the original colors from the JPEG?”

Simplification is speed. On a single-needle machine, every color change is a manual stop (2-5 minutes of work). On a SEWTECH multi-needle machine, it’s faster, but still takes time. By reducing colors, you reduce the "Points of Failure" (trims, tie-ins/tie-offs) where threads usually break.

Can you use a drawing tablet (Wacom) with Wilcom?

Yes, using a tablet can feel more natural for "drawing" the shapes, but the machine doesn't care if you used a mouse or a stylus. The parameters (stitch angle, density, underlay) are what matter. A tablet helps with ergonomics, not embroidery physics.

The “Last Checks” Ritual: What to Inspect Before You Send the File to the Embroidery Machine

Before the file leaves the PC, the host performs a virtual "sew-out" on screen. You are looking for logical errors.

The "Play" Button is your best friend: Watch the simulation.

• Does the background finish completely before the wrench starts?
• Are there weird jumps across the design?
• Do the start and end points of objects line up to minimize travel?

Business Reality: This expertise is billable. If a client asks, "Why do I pay a setup fee?" you are paying for the engineering of these layers, not just "converting a file." If you aren't ready to learn this, pay a professional digitizer ($15-$30). It is cheaper than ruining $50 worth of hats.

Setup Checklist (The Final Pre-Flight)

• Layer Logic: Background -> Body -> Foreground.
• Size Check: Width is exactly 2.75" (or desired size).
• Density Check: Main fills are clearly set to ~0.40mm - 0.42mm.
• Underlay: Verified "On" for all objects.
• File Format: Exported to the language your machine speaks (DST for Tajima/SWF/Commercial, PES for Brother, EXP for Bernina/Melco).
• Speed Set: Set your machine speed to 600-750 SPM (Stitches Per Minute). Hats hate high speed. Slow down for quality.

Sample Stitch-Out on a Structured Cap: The Only Test That Counts

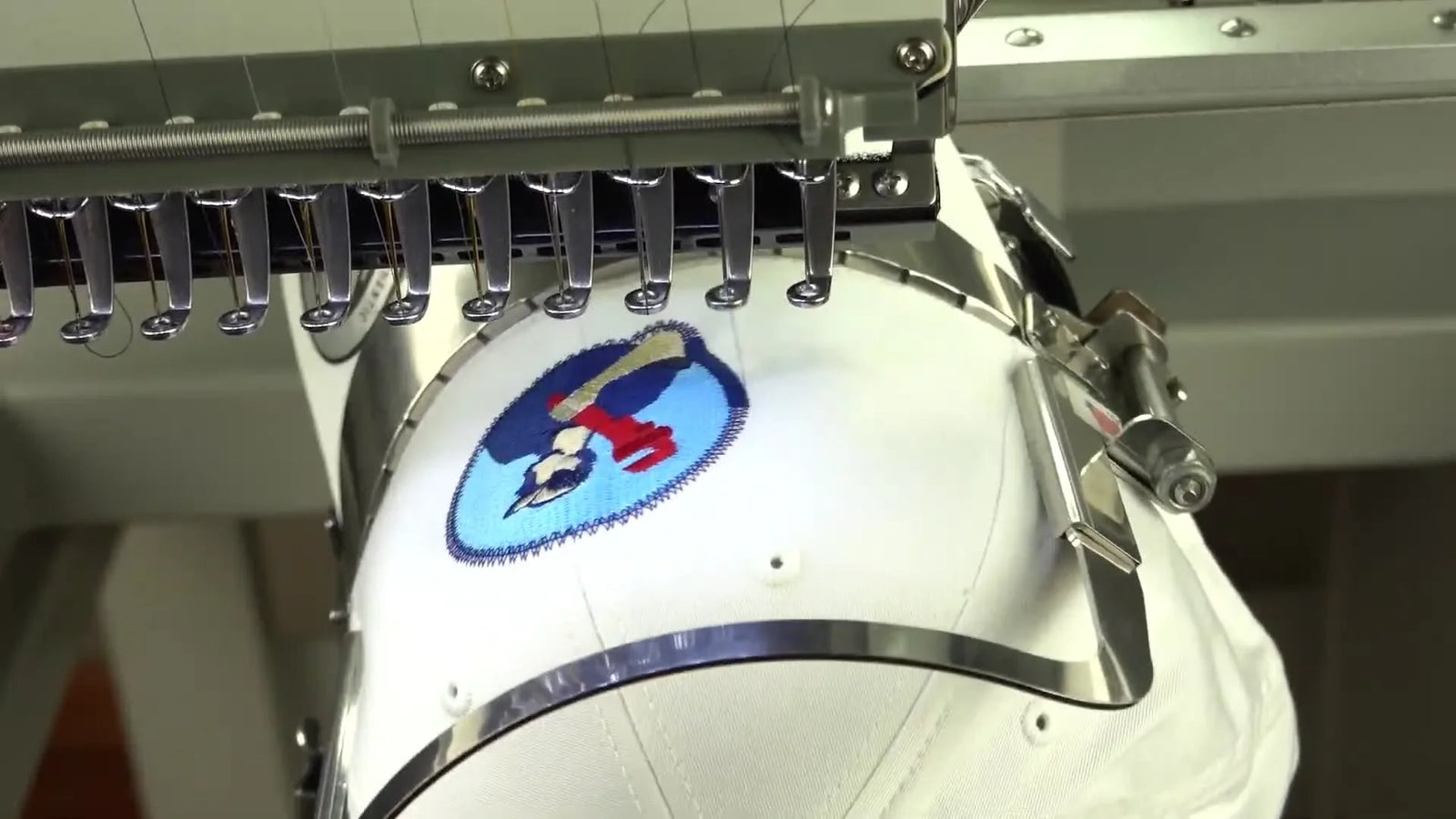

The video concludes with a real sew-out on a multi-needle machine.

This is the "Source of Truth." You are listening for:

• Smooth Sound: A consistent hum.
• Bad Sound: A "thwack-thwack" (needle hitting safety zones or hoop) or "ka-chunk" (bird-nesting).

Hooping: The Invisible Variable

If your digitizing is perfect but your hooping is loose, the design will shift. The cap must be "drum tight."

• The Problem: Traditional cap rings are hard to clamp. You need hand strength.
• The Solution: Many pros switch to magnetic embroidery hoops. The magnets clamp the heavy seams of a cap instantly without forcing you to tighten a screw. This reduces "Hoop Burn" (the shiny ring mark) and ensures the cap doesn't flag (bounce) during stitching.

Warning (Magnet Safety): Strong magnetic hoops can pinch fingers severely. Do not place fingers between the magnets. Important: Keep these strong magnets away from pacemakers, insulin pumps, and credit cards, as the magnetic field can disrupt electronics.

The two cap problems you’re trying to avoid

1. Gaps (Registration Errors): If you see a white gap between the blue circle and black outline, your "Pull Compensation" setting was too low (try increasing to 0.40mm), OR your hoop was loose.
2. Bulletproof Stiffness: If the logo feels like a piece of hard plastic, reduce the density. A hat needs to curve.


Operation Checklist (During the Sew-out)

• Listen: Is the machine sound rhythmic?
• Watch: Is the bobbin thread (white) showing on top? (Tension issue).
• Inspect: After the run, rub the back of the embroidery. Is it smooth? A rough back means tension issues.
• Measure: Did the logo stay centered? (If not, check hooping tightness).

A Simple Decision Tree: Hat vs. Flat Goods, and How That Changes Hooping + Production Speed

Use this decision matrix to maximize profit and quality based on the item you are stitching.

Start: What is your substrate?

1. Structured Cap (e.g., Richardson 112)
   • System: Cap Driver + Cap Frame.
   • Stabilizer: Tear-away (Heavy) x2 sheets.
   • Speed: < 750 SPM.
   • Logic: Center-Out sequencing is mandatory.
2. Flat Patch / Beanie (Stretchy/Thick)
   • System: Flat Mighty Hoop / magnetic embroidery hoop.
   • Stabilizer: Cutaway (Mesh) to prevent stretching.
   • Speed: 800 - 1000 SPM.
   • Benefit: Magnetic hoops prevent the stretch/distortion common with screw hoops on beanies.
3. Flat Garment (Polo/Hoodie)
   • System: Standard Tubular Hoop.
   • Stabilizer: Cutaway (Performance Micro-mesh for polys).
   • Note: If you produce volume, a hoop master embroidery hooping station ensures the logo is in the exact same spot on every shirt, reducing reject rates.

Troubleshooting the Real-World Problems Commenters Keep Running Into

Here are the solutions to the most common "Crisis Moments" beginners face.

Symptom: “How do I make the logo pop out?”

Likely Cause: Flat density across all objects. The Fix: Use 3D Foam (Puffy Foam) or create contrast settings. Use a matte thread for the background and a high-sheen Rayon thread for the foreground. Ensure your top tension is not too tight (standard polyester tension approx 110g-130g).

Symptom: “Gaps between objects after stitching.”

Likely Cause: "Flagging" (Fabric bouncing up and down) or poor Pull Compensation. The Fix:

1. Check Hoop: Is it tight? (Drum skin test). Consider magnetic embroidery hoops if you can't get it tight enough manually.
2. Adjust File: Increase Pull Compensation in software.
3. Stabilizer: Add an extra layer of backing.

Symptom: “My machine keeps stopping/beeping.”

Likely Cause: Thread breaks due to a burr on the needle or bad threading path. The Troubleshooting Order (Low Cost -> High Cost):

1. Rethread the whole machine (Top and Bobbin).
2. Change the needle (New 75/11).
3. Check the file (Is density too high?).
4. Call a technician.

Symptom: “What settings did you change for hats?”

Likely Cause: Using "Flat" file settings on a "Curved" object. The Fix:

• Sequence: Bottom-up, Center-out.
• Underlay: Heavy center run to taco (tack) the fabric down.
• Speed: Slow down.

The Upgrade Path: When Your Digitizing Is Fine—but Production Still Feels Slow

You have mastered the file. The logo looks great. But you are only finishing 3 hats an hour. You have hit a Production Ceiling.

If your goal is a hobby, this is fine. If your goal is profit, you need to identify the bottleneck:

• Bottleneck: Too many color changes.
  • Solution: A single-needle machine stops for every color. Upgrading to a SEWTECH multi-needle machine (like a 10-needle or 15-needle) automates this. You press start and walk away.
• Bottleneck: Hooping takes too long.
  • Solution: Screwing and unscrewing hoops takes 2 minutes per garment. magnetic hooping station setups reduce this to 15 seconds.
• Bottleneck: Hooping difficulty.
  • Solution: If you struggle with the specific geometry of Brother frames, searching for a hat hoop for brother embroidery machine often leads to specialty aftermarket magnetic frames that simplify the process. Aspirational users often look at the brother pr680w class machines, but remember that commercial multi-needle machines (like SEWTECH) offer similar industrial capacity at a competitive entry point.

The Takeaway: Digitizing for Hats Is Three Decisions + One Non-Negotiable Test

To become a master, you must stop hoping for a magic button. The process is repeatable engineering:

1. Structure: Visualize the layers (Foundation -> House -> Roof).
2. Pre-Flight: Lock your size and simplify the art (1mm rule).
3. Sequence: Stitch for the curve (Center-Out).
4. Validate: Run the test. Trust the "Sew-out," not the screen.

Do this, and you won’t just be a person who owns an embroidery machine; you’ll be an embroiderer.

FAQ

• Q: Why can’t a Tajima DST embroidery machine stitch a JPEG logo directly, and what file type is required for a structured cap?
  A: A JPEG is artwork, but a Tajima DST file is stitch commands, so the design must be digitized and exported as a stitch file (DST) before stitching.
  • Convert: Digitize the artwork in embroidery software (set size first, then build objects, sequence, underlay, density).
  • Export: Save/export as DST (do not rename a .jpg to .dst).
  • Test: Run an on-screen stitch simulation before sending to the machine.
  • Success check: The machine loads the DST normally and the simulation shows logical stitching order without weird jumps.
  • If it still fails: Re-export the artwork as a standard PNG or BMP from a basic viewer, then re-import and digitize again (import errors are often format-related).
• Q: What embroidery design details should be removed when digitizing a 2.75-inch structured cap logo in Wilcom Embroidery Studio e4.5?
  A: Remove or simplify elements that create stitch columns under ~1mm wide to avoid breaks and “bulletproof” stiffness on caps.
  • Measure: Identify any satin columns or tiny borders narrower than 1mm and delete/merge them.
  • Simplify: Reduce micro-details (especially borders) when the design is around 2.75 inches (≈70mm).
  • Redraw: Use clean paths (Bezier) instead of tracing pixelated edges quickly.
  • Success check: The digitized preview shows clean, readable shapes without hairline satin areas.
  • If it still fails: Increase the finished size or redesign the artwork for embroidery (caps are less forgiving than flat goods).
• Q: What fill stitch density is a safe starting point for 40wt polyester thread when digitizing hats in Wilcom Embroidery Studio e4.5?
  A: Use a safe starting fill density around 0.40–0.42 mm for standard 40wt polyester, and avoid going tighter on caps unless you know exactly why.
  • Lock size: Set the final design size first (e.g., 2.75") before setting density.
  • Set density: Keep main fills in the 0.40–0.42 mm range to reduce bird-nesting risk.
  • Slow down: Run hats at about 600–750 SPM to reduce stress and deflection.
  • Success check: The sew-out feels flexible (not like hard plastic) and the machine runs with a smooth, consistent sound.
  • If it still fails: Reduce density further and confirm underlay is enabled (underlay is not optional for coverage and stability).
• Q: What underlay should be used for a Tatami fill background circle on a structured cap to prevent sinking and distortion?
  A: Turn underlay on and use Edge Run + Tatami underlay (about 2.0 mm underlay spacing) before the top Tatami fill.
  • Enable: Turn underlay “On” for the background fill object.
  • Select: Use Edge Run to hold the border and Tatami underlay to tack fabric to stabilizer.
  • Sequence: Stitch foundation/background first to stabilize the cap before details.
  • Success check: The fill looks even (not sunken), and the cap fabric stays stable without shifting during stitching.
  • If it still fails: Add more backing support (an extra stabilizer layer was recommended when gaps/instability show up).
• Q: How can an operator tell if embroidery hooping on a structured cap is tight enough to prevent registration drift and gaps?
  A: The cap must be “drum tight,” because loose hooping causes shifting even when the digitizing is correct.
  • Hoop: Clamp the cap firmly so it does not bounce/flag during stitching.
  • Listen: Watch for smooth rhythmic running; bouncing often shows up as unstable sound/behavior.
  • Inspect: Check for gaps between outline and fill after stitching (a common sign of movement).
  • Success check: The design stays centered and outlines meet fills without 1–2 mm drift.
  • If it still fails: Increase pull compensation (try 0.40 mm as a starting adjustment) and/or add stabilizer; if hooping strength is the limiter, consider switching from screw clamping to magnetic clamping.
• Q: What should be checked first when a multi-needle embroidery machine keeps stopping and beeping due to thread breaks during a hat sew-out?
  A: Start with the lowest-cost checks in order: rethread, change needle, then evaluate density—most stoppages are simple path/needle/density issues.
  • Rethread: Rethread the entire top path and bobbin from scratch.
  • Replace: Install a fresh needle (the blog’s cap recommendation was a new 75/11).
  • Review: Check the file for overly tight density that can trigger bird-nesting and breaks.
  • Success check: The machine runs longer without alarms and the stitch sound becomes steady instead of “thump-thump/ka-chunk.”
  • If it still fails: Escalate to a technician after confirming threading, needle, and density are not the cause.
• Q: What needle-bar safety rules should be followed when test-stitching a hat design at 600–750 SPM on a multi-needle embroidery machine?
  A: Keep hands completely clear of the needle/hoop area while the machine is running; never reach in to grab loose thread under a green/running light.
  • Stop: Pause/stop the machine fully before touching thread near the needle bar.
  • Observe: Watch from outside the hoop area during the test sew-out.
  • Control: Use slower hat speeds (about 600–750 SPM) to reduce risk and improve quality.
  • Success check: No hands enter the hoop zone while running, and adjustments are only made when motion is fully stopped.
  • If it still fails: If repeated intervention is needed, fix the root cause (threading, tension, density, hooping) rather than trying to “catch” issues mid-run.
• Q: What magnetic hoop safety precautions are required when using industrial magnetic embroidery hoops on caps and garments?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive medical devices and magnetic-stripe cards.
  • Avoid: Do not place fingers between magnetic parts when closing the hoop.
  • Separate: Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Control: Close magnets deliberately—do not let them snap uncontrolled onto the frame.
  • Success check: No pinched fingers and consistent clamping without fabric damage (reduced hoop burn compared to over-tight screw hoops).
  • If it still fails: If clamping still marks fabric, reduce pressure where possible and validate hooping technique before assuming the digitizing is wrong.
