From JPEG to DST in Wilcom EmbroideryStudio: The Clean, Repeatable Manual Digitizing Workflow That Actually Stitches Well

Master the Digital Thread: A Shop-Floor Guide from Image to Production-Ready DST

When you are converting a flat JPEG or PNG into a DST file, the software work is only 50% of the equation. The other 50% is engineering—ensuring that file will stitch cleanly on real fabric, at 800 stitches per minute, without shredding thread, breaking needles, or puckering the garment.

I write this not just as an instructor, but as someone who has heard the sickening "thump-thump-crunch" of a machine rejecting a bad file too many times. Digitizing is a tactile science. A design might look pristine on your 4K monitor, but if the stitch mechanics fight the physics of the fabric, you will lose.

This guide rebuilds the Wilcom EmbroideryStudio workflow demonstrated in the video, but it layers in the "shop-floor reality"—the safety checks, the sensory cues, and the specific parameter "sweet spots" that safeguard your sanity and your profit margins.

One quick note: The software referenced is Wilcom Embroidery Software 4.2 (specifically features found in Wilcom EmbroideryStudio Level 3 Advanced).

The Calm-Down Moment: What a DST File Actually Is

First, lower your shoulders and take a breath. A DST file is not "art" in the traditional sense; it is a set of rigid X/Y coordinates and machine commands.

Think of it this way: You are writing a letter to a very obedient but very literal employee. If you tell the machine to place 10,000 stitches in a 1-inch square, it will try—and it will tear a hole in your shirt. This is why digitizing is a busines skill. A clean file means:

• Less resistance: The thread flows like dental floss, not like cutting wire.
• Faster runs: Fewer thread breaks mean you aren't babying the machine.
• Easier finishing: No hours spent trimming jump stitches with micro-scissors.


The "Hidden" Prep: Import, Crop, and Stop Fighting the Void

The video starts correctly: isolate your effective working area immediately.

Import the Reference Image

1. Navigate to Image > Insert Image File.
2. Verify: Ensure All Files is selected in your browser window so your JPEG/PNG is visible.
3. Place the image on your grid.

Crop *Before* You Click

1. Select the image.
2. Go to Image > Crop Bitmap with Polygon.
3. Trace tightly around the subject you intend to stitch.

Why this matters: In production digitizing, "working around" a massive white background forces you to zoom in and out constantly. This creates cognitive fatigue. By cropping tight, you minimize mouse travel and keep your focus on the stitch path.

Prep Checklist (The "Clean Hands" Protocol):

• Version Control: Is this the absolutely final artwork? (Digitizing the wrong logo version is a classic rookie error).
• Crop Tight: Use Crop Bitmap with Polygon to remove visual clutter.
• Target Fabric: Decide NOW. Is this going on a stable dad hat or a stretchy performance polo? (Stretchy fabrics need higher pull compensation—approx 0.4mm—compared to stable canvas).
• Hidden Consumables: Do you have your fabric markers, ruler, and a fresh needle (75/11 or 80/12 sharps) ready for the test sew?

Warning: Repetitive Strain Injury (RSI) is real in digitizing. Keep your wrist neutral. If you find yourself "death-gripping" the mouse to click nodes, your sensitivity settings are too low, or you need ergonomic support.

Size First, Always: The "K" Lock Discipline

This is the step most beginners rush, leading to the heartbreaking realization later that their design is 10% too big for the hoop.

Set Your Units

• Toolbar: Switch from Metric to U.S. (if you think in inches).
• Expert Note: While stitch length is usually measured in mm (universal language of embroidery), overall design size is often client-dictated in inches (e.g., "Make it 3.5 inches wide for the left chest").

Lock the Geometry

1. Enter your target Width and Height.
2. Use the Lock Icon to maintain the aspect ratio.
3. Crucial Step: Select the image and press K on your keyboard.

The Sensory Anchor: You should feel a sense of stability. The background image is now immovable rock. If you try to drag it, nothing happens. This prevents "image drift," where your digitizing slowly becomes misaligned with the source art. To unlock later, press Shift + K.

The Safety Zone: Understanding the Three Limits

The video provides three global constraints. These are not just suggestions; they are the mechanical limits of what thread can do before it loops, snags, or breaks.

• Max Satin Length: 12.1 mm (The "Snag Limit")
• Max Fill/Tatami Length: 4 mm (The "Texture Limit")
• Max Jump Length: 7 mm (The "Trim Limit")

The Empirical Reality

• 12.1 mm Satin: While the machine can do this, a 12mm loop of thread is dangerous on a garment. It catches on door handles, jewelry, and washing machine agitators.
  • Beginner Sweet Spot: Try to keep satins under 7mm to 9mm for wearables. If it's wider, split it or use a Fill.
• 4 mm Fill: This is a safe standard. Going longer (e.g., 7mm fill) creates a loose, "shaggy" look that degrades quickly.
• 7 mm Jump: This controls when the machine decides to trim the thread versus just moving the pantograph. Too many trims slow down production; too many jumps leave a mess to clean up.

Useful Navigation Shortcuts:

• M: Measure (The most used tool in a pro's arsenal).
• Z: Zoom In.
• Shift + Z: Zoom Out.


The Ring Tool: Geometry Without Guesswork

Don't freehand circles. The machine exposes wobbly geometry instantly.

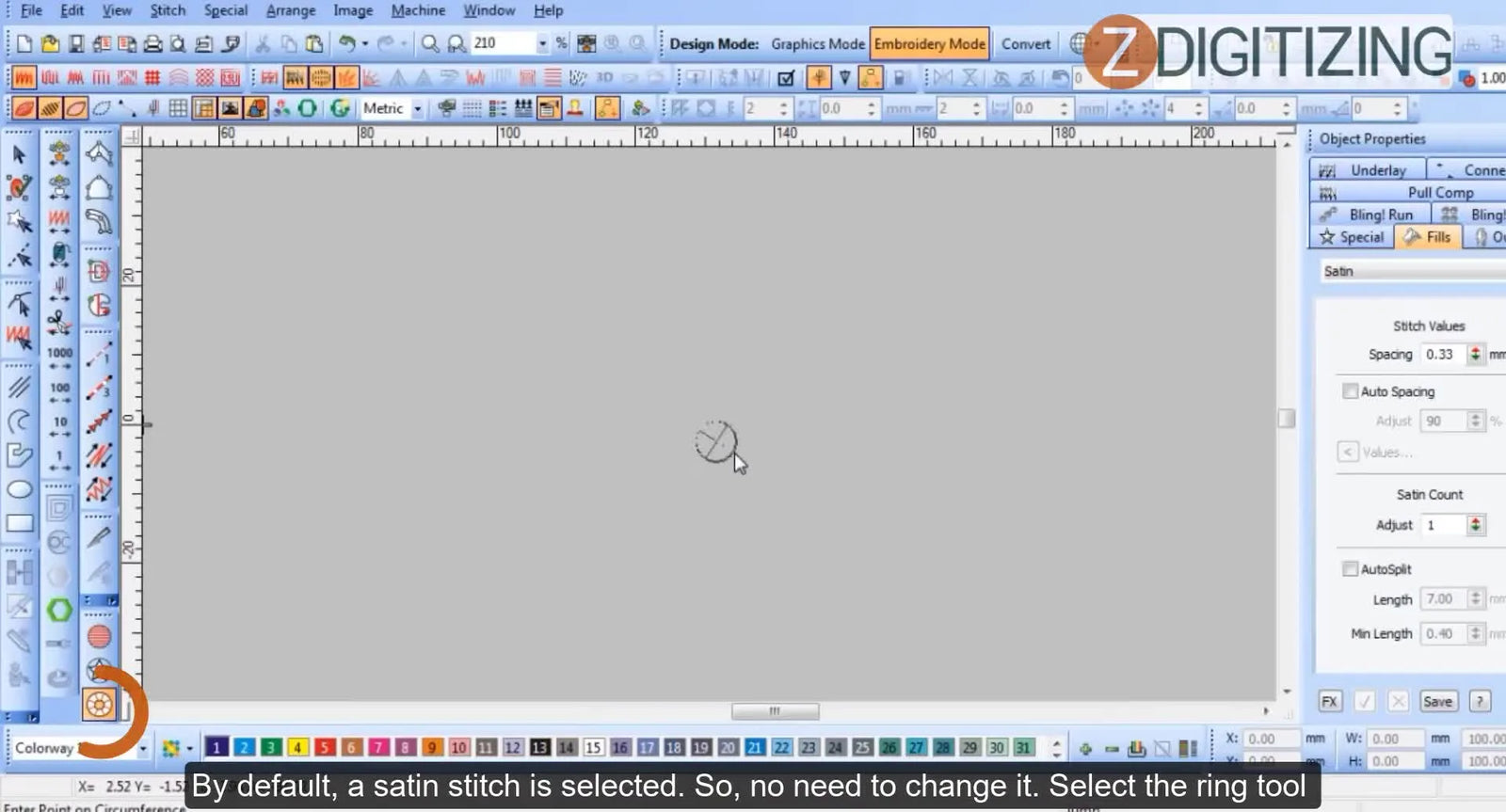

1. Select the Ring Tool.
2. Click 1: Center of the ring.
3. Drag/Refer: Pull to the outer edge to set the outer radius.
4. Click 2: Set the outer width.
5. Drag/Refer: Pull inwards to the inner circle edge.
6. Click 3: Set the inner width.

The "Pinch" Test: Immediately press M and measure the width of that satin ring. Is it uniform? Is it under 9mm? If it varies wildly or exceeds the limit, delete and redo. A machine acts like a lie detector for uneven column widths.

Color As Logic, Not Just Paint

The video demonstrates changing colors using the bottom palette bar.

1. Select the object.
2. Click the desired color swatch.

Expert Insight: In the DST language, a color change is actually a "STOP" command. It tells the machine to cut the thread and rotate to a new needle (on a multi-needle machine) or pause for you to hand-thread (on a single needle).

• Efficiency Tip: Group your colors. If you have blue at the start and blue at the end, can they be sequenced together? Every unnecessary color change adds 10-20 seconds to your run time.


The Decision Tree: Satin vs. Tatami (Fill)

The video moves to the spool top using the Circle Tool. This brings us to the most critical decision in digitizing: How do I fill this shape?

Used incorrectly, Satin stitches are loose and vulnerable. Used correctly, they are glossy and premium.

Decision Tree: The Stitch Selector

• Is the object a line, border, text, or narrow shape?
  • Yes: Measure the width.
    • < 1 mm: Use Running Stitch or Triple Run.
    • 1.5 mm - 8 mm: Satin Stitch (Ideal Zone).
    • > 9 mm - 12 mm: Satin (Risk Zone - use with caution or split).
    • > 12.1 mm: MUST convert to Tatami/Fill.
• Is the object a large solid area (like a circle or square)?
  • Yes: Use Tatami/Fill.

The Action:

1. Create the circle (hidden under the Ring Tool flyout).
2. Press M to Measure.
3. If > 12.1mm (or your personal safe limit), select the object.
4. Click the Tatami/Fill icon immediately.

Many beginners struggle with this when trying to convert image to embroidery file. They leave massive satins that look great on screen but create "soup" on the fabric.

Input A: The Rhythm of the Columns

For organic shapes like the thread cone body, standard shapes won't work. You need Input A.

1. Select Input A.
2. Left Click: Creates square points (straight lines).
3. Right Click: Creates round points (curves).
4. Alternate sides in a "ladder" pattern: Left bank, Right bank, Left bank, Right bank.

The "Flow" Check: Look at the stitch angles (the lines connecting your points). They should flow smoothly like water. If they twist or cross over each other like an hourglass, the thread will bunch up and break. Keep your angles perpendicular to the column walls.

Setup Checklist (Mid-Stream Check):

• Background Locked: Still immovable?
• Audit: Have you measured your widest columns?
• Sensory: Does the screen look "clean"? If you see chaotic lines, your stitch angles might be fighting.
• Consumables: Did you remember to buy spray adhesive or pins for the stabilizer later?


Small Details: The Density Trap

The video fills a small area with stitches. Here is where the "Physical Reality" bites hard.

The Physics: When you jam thousands of needle penetrations into a tiny 5mm square, you are essentially using a jackhammer on the fabric. It creates a hard, bulletproof patch that can cut the fabric fibers.

• The Fix: For small details, lower the density. If your standard density is 0.40mm spacing, open it up to 0.45mm or 0.50mm for tiny objects. Less is often more.

This approach is vital for anyone looking for a embroidery digitizing tutorial that focuses on wearability, not just screen aesthetics.

Subtractive Manufacturing: The Needle Eye

The video demonstrates creating a needle shape and then cutting out the eye.

1. Use Input Tool to draw the grey needle shaft.
2. Draw the "hole" shape on top.
3. Select both -> Subtract/Combine to punch the hole.

Expert Calibration:

• Thread has physical thickness. A tiny hole on screen will close up on fabric because the surrounding stitches "push" into the void.
• The Adjustment: Make the hole about 10-15% larger on screen than you want it to look on the final product. We call this "fighting the push."


Triple Run: Texture Without Bulk

For the loose thread strands, the video uses Triple Run (Bean Stitch).

• Standard Run: Up-Down-Up-Down (Thin, can disappear).
• Triple Run: Forward-Back-Forward (Bold, hand-stitched look, stands out).

Layering Logic: Digitizing is like masonry; you must lay the foundation first.

1. Draw the bottom thread lines.
2. Draw the top lines crossing over them.

• Why: This ensures the machine stitches the bottom ones first, so the top ones physically lay over them, creating a 3D illusion of depth.


Sequence Surgery: Cut and Paste

Did you draw the needle after the thread, but you want the thread to go through the needle? You need to fix the time-travel.

Since machines stitch file objects from top to bottom (start to finish):

1. Select the object that is stitching too early.
2. Ctrl + X (Cut).
3. Select the object you want it to stitch after.
4. Ctrl + V (Paste).

This reorders the sequence without destroying the coordinates.

The Production Multiplier: Copy and Paste

Never digitize the same identical thing twice.

• Accuracy: Your left eye will never match your right eye if you draw them separately.
• Speed: Right-Click + Drag (or Ctrl+C / Ctrl+V) ensures perfect symmetry.

Once you master these replication tools, you are well on your way to professional manual digitizing wilcom workflows.

From Screen to Machine: The Hardware Reality

The video ends with the design ready. But the file is useless until it meets the hoop. This is where most "bad digitizing" complaints actually originate.

The Great Stabilizer Variable

• Cutaway: For knits/stretchy fabric (Essential).
• Tearaway: For stable woven fabrics/towels.
• Water Soluble: For toppings (towels/fleece) so stitches don't sink.

The Hooping Pain Point

You can have a perfect file, but if you hoop it crooked or loosely, it will pucker. We call this "Hoop Burn" (permanent rings on fabric) or "Flagging" (fabric bouncing up and down).

Diagnosis & Upgrade Path:

1. Level 1 (Technique): Are you tightening the screw enough? While tapping the fabric, it should sound like a tight drum skin ("thump"), not a loose sheet.
2. Level 2 (Tool Upgrade): If you struggle with hoop burn or arthritis from tightening screws, professionals switch to magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without forcing it into a ring, reducing burn marks and strain.
3. Level 3 (Scale): If you are placing logos on 50 shirts a day, eyeing it up isn't enough. A hooping station for embroidery ensures the logo is in the exact same spot on Shirt #1 and Shirt #50.

Warning: Magnetic hoops contain strong magnets. Keep them away from pacemakers, ICDs, and credit cards. Watch your fingers—the "snap" is powerful and can pinch severely!

When to Upgrade Your Machine?

If you are doing this as a hobby, a single-needle machine is fine. But if you find yourself spending 50% of your time changing thread colors manually, you have hit the "Scale Ceiling."

• Trigger: You are turning down orders because you can't stitch fast enough.
• Solution: This is the time to look at multi-needle production machines (like SEWTECH solutions), which hold 10-15 colors at once and run continuously.

Troubleshooting Guide: The "Why is it doing that?" Table

Final Operation Checklist

Before you press the green button:

• Visual Check: Preview the stitch playback on screen. Does the order make sense? (Background -> Detail -> Outline).
• Needle Check: Is the needle straight and sharp? A burred needle ruins good files.
• Position Check: Trace the design on the machine (Trace button) to ensure the needle won't hit the hoop frame (Plastic + Needle = Explosion).
• File Format: Did you export to DST (or your machine's native language like PES/EXP)?

Use this guide to verify your image to stitch conversion process. The goal isn't just a file that opens; it's a file that runs smoothly, looks professional, and makes you profitable. Happy stitching.

FAQ

• Q: In Wilcom EmbroideryStudio 4.2, how do I stop background artwork drifting while manual digitizing a DST file?
  A: Lock the reference image before placing stitches, then only unlock when resizing is truly finished.
  • Press the Lock icon to keep aspect ratio, set target Width/Height, then select the image and press K to lock it.
  • Avoid dragging the bitmap after digitizing starts; edit stitches, not the artwork position.
  • Success check: Try to drag the image—nothing should move when K lock is active.
  • If it still fails: Press Shift + K to unlock, correct size/position once, then press K again and continue.
• Q: In Wilcom EmbroideryStudio 4.2, what stitch type should be used when a satin column is wider than 12.1 mm in a DST design?
  A: Convert the object to Tatami/Fill when the satin width exceeds 12.1 mm to prevent snagging and loose loops.
  • Measure the widest point with M before committing to Satin.
  • If the width is over 12.1 mm, select the object and click the Tatami/Fill icon.
  • Success check: The preview shows a fill pattern (tatami) instead of long open satin loops across the shape.
  • If it still fails: Keep satin under a safer wearable range (often 7–9 mm) by splitting the shape or redesigning the column.
• Q: In Wilcom EmbroideryStudio 4.2, how can high-density tiny details in a DST file be reduced to avoid a stiff “bulletproof” sew-out?
  A: Open the density (increase spacing) on small details so the fabric is not hammered by too many penetrations.
  • Identify tiny filled areas (example: a ~5 mm square) that feel overly packed in preview.
  • Increase stitch spacing from a typical 0.40 mm to 0.45 mm or 0.50 mm for those small objects.
  • Success check: The sewn detail bends with the fabric instead of forming a hard, board-like patch.
  • If it still fails: Test-sew with the intended stabilizer and adjust density again; very small shapes often need less stitching than the screen suggests.
• Q: On an embroidery machine sew-out, how can hooping technique be checked to prevent hoop burn rings and flagging (fabric bouncing)?
  A: Hoop the fabric tight and straight, because loose or crooked hooping causes puckering and bounce even with a perfect DST file.
  • Tighten the hoop screw adequately and keep fabric tension even across the ring.
  • Tap the hooped fabric to evaluate tension before stitching.
  • Success check: The fabric sounds like a tight drum skin (“thump”), not a loose sheet, and does not visibly bounce during stitching.
  • If it still fails: Move to a tool upgrade such as a magnetic embroidery hoop to clamp fabric without forcing it into a ring (reducing burn marks and strain).
• Q: How do magnetic embroidery hoops improve hoop burn and hand strain compared with screw-tightened hoops during production embroidery?
  A: Magnetic embroidery hoops clamp fabric quickly with strong magnets, which often reduces hoop burn and reduces repetitive screw-tightening fatigue.
  • Clamp the garment with the magnetic hoop instead of stretching fabric aggressively into a ring.
  • Use the same hooping routine each time to keep placement consistent, especially on batches.
  • Success check: Fewer visible ring marks after unhooping and less fabric distortion around the stitch area.
  • If it still fails: Confirm stabilizer choice (cutaway for knits, tearaway for stable wovens, water-soluble topping for towels/fleece) and re-check hoop tension.
• Q: What magnetic embroidery hoop safety rules should be followed when handling strong hoop magnets in a shop environment?
  A: Treat magnetic hoops like power tools: keep magnets away from sensitive devices and protect fingers from the snap force.
  • Keep magnetic hoops away from pacemakers, ICDs, and credit cards.
  • Control the closing motion and keep fingertips out of the pinch zone to avoid severe pinching.
  • Success check: The hoop closes under control without sudden snapping onto fingers or nearby metal objects.
  • If it still fails: Switch to a slower, two-handed handling method and train operators on safe placement before daily production.
• Q: What is the safe pre-run “trace” and needle check procedure to prevent an embroidery needle striking the hoop frame during DST production?
  A: Always trace the design path and confirm a straight, sharp needle before pressing start to avoid needle-to-frame collisions.
  • Use the machine Trace function to ensure the needle path stays inside the hoop opening.
  • Inspect the needle condition; replace if bent, dull, or burred because a damaged needle ruins good files.
  • Success check: The traced perimeter clears the hoop frame with visible margin, and the needle runs smoothly without clicking or impact.
  • If it still fails: Re-check design size versus hoop size (set size first, lock geometry) and reposition the design before running at speed.
• Q: If embroidery production time is wasted on frequent manual thread changes on a single-needle machine, what is the upgrade decision path from technique to multi-needle machines?
  A: First optimize sequencing and color grouping, then consider magnetic hoops for faster hooping, and only then move to multi-needle capacity when workload hits a scale ceiling.
  • Re-sequence the design to group same colors together because each color change is a STOP and adds run time.
  • Upgrade hooping speed and consistency with magnetic hoops if hooping is the bottleneck or hoop burn is recurring.
  • Success check: Run time drops measurably with fewer stops, and daily output becomes predictable without constant babysitting.
  • If it still fails: When orders are being turned down due to throughput limits, a multi-needle machine (holding 10–15 colors) becomes the practical step for continuous production.
