From iPad Sketch to Glowing Stitch-Out: A Design Doodler Fairy Workflow That Won’t Bite You Later

You are not alone if the combination of "special effect thread + tablet digitizing + tiny details" sounds like a recipe for frustration. Digital embroidery is physics, not just graphics. When you move from a screen to a physical machine, you are battling friction, tension, and material distortion.

The good news: this workflow is absolutely repeatable. It is not magic; it is engineering. Ken’s video demonstrates a full start-to-finish pipeline: digitizing on an iPad in Design Doodler, exporting a DST, and stitching on a Tajima using Madeira glow-in-the-dark thread on black fabric.

Below, we have rebuilt this workflow into a "White Paper" grade operational guide. We have added the sensory checks, the safe parameter ranges, and the "why" behind the "how" to keep you from wasting expensive stabilizer and destroying garments.

Calm the Panic First: Why This iPad Design Doodler File *Can* Stitch Cleanly on a Tajima

Glow thread and fine linework trigger anxiety in new embroiderers for two valid reasons: (1) high contrast means every mistake is visible, and (2) run stitches effectively "slice" the fabric rather than covering it.

However, this specific design works because it respects the mechanics of the machine. Ken keeps the design manageable by adhering to three core engineering principles:

1. Constraint: Working strictly within a 4x4 inch (100mm x 100mm) field.
2. Structural Integrity: Building bold "redwork" lines by tracing back over the same path (double pass). This adds thread mass without increasing needle penetration density to dangerous levels.
3. Edge Control: Using satin borders to act as a "frame" that traps the fabric edges and prevents fraying.

If you follow this logic, you will achieve a stitch-out that is fast (Ken’s count is ~4,900 stitches) and visually crisp.

Expert Note on Speed: While industrial machines can run at 1000+ SPM (Stitches Per Minute), for delicate work with glow thread—which is coarser and more abrasive than standard rayon—reduce your speed.

• Production Sweet Spot: 600–750 SPM.
• Sensory Check: Listen to the machine. A rhythmic, low hum is good. A high-pitched "clatter" or slapping sound means you are running too fast for the thread's tensile strength.


The “Hidden” Prep Ken Doesn’t Over-Explain: Fabric, Stabilizer, and a Hoop Plan That Prevents Distortion

The battle is won or lost at the hooping station. Ken stitches on a firm, felt-like swatch using a magnetic hoop. This works because the fabric is stable. However, in the real world, you might be stitching on a stretchy hoodie or a thin t-shirt.

You need a rigorous decision process. Do not guess.

Fabric + stabilizer decision tree (use this before you digitize)

We must match the "foundation" (stabilizer) to the "structure" (fabric).

Decision Tree: Stabilizer Selection Strategy

1. Is your fabric stretchy (Jersey, Spandex, Ribbed Knit)?
   • Yes: You must use Cutaway stabilizer (2.5oz or 3.0oz). Tearaway will eventually disintegrate under satin stitches, causing the design to separate from the fabric (the "bullet hole" effect).
   • Action: Spray a light layer of temporary adhesive (like 505) to float the fabric if you want to avoid hoop burn.
2. Is your fabric lofty or fuzzy (Fleece, Velvet, Towel)?
   • Yes: Use a stable backing (Cutaway/Tearaway) PLUS a Water Soluble Topper (Solvy).
   • Why: Without a topper, the thread sinks into the pile, and your design vanishes.
3. Is your fabric firm (Felt, Canvas, Twill)?
   • Yes: A medium-weight Tearaway is sufficient. Focus on hooping tension.

Magnetic hooping: why it helps here

Traditional screw-tightened hoops rely on friction and manual strength, which often leads to "hoop burn" (permanent crushing of fabric fibers) or "tambourining" (stretching the fabric so tight it distorts the weave).

A magnetic hoop clamps the fabric directly with vertical force. This reduces fiber crush and allows the fabric to lay in its natural state, preventing the "puckering" that happens when stretched fabric relaxes after stitching. Many professionals search for magnetic hoops for tajima specifically to solve these distortion issues on higher-end machines.

Warning: Pinch Hazard. Magnetic hoops for industrial machines utilize neodymium magnets with crushing force. Keep fingers strictly on the handle areas. Do not let the top and bottom frames snap together without a buffer layer. Keep away from pacemakers.

Prep checklist (do this before you open the app)

• Hoop Selection: Commit to a specific size (e.g., 4x4). Changing this later ruins density calculations.
• Needle Check: Glow thread is thick (approx 30wt or 40wt). Use a Topstitch 80/12 or Embroidery 75/11 needle. A standard 70/10 needle will shred this thread.
• Hidden Consumable: Do you have a lighter or heat gun? Glow thread often leaves fuzzy tails; quick heat cleans them up.
• Stability Plan: Can you describe your "Fabric + Stabilizer + Hoop" formula? If not, do not proceed.

Prep Checklist (end): If you cannot pass the needle eye test (thread passes freely through the eye with only gravity), upgrade your needle size immediately.

Make the iPad Workspace Behave: 4x4 Hoop Grid, 30% Opacity, and a Safe 3.8" Design Size

Cognitive load management is critical. On an iPad, it is easy to losing track of scale. Ken’s first move—lowering opacity to reveal the grid—is a safety protocol.

The "Safe Zone" Protocol:

1. Grid Visualization: Enable the 4x4 grid. This is your physical boundary.
2. Visual Anchor: Lower image opacity to 30%. You need to see the grid lines through the artwork.
3. The 10% Rule: Never design to the exact edge of the hoop. If your hoop is 4x4 (100mm), your max design size is 3.8" (96mm). This safety margin prevents the presser foot from striking the hoop frame—a collision that can break the needle bar or throw the machine out of timing.

This moment also represents a strategic fork in the road for your equipment. Design Doodler works for hobbyists and pros alike, but output volume dictates hardware. If you are struggling to fulfill orders with a single-needle machine, consider your production goals. A robust multi-needle platform (like the SEWTECH series) offers a larger stitch field and color-change automation, moving you from "hobbyist" to "manufacturer."

The Red Dot Habit: Continuous Redwork Run Stitches That Don’t Create Surprise Jumps

Efficiency in embroidery is defined by "Travel Distance." Every time the machine has to stop, trim, and move to a new location, you lose 7–10 seconds and increase the risk of a thread nest (bird's nest).

Ken uses the "Redwork" technique: a continuous line that doubles back on itself.

The Technique:

• Pass 1: Draw the Run Stitch A to B.
• Pass 2: Trace B back to A.
• Connection: Click the "Red Dot" (active node) to continue to C.

Why this matters: Standard Run Stitch density is light. By doubling back, you create a defining line that stands up against the fabric pile without needing a heavy satin column.

Sensory Check (Digitizing):

• Visual: Watch the "Red Dot." It acts as your "You Are Here" marker. If the Red Dot disappears, you have broken the path.
• Action: If you accidentally break the path, do not just start a new line. Stop. Undo. Re-connect. A broken path results in a jump stitch and a trim you didn't plan for.


The Circle That Makes Everything Look “Pro”: Satin Border Start/Stop Placement + Zig-Zag Underlay

A satin border is not just decoration; it is a structural containment wall for the fabric edges.

Optimization Specification:

1. Alignment: Center the circle perfectly.
2. Seam Management: Place Start (Green) and Stop (Red) points adjacent to each other.
   • Why: This ensures the machine finishes exactly where it started, closing the loop seamlessly.
3. Width: 2.8mm to 3.5mm is the "Sweet Spot" for borders. Thinner than 2mm causes thread breaks; thicker than 5mm creates loose loops that snag.
4. Foundation: Zig-zag Underlay (Center run is insufficient).
   • Why: Zig-zag underlay binds the fabric fibers before the top satin stitch hits. It acts like the rebar in concrete.

The Hardware Connection: Satin stitches rely on consistent tension. If you stretch the fabric too tight in a standard wooden hoop, the fabric will retract when removed, causing the satin circle to become an oval (puckering). This is the hallmark of "amateur" embroidery. A magnetic embroidery hoop allows you to secure the fabric with equal vertical pressure, minimizing stretch and ensuring your circles stay circular.

Wings That Look Light (Not Bulky): Draw as Fill, Convert to Satin, Then Hand-Tune Angles

Ken’s workflow here prevents "bulletproof embroidery"—patches so dense they feel like cardboard.

The Workflow:

1. Drafting: Draw shapes as Fills (Tatami). Fills are easier to manipulate.
2. Conversion: Convert object properties to Satin.
3. Angle Flow: Manually adjust stitch angles.

The "Plank vs. Feather" Rule:

• Bad: All stitch angles vertical (90°). This looks like a wooden plank.
• Good: Stitch angles perpendicular to the curve of the shape.
• Visual Check: The stitches should flow like water down a river, turning with the bends of the wing.

Critical Setting: Tie-ins/Tie-offs Ken mentions changing a tie-off setting.

• Rule: Every Satin object must have a Tie-in (Lock stitch) at the start and a Tie-off at the end.
• Consequence: Without these, the slick glow thread will unravel the moment you wash the garment.


Start/Stop Markers Are Your “No-Jump Insurance” on Multi-Object Wings

This step separates professional digitizers from novices. When you have five feathers in a wing, the machine must stitch them in a logical sequence.

The Logic:

• Feather 1 End Point $\rightarrow$ Feather 2 Start Point.
• Feather 2 End Point $\rightarrow$ Feather 3 Start Point.

If you leave these points at default, the machine might finish Feather 1 at the top and start Feather 2 at the bottom, dragging a diagonal travel thread across your design. By manually placing the Start/Stop markers, you create a "running stitch connection" that can often be hidden under the design, or at least minimized to a tiny hop that is easily trimmed.

Stars Without Ugly Travel: Forcing End Command = Trim on Isolated Objects

When objects are physically separated (like stars), you cannot hide the travel stitch. You must force the machine to cut the thread.

The Protocol:

1. Select the isolated object (Star).
2. Properties $\rightarrow$ Commands.
3. Force Trim (End Command).

The "Glow" Factor: On black fabric, a white "jump thread" dragging between stars is catastrophic. It is extremely difficult to trim flush by hand without snipping the knotless lock-stitch. Electronic trims are cleaner and tighter.

The Little Ball That Teaches a Big Lesson: Satin Circle + Underlay + Why Circles Look Oval on Screen

Embroidery requires optical illusions. A perfect circle on screen will stitch out as an oval (wider horizontally, squashed vertically) due to the "Pull" of the threat.

Pull Compensation (The Magic Number):

• Concept: Thread has tension. It pulls the fabric in (narrowing the column).
• Adjustment: You must make the column wider on screen to compensate.
• Data Range: Add 0.20mm to 0.40mm of Pull Compensation to satin columns.
• Underlay: Use "Double Zig-Zag" or "Edge Run" for circles to maximize stability.

Do not trust your eyes on the iPad screen. Trust the math.

Export Without Tears: Save First, Then DST, Then Send It to Your Machine

Data hygiene saves you from corrupt files.

The Protocol:

1. Format 1: Save as the native editable file (.JDS / .EMB) first. You cannot edit nodes in a machine file later.
2. Format 2: Export as DST (Tajima) or PES (Brother) depending on your hardware. DST is the industry standard for coordinates but does not save colors (thread charts), so keep your color sheet handy.
3. Transfer: Email, USB, or Network transfer.

Shop Tip: Use a versioning system. Fairy_v3_Str_TrimFix.dst. Never name a file final.dst. It is never final.

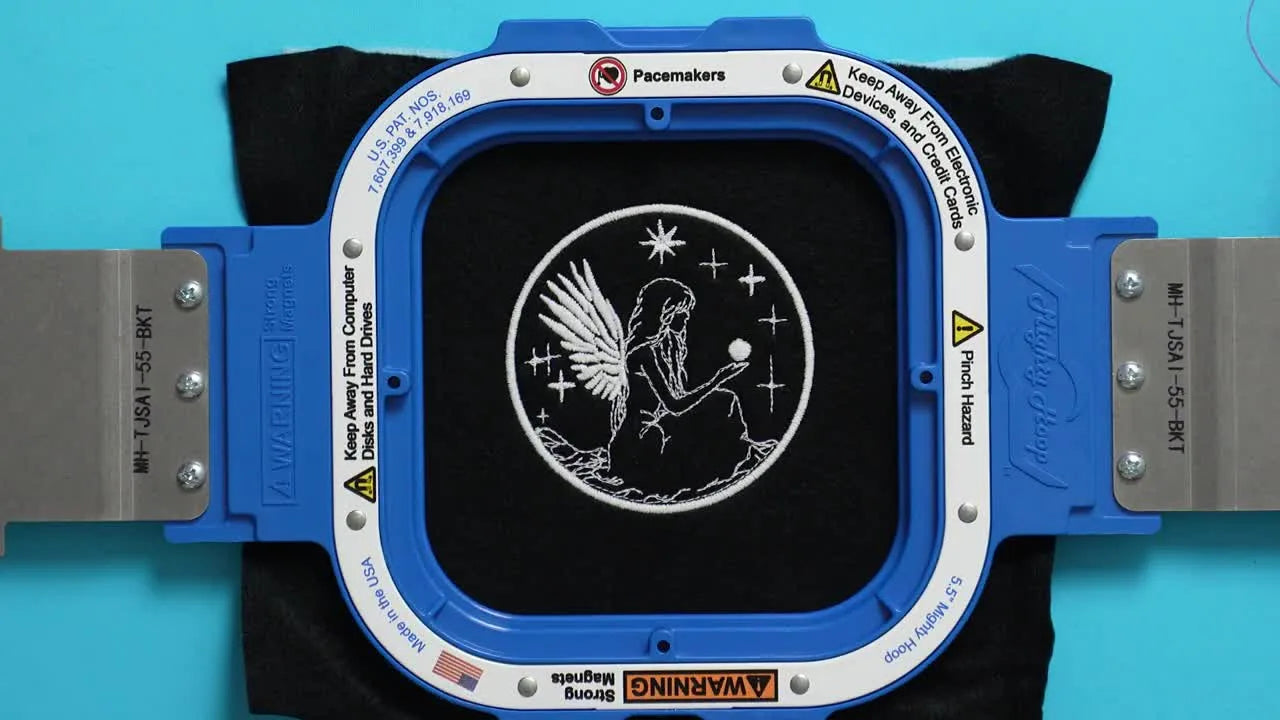

Stitch-Out Reality Check: Tajima Setup, Magnetic Hooping, and Glow Thread Behavior in the Real World

The moment of truth. Ken uses a Tajima commercial machine. Notice the accessory: he is likely investigating a mighty hoop 5.5 or similar industrial magnetic frame.

Why upgrade to magnets? If you are stitching one shirt, a standard hoop is fine. If you are stitching 50, your wrists will fail before the machine does. Magnetic hoops reduce "hooping time" from 60 seconds to 10 seconds per garment. This is pure ROI (Return on Investment).

Glow Thread Physics:

• Friction: It is abrasive.
• Tension: It needs looser top tension than standard rayon.
• Tactile Check: Pull the thread through the needle eye by hand. It should flow with resistance similar to dental floss, not a guitar string. If it is tight, lower the tension knob.

Warning: Moving Parts. Commercial machines do not stop when you put your hands near them. The pantograph (hoop arm) moves fast. Keep a 12-inch "No Hand Zone" around the needle bar when the green light is on.

Troubleshooting the Two Most Common “Why Did It Do That?” Failures (and the Fast Fix)

The Upgrade Path That Actually Makes Sense: When to Invest in Better Hooping and Faster Production

Once you master the digitized file, your bottleneck shifts to the physical world.

The "Pain-Triggered" Upgrade Map:

1. Trigger: "I am spending more time hooping shirts than stitching them."
   • Solution: Investigate magnetic hoops for embroidery machines. The speed and consistency justify the cost for any volume over 10 items/week.
2. Trigger: "My wrists hurt, and my designs are crooked."
   • Solution: A hooping station for embroidery machine ensures perfect placement every time, eliminating the guesswork of positioning.
3. Trigger: "I have to change threads manually 15 times for one design."
   • Solution: This is the ceiling of a single-needle machine. To scale profitably, you need a multi-needle system. SEWTECH multi-needle embroidery machines provide the bridge between home hobbyist and industrial output, offering color automation and robust tension systems at an accessible entry point.


Setup checklist (right before you press Start)

• Hoop Clearance: Trace the design (Trace button) to ensure the needle does not hit the magnetic frame.
• Bobbin Check: Is the bobbin full? Running out in the middle of a satin border causes alignment issues.
• Thread Path: Is the thread caught on the spool pin? (Common cause of snaps).
• Orientation: Is the design right-side up relative to the shirt?

Operation checklist (during the stitch-out)

• The "First 100 Stitches": Watch closely. If the fabric ripples now, stop immediately. It will not get better.
• Sound Check: Listen for the "snip" sound of the trimmers. If you don't hear it between stars, pause and trim manually.
• Tension Watch: Look at the back of the embroidery. You should see 1/3 white bobbin thread in the center of satin columns. If you see only top thread, your tension is too loose.
• Completion: Trim jump stitches before removing the stabilizer. It is easier to clean up while the fabric is held taut.

Final Wisdom: The machine does exactly what you tell it to do, not what you want it to do. Precision in prep equals perfection in the product.

FAQ

• Q: What is a safe Tajima embroidery machine speed (SPM) for glow-in-the-dark thread on small 4x4 designs?
  A: Use 600–750 SPM as a safe production range for glow thread to reduce breaks and abrasion.
  • Reduce speed first if the machine sounds “clattery” or the thread feels harsh through the guides.
  • Test-stitch the first 100 stitches and stop immediately if the fabric ripples or the thread starts shredding.
  • Success check: the machine produces a steady, low rhythmic hum (not a high-pitched slap/clatter) and stitches look crisp without fraying.
  • If it still fails… re-check needle choice (Topstitch 80/12 or Embroidery 75/11) and slightly loosen top tension per the machine manual.
• Q: Which stabilizer should be used for stretchy jersey hoodies when stitching satin borders and run-stitch outlines on a Tajima commercial embroidery machine?
  A: Choose Cutaway stabilizer (2.5oz or 3.0oz) for stretchy knits to prevent shifting and “bullet hole” separation.
  • Switch from tearaway to cutaway before changing digitizing settings—foundation problems look like digitizing problems.
  • Add light temporary adhesive spray if the goal is to float fabric and reduce hoop marks (hoop burn).
  • Success check: outlines stay registered and satin borders do not “walk” or gap as the stitch-out progresses.
  • If it still fails… improve hooping control (often a magnetic hoop helps) and increase pull compensation up to 0.4mm for satin columns.
• Q: How can a Tajima operator prevent hoop burn and fabric distortion when hooping thin shirts using an industrial magnetic embroidery hoop?
  A: Use an industrial magnetic hoop to clamp with vertical force so fabric stays in its natural state instead of being over-stretched.
  • Hoop the garment flat and untwisted; avoid “tambourining” the fabric drum-tight like a traditional screw hoop.
  • Commit to the hoop size before digitizing (for example 4x4) so density and spacing assumptions stay valid.
  • Success check: after stitching and unhooping, the fabric does not show permanent crush marks, and circles stay circular instead of turning oval from relaxation.
  • If it still fails… upgrade stabilization (often cutaway) and stop designing to the hoop edge—keep the 10% margin.
• Q: What is the correct “backside tension” appearance on a Tajima satin stitch when using glow thread on black fabric?
  A: Aim to see about 1/3 white bobbin thread centered on the back of satin columns as the quick tension check.
  • Watch the back early in the run and adjust before finishing the satin border.
  • Pull the glow thread through the needle eye by hand; it should feel like dental floss resistance, not a guitar string (generally indicates top tension is too tight).
  • Success check: the back shows a balanced bobbin strip in the middle of satin columns, not all top thread or all bobbin thread.
  • If it still fails… slow down to the 600–750 SPM range and confirm the needle is not too small (avoid 70/10 for glow thread).
• Q: How do Design Doodler users stop long jump stitches between isolated stars when exporting a DST for a Tajima embroidery machine?
  A: Force a trim at the end of isolated objects so the Tajima does not drag visible travel thread across black fabric.
  • Select the isolated object (for example a star) and add a Trim (End Command) in object properties.
  • For connected elements (like redwork lines), keep paths continuous and avoid breaking the node chain so trims are intentional.
  • Success check: no long white connector threads appear between stars; the machine audibly “snips” between separated objects.
  • If it still fails… move Start/Stop markers closer on multi-object areas so travel distance stays minimal.
• Q: What causes gaps in outlines (registration errors) on a Tajima stitch-out, and what is the fastest fix sequence?
  A: Gaps usually mean fabric shifted during stitching; fix the foundation first, then fine-tune compensation.
  • Upgrade stabilizer to cutaway when fabric has stretch or movement.
  • Improve hooping grip/consistency (a magnetic hoop often helps reduce relaxation puckering).
  • Increase satin pull compensation within 0.20–0.40mm and keep underlay robust for borders/circles.
  • Success check: outline segments meet cleanly without visible separations as the design finishes.
  • If it still fails… stop after the first 100 stitches, re-hoop, and re-run a trace/clearance check before restarting.
• Q: What are the key safety rules for using industrial magnetic embroidery hoops on a Tajima commercial embroidery machine?
  A: Treat industrial magnets as a pinch/crush hazard and keep hands out of the moving pantograph zone during operation.
  • Keep fingers on handle areas only; do not let top and bottom frames snap together without a buffer layer.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Maintain a 12-inch “no hand zone” around the needle bar and pantograph when the machine is running.
  • Success check: hooping can be done without finger pinches, and hands never enter the frame path while the green light is on.
  • If it still fails… pause the machine before any adjustment and review the machine’s safety guidance for hoop/frame handling.
• Q: When should a home embroiderer upgrade from a single-needle setup to magnetic hoops or a SEWTECH multi-needle embroidery machine for small 4x4 designs?
  A: Upgrade based on the bottleneck: optimize technique first, then speed up hooping with magnets, then scale production with multi-needle automation.
  • Level 1 (Technique): reduce jump stitches (Start/Stop + Force Trim) and stabilize correctly (cutaway for knits, topper for loft).
  • Level 2 (Tool): move to magnetic hoops when hooping time and consistency become the limiting factor (commonly over ~10 items/week).
  • Level 3 (Capacity): choose a multi-needle platform when manual thread changes and low throughput cap profitability.
  • Success check: hooping time drops significantly and stitch-outs stay consistent without re-hooping or rework.
  • If it still fails… track where minutes are lost (hooping vs trims vs thread changes) and address the largest time sink first.
