From Illustrator to a Tajima Appliqué Patch: Placement Stitches, Clean Trims, and the Fastest Way to Stop Hoop Slip

Mastering the Commercial Appliqué Patch: A Sensory Guide to Production-Grade Embroidery

If you’ve ever watched a commercial Tajima machine run and thought, “Okay… but how do I get a patch that looks clean at the edge and doesn’t shift halfway through?”, you are asking the right questions. The video we are analyzing today is a real learning session in a lab setting—exactly the kind of environment where people discover the two hard truths of commercial embroidery:

1. The "Garbage In, Garbage Out" Law: The digitizing file can be mathematically perfect, but the patch will still fail if your hooping and stabilization are sloppy.
2. The "Repeatability" Paradox: The fastest way to speed up production isn't increasing the machine's Speed (SPM); it is standardizing your setup so you never have to fix a mistake.

Below is the same appliqué patch workflow demonstrated on the Tajima, rebuilt into a Shop-Ready Operations Manual. We have added sensory checkpoints (what to feel, hear, and see), safety protocol, and the "silent mistakes" that waste expensive blanks.

Don’t Panic: What the Tajima Appliqué Patch Workflow Is Really Doing

The video demonstrates a classic commercial appliqué patch build. To the novice, the machine looks like it is performing magic. In reality, it is following a rigid logic sequence known as "Registration."

The Logical Sequence:

1. Placement: It stitches a guide on the stabilizer so you know where to put the fabric.
2. Tack-Down: You place the fabric; it stitches the fabric down.
3. Trim: You cut the excess fabric.
4. Finish: The machine covers the raw edges with a satin column or fill.

The Speed Factor: One key detail from the video: the machine ran around 750 Stitches Per Minute (SPM).

• Beginner Sweet Spot (600-700 SPM): Run here when learning. It allows you to see the loop formation and stop instantly if a border looks misaligned.
• Production Speed (850+ SPM): Only go here once your hooping tension is drum-tight. Speed amplifies vibration, and vibration kills registration.


The “Closed Vector” Rule: Prep Your Art Before Digitizing

The video’s first hard-earned lesson saves hours of frustration: all shapes must be closed vectors in Adobe Illustrator before you import them into your embroidery software.

Why this matters (The "Why"): Embroidery software interprets vector lines as boundaries for stitches. An "open path" is like a fence with a hole in it—the software doesn't know where the "inside" stops and the "outside" begins. It tries to guess, often resulting in weird jump stitches or fills that spill over the edge.

The Fix:

• Visual Check: Zoom in on every intersection in Illustrator.
• Logic Check: If you want a specific area to be a specific color, it must be its own independent island (closed shape).

Workflow Note: If you are working in a shared environment, file naming and hoop selection are part of the file. Document exactly which frame you used. If you plan to scale up, using a hooping station for embroidery machine ensures that every patch is placed in the exact same coordinates on the hoop, removing human error from the equation.

Hooping Tear-Away Backing: The "Drum Skin" Standard

In the video, the backing is hooped first: black tear-away backing clamped tightly in a standard hoop. For patches, the stabilizer acts as your "foundation fabric."

The Sensory Check: The Finger Flick Beginners often ask, "How tight is tight enough?" Do not rely on visual tightness.

1. Hoop the stabilizer.
2. Sound/Touch Test: Flick the center of the stabilizer with your finger.
3. Pass: You hear a sharp, drum-like thump. It feels taut with zero give.
4. Fail: You hear a dull, paper-like rattle. The stabilizer sags under your finger.

The Physics of Failure: When a needle enters material at 750 SPM, it pushes the material down before piercing it (Flagging). If your stabilizer is loose, the material bounces. This bouncing causes the outline to drift away from the fill.

Tool Upgrade Path: If you find yourself constantly re-tightening the screw or struggling to get that "drum sound" without hurting your wrists, this is a hardware limitation. Standard hoops rely on friction. Professionals often upgrade to a tajima embroidery hoop designed for higher tension, or magnetic frames that self-clamp.

PREP CHECKLIST (Do this BEFORE pressing Start):

• Art: Confirm vectors are closed in Illustrator.
• Consumables: Fresh 75/11 Sharp needle installed (ballpoints can deflect on stiff patch material).
• Hardware: Bobbin case area blown out with compressed air (lint kills tension).
• Test: Perform the "Finger Flick" test on your hooped backing.


Placement Stitches: The "No-Guesswork" Blueprint

The machine runs two elements on the bare backing: a square (to locate the active area) and a circle (the patch boundary).

This is your "Go/No-Go" Gauge. Do not walk away to get coffee. Watch this step closely.

Visual Inspection:

• Look for: Clean, crisp lines.
• Look out for: loopies (thread not pulled tight) or bobbin thread pulling to the top.
• If the placement stitch is messy, your tension is wrong. Stop now. If the foundation is shaky, the house will fall.


The Tack-Down: Fabric Placement and the "Pinch Point"

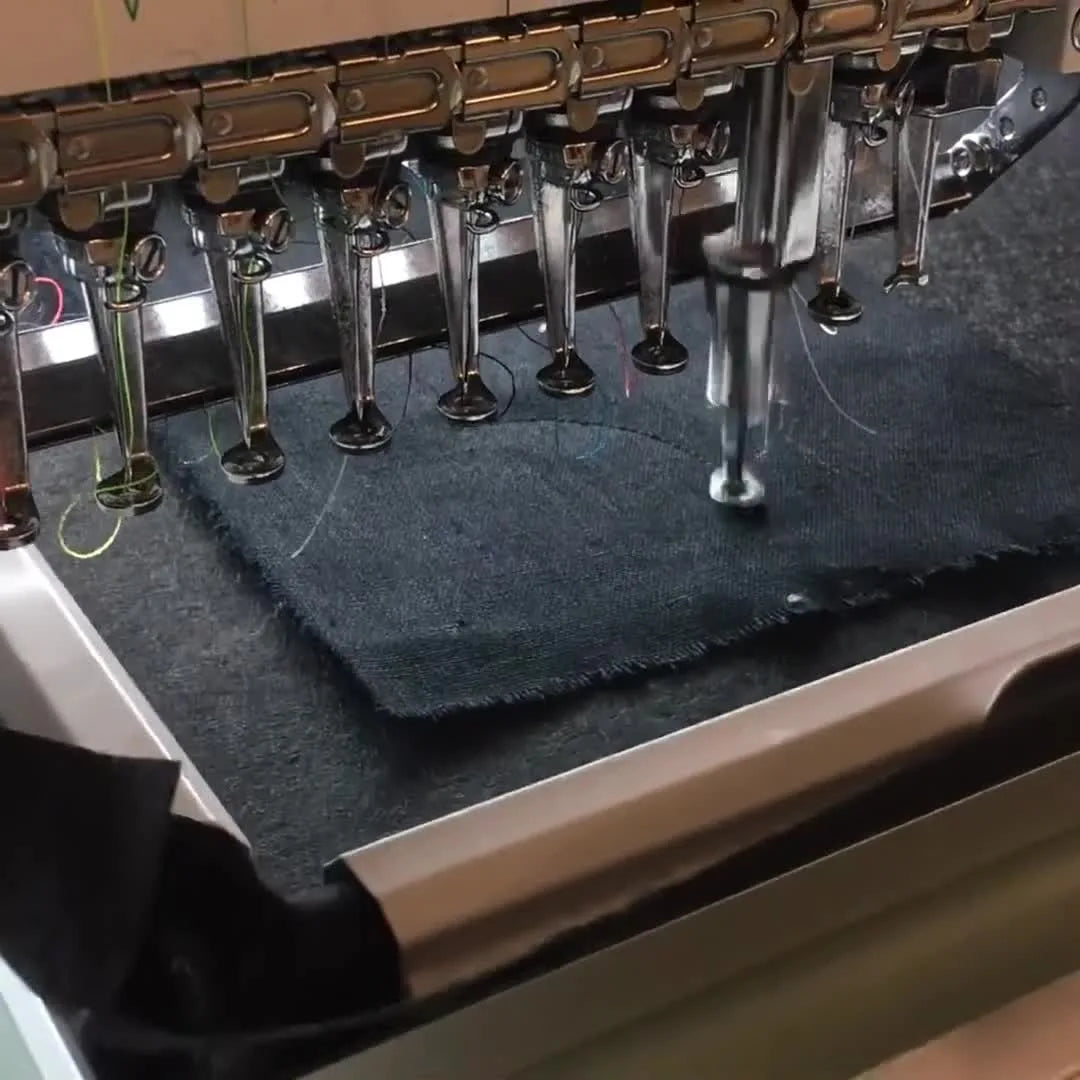

The operator places a piece of black fabric over the guide stitches. The machine then runs the same circular stitch to lock it down.

The Risk: This is the moment where fabric ripples. A ripple here means a permanent wrinkle in your final patch.

Technique:

1. Cut your patch fabric (twill/felt) 1-2 inches larger than the circle.
2. Lay it flat. Do not stretch it; just smooth it.
3. The Solution for Ripples: Use a light mist of temporary spray adhesive (like 505 Spray) on the back of the fabric placement piece. It prevents the needle from pushing the fabric forward.

Commercial Reality Check: In a production run of 50 patches, manually smoothing fabric 50 times is tedious and dangerous. This is where magnetic hoops for tajima shine. Because the top frame is magnetic, you can "float" the material and let the powerful magnets clamp it instantly flat, reducing the chance of ripples without needing spray adhesive.

Warning: Safety First
Never put your fingers inside the hoop while the machine is "Live," even for a placement stitch. A needle moving at 12 impacts per second does not differentiate between fabric and skin. Use a tongue depressor or the eraser end of a pencil to hold fabric down if absolutely necessary.

Appliqué Trimming: The Tactile Skill of the "Clean Cut"

The machine stops. You must trim the excess fabric outside the tack-down line.

Tools Matter: Do not use standard office scissors. You need Double-Curved Appliqué Scissors (often called Duckbill scissors). The "bill" pushes the backing away while the blade cuts the fabric close.

The Technique:

• Feel: Rest the blade flat against the stabilizer.
• Action: Glide the scissors. Do not chop; snip smoothly.
• Goal: Leave about 1-2mm of fabric outside the stitch line.
  • Too close: The satin stitch might pull off the raw edge.
  • Too far: You will see ugly "whiskers" sticking out of the final patch.

The "Nick" Danger: If you accidentally snip the stabilizer backing, you have ruined the structural integrity. The patch will warp during the final fill. If you nick it, patch it with a piece of tape or scrap stabilizer immediately, or start over.

The Fill Phase: Watching for the "Drift"

The machine takes over. It converts the vector art into complex fills with angles of 45 and 215 degrees.

Sensory Monitoring (Auditory): Listen to the machine.

• Rhythmic "Hum-Thump": Good.
• Sharp "Clicking" or Grinding: Bad. This usually means a needle is hitting the needle plate or the hoop is hitting the foot.
• Birdnest Sound: A "crunching" sound usually means thread is balling up underneath. Stop immediately.

The Speed Limit: The video runs at 750 SPM. If you see the outline of the patch starting to "drift" (the satin border isn't covering the raw edge anymore), slow down. Friction and drag often cause the hoop to lag slightly at high speeds if the pantograph arm is worn or the hoop is heavy.

Rayon vs. Polyester: The Gloss vs. Grit Decision

The video mentions thread choice. This is not just about color; it's about physics and utility.

The Decision Matrix:

• Rayon:
  • Look: High gloss, fluid, luxurious.
  • Use: Fashion patches, high-detail logos.
  • Weakness: Breaks easier on high-speed machines; degrades with bleach/heavy washing.
• Polyester:
  • Look: Slightly more matte, stronger.
  • Use: Workwear uniforms, tactical gear, hats.
  • Strength: Near-indestructible.

Development Tip: Keep two physical samples of the same patch—one Rayon, one Poly—to show clients. Let them do the "Touch Test."

The Reveal: Tear-Away Removal and the Window Test

Post-production is quality control. The video shows tearing the patch away and holding it to light.

The "Window Light" Diagnostic: Hold your finished patch up to a bright window or light box.

1. Gaps: Do you see pinholes of light between the border and the fill? (Cause: Pull compensation was too low).
2. Fuzzy Edge: Do you see fibers sticking out the side? (Cause: Trimming wasn't close enough).
3. Density: Is the patch solid, or can you see through the fill? (Cause: Density too low).


The Stabilizer Decision Tree: Avoiding the "Bulletproof" Patch

The video uses one layer of tear-away. This is standard for demos, but in a shop, stabilizer choice is an engineering decision.

Decision Tree: Stabilizer vs. Fabric

The Workflow Upgrade: If you struggle to hoop thick stabilizer and stiff felt using standard plastic rings, you are fighting physics. This is a primary trigger for upgrading to embroidery hoops for tajima that are designed for thick sandwiches. Even better, a magnetic hooping station allows you to align multiple layers without them sliding around while you try to force the ring closed.

Advanced Applications: "Laying" Cording and E-Textiles

The video touches on "Laying" using the 1st and 12th heads of the 12-needle machine. This is a massive value-add capability.

What is Laying? Instead of the needle passing thread through the fabric, the machine lays a thicker material (cord, sequin tape, conductive yarn) on top of the fabric, and uses a zig-zag stitch to tack it down.

Commercial Application: This transforms a $5 patch into a $15 technical component. You can create conductive touch-points for smart textiles or add 3D texture that competitors with standard machines cannot match.

The "Sfumato" Technique: Faking Gradients with Density

The video hits a common roadblock: How do you embroider a flower that fades from pink to white? Thread is solid color; it doesn't fade.

The Solution: Density Modulation Using software plugins like "Sfumato" (in Embird) or manual density grading:

• Layer 1 (Pink): Stitches at 25% density.
• Layer 2 (White): Stitches on top at 25% density.
• Result: The eye blends the two into a soft pink.

The Trade-off: These designs have high stitch counts. They take longer to run and are thicker (stiffer). Always ask the client: "Do you want photorealism (stiff, expensive) or a graphic vector look (flexible, cheaper)?"

Scaling Up: From Lab Demo to Profitable Shop

The video uses a hand-held standard hoop demonstration. This is fine for one patch. It is fatal for a run of 500.

The Production Bottleneck: Hooping In a commercial shop, the machine should never stop. While it stitches Frame A, you should be hooping Frame B.

• The Pain Point: Standard screw-hoops are slow. They cause "Hoop Burn" (shiny rings on fabric) and wrist strain (Carpal Tunnel is the embroiderer's enemy).
• The Logic for Upgrade: If you are running repetitive jobs, standardizing your workholding is critical.

Upgrade Analysis:

• Level 1 (Technique): Use a pre-marked table to align your hoops.
• Level 2 (Hardware): Invest in specific tajima frames sized exactly to your patch (e.g., a 150mm round hoop for a 120mm patch). Avoid using giant hoops for small designs; excess fabric movement ruins registration.
• Level 3 (Professional): Switch to high-tension magnetic hoops for tajima. They snap shut instantly, hold thick material without adjustment screws, and eliminate hoop burn. Combined with a hooping station, they turn a 3-minute setup into a 30-second setup.

Warning: Magnetic Force
High-end magnetic hoops use Neodymium magnets. They are incredibly powerful.
1. Pinch Hazard: They can crush fingers. Handle with respect.
2. Medical Safety: Keep them at least 6 inches away from pacemakers.
3. Electronics: Keep them away from credit cards and screens.

SETUP CHECKLIST (The "Pilot's Check" for Production):

• Hoop: Correct size chosen? (Smallest possible for the design).
• Marking: Is the center point marked on the stabilizer?
• Thread: Is the color sequence programmed?
• Bobbin: Do you have a full bobbin? (Don't start a patch on a near-empty bobbin).
• Clearance: Is the area around the pantograph arm clear of walls/objects?

Troubleshooting: The "Quick Fix" Guide

The "Run It Like a Shop" Finish

The video concludes with a nice looking patch. To make it sellable, your job isn't done until the finish work is complete.

1. The Burn: Use a lighter (carefully) or heat gun to seal any fuzzy thread ends (Polyester only—Rayon burns rapidly, be careful).
2. The Back: A professional patch looks almost as good on the back as the front. Trim your jump threads.
3. The Documentation: Save your file with notes: "Used 2 layers tear-away, Speed 700, Hoop E." Next time, you won't have to guess.

FAQ

• Q: How do I hoop tear-away stabilizer for a Tajima appliqué patch so registration does not drift at 750 SPM?
  A: Hoop the tear-away to a “drum-skin” tension before stitching—registration problems usually start with a loose foundation.
  • Hoop: Tighten stabilizer first (before fabric) and remove any slack across the center.
  • Test: Flick the center with a finger and re-hoop if it sounds dull or feels springy.
  • Success check: A sharp, drum-like “thump” sound and zero visible sagging across the hoop window.
  • If it still fails… Slow the machine down (beginner range 600–700 SPM) and re-check hoop hardware for worn/stripped screw tension.
• Q: What needle and pre-run maintenance should be done before running commercial appliqué patches on a Tajima multi-needle embroidery machine?
  A: Start with a fresh sharp needle and a clean bobbin area—most “mystery” stitch issues come from dull needles or lint affecting tension.
  • Install: Use a fresh 75/11 sharp needle as shown (a safe starting point for stiff patch materials; always confirm with the machine manual).
  • Clean: Blow out lint around the bobbin case area with compressed air before pressing Start.
  • Verify: Run the placement stitch and stop immediately if stitches look loopy or unstable.
  • Success check: Placement lines look crisp, with no loops on top and no bobbin thread pulling to the surface.
• Q: How do I use Tajima placement stitches as a go/no-go check before the tack-down step on an appliqué patch?
  A: Treat the placement stitch as a diagnostic checkpoint—if the placement stitch is messy, do not continue to tack-down.
  • Watch: Stay at the machine during the square/circle placement stitches (do not walk away).
  • Inspect: Stop if the line shows loopies, uneven tension, or bobbin thread coming up.
  • Correct: Adjust tension/clean before proceeding, because every later step depends on this foundation.
  • Success check: Clean, consistent placement lines with stable thread formation and no visible wobble.
• Q: How do I prevent fabric ripples during the tack-down circle when making appliqué patches on a Tajima commercial embroidery machine?
  A: Keep the patch fabric flat and secured before the tack-down—ripples at tack-down become permanent wrinkles.
  • Cut: Prepare twill/felt 1–2 inches larger than the boundary so it can lie relaxed.
  • Secure: Lightly mist temporary spray adhesive on the fabric back to prevent the needle from pushing fabric forward.
  • Smooth: Lay fabric flat without stretching, then start the tack-down.
  • Success check: After tack-down, the fabric surface stays smooth with no puckers radiating from the stitch line.
  • If it still fails… Consider upgrading workholding (magnetic hoop/frames often reduce ripples by clamping material instantly and evenly).
• Q: What is the safest way to trim appliqué fabric after Tajima tack-down stitches without nicking the backing stabilizer?
  A: Use double-curved appliqué (duckbill) scissors and glide—do not chop—because cutting the stabilizer weakens the patch structure.
  • Use: Choose double-curved appliqué scissors; keep the “bill” riding on the stabilizer as a guard.
  • Cut: Trim smoothly, leaving about 1–2 mm of fabric outside the tack-down line.
  • Avoid: Do not cut into the tear-away backing; if a nick happens, patch immediately with tape or scrap stabilizer (or restart).
  • Success check: The final satin edge fully covers the raw edge with no “whiskers” showing.
• Q: What should a Tajima operator do when a “birdnest” crunching sound happens under an appliqué patch during the fill phase?
  A: Stop immediately—crunching sounds usually mean thread is balling up underneath and can escalate quickly.
  • Stop: Pause the machine as soon as the crunching/balling sound starts.
  • Clear: Remove the hoop if needed and clean out the thread buildup from the underside/bobbin area before resuming.
  • Resume: Restart only after thread path and tension look stable.
  • Success check: Machine returns to a steady, rhythmic “hum-thump” without crunching, and stitching forms cleanly.
  • If it still fails… Re-run the basic pre-checks (needle freshness and bobbin area cleanliness) and reduce speed to stabilize.
• Q: What safety rules should be followed when placing fabric for Tajima appliqué tack-down stitches, and what extra safety applies to magnetic embroidery hoops?
  A: Keep hands out of the live hoop area, and treat magnetic hoops as pinch hazards—both risks happen fast.
  • Keep clear: Never put fingers inside the hoop while the machine is live; use a tongue depressor or pencil eraser to hold fabric if absolutely necessary.
  • Slow down: Use a slower learning speed (600–700 SPM) so corrections can be made without panic.
  • Handle magnets: Keep fingers away from closing points; magnetic force can pinch hard.
  • Success check: Fabric is positioned flat without any hand entering the needle path, and the hoop closes securely without a finger pinch.
  • If it still fails… Stop the machine, power down if needed, and reset fabric placement—do not “fight” the moving needle or a snapping magnetic frame.
