From Google Image to a Clean PES: Digitizing Hello Kitty in Inkscape + Ink/Stitch Without “Bulletproof” Thread Buildup

If you’ve ever watched a digitizing video, hit “simulate,” and thought, “Okay… but will this actually stitch clean?”—you’re not alone. The good news is: this Inkscape + Ink/Stitch workflow does work, and it’s one of the best ways to learn real digitizing fundamentals without paying for software upfront.

However, machine embroidery is an "experience science." Variables like humidity, thread age, and hoop tension change the outcome every time. This post rebuilds the full process shown in the video: setting a true 4x4 workspace, tracing with Bezier curves, creating knockouts to prevent "bulletproof" stiffness, and setting stitch angles (60° and 150°) for that professional light refraction.

As we walk through this, I will impose 20 years of shop-floor experience onto this digital workflow. We aren't just making a file; we are engineering a physical object. I’ll call out the sensory details—how the hoop should sound, how the thread should feel—and the safety zones that keep your machine running smoothly.

Don’t Panic: Inkscape + Ink/Stitch Can Produce a Real PES (and Yes, Your First Stitch-Out Won’t Be Perfect)

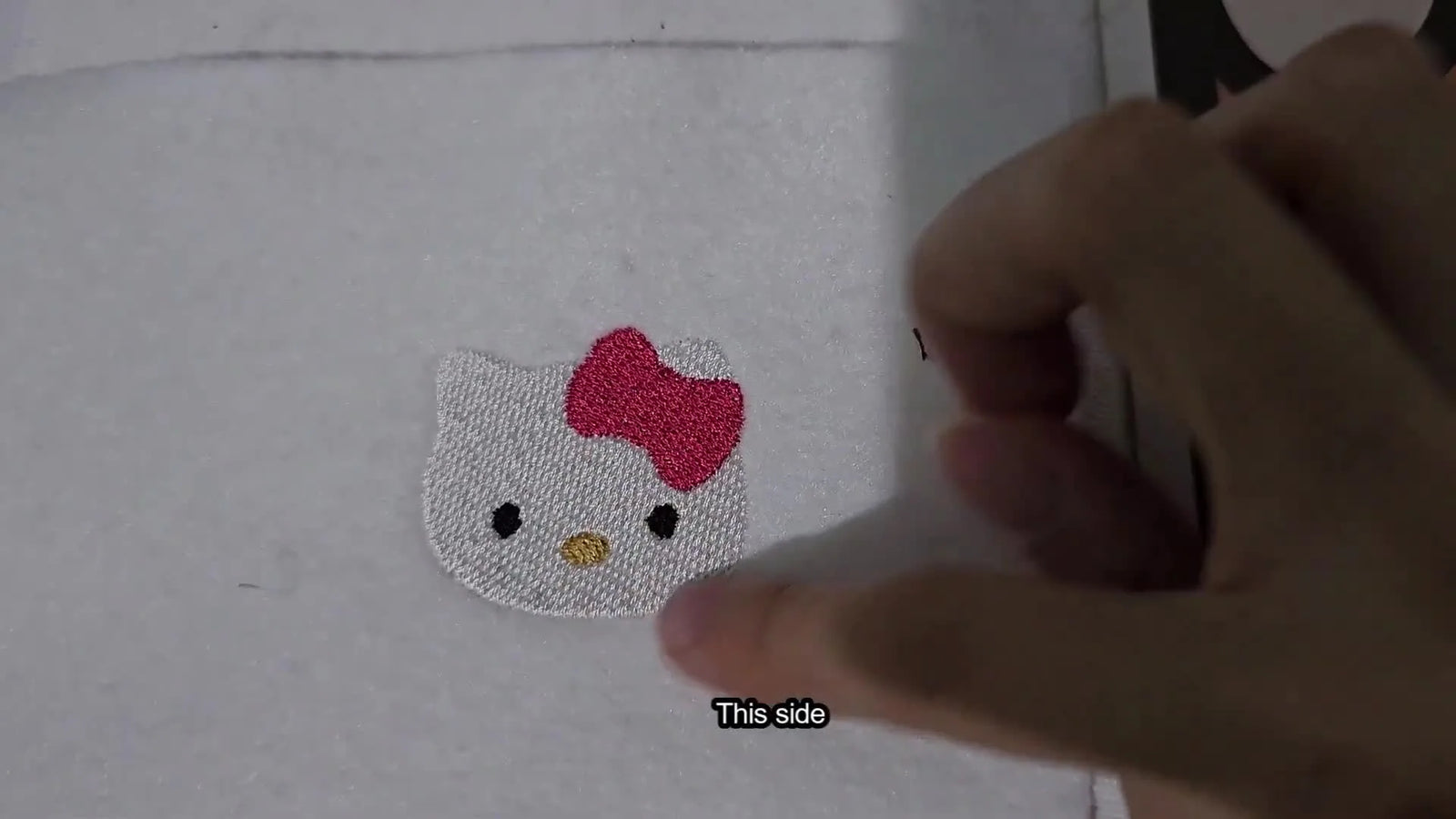

The creator’s final stitch-out proves the point: even with a clean workflow, the first run often reveals small shape issues—like a bow edge that needs to be sharper or a face that isn't perfectly round. That’s normal. In manual digitizing, tiny node decisions become glaringly visible once thread adds thickness (loft) and pull compensation (shrinkage).

If you are new and thinking, "I must be doing everything wrong," stop. The goal of this project is not perfection on pass one. It is building a repeatable loop:

Trace → Simulate → Stitch → Critique (Touch & Look) → Adjust Nodes → Re-export.

One command summed up the beginner reality perfectly: they could simulate, but couldn’t translate that to the physical machine. We will address those specific pain points, including the dreaded "USB won't read" error, in the troubleshooting section.

The “Hidden” Prep Pros Do First: Canvas Size, File Hygiene, and a Stabilizer Plan Before You Draw a Single Node

The video starts with the most important discipline in digitizing: engineering your digital workspace to match your physical constraints. If you get this wrong, you risk needle strikes or files that simply won't load.

1) Set the document to a true 4x4 inch workspace

In Inkscape:

• Open Document Properties (Shift+Ctrl+D).
• Set Custom size to 4 inches x 4 inches (or roughly 100mm x 100mm).
• Confirm the units are inches or mm.

This 4x4 boundary is your "legal stitching area." Staying within it prevents the machine from tracing outside the hoop limits and hitting the plastic frame.

2) Import your reference image

The creator Googles a Hello Kitty image, copies it, and pastes it onto the canvas. This is a reference layer only.

• Pro Tip: Lower the opacity of this image to 60% and lock the layer object. This prevents you from accidentally clicking it while tracing.

3) Check the intended design size

The video measures the design using the ruler/drag method:

• Width: 43 mm (~1.7 inches)
• Height: 35 mm (~1.4 inches)
• Scale: This is a safe, small patch size.

4) Decide your fabric + backing combo now (The Physics of Stability)

Your digitizing density depends entirely on what you are stitching on. The stitch-out in the video is done on scrap felt with stabilizer. If you change the fabric, you change the physics.

Use this decision tree to plan your consumables before you start:

Decision Tree: Fabric → Stabilizer (Backing) → What to Watch

• Felt (Video Scenario) → Option: Medium Tearaway (50g) or Cutaway.
  • Risk: Felt is forgiving, but if the design is dense, tearaway can perforate and pop out (the "cookie cutter" effect).
• Woven Cotton (Non-Stretch) → Option: Tearaway (2 layers if thin) or Fusible Mesh.
  • Risk: Watch for puckering around the outline.
• T-Shirt / Knit (Stretchy) → Option: REQUIRED: Cutaway Stabilizer (2.5oz/70g) + Ballpoint Needle (75/11).
  • Risk: Must use cutaway. If you use tearaway on a T-shirt, the design will distort into an oval as the fabric stretches.
• High Pile (Towel/Fleece) → Option: Cutaway (Bottom) + Water Soluble Topper (Top).
  • Risk: Without the topper, stitches sink into the fabric and disappear.

Hidden Consumables Checklist: Do you have temporary spray adhesive (like 505) to hold the fabric to the stabilizer? Do you have fresh needles (change every 8 hours of stitching)? Do you have sharp embroidery scissors for jump threads?

Prep Checklist (Pre-Flight)

• Document Properties set to 4 in x 4 in, units strictly defined.
• Reference image locked and transparency set to ~60%.
• Target size confirmed (Video: 43 mm x 35 mm).
• Stabilizer matched to Fabric (Consult Decision Tree above).
• Fresh Needle Installed: A burred needle causes thread shreds. Check by running the needle tip lightly over your fingernail; if it scratches, replace it.


Trace the Hello Kitty Head with the Bezier Tool—Clean Nodes Beat “Fast” Nodes Every Time

Manual tracing is slower than auto-trace, but it provides the "Node Economy" required for professional results. Auto-trace often creates "node clusters" that cause the machine to slow down, stutter, and create bird's nests on the back.

What the video does (and exact steps to replicate)

1. Select the Bezier tool (Pen icon).
2. Click-and-drag to create curves, or Click-click for straight lines.
3. Trace the general outline of the head.
4. Select the nodes (Edit Paths by Nodes tool - F2).
5. Convert straight segments to curves where needed using the toolbar options.
6. If a node creates a sharp kink, convert it to Smooth or Auto-smooth.

The creator mentions a key mindset: "Good enough is perfect." Areas covered by the bow do not need micron-perfect curvature because they will be buried under thread.

Expert Insight: The “Node Economy” Rule

Every node is a command for the machine to calculate a path.

• Too few nodes: The curve looks blocky (like an octagon).
• Too many nodes: The machine stutters, and the edge looks jagged.
• The Sweet Spot: Use the minimum number of nodes required to define the shape. A circle should ideally have 4 nodes (cardinal points).

Warning: Mechanical Safety
When working with any industrial or multi-needle machine, keep long hair tied back and remove loose jewelry. Never reach your hands inside the hoop area while the machine is running (even during a color change). A machine moving at 1,000 stitches per minute (SPM) can puncture a finger bone instantly.

Build a Perfectly Symmetrical Bow in Inkscape: Duplicate, Flip, Align, Then Path > Union

The bow is where beginners accidentally create "lopsided cute." Humans are bad at drawing symmetry; computers are excellent at it. The video uses a geometric workflow:

1. Digitize one half of the bow (e.g., the left loop).
2. Duplicate it (Ctrl+D).
3. Flip Horizontally (H key) to create the mirror image.
4. Align them to overlap slightly at the center knot.
5. Select both pieces and use Path > Union (Ctrl++) to weld them into one solid object.

This ensures that the stitch density and pull compensation calculations are identical on both sides.

Setup Checklist (Design Phase)

• Head outline traced with minimal nodes (clean curves).
• Path validation: No crossing lines or "figure 8" self-intersections (Ink/Stitch hates these).
• Bow created via Duplicate/Flip/Union for perfect symmetry.
• Colors assigned purely for separation (machine honors stop codes, not screen colors).


Stop “Bulletproof Embroidery”: Use Path > Exclusion to Knock Out Eyes, Nose, and Bow from the White Base

This is the technical highlight of the tutorial. If you stitch a solid white face, and then stitch red layers on top, you are creating a "bulletproof patch"—stiff, thick, and prone to needle deflection (breaking needles).

We must "knock out" the holes in the background layer.

What the video does

1. Temporarily change the face fill color to transparent or outline mode.
2. Select the background (Head) and the foreground objects (Eyes, Nose, Bow).
3. Go to Path > Exclusion.

Result: The white face layer now has "Swiss cheese" holes where the features will sit.

Why Exclusion Matters (The Physics)

Thread accumulation adds physical stress.

• Visual Check: A 3-layer overlap can stand up to 1mm tall.
• Safety Issue: Stitching through density creates heat. This can melt polyester thread or snap needles.
• Economy: By removing the hidden stitches, you save thread and machine runtime. On a 1,000 unit order, saving 2,000 stitches per unit saves you hours of production time.


Make the Stitch Texture Look Intentional: Set 60° and 150° Stitch Angles in Ink/Stitch Params

Light hits thread like it hits fiber optic cable. If all stitches run horizontally (0°), the design looks flat. You create contrast by opposing the angles.

The Exact Angles Used

• White Face Fill: Set to 60°.
• Red Bow/Nose: Set to 150° (this creates a 90° perpendicular contrast).


Troubleshooting: "My ribbons look thin/gapped"

A viewer noted that their ribbon coverage was poor. This is often a Density vs. Pull Compensation issue.

• Standard Density: In Ink/Stitch, a standard spacing is around 0.40mm (or 4 lines per mm). If your fabric is showing through, decrease spacing to 0.35mm.
• Pull Compensation: Thread tension pulls fabric inward. If you have gaps between the black outline and the color fill, increase the "Pull Compensation" parameter (try 0.2mm or 0.4mm).


Export the PES the Right Way (and Save SVG First, or You’ll Regret It)

A .PES file is like a PDF—it's hard to edit. An .SVG file is like a Word doc—it's the source code.

The Critical Workflow

1. Save as SVG immediately. This is your "Master File."
2. File > Save Copy As...
3. Select Brother PES.
4. Naming convention: ProjectName_HoopSize_Version.pes (e.g., HelloKitty_4x4_v1.pes).


"Help! My machine can't see the file on USB!"

A viewer reported the file saves on PC but the machine shows an empty USB. The Fix Checklist:

• Capacity: Ideally use a USB stick under 4GB (older machines hate 32GB+ drives).
• Format: The USB must be formatted to FAT32.
• Folder: Don't bury the file 5 folders deep. Put it in the root directory.
• Filename: Keep it under 8 characters and avoid special symbols (e.g., HK_01.pes).


Stitching on the Brother PR-620: What to Expect When You Load the PES and Run the First Test

The video demonstrates the stitch-out on a Brother PR-620, a reliable workhorse of the multi-needle world.

What the video shows

• File loading via USB.
• Color mapping (assigning needle 1 to White, needle 2 to Red, etc.).
• The physical stitching process.


The Hooping Reality Check (The Source of 80% of Failures)

Most "digitizing errors" are actually "hooping errors."

• The Sound Test: Tap your hooped fabric with a fingernail. It should sound like a tight drum ("thrummm"). If it sounds like loose paper ("thwack"), tighten it.
• Hoop Burn: Beginners often over-tighten, leaving permanent white rings on delicate fabrics.

This is where equipment choice matters. If you struggle with traditional screw-hoops, or you are doing production runs of 50+ shirts, hooping for embroidery machine becomes the bottleneck. Many professionals upgrade to magnetic embroidery hoops. These use powerful magnets to clamp fabric instantly without the "unscrew-push-pull-screw" dance, drastically reducing wrist strain and hoop burn.

Warning: Magnetic Field Hazard
Magnetic embroidery hoops use industrial Neodymium magnets.
1. Pacemakers: Keep these hoops at least 12 inches away from anyone with a pacemaker or ICD.
2. Pinch Hazard: These magnets snap together with lethal force. Do not get your fingers caught between the brackets; they can cause severe pinching or blood blisters.

The “Why It Looks Off” Post-Mortem: Fix Roundness, Bow Points, and Coverage Without Starting Over

The creator honestly critiques the final patch: the face isn't perfectly round, and the bow points are soft. Here is the professional diagnostic logic (the "why"):

1) Symptom: Face is Lumpy (Not Circular)

• Cause: Too many nodes in the digitizing phase, or uneven fabric tension.
• Fix: Open the SVG. Delete intermediate nodes until the curve is supported by only 4-5 nodes. Use handles to smooth the arc. Re-export.

2) Symptom: Bow Points are Blunt

• Cause: The pull compensation shortened the stitch, or the node was a "curve" instead of a "corner."
• Fix: In Inkscape, ensure the tip of the bow is a Corner Node (diamond shape), not a square node. Extend the point 0.5mm further out than looks necessary to account for thread shrinkage.

3) Symptom: Ribbon looks "Thin"

• Cause: Stitch angles aligned with the fabric grain, causing thread to sink.
• Fix: Change the angle to 45° off-grain, or add an Underlay (foundation stitching) in Ink/Stitch params to prop up the top stitches.

When the Simulator Doesn’t Match Your Screen: Version Differences

Ink/Stitch is open source and updates frequently. If your screen has a button in a different place than the video (Inkscape 1.1), don't panic. The physics of embroidery (Push, Pull, Density, Underlay) never change.

For users of a brother embroidery machine, especially the single-needle home models, rely on the simulator to check for "Jumps" (travel stitches). Ink/Stitch allows you to run a visual check to see if the machine will trim threads correctly or if you need to manually trim them.

The Upgrade Path That Actually Makes Sense: Fix the Bottleneck You’re Feeling

Beginners assume the bottleneck is software skill. In reality, the bottleneck often shifts as you grow. Use this guide to know when to open your wallet:

1. Bottleneck: "I keep ruining shirts with hoop marks."
   • Solution: Upgrade your hooping tech. A machine embroidery hooping station ensures perfect placement every time, and magnetic frames eliminate the friction marks.
2. Bottleneck: "I spend 10 minutes changing threads for a 5-minute design."
   • Solution: This is the trigger for a multi-needle machine. The video uses a brother pr 620 embroidery machine, which holds 6 colors at once. If you plan to sell patches, the time saved on thread changes pays for the machine lease.
3. Bottleneck: "My designs pucker on T-shirts."
   • Solution: This isn't a machine issue; it's a consumables issue. Upgrade to professional-grade Cutaway stabilizer and high-quality polyster thread.

Operation Checklist (The Go/No-Go Launch)

• Simulate: Check that the Bow and Face have contrasting stitch angles (Video: 60° / 150°).
• Save: SVG Master + PES Export.
• Transfer: USB formatted FAT32, file in root folder.
• Bobbin Check: Open the bobbin case. Is it full? Do you have the right weight (usually 60wt or 90wt) bottom thread?
• Test Stitch: Run the design on scrap fabric involved with the exact stabilizer you plan to use on the final.
• Post-Mortem: Check for gaps (increase pull comp) or bulletproof stiffness (use exclusion).

Quick Troubleshooting Table (Symptoms → Likely Cause → Fix)

If you want to keep learning digitizing without paying for software, this Hello Kitty project is a strong foundation. Master the Bezier curve, respect the "Node Economy," and understand the physical pull of thread—these skills transfer to every industrial machine you will ever touch.

FAQ

• Q: How do I set an Inkscape 4x4 inch embroidery workspace correctly before exporting an Ink/Stitch Brother PES file?
  A: Set the Inkscape document size to a true 4 in × 4 in canvas before any tracing so the design stays inside the hoop’s legal stitch area.
  • Open Document Properties (Shift+Ctrl+D) and set Custom size to 4 inches × 4 inches (or ~100 mm × 100 mm).
  • Confirm the units are explicitly inches or mm (don’t leave mixed/undefined units).
  • Keep all artwork inside that boundary to avoid stitching outside hoop limits.
  • Success check: the entire design fits within the 4×4 page border with visible margin (no shapes touching or crossing the edge).
  • If it still fails: re-check the design’s measured size in mm/in and confirm nothing is accidentally off-canvas or scaled after import.
• Q: What stabilizer should be used for Ink/Stitch embroidery on felt, woven cotton, T-shirt knit, or towels to prevent puckering and distortion?
  A: Choose stabilizer based on fabric first—changing fabric changes the stitch physics, so match backing before digitizing density decisions.
  • Use felt with medium tearaway (50g) or cutaway; watch for dense designs perforating tearaway (“cookie cutter” effect).
  • Use woven cotton (non-stretch) with tearaway (2 layers if thin) or fusible mesh; watch outline puckering.
  • Use T-shirt/knit with required cutaway (2.5oz/70g) plus a 75/11 ballpoint needle; avoid tearaway on knits.
  • Use towel/fleece (high pile) with cutaway bottom + water-soluble topper top so stitches don’t sink.
  • Success check: the stitched shape stays round/square as intended with no waving or “ovalizing” after unhooping.
  • If it still fails: run a test stitch on scrap using the exact same fabric + stabilizer stack and adjust density/pull compensation after.
• Q: How can I prevent bird nesting under the needle plate on a Brother PR-620 embroidery machine during the first stitch-out?
  A: Stop immediately and re-thread the top path—bird nests commonly happen when the top thread misses the take-up lever.
  • Stop the machine as soon as the nest starts to avoid worsening the jam.
  • Re-thread the machine completely and ensure the thread passes through the metal take-up lever that moves up and down.
  • Confirm the thread is seated correctly through the tension path (don’t “half-catch” a guide).
  • Success check: stitches form normally with a clean underside (no sudden thread wad building under the design).
  • If it still fails: inspect needle condition and confirm the hooping is stable (fabric shifting can also trigger messy underside issues).
• Q: How do I fix white bobbin thread showing on top when stitching an Ink/Stitch PES design on a Brother PR-620 embroidery machine?
  A: Treat it as a tension balance problem—often the top tension is too tight or the bobbin is too loose.
  • Loosen the top tension (move to a lower setting) as the first adjustment.
  • Verify the top thread is correctly flossed through the tension discs (a mis-thread can mimic bad tension).
  • Re-test on scrap with the same fabric + stabilizer combination used for the real item.
  • Success check: the top surface shows the top thread cleanly without white bobbin thread “peppering” the satin/fill.
  • If it still fails: re-check bobbin setup and consult the machine manual for the correct bobbin tension standard for that model.
• Q: How do I stop needle breaks on a Brother PR-620 when stitching a dense Ink/Stitch PES file (Hello Kitty-style patch with layered fills)?
  A: Reduce mechanical risk first—needle breaks commonly come from hoop strikes or excessive density from unneeded layer overlaps.
  • Confirm the design stays within the 4×4 stitching boundary so the needle path can’t run into the frame.
  • Use Path > Exclusion in Inkscape to knock out eyes/nose/bow from the base fill so you don’t stitch “bulletproof” stacked layers.
  • Replace with a fresh needle (a burred needle increases heat and snapping); change needles regularly (a safe starting point is often every 8 stitching hours).
  • Success check: the machine runs through fills without “thunking,” deflection, or repeated breaks in the same area.
  • If it still fails: re-simulate and look for areas with heavy overlap/stacking, then re-export from the SVG master after adjustments.
• Q: What is the correct hooping tension “sound test” to avoid fabric shifting and outline misalignment on a Brother PR-620 embroidery machine?
  A: Hoop to firm, even drum tension—most “digitizing problems” are actually hooping problems.
  • Tap the hooped fabric with a fingernail and listen for a tight drum-like “thrummm,” not a loose “thwack.”
  • Avoid over-tightening on delicate fabrics to reduce hoop burn (white rings).
  • Use stabilizer matched to fabric so the hoop tension doesn’t have to do all the work.
  • Success check: outlines land on top of fills consistently (no drifting) and the fabric doesn’t ripple during stitching.
  • If it still fails: add/adjust pull compensation in Ink/Stitch and re-check that the fabric is not creeping on the stabilizer (temporary spray adhesive may help hold layers).
• Q: What safety precautions should be followed when operating an industrial or multi-needle embroidery machine like a Brother PR-620 near the hoop area?
  A: Keep hands and anything loose away from the moving hoop/needle area—multi-needle machines can puncture instantly at high speed.
  • Tie back long hair and remove loose jewelry before running the machine.
  • Never reach inside the hoop area while the machine is stitching, even during color changes.
  • Pause/stop the machine fully before making any adjustments near the needle or hoop.
  • Success check: all adjustments happen only when the machine is stopped, with hands clear before resuming stitching.
  • If it still fails: slow down the workflow—treat every color change and re-thread as a “stop, hands off, confirm clearance, then run” routine.
• Q: When should I upgrade from traditional screw hoops to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine for production efficiency and fewer hoop marks?
  A: Upgrade based on the bottleneck you feel: technique first, then hooping tools, then machine capacity—don’t jump levels.
  • Level 1 (technique): If shirts are being ruined, first improve hooping discipline (even tension, correct stabilizer, test stitch on scrap).
  • Level 2 (tool upgrade): If hoop burn, wrist strain, or slow hooping is the bottleneck for repeat jobs, magnetic hoops often reduce clamping time and friction marks.
  • Level 3 (capacity upgrade): If thread changes take longer than stitching (or orders require many color swaps), a multi-needle platform like a SEWTECH machine is often the practical step.
  • Success check: hooping time and rework rate drop noticeably (fewer marked shirts, fewer alignment failures, faster turnaround).
  • If it still fails: identify whether the pain is placement repeatability (consider a hooping station) or stitch quality from consumables (upgrade stabilizer/thread before buying a new machine).
