From Etsy ZIP to Brother PE800 Stitch-Out: The Calm, Foolproof Way to Download, Unzip, and Load PES Files (Without USB Drama)

The digital workflow of machine embroidery is the "Great Filter." I have seen countless enthusiastic beginners buy a beautiful machine, unbox it with joy, and then let it gather dust simply because the file transfer process felt like hacking the Matrix.

You are not alone. The gap between "I bought a design" and "My machine is stitching it" is filled with invisible file extensions, formatting quirks, and USB sensitivity. But here is the truth: Machine embroidery is 20% art and 80% process discipline.

This guide replaces the guesswork with a military-grade workflow. We will walk through the exact steps for Windows users (demonstrated on a Brother PE800), but more importantly, we will install the "safety rails" that experienced professionals use to prevent corrupted files, broken needles, and wasted fabric.

The “Don’t Panic” Primer: What a Brother PE800 Can (and Can’t) Read

When you download a file from the internet, it arrives in a digital suitcase called a ZIP file. Your embroidery machine is a specialized computer from a specific era; it does not know how to open that suitcase. It only wants the clothes inside.

Sellers often pack that suitcase with:

• PDF instructions (for you to read, not the machine).
• JPG images (for you to see).
• Ten different file formats (.EXP, .JEF, .DST) for different machine brands.

Your Brother PE800 speaks one language: .PES.

In the workflow below, we are going to ignore everything that isn't a .PES file. If you try to feed the machine a ZIP file or an image file, the screen will simply remain blank. If you are brand new, you are doing the right thing by establishing a rigid embroidery machine for beginners workflow now. A clean digital process is the foundation of clean physical stitching.

The “Hidden” Prep Pros Do First: Folder Hygiene on Windows File Explorer

Before you download a single pixel, we must set up your digital workspace. Most beginners dump files into their "Downloads" folder, which quickly becomes a graveyard of lost files.

Establish the "Two-Folder Rule" on your Desktop:

1. "Incoming Zips": This is for the raw, compressed packages you download.
2. "Ready to Stitch": This is only for the extracted .PES files effectively acting as your library.

This separation prevents you from accidentally copying a ZIP file to your USB drive—a common error that makes the machine think the drive is empty.

Prep Checklist: The Digital "Mise-en-place"

• Operating System: Confirm you are on a Windows PC (Mac users require a different unzipping process not covered here).
• Visibility: Open Windows File Explorer, click "View," and check the box for "File name extensions." You must be able to see the .pes at the end of filenames.
• USB Hardware: Use a high-quality USB flash drive.
  • Pro Tip: Older machines (like the PE800) often struggle with modern 64GB+ drives. Use a stick that is 8GB or smaller, formatted to FAT32.
• Consumables on Standby: Ensure you have the hidden essentials ready nearby:
  • Fresh Needles (Size 75/11 for general cotton).
  • Bobbin Thread (60wt or 90wt, depending on your setup).
  • Temporary Spray Adhesive (ODIF 505 or similar).


Buying and Downloading Designs Without the "Where Did It Go?" Spiral

In the video example, the host purchases designs from Etsy. When you click download, your browser will usually drop the file into your "Downloads" folder.

The "Date Modified" Anchor: If you download five files in a row, finding them can be tricky. In Windows File Explorer, always click the "Date modified" column header. This forces the newest files to the top of the list. It sounds trivial, but when you are managing client orders, this 2-second habit saves hours of searching.

regarding hardware: If you are using a Chromebook, the principles are identical—Download > Unzip > Copy—but the interface differs. The machine handles the files the same way regardless of the computer used to move them.

Unzipping Embroidery ZIP Files: The Exact Right-Click Move

You cannot just double-click a ZIP folder and drag files out comfortably. You must "explode" the suitcase.

The Action:

1. Right-click the ZIP folder.
2. Select Extract All...
3. A window will pop up asking where to put them. This is where you point it to your "Ready to Stitch" folder (or let it extract right there, then move the files).
4. Click Extract.

The Sensory Check: A new window will pop up showing the loose files. These are your actual assets. If the icon looks like a folder with a zipper on it, stop—you are still in the compressed stage. If the folder looks open and plain, you are ready to work.

Finding the Correct PES File Fast: The "3-Character Extension" Rule

Once extracted, you might see 20 files for a single design. This is "Format Fatigue." Do not look at the pretty pictures (thumbnails). Look at the text.

The Filter Protocol:

1. Look at the end of the filename.
2. The Brother PE800 requires .PES.
3. Ignore .DST, .EXP, .JEF, and .EMB.

The Shift-Click Technique: If you need to move five PES files at once:

• Click the first file.
• Hold down the Shift key.
• Click the last file.
• All files in between are now selected and ready to be dragged.

Size Safety: While selecting, be mindful of the physical limits. The brother pe800 hoop size is strictly 5x7 inches (130mm x 180mm). If you try to load a design that is 5.01 inches wide, the machine will not display it. It’s not broken; it’s protecting you from hitting the plastic frame.

The USB Transfer Ritual: Protecting Your Data from Corruption

This is the step where data corruption happens most frequently. The USB port is a physical bridge between two computers.

The Transfer:

1. Insert the USB drive into your PC. Listen for the system chime.
2. Open the USB folder (often Drive D:, E:, or K:).
3. Drag and drop your selected .PES files from your computer to the USB window.

Structure Warning: Do not bury your designs inside ten layers of sub-folders (e.g., USB > Animals > Dogs > Poodles > Hats). The PE800 has a limited processor. Keep your file structure shallow (e.g., USB > Poodles).

Setup Checklist (The "Pre-Flight" Inspection)

• Extension Check: Are the files solely .PES?
• Root Directory: Are files easy to find, not buried in deep sub-folders?
• Drive Capacity: Is the USB drive 8GB or smaller? (larger drives often cause the machine to freeze).
• File Count: Ensure there are not more than ~20-30 designs in a single folder. Too many files can crash the machine's visual index.
• Consumables Check: Do you have the right stabilizer for your fabric? (See the Decision Tree below).

Warning: Do not yank the USB drive out immediately after the progress bar finishes. Windows uses "write caching," meaning it might still be saving the file even after the bar disappears. Yanking it now can corrupt the file header, making it unreadable to the machine.

Safely Ejecting a USB: The Tiny Icon That Prevents Data Loss

This is the hallmark of a professional.

The Action:

1. Go to the bottom-right of your Windows taskbar (near the clock).
2. Click the small arrow to show hidden icons.
3. Find the USB icon (often a small plug or stick with a checkmark).
4. Right-click and select "Eject Mass Storage."
5. Wait for the text notification: "Safe to Remove Hardware."


If you develop this patience now, you will save yourself from the mystery of "phantom files" that show up on your PC but disappear on your embroidery machine.

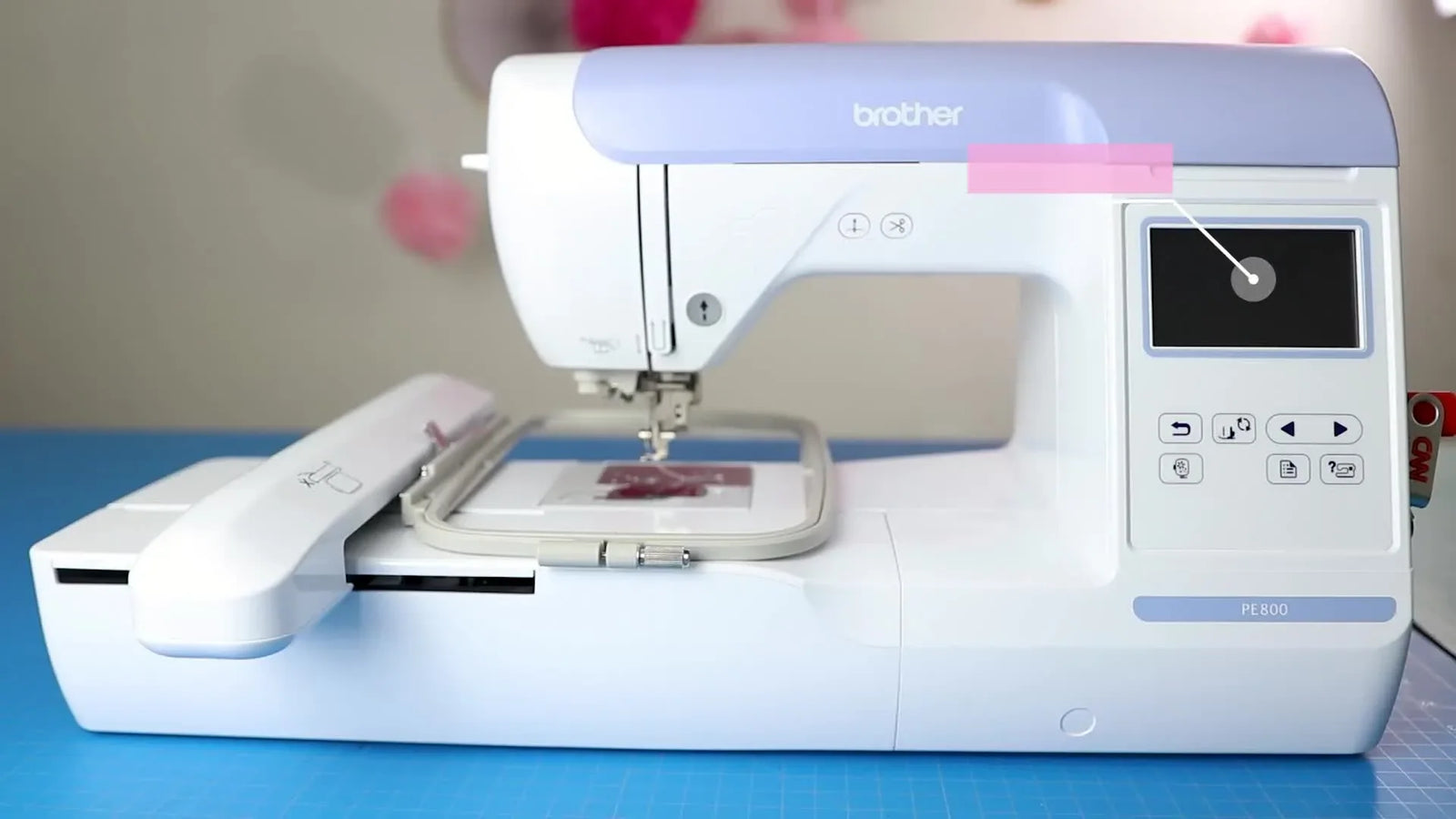

Loading Designs on the Brother PE800: The “Squid Button”

Now, we move to the physical realm.

The Sequence:

1. Turn on the Brother PE800. Wait for the carriage to move and calibrate (that mechanical "whir-clunk" sound is normal).
2. Insert the USB stick into the side port.
3. On the LCD screen, tap the icon that looks like a USB stick (sometimes jokingly called the "squid in a pocket").
4. Use the left/right arrow keys to flip through the digital "pages" of your USB drive.




Color Confusion: Your machine screen will likely show weird colors. The PE800 assigns generic colors to the file data. Do not panic if your "Christmas Tree" looks blue on screen. Follow the thread color chart that came with your download PDF, not the screen approximation.

Operation Checklist (The "Go/No-Go" Check)

• Visual Confirmation: Can you see the design on the LCD screen?
• Hoop Clearance: When you attach the hoop, confirm the carriage arm is not obstructed by a wall or thread stand.
• Thread Path: Is the upper thread seated deeply in the tension discs? (Floss it in).
• Bobbin: Is the bobbin thread pulling smoothly? It should turn counter-clockwise (shaped like the letter 'P').
• Needle: Is the needle straight and fresh? A bent needle leads to bird's nests instantly.

The “Why” Behind the Mess: Organizing for Scale

Designers bundle files to serve everyone, which makes a mess for you. As you graduate from "hobbyist" to "semi-pro," build a library on your PC:

• Folder: Clients/John Doe/Logos
• Folder: Holidays/Christmas/Ornaments

Structured data prevents you from re-buying designs you already own.

Optional but Powerful: Using Embrilliance Express for Fonts

The video touches on Embrilliance Express (free) to handle .BX fonts. Typing a name like "Samantha" using the PE800's built-in screen is tedious—you have to select every single letter individually. BX fonts allow you to type "Samantha" on your PC keyboard, save it as one single PES file, and transfer that. It is a massive time saver.

The Comment-Section Pitfalls: Safety & Compatibility

Here are the answers to the questions novices are afraid to ask:

"Can I do this on my iPad?"

Technically yes, with adapters and specific file-management apps, but the Brother PE800 handles USBs formatted by Windows much more reliably. If you are struggling, use a cheap Windows laptop. It removes the variables.

"Why isn't my machine reading the USB?"

If you formatted the drive, unzipped the files, and it still fails: Get a smaller, older USB stick. Manufacturers often give away 256MB or 2GB white sticks with machines for a reason—they are stable.

Decision Tree: The Physics of Stabilization

You have the file. You have the machine. Now you need to stabilize the fabric. Use this decision tree to prevent the "puckering" disaster.

The Upgrade Path: Solving the "Hoop Burn" & Wrist Pain

Once you master the digital transfer, the physical reality kicks in. The standard plastic hoops included with single-needle machines require significant hand strength to tighten, and they leave "hoop burn" (creases) on delicate fabrics.

If you find yourself struggling to hoop thick items (like hoodies) or you are tired of the "loosen screw -> tug fabric -> tighten screw" cycle, this is the trigger point for a tool upgrade.

Many users searching for hooping for embroidery machine efficiency eventually discover magnetic frames. A magnetic hoop for brother pe800 allows you to clamp fabric instantly using strong magnets, rather than friction. This eliminates the need to wrestle with the inner ring and largely prevents hoop burn.

For those moving into volume production (e.g., 20 shirts for a local team), consistency is key. Upgrading to a specialized machine embroidery hooping station ensures every logo lands in the exact same spot on every shirt, removing the human error of eyeballing.

Warning: Magnetic Safety
magnetic embroidery hoop systems use industrial-strength magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
* Medical Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on top of your laptop hard drive or the machine's LCD screen.

If you are expanding beyond the PE800 into industrial equipment, you might look for terms like hoop master embroidery hooping station, but even for the home embroiderer, a simple 5x7 brother magnetic hoop 5x7 is often the highest ROI upgrade you can make to save your wrists and your sanity.

Always verify compatibility. A hoop for brother embroidery machine must match your specific machine's attachment arm.

The Final Verse

The transition from "downloading a zip" to "holding a finished embroidery" is a chain of custody. You are the custodian of that file. By keeping your folders clean (Prep), your USB drive ejected safely (Transfer), and your stabilization correct (Physics), you remove 90% of the variables that cause machine errors.

Start with one design. Follow the steps. Listen for the "click." You have got this.

FAQ

• Q: Why does a Brother PE800 embroidery machine show a blank screen when loading designs from a USB drive?
  A: The Brother PE800 will only display valid, unzipped .PES files that fit the 5x7 hoop, so blank screens usually mean the wrong file type, still-zipped files, or an oversize design.
  • Enable “File name extensions” in Windows File Explorer and confirm filenames end in .PES (not .DST, .JEF, .EXP, .JPG, or .PDF).
  • Right-click the ZIP file and choose “Extract All…” before copying files to the USB drive (do not copy the ZIP itself).
  • Check design size against the Brother PE800 5x7 (130 mm x 180 mm) limit; slightly oversize designs may not display.
  • Success check: The design thumbnail/preview appears on the Brother PE800 LCD when tapping the USB icon and paging through files.
  • If it still fails: Switch to an older/smaller USB drive (often 8GB or smaller) formatted FAT32 and keep folders shallow.
• Q: What USB flash drive format and size works most reliably with a Brother PE800 embroidery machine?
  A: A small, high-quality USB drive (often 8GB or smaller) formatted to FAT32 is the most reliable setup for a Brother PE800.
  • Use an 8GB-or-smaller stick when possible; older machines often struggle with modern large-capacity drives.
  • Format the USB drive to FAT32 before use (then copy only the .PES files).
  • Keep file counts reasonable (about 20–30 designs per folder) and avoid deep sub-folders.
  • Success check: The Brother PE800 USB menu loads quickly and design pages flip without freezing.
  • If it still fails: Try a different brand/older USB stick (the small “freebie” style drives are often surprisingly stable).
• Q: How do Windows users safely eject a USB drive for a Brother PE800 to prevent corrupted embroidery files?
  A: Always use Windows “Eject” and wait for “Safe to Remove Hardware” before unplugging, because write caching can corrupt .PES file headers.
  • Click the hidden-icons arrow near the Windows clock and find the USB icon.
  • Right-click the USB icon and select “Eject Mass Storage.”
  • Wait for the “Safe to Remove Hardware” message before removing the USB drive.
  • Success check: The .PES files still appear on both the Windows PC and the Brother PE800 after reinserting the USB drive.
  • If it still fails: Re-copy the .PES files (after extracting again) and repeat the eject process—do not “yank” the drive out after copying.
• Q: What is the correct Windows workflow to unzip embroidery ZIP files for a Brother PE800 .PES design transfer?
  A: Use Windows “Extract All…” into a clean “Ready to Stitch” folder, then copy only the extracted .PES files to the USB drive.
  • Create two desktop folders: “Incoming Zips” (downloads) and “Ready to Stitch” (extracted library).
  • Right-click the ZIP file → select “Extract All…” → choose the “Ready to Stitch” folder.
  • Filter for .PES files only before copying to the USB drive.
  • Success check: The files you plan to copy are not inside a folder with a zipper icon, and filenames clearly end in .PES.
  • If it still fails: Sort by “Date modified” to ensure the newest download/extraction is the one being used (not an older duplicate).
• Q: What needles, bobbin thread direction, and temporary adhesive are a safe starting setup for a Brother PE800 embroidery machine?
  A: A safe starting point is a fresh 75/11 needle for general cotton, bobbin thread that pulls smoothly with the bobbin turning counter-clockwise (like the letter “P”), and a light temporary spray adhesive if needed.
  • Install a fresh needle before troubleshooting thread jams; bent or dull needles often trigger instant nesting.
  • Insert the bobbin so it turns counter-clockwise (P-shape) and confirm the thread feeds smoothly.
  • Use temporary spray adhesive (ODIF 505 or similar) sparingly to prevent shifting when hooping.
  • Success check: The Brother PE800 starts stitching without immediate thread “bird’s nest” buildup under the hoop.
  • If it still fails: Re-thread the top path carefully and “floss” the thread into the tension discs, then test again (always follow the machine manual if it differs).
• Q: How can Brother PE800 users prevent bird’s nests and immediate thread jams during the first stitches?
  A: Most first-minute bird’s nests on a Brother PE800 come from incorrect top threading seating or a compromised needle/bobbin setup, so reset threading and verify the bobbin orientation before restarting.
  • Re-thread the upper thread with the presser foot up (generally helps seating) and “floss” the thread into the tension discs.
  • Confirm the bobbin is inserted correctly and pulls smoothly with the counter-clockwise “P” orientation.
  • Replace the needle if there is any doubt; a bent needle can cause nesting instantly.
  • Success check: The first color stitches form cleanly on top with no dense thread wad forming underneath the fabric.
  • If it still fails: Stop immediately, remove the hoop, cut away the nest carefully, and restart after re-checking the thread path and bobbin placement.
• Q: How do magnetic embroidery hoops reduce hoop burn and wrist pain compared to standard Brother-style screw hoops, and what are the key safety rules?
  A: Magnetic embroidery hoops clamp fabric quickly without heavy screw-tightening, which often reduces hoop burn and wrist strain, but the magnets require strict pinch and medical-device safety.
  • Upgrade when repeated “loosen screw → tug fabric → tighten screw” cycles cause creases on delicate fabric or hand fatigue on thicker items like hoodies.
  • Handle magnets by the edges and keep fingers out of the snap zone to avoid bruising/pinch injuries.
  • Keep magnets at least 6 inches away from pacemakers or insulin pumps, and avoid placing magnets on electronics like laptops or directly on an embroidery machine LCD.
  • Success check: Fabric is held firmly with fewer crease marks and hooping time drops noticeably without excessive hand force.
  • If it still fails: Verify the magnetic hoop/frame is made for the exact embroidery machine attachment arm—compatibility must match the specific machine model.
