From Download to Stitch on Bernina: A Calm, Foolproof USB Workflow (Plus the Paper System You’ll Thank Yourself For)

The "Zero-Panic" Protocol: Mastering Design Downloads for Bernina Embroidery Machines

If you have ever bought a design online, stared at a folder full of cryptic file extensions like .PES and .JEF, and felt your enthusiasm drain away, you are not alone. This is the number one bottleneck for beginners. You want to create art, but you feel like you need a degree in computer science just to get the needle moving.

I have spent 20 years in professional embroidery, training operators who manage thousands of designs. I can tell you this: Disorganization is the silent killer of creativity. I have watched talented beginners abandon their machines because they lost a paid design inside their own laptop or, worse, crashed their machine trying to load a corrupted file.

This guide is your "Standard Operating Procedure" (SOP). We will rebuild the workflow shown in the source video—downloading, formatting, organizing—and then apply industrial-grade safeguards. We will turn chaotic clicks into a boring, reliable rhythm.

1. The "Hidden Link" Trap: Navigating Vendor Dashboards

Most embroidery design websites suffer from poor User Experience (UX). They hide your files. In the video, the host logs into her account and goes to her order history.

• The Trap: She can see the order, but she cannot download from the order view.
• The Fix: The actual download link is sequestered in a sidebar menu often labeled "My Downloadable Products."

If you own high-precision equipment like bernina embroidery machines, you expect precision. Web interfaces rarely provide it.

The "Click" Discipline

Do exactly this:

1. Log in to the vendor site.
2. Ignore the "Order History" tab initially.
3. Locate the specific "Downloads" or "My Downloadable Products" area.
4. Click the design name (e.g., "Blended Tulips").

Sensory Check: Watch your browser's download bar (usually bottom left or top right). Wait until the progress circle completes. Do not click "Open" yet.

Warning (Digital Hygiene): Never "Run" or "Open" a download directly from the browser to send it to your machine. This often creates temporary temp files that your machine cannot read, leading to "File Corrupt" errors or freezing your screen. Always Save the file to your computer first.

2. Unzipping: The "Shipping Container" Analogy

Your downloaded file is a ZIP folder. Think of a ZIP file like a shipping container. Your machine cannot stitch a shipping container; it needs the cargo inside. You must "unpack" (extract) it first.

In the video, the host clicks the arrow next to the download and selects "Show in Folder" (or "Open File Location"). This is a critical habit. It forces you to acknowledge where the file lives on your hard drive.

Action Steps:

1. Right-click the ZIP folder.
2. Select "Extract All" (Windows) or double-click to expand (Mac).
3. Visual Check: Ensure you see a normal folder icon, not a folder with a zipper on it.

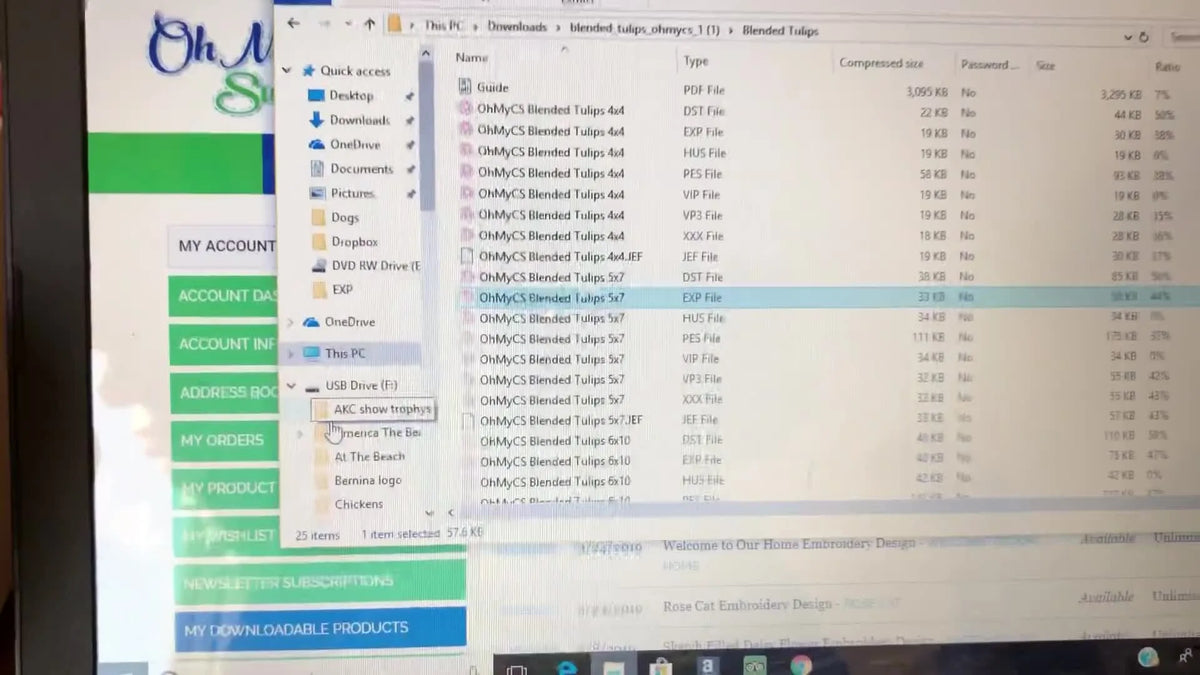

3. The Rosetta Stone: Choosing the .EXP Format

Inside that unpacked folder, you will see a confusing list: .DST, .HUS, .JEF, .PES, .VIP, .EXP. These are different languages. A Brother machine speaks .PES. A Janome speaks .JEF.

For a Bernina, the native tongue is .EXP. In the demonstration, the host selects the 5x7 size folder and highlights the .EXP file.

Why This Matters (The Physics of Data)

Loading the wrong format isn't just a "syntax error." It can physically damage your work. A file converted or read incorrectly may misinterpret coordinates, causing the hoop to slam into the needle bar.

• The Rule: If you have a Bernina, ignore everything except .EXP.
• The Action: Single-click the file to highlight it in blue. Do not double-click to open it (unless you have digitization software).

4. The Digital Baton Pass: Transferring to USB

Now we move the data from the computer to the machine. The host plugs in a USB drive.

Sensory Anchor: Listen for the system chime (Windows ding-dong) that signals the drive is mounted.

She navigates to a pre-made folder on the USB stick named "Flower Garden." This is crucial. Never dump files into the "Root" (the main area) of the USB. Machines often struggle to read root directories with more than 20 files. Folders are your safety partitions.

The reliable "Drag-and-Drop":

1. Click and hold the .EXP file on your computer.
2. Drag it over to the USB drive icon in the sidebar.
3. Hover until the intended folder (e.g., "Flower Garden") highlights.
4. Release.


Setup Checklist: The "Pre-Flight" Inspection

• USB Recognition: Computer chimed and drive letter (e.g., E:) is visible.
• Clean File: You are moving the unzipped .EXP file, not the ZIP folder.
• Folder Logic: The file is inside a sub-folder (e.g., "Christmas"), not floating in the root.
• Capacity Check: Ensure your USB stick is 4GB or smaller (older machines) or formatted FAT32 (newer machines). Pro tip: Older embroidery machines hate 64GB drives.

5. The "Paper Brain" Protocol: Worksheets & Binders

The host opens the included PDF titled "Guide" and prints it. Do not skip this. The tiny screen on your machine is terrible for project management. A printed worksheet is your "General's Map."

On this paper, she writes:

1. The Filename (e.g., blended_tulips_5x7.exp).
2. The Location (e.g., "USB > Flower Garden Folder").






This creates a Physical Backup of your digital brain. When you want to stitch this again in two years, you won't scroll aimlessly through icons; you will flip to the page in your binder, read the path, and go straight to the file.

6. Interpreting the Data: Expert Analysis of the Worksheet

The worksheet provides raw data. Let's translate that into embroidery reality.

• Stitch Count: 36,928.
  • Expert Interpretation: An embroidery machine for beginners typically runs safely at 600 stitches per minute (SPM).
  • The Math: 36,928 / 600 ≈ 61 minutes of pure run time. Add 15 minutes for the 7 color changes.
  • Reality Check: This is an 80-minute commitment. Do not start this 20 minutes before dinner.
• Color Changes: 7.
  • Expert Interpretation: 7 stops where the machine waits for you. This is where you can rest, re-thread, or ruin the tension if you rush.




7. Decision Tree: The Physics of Stabilization

The worksheet suggests fabric, but you need to pair it with the correct stabilizer. This is where physical physics meets digital design.

The Stabilizer Decision Matrix:

• Scenario A: The Fabric Stretches (T-Shirts, Jersey)
  • Physics: The needle penetrating the fabric pushes fibers apart. If the fabric stretches, the design triggers "puckering"—the fabric ripples around the thread.
  • The Fix: Cut-Away Stabilizer. It is permanent and creates a non-stretch foundation.
  • Upgrade: Use temporary spray adhesive to bond the fabric to the stabilizer for zero movement.
• Scenario B: The Fabric is Stable (Quilting Cotton, Denim)
  • Physics: The fabric holds its own shape.
  • The Fix: Tear-Away Stabilizer. It provides support during stitching but removes easily for a clean back.
• Scenario C: Deep Pile (Towels, Velvet)
  • Physics: Stitches sink into the loops and disappear.
  • The Fix: Water Soluble Topper on top + Tear-Away on bottom. The topper keeps stitches floating above the "grass."

8. The "Missing Link" in Workflow: Tool Calibration

You have downloaded the perfect file, chosen the right .EXP format, and prepped your stabilizer. But the moment you walk to the machine, you face the physical barrier: Hooping.

Proper hooping is harder than mastering the software. It requires hand strength, alignment precision, and correct tension (taut like a drum skin, but not distorted).

Troubleshooting Pain Points with Hardware

If you struggle with the following issues, software won't save you. You need a hardware upgrade.

Pain Point 1: "Hoop Burn" (shiny crush marks on fabric)

• Cause: Traditional hoops use friction and extreme pressure to hold fabric. This crushes delicate fibers (velvet, sensitive cottons).
• Solution: Professionals search for terms like magnetic hoop for bernina.
• Why: Magnetic frames use vertical magnetic force, not friction. They hold fabric firmly without crushing the fibers ("Hoop Burn").

Pain Point 2: Wrist Fatigue / Hooping Struggle

• Cause: Wrestling a thick sweatshirt into a standard inner/outer ring requires significant grip strength.
• Solution: A bernina magnetic embroidery hoop allows you to simply lay the fabric over the bottom frame and snap the top frame on.
• Efficiency: Reduces hooping time from 2 minutes to 10 seconds.

Pain Point 3: Crooked Designs

• Cause: The fabric slips as you tighten the screw on a standard hoop.
• Solution: Use a hooping station for machine embroidery. It locks the bottom frame in place, allowing you to align the shirt perfectly before applying the top frame (or magnetic top).

Warning (Magnet Safety): SEWTECH magnetic hoops are industrial strength.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical Safety: Keep magnets at least 6 inches away from pacemakers.
3. Electronics: Do not place the magnetic hoop directly on top of your laptop or hard drive.

Many users start with standard machine embroidery hoops but upgrade to magnetic systems once they begin production runs of 10+ items, as the speed difference pays for the tool.

9. Troubleshooting Guide: Structured Diagnostics

Don't guess. Use this logic flow to solve problems efficiently.

10. Operational Checklist: The Pilot's Pre-Flight

Before you press the green "Start" button, verify these five points. If you can check all five, your chance of success is 98%.

• File Integrity: You are loading the .EXP file that was extracted from the ZIP, not the ZIP itself.
• Hoop Security: Fabric is taut (drum sound when tapped). If using a hooping for embroidery machine technique with magnets, ensure the magnets are seated flat.
• Stabilizer Match: Knit fabric has Cut-Away; Woven fabric has Tear-Away.
• Thread Path: You unspooled 3 inches of thread and felt the "flossing resistance" through the tension discs.
• Safety Zone: The hoop area is clear of scissors, spare needles, and coffee mugs.

By strictly formatting your data workflow and respecting the physics of your tools, you move from "hoping it works" to "knowing it will work." Organization is the foundation of embroidery mastery.

FAQ

• Q: How do I download a paid embroidery design from a vendor dashboard for a Bernina embroidery machine when the Order History page has no download button?
  A: Use the vendor’s dedicated Downloads area (often called “My Downloadable Products”), not the Order History view.
  • Log in and skip Order History at first.
  • Open the sidebar/menu and click “Downloads” or “My Downloadable Products.”
  • Click the design name and wait for the download to fully finish.
  • Success check: The browser download indicator completes and the file appears in the computer’s Downloads folder (or the chosen save location).
  • If it still fails: Refresh the page and look for a different menu label like “Downloads,” then try again.
• Q: How do I prevent “File Corrupt” errors on a Bernina embroidery machine after downloading a design from a browser?
  A: Always save the download to the computer first, then unzip it—never run/open directly from the browser.
  • Click “Save” (not “Open” or “Run”) when the browser prompts.
  • Locate the downloaded ZIP using “Show in Folder / Open File Location.”
  • Delete the bad file, re-download, and save again to disk before extracting.
  • Success check: The design file opens as a normal file on the computer (not a temporary browser item), and the Bernina reads it without a corrupt warning.
  • If it still fails: Re-download from the vendor again and confirm the file you transfer is not the ZIP.
• Q: Which embroidery file format should be transferred for a Bernina embroidery machine when the ZIP contains DST, PES, JEF, VIP, HUS, and EXP?
  A: Transfer only the .EXP file for a Bernina embroidery machine.
  • Extract the ZIP folder first.
  • Open the size folder you intend to stitch (for example, the 5x7 folder).
  • Single-click the .EXP file to select it for copying (do not double-click to open it unless using software).
  • Success check: The file name ends in “.EXP” and the Bernina can see the design on the USB.
  • If it still fails: Confirm the file is extracted (not still inside a ZIP) and confirm the extension is .EXP.
• Q: How do I transfer a Bernina .EXP design to a USB so a Bernina embroidery machine can actually see the file?
  A: Copy the unzipped .EXP into a named folder on a FAT32 USB (not the USB root).
  • Plug in the USB and wait for the computer to recognize it.
  • Create or open a project folder on the USB (for example, “Flower Garden”).
  • Drag-and-drop the extracted .EXP file into that folder (not into the root directory).
  • Success check: The .EXP appears inside the USB folder and the Bernina design list shows the file when browsing that folder.
  • If it still fails: Use a smaller USB (older machines often dislike large drives) or reformat the USB to FAT32.
• Q: What is the safest stabilizer choice for Bernina embroidery machine projects on T-shirts, quilting cotton, and towels based on fabric behavior?
  A: Match stabilizer to fabric stretch and pile: knits need cut-away, stable wovens can use tear-away, and towels need a topper.
  • Choose cut-away for stretching fabric like T-shirts/jersey.
  • Choose tear-away for stable fabric like quilting cotton/denim.
  • Add water-soluble topper on top for towels/velvet, and use tear-away underneath.
  • Success check: The fabric stays flat after stitching (no ripples/puckering) and towel stitches remain visible above the pile.
  • If it still fails: Reduce fabric movement by bonding fabric to stabilizer with temporary spray adhesive (a common fix).
• Q: How can Bernina embroidery machine users avoid hoop burn, wrist fatigue, and crooked designs when hooping fabric?
  A: Start with hooping technique checks, then consider a magnetic hoop or a hooping station if the same problems repeat.
  • Reduce hoop burn: Avoid over-tightening and handle delicate fabrics gently.
  • Reduce wrist strain: Lay fabric smoothly and minimize “wrestling” by improving setup.
  • Improve alignment: Stabilize the bottom frame and align the garment before securing the top.
  • Success check: Fabric is taut like a drum when tapped, designs stitch straight, and fabric shows minimal shiny crush marks after unhooping.
  • If it still fails: Upgrade to a magnetic hoop to reduce pressure-based hoop burn and speed hooping; add a hooping station to prevent shifting during tightening.
• Q: What magnetic hoop safety rules should Bernina embroidery machine users follow when using SEWTECH magnetic hoops?
  A: Treat SEWTECH magnetic hoops as industrial-strength magnets and control the snap zone.
  • Keep fingers out of the closing area to prevent pinches.
  • Keep magnets at least 6 inches away from pacemakers.
  • Keep magnetic hoops off laptops and hard drives to avoid electronic damage.
  • Success check: The top frame seats flat without trapping fabric folds or fingertips, and handling feels controlled (no surprise snapping).
  • If it still fails: Slow down and re-seat the frame from one edge to the other to control the magnetic pull.
