From Creative Fabrica to Brother PR680W: Import a PES Design into Embrilliance Essentials Without the Usual File Mess

If you’ve ever downloaded a “cute design,” only to realize it’s the wrong format, the wrong size, or buried inside a chaotic ZIP folder you’ll never find again—take a breath. You are not “bad at computers,” and you aren’t behind. You are simply missing a Standard Operating Procedure (SOP).

In machine embroidery, "winging it" is expensive. It costs you needles, thread, garments, and worst of all—confidence.

In this white paper, we illustrate a production-grade workflow based on the video case study: sourcing a bee design on Creative Fabrica, verifying the data (Format + Size + Density), extracting the single PES file you actually need, and simulating it in Embrilliance Essentials. We will focus specifically on the constraints of a bucket hat project on a machine like the brother pr 680w, upgrading the original advice with safety margins and sensory checks that only come from years on the shop floor.

The “Don’t Panic” Primer: Creative Fabrica + Embrilliance Essentials Is Simple Once You Stop Skipping the Checks

Most beginners don’t struggle because they can’t click “Download.” They struggle because they download first and analyze later.

The workflow we are adopting is “Production-Safe.” It forces you to confirm three physical realities before a file ever touches your hard drive:

1. Source Integrity: Where the design lives (and how to filter the noise).
2. Machine Language: Whether the file format (e.g., PES) speaks your machine's dialect.
3. Physical Windows: Whether the design size fits the actual stitchable area of your hoop (not just the plastic outer limits).

If you are operating a multi-needle machine, this discipline is non-negotiable. The machine will happily accept a corrupted or oversized file, but physics will condemn it. A messy file on a bucket hat leads to registration errors (gaps between outlines) or needle breaks due to curve distortion.

Creative Fabrica “Needle Art → Embroidery”: The Fastest Way to Reach the Real Embroidery Library

In the video, the presenter starts at the Creative Fabrica homepage and immediately executes a tactical navigation:

• Click Needle Art
• Then select Embroidery

Why this matters: This is your first filter. It separates legitimate digitizing from "print-on-demand" graphics. You need files built with nodes and stitch angles, not pixels. This simple click drops you into an ecosystem where stitch counts and file types are standard data points.

The “Trusted Creator” Shortcut (and why it saves you from bad digitizing)

The presenter uses a "Pro Move" that beginners rarely utilize: searching by a specific creator name—GramDesign—to narrow results to a known entity.

The Empirical Truth of Digitizing: Not all designs are created equal. A bad design often has:

• Excessive Density: Too many stitches in one spot, causing needle deflection.
• Poor Pathing: Unnecessary jumps and trims that increase run time.
• Lack of Underlay: The foundation stitching that stabilizes the fabric.

By sticking to a verified creator, you are essentially outsourcing your Quality Control (QC). You want smooth running stitches, not a bird's nest.

Sensory User Tip: If Creative Fabrica feels overwhelming, change your mindset. Don’t browse like a shopper; source like a procurement officer.

Filter Like a Shop Owner: Category Filters Help You Find the One Design That Fits the Project Window

After searching the creator, the presenter narrows the results via the left-side category filter—selecting Bugs and Insects. This eliminates distraction.

The Bucket Hat Constraint: Physics vs. Desire

The presenter states the bucket hat has a 3×8 inch area to work with.

Expert Calibration: While a bucket hat might physically measure larger, the safe stitchable area is much smaller due to the curvature of the cap frame or the limitations of a flat hoop.

• The Crown Problem: As you stitch higher toward the crown, the fabric curves inward. A design that is too tall will pucker.
• The Brim Problem: Stitching too close to the brim on a flat machine is a collision risk.

Always anchor your choice to the Physical Project Window. If your workable area is 3 inches high, download a 2.5-inch design. Leave a safety margin.

PES Format Isn’t Optional: Verify File Extensions Before You Download Anything

On the design page, the presenter checks the list of available file formats in the left panel and confirms PES is included.

The "Rosetta Stone" of Embroidery:

• Brother / Babylock: PES
• Janome: JEF
• Commercial (General): DST


A viewer asked: “Where do I find out what type of file my Brother uses?” The answer is usually stamped on the machine's casing or the first page of the manual.

The Pre-Flight Check: Before you click download, verbalize this sentence: "This listing includes PES, so my machine can read the coordinates." If you skip this, you will be left with a file that your machine treats like a blank sheet of paper.

Size Selection for a Bucket Hat: Choose the Design Variant That Actually Fits (Not the One You Like Most)

The presenter checks the available sizes and points out two options:

• Small: 3.90" × 3.44"
• Medium: 4.65" × 4.21"
  They choose the smaller one because the bucket hat needs a small design.


The "Sweet Spot" Doctrine: Experienced operators know that resizing a design more than 10-20% in software often ruins the density (creating bulletproof stiff patches or bald spots). The winning move is to download the size closest to your needs. Do not force a 5-inch design onto a 3-inch hat; the physics of the curve will distort the image, making circles look like ovals.

The PDF Production Sheet: Your “Pre-Stitch Inspection Report” (Print It If You’re Serious)

The presenter clicks More to open the PDF production sheet. This is the most undervalued step in the workflow.

In the video, this PDF confirms:

• Stitch count: 3,896
• Color changes: 2
• Sequence: Yellow first, then pure black.

Expert Analysis: Interpreting the Data

You must read this sheet like a doctor reads an X-ray.

1. Stitch Count vs. Size: A 3-inch design with 4,000 stitches is standard. If that same size had 15,000 stitches, it would be a "density bomb"—too thick for a hat, likely to break needles.
2. Color Changes: On a single-needle machine, 2 colors = 1 manual stop and re-thread. On a multi-needle, it's automatic. This dictates your labor time.
3. Sequence: Outlines coming last (as seen here with the black) is good. It covers raw edges.

Pro Habit: Print this sheet. Place it next to your machine. Why? Because when you are confused about which yellow comes next, looking at a piece of paper is faster than clicking through menus on a screen.

Download, Then Extract Only What You Need: The “One PES File” Rule That Keeps Your Computer Clean

After clicking the green download button, the presenter opens the ZIP/extraction view.

The Anti-Hoarding Rule: Design packs often contain 10+ formats (DST, EXP, HUS, VIP...). You do not need them. Keeping them "just in case" bloats your hard drive and confuses you later ("Which file was the right one?").

The presenter:

1. Locates PES files only.
2. Selects the small variant.
3. Extracts only that file to a dedicated Embroidery Files folder.

The Prep Checklist (Phase 1 Complete)

Before you open software, confirm:

• Source: Navigated to Needle Art → Embroidery.
• Trust: Sourced from a verified creator (e.g., GramDesign).
• Language: Confirmed PES (or your machine's format).
• Physics: Verified dimensions against your hoop's inner measurement.
• Data: Checked PDF for logical stitch count.
• Hygiene: Extracted ONLY the specific file needed to a clean folder.

The “Double-Click Import” into Embrilliance Essentials: Let the PES File Launch the Software

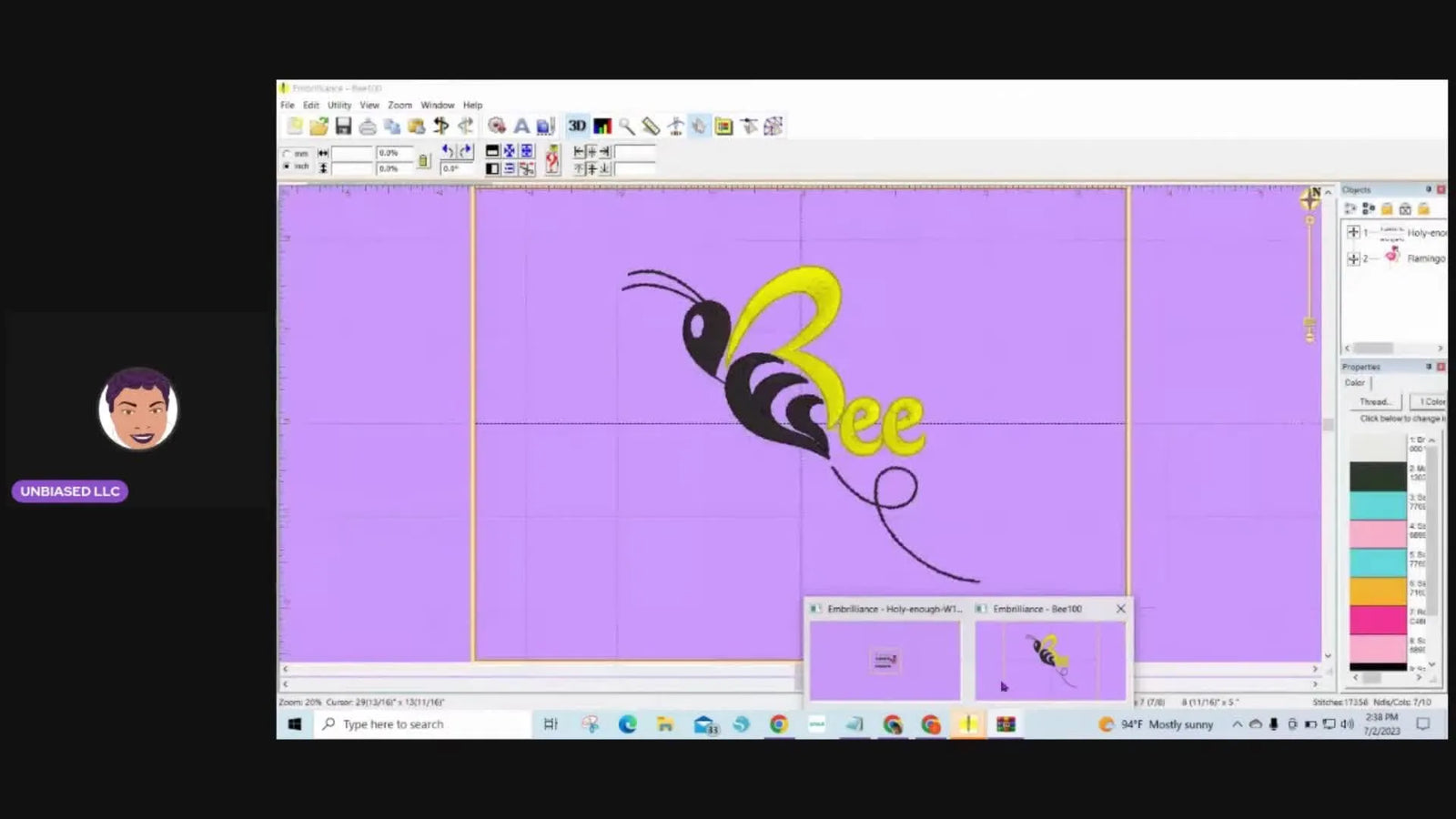

Once extracted, double-click the PES file. Embrilliance Essentials should launch automatically.

Sensory Setup Check: When the design loads, look at the grid. Does the design look "centered"? If it loads partially off-screen, your default hoop settings in the software might be wrong.

1. Visual: Is the design inside the lines?
2. Logic: Does the color palette look like the PDF? (Sometimes colors invert basic RGB settings; don't panic, just reassign them).

Stitch Simulator in Embrilliance Essentials: Preview the Stitch Path Before You Ever Touch Fabric

The presenter clicks the Stitch Simulator (needle icon), hits play, and watches the digital stitch-out.

Why Simulation Saves Fortunes: You are looking for "Red Flags" that the PDF didn't show:

• Long Jumps: Does the needle travel across the design without stitching? (You'll need to trim these).
• Burying: Does a light color stitch over a dark color inappropriately?
• Start/Stop Points: Does the design start in the center or the edge?

The Sensory Anchor: Imagine the needle movement. If you see the simulator "scribbling" frantically in one tiny area, that is a potential thread nest or hole waiting to happen.

The Software Checklist (Phase 2 Complete)

• Zoom: Zoomed out to view full grid context.
• Dimensions: Verified size in the properties panel matches the PDF.
• Simulation: Watched the virtual needle. No erratic jumps found.
• Sequence: Verified Color 1 (Base) -> Color 2 (Detail/Outline).

Save It Twice (On Purpose): “Save Stitch and Working File” Prevents Future Regret

Navigating to File → Save Stitch and Working File is the hallmark of a professional.

• Stitch File (PES): This is for the machine. It is dumb data (X/Y coordinates). You cannot scale this well.
• Working File (BE): This is for the software. It retains object properties. You can resize and edit this later.

The Naming Protocol: The presenter names the file “Busy Bee 3x3”. Rule: Always include the primary dimension in the filename. When you are scrolling through a tiny LCD screen on your machine, "Bee_Final_v2" means nothing. "Bee_3x3_Hat" tells you exactly which hoop to grab.

The Hat Reality Check: Digital Prep Is Only Half the Battle (Hooping and Stabilizer Decide the Finish)

We have verified the file. Now, we must confront the physics of the bucket hat. This is where most beginners fail—not because of the software, but because clamping a 3D object into a 2D hoop is difficult.

The Hierarchy of Solutions

Identifying the right tool for the job depends on your volume and pain tolerance.

• Level 1: The Hobbyist (Standard Hoops)
  • Technique: "Floating." Hoop the stabilizer (use Sticky Stabilizer or spray adhesive), then stick the hat to it.
  • Risk: The fabric can lift during stitching, causing registration errors.
  • Stabilizer: Use Tearaway for structured hats, Cutaway for floppy unstructured hats.
• Level 2: The Prosumer (Magnetic Upgrades)
  • Trigger: You are struggling to hoop thick seams, or you have "hoop burn" (shiny marks left by plastic rings).
  • Solution: Evaluate magnetic embroidery hoops.
  • Why: Magnets clamp down with vertical force rather than friction. They hold thick hat brims without crushing the fabric fibers. Many users search for magnetic hoops for brother specifically to solve the "pop-out" issue where standard hoops spring open mid-stitch.
• Level 3: The Manufacturer (Multi-Needle + Cap Driver)
  • Trigger: You need to stitch 30+ hats a week.
  • Solution: A dedicated cap driver on a machine like the SEWTECH multi-needle system. This allows the hat to spin naturally on a cylinder arm, eliminating the need to flatten it.

Warning (Safety): Magnetic hoops utilize industrial-grade Neodymium magnets. They snap together with crushing force. Pinch Hazard: Keep fingers clear of the mating surfaces. Medical: Keep away from pacemakers.

Decision Tree: Hat Stabilization

• Is the fabric stretchy (Knitted)?
  • YES -> Must use Cutaway active stabilizer.
  • NO (Canvas/Denim) -> Can use Tearaway, but Cutaway is safer for density.
• Is the design dense (lots of fill)?
  • YES -> Use 2 layers of medium stabilizer + floating layer.
  • NO (Line art) -> 1 layer is sufficient.

The Upgrade Path: When Your Bottleneck Isn’t the Design—It’s the Workflow

Once your digital file is clean (thanks to the Embrilliance workflow), your bottleneck shifts to the physical setup.

If you find yourself spending 5 minutes hooping a hat only for it to slip, your time is costing you money. A hooping station for machine embroidery can standardize your placement, ensuring the logo is always exactly 1 inch from the brim.

If you are fighting the hoop itself, remember that tools like hooping for embroidery machine efficiency—specifically magnetic frames—were invented to reduce the wrist strain and fabric damage associated with traditional screwing mechanisms.

Hidden Consumables Checklist:
* Spray Adhesive (Temporary): Vital for "floating" hats.
* New Top Stitch Needles (Size 75/11): Sharp needles penetrate canvas hats better than ballpoints.
* Bobbin Thread: Ensure you have a full bobbin before starting a hat run; changing bobbins on a hooped hat is risky.

Quick Troubleshooting: The 3 Mistakes That Waste the Most Time

The “Do This Every Time” Wrap-Up: A Clean Digital Workflow Makes Better Stitching Possible

To transition from "guessing" to "manufacturing," follow this loop:

1. Source & Filter: Navigate Needle Art → Embroidery. Use verified creators.
2. Verify & Extract: Download only the PES file that fits your Physical Window.
3. Simulate: Watch the digital needle in Embrilliance.
4. Preserve: Save as both Stitch (PES) and Working (BE) files.
5. Rename: Include dimensions in the filename.
6. Physical Prep: Choose the right stabilizer and consider if your current hooping method (Standard vs. Magnetic) is aiding or hindering your precision.

Embroidery is a science of variables. By locking down your digital variables using this workflow, you gain the mental bandwidth to focus on the art of the physical stitch. The cute bee is just the result; the repeatable process is the victory.

FAQ

• Q: How do I confirm a Creative Fabrica embroidery download includes the correct PES file format for a Brother PR 680W before downloading?
  A: Verify the listing explicitly shows “PES” in the available formats before clicking download.
  • Open the design page and read the file format list in the left panel.
  • Confirm “PES” is listed (PES is the format used by Brother/Babylock machines).
  • Say the check out loud: “This listing includes PES, so my Brother PR 680W can read it.”
  • Success check: The download package contains at least one file ending in “.pes” (not only DST/EXP/etc.).
  • If it still fails… Check the machine casing/manual for the required format, then re-download a listing that includes that format.
• Q: How do I choose the correct Creative Fabrica design size for a bucket hat when using Embrilliance Essentials and a Brother PR 680W hoop window?
  A: Choose the design variant that fits the safe stitchable area, then leave a safety margin for hat curvature.
  • Measure/confirm the hoop’s inner stitchable area (not the plastic outer ring).
  • Pick the size closest to the target area (example shown: choose the smaller variant when the hat needs a small design).
  • Leave headroom (if the workable height is 3", a ~2.5" tall design is a safer pick).
  • Success check: In Embrilliance Essentials, the design sits fully inside the hoop boundary lines with margin on all sides.
  • If it still fails… Re-source the design in a smaller size instead of forcing a large design into a small hat window.
• Q: How do I prevent “exploding folders” and confusion when extracting a Creative Fabrica embroidery ZIP so I only keep the one PES file I need for Brother PR 680W?
  A: Extract only the single PES size variant you will stitch, and ignore all other formats in the pack.
  • Open the ZIP and filter/locate only “.pes” files.
  • Select the correct size (for example, the “small” PES) and extract only that one file.
  • Save it into a dedicated, clean “Embroidery Files” folder.
  • Success check: The destination folder contains one clearly named PES file you can find in seconds (not 10+ mixed formats).
  • If it still fails… Delete the cluttered extraction folder and redo the extract process by selecting a single PES file, not “Extract All.”
• Q: How do I use Embrilliance Essentials Stitch Simulator to catch thread-nest risks before stitching a bucket hat design from a PES file?
  A: Run Stitch Simulator and look for long jumps, odd start/stop points, or frantic stitching in a tiny area.
  • Double-click the PES so Embrilliance Essentials opens it directly.
  • Click the Stitch Simulator (needle icon) and play the stitch-out preview.
  • Watch for long travel lines (jump stitches), messy sequencing, or “scribbling” in one spot.
  • Success check: The simulated needle path looks smooth and logical, with no repeated rapid stitches piled into one tiny point.
  • If it still fails… Re-check the PDF production sheet for stitch count logic and consider choosing a different design/creator if the pathing looks chaotic.
• Q: Why should Embrilliance Essentials users save both “Stitch File (PES)” and “Working File (BE)” for a Brother PR 680W project, and how should the filename be written?
  A: Save both formats so the machine runs the PES while the BE preserves editability, and put the design size in the filename.
  • Use File → “Save Stitch and Working File” to generate both PES (machine) and BE (editable working file).
  • Rename immediately using “Name_Size_Context” (example shown: “Busy Bee 3x3”; adding “_Hat” is a clear context cue).
  • Keep the PES and BE together in the same project folder to avoid mix-ups later.
  • Success check: On the machine’s file list, the name clearly tells which hoop/window it fits without guessing.
  • If it still fails… If the file list is still confusing, rename again to include the primary dimension and project (e.g., “Bee_3x3_Hat”) before transferring.
• Q: What is the safest stabilizer and hooping method for bucket hat embroidery to reduce registration errors when using standard hoops on a Brother PR 680W?
  A: Start by “floating” the hat onto hooped stabilizer (often sticky stabilizer or temporary spray adhesive) and match stabilizer type to hat structure.
  • Hoop the stabilizer first, then adhere the hat to the hooped stabilizer (floating method).
  • Choose stabilizer by hat type: tearaway for structured hats; cutaway for floppy/unstructured hats (cutaway is often the safer starting point for dense stitching).
  • Add layers if the design is dense (often 2 layers of medium stabilizer plus a floating layer when needed).
  • Success check: During stitching, the hat fabric stays flat and does not lift; outlines land cleanly without visible gaps (registration holds).
  • If it still fails… If the hat keeps slipping or you see repeated misregistration, consider a magnetic hoop/frame upgrade to improve holding force and reduce fabric movement.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops to clamp thick bucket hat seams?
  A: Treat magnetic hoops as pinch hazards and keep hands and medical devices clear of the magnets.
  • Keep fingers away from mating surfaces when bringing magnet halves together (they can snap shut with crushing force).
  • Separate and set magnets down deliberately—do not let them “jump” together.
  • Keep magnetic hoops away from pacemakers and follow medical device guidance.
  • Success check: Magnets close in a controlled way with no hand pinch incidents and the hoop remains stable during handling.
  • If it still fails… If control feels unsafe, pause and switch to a standard hooping method until a safer handling routine is established.
