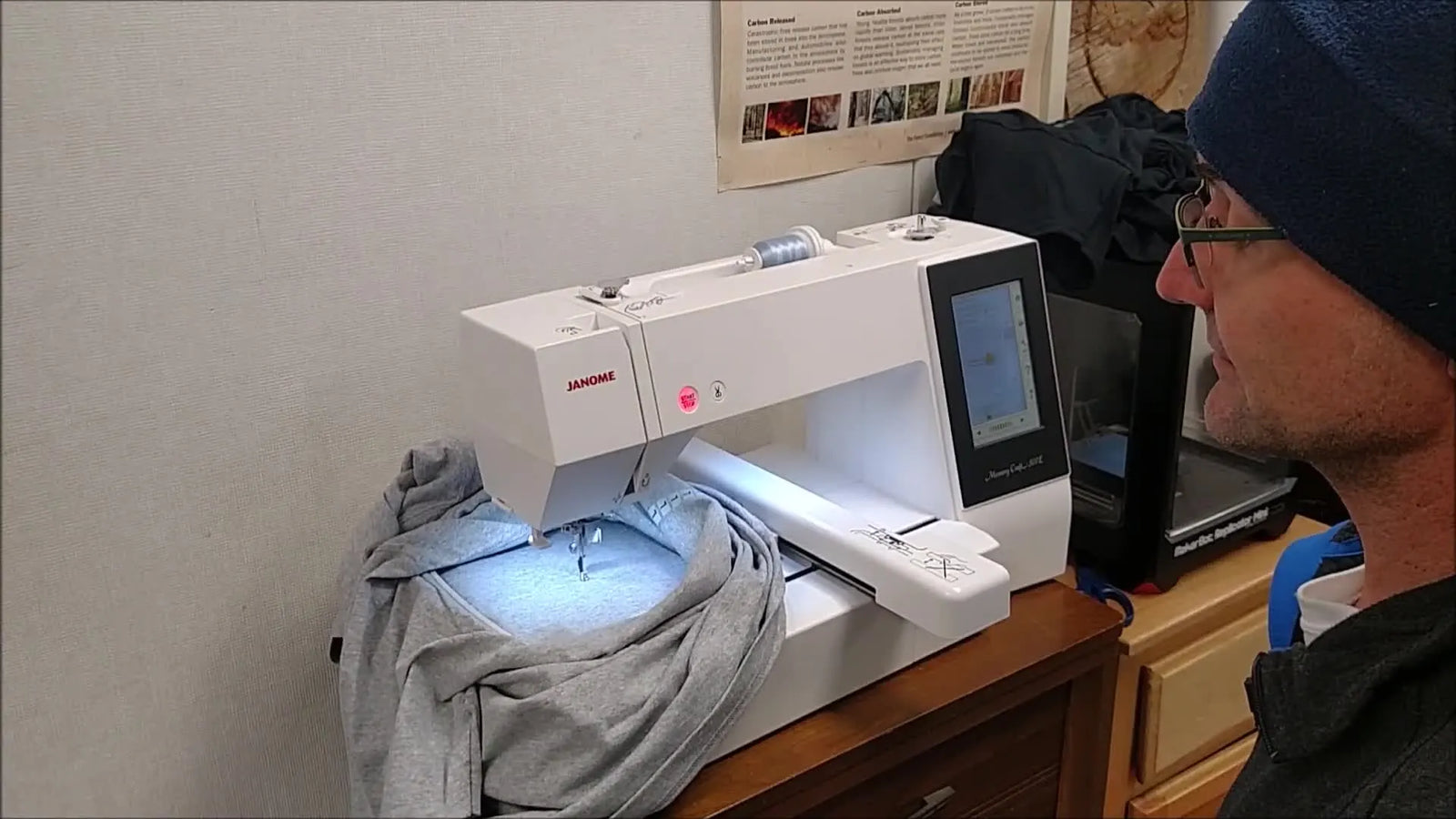

From CNC Fixturing to Fabric Fixturing: A Janome Memory Craft 500E T-Shirt Embroidery Workflow That Won’t Bite You Later

From CNC to Thread: Mastering the Janome Memory Craft 500E (A Field Guide for Precision)

If you come from the world of CNC machining, you already understand 80% of machine embroidery—you just don’t call it the same thing yet.

In CNC, the job lives or dies by fixturing, toolpath planning, and the discipline to not walk away when a crash is imminent. In embroidery, the physics are identical, but the terminology shifts: the job lives or dies by hooping, stitch sequencing, and ensuring your fabric doesn't get sucked into the needle plate.

This white paper rebuilds the workflow for embroidering a logo on a heavy-duty cotton T-shirt using a Janome Memory Craft 500E. We will cover placement, the physics of hooping, loading designs, and the critical upgrade paths that turn a hobby into a production line.

CNC-to-Embroidery Translation: “Hooping” Is Your Fixture, and It Controls Everything

The presenter captures the essence of the craft immediately: embroidery is “all about fixturing.” This isn't just a motivational phrase; it is the mechanical reality.

When you clamp fabric in a hoop, you are creating a temporary, tensioned workholding system. Unlike aluminum or wood, fabric is unstable. If your fixture (hoop) is inconsistent, the needle will follow the programmed XY path perfectly, but the fabric will distort, stretch, or flag underneath it. This causes "puckering," registration drift (where outlines don't match fills), and the dreaded "bird's nest" of thread.

If you are building your initial setup, do not obsess over thousands of font options. Obsess over repeatable workholding. Your ability to master hooping for embroidery machine determines whether you produce professional goods or expensive rags.

The Pin-Origin Trick for T-Shirt Logo Placement (Fast, Repeatable, and Surprisingly Accurate)

In the video, placement starts exactly how you would set a CNC work offset (G54): pick a reference point you can trust mechanically.

The Presenter's Method:

• He wears the shirt (or lays it flat) to visualize the logo location.
• He inserts a physical sewing pin horizontally to mark the center point and the horizon line.

The Expert Refinement: The "horizontal pin" is your visual X-axis. Beginners often eyeball placement and end up with logos that are centered but rotated 5 degrees clockwise.

• Tactile Check: When pinning, ensure you grab both the front layer and the stabilizer (if pre-cut), but never the back of the shirt.
• Production Standard: Measure from the collar seam (e.g., 7 inches down) and the center line used by the manufacturer.

Warning: Mechanical Safety Hazard.
Pins are hardened steel; embroidery needles are tempered steel moving at 600+ impacts per minute. If a needle strikes a pin, it can shatter, sending shrapnel toward your eyes. Always remove the placement pin after aligning the hoop beam but before pressing the green start button.

Choosing the Janome Hoop Size: Small Logo, Small Hoop—But Don’t Ignore Fabric Management

The video compares a larger hoop (7.9" x 7.9" / RE20b) to a smaller hoop and correctly selects the smaller one for the chainsaw logo.

The "Sweet Spot" Logic:

• Large Hoop: 7.9 x 7.9 inches.
• Small Hoop: 5.5 x 5.5 inches (SQ14b).
• Rule of Thumb: Always use the smallest hoop that fits the design while leaving a safety margin (approx. 0.5 inches on all sides).

Why? A smaller hoop creates a tighter "drum skin" with less mechanical effort. A large hoop requires massive tension to keep the center of the fabric from bouncing (flagging), which leads to poor stitch quality.

However, smaller hoops mean the rest of the T-shirt is bunched up around the machine head. You must manage this bulk. When shopping for accessories, understanding the specific dimensions of janome memory craft 500e hoops is critical for planning your design limits.

The “Hidden” Prep Before You Hoop: Stabilizer, Grain, and a Quick Reality Check

The video uses a heavy-duty cotton T-shirt and a "backing material." The presenter calls it backing; the industry calls it Stabilizer.

The Novice Mistake: Thinking stabilizer is just "paper." The Expert Reality: Stabilizer is the actual foundation; the fabric is just the veneer. For T-shirts (knits), the fabric stretches. If you use the wrong stabilizer, the stitches will pull the fabric into a ball.

Stabilizer Decision Tree (Print This for Your Shop)

Follow this logic path for every project to ensure structural integrity:

1. Is the fabric a Knit (stretchy, e.g., T-shirt, Polo) or Woven (stable, e.g., Denim, Canvas)?
   • If Woven: Go to Step 2.
   • If Knit: Use Cutaway Stabilizer. No exceptions for beginners. Tearaway will eventually result in broken stitches as the shirt stretches during wear.
2. Is the fabric Woven?
   • Light/Open weave: Use Cutaway or Fusible Mesh.
   • Heavy/Tight weave: Use Tearaway (cleaner back finish).
3. Is the fabric piled/fluffy (e.g., Towel, Fleece)?
   • Yes: Add a Water Soluble Topper (Solvy) on top to prevent stitches from sinking.

Hidden Consumables You Need:

• Temporary Spray Adhesive (e.g., Odif 505): Lightly mist the stabilizer to stick it to the garment. This prevents "shifting" in the hoop.
• Ballpoint Needles (75/11): Sharp needles cut knit fibers, causing holes. Ballpoint needles slide between them.
• Water Soluble Pen: For marking your placement dots without permanent damage.


Hooping a T-Shirt with a Standard Screw Hoop: Tight Enough, Not Drum-Tight

The video demonstrates the classic "inner ring into outer ring" friction hooping method.

• Outer hoop on the table.
• Stabilizer + Shirt on top.
• Inner ring pressed in.
• Screw tightened.

The Friction Problem: Standard hoops rely on friction and hand strength. If you have "heavy hands," you will stretch the T-shirt while hooping. When you un-hoop later, the fabric snaps back, and your perfect circle becomes an oval. This is called "Hoop Burn" or distortion.

The Sensory Standard: How It Should Feel

• The Tap Test: Tap the hooped fabric with your finger. It should sound like a dull thud (thump-thump), not a high-pitched ping.
• The Pull Test: Gently tug the fabric edge. It should not move, but the grain lines of the shirt should look straight, not curved like a banana.

Checklist 1: The Pre-Hooping & Setup Protocol

• Needle Check: Is the needle fresh? (Replace every 8 hours of run time).
• Bobbin Check: Is the bobbin area clear of lint? Is the bobbin at least 50% full?
• Stabilizer Bond: Is the stabilizer adhered to the fabric (spray or fusible) to prevent gliding?
• Clearance: Are zippers, drawstrings, or thick seams outside the hoop clamping area?
• Obstruction: Is the "tarp" of the rest of the shirt folded so it won't get caught under the hoop?


Loading the Design on the Janome 500E: USB File, Hoop Match, and Color Order

The Janome 500E interface is intuitive, but "intuitive" can lead to complacency.

1. Load: Select file from USB.
2. Verify: The screen will warn you if the design is too big for the attached hoop.
3. Sequence: Check the color stops. (e.g., Grey -> Orange -> Black).

The "CNC" Check: Just as you check G-Code before cutting, check the stitch path. Verify the center point on the screen matches your pin placement.

When users search for information on the janome embroidery machine, they are often looking for software compatibility. Trust the on-screen verification; it is the final truth before the machine moves.

Mounting the Hoop on the Gantry Arm: The “Green Button” Moment (Don’t Rush It)

Mounting the hoop requires a solid "click" or secure slide-in, depending on the bracket.

• Slide the hoop onto the carriage arm.
• Listen: Ensure the latch engages fully. A loose hoop helps no one.
• Align: Use the jog keys to move the needle directly over your placement pin hole.
• Remove the Pin. (See Warning above).

The "Trace" Function: Before stitching, use the machine's "Trace" or "Basting" function. This moves the hoop around the outer perimeter of the design. Watch closely: does the needle bar hit the plastic hoop? Does the fabric pull tight? This is your dry run.

Running the Stitch Cycle at 600 spm: Watch the Fabric, Not Just the Screen

The video runs at 600 stitches per minute (SPM). Pro Tip: For your first 10 runs, or whenever trying a new tricky material, dial this down to 400 SPM. Speed kills quality until your stabilization game is perfect.

Sensory Monitoring:

• Sight: oscillate your gaze between the Needle (shredding thread?), the Hoop Edge (fabric slipping?), and the Underarm (excess shirt bunching?).
• Sound: A happy machine hums rhythmically. A loud, clacking, or grinding noise means stop immediately—usually, a bird's nest is forming.


Thread Change = Tool Change: How to Swap Spools Without Creating Tension Problems

The single-needle struggle is real: the machine stops, cuts the thread, and waits for you to swap the spool.

1. Cut: Snip the old thread near the spool, not near the needle.
2. Pull: Pull the excess thread out through the needle, not back up through the tension discs (this prevents lint buildup in the tension springs).
3. Rethread: Load the new color (e.g., Janome Orange 273).

The Bottleneck Reality: If you are doing one shirt, this is therapeutic. If you are doing 50 shirts, this is a nightmare. Thread changes are the #1 killer of profit margins in commercial embroidery.

On-Screen Lettering on the Janome 500E: Gothic Font, Small Size, and Jogging Into Place

The presenter adds specific text ("TREE TRANSFORMATION") using the onboard computer.

• Font: Gothic.
• Size: Small.
• Position: Jogged manually below the chainsaw logo.

Operational Note: Onboard lettering is great for names and simple dates. For complex warping or custom logos, you cannot do this on the machine; you must use digitizing software on a PC.

The Two Beginner Failures That Waste the Most Time: Bird Nests and Broken Needles

When things go wrong, they usually fall into two categories. Here is your rapid diagnostic table:

Troubleshooting Matrix

Unhooping and Backing Removal: Clean Finish Without Cutting Your Garment

The finish line is the most dangerous part of the race.

1. Loosen the screw.
2. Remove hoop.
3. Trim: Cut the stabilizer close to the stitches (for Cutaway).

Warning: The "Fatal Nick."
It is statistically probable that you will eventually cut a hole in a finished shirt while trimming stabilizer.
Prevention:
1. Use "Duckbill" applique scissors—the flat bill pushes the fabric away from the blade.
2. Keep the shirt layer and stabilizer layer separated with your fingers.
3. Never cut blindly.

Checklist 2: The Final QC Protocol

• Back Check: Is the bobbin thread visible (approx 1/3 width)? (Good tension). Are there loops? (Bad tension).
• Front Check: Are the outlines crisp? Is there puckering around the edges?
• Topper: Did you remove the water-soluble topper (if used)?
• Trimming: Are jump stitches clipped flush? Is the backing trimmed neatly (round edges, no sharp corners)?


File Types, JEF Confusion, and “Do I Need SVG?”—What the Comments Are Really Asking

Beginners often ask: "Can I upload a JPEG?" The Answer: No.

• Artwork (JPG/PNG/SVG): Pixels or vectors. Visual data.
• Stitch File (JEF/DST): Coordinates. X/Y movements and commands.

You need Digitizing Software (like Artistic Digitizer, Hatch, or Embrilliance) to convert Art to Stitches. You cannot skip this step. For commercial work, most pros outsource digitizing to experts to save time and ensure quality.

When Manual Screw Hoops Start Costing You Money: The Upgrade Path (Without the Hype)

The video shows a successful project using standard tools. But if you begin to take orders for 20, 50, or 100 shirts, the standard screw hoop becomes your enemy. It causes wrist fatigue (Repetitive Strain Injury) and inconsistent tension (Hoop Burn).

This is where you apply the Business Growth Logic:

Phase 1: The Stabilized Hobbyist

• Tool: Standard Screw Hoop + Single Needle Machine.
• Pain Point: Hoop burn marks on delicate fabrics; difficulty hooping thick items.
• Solution level 1: Incorporate superior stabilizers and spray adhesives.

Phase 2: The Efficiency Upgrade (The "Magnetic" Pivot)

• Trigger: You are spending more than 2 minutes hooping a shirt, or your wrists hurt.
• Solution Level 2: Upgrade to a Magnetic Hoop.
• A magnetic hoop for janome 500e uses powerful magnets to clamp fabric instantly without adjusting screws. It creates even tension automatically and eliminates "hoop burn" on sensitive fabrics because it presses rather than squeezes.
• Result: Hooping time drops to 15 seconds. Consistency skyrockets.

Warning: Magnetic Safety.
Magnetic hoops use strong Neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise fingers. Handle by the edges.
2. Medical Device: Keep at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Keep away from credit cards and hard drives.

Phase 3: The Production Shop

• Trigger: You are turning down orders because you can't change threads fast enough. A 10,000 stitch design with 5 colors takes you 45 minutes instead of 15.
• Solution Level 3: Multi-Needle Automation.
• This is the transition to machines like the SEWTECH multi-needle series. These machines hold 10-15 colors simultaneously. You press start, and the machine runs the entire logo without stopping.
• Combined with industrial-style Magnetic Frames, you load one shirt while the other stitches. This is how you scale from "Making stuff" to "Making money."

When you perform your research on tool upgrades, specifically terms like embroidery magnetic hoop, look for compatibility and magnet strength. The best upgrade is the one that removes the friction from your specific workflow—whether that's a better needle, a faster hoop, or eventually, a faster machine.

FAQ

• Q: How do I prevent Janome Memory Craft 500E placement pins from breaking the embroidery needle during T-shirt logo alignment?
  A: Use the pin only for alignment, then remove the placement pin before pressing Start to eliminate needle-to-pin strikes.
  • Insert the pin horizontally to mark both center point and horizon line, then align the needle over the pin hole using the jog keys.
  • Remove the pin after hoop alignment but before running the stitch cycle.
  • Run the Trace (or basting/outline) function as a dry run to confirm the needle path clears the hoop and the marked placement.
  • Success check: The Trace completes without the needle bar contacting the hoop and without any clicking or sudden deflection.
  • If it still fails: Stop immediately and re-check hoop mounting latch engagement and design boundary vs attached hoop size on-screen.
• Q: What stabilizer should be used for a Janome Memory Craft 500E logo on a cotton T-shirt knit to avoid puckering and distortion?
  A: Use cutaway stabilizer for knit T-shirts as the safe starting point, because the shirt stretches during wear and stitching.
  • Choose cutaway stabilizer for knits (T-shirts/polos); avoid tearaway as a beginner choice on stretchy garments.
  • Lightly apply temporary spray adhesive to bond stabilizer to the shirt so layers do not shift while hooping.
  • Use a 75/11 ballpoint needle so the needle slides between knit fibers instead of cutting them.
  • Success check: After stitching, the design edges stay flat (no “draw-in” or ripples) and the shirt does not look warped when unhooped.
  • If it still fails: Slow the machine down (a safe starting point is reducing from 600 SPM to 400 SPM) and re-check hooping tension and fabric grain alignment.
• Q: How tight should a Janome Memory Craft 500E T-shirt be hooped in a standard screw hoop to avoid hoop burn and stretched-out fabric?
  A: Hoop “tight enough, not drum-tight,” because over-tightening can stretch knits and cause distortion or hoop burn.
  • Press the inner ring in without forcing the shirt; tighten the screw gradually rather than cranking hard.
  • Perform the Tap Test: aim for a dull thud, not a high-pitched ping.
  • Perform the Pull Test: gently tug the fabric edge—fabric should not slide, and shirt grain lines should remain straight (not banana-curved).
  • Success check: The hooped area looks smooth and square-to-grain, and the shirt does not snap back into an oval after unhooping.
  • If it still fails: Use spray adhesive to reduce fabric gliding, and consider switching to a magnetic hoop if hooping time is high or wrist strain is building.
• Q: What pre-hooping checklist prevents Janome Memory Craft 500E bird nests and mid-design stops on T-shirts?
  A: Do a quick needle/bobbin/lint/clearance check before every run to prevent thread jams and fabric getting pulled into the needle plate.
  • Replace the needle regularly (the blog’s rule: change about every 8 hours of run time) and confirm the needle type is correct for knits (ballpoint).
  • Clean lint from the bobbin area and confirm the bobbin is at least ~50% full.
  • Keep zippers, drawstrings, and thick seams outside the hoop clamping zone; fold and control excess shirt bulk so it cannot snag under the hoop.
  • Success check: The first stitches form cleanly with steady, rhythmic machine sound and no thread wad building under the throat plate.
  • If it still fails: Re-thread the top thread carefully and confirm the hoop is fully latched onto the carriage arm.
• Q: How do I fix a Janome Memory Craft 500E bird’s nest under the throat plate during a T-shirt embroidery run?
  A: Re-thread the Janome Memory Craft 500E with the presser foot UP and clean the bobbin area, because bird nests commonly start from lost top tension or incorrect threading.
  • Stop immediately, cut away the tangled thread, and remove the hoop to access the bobbin area safely.
  • Re-thread with the presser foot UP so the thread seats into the tension discs (threading with foot down can keep discs closed).
  • Clean lint and stray thread from the bobbin area before restarting.
  • Success check: After restarting, the stitches lock correctly with no growing knot underneath and the machine returns to a smooth hum.
  • If it still fails: Verify the top thread did not pop out of the tension path and reduce speed for testing until stability is confirmed.
• Q: How do I prevent Janome Memory Craft 500E needles from breaking when embroidering a T-shirt logo in a small hoop?
  A: Prevent hoop strikes and fabric pulling by confirming hoop clearance with Trace and keeping hands off the fabric while the needle is moving.
  • Use the Trace function to confirm the needle path will not hit the hoop frame, especially when using a smaller hoop close to design edges.
  • Do not pull, tug, or reposition the shirt while the needle is down; let the hoop motion do the work.
  • Manage bulk: keep the “tarp” of the shirt folded away so it cannot catch and drag during stitching.
  • Success check: No clacking/impact sounds and no sudden needle deflection during Trace or the first color block.
  • If it still fails: Re-check that the hoop is fully clicked/latched onto the gantry arm and confirm the design size matches the attached hoop on-screen.
• Q: When does it make sense to upgrade from a Janome Memory Craft 500E screw hoop to a magnetic hoop or to a SEWTECH multi-needle machine for T-shirt logo production?
  A: Upgrade when the current bottleneck is measurable: long hooping time/hoop burn (go magnetic hoop) or excessive thread-change downtime (go multi-needle).
  • Level 1 (technique): Improve stabilizer choice and bonding (spray adhesive), slow to 400 SPM for tricky materials, and standardize hooping tests (tap/pull).
  • Level 2 (tool): Move to a magnetic hoop when hooping takes more than ~2 minutes per shirt or wrist fatigue/hoop burn becomes frequent; magnetic clamping improves consistency.
  • Level 3 (capacity): Move to a multi-needle machine when frequent color changes make single-needle runs unprofitable (thread changes are a major time sink).
  • Success check: Cycle time per shirt drops without increasing puckering, bird nests, or needle breaks.
  • If it still fails: Standardize a test sew-out with the same shirt/stabilizer/thread and confirm the process is stable before scaling orders.
• Q: What magnetic hoop safety rules should be followed when using a magnetic hoop for Janome Memory Craft 500E style workflows?
  A: Treat magnetic hoops as pinch-and-magnet hazards: handle magnets by the edges and keep them away from medical devices and sensitive items.
  • Keep fingers out of the closing path; magnets can snap together hard enough to bruise.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Keep magnetic hoops away from credit cards and hard drives.
  • Success check: The hoop closes without finger pinches and holds fabric evenly without needing screw tension adjustments.
  • If it still fails: Re-seat the magnetic segments carefully and confirm fabric bulk/seams are not preventing full closure.
