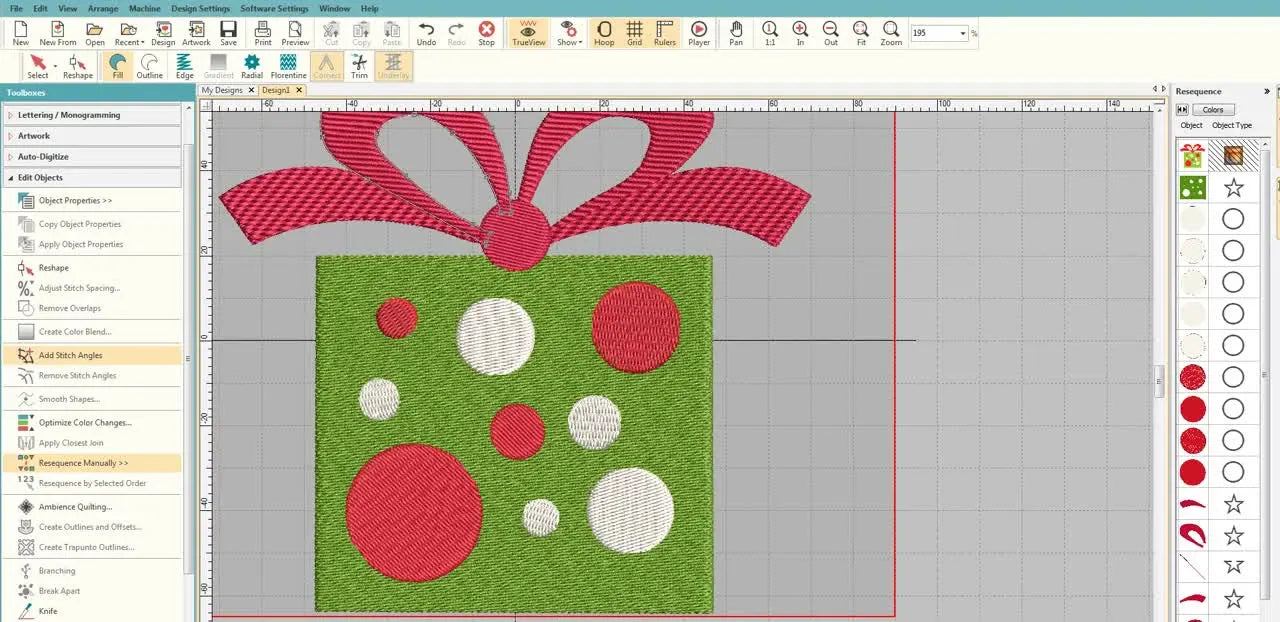

From Clipart to Clean Stitches in Hatch: Digitize a Christmas Gift Box That Won’t Sew “Bullet-Proof”

Digitizing For Texture: How to Turn "Bulletproof" Stiff Designs into Soft Professional Embroidery

If you have ever digitized a design that looked adorable on your screen but stitched out like a stiff, overbuilt "patch of armor," you are not alone. This is the single most common frustration for intermediate embroiderers. The "Bulletproof Patch" effect happens when we treat embroidery digitizing like graphic design. It isn't. It is structural engineering with thread.

In this masterclass, we will deconstruct a classic holiday project using Hatch Embroidery Software (Wilcom): a green gift box with polka dots and a red ribbon bow. While the design seems simple, it contains the three "density traps" that ruin garments: large layered fills, small detail alignment (dots), and directional texture (ribbons).

We won't just trace a picture. We will build a file that respects the physics of your fabric, using Remove Overlaps to control bulk, and specific Stitch Angles to create light and dimension.

Calm the Panic: Why "Perfect" Clipart Can Stitch Like a Brick

When a design turns out heavy, puckered, or causes thread nests, the novice instinct is to blame the machine tension. However, if you are stitching a design with a background fill plus foreground details (like dots) plus a topper (like a bow), the culprit is almost always Unmanaged Density.

The Physics of Failure: Standard Tatami fills stitch at roughly 0.40mm spacing. If you stack a red dot directly on top of a green box fill, you are forcing the needle to penetrate that distinct coordinate twice as often.

• Tactile Result: A rigid, cardboard-like feel that drapes poorly on towels or sweatshirts.
• Auditory Cue: Your machine will sound labored—a heavy thud-thud-thud rather than a crisp zip-zip.
• Visual Defect: "Cookie Cutter" gaps where the fabric pulls away from the heavy stitching.

In this tutorial, our "anti-brick" strategy is using Hatch’s overlap logic to punch holes in the green background behind the dots, ensuring the fabric remains flexible.

The "Hidden" Prep Pros Do First (Before Touching a Node)

Digitizing is 80% preparation and 20% clicking. Before you lay your first node, you must establish a "Safe Sandbox."

Phase 1: The Hidden Consumables Check Ensure you have these often-overlooked essentials ready before the machine runs:

• Fresh Needles: A Size 75/11 Sharp is your baseline. If digitizing for knits, swap to Ballpoint.
• Adhesive Spray: For appliqué or floating techniques.
• Stabilizer Selection: Have both Cutaway (for stability) and Tearaway (for towels) on hand.

Phase 2: Pre-Digitizing Checklist

• Hoop Workspace: Confirm your software workspace matches your target physical hoop (e.g., 5x7 inch).
• Import & Scale: Bring in the clipart and scale it now. Scaling after digitizing changes density calculations.
• Object Planning: Decide which elements are Fills (Box, Bow) and which are Details (Dots).
• The Overlap Strategy: Acknowledge upfront: "The green box must have holes where the dots go."
• Palette Definition: Pick high-contrast colors (Cloud Dancer White, Xmas Red, Kelly Green) to make screen editing easier.


Import Clipart + Scale to a 5x7 Hoop Workspace

In Hatch, we begin by inserting the "Artsy Christmas" clipart.

1. Use Insert Image.
2. Use Scale to fit the artwork within the 5x7 safety boundary.

Expert Note: Do not obsess over high-resolution clipart. Clipart is merely a spatial guide. As a digitizer, you are not tracing pixels; you are interpreting shapes. If the clipart circle is oval-shaped but you want a perfect circle, ignore the clipart and create the perfect circle. You are the architect, not the photocopier.

Digitize the Base: Creating a Smooth Foundation

We start with the green box foundation.

• Select Digitize Closed Shape.
• Properties: Set to Tatami Fill.
• Trace the square outline.

The "Sweet Spot" for Density: For standard woven fabrics, a density of 0.40mm is industry standard. If you are planning to stitch on a thick towel, you might tighten this slightly (0.38mm) to prevent loops from poking through, but avoid going lower (tighter) without checking needle penetration limits.

Sensory Check: On screen, the fill should look uniform. If you see jagged edges in the simulation, your node placement needs smoothing.

Hatch Circle Tool Reality Check: Radius vs. Diameter

A common frustration for Hatch users is the Circle Tool logic.

• The Quirk: You define the circle by its Radius (center to edge), not its diameter (edge to edge).
• The Error: Beginners often drag from edge to edge, resulting in a distinctively massive circle that is double the intended size.

The Correct Motion:

1. Click the precise center of where the dot should be.
2. Drag outward to the edge.
3. Visual Anchor: Use the grid lines to ensure symmetry if you are doing a repeating pattern.


Color Management: Preventing "Spaghetti" Trims

Efficiency in embroidery isn't just about speed; it's about minimizing trims and color changes.

1. Select all dots intended to be white. Assign Cloud Dancer.
2. Select all dots intended to be red. Assign Red.

Sequence Logic: Group your objects by color in the "Resequence" docker. You want the machine to sew all white dots in one pass, rather than jumping White -> Red -> White. Every color change is a 30-second production halt.

The Anti-Bulletproof Move: Remove Overlaps

This is the critical step that separates amateurs from pros. We need to tell the software: "Do not stitch green thread where the white dots will go."

1. Select the Dot Objects (Foreground).
2. Hold Ctrl and select the Green Background (Background).
3. Click Remove Overlaps.

The Result: If you stick your head close to the monitor and hide the white dots, you should see the green box now looks like Swiss cheese.

Why this matters:

• Flexibility: The fabric creates the joint between the colors, allowing the garment to move.
• Needle Safety: You have reduced the layer count from 2 to 1.


Warning: Physical Safety Hazard
Failing to remove overlaps on large, dense fields (like a 40,000 stitch design) can cause Needle Deflection. This is when the needle hits a wall of thread, bends, hits the metal throat plate, and shatters.
Auditory Cue: A loud CRACK* sound followed by the machine stopping.
* Physical Risk: Shrapnel can fly towards eyes. Always monitor density on heavy fills.

Stitch Flow: optimizing Start and Stop Points

The machine must travel from object to object. If you don't tell it where to start, it might drag a long thread across the middle of your design (a "jump stitch") that you have to trim later.

• Use the Reshape Tool.
• Locate the Green Square's End Point (Red cross).
• Move it close to where the first Dot (Start point) begins.

The Goal: A short, efficient path that minimizes trims and prevents the "bird's nest" of thread underneath the fabric.

Digitize the Ribbon: Left vs. Right Click Discipline

Unlike the rigid box, the ribbon needs to look fluid. This comes down to how you place your nodes using Digitize Closed Shape.

• Left Click: Creates a generic Corner Point (Sharp, angled). Use this where the ribbon folds or meets the knot.
• Right Click: Creates a Curve Point (Smooth, organic). Use this for the loops of the bow.

Tactile Feedback: If the bow looks "blocky" or 8-bit, you used too many Left Clicks. Right-click for flow.

The "Lost Node" Phenomenon

Hatch interface markers can sometimes overlap, making it impossible to grab the "End Point."

Troubleshooting:

• Zoom In: Go to 600% zoom.
• Cycle Objects: Press Tab to cycle through objects to ensure you have the correct one selected.
• Drag: Move the markers significantly apart so you can visually verify the path.


The Center Knot: Coloring for Dimension

The center knot ties the visual logic together.

• Place the small circle for the knot.
• Crucial Step: Assign it a slightly different Red or ensure the stitch angle differs from the loops (we will cover this next).

Even if you use the exact same red thread spool for the whole bow, separating the objects in software allows you to control the Stitch Angle of the knot independently from the loops, creating a trick of the light that looks 3D.

Texture Engineering: Choosing the Right Fill Pattern

A standard "Tatami" fill looks flat—like a woven basket. A ribbon should look smooth and shiny (Satin) or textured (Embossed).

The Experiment:

1. Open Object Properties.
2. Cycle through Stitch 12, 11, 14, and 33.
3. Visual Check: Look for a pattern that mimics the weave of a grosgrain ribbon. The video suggests Pattern 33 for the loops as it provides a nice directional grain.


The 3D Trick: Custom Stitch Angles

Light reflects off embroidery thread based on the direction the stitch lays. To make the bow look round:

1. Select the Stitch Angles Tool.
2. Draw a line through the center of the bow loop, following the curve.
3. Add multiple angle lines if the loop curves sharply (like a banana shape).

The Result: The stitches will fan out radially, just like real fabric bending. This creates natural highlights and shadows without changing thread colors.

The Pro Export Workflow: The "Size Pack"

Never resize a .DST or machine file on the machine itself—it ruins the stitch density. Resize in the software before export.

The Workflow:

1. Save your master .EMB (working file).
2. Export 1: Standard 5x7 size.
3. Resize: Scale the design to 98.0mm width.
4. Export 2: Save as "GiftBox_4x4".
5. Resize: Scale to 50mm.
6. Export 3: Save as "GiftBox_2inch".

You now have a commercial-grade "Size Pack" ready for any hoop.

Decision Tree: Fabric, Stabilizer, and Settings

Your design is ready. Now, how do you stitch it without ruining it? Use this logic flow based on your substrate.

Scenario A: Guest Towel (Terry Cloth)

• Risk: Loops of the towel poking through the design.
• Stabilizer: Tearaway (Back) + Water Soluble Topping (Front).
• Hooping: Float the towel if it's too thick, or hoop tight if standard.
• Physics: The Topping acts as a temporary "glass pane" keeping the stitches sitting high above the texture.

Scenario B: Sweatshirt (Stretchy Knit)

• Risk: The fabric stretching, turning your circles into ovals.
• Stabilizer: Cutaway Mesh (Back). Do not use Tearaway on sweatshits.
• Hooping: Do not pull the fabric while hooping. It must be "drum tight" but "neutral state" (unstretched).
• Physics: Cutaway stabilizer becomes the permanent skeleton of the embroidery, preventing the knit from distorting over the life of the garment.

The Physical Bottleneck: Hooping and "Hoop Burn"

Even with a perfect file, you will face physical challenges.

• Hoop Burn: The ugly ring mark left on velvet or delicate towels by standard hoops.
• Joint Pain: The repetitive motion of screwing hoops tight for a batch of 20 holiday gifts.

Level 1 Solution: Technique Use "Floating." Hoop the stabilizer only, spray it with adhesive, and stick the towel on top. This avoids hoop burn but risks alignment shifts.

Level 2 Solution: Hardware Upgrade (Magnetic) For repetitive tasks or delicate fabrics, a magnetic embroidery hoop is the industry standard upgrade.

• The Mechanism: Instead of screwing an inner ring into an outer ring (friction), magnets snap the fabric flat.
• The Benefit: Zero friction marks (no hoop burn). Hooping takes 5 seconds instead of 60 seconds.
• Compatibility: If you are running a standard setup, looking for a brother 4x4 embroidery hoop equivalent in magnetic form can drastically improve your workflow for small items like this gift box.

Warning: Magnetic Force Safety
Magnetic frames are powerful. They can pinch fingers severely (blood blisters).
* Pacemaker Warning: Keep strong magnets at least 6 inches away from implanted medical devices.
* Electronics: Do not place magnetic hoops directly on top of laptops or tablets.

Scaling Up: When to Automate

If you successfully stitch this gift box and suddenly get an order for 50 of them, your workflow will break.

• The Pain: Changing threads. This design has 3 colors. On a single-needle machine, that is 2 stops per shirt. 50 shirts = 100 manual thread changes.
• The Bottleneck: Hooping accurately.

The Fixes:

1. Placement: A hooping station for machine embroidery ensures every gift box lands on the exact same spot on the left chest. Professionals often search for terms like hoop master embroidery hooping station to solve alignment issues.
2. Throughput: A multi-needle machine (like the SEWTECH line) holds all 3 colors (Green, Red, White) simultaneously. You press "Start," and it finishes the box without you touching it.

Troubleshooting: The "Why Does It Look Wrong?" Guide

Final Operation Checklist

1. File Check: Overlaps removed? Start/Stop points logical?
2. Machine Check: Bobbin full? Needle fresh (75/11)?
3. Hooping: Is the fabric neutral (not stretched)? Sound check: Tap the hooped stabilizer—it should sound like a drum.
4. Test Sew: Run the design on a scrap piece of similar fabric first.
5. Listen: Healthy sewing is a rhythmic hum. Loud banging means needle deflection—stop immediately.

Digital precision meets physical reality. That is the art of embroidery. Happy stitching!

FAQ

• Q: In Hatch Embroidery Software (Wilcom), why does a gift box design with a background fill plus polka dots plus a ribbon bow stitch out stiff like a “bulletproof patch” on a sweatshirt?
  A: The stiff “bulletproof patch” feel is usually unmanaged density from stacking stitches, not a tension problem.
  • Use Hatch Remove Overlaps so the green background does not stitch underneath the dot objects.
  • Keep the base Tatami fill at the intended density (the blog’s baseline is 0.40 mm for standard woven) and avoid “tightening” density as a first reaction.
  • Resequence by color so the machine sews all whites, then reds, to reduce jumps and trims that add bulk.
  • Success check: The embroidery should drape instead of feeling like cardboard, and the machine sound should be a crisp rhythmic “zip-zip,” not a labored thud.
  • If it still fails: Re-open the file and visually confirm the background looks like “Swiss cheese” behind the dots after overlap removal.
• Q: In Hatch Embroidery Software (Wilcom), how do I use Remove Overlaps correctly so white polka dots do not double-stitch on top of a green Tatami fill?
  A: Select foreground dots first, then the green background, then run Remove Overlaps to “punch holes” in the fill under the dots.
  • Select all dot objects (foreground) and then Ctrl-select the green box object (background).
  • Click Remove Overlaps and temporarily hide the dots to inspect the background result.
  • Keep the design at final size before digitizing/resizing so density calculations stay consistent.
  • Success check: With dots hidden, the green fill shows clean holes where each dot will sew (no green stitches under the dot positions).
  • If it still fails: Confirm the dots are separate objects (not merged artwork) and that the green box is a fill object, not just an outline.
• Q: In Hatch Embroidery Software (Wilcom), why are my circles/dots the wrong size when using the Circle Tool for a polka-dot pattern?
  A: Hatch’s Circle Tool is defined by radius, so dragging edge-to-edge makes the circle about double the intended size.
  • Click the exact center point where the dot should be placed.
  • Drag outward from center to edge (radius), using grid lines as a visual anchor for repeat spacing.
  • Duplicate or place additional dots only after one dot is confirmed at the correct size.
  • Success check: The dot diameter matches the planned spacing visually on the grid and does not crowd neighboring dots after resequencing/preview.
  • If it still fails: Delete the dot and re-create it using a deliberate center-out drag instead of trying to “scale-fix” later.
• Q: In Hatch Embroidery Software (Wilcom), how do I reduce jump stitches and “spaghetti trims” when stitching many small polka dots in multiple colors?
  A: Group and stitch objects by color in the Resequence docker so the machine completes one color pass at a time.
  • Assign all white dots to the same thread color first, then assign all red dots.
  • Open Resequence and reorder so whites sew together, then reds (instead of White → Red → White).
  • Adjust start/stop points with Reshape Tool so travel paths between objects are short.
  • Success check: The stitch-out shows fewer long jump threads across open areas, and trimming time drops noticeably.
  • If it still fails: Check whether start/end points are far apart; move the green square’s end point closer to the first dot’s start point.
• Q: When stitching a large, dense fill design (for example a 40,000-stitch field) on a multi-needle embroidery machine, what needle safety risk can happen if overlaps are not removed?
  A: Not removing overlaps can cause needle deflection and needle breakage, which is a real eye hazard.
  • Stop and re-digitize to reduce stacked layers (use overlap removal on large filled areas with foreground details).
  • Monitor the stitch-out closely when sewing heavy fills; do not “walk away” during dense sections.
  • Wear eye protection if doing dense test runs and keep bystanders clear of the needle area.
  • Success check: The machine runs with a steady hum; there is no loud “CRACK” sound and no repeated heavy punching through thick thread walls.
  • If it still fails: Pause the job and inspect for excessive layer buildup in the design (especially where details sit on top of fills).
• Q: What is the correct stabilizer choice for a sweatshirt (stretchy knit) when stitching a filled gift box with dots, and why does tearaway cause gaps and distortion?
  A: Use cutaway mesh on sweatshirts because it becomes the permanent support; tearaway often allows shifting that creates gaps.
  • Hoop the knit in a neutral (unstretched) state; do not pull the sweatshirt tight while hooping.
  • Pair the knit with cutaway mesh on the back; avoid tearaway for this scenario as noted in the blog.
  • Run a test sew on similar knit to confirm circles stay round and edges stay tight.
  • Success check: Dots stay circular (not oval) and there are no visible gaps between the dot edges and the box fill after washing/stretching.
  • If it still fails: Re-check hooping angle and fabric handling—distortion often comes from stretching during hooping rather than machine tension.
• Q: How do I prevent hoop burn marks and reduce hand strain when hooping towels or delicate fabrics for repetitive embroidery batches, and when is a magnetic embroidery hoop the next step?
  A: Start by floating to avoid friction marks; if alignment shifts or production volume is high, a magnetic embroidery hoop is the practical upgrade for fast, low-mark hooping.
  • Float by hooping stabilizer only, then use adhesive spray and place the towel/fabric on top to reduce hoop burn risk.
  • If repeatability is the issue, add a hooping station to lock placement for every item.
  • If hooping time and hoop burn are the bottlenecks, switch to a magnetic hoop so fabric is held flat without screw-ring friction.
  • Success check: The fabric shows no ring imprint after sewing, and hooping time per item drops significantly while placement remains consistent.
  • If it still fails: If floating shifts alignment, move up to a magnetic hoop or a hooping station before changing digitizing settings.
• Q: What magnetic embroidery hoop safety rules should be followed to prevent finger injuries and interference with medical devices?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear when snapping the magnetic frame together; align first, then lower the magnet straight down.
  • Keep strong magnets at least 6 inches away from implanted medical devices (pacemakers) as a basic safety rule.
  • Avoid placing magnetic hoops directly on laptops, tablets, or similar electronics.
  • Success check: Hooping can be done repeatedly without finger pinches or “snapping” surprises because the placement is controlled and deliberate.
  • If it still fails: Slow the workflow—most injuries happen when rushing; consider gloves only if they do not reduce control around the magnet edges.
