From Clip Art to Clean Stitches: Auto Punching Elf Legs in Brother PE-Design 10 (Without the Usual Beginner Traps)

If you’ve ever watched an Auto Punch design look “fine” on screen—then stitch out like a fuzzy, jumpy mess—you’re not alone. I’ve spent two decades in this industry, and I can tell you: Beginners usually blame the machine, but 90% of the time the real culprit is the input image and a couple of small wizard choices.

Stitching is physics; digitizing is math. When you ask software to Auto Punch, you are asking it to solve a geometry problem.

In this project, we’re digitizing a simple clip art image (elf legs) in Brother PE-Design 10 using Auto Punch. But we aren't just clicking buttons; we are going to calibrate the settings to ensure that the final result doesn't pucker, break needles, or waste your expensive thread.

Don’t Panic—Auto Punch in Brother PE-Design 10 Can Work (If You Keep It Simple)

Auto-digitizing is not “cheating,” and it’s not automatically low quality. It’s a tool. The trick is knowing what kinds of artwork Auto Punch can interpret cleanly—and what kinds will create extra colors, messy edges, and unnecessary stitch noise.

This video stays in the safe zone: simple clip art, clear shapes, and a small color palette. That’s exactly where Auto Punch shines.

One important mindset shift: Auto Punch doesn’t “understand” your picture the way you do. It converts pixels into stitch objects. So your job is to feed it an image that has obvious boundaries and minimal shading. If you feed it garbage, it will stitch garbage.

The “Hidden” Prep Before You Click Anything: Pick Clip Art That Won’t Digitize Ugly

In the video, the creator searches Google Images for “elf legs,” then saves a clip art image to the computer.

Here’s the part most tutorials skip: the image you choose determines 80% of the stitch quality. You cannot "fix it in post" if the foundation is rotten.

What to look for in your source image (practical rules)

• Bold outlines and flat fills (think "coloring book" style).
• High contrast between adjacent colors.
• No gradients, shadows, or watercolor textures. A gradient to a computer looks like 50 different colored bands.
• Clean edges (no fuzzy pixels/artifacts).

The "Zoom Test": Open your image and zoom in until it fills the screen. If the edges look like a blurry staircase or have "dust" around them, Auto Punch will turn that dust into unwanted stitches. Choose a different image.

Prep Checklist (do this before importing)

• Source Audit: Confirm artwork is vector-style clip art, not a photograph or watercolor.
• The Zoom Test: Verify edges are crisp at 200% zoom.
• File Hygiene: Save it to a dedicated "Digitizing" folder (not your desktop clutter).
• Hardware Check: Verify your embroidery machine is clean; check the bobbin case for lint now, not after a bird's nest forms.
• Dongle Check: Ensure the PE-Design 10 security dongle is connected before launching.

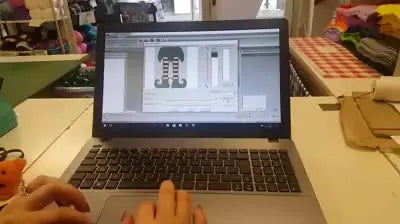

Importing the JPG into Brother PE-Design 10 Auto Punch Without Getting Lost

The workflow in the video is straightforward:

1. Open Brother PE-Design 10.
2. Go to the Image tab.
3. Click Auto Punch.
4. Browse to the saved JPG and open it.




A small “old hand” tip: keep your file explorer tidy. When you’re digitizing multiple seasonal designs, you don’t want to waste time hunting for “that one elf file.” A clean folder structure—organized by holiday or project—is a real productivity upgrade that separates hobbyists from pros.

Setup Checklist (right before Auto Punch)

• Canvas Check: Ensure your Design Page size matches the hoop you intend to use (e.g., 4x4 or 5x7).
• Import: The image is loaded and centered.
• Mental Prep: You are ready to simplify. Do not accept the default settings the software offers you.

The Color Count Move That Saves Your Stitch-Out: Set Auto Punch to 3 Colors

In the Auto Punch Wizard, the creator clicks through the early steps (“Next… Next…”) and then makes the key adjustment: she reduces the Number of Colors to 3.

Stop here. This is the most critical step in the entire tutorial.

Why fewer colors usually stitch better (The Physics of Stitching)

Auto-digitizing tends to over-segment artwork. It sees a slightly darker pixel and thinks, "Aha! A new color!" Every extra “color” region creates:

• Extra stitch objects (more data).
• Extra trims (more time).
• Extra jump stitches (more mess).
• Extra needle penetrations in the same spot (risk of fabric eating).

When you force the software down to 3 colors, you force it to merge those tiny, messy fragments into solid, stable blocks of satin or tatami fills.

If you are learning hooping for embroidery machine technique, minimizing color changes is your best friend. Fewer color changes mean fewer stops and starts, which reduces the chance of the fabric shifting in the hoop between layers.

What you should expect to see

When you lower the color count, the preview should look:

• "Cartoon Clean": Solid blocks of color.
• Less Speckled: The "noise" vanishes.
• Unified: The outlines become continuous lines rather than broken dashes.


Zoom In Like a Picky Customer: Check Stitch Texture Before You Waste Thread

After finishing the wizard, the design appears as stitches on the main workspace. The creator zooms in to inspect the stitch generation.

Do not trust the 100% zoom view. Zoom in to 400% or 600%. This is where experienced digitizers catch problems early.

The "Sensory Check" for Digital Files

Look for these specific red flags before you ever save the file:

1. Stitch Islands: Tiny groups of 3-5 stitches floating alone. Action: Delete them. They will cause thread nests.
2. The "Brick Wall": Areas where stitches are piled on top of each other. Action: Check density settings. Standard Tatami density is usually around 4.5 to 5.0 lines per mm (or 0.4 mm spacing). If it looks solid black on screen, it will be bulletproof stiff on fabric.
3. Long Jumps: Look for long, straight lines connecting objects. Action: Note where they are; you map need to trim them manually later.

And remember: software preview is helpful, but fabric behavior is physics. Stretch, nap, and stabilizer choice can make a “perfect” screen design sew poorly. A screen is static; fabric is fluid.

Hit Play Before You Stitch: The PE-Design 10 Simulator Is Your Cheapest Insurance

The creator goes to the Home tab and clicks the Play button to run the stitch simulator.

This is not optional if you care about clean results. Think of this as a pilot checking flight controls before takeoff.

What to watch for during simulation

• Logic Flow: Does the machine stitch the background before the outline? (It must).
• The "Travel" Path: Watch the virtual needle. Does it jump across the design unnecessarily?
• Over-Sewing: Does the needle hammer the exact same spot repeatedly? This is a recipe for a bird's nest or a broken needle.

Warning: Never put your hands near the needle area while testing a design on the machine—especially when you’re tempted to “just trim that one jump stitch” while it's moving. Stop the machine fully first. Needles can shatter, and flying metal shards are a serious eye hazard.

Operation Checklist (before you export and stitch)

• Inspection: You zoomed in and removed "stitch islands."
• Simulation: You watched the "Play" preview from start to finish.
• Consumables: You have a new needle (75/11 is a safe standard) and the correct bobbin thread.
• Safety: Your hands are clear of the stitching area.

Save It Like You’ll Reuse It: Foldering and Naming That Prevents Holiday Chaos

In the video, the creator clicks the main application button (the flower icon), chooses Save As, creates a folder for Christmas designs, and saves the file as “elf legs.”

That’s a small habit with big payoff. Seasonal designs multiply fast.

My studio rule for file naming (generally)

Even if you keep the simple name for now, consider adding a versioning habit later:

• elf_legs_v1_3inch.pes (Includes size)
• elf_legs_modified_density.pes (Includes changes)

It prevents you from accidentally stitching an early, flawed draft when you’re in a holiday rush.

The Part the Video Doesn’t Show: Getting This Auto Punch Design to Stitch Cleanly on Fabric

The tutorial ends right after saving, and the creator mentions she’ll stitch it out in a future video. So let’s cover the practical “stitch reality.” This is where 99% of beginners fail—not in the software, but at the hoop.

Decision Tree: Fabric → Stabilizer Choice

Use this logic to avoid puckering. When in doubt, more stability is better than less.

1. Is the fabric stretchy? (T-shirts, Jersey Knit)
   • Yes: Cut-Away Stabilizer is mandatory. (Tear-away will distort).
   • Tip: Use spray adhesive to temporarily fuse the fabric to the stabilizer.
2. Is the fabric stable? (Denim, Canvas, Twill)
   • Yes: Tear-Away Stabilizer is usually sufficient.
3. Does the fabric have "fluff" or pile? (Towels, Fleece)
   • Yes: Use Cut-Away on the back AND a Water Soluble Topper on top to keep stitches from sinking.

Hooping physics: The "Drum Skin" Standard

Correct hooping is critical. Tap the hooped fabric. It should sound like a drum—taut, but not stretched to the point of distortion.

If you struggle with hooping, or if the process hurts your wrists, pay attention here. Many specialized shops realize that standard plastic hoops are the bottleneck. They often switch to magnetic embroidery hoops for repeat work. Why? Because the consistent magnetic clamping pressure prevents "hoop burn" (those shiny rings left on dark fabric) and drastically speeds up the setup.

If you are currently fighting with a traditional hoop and leaving marks or getting crooked designs, learning how to use magnetic embroidery hoop methods can be a genuine quality upgrade. It removes the physical struggle so you can focus on the embroidery.

Warning (Safety Check): Magnetic frames are industrial tools with powerful magnets. Keep them away from pacemakers and medical implants. Do not let your fingers get pinched between the rings—they snap together with significant force. Store them away from credit cards and phones.

When a hooping station is worth it

If you are doing one-off gifts, manual hooping is fine. But if you have an order for 20 shirts, manual hooping will fatigue you and lead to errors. This is where a magnetic hooping station or a dedicated hooping station for machine embroidery pays for itself. It guarantees the design is in the exact same spot on every shirt, protecting your profit margin from "oops" mistakes.

“Why Did My Auto Punch Design Sew Badly?”—Troubleshooting You’ll Actually Use

Even with a simple 3-color clip art, stitch-outs can go sideways. Here are the most common symptoms I see after beginners follow an Auto Punch workflow.

Symptom: Jagged edges or “furry” outlines

• Likely cause: The original JPG had fuzzy pixels or compression artifacts.
• Fix: Choose cleaner clip art and re-run Auto Punch; keep the color count low (like the video’s 3-color approach).

Symptom: Thread Nests (Bird's Nests) underneath

• Likely cause: Upper tension is zero (did you thread with the presser foot UP? You must!), or the bobbin is seated incorrectly.
• Fix: Re-thread the machine entirely. Ensure the presser foot is UP when threading.

Symptom: Puckering around the design

• Likely cause: Stabilizer too light (using tear-away on a T-shirt) or fabric was stretched during hooping.
• Fix: Switch to Cut-Away stabilizer. Hoop on a flat surface. Do not pull the fabric once it is in the hoop.

Symptom: Thread breaks on dense areas

• Likely cause: High stitch concentration in a small region causing friction/heat.
• Fix: Slow down. If you are running at 800 SPM (Stitches Per Minute), drop to 500-600 SPM. Change your needle to a fresh Topstitch 75/11 or Embroidery 75/11.

Symptom: Design moves/shifts on fabric (Registration Error)

• Likely cause: Fabric movement during stitching.
• Fix: Improve stabilization. Many users see immediate improvement when moving to embroidery magnetic hoops because they hold the fabric firmly without the "creeping" effect of screw-tightened hoops.

The Upgrade Path: Match Tools to Your Volume

If you’re doing this for fun, the workflow in the video is perfect: quick clip art, Auto Punch, simulate, save.

But if you’re planning to sell seasonal items, frustration often sets in when volume increases. Here is your tiered roadmap for upgrading your studio:

1. Level 1 (Technique): Master your stabilizers (always have Cut-Away and Water Soluble on hand) and use spray adhesive.
2. Level 2 (Efficiency): If hooping takes longer than stitching, consider a magnetic frame system. For Brother users, a magnetic hoop for brother or compatible brother magnetic hoop style option reduces wrist strain and eliminates hoop burn marks on delicate items.
3. Level 3 (Scale): If you are constantly changing thread colors and babysitting the machine, you have outgrown a single-needle machine. A multi-needle machine (like the SEWTECH line) automates color changes and triples your output per hour.

The best shops don’t chase perfection in software first—they build a repeatable process: clean artwork, simplified colors, simulator check, correct stabilization, and consistent hooping.

If you follow the exact video steps (download clip art → 3-color limit → simulate), and then apply the real-world safety limits above, you’ll get a design that stitches like it looks on screen—without wasting your holiday sewing time.

FAQ

• Q: In Brother PE-Design 10 Auto Punch, why does a clip art JPG stitch out with fuzzy outlines and jagged edges?
  A: Use cleaner, crisp-edge clip art and re-run Auto Punch with a low color count, because JPG “dust” turns into stitches.
  • Run the Zoom Test: open the source image and inspect edges at 200% (or more) before importing.
  • Replace the artwork if you see blurry stair-steps, halo pixels, or compression speckles.
  • Re-run Auto Punch and reduce the Number of Colors (the 3-color approach is a safe starting point for simple clip art).
  • Success check: the Auto Punch preview looks “cartoon clean” with solid areas and no speckled noise.
  • If it still fails: switch to a different clip art style (bold outlines, flat fills) rather than trying to “fix” a poor image.
• Q: In Brother PE-Design 10 Auto Punch Wizard, why should the Number of Colors be reduced to 3 for simple clip art?
  A: Reducing the color count prevents over-segmentation that creates extra trims, jump stitches, and stitch noise.
  • Set Number of Colors to 3 when the artwork is simple and has a small palette.
  • Watch the preview update: aim for merged, stable blocks instead of tiny fragments.
  • Keep the design simple on purpose; do not accept default wizard settings automatically.
  • Success check: outlines look more continuous, and small “speckle” regions disappear in the preview.
  • If it still fails: choose simpler clip art (no gradients/shadows) and repeat Auto Punch.
• Q: In Brother PE-Design 10, how do stitch “islands” in Auto Punch files cause thread nests, and how do you remove them before stitching?
  A: Delete tiny isolated stitch groups before saving, because they often trigger messy jumps and nesting.
  • Zoom in to 400–600% and scan for tiny floating groups of a few stitches.
  • Remove those stitch islands so the needle is not making unnecessary starts/stops.
  • Re-check for long jump lines that travel across empty space.
  • Success check: at high zoom, there are no tiny stitch clusters detached from the main shapes.
  • If it still fails: run the stitch simulator from start to finish and watch for unwanted travel paths.
• Q: In Brother PE-Design 10, how does the Stitch Simulator “Play” preview prevent broken needles and bird’s nests on Auto Punch designs?
  A: Always run the simulator before exporting, because it reveals bad stitch order, unnecessary travel, and repeated over-sewing.
  • Click Play and watch the full sequence from the first stitch to the last.
  • Confirm logic flow: background areas stitch before outlines, not the other way around.
  • Watch the travel path for long jumps and excessive back-and-forth.
  • Success check: the simulated needle path looks efficient, with minimal jumping and no hammering one spot repeatedly.
  • If it still fails: simplify the design (fewer colors/objects) and re-run Auto Punch.
• Q: For machine embroidery stitch-outs from Brother PE-Design 10 Auto Punch files, how do stabilizer choices prevent puckering on T-shirts, denim, and towels?
  A: Match stabilizer to fabric type first, because puckering is usually a stability problem, not a software problem.
  • Use cut-away stabilizer for stretchy fabrics like T-shirts/jersey knit (tear-away often distorts).
  • Use tear-away stabilizer for stable fabrics like denim/canvas/twill (often sufficient).
  • Use cut-away on the back plus a water-soluble topper on top for towels/fleece to prevent sinking.
  • Success check: after stitching, the fabric lies flat around the design without ripples or “draw-in.”
  • If it still fails: avoid stretching fabric during hooping and increase stability rather than decreasing it.
• Q: In machine embroidery hooping, what is the “drum skin” standard and how can incorrect hooping cause registration shifts and puckering?
  A: Hoop fabric taut like a drum—tight but not stretched—because stretched hooping relaxes during stitching and shifts the design.
  • Tap the hooped fabric and aim for a drum-like sound/feel.
  • Hoop on a flat surface and do not pull the fabric after it is clamped.
  • Keep color changes and stops to a minimum when possible to reduce chances of fabric creep between layers.
  • Success check: the design stitches in place without creeping, and the hoop leaves minimal marking.
  • If it still fails: add stabilization and consider a clamping method that applies more consistent pressure for repeat work.
• Q: What safety steps prevent needle injuries during stitch testing and what magnetic embroidery hoop safety rules prevent pinch injuries?
  A: Stop the machine fully before touching the needle area, and treat magnetic hoops as powerful tools that can pinch and affect medical devices.
  • Keep hands away from the needle zone during operation; never trim a jump stitch while the machine is moving.
  • Power down or fully stop before clearing threads or inspecting near the needle.
  • Keep magnetic hoops away from pacemakers/medical implants; store away from phones and credit cards.
  • Success check: all thread trimming and adjustments happen only when the machine is fully stopped, and fingers never enter pinch points.
  • If it still fails: pause, re-check the setup calmly, and follow the machine manual’s safety guidance for your specific model.
