From Chroma Inspire to a Clean Stitch-Out: A Road Runner T-Shirt Workflow on the Ricoma EM-1010 (Without Hoop Strikes or Wavy Text)

A lot of people think machine embroidery is hard—because the first few projects can feel like juggling complex software, slippery fabric, and an intimidating industrial machine interface all at once.

But here is the industry secret: Embroidery is not an art; it is a process. Once you lock in a repeatable workflow, it moves from "constant panic" to "manufacturing precision."

Courtney’s Road Runner “BEEP BEEP” shirt project is the perfect case study. It’s not just a cute gift—it is a masterclass in stabilization, placement, and risk management. I have broken her workflow down into a "White Paper" style guide that you can use to turn a chaotic hobby into a scalable production line.

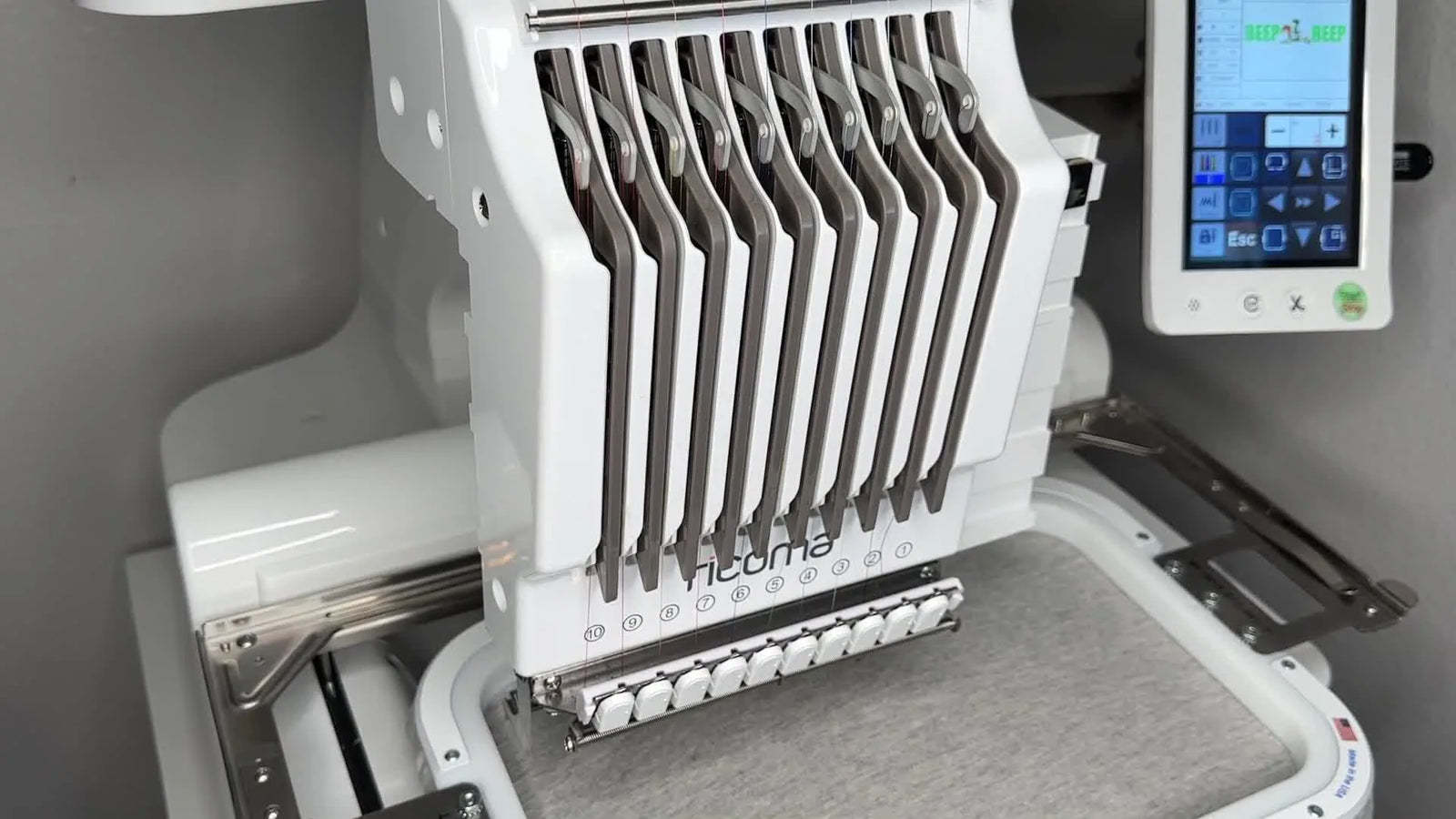

The Hook: Why a “Simple” T-Shirt on a Ricoma EM-1010 Can Still Go Sideways Fast

If you’ve ever watched a multi-needle machine stitch beautifully on denim but then ruin a t-shirt, you have encountered the Instability Factor.

Knit t-shirts are unstable substrates. They are composed of interlocking loops that want to stretch, move, and distort. When you bombard that fabric with thousands of stitches, you create "push and pull." If your hooping technique is even slightly off, you get the three nightmares of embroidery:

1. Registration errors: The outline doesn’t match the fill.
2. Puckering: The fabric ripples like bacon around the design.
3. Hoop Strike: The worst-case scenario where the needle hits the frame.

Courtney’s project has two specific "Red Alert" variables:

• The Width: She sets the design to 11.5 inches. On a standard 310mm (approx. 12.2") hoop, this leaves less than 0.4 inches of safety margin on each side.
• The Typography: Linear text next to a graphic is unforgiving. If the shirt stretches during stitching, that text will look wavy, making the garment unsellable.

The solution isn't luck; it's physics. We control the movement through the "Triangle of Stability": Stabilizer, Hooping Tension, and Speed.

The “Hidden” Prep: What I Check Before I Touch Chroma Inspire or a Hoop

In my 20 years of experience, 90% of failures happen before the machine is even turned on. Before you open your software, perform this "Pre-Flight" check.

Prep checklist (The "Save Your Shirt" Protocol)

• Needle Selection: Install a 75/11 Ballpoint (BP) needle. Standard sharp needles can cut the knit fibers of a t-shirt, causing holes that appear after the first wash.
• Stabilizer: Confirm you have Cut-Away stabilizer. Tear-away is forbidden on dense designs on t-shirts; it will disintegrate and ruin the design alignment.
• Adhesion: Have temporary spray adhesive (like KK100 or 505) ready to bond the stabilizer to the fabric. This prevents "shifting" in the hoop.
• Thread Match: Pull your physical thread cones. Do not rely on screen colors. Hold the orange cone against the shirt to verify contrast.
• Bobbin Check: Inspect your bobbin case. Blow out any lint. Tension should feel like pulling a spider up its web (slight resistance, but smooth).

A small mindset shift: Treat every t-shirt like a fluid. Your job is to freeze it in place using stabilization so the machine can work on a solid foundation.

Make Chroma Inspire Behave: Add “BEEP BEEP” Text and Keep It Perfectly Level

Courtney starts in Chroma Inspire by loading the purchased design. Her critical move here is switching to 3D View (the cube icon).

Why this matters: A 2D wireframe view hides density issues. The 3D view is your "Digital Twin"—it shows you where overlaps happen.

Here is the repeatable workflow for text alignment:

1. Open Design: Load the roadmap.
2. Visual Check: Switch to 3D view. Look for extremely dense areas that might break needles.
3. Input Text: Type “BEEP.”
4. Duplicate & Position: Create the second “BEEP.” Do not eyeball the placement.
5. Force Alignment: Select both text blocks and use the Align Bottom tool.

The "Eye Trick": On a screen, 1mm of misalignment looks fine. On a chest, it looks amateur. If the software says it is level, trust the math, not your eyes.

Lock the Size First: Set the Road Runner Design to 11.5" and Respect Hoop Limits

Courtney resizes the design from 8.6 to 11.5 inches wide. This is a critical decision point.

On the Ricoma EM-1010, the "C" hoop (or equivalent) is roughly 12 inches wide. Creating an 11.5-inch design pushes you into the "Danger Zone."

Two checkpoints you must adopt for maximum designs:

• Checkpoint 1 (Software): Check the stitch count. Increasing size by 30% increases stitch count significantly. Ensure density didn't get too low (gaps) or too high (bulletproof vest stiffness).
• Checkpoint 2 (Hardware): Calculate your margin. 12.2" hoop - 11.5" design = 0.7" total clearance (0.35" per side). This leaves zero room for error.

Commercial Insight: If you plan to do production runs of large designs like this, standard plastic hoops can be a liability. They require significant hand strength to tighten, and "hoop burn" (the shiny ring left on fabric) is common. This scenario is exactly why professionals invest in magnetic embroidery hoops. These tools allow you to clamp near the edges without the physical struggle, keeping the maximum sew field usable and burn-free.

Color Management That Saves Your Sanity: Make the Run Sheet Match Your Thread Rack

Courtney changes the digital colors specifically to match her outcome—changing the legs/feet to orange.

This is not aesthetic; it is operational. The machine does not have eyes. If your screen says "Blue" but you want "Orange," and you don't update the file, you are relying on your memory at 2:00 PM when you are tired. That is when mistakes happen.

The Protocol:

1. Match Digital to Physical: Update the software colors to match the cones you pulled in the Prep Step.
2. Print the Run Sheet: This piece of paper is your "Script." It tells you exactly which color stop corresponds to which part of the design.
3. Needle Mapping: Write the needle number (e.g., "Needle 10") next to the color block on the paper run sheet.

Expected Outcome: Zero cognitive load at the machine. You simply follow the paper script.

Save It Like You Mean It: Export a DST to USB So the Ricoma EM-1010 Loads Cleanly

Courtney saves as DST.

Technical note: DST is an industrial "dumb" format. It contains X/Y coordinates and "Stop" commands. It does not contain color data (which is why the previous step of printing a run sheet is mandatory).

Naming Convention for Scale: Don't name files "RoadRunnerFinal.dst". Use this syntax: [Client]_[Design]_[Size]_[Hoop].dst Example: Shop_RoadRunner_11.5in_310x210.dst

This prevents the classic disaster of loading the 4" pocket file for a 12" back piece.

The Hooping Moment of Truth: Hoop a Knit T-Shirt on a Hoop Master Station Without Wrinkles

Courtney uses a Hoop Master station and a magnetic hoop. This is the Gold Standard for consistency.

The Physics of Hooping Knits: You are trying to sandwich the fabric between the magnetic rings without stretching the fibers.

• Action: Mist your stabilizer with spray adhesive. Smoothing the shirt onto the sticky stabilizer before applying the top hoop is the secret to a wrinkle-free stitch.

The Sequence:

1. Dock: Place the bottom magnetic ring in the station.
2. Stabilize: Lay the sprayed Cut-Away stabilizer down.
3. Dress: Pull the shirt over the station/board.
4. Align: Align the side seams / shoulder seams to ensure the shirt is straight.
5. Smooth: Use flat palms to smooth from the center out. Do not pull.
6. Snap: Drop the top magnetic frame. Listen for the sharp "CLACK."

terms like hoop master embroidery hooping station are often searched by users looking to solve alignment issues, and for good reason: it removes the "human handling" variable from the equation.

The Physics That Prevents Puckering: How to Use Magnetic Hoops Without Over-Stretching a Tee

The most common mistake with magnetic hoops on t-shirts is "The Drum Effect." Beginners think the fabric should be tight like a drum.

Wrong. If you stretch a t-shirt 5% while hooping, it will snap back 5% when you unhoop it. Your design does not snap back. The result? Permanent puckering.

The Tactile Check: Run your hand over the hooped fabric. It should feel taut but neutral. If you pull on the fabric, it should give slightly, not ring like a tuned instrument.

Operational Efficiency: If you are doing 50 shirts, standard screw hoops will destroy your wrists. This is a specific trigger for upgrading your toolkit. A magnetic hoop system reduces the physical force required to zero. Furthermore, if you are struggling with "Hoop Burn" on delicate performance wear, upgrading to ricoma mighty hoops compatible magnetic frames is often the only way to eliminate those pressure marks.

Warning - Magnetic Hazard: These industrial magnets are incredibly powerful. They can pinch skin severely. Keep them far away from pacemakers, insulin pumps, and credit cards. Never place your finger between the rings.

USB Loading on the Ricoma EM-1010: The Two Taps That Matter (and the One That Trips People)

Courtney navigates the loading process.

1. Unlock: The machine acts "stuck" if the embroidery arm is locked. Tap the Unlock icon first.
2. Import: Select USB -> Machine Memory.
3. Select: Tap the file in memory to load properly.

Pro Tip: Always delete old files from the machine memory weekly. A cluttered processor can lead to laggy interface response on the ricoma embroidery machine em-1010.

Needle Assignment That Doesn’t Guess: Map the Run Sheet to Needle Numbers Before You Stitch

Courtney manually assigns Needle 10 to the orange sections using the screen grid.

The Verification Block: Before you press start, perform this checklist.

• Design Orientation: Is the head at the top? (Rookie mistake: loading upside down).
• Needle Path: Look at the screen. Does needle #10 actually have orange thread?
• Hoop Selection: Tell the machine you are using the 310x210mm hoop. If you tell it you are using a smaller hoop, it will refuse to stitch.


The Trace That Saves Your Hoop: Use the Ricoma Trace Function When the Design Is Near the Edge

Courtney emphasizes this, and I cannot stress it enough: The Trace is your Insurance Policy.

With a design 11.5" wide, you are millimeters away from plastic.

The "Safe Trace" Protocol:

1. Speed Down: Lower the machine speed to minimum.
2. Trace: Press the Trace button. Watch the Presser Foot, not just the laser. The laser is a guide; the foot is what hits the hoop.
3. Adjust: If the foot comes within 2mm of the hoop edge, use the arrow keys to nudge the design.
4. Re-Trace: Never adjust without tracing again.

If you find yourself constantly fighting hoop boundaries, consider that a magnetic hooping station workflow provides better visual centering before you even reach the machine, reducing these last-minute panic adjustments.

Stitching and Cleanup: Trim Cut-Away Stabilizer Cleanly and Make the Inside Comfortable

The machine runs. For a design this wide on a knit, I recommend capping your speed at 600-700 SPM. Running at 1000 SPM on a stretchy XL design allows momentum to distort the fabric.

Post-Production hygiene: Courtney trims the Cut-Away stabilizer.

• Technique: Lift the stabilizer and cut with long shears, leaving about 1/4" to 1/2" margin around the design. Never cut flush to the stitches—you will unravel the knot.
• Comfort: She applies Tender Touch. This is a fusible tricot that irons over the back of the embroidery. It prevents "Nipple Chafing" (a real complaint from customers) and makes the shirt feel retail-quality.

Operation checklist (The Quality Control Audit)

• Registration: Are the black outlines lined up with the color fills?
• Looping: Are there any loops on top? (Upper tension too loose).
• Bobbin Show: Is there white thread showing on top? (Upper tension too tight).
• Hoop Burn: Steam away any ring marks immediately.


Troubleshooting the Two Problems This Project Actually Hits (and How to Fix Them Fast)

Courtney hit barriers. Here is how to handle them professionally.

1) Symptom: Machine refuses to load file / Screen frozen

• Likely Cause: The machine is in "Stitch Mode" (Lock icon is closed).
• Immediate Fix: Tap the Lock icon to open/unlock.
• Prevention: Always exit stitch mode before trying to load new USB data.

2) Symptom: "Hoop Limits" Error

• Likely Cause: Design width + centered position > Hoop sewing field.
• Immediate Fix: As shown, use the Up Arrow to move the design closer to the top of the hoop where there might be more clearance, or check if the design is rotated 90 degrees incorrectly.


Decision Tree: Choosing Stabilizer and Hooping Strategy for a T-Shirt vs. a Hoodie

This flowchart will help you make the right choice every time.

Start: What is the fabric?

• Scenario A: T-Shirt (Jersey Knit, < 200gsm)
  • Stabilizer: 2.5oz or 3.0oz Cut-Away. No exceptions.
  • Hooping: Float or Magnetic Hoop. Avoid stretching.
  • Topping: Water Soluble Topping (Solvy) helps keep text crisp on lower quality cotton.
• Scenario B: Hoodie (Fleece, > 280gsm)
  • Stabilizer: Cut-Away is best, but Tear-Away can work on very thick fleece (though not recommended for longevity).
  • Hooping: Thick fabric is hard to hoop. Screw hoops often pop open.
  • Solution: This is the primary use case for ricoma em 1010 mighty hoops compatible frames. The magnets self-adjust to the thickness of the hoodie pocket or zipper area.


The Upgrade Path (Without the Hard Sell): When Better Hoops or a Multi-Needle Machine Pays for Itself

Courtney’s video demonstrates a successful project, but it also highlights the hidden costs of basic equipment: Time.

The Productivity Audit: Ask yourself these questions to determine if you need to upgrade your tools:

1. The Hooping Bottleneck: Does it take you 3 minutes to hoop a shirt because you are fighting screws and wrinkles?
   • Solution: Magnetic Hoops. They cut hooping time to 15 seconds. If you charge $60/hour, that time savings pays for the hoop in a month.
2. The Color Change Drag: Are you manually threading new colors for every shirt?
   • Solution: Multi-Needle Platform (SEWTECH/Ricoma). If you are moving from hobby to "50 shirts for the local softball team," a single-needle machine is a profit killer.
3. The Hoop Burn Issue: Are you ruining 1 in 10 shirts due to pressure marks?
   • Solution: Magnetic Frames. The clamping force is distributed, virtually eliminating hoop burn.

Warning: When handling industrial embroidery equipment, always keep long hair tied back and keep drawstrings away from the take-up levers. The machine does not stop for obstructions.

Final Reality Check: Embroidery Isn’t “Hard”—It’s Just Unforgiving Until You Standardize

The comment section on Courtney's video reflects the common sentiment: "Embroidery is hard."

Let me correct that. Guessing is hard. Standardization is easy.

If you adopt the workflow above—Prep, Preview in 3D, Trace, and Stabilize Correctly—you eliminate the chaotic variables.

• Align in software, never by eye.
• Hoop with magnets to save your wrists and your fabric.
• Trace to protect your machine.

Do these three things, and you won't just be "trying" to embroider perfectly; you will be doing it on demand, every single time.

FAQ

• Q: What needle and stabilizer should be used to embroider a jersey knit T-shirt on a Ricoma EM-1010 to prevent holes and puckering?
  A: Use a 75/11 ballpoint needle with cut-away stabilizer; avoid tear-away for dense T-shirt designs.
  • Install: Put in a 75/11 BP needle before starting (sharp needles may cut knit fibers).
  • Stabilize: Use 2.5oz–3.0oz cut-away and bond it to the shirt with temporary spray adhesive to reduce shifting.
  • Slow down: Cap speed around 600–700 SPM for large, wide designs on knits.
  • Success check: After stitching, the shirt lies flat with no “bacon ripples,” and there are no needle-cut holes around the design.
  • If it still fails: Re-check hooping (over-stretching is the #1 cause) and confirm the design is not pushed too close to hoop limits.
• Q: How can a magnetic embroidery hoop be used on a knit T-shirt without causing permanent puckering from over-stretching?
  A: Hoop the T-shirt “taut but neutral,” not drum-tight, and let the stabilizer do the holding.
  • Mist: Spray adhesive on the cut-away stabilizer and smooth the shirt onto it before closing the magnetic frame.
  • Smooth: Press fabric from center outward with flat palms; do not pull the knit to “tighten” it.
  • Clamp: Close the magnetic rings in one controlled motion to avoid shifting.
  • Success check: The hooped area feels stable but still has slight give when lightly tugged—no “ringing drum” tightness.
  • If it still fails: Reduce machine speed and confirm the design width is not pushing the hoop boundary where extra handling causes distortion.
• Q: What is the safest way to prevent a hoop strike on a Ricoma EM-1010 when stitching an 11.5-inch wide design in a 310mm hoop?
  A: Use the Ricoma EM-1010 Trace function at minimum speed and watch the presser foot clearance, not only the laser.
  • Slow: Turn speed down to minimum before tracing.
  • Trace: Run Trace and visually track the presser foot path around the design boundary.
  • Nudge: If the presser foot gets within about 2 mm of the hoop edge, move the design with the arrow keys.
  • Re-trace: Trace again after every adjustment—no exceptions.
  • Success check: The full trace completes with safe clearance and no point where the presser foot approaches the hoop edge dangerously.
  • If it still fails: Re-check hoop selection on-screen (310x210mm) and verify the design is not rotated incorrectly.
• Q: Why does a Ricoma EM-1010 refuse to load a DST file from USB or appear frozen on the screen, and how can it be fixed fast?
  A: The Ricoma EM-1010 is often still locked in stitch mode; unlock first, then import from USB to machine memory.
  • Tap: Press the Unlock/Lock icon to open (exit stitch mode) before loading.
  • Import: Choose USB → Machine Memory, then select the file from memory to load correctly.
  • Maintain: Delete old designs from machine memory weekly to reduce laggy behavior.
  • Success check: The file appears in machine memory and opens normally without the interface “hanging.”
  • If it still fails: Try a different USB drive and confirm the file is saved as DST (industrial format) and not a different export.
• Q: How can a “Hoop Limits” error be fixed on a Ricoma EM-1010 when the design is close to the hoop edge?
  A: Move the design position within the hoop field and confirm the correct hoop size and orientation are selected on the Ricoma EM-1010.
  • Select: Set the hoop size on the machine to 310x210mm (or the hoop actually installed).
  • Move: Use the Up Arrow to shift the design toward the top area if that provides more clearance.
  • Verify: Check the design is not rotated 90° by mistake, which can exceed width/height limits.
  • Success check: The error clears and a Trace run shows the presser foot stays safely inside the hoop boundary.
  • If it still fails: Reduce design size slightly or re-center the artwork in software so the sew field is used efficiently.
• Q: What are the quickest tension and stitch-quality checks after embroidering a wide design on a knit T-shirt to avoid returns?
  A: Do a fast QC audit: registration, looping, bobbin show, and hoop burn—then trim cut-away correctly and cover with Tender Touch for comfort.
  • Inspect: Confirm black outlines line up with fills (registration) before removing stabilizer.
  • Check: Look for loops on top (upper tension too loose) and white bobbin thread showing on top (upper tension too tight).
  • Trim: Cut cut-away leaving 1/4"–1/2" margin; never cut flush to the stitching.
  • Finish: Apply Tender Touch to reduce skin irritation and improve retail feel.
  • Success check: The design edges are crisp, the surface is smooth (no ripples), and the inside feels comfortable with no scratchy backing.
  • If it still fails: Re-check bobbin area for lint buildup and confirm the hooped fabric was not stretched during clamping.
• Q: What safety precautions are required when using industrial magnetic embroidery hoops on a multi-needle machine setup?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical implants and magnetic-sensitive items.
  • Keep clear: Never place fingers between the magnetic rings when closing the hoop.
  • Control: Close the magnetic frame deliberately—do not let it “snap” near your hand.
  • Separate: Keep magnets away from pacemakers, insulin pumps, credit cards, and similar items.
  • Success check: The hoop closes with a clean, controlled “clack” without any finger pinch risk or sudden slamming.
  • If it still fails: Stop and reposition hands and garment—do not force alignment while the magnets are partially engaged.
