From Canva PNG to a Clean PES File in Hatch: The 4x4 Hoop Workflow That Stops “Wonky” Stitches Before They Start

If you have ever opened Hatch, clicked "Auto-Digitize," and thought, "Why does this look… kind of okay on screen, but I just know it’s going to chew up my t-shirt?"—you are not alone. Beginners usually blame their own lack of talent. Veterans? We blame the workflow.

Machine embroidery is an unforgiving medium. Unlike printing, where ink sits passively on paper, embroidery is a physical combat between needle, thread, and fabric. A design that looks perfect in pixels can warp, pucker, or tear in the real world if the underlying physics aren't respected.

This guide rebuilds a clean, repeatable workflow based on a real-world tutorial: creating two designs (text-only and a simple logo) for a 4x4 hoop, exported specifically as PES for a Brother-style machine. However, I’m going to go beyond the software buttons. I will add the "shop-floor" sensory checks and safety margins that keep your stitchouts from turning into refunds.

Start Where the Money Is: 4x4 PES Files for Etsy-Style Orders (and Why Small Hoops Punish Sloppy Prep)

The tutorial context—selling small, ready-to-stitch files—is critical. The 4x4 inch (100mm x 100mm) field is the most common entry point for hobbyists, but it is also the most unforgiving constraints for a digitizer.

When you work inside a small stitch field, tiny errors in artwork prep are magnified. A 1mm deviation on a large jacket back is invisible; a 1mm deviation on a 3-inch pocket logo looks like a disaster.

If you are operating a standard brother embroidery machine, the "it fits on the screen" test is a trap. Screens lie. You need a "Safe-Size Habit" and a predictable export routine, because your file will eventually meet real physics: pull compensation, stabilizer tension, and thread thickness.

The "Physics" of the 4x4 Hoop:

• Density Danger: Cramming too many details into 4 inches turns fabric into cardboard (bulletproof embroidery).
• The "Thump" Limit: If your design has too many nodes or tiny stitches, you will hear your machine make a rhythmic, unhappy thump-thump-thump sound. That helps no one.


The Canva 4x4 Canvas Trick: Make the Artwork Match the Hoop Before Hatch Ever Sees It

garbage in, garbage out. The creator’s first move is crucial: build the source image at the physical size of the hoop.

In Canva, she creates a custom document:

• Units: Inches
• Width: 4
• Height: 4

She then pastes the customer artwork and scales it to fill the canvas. This seems trivial, but it solves a massive scaling issue. If you import a tiny 1-inch JPEG into Hatch and stretch it to 4 inches, the pixels blur. Hatch's auto-digitize engine reads that blur as "messy data" and creates jagged, ugly stitches. By scaling before digitizing, you feed the software crisp lines.

Pro tip from the comments (saves time every single order)

A viewer points out a massive workflow improvement: in Canva, maximize the "Transparent Background" feature before downloading.

Why this matters for your machine: If you don't remove the background, Hatch sees the white square behind your logo as an object to be stitched. You might delete the big white square, but often tiny "pixel dust"—microscopic white specs—remain.

• The Consequence: Your machine travels to empty spots and drops a single unsightly knot.
• The Fix: Export transparent PNGs. It ensures the software only sees the logo, nothing else.

The “hidden” prep most people skip

Before you leave Canva/Photoshop, run a visual "flight check." Your eyes are the first quality control filter. Generally, before exporting, you want high contrast and zero gradients.

The "Hidden Consumables" List New digitizers often forget the physical tools needed to verify their digital files. Have these ready:

1. Digital Calipers: To measure your actual hoop interior.
2. Printed Templating Paper: To print your design at 100% scale and physically place it on the garment.
3. Fabric Scrap: Never run a first time file on the final garment.

Prep Checklist (before you leave Canva)

• Canvas Size: Set exactly to 4 in x 4 in (inches).
• Scale: Artwork fills 90% of the canvas (don't leave it floating tiny in the middle).
• Alignment: Artwork is perfectly centered.
• Clarity: Export as PNG (300 DPI minimum if given the choice).
• Transparency: Background removed.
• Naming: File styled as ProjectName_4x4_Source.png.


Hatch “New Blank Design” + Auto-Digitize for Text: The Fastest Way to Build Clean Simple Lettering

In Hatch, she clicks Create New Blank Design, locates the PNG, and uses the Auto-Digitize feature. She is working on a text design ("Miss Virginia").

Auto-digitize has a bad reputation among snobs, but for clean, high-contrast block text, modern algorithms are 90% effective. The key is knowing which 10% fails.

What to expect (so you don’t panic)

Auto-digitize gives you a "Draft," not a final product. Expect these specific failures:

1. The "Spaghetti" Curve: On tight curves (like a cursive 'e'), the stitches might run distinctively parallel instead of turning with the shape.
2. The "Jump" Mess: The software might sequence the letters oddly (e.g., stitching 'M', then 's', then back to 'i'), causing long jump threads across your design.
3. Shine breaks: If stitch angles change abruptly, the light reflects differently, making the thread look like two different colors.

If you are using standard embroidery machine hoops, remember that they hold the fabric under tension. When stitches run in different inconsistent directions, they push and pull that fabric, creating small ripples or "puckering" around text.

Warning: Physical Safety Alert. When watching your first test stitchout, keep hands away! Modern machines move the hoop rapidly. A 1000 SPM (Stitches Per Minute) needle is invisible to the eye. Never reach inside the hoop area to trim a thread while the machine is running—needle strikes happen faster than human reaction time.

Fix the “Wonky” Stitch Angle in Hatch: One Small Edit That Makes Text Look Expensive

The creator spots a classic "Uncanny Valley" problem: the stitch angle on part of the text looks stiff and mechanical.

Her fix is the Add Stitch Angle tool. She draws a line through the lettering indicating the direction she wants the thread to sit.

Why this works (The Physics of Light)

Satin stitches (the shiny, column-like stitches used for text) behave exactly like brushed hair or velvet.

• Scenario A: Stitches run horizontal ($0^circ$). Light hits the side of the thread. It looks matte.
• Scenario B: Stitches run vertical ($90^circ$). Light hits the length of the thread. It shines.

When auto-digitize guesses wrong, you get a "visual kink" where the shine abruptly cuts off. By manually adding stitch angles, you guide the thread to flow organically around curves, maintaining a continuous, liquid reflection. This is the difference between a $5 patch and a $50 polo shirt.

The 3.850-Inch Rule: Making a 4x4 Design Actually Fit a Brother Hoop in Real Life

After cleaning the stitch direction, she selects the entire design. The prompt is to fit a 4x4 hoop. Does she set it to 4.00 inches?

No. She sets the width to 3.850 inches.

This is the "Golden Safety Number" for Brother format machines.

• The Theory: A 4x4 hoop is 100mm x 100mm (approx 3.93 inches).
• The Reality: The presser foot needs clearance. If you design all the way to 3.93 inches, you risk the metal foot bashing into the plastic frame of the hoop. The machine creates a "No Fly Zone" buffer.

If you are working with a standard brother 4x4 embroidery hoop, treat 3.850" (approx 98mm) as your absolute hard ceiling. I recommend beginners start even safer at 3.80" until they trust their hooping accuracy.

Setup Checklist (before you export any file)

• Visual Scan: Preview in "TrueView" (3D mode) to check for gaps.
• Purge: Ensure no "white background" object exists in the object list.
• Safe Zone: Total width is $le$ 3.850 inches.
• Centering: Press '0' or 'Auto Center' to ensure the design is mathematically centered (crucial for valid hoop loading).
• Flow Check: Stitch angles flow around curves like water, not crashing into walls.

Exporting PES (and Why Saving the EM File Is a Pro Move)

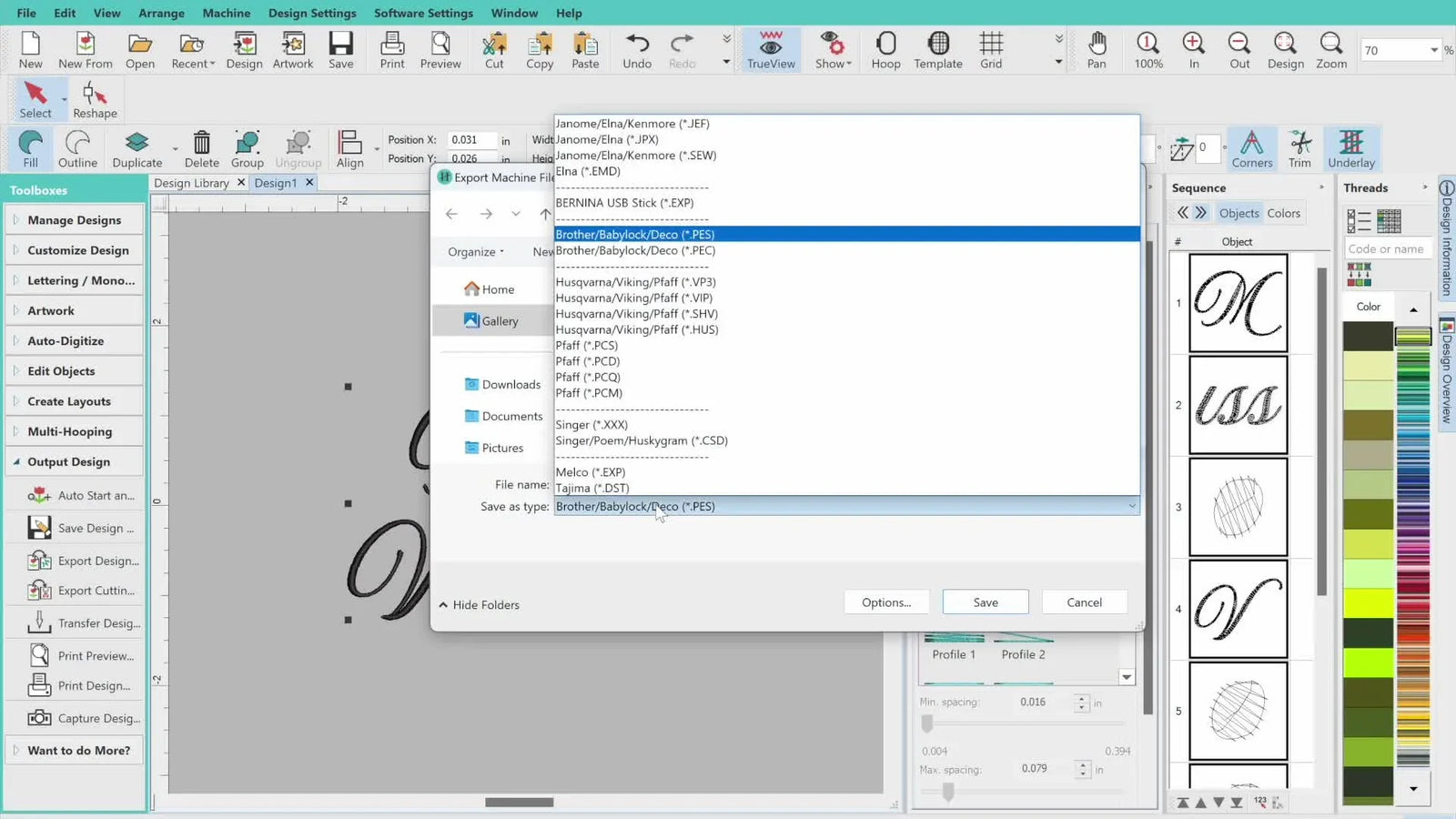

She exports the finished file via Output > Export, selecting PES (the machine language for Brother/Babylock). Crucially, she also saves the EM (Embroidery Master) file.

The Business Logic:

• PES File: This is a flattened bitmap. It has stitches, but it doesn't "know" that a circle is a circle. It just knows "Coordinate X,Y". You cannot easily resize this without ruining density.
• EM (or EMB) File: This is the vector source code. It knows "This object is a Circle." You can resize it, change density, or change fonts instantly.

Rule of Thumb: If you lose the EM file, you lose the ability to edit. Always archive your source files.

Auto-Digitizing a Multi-Color Logo in Hatch: Reduce 19 Colors Down to What the Logo Actually Uses

For the second design (the "CV" logo), she imports the PNG. Hatch analyzes the image and proudly declares it detects 19 colors.

The logo clearly only has roughly 4 colors.

She manually reduces the palette:

1. Down to 4 (Green, Black, White, Yellow).
2. Then down to 3, removing a stray "tan" color.


Why color reduction is not optional

Auto-digitize is literal. It looks at the fuzzy edge where a black line meets a white background and sees "Grey." It tries to stitch that grey.

• The Result: If you don't reduce colors, your machine will stop for a color change, trim the thread, and ask for "Dark Grey" just to stitch three microscopic dots. This is called "Confetti."
• The Fix: Force the software to snap colors to your primary palette. 3 or 4 crisp colors stitch faster and look cleaner than 19 muddy ones.

Node Cleanup in Hatch: Smooth Shapes First, Then Get Picky

A viewer comment asks about nodes. Nodes are the anchor points that define the shape of your design outlines.

In the video, she selects the C and V objects, opens the Reshape tool, and hits Smooth Shapes.

The Veteran Rule for Nodes

Auditory Anchor: Listen to your machine. Does it sound like high-speed humming (zzzzzzz) usually? If it suddenly starts making a loud machine-gun stutter (d-d-d-d-d-d-d), you have too many nodes.

Every node is a coordinate the computer has to process. Thousands of unnecessary nodes (common in auto-digitizing) overwhelm the processor and cause the physical pantograph to jitter.

1. Run "Smooth Shapes" first. This removes 80% of junk nodes.
2. Edit Manually second. Only tweak nodes if a corner looks rounded when it should be sharp.

The Duplicate-and-Outline Move: Building Satin Borders That Look Like Real Branding

To create the professional finish, she uses a classic layering technique:

1. Duplicate the letter object.
2. Convert the top copy into an Outline.
3. Change the Stitch Type to Satin.
4. Set Width to 0.060 inch (approx 1.5mm).




The "Register" Trap

Why duplicate? Why not just add a border to the original? By keeping them as separate objects, you control the Stitch Order (Sequence). You want the machine to stitch the flat fill coloring first. Then, you want it to come back and lay the satin border on top to cover the raw edges.

Experience Note: A 0.060" satin border is great for twill or cotton. If you are stitching on a fluffy towel or fleece, 0.060" is too narrow—it will sink into the pile. Bump it to 0.120" for fluffy fabrics.

Layering Logic That Prevents Gaps: Omit the Green, Delete the Background, Then Reorder the Sequence

Structuring the file is like building a sandwich. You don't put the bread in the middle.

She processes the background elements:

• Use Auto-Digitize.
• Omit the Green (because she already digitized the letters).
• Keep the Orange and White.
• Delete the background white square after generation.


Then, she opens the Sequence docker. She moves the black satin outlines to the very bottom of the list (meaning they stitch last).

Why Sequence Order Matters Physicality

Embroidery pushes fabric.

• Fills push fabric out.
• Satins pull fabric in.
• If you stitch the border before the fill, the fill will push the fabric away, and you will end up with a white gap between the color and the black line.
• Always stitch from the center out, and fills before borders.

The “Width-Only” Resize Reality: When 3.850" Height Breaks the Hoop Limit

She attempts to resize the logo.

• Sets Width to 3.850 -> Fits.
• Sets Height to 3.850 -> Width becomes roughly 4.20. Too big.

Conclusion: She must limit the design based on the widest dimension. For a 4x4 hoop, if your design is a rectangle, the long side is your constraint.

Decision Tree: Picking Stabilizer for Small 4x4 Logos (So Your Digitizing Work Doesn’t Get Blamed)

You can digitize the perfect file, but if you put it on a t-shirt with tearaway stabilizer, it will fail. Stabilizer is the foundation of your house.

Use this decision tree to match your 4x4 logo to the reality of the fabric.

Step 1: Is the fabric stretchy? (T-shirt, Polo, Hoodie)

• YES: You MUST use Cutaway stabilizer. No exceptions. Tearaway will disintegrate, and the embroidery will distort.
  • Upgrade: Use Fusible PolyMesh Cutaway for a softer feel against the skin.
• NO (Denim, Canvas, Towel): Proceed to Step 2.

Step 2: Is the fabric "fluffy" or textured? (Towel, Fleece, Pique Polo)

• YES: Use a Water Soluble Topper (thin film) on top. This prevents the stitches from sinking into the fabric loops.
• NO: You can likely use Tearaway (for denim/canvas), but Medium Cutaway is always safer.

Troubleshooting Hatch Auto-Digitize: Symptoms → Causes → Fixes You Can Do Fast

Here is a quick diagnostic table for the issues shown in the tutorial.

The Upgrade Path: When Better Hooping Tools Save More Time Than Better Digitizing

Digitizing is only half the battle. The other half—the one that makes your wrists hurt—is hooping.

If you are struggling with hooping for embroidery machine setups, specifically trying to get a small logo perfectly straight on a left-chest pocket using standard plastic rings, you have felt the pain. Standard hoops require perfect tension: too loose and it puckers; too tight and you get "hoop burn" (permanent rings crushed into the fabric).

When to Upgrade Your Toolkit:

Level 1: The Hobbyist If you stitch once a week, standard hoops + time + patience are fine. Focus on your digital prep.

Level 2: The Side Hustler (Consistently selling 4x4 designs) If you are doing production runs, time is money. Standard screw-tighten hoops are slow and cause repetitive strain. This is where professionals switch to a brother 4x4 magnetic hoop.

• Why? They use magnets to clamp the fabric instantly without forcing an inner ring into an outer ring.
• The Benefit: Zero hoop burn, and hooping speed increases by roughly 40%. It turns a chore into a rapid workflow.

Warning: Magnetic Safety. Industrial-strength magnetic hoops are incredibly powerful. They can pinch fingers severely if handled carelessly. Never place them near pacemakers or sensitive electronics. Handle with respect.

Level 3: The Scaling Business If you find yourself spending more time changing thread colors (stopping every 2 minutes to swap spools) than actually making money, the bottleneck isn't the file or the hoop—it's the single-needle machine. This is the trigger point to look at multi-needle solutions (like SEWTECH setups) that handle thread changes automatically.

The “Send-It” Final Check: What I Verify Before Delivering a PES to a Customer

Before you hit "Start" or email that file to a client, run this final Operation Checklist. It prevents the dreaded "It broke my needle" email.

Operation Checklist (Pre-Flight)

• Format: File is .PES (for Brother) or correct format for target machine.
• Archive: .EM/.EMB source file is saved separately.
• Size Safety: Width is confirmed $le$ 3.850".
• Efficiency: Color sequence is optimized (Group all greens, then all blacks).
• Pathing: Look for long jump stitches that might need manual trimming.
• Clean: TrueView shows no rogue background objects.

If you are building a library of diverse embroidery hoops for brother machines, consistency is your brand. Use these checks, upgrade your stabilizer game, and consider magnetic hoops to smoothen the physical workflow. Now, go break some thread.

FAQ

• Q: Why does Hatch Auto-Digitize create jagged or “wonky” satin text on a Brother PES file for a 4x4 hoop?
  A: Use Hatch Add Stitch Angle to manually control stitch direction—auto-digitize often guesses wrong on tight curves.
  • Redraw stitch angles through the problem letters so the satin flows with the stroke instead of fighting it.
  • Preview the design in TrueView/3D mode and look specifically for abrupt “shine breaks” on curves.
  • Success check: the stitched sample shows smooth, continuous shine across each letter with no stiff-looking sections.
  • If it still fails: simplify the source PNG (high contrast, no gradients) and re-run auto-digitize, then re-apply stitch angles.
• Q: Why does a Brother embroidery machine keep stopping for constant color changes after Hatch Auto-Digitize detects 19 colors in a simple logo?
  A: Reduce the color palette in Hatch to the real logo colors (usually 3–4) to prevent “confetti” stitches and pointless stops.
  • Force the palette down to the intended colors (example shown: 4 colors, then remove stray extra colors).
  • Remove gradients and fuzzy edges in the artwork so Hatch doesn’t “invent” grey/tan transition colors.
  • Success check: the color list shows only the intended 3–4 colors, and the machine no longer stops to stitch tiny dots in odd colors.
  • If it still fails: export the artwork as a transparent PNG and re-import so background artifacts are not being interpreted as stitchable objects.
• Q: What is the safest maximum design size for a Brother 4x4 embroidery hoop when exporting a PES file from Hatch?
  A: Set the longest design dimension to 3.850 inches (a safer starting point is 3.80 inches) to avoid presser-foot/hoop clearance problems.
  • Resize based on the widest dimension (rectangles may fit by width but fail by height).
  • Center the design using Auto Center (or the equivalent) before exporting.
  • Success check: the design stays within the hoop’s safe area and loads/runs without the foot contacting the hoop frame.
  • If it still fails: measure the real hoop interior and re-check that no object extends past the safe boundary.
• Q: How do you stop Hatch from stitching an unwanted white background box when making a Brother PES file from a Canva PNG?
  A: Download the Canva artwork as a transparent PNG so the background is not imported as a stitchable object.
  • Enable Transparent Background before downloading the PNG.
  • In Hatch, “purge” the object list: delete any leftover background objects before export.
  • Success check: TrueView/3D preview shows only the logo/text shapes—no large square or tiny stray background stitches.
  • If it still fails: zoom in and look for “pixel dust” artifacts; clean the source image and re-import.
• Q: What supplies should be ready before digitizing and test-stitching a 4x4 Brother PES file to avoid sizing and placement mistakes?
  A: Use a simple pre-flight kit—digital calipers, printed templating paper, and fabric scrap—to verify real-world fit before stitching the final garment.
  • Measure the actual hoop interior with calipers (don’t trust the on-screen boundary alone).
  • Print the design at 100% and physically place it on the garment for placement confirmation.
  • Run the first stitchout on scrap fabric, not the customer garment.
  • Success check: the printed template and test stitchout match the intended placement and stay inside the hoop’s usable area.
  • If it still fails: reduce the design to 3.80–3.850 inches and re-check centering before exporting again.
• Q: What sequence order in Hatch prevents white gaps between a fill and a satin outline when stitching a small 4x4 logo on a Brother machine?
  A: Stitch fills first and stitch details/borders last—a satin outline should cover the fill edge, not get pushed away by it.
  • Duplicate objects when needed so the outline can be a separate satin object placed later in the sequence.
  • Use the Sequence panel to move satin outlines to the bottom (so they stitch last).
  • Success check: the stitched border cleanly covers the fill edge with no visible “halo” gaps.
  • If it still fails: check for mis-sized outlines (too narrow for textured fabric may sink) and confirm the background square was deleted.
• Q: What safety rules prevent hand injuries when test-stitching a Brother-style embroidery machine at high speed (around 1000 SPM)?
  A: Keep hands completely out of the hoop area while the machine is running—never reach in to trim jump threads mid-stitch.
  • Pause/stop the machine before trimming or adjusting anything near the needle.
  • Watch the first test stitchout closely from a safe distance to catch issues without reacting with your hands.
  • Success check: no “quick reach-in” habits develop; all trims/adjustments happen only when motion is fully stopped.
  • If it still fails: slow down for tests (if available on the machine) and plan pathing edits in software to reduce jump stitches.
• Q: What are the safety rules for using a magnetic embroidery hoop on a Brother 4x4 setup to avoid finger injuries and device interference?
  A: Treat magnetic hoops as industrial-strength clamps—handle slowly to avoid pinches, and keep them away from pacemakers and sensitive electronics.
  • Separate and close the magnetic frames deliberately; do not “snap” them together near fingers.
  • Store magnetic hoops away from electronics and any medical devices that can be affected by magnets.
  • Success check: hooping is fast without bruised/pinched fingers, and the fabric is held securely without hoop burn.
  • If it still fails: switch back to standard hoops for that operator/task until safe handling is consistent, then reintroduce magnets with a slower routine.
