From .BX Font to Flawless Stitch-Out: A No-Stress Embrilliance + Brother PE900 Workflow (With Hooping Fixes That Save Your Sanity)

The Definitive Guide to Flawless Embroidery Lettering: From PC to PE900

Lettering is the gateway drug of machine embroidery. It is the fastest way to make a generic textile feel "premium"—names on backpacks, monograms on towels, limited-edition labels. But for the beginner, it is often a source of immense frustration: crooked text, puckered fabric, and the dreaded "bird's nest" of thread under the needle plate.

If you are using the tiny screen on your Brother PE900 to type out long phrases, you are fighting a losing battle against friction. The professional workflow—the one used by shops running massive SEWTECH multi-needle machines—starts on a computer.

This guide bridges the gap. We will take you from a downloaded .BX font in Embrilliance to a clean, commercial-quality stitch-out, removing the guesswork and focusing on the tactile "feel" of doing it right.

The Calm-Down Moment: Why Embrilliance + .BX Fonts Beat the Machine Screen

If you have ever tried to align a 10-letter phrase on a 3-inch LCD screen, you know the panic: scrolling, squinting, and the fear that hitting "Start" will result in an off-center disaster.

The industry standard is to separate Design (Brain) from Production (Muscle).

• The Brain (PC/Mac): Handles layout, spacing, and density.
• The Muscle (Brother PE900): Executes the stitches.

We use .BX fonts because they are "keyboard native." Unlike standard embroidery files where "A" is just a picture of an A, a .BX file acts like a word processor font. You type, and the software calculates the stitch path. This is why many users searching for a hoop for brother embroidery machine eventually realize software is just as vital as hardware.

Shop Smart: The "Quality Source" Rule

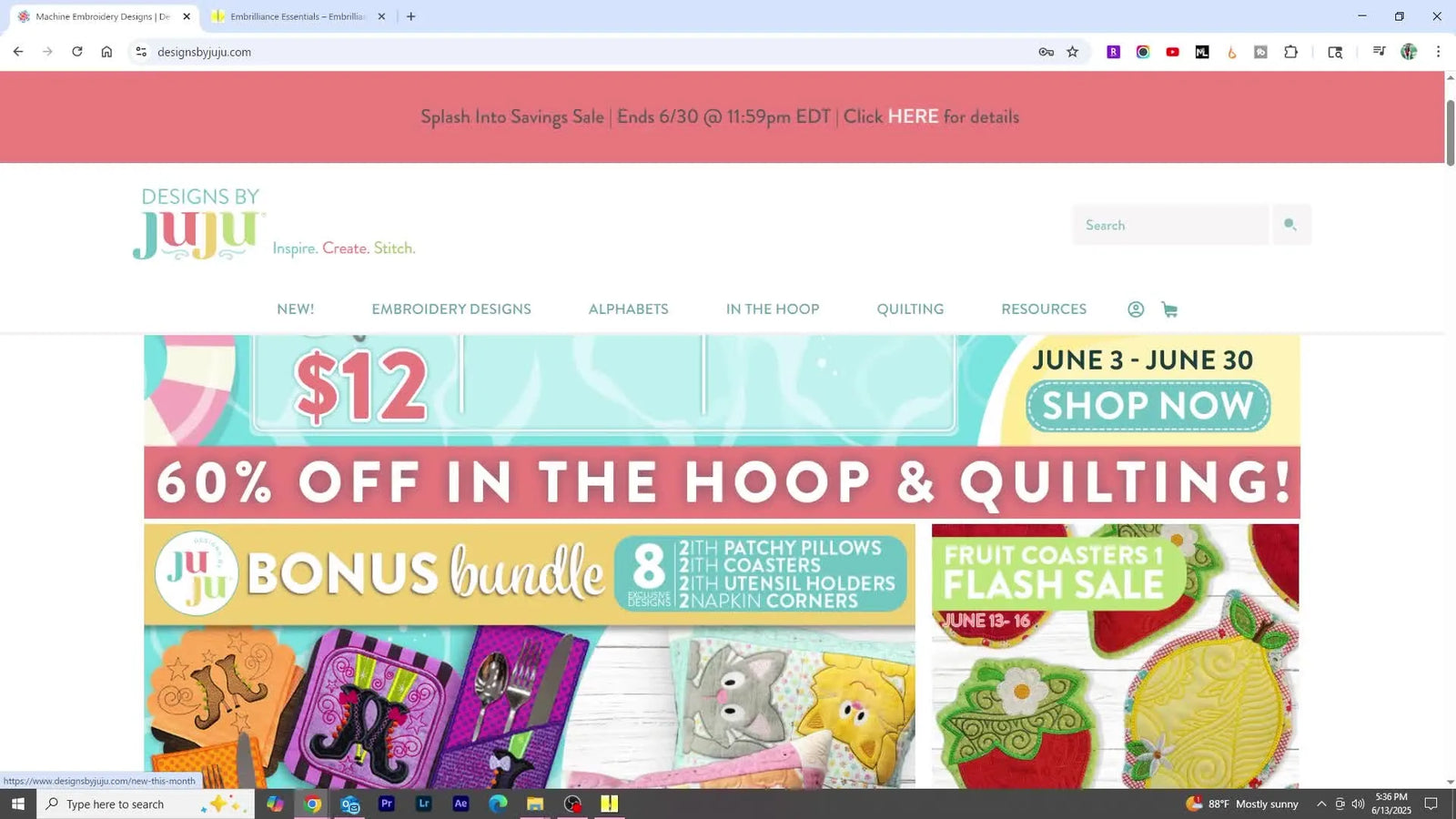

In the accompanying video, the host downloads a "Marker" font from Designs by JuJu.

Expert Insight: Not all digitizing is equal. Poorly digitized fonts have "heavy spots" (too much density) that cause needle breaks and thread shredding. Brands like Designs by JuJu or Etruscan allow for smoother running because they are manually tested.

Licensing Check: If you plan to sell your work, read the .txt file included in your download. "Personal Use" and "Commercial Use" are legal distinctions you cannot ignore if you want to scale a business later.

The "Hidden" Prep: Unzipping Files (The Window's Trap)

Embroidery files are fragile data. They almost always arrive compressed in .ZIP folders.

The Trap: Windows will let you "peek" inside a ZIP file without opening it. If you try to drag a font from this "peek" view into Embrilliance, it will fail silently.

The Fix:

1. Locate the .ZIP file.
2. Right-click and select Extract All.
3. Only work from the new, unzipped folder.


Prep Checklist: The Digital "Pre-Flight"

• Format Check: Ensure you downloaded the PES version (for Brother machines).
• Extraction: Confirm files are unzipped (look for the open folder icon, not the zipper).
• Organization: Save the .BX installer file to a dedicated "Fonts" folder on your PC.
• Hardware: Plug in your USB drive now so your PC recognizes it before you try to save.


The 10-Second Install: Drag-and-Drop

Installing a .BX font is surprisingly tactile.

1. Open Embrilliance Essentials (or Express).
2. Open your file folder.
3. Click the .BX file, drag it into the main white workspace of the software, and release.
4. Sensory Check: You should see a dialog box pop up immediately saying “The font has been installed.” If nothing happens, you likely didn't unzip the file (see above).




Pro Tip: Install punctuation files immediately. You don't want to be mid-project and realize you don't have a "@" symbol or a comma installed.

Make It Look Expensive: Spacing and "Visual Air"

Type your text using the Create Letters tool ("A" icon) and select your new font.

Now, stop and look. Does the text look crowded? In embroidery, we deal with "Push and Pull." Stitches pull the fabric in, often making letters touch when stitched, even if they looked separate on screen.

The Adjustment:

• Use the spacing sliders to add "Air" between letters.
• Success Metric: You want to see a clear gap between characters. If it looks "just right" on screen, it might be too tight on fabric. Give it room to breathe.


The Safety Boundary: Setting the 130mm x 180mm Hoop

Before you finalize the design, tell Embrilliance exactly what physical boundary exists. Go to Preferences and set the hoop to 130 mm x 180 mm (Brother 5x7).

Why this matters: If your design touches the edge of this digital hoop, the machine will refuse to sew it. It creates a "safety buffer" that saves you from the "Cannot Load Pattern" error later. When searching for a specific brother 5x7 hoop, remember that the usable area is always slightly smaller than the physical frame.

The Thread Saver: "Remove Hidden Stitches"

The video demonstrates layering text over a dog design. If you stitch a solid letter on top of a solid dog, you create a "bulletproof vest"—thick, stiff, and prone to breaking needles.

The Solution: Click the Remove Hidden Stitches button (scissors icon). This instructs the software to delete the stitches under the top layer.

• Benefit 1: Softer feel (better drape).
• Benefit 2: Less stress on the machine motor.
• Benefit 3: Fewer thread breaks due to friction.

Save Protocol: PES and USB Hygiene

1. File > Save As (Stitch and Working). This saves a working file (BE) for edits and a machine file (PES) for stitching.
2. Select PES format.
3. Save to your USB drive.


Warning: Data Corruption Risk. Never yank the USB drive out while the light is blinking. Always use "Eject" or "Safely Remove Hardware" in Windows. A corrupt file can cause the machine to freeze or the needle to behave erratically.

The Machine Setup: Loading the Design

On your Brother PE900:

1. Tap Pocket.
2. Tap USB.
3. Select your file.
4. Tap Set.


Expert Reality Check: Ignore the designated colors on the screen. The machine doesn't know what thread you actually loaded. It only knows "Stop 1" and "Stop 2." Trust your thread sequence, not the screen colors.

The Tactile Art of Hooping: Tension Without Distortion

This is where 90% of beginners fail. You are stitching on Woven Canvas (in the video).

The Golden Rule: The fabric should be "taut," not "stretched."

• Correct Feel: Like a fresh bedsheet tucked in tight.
• Incorrect Feel: Like a trampoline (stretched drum). If you stretch the fabric, it will shrink back after stitching, causing puckers around your beautiful letters.

Decision Tree: Select Your Stabilizer

Stitch quality is 80% chemistry between fabric and stabilizer.

1. Is the fabric Woven & Stable? (Canvas, Denim, Twill)
   • Recommendation: Tear-Away (Clean back) or Medium Cut-Away (Best durability).
2. Is the fabric Stretchy? (T-Shirts, Hoodies)
   • Recommendation: No-Show Mesh Cut-Away. (Tear-away will fail here).
3. Is the fabric textured? (Towels, Velvet)
   • Recommendation: Water Soluble Topper (prevents stitches creating "sinks").

Upgrade Path: Solving the "Hoop Burn" Pain

If you are struggling to hoop thick items, or if the standard plastic hoop leaves permanent "burn" rings on delicate fabrics, this is a physical limitation of the tool, not your skill.

The Trigger: You are spending more than 2 minutes hooping a single shirt, or your wrists hurt from tightening the screw.

The Solution: Professional shops switch to magnetic embroidery hoops.

• Efficiency: They snap shut. No screws.
• Safety: They hold thick fabrics (like the canvas in the video) firmly without crushing the fibers, eliminating "hoop burn."
• Compatibility: For this specific setup, a magnetic hoop for brother pe900 allows you to slide items in and out rapidly, mimicking the workflow of industrial machines.

If you are beginning to do small production runs, pairing a brother 5x7 magnetic hoop with a SEWTECH hooping station for embroidery machine ensures every logo lands in the exact same spot, every time.

Stitching: The "First Three Stitches" Rule

1. Press Start.
2. Watch the machine take 3 to 5 stitches.
3. STOP.
4. Trim the starting thread tail close to the fabric using Curved Snips.


Why: If you don't trim this tail now, the machine might stitch over it, burying a line of unwanted color permanently under your lettering.

Warning: Safety First. Never put your fingers near the needle while it is moving. Use snips only when the green light has turned red (stopped).

The Clean Finish

The PE900 has a "Jump Stitch Trim" feature, but for pristine lettering, manual checking is better.

Once finished, unhoop and look at the back. It should be relatively clean. A chaotic bird's nest on the back usually means your Top Tension is too loose or the bobbin wasn't seated correctly (look for the "click" when inserting the bobbin case).

Troubleshooting: The "Why Did It Fail?" Table

Setup Checklist (Before You Press Green)

• Needle Check: Is the needle fresh? (Replace every 8 hours of stitching).
• Bobbin Check: Is the bobbin directional? (Thread should unwind counter-clockwise, forming a "P" shape).
• Hoop Check: Is the inner ring slightly pushed past the outer ring (floating)? Or is it flush? (Flush is good).
• Clearance: Is the embroidery arm free to move without hitting the wall or coffee mug?

Operation Checklist (During Stitching)

• Auditory Check: Listen for a rhythmic "thump-thump." A loud "clack-clack" means a problem (stop immediately).
• Visual Monitor: Watch the first layer. If it puckers immediately, abort and re-hoop.
• Thread Management: Pause to trim excessive jump stitches if the machine misses them, keeping the path clear.

Mastering hooping for embroidery machine workflows and software prep is what separates the hobbyist from the pro. Start with these safe parameters, feel the tension, and upgrade your tools when you outgrow the struggle.

FAQ

• Q: Why does a .BX font installation fail silently in Embrilliance Essentials on a Windows PC when dragging the .BX file into the workspace?
  A: The most common cause is that the .BX file is still inside a ZIP “peek” view, so Embrilliance cannot install it.
  • Extract: Right-click the ZIP file and choose Extract All, then open the new unzipped folder.
  • Install: Drag the .BX file from the unzipped folder into the Embrilliance white workspace.
  • Success check: A dialog appears immediately saying “The font has been installed.”
  • If it still fails: Re-check that the downloaded file is the actual .BX installer (not only a design file) and try again from a dedicated Fonts folder.
• Q: How do I prevent “Cannot Load Pattern” on a Brother PE900 when the embroidery lettering design is close to the hoop edge in Embrilliance?
  A: Set the correct hoop boundary in Embrilliance before saving so the design stays inside the safe sewing area.
  • Set: Open Preferences and select the 130 mm x 180 mm hoop (Brother 5x7).
  • Reposition: Move or resize lettering until it no longer touches the digital hoop edge.
  • Success check: The full design sits clearly inside the hoop boundary on-screen with a visible margin.
  • If it still fails: Re-save the file as PES and confirm the file you load on the PE900 is the updated version.
• Q: How do I stop embroidery lettering from looking crowded or having characters touch after stitching on a Brother PE900 when it looked fine on the computer screen?
  A: Increase letter spacing in Embrilliance to compensate for push-and-pull that closes gaps during stitching.
  • Adjust: Use the spacing sliders in Create Letters to add “visual air” between characters.
  • Preview: Aim for a visible gap on-screen; “just right” on-screen is often too tight on fabric.
  • Success check: After stitching, letters remain separated with clean edges instead of merging.
  • If it still fails: Re-hoop the fabric without stretching and verify stabilizer choice (stretch fabrics typically need cut-away support).
• Q: When layering lettering over a filled design in Embrilliance, how do I reduce needle breaks and stiffness caused by too much density on a Brother PE900?
  A: Use Remove Hidden Stitches so the software deletes stitches underneath the top layer instead of stacking them.
  • Select: Click the Remove Hidden Stitches (scissors icon) after placing text over the design.
  • Re-save: Save the updated stitch file and stitch again.
  • Success check: The finished embroidery feels softer (less “bulletproof”) and runs with fewer thread breaks.
  • If it still fails: Reduce overlap between elements or re-check that the correct updated PES file was loaded on the USB.
• Q: What is the correct fabric tension “feel” for hooping embroidery lettering on woven canvas to prevent puckering on a Brother PE900?
  A: Hoop the fabric taut, not stretched—tight like a fresh bedsheet, not a trampoline.
  • Hoop: Tighten until the surface is smooth and firm, but stop before the fabric distorts or feels over-stretched.
  • Stabilize: Match stabilizer to fabric type (woven stable fabrics often work with tear-away or medium cut-away).
  • Success check: After unhooping, the area around the letters stays flat instead of shrinking and puckering.
  • If it still fails: Re-hoop and consider upgrading to a magnetic hoop if consistent hoop tension is hard to repeat.
• Q: How do I safely trim the starting thread tail on a Brother PE900 to avoid burying a stray line under embroidery lettering?
  A: Use the “first 3–5 stitches” rule: stitch a few stitches, stop the machine, then trim the tail close.
  • Start: Press Start and watch the machine take 3 to 5 stitches.
  • Stop: Press Stop and wait until the machine is fully stopped (green light off/red light on).
  • Trim: Use curved snips to cut the starting tail close to the fabric.
  • Success check: No unwanted thread line gets stitched into the lettering area.
  • If it still fails: Re-start and monitor the first seconds again—do not place fingers near the moving needle.
• Q: If hooping a shirt takes more than 2 minutes and standard hoops leave hoop-burn rings, when should I switch to magnetic embroidery hoops instead of forcing the Brother PE900 hoop screw tighter?
  A: Switch to magnetic embroidery hoops when hooping time and fabric marking become repeat problems—this is a tool limitation, not a skill failure.
  • Diagnose: Track whether hooping consistently exceeds ~2 minutes per item or causes wrist strain and visible hoop marks.
  • Upgrade: Use magnetic hoops to snap-clamp fabric evenly without crushing fibers, especially on thicker or delicate materials.
  • Standardize: Pair magnetic hoops with a hooping station when repeat placement accuracy is required for small production runs.
  • Success check: Items load/unload faster, fabric shows less (or no) hoop burn, and placement is more repeatable.
  • If it still fails: Re-check stabilizer choice and hooping technique (taut-not-stretched) because magnetic clamping cannot compensate for incorrect backing or distorted hooping.
