From Brother Innov-is to ScanNCut SDX225F: Turn a Tack-Down Stitch into a Perfect Appliqué Cut File (PHX) Without Software

The "No-Trim" Appliqué Secret: Turning Your Brother Innov-is into a ScanNCut Commander

Appliqué is supposed to feel magical—placement line, fabric down, satin stitch, done.

But here is the reality we all face: when your fabric edge is even a hair off—say, 1 millimeter—you pay for it twice. First, in the tedious time spent hand-trimming with "duckbill" scissors while praying you don't snip the garment. Second, when the final satin stitch fails to cover your wobble, leaving raw "hairy" edges poking out.

The good news: if your appliqué design was created in My Design Center on a Brother Innov-is embroidery machine, you can bypass the scissors entirely. You can convert the tack-down line into a ScanNCut cut file right on the embroidery machine, save it to USB, and cut a piece that matches your stitch-out with laser-like accuracy—no external software required.

Calm the Panic: Your Brother Innov-is “APPLIQUE MATERIAL” Conversion Won’t Ruin the Design

If you’ve never tapped that scissors icon before, it can feel like you’re about to permanently break your file. This is a common fear among my students: "If I convert it, will it still stitch?"

Here is the safety anchor: You are not deleting stitches. You are simply telling the machine processor that one specific color layer (the tack-down line) has a new job description. It is now cut data instead of thread data. The rest of the design—the placement line and the final satin stitch—remains exactly as it was.

The only way this goes sideways is if you convert the wrong layer—most commonly the satin stitch layer. If you do that, you won't have a final border. We will build strict visual guardrails in the next section to ensure that never happens.

The “Hidden” Prep Pros Do First: USB Discipline, Fabric Bonding, and Mat Grip

Jan’s method works smoothly because she respects the physics of the machine. She does three quiet things that prevent 90% of the failures I see in the workshop: she creates digital hygiene, she chemically bonds the fabric, and she forces physical contact.

1. USB Discipline (The "Clean Room" Rule) Use a USB stick dedicated only to ScanNCut transfer files.

• Why: Creating a "needle in a haystack" situation with 500 other embroidery files leads to selecting the wrong PHX file. Keep it empty, keep it clean.

2. Fabric Bonding (The "Stiffness" Factor) You must iron HeatnBond Lite (purple pack) to the back of your appliqué fabric before cutting.

• Expert Note: Do not use "Ultrahold" (red pack) if you plan to stitch through it; the adhesive is too heavy and will gum up your embroidery needle, causing thread breaks. "Lite" is the sweet spot. It stops the fabric from fraying during the cut and prevents it from shifting during the stitch-out.

3. Mat Grip (The "No-Bubble" Mandate) A mat that feels "sticky enough" to your hand might still fail under the torque of a blade.

• The Check: If you press the fabric down and it pops back up even slightly, your cut will be jagged.
• The Fix: Use a Brayer (hard rubber roller). Roll with firm pressure until you hear the sound change—from a hollow crinkle to a solid "thud." This indicates the air pockets are gone.

Warning: ScanNCut blades are razor sharp and the carriage moves with high torque. Keep fingers clear of the cutting path once you press Start. Always use the spatula tool to lift small pieces; never dig your fingernails under the blade housing area.

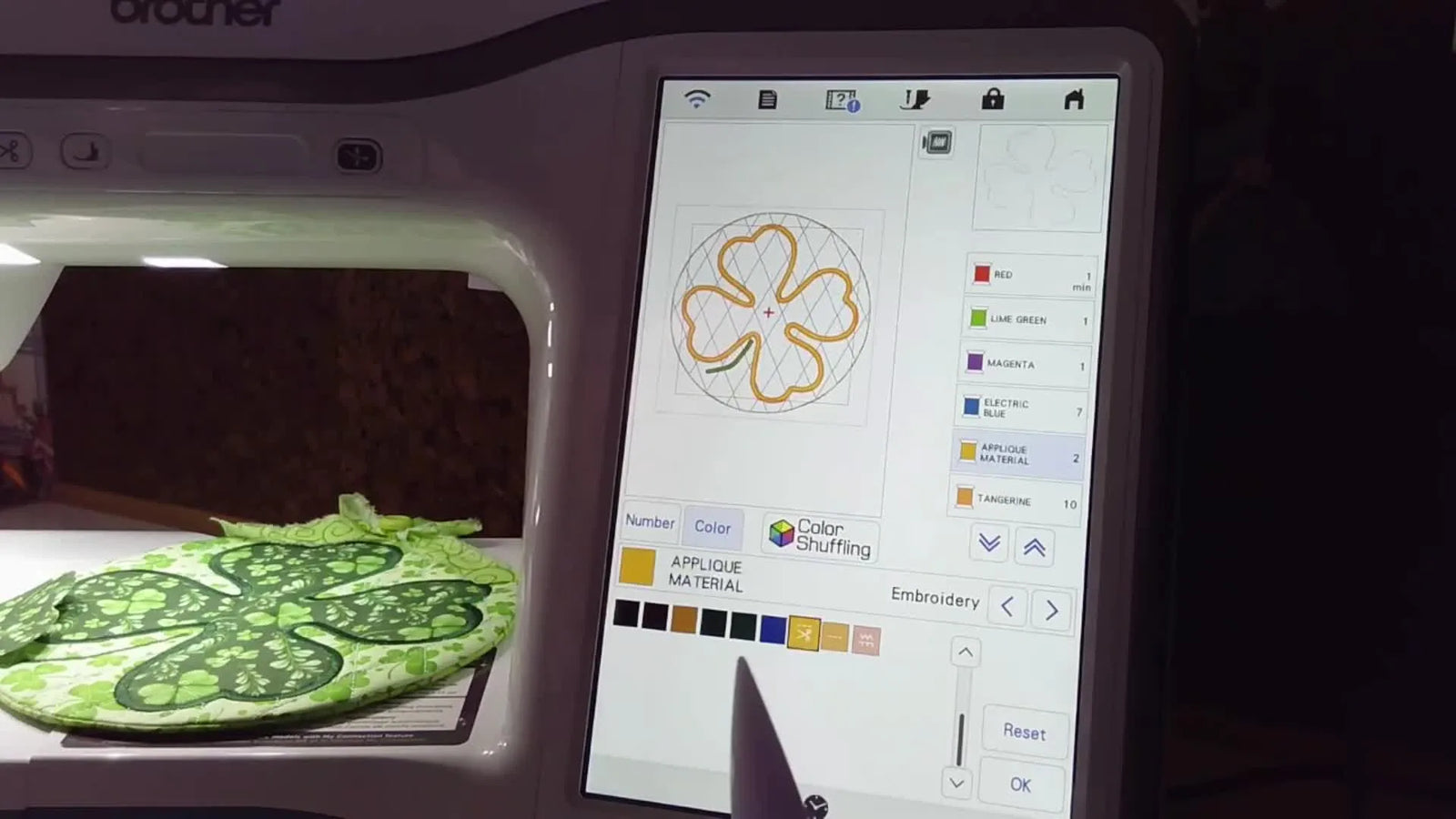

Convert the Tack-Down Color Layer on the Brother Innov-is Screen (My Design Center Workflow)

This is the heart of the trick: converting the tack-down stitch color into “APPLIQUE MATERIAL.”

What you’re looking for on the color list

You need to identify the layers based on logic, not just color.

1. Find the Satin Stitch layer (the thick final border). In Jan's example, it's Dark Tangerine.
2. Select the color layer immediately above it. This is your Tack-Down line (the stitch that holds the fabric in place before the satin border).

Visual Confirmation: When you tap the correct color, look at the preview window. It should show a single, thin outline of the appliqué shape (like the clover outline in this video). If you see a thick block of color, you have selected the satin stitch—go back one step!

Do the conversion (exact on-screen actions)

1. On the Brother Innov-is screen, load your design.
2. Open the Color List on the right side.
3. Tap the Tack-Down layer (the one right before the satin stitch).
4. Tap the Down Arrow to expand your options.
5. Tap the Scissors Icon (this is the "Convert to Cut" command).
6. Confirm the selection. The color name will change to text reading “APPLIQUE MATERIAL.”

Checkpoint: The color list must show that specific layer labeled as “APPLIQUE MATERIAL.” If it still says a color name, the conversion didn't take.

Save the Modified PHX to a USB Flash Drive (So the ScanNCut Can Read It)

Now we export this cut data. The machine saves this as a .PHX file, a format specifically optimized for Brother cutting machines.

Save steps (as shown)

1. Tap the Memory (pocket) icon.
2. Choose the USB icon.
3. The machine will confirm the save.

Pro Tip: If your machine allows it, rename the file immediately on the screen or verify the timestamp. Nothing is worse than cutting an old version of a file because the names were identical (e.g., flower_01.phx vs flower_01_final.phx).

Prep the Brother Fabric Mat (Gold) with HeatnBond Lite + Brayer—This Is Where Clean Cuts Are Won

In this tutorial, Jan uses the Brother Fabric Mat (Gold). This mat usually has a stronger tack designed for fabric.

What she does (and the orientation that matters)

1. Iron HeatnBond Lite to the wrong side (back) of your fabric.
2. Crucial Step: Leave the paper backing on? No—Jan peels the paper before placing it on the mat for the cut (unless using a specific technique that cuts paper too, but usually for appliqué, we want just the fabric). Correction based on standard appliqué workflow: Actually, sticking the paper side to the mat allows you to cut without gumming up the mat, BUT Jan places fabric pretty side down (fabric face against the sticky mat).
3. Jan's Method: Fabric Face Down ("Pretty Side" touching the mat). Backing (HeatnBond) facing up.
4. Roll it out: Use the brayer.




Why the brayer step fixes “mat not sticky enough”

New mats are sticky; used mats are tired. Rolling with a brayer increases the surface area contact by nearly 100%. If your mat is old, you can use a "High Tack Fabric Support Sheet" (an adhesive layer you stick on top of the standard mat) to refresh the grip.

Prep Checklist (Pre-Flight for Cutting):

• USB Check: Stick inserted, file saved as .PHX.
• Stabilizer: HeatnBond Lite fused to fabric back.
• Orientation: Fabric placed Pretty Side Down (Face Down).
• Adhesion: Rolled with brayer; no bubbles visible; corners are tight.
• Mat Direction: Arrow on the mat pointing toward the machine feeder.

Load the Mat and Retrieve the PHX on the ScanNCut SDX225F (USB → B Pocket → Shield Icon)

Jan’s sequence is consistent: Load physical media first, then load digital data. This prevents the machine from trying to move a mat that isn't there.

Import steps (exact navigation shown)

1. Insert the USB into the ScanNCut.
2. Press the Load Mat button (ensure the mat is level; if it droops, it won't load straight).
3. Tap Retrieve Data on the screen.
4. Select USB.
5. Navigate to the B Pocket (usually where distinct embroidery data lives).
6. Select your .PHX file.




Isolate the cut contour (the “Shield” move)

Tap the Shield Icon. This tells the ScanNCut, "I am not looking for a drawing or a scan, I want the cut path." Checkpoint: Verify dimensions. The screen shows the size (e.g., 6.49" x 6.48"). Glance at your hoop size—does this sound right? If it says 1.0", you imported a tiny wrong file.

Background Scan + Placement: Let the ScanNCut Show You the Real Fabric (Not a Guess)

This feature is why we buy ScanNCuts. It eliminates "blind guessing."

Jan hits the scan button. The machine pulls the mat in, photographs it, and displays the image on the screen. Now you can drag your design (the clover shape) onto the specific patch of fabric you put down.

Why this matters (the physics of flatness)

If your fabric is wrinkled or "tented" (floating slightly above the mat), the scan will see the top of the tent, but the blade will push the fabric down before cutting. result: The cut will be offset by 2-3mm. A flat mat equals an accurate scan.

Mirror the Appliqué Cut File Horizontally (Because the Fabric Is Face Down)

Stop! This is the step most beginners forget. Because you placed the fabric Pretty Side Down, your fabric is physically reversed. You must digitally reverse (mirror) your cut file to match.

Mirror steps (as shown)

1. Go to Edit.
2. Select Object Edit.
3. Tap the Horizontal Flip icon (usually looks like two triangles facing each other with a line in the middle).
4. Visual Check: Did the stem of the clover flip to the other side? Yes.

Rule of Thumb: If the fabric is Face Down, the Design must be Mirrored.

Cut Settings That Actually Worked Here: Speed 5, Pressure Auto, Half Cut Off

The Brother SDX series (Auto-Blade) does a great job guessing, but we confirm the settings to be safe.

• Cut Speed: 5 (This is a safe middle ground. Speed 9 rips fabric; Speed 1 is agonizingly slow. 5 is the "Sweet Spot" for cotton).
• Pressure: Auto (The machine detects thickness).
• Half Cut: OFF (We want to cut all the way through the fabric).


A seasoned operator’s note on test cuts

Jan skips the test cut (she’s a pro with a dialed-in machine). My Advice: If this is your first time cutting this specific fabric/stabilizer combo today, do a Test Cut (a small 0.5" square) in the corner. It takes 30 seconds and saves you from ruining a $10 patch of fabric.

Setup Checklist (Right before pressing Start):

• Cut File: Imported via Shield icon.
• Alignment: Background scanned; design placed on fabric image.
• Mirror: Horizontal flip applied (because fabric is face down).
• Settings: Speed 5, Half Cut OFF.
• Safety: Workspace clear behind the machine (mat needs room to exit).

Peel, Weed, and Lift Cleanly: Removing the Appliqué Without Stretching the Edge

The cut is done. Don't ruin it now by yanking it off like a waxing strip. Fabric on the bias (diagonal grain) stretches easily.

The “don’t distort it” rule

1. Peel the Mat, Not the Material: Bend the mat slightly backward to release the fabric.
2. Weed: Remove the excess "waste" fabric around the shape first.
3. Lift: Slide a thin metal spatula under the appliqué piece to break the bond with the mat adhesive without pulling on the fabric fibers.

Result: A pristine shape that retains its exact dimensions, ready for the hoop.

Fabric-to-Stabilizer Decision Tree (So the Satin Stitch Doesn’t Pucker)

You have a perfect cut piece. Now you need a perfect base. The base fabric (the t-shirt, towel, or tote bag) needs support, or the satin stitch will pull it into a puckered mess.

Decision Tree: Choosing the Right Stabilizer

The Two Most Common “Why Did This Go Wrong?” Moments

Problem 1: “My cut piece doesn’t match my placement line.”

• Likely Cause A: You forgot to Mirror the design on the ScanNCut, but placed fabric face down.
• Likely Cause B: You converted the Satin Stitch layer instead of the Tack-Down layer on the Innov-is.
• Fix: Check the preview outline on the embroidery machine before converting. Check the flip icon on the ScanNCut.

Problem 2: “The fabric shifted during the cut.”

• Likely Cause: Mat has lost its tackiness or fabric wasn't brayered.
• Fix: Wash the mat with alcohol-free wipes to rejuvenate tack, or use High Tack Support Sheets. Always use the brayer.

The Upgrade Path: When "Fast Cutting" Meets "Slow Hooping"

Congratulations! You have automated the cutting process. You are no longer spending 15 minutes trimming by hand. But now you might notice a new bottleneck: Hooping.

If you are doing one-off gifts, your standard brother embroidery hoops are perfectly fine. But if you start taking orders—say, 50 patches for a local team—you will feel the physical toll of screwing and unscrewing traditional hoops.

The "Pain Point" Trigger: If you find yourself dreading the hoop setup, or if you are getting "hoop burn" (permanent ring marks) on delicate fabrics like velvet or performance wear, your tools are limiting your growth.

The Solution Hierarchy:

1. Level 1 (Technique): Use "floating" techniques with adhesive spray to avoid hooping the fabric directly. (Messy, but cheap).
2. Level 2 (Tool Upgrade): Switch to Magnetic Hoops.
   • Many professionals doing volume work switch to magnetic embroidery hoops because they eliminate the "screw-tightening" wrist strain.
   • They prevent hoop burn because they clamp flat rather than pinch.
   • If you own a high-end machine, search for compatible options like brother innovis v3 hoops in magnetic styles to speed up your reload time between shirts.
3. Level 3 (Production Scaling):
   • If you are constantly battling alignment on single-needle machines, investing in a hooping station for embroidery ensures your placement is identical on every shirt.
   • Eventually, the single-needle machine itself becomes the limit. This is when users graduate to SEWTECH multi-needle machines, where you can prep the next hoop while the machine is running, effectively doubling your output.

Warning: Magnetic Safety
Magnetic hoops use industrial-strength neodymium magnets. They can pinch skin severely.
* Do not slide them near pacemakers.
* Do not let them snap together uncontrollably.
* Always separate them by sliding the top frame off the bottom, not lifting.

Operation Checklist (After Cutting, Before Stitch-Out)

You are ready to stitch. Ensure these final conditions are met:

• Hoop: Base fabric is hooped tight (drum-tight) with the correct stabilizer (Cut-Away for knits!).
• Needle: Fresh needle installed (Size 75/11 is standard; 90/14 for thick canvas).
• Step 1: Run the Placement Line on the fabric.
• Step 2: Place your ScanNCut appliqué piece. It should fit perfectly inside the line.
• Step 3: Use a mini-iron to fuse it (activating the HeatnBond Lite) so it doesn't move.
• Step 4: Run the Satin Stitch.

One Last Reality Check

Jan’s workflow feels easy in the video because every step reduces variables.

• The tack-down line becomes the cut line = Zero Size Guesswork.
• The fabric is bonded and brayered = Zero Movement.
• The background scan is used = Zero Placement Error.

Do these things, and your appliqué will look like it came from a factory, not a struggle.

FAQ

• Q: Will converting “APPLIQUE MATERIAL” in Brother Innov-is My Design Center permanently change the embroidery design or delete stitches?
  A: No—Brother Innov-is only reassigns one color layer (the tack-down line) as cut data; the placement line and satin stitch stay intact.
  • Select the color layer immediately above the satin stitch layer in the color list.
  • Tap the down arrow, then tap the scissors icon to convert.
  • Success check: the selected layer label changes to “APPLIQUE MATERIAL” (not a thread color name).
  • If it still fails: reload the design and re-check you did not convert the satin stitch layer by mistake.
• Q: How do I make sure Brother Innov-is converts the tack-down line (not the satin stitch border) to “APPLIQUE MATERIAL”?
  A: Use the preview window to confirm the selected layer is a thin outline before converting on Brother Innov-is.
  • Identify the satin stitch layer first (the thick final border).
  • Tap the layer immediately above it (this should be the tack-down line).
  • Success check: the preview shows a single thin outline of the appliqué shape; a thick filled-looking border means satin stitch is selected.
  • If it still fails: step back one color layer and preview again before tapping the scissors icon.
• Q: Why does a Brother ScanNCut appliqué cut piece not match the Brother Innov-is placement line after importing a PHX file?
  A: The two most common causes are forgetting the horizontal mirror on ScanNCut (when fabric is face down) or converting the wrong layer on Brother Innov-is.
  • Confirm fabric was placed Pretty Side Down on the mat; then apply Horizontal Flip in Object Edit.
  • Re-check the Brother Innov-is color list: only the tack-down layer should read “APPLIQUE MATERIAL.”
  • Success check: the cut piece drops inside the stitched placement line with no forcing or stretching.
  • If it still fails: verify the imported file size on ScanNCut (dimensions should make sense for the hoop/design, not something tiny like ~1").
• Q: What is the correct fabric mat setup on Brother ScanNCut to stop fabric shifting and jagged cuts during appliqué cutting?
  A: Fuse HeatnBond Lite to the fabric and use a brayer until the fabric is fully bonded to the mat with zero bubbles.
  • Iron HeatnBond Lite (purple pack) to the back of the appliqué fabric before cutting.
  • Press fabric onto the mat and roll firmly with a brayer to remove air pockets.
  • Success check: the sound changes from a hollow crinkle to a solid “thud,” and corners do not lift or “pop back.”
  • If it still fails: refresh mat grip (clean per mat care guidance) or use a High Tack Fabric Support Sheet, then brayer again.
• Q: What ScanNCut SDX cut settings are a safe starting point for cotton appliqué cut files exported as PHX from Brother Innov-is?
  A: A proven starting setup is Cut Speed 5, Pressure Auto, and Half Cut OFF for full-through fabric cuts.
  • Set Cut Speed to 5 and Pressure to Auto.
  • Turn Half Cut OFF when the goal is to cut completely through the fabric.
  • Success check: the appliqué weeds cleanly and the edge looks smooth—not ragged or partially connected.
  • If it still fails: run a small test cut in the corner with the same fabric + HeatnBond Lite combo before cutting the full shape.
• Q: What safety rules should be followed when using Brother ScanNCut blades for appliqué cutting?
  A: Treat the ScanNCut blade and carriage as high-torque moving parts—keep hands out of the cutting path and lift pieces with tools, not fingers.
  • Keep fingers clear once Start is pressed; do not reach into the blade travel area.
  • Use a spatula tool to lift small cut pieces instead of fingernails.
  • Success check: hands never cross the mat path, and small parts are removed without prying near the blade housing area.
  • If it still fails: pause/stop the machine before adjusting anything on the mat.
• Q: How do I reduce hoop burn and speed up reload time after moving to no-trim appliqué cutting for production work?
  A: Start with technique tweaks, then consider magnetic hoops for faster clamping, and scale to multi-needle production only when hooping becomes the bottleneck.
  • Level 1 (Technique): float fabric with adhesive methods to avoid direct hoop pressure when marks are a problem.
  • Level 2 (Tool): switch to magnetic hoops to reduce screw-tightening strain and help prevent hoop burn by clamping flat.
  • Success check: hooping time drops noticeably between repeats, and delicate fabrics show fewer or no permanent ring marks.
  • If it still fails: standardize placement with a hooping station for repeatability, and consider a multi-needle workflow when single-needle changeovers limit output.
• Q: What are the key magnetic hoop safety precautions for embroidery work with neodymium magnets?
  A: Magnetic hoops can pinch hard—separate by sliding, keep away from pacemakers, and never let frames snap together uncontrolled.
  • Slide the top frame off the bottom frame to separate; do not pull straight up if magnets are locked.
  • Keep magnets away from pacemakers and sensitive medical devices.
  • Success check: the frame separates in a controlled motion with no sudden snap and no pinched fingers.
  • If it still fails: slow down, reposition hands to the outer edges, and slide again rather than forcing the separation.
