From Box to Perfect Tension: Setting Up a Hoop Master Station + Mighty Hoops on a Ricoma (Without Pinched Fingers)

If you have ever fought a standard garment hoop until your shoulders ached—only to end up with a loose, wavy clamping job—you are not alone. In Delonda’s demonstration, the "aha" moment is audible: that distinct snap when the magnetic ring closes, and the fabric suddenly looks drum-tight without being stretched out of shape.

This isn't just about convenience; it is about engineering out the variables that cause registration errors. This guide rebuilds Delonda's setup on a Ricoma Marquee 2001, but I am applying 20 years of shop-floor experience to the process. We will look at the specific physics of hooping, the safety protocols you need to prevent injury, and the "hidden" consumables that turn a frustrated beginner into a profitable pro.

Unbox the Hoop Master Station + Mighty Hoops kit like a production owner (so nothing goes missing)

Delonda lays everything out before she touches a screwdriver, and that is a habit you must copy. In a production environment, missing one specific nut or mixing up left/right brackets turns a 15-minute setup into a 2-day downtime.

From the video, the core pieces on the table are:

• Hoop Master Station: The main board with the printed grid.
• 5.5" Mighty Hoop Kit: Often called the "5x5 standard kit."
• T-Square: Included for manual alignment checks.
• Freestyle Base components: The portable plastic base for using hoops away from the station.
• Adjustable Fixture: The heavy-duty arms for larger hoops.
• Large Hoops: The 8x13 and 11x13 sizes.
• Hardware: Specific screws, nuts/bolts, and metal brackets for the larger hoops.

Consumable Alert: Before you start, grab a magnetic parts tray or a simple cup. The screws included are specific sizes; if they roll onto a carpet, you cannot just replace them with generic hardware store screws without risking damage to the hoop threads.

One more thing: If you are setting up mighty hoops for ricoma machines specifically, treat this unboxing as a compatibility audit. Confirm the bracket arms match your machine’s pantograph width immediately.

The “middle angle” station position: the fastest way to stop fighting shirts on the table

Delonda follows the manual’s guidance by moving the station to the middle angle. This isn't just a preference; it is physics.

What she does (Performance Step-by-Step):

1. Invert: Flip the station board over.
2. Unlock: Remove the wing nut from the back leg.
3. Adjust: Reinstall the wing nut into the middle slot.
4. Set: Stand the station back up so it sits at an ergonomic angle.

She notes the manual suggests the flat position for blankets or towels, but the middle angle is the industry standard for tubular garments like T-shirts and hoodies.

Why this matters (The Physics of Drape): When you hoop knits (T-shirts) on a flat table, you are fighting friction. You have to push the fabric away from you, which creates longitudinal stretch. When the hoop comes off, the fabric relaxes, and your design puckers.

By using the angled station, you let gravity do the work. The bulk of the shirt falls naturally away from the hooping area. This ensures the fabric is "at rest" when the magnet engages. Less manipulation means less distortion.

Warning: (Physical Safety) Magnetic hoops snap shut with approximately 10-30 lbs of force depending on size. Never test the snap with your fingers between the rings. Keep fingertips on the outer plastic housing at all times.

Assemble the Freestyle Base with a Phillips screwdriver—and don’t panic about the bolt heads

Delonda assembles the portable Freestyle Base using a Phillips screwdriver. This base is essentially a "mobile station" for items that don't fit the main board, like bags or sleeves.

What she does:

1. Fit: Slot the side walls to the base platform.
2. Fasten: Drive the screws through the side walls into the base.
3. Torque: Tighten until snug (do not over-tighten plastic).

She points out a detail that sparks anxiety in beginners: the bolt heads do not sit flush with the plastic surface.

My Veteran Take: That "not flush" detail is normal for this specific mold. However, if this causes the base to rock on your workbench, do not force the screws deeper—you will crack the housing. Instead, place a thin non-slip rubber mat (like a drawer liner) under the base. It absorbs the unevenness and prevents the base from sliding when you are pushing into a bag.

Prep Checklist (Do this before you handle a single hoop)

• Workspace: Clear a table area at least 3 feet wide.
• Lighting: Position a task light directly over the station grid (you must see the number 19 clearly).
• Containment: Magnetic tray placed for hardware.
• Tools: Phillips head screwdriver (size PH2) ready.
• Mindset: "Magnet Respect" established—visualize where your fingers will go before the snap.

Align the 5.5" fixture to grid #19: the tiny sight-hole that makes placement repeatable

This is the calibration step where accuracy counts. The "fixture" is the jig that holds the bottom hoop in place.

What she does:

1. Separate: Pull the fixture from the top magnetic ring (Requires effort—slide sideways if stuck).
2. Locate: Find the small alignment "sight-hole" in the center of the fixture.
3. Target: Place the fixture on the station so the printed number 19 is visible through the hole.
4. Lock: Press the fixture's feet firmly into the peg holes.


Pro Tip: Why #19? For adult T-shirts (S-XL), setting the fixture at #19 usually places the design at the correct vertical position relative to the collar (approx 7-8 inches down from the shoulder seam). If you are using a hoop master embroidery hooping station, these numbers are your "save points." Write them down for every job type (e.g., "Kids Tees = #14, Adult Tees = #19").

Do a stabilizer-only test hoop first (yes, it’s worth the 30 seconds)

Delonda does something I mandate for all my trainees: she hoops only stabilizer first.

What she does:

1. Seat: Place the bottom hoop into the fixture recess.
2. Secure: Flip the magnetic side flaps open.
3. Place: Lay a sheet of Cam-Layer Cutaway Stabilizer over the bottom hoop.
4. Clamp: Use the side flaps to hold the stabilizer taut.
5. Snap: Bring the top magnetic hoop down over the guide pins until it engages.


Why this matters (Sensory Calibration): You are calibrating your hands. Stabilizer is flat and stiff.

• Audio Check: You should hear a sharp, singular CLACK sound. A dull thud usually means the hoop isn't aligned or fabric is bunching.
• Tactile Check: The stabilizer should feel "drum tight." Tap it—it should create a resonant sound. If it makes a floppy paper sound, your stabilizer sheet is too small or wasn't held taut by the flaps.

Warning: (Magnet Safety) These magnets produce strong fields. Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards. If you have medical implants, consult your doctor before using magnetic hoop systems.

Hoop a T-shirt on the 5.5" Mighty Hoop: the “drum-tight” look without stretching the knit

After the test, Delonda repeats the process with a shirt. This is the moment of truth.

What she does:

1. Load: Bottom hoop seated, magnetic flaps holding the cutaway stabilizer.
2. Drape: Pull the shirt over the station, threading the neck opening onto the neck guide.
3. Smooth: Run hands from the center outward to remove wrinkles (do not pull!).
4. Snap: Bring the top ring down.
5. Release: Remove the hooped garment.


Expert Insight (The "Neutral Tension" Rule): Beginners often think "hooping tight" means "stretching tight." This is wrong. You want the fabric to be neutral.

• The Problem: If you pull a knit shirt until the ribs expand, you are stitching into stretched fabric. When you un-hoop, the fabric shrinks back, but the thread doesn't. result: Puckering.
• The Fix: Let the mighty hoop 5.5 do the work. Its magnetic force clamps the fabric downward against the stabilizer, creating surface tension without lateral stretch. Use your hands only to gently smooth wrinkles, like you are ironing with your palm.

Install the 11x13 bracket hardware the right way (back-to-front screws or you’ll redo it)

Delonda moves to the large hoop setup. This is the only part of the process that requires "assembly," and it is where 50% of people fail on the first try.

What she does:

1. Identify: Locate brackets labeled L (Left) and R (Right).
2. Insert: Push the flat-head screws from the BACK of the plastic frame toward the FRONT.
3. Mount: Place the metal bracket over the visible threads.
4. Tighten: Secure with nuts.






The Failure Point (Watch Out): If you insert screws from the front, the beveled head of the screw will rest on the metal bracket instead of countersinking into the plastic. This creates a weak connection. As Delonda emphasizes: Screws go in from the back.

For shops handling jacket backs, the mighty hoop 11x13 is the workhorse. A loose bracket on this heavy hoop can cause it to detach from the machine arm mid-stitch—a catastrophic failure. Check these screws weekly.

Set the adjustable fixture to row #5 and fit the 8x13 hoop width before you touch a shirt

The 5.5" fixture is fixed size. For larger hoops, you use the "spider legs" (Adjustable Fixture).

What she does:

1. Clear: Remove the small fixture.
2. Install: Insert the Adjustable Fixture base feet into row #5.
3. Width: Slide the top horizontal arms out. Place the 8x13 bottom hoop into the arms to set the width.
4. Lock: Tighten the rear knobs to freeze the width.




Why Row #5? Like #19 for the small fixture, Row #5 is the geometric sweet spot for "Standard Adult Back" placement on this station. It positions the hoop low enough that the collar isn't bunched against the neck guide, but high enough to remain on the flat part of the board.

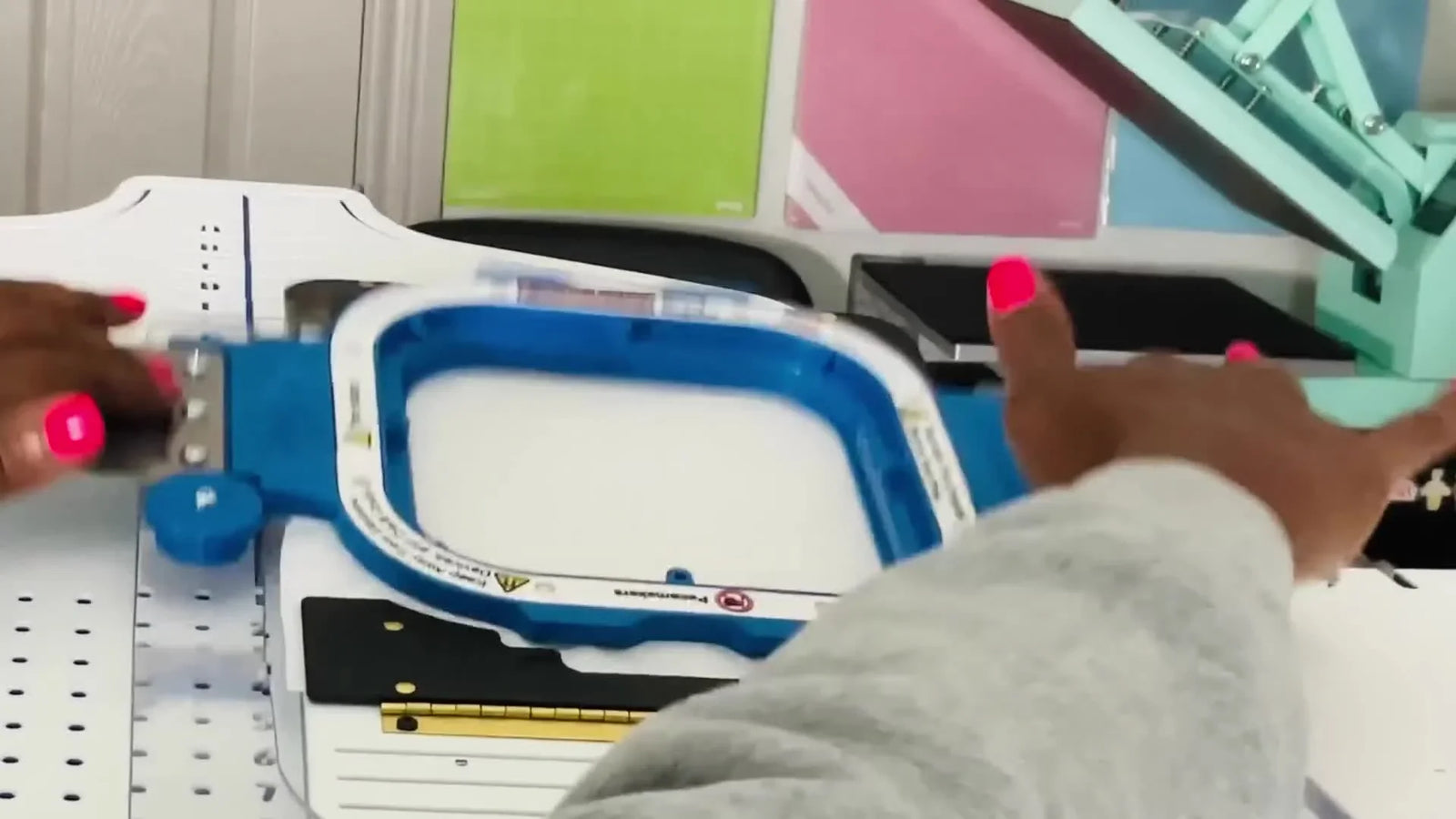

Hoop a black T-shirt on the 8x13 fixture: collar alignment, stabilizer coverage, and the “oops upside down” save

Delonda demonstrates the real-world workflow with a black tee.

What she does:

1. Prep: Bottom hoop in fixture, stabilizer held by flaps.
2. Align: Shirt draped, collar centered on the neck guide.
3. Check: She realizes she placed the design orientation upside down and corrects it.
4. Snap: Clamps the 8x13 hoop.




The "Upside Down" Reality: Orientation mistakes happen to everyone.

• Visual Anchor: Always mark "TOP" on your hoops with a silver sharpie or tape if the bracket doesn't make it obvious.
• The Workflow Rule: Before you snap the mighty hoop 8x13, pause for 2 seconds. Look at the neck guide. Look at the hoop brackets. Do they match the machine direction?

Setup Checklist (Before hooping the first production garment)

• Station Angle: Verified set to "Middle" for shirts.
• Fixture Security: Fixture pegs fully inserted (not floating).
• Hardware Tightness: Brackets on large hoops tightened with a screwdriver (not just finger tight).
• Stabilizer Size: Stabilizer cut at least 1 inch larger than the hoop on all sides.
• Orientation: "Top" of the hoop identified.

The “why” behind the snap: clamp consistency is what reduces re-hooping and registration headaches

Delonda says, "I have never ever hooped that tight." This is the transformative benefit for multi-needle users.

Manufacturers like Ricoma, Tajima, or Barudan are powerful. If your hoop is loose, the needle penetration force will push the fabric down like a trampoline (flagging), causing skipped stitches and bird nesting. magnetic embroidery hoops eliminate this flagging by applying continuous pressure around the entire perimeter.

Tool Selection Logic: This tight clamping is why experienced shops eventually move away from traditional screw-tightened hoops for everything except caps and pockets. The consistency speed becomes a competitive advantage.

Troubleshoot the three most common beginner problems (and fix them in minutes)

If you run into issues, use this prioritized diagnostic list.

A stabilizer decision tree for shirts vs hoodies (so you stop guessing)

Delonda uses cutaway stabilizer for her demo. This is correct. Beginners often use tearaway because "it's cleaner," but that creates holes in T-shirts over time.

Decision Tree: What goes under the hoop?

1. Is the fabric stretchy? (T-shirts, Polos, Performance Wear)
   • YES: Use Cutaway (2.5oz - 3.0oz). Must hold the stitches when fabric flexes.
   • Expert Tip: Use "No-Show Mesh" for white/thin shirts to prevent the stabilizer square from showing through.
2. Is the fabric stable/thick? (Jackets, Towels, Canvas bags)
   • YES: Tearaway is acceptable.
   • EXCEPTION: If the design has a very high stitch count (>15,000 stitches), use Cutaway even on jackets to prevent outline shift.
3. Is there fuzz/pile? (Towels, Fleece)
   • YES: Add Water Soluble Topping (Solvy) on top of the fabric to keep stitches from sinking in.

The upgrade path I’d recommend in a real shop (tools that pay you back)

Delonda’s setup represents a "Professional Level" workflow. But how do you know when you need to upgrade? Use this business logic to decide.

1. The "Hoop Burn" & Pain Barrier

• Trigger: You are getting "hoop burn" (shiny rings) on customer shirts, or your wrists hurt from tightening screw hoops.
• The Solution: This is where Magnetic Hoops are essential. Whether you use a Ricoma or need compatible frames for other machines, Sewtech Magnetic Hoops offer the same physics—fast clamping, zero hoop burn—often at a more accessible entry point for growing shops.

2. The Volume Barrier

• Trigger: You are turning down orders of 20+ shirts because you can't hoop/stitch fast enough on a single needle.
• The Solution: You need a multi-needle machine. A SEWTECH 15-needle machine increases throughput significantly, allowing you to queue colors without manual changes.

3. The Consistency Barrier

• Trigger: You have the machine, but 1 in 10 shirts is crooked.
• The Solution: You need a Station. The ricoma mighty hoop starter kit (or compatible Hoop Master system) solves the alignment variable.

The “worth it” question: what the comments reveal about real ROI

ROI (Return on Investment) in embroidery isn't just money; it's confidence. A commenter noted they struggled with their Ricoma EM1010 because they "couldn't hoop tight enough."

If hooping loosely costs you one ruined hoodie ($20 cost) per week, and adds 5 minutes of struggle per shirt:

• Loss: $1000+/year in ruined stock.
• Time Loss: 40+ hours/year fighting hoops.

The investment in a magnetic system pays for itself in under 6 months for any active shop.

Operation Checklist (The "Pre-Flight" 20 Seconds)

• Orientation: Is the design top actually at the top?
• Smoothness: Is the fabric flat (no ripples) under the magnetic ring?
• Clearance: Is the rest of the shirt hanging deeply enough that it won't get sewn to the machine arm? (The "shirt trap" check).
• Safety: Are your fingers clear of the snap zone?
• Secure: Did you hear the solid SNAP?

Embroidery is a game of managing variables. By locking down your hooping process with the right tools and physics-based techniques, you stop hoping for good results and start manufacturing them.

FAQ

• Q: How do I stop a Hoop Master Station from stretching knit T-shirts when hooping with a Mighty Hoop at the flat table position?
  A: Set the Hoop Master Station to the “middle angle” for tubular garments so gravity, not your hands, controls the drape.
  • Flip the station, move the wing nut to the middle slot, and stand the board back up at the ergonomic angle.
  • Drape the shirt so the bulk hangs away from the hooping zone; smooth wrinkles with palms instead of pulling.
  • Success check: The fabric looks “drum-tight” under the ring without visibly expanding the knit ribs.
  • If it still fails: Reduce handling—re-hoop using the angled station and focus on smoothing only (no tugging).
• Q: How do I align the 5.5" Mighty Hoop fixture on a Hoop Master Station grid to number 19 without getting crooked left-chest placement?
  A: Use the fixture’s center sight-hole and lock it so the printed “19” is visible through the hole before hooping any garment.
  • Separate the fixture from the top ring (slide sideways if it feels stuck).
  • Place the fixture so “19” is centered in the sight-hole, then press the feet fully into the peg holes.
  • Success check: The fixture does not “float” or shift when you press on it, and repeated hoopings land in the same spot.
  • If it still fails: Re-seat the fixture pegs firmly and improve lighting so the grid number is clearly readable.
• Q: How do I do a stabilizer-only test hoop with a 5.5" Mighty Hoop to verify clamp strength before hooping a T-shirt?
  A: Hoop stabilizer first to calibrate sound and feel; it takes 30 seconds and prevents wasted shirts.
  • Seat the bottom hoop in the fixture and open the magnetic side flaps.
  • Lay cutaway stabilizer over the hoop, hold it taut with the flaps, then snap the top ring onto the guide pins.
  • Success check: You hear a sharp single “CLACK,” and the stabilizer taps like a drum (resonant, not floppy).
  • If it still fails: Re-check alignment on the guide pins and ensure the stabilizer sheet is large enough to stay taut under the flaps.
• Q: How do I install Mighty Hoop 11x13 bracket hardware correctly to stop the bracket from wobbling during embroidery?
  A: Insert the flat-head screws from the BACK of the plastic frame to the FRONT so the screw heads countersink properly.
  • Identify Left (L) and Right (R) brackets before tightening anything.
  • Push screws back-to-front, place the metal bracket over the threads, then tighten the nuts securely.
  • Success check: The bracket has no play when you wiggle it by hand, and the screw heads sit correctly in the plastic.
  • If it still fails: Remove and re-install with the correct screw direction; if it loosens often, apply a small drop of blue threadlocker.
• Q: How do I separate a Mighty Hoop fixture from the top magnetic ring when the magnet suction feels “stuck”?
  A: Slide the ring sideways first—don’t try to lift straight up against the magnetic suction.
  • Grip firmly and shift the top ring sideways until it slightly overhangs the fixture edge.
  • Lift once the suction breaks instead of fighting the full contact area.
  • Success check: The ring releases with a controlled break-away feeling, not a sudden jerk.
  • If it still fails: Reduce contact area further by sliding more to the edge, then lift; avoid prying tools that can damage plastic.
• Q: What are the safety rules for closing Mighty Hoops magnetic embroidery hoops to prevent finger pinches during hooping?
  A: Keep fingers off the pinch zone and only hold the hoop on the outer housing/secure grip points before the snap.
  • Plan your hand placement before bringing the top ring down; never “test the snap” with fingers between rings.
  • Keep fingertips on the outer plastic housing while closing and move hands away as the magnets engage.
  • Success check: The hoop closes with a firm snap and zero finger contact near the ring gap.
  • If it still fails: Slow down the closing motion and reset your grip—pinches happen most when hands hover near the closing edge.
• Q: What magnetic field safety precautions should I follow when using magnetic embroidery hoops around pacemakers, insulin pumps, and credit cards?
  A: Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and credit cards, and get medical guidance for implants.
  • Store hoops away from wallets, phones with magnetic stripes, and medical devices.
  • Keep the work area organized so hoops are not set down near personal items by habit.
  • Success check: The hooping station area stays “device-clear,” and hoops have a dedicated storage spot.
  • If it still fails: Create a fixed “no-device zone” around the station and relocate personal items before hooping starts.
• Q: When hooping keeps causing hoop burn, slow production, or crooked shirts, how do I choose between technique improvements, magnetic hoops, or upgrading to a SEWTECH multi-needle machine?
  A: Use a staged approach: optimize hooping technique first, switch to magnetic hoops for clamp consistency, and upgrade machines when volume demands it.
  • Level 1 (Technique): Use the middle angle for shirts, do a stabilizer-only snap test, and follow a short pre-flight check (orientation, smoothness, clearance, finger safety).
  • Level 2 (Tool): Move to magnetic hoops when screw hoops cause hoop burn, wrist pain, or inconsistent clamping that leads to re-hooping/registration issues.
  • Level 3 (Capacity): Move to a multi-needle machine when orders are limited by color-change time or you’re turning down 20+ shirt runs due to throughput.
  • Success check: Re-hooping drops and placement becomes repeatable job-to-job.
  • If it still fails: Add a dedicated hooping station workflow (record grid positions like “#19” and “row #5”) to remove alignment variables before changing machines.
