From Box Panic to Production-Ready: Setting Up the 5.5" Mighty Hoop Starter Kit the Way a Shop Actually Uses It

If you’ve ever opened a new hooping kit and felt that little spike of panic—“Did I lose a part already?”—you’re not alone. I’ve watched brand-new shop owners freeze at the unboxing stage, not because the kit is complicated, but because one missing screw (or one wrong angle setting) can turn a smooth day into an hour of second-guessing.

Embroidery is an experience-based science. It’s about feel, sound, and precision. This post rebuilds the exact setup shown in the video for the 5.5" Mighty Hoop Starter Kit, but with the extra shop-floor details—the "sensory checks"—that keep you from stripping hardware, fighting tight tolerances, or mounting the wrong way when you’re in a hurry.

What’s Actually in the 5.5" Mighty Hoop Starter Kit (and what each piece is for)

The video starts with a clean inventory check—do this before anything else. You should have:

• One Standard HoopMaster Station
• One 5.5" Mighty Hoop (magnetic hoop)
• One 5.5" Mighty Hoop Fixture with FreeStyle Arm
• One Portable Mounting Base
• One T-Square

This kit is positioned as a “workhorse size” for left/right chest placement, and it also shows up well for center chest logos, hand towels, tote bags, bucket hats, onesies, and more.

One sentence that matters for business owners: the 5.5" size is small enough to control distortion on many garments, but big enough to keep your daily logo work moving—especially if you’re building a repeatable workflow around a mighty hoop starter kit.

The "Hidden" Consumables You Need

Before we start building, check your supply shelf. A perfect hoop setup fails without the right consumables. Ensure you have:

• Stabilizer (Backing): For standard knits (polos/tees) with a magnetic hoop, you typically need a cutaway stabilizer (2.5oz or 3.0oz). Magnets hold fabric, but stabilizer holds the stitches.
• Temporary Adhesive Spray: A light mist helps the backing stick to the garment during the magnetic snap process.
• Water Soluble Pen: For marking center points before you get comfortable with the grid.




The “Clean Table Rule”: set up your workspace so tiny parts don’t disappear

Before you touch the station legs or open the hardware bag, copy the video’s first practical habit: work on a clean surface so you don’t lose small parts.

In production shops, I like a simple rule: nothing leaves the box until there’s a “parts zone.” A shallow tray, a magnetic parts dish, or even a white towel works. The goal is contrast—silver screws on a dark table vanish fast.

Prep Checklist (do this before you loosen a single screw)

• Workspace: Clear a flat surface large enough for the station and portable base (approx. 24" x 24").
• Containment: Set a small tray aside for screws/nuts and the black wing nut.
• Inventory: Confirm you have the Station, Portable Base top + hardware bag, Base legs, and Fixture box in front of you.
• Protection: Open the Fixture box and locate the 5.5" Mighty Hoop and T-Square (set them aside immediately so they don’t get bumped or demagnetized).
• Tools: Grab a Phillips head screwdriver (you’ll need it for the portable base).

If you’re running a home setup and hooping is physically hard on your hands, this is also where many operators decide to upgrade to magnetic embroidery hoops (or a compatible magnetic frame system) because it reduces the “death-grip” force that causes hoop burn and wrist fatigue.

Dial in the HoopMaster Station angle (Position 1 vs 2 vs 3) so hooping feels effortless

The video shows three station positions:

• Position 1: flat
• Position 2: slightly angled (approx. 15-20 degrees)
• Position 3: highest angle (most steep)

In the demonstration, the station is set to Position 2.

Here’s the practical reason angle matters: Ergonomics and Gravity. When the station is too flat (Position 1), you tend to lean over the table, pressing down harder with your shoulders and wrists. This leads to fatigue. When it’s too steep (Position 3), lightweight garments (like performance tees) can “creep” or slide down the board before you can clamp them.

Position 2 is the "Sweet Spot" for chest placements. It uses gravity just enough to drape the shirt naturally, ensuring the fabric lays flat against the grid without sliding away.

If you’re setting up a hoopmaster station for the first time, don’t treat the angle as “set it once and forget it.” Many shops keep one angle for polos/tees and another for bags or thicker items.

How to change the station to Position 2 (exactly as shown)

1. Inverse: Flip the station over to access the thumb screws.
2. Loosen: Turn the thumb screws counter-clockwise. You don't need to remove them fully, just enough to slide the leg.
3. Slide: Move each leg so the screw aligns with the Position 2 holes (middle angle).
4. Confirm: Visually check that the screw threads are clearly inside the Position 2 notch.
5. Tighten: Re-tighten the thumb screws firmly by hand.
6. Test: Flip the station back over and press on the corners.

Checkpoint: Both legs must be in the same position. If one leg is in Position 1 and the other in Position 2, the station will rock like a wobbly table.

Expected outcome: The station sits stable, with a noticeable but not extreme tilt. It should not slide when you apply moderate downward pressure.

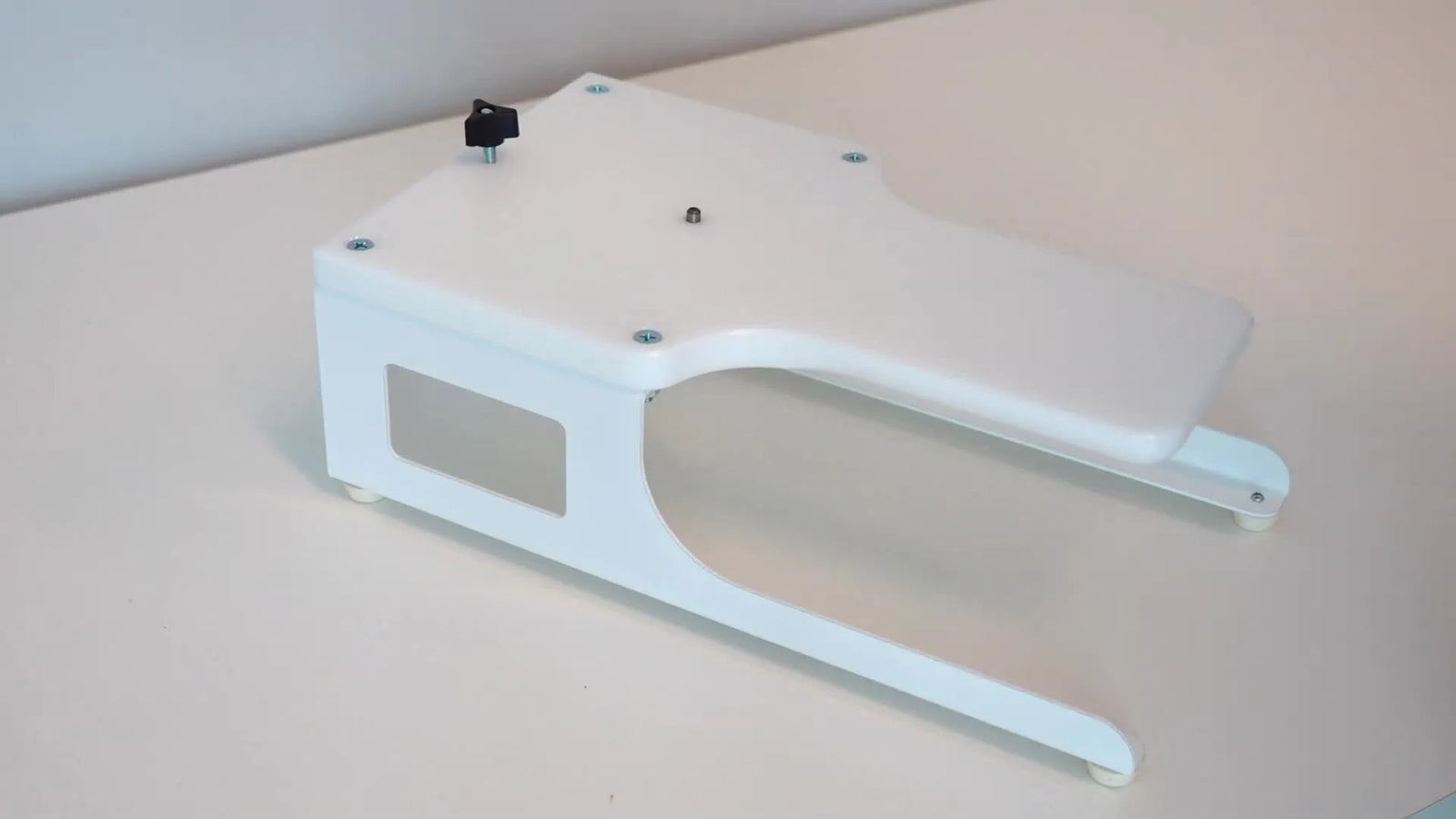

Build the Portable Mounting Base without stripping hardware (the “hand-tight first” habit)

This is the step where people rush, and rushing is how you cross-thread nuts or chew up screw heads. Mechanical sympathy is required here.

The video’s sequence is correct and worth following exactly:

1. Strip: Remove rubber bands from the legs and remove the Styrofoam packaging.
2. Access: Unscrew the black wing nut on the Portable Mounting Base top to access the attached hardware bag.
3. Separate: Slide the hardware bag off the screw.
4. Store: Put the wing nut back on the screw immediately (you’ll need it later, don't lose it).
5. Audit: Confirm you have four screws and four nuts.
6. Orient: Flip the base top over so the underside feels rougher or shows the molding marks.
7. Insert: Insert each screw from the bottom (flat side) up through the base.
8. Mount: Place the metal leg over the exposed screw threads.
9. The Golden Rule: Hand-tighten the nut first. Spin it until it hits the metal.
10. Repeat: Do this for all four legs.
11. Final Torque: Finish tightening with a Phillips head screwdriver only after all nuts are hand-seated.

The key nuance from the video: get the nuts as tight as possible by hand first, then snug with the screwdriver. That prevents the leg from sitting crooked/binding while you tighten.

Warning: Keep fingers clear when tightening hardware and when handling sharp tools. A slipping screwdriver can puncture skin or gouge the plastic base—tighten with controlled pressure, not speed. Ensure the screwdriver head size matches the screw to prevent stripping.

Setup Checklist (portable base “ready for use” verification)

• Debris Free: Rubber bands and Styrofoam are fully removed.
• Audit: Hardware bag is empty (no extra nuts hiding).
• Orientation: All four screws are inserted from the bottom up.
• Flush Fit: Each metal leg sits flush against the plastic base (no daylight visible between metal and plastic).
• Torque: Nuts were hand-tightened first, then tightened with the screwdriver until resistance was felt.
• Ready State: The black wing nut is back on the top screw and spins freely.

The tight-fit moment: separating the 5.5" Fixture from the FreeStyle Arm without cracking anything

New kits often feel “stuck,” and the video calls that out directly. This is not a defect; it is a friction fit.

To separate the parts:

1. Grip: Hold the metal FreeStyle Arm firmly with one hand.
2. Pull: Pull up firmly on the yellow plastic Fixture with the other hand.
3. Push: Simultaneously push down on the metal FreeStyle Arm.

It may be difficult at first. You might hear a "pop" sound when it releases. This is normal manufacturing tolerance behavior: new plastic and metal interfaces can have a slightly higher friction fit until they’ve been cycled a few times.

Checkpoint: you should feel a clean release—not a twisting pop. If you’re twisting aggressively, stop and reset your grip so the force is straight up/down to avoid warping the alignment pins.

Expected outcome: the fixture separates without stress marks or bending.

Mount the 5.5" Fixture onto the Station grid so your placement stays “spot on”

The video shows a simple but important alignment method: the fixture board has pins on the back, and the station has a numbered hole grid.

To mount:

1. Select: Choose where you want the fixture on the station (usually centered for adult garments, or offset for youth).
2. Align: Line up the center hole on the fixture with a number on the station (e.g., locking it into row "E").
3. Engage: Make sure the pins on the back of the fixture align with the corresponding holes.
4. Lock: Push down firmly.


This is where hooping stations earn their keep: Repeatability. If you place the fixture on Row E, Number 12, every single shirt you hoop will have the logo in the exact same spot relative to the collar. The station becomes your “placement memory.” That’s why many commercial embroiderers build their workflow around a magnetic hooping station rather than freehand hooping.

Seat the FreeStyle Arm on the Portable Mounting Base (flush + aligned, or it will fight you later)

Now move to the portable base. This is used for items that cannot be laid flat (bags, hats).

The video’s method:

1. Place: Set the FreeStyle Arm onto the central screw of the Portable Mounting Base.
2. Align: Ensure the small alignment pin on the base fits into the corresponding hole on the metal arm.
3. Secure: tighten the black wing nut.


This “flush” detail is not cosmetic—it’s structural. Sensory Check: Wiggle the arm before tightening the nut. If it rocks back and forth, the pin is not in the hole. If it sits solid like a rock, it's seated. If the arm isn’t seated, you’ll feel rocking during hooping, and that rocking turns into inconsistent hoop engagement pressure. In real production, that’s how you get subtle shifting on bags and hats.

Expected outcome: the arm sits flat with no wobble, and the wing nut tightens down smoothly.

Swapping the 5.5" Fixture between Station and FreeStyle Arm (the fast-change workflow)

The video shows the advantage of the system: you can move the same yellow fixture between the main station and the portable base depending on what you’re hooping.

To use the fixture on the portable base:

1. Remove: Pull the fixture straight up off the station.
2. Target: Line up the "bullseye" hole on the FreeStyle Arm with the corresponding pin on the fixture.
3. Lock: Seat it so it locks in firmly.

You can swap the fixture at any time depending on your embroidery needs.

This is the workflow that makes sense for mixed orders—shirts on the station first, then a tote bag or bucket hat on the portable base—without re-learning placement every time.

The “Why it works” behind magnetic hooping: tension, distortion, and fewer ruined garments

Magnetic hooping isn’t magic—it’s detailed physics. It relies on controlled, surface-area clamping.

• Traditional Screw Hoops: rely on friction at the edge. To get the drum-tight feel, operators often over-tighten, creating "hoop burn" (crushed velvet/fibers) or "racking" (distorting the knit grain).
• Magnetic Systems: apply vertical pressure. This sandwich effect holds the fabric without stretching it.

The Stabilizer Factor: Magnets don’t replace good stabilization. In commercial work, the cleanest results come from a “system” mindset: Fabric + Correct Stabilizer + Needle + Thread + Hooping Method.

• Tip: For performance wear, use one layer of Cutaway stabilizer. The magnetic hoop will minimize the "ring" mark that screw hoops often leave on polyester.

The Limit: If you’re hooping slippery bags or thick seams, magnetic systems can still shift if the item is under-tensioned or if the hoop is fighting extreme bulk. That’s when a shop considers a Tool Upgrade Path: if you’re spending 5 minutes wrestling each tote bag, a magnetic frame solution (including options like our magnetic hoops/frames for home single-needle machines or industrial multi-needle machines) can be the difference between hobby pace and production pace.

Decision Tree: choose Station vs Portable Base (and when a magnetic frame upgrade pays off)

Use this quick decision tree when you’re deciding how to hoop today’s job:

START HERE

1) Is the item mostly flat and easy to lay out (Tees, Polos, Towels, Hoodies)?

• YES: Use the HoopMaster Station.
  • Why: Gravity helps alignment; faster repeatability.
• NO: Go to Step 2.

2) Does the item have depth, tubes, or awkward structure (Tote Bags, Bucket Hats, Onesies, Sleeves)?

• YES: Use the Portable Base + FreeStyle Arm.
  • Why: Allows the item to "hang" open without the back of the bag/hat getting caught in the hoop.
• NO: Go to Step 3.

3) Are you doing high volume (50+ items) of the same placement?

• YES: Standardize on one setup.
  • Upgrade Consideration: If your single-needle machine is too slow for this volume, consider a high-value multi-needle platform (like SEWTECH). Combined with magnetic frames, you can hoop the next shirt while the current one stitches.
• NO: Use whichever setup feels more stable for your hand strength.

One practical note: if your team complains that hooping is “slow and tiring,” that’s not a personality problem—it’s usually a workflow/tooling problem. That’s where hoop master embroidery hooping station style systems (and compatible magnetic frames) tend to show clear ROI by reducing wrist strain.

Real-world questions from viewers: machine compatibility, cost concerns, and the overwhelmed-first-day feeling

A lot of people comment the same thing in different words: the box arrives, and they feel overwhelmed—then the setup clicks and they’re relieved. That’s normal.

Two other themes show up:

“How do I attach it to the Ricoma 1010 (or other specific machines)?”

The comment reply in the thread is clear: Mighty Hoops use brackets specific to your machine brand. Arms width varies between Brother, Babylock, Tajima, and Ricoma.

• Action: When you buy your kit, you must select the correct bracket.
• Niche Search: People often look for a ricoma mighty hoop starter kit, but remember: the hoop is the same; the bracket is the variable. Treat bracket selection as non-negotiable—wrong bracket equals unsafe mounting and potential needle strikes.

“Great products but way too expensive.”

This is a fair reaction when you’re looking at the price tag instead of the cost of mistakes. In commercial embroidery, the hidden costs are:

1. Operator Fatigue: Slows down production by 20% in the afternoon.
2. ruined Garments: One ruined Carhartt jacket costs more than a standard hoop.
3. Rework: Unpicking stitches destroys profit margins.

A hooping station that reduces those errors maximizes the ROI of your machine time.

Troubleshooting: when the fixture feels stuck, wobbly, or “not square”

Here are the most common setup problems I see in shops, mapped to causes and fixes.

The “production-ready” finish: what to check before your first hoop

The video ends with a celebration moment—confetti and all—because once this is assembled correctly, you’re ready to hoop.

Before you run your first garment, do one last operational check. This prevents the classic first-job failure: everything assembled, but one connection not fully seated.

Warning: Magnet Safety
Magnetic systems utilize powerful Neodymium magnets.
* Pinch Hazard: These magnets snap together instantly with high force. Keep fingers away from the edges.
* Medical Devices: Maintain a safe distance (6 inches+) from pacemakers and insulin pumps.
* Electronics: Keep away from credit cards, phones, and computerized machine screens.

Operation Checklist (first-job sanity check)

• Angle: Station is stable and set to Position 2 (recommended for beginners).
• Lock: Fixture is fully pinned into the station grid (no lift at the corners).
• Base: Portable base legs are tight; base sits flat on table.
• Flush: FreeStyle Arm is flush on the portable base, alignment pin engaged.
• Cycle: You can remove and re-seat the fixture smoothly (no violent twisting).
• Stage: T-Square and hoop are staged nearby.
• Backing: You have the correct Cutaway stabilizer ready for your test run.

The upgrade path that feels natural (not salesy): when your hooping time becomes the bottleneck

Once you’ve set this kit up, you’ll quickly learn what your real bottleneck is. Listen to your workflow:

• "I'm waiting for the machine too long": If hooping is fast but the machine is slow, you are ready for a productivity jump. Consider a multi-needle machine (high-value options like SEWTECH allow you to prep the next run while the current one stitches).
• "My wrists hurt / The machine is waiting for me": If stitching is fast but hooping is the drag, upgraded tooling is the answer. Magnetic frames (compatible with your existing machine) are the cleanest efficiency upgrade—especially when you want to minimize re-hooping downtime.

If you’re already thinking, “I want this to be a business, not a struggle,” you’re asking the right question. The goal isn’t fancy gear—it’s a workflow that produces consistent placement, predictable quality, and less operator fatigue, day after day, with your 5.5 mighty hoop doing the same reliable job every time.

FAQ

• Q: What consumables are required before hooping with a 5.5" Mighty Hoop Starter Kit on polos or tees?
  A: Prepare stabilizer, a light temporary adhesive spray, and a washable marking pen before assembling or hooping.
  • Use cutaway stabilizer (2.5oz or 3.0oz) as a safe starting point for standard knits; magnets hold fabric, stabilizer holds stitches.
  • Mist temporary adhesive spray lightly to keep backing aligned during the magnetic snap.
  • Mark center points with a water-soluble pen until the grid becomes second nature.
  • Success check: The backing stays registered to the garment during hoop closure, and the fabric does not creep on the grid.
  • If it still fails… Switch to a more supportive stabilizer choice for the fabric and confirm the garment is laying flat before clamping.
• Q: Which HoopMaster Station angle setting (Position 1 vs 2 vs 3) is recommended for the 5.5" Mighty Hoop Starter Kit chest placements?
  A: Set the HoopMaster Station to Position 2 for most left/right chest work because it balances ergonomics and gravity control.
  • Flip the station over and loosen the thumb screws without removing them.
  • Slide both legs to the Position 2 holes (middle angle) and re-tighten firmly by hand.
  • Press on the corners to confirm stability before hooping.
  • Success check: The station does not rock, and the tilt feels noticeable but not extreme while the shirt lays flat without sliding.
  • If it still fails… Recheck that both legs are in the exact same position; mixed positions cause wobble.
• Q: How do I assemble the HoopMaster Portable Mounting Base without stripping screws on the 5.5" Mighty Hoop Starter Kit?
  A: Hand-tighten every nut first, then snug with a Phillips screwdriver only after all four legs are seated.
  • Put the black wing nut back on the screw immediately after accessing the hardware so it doesn’t get lost.
  • Insert screws from the bottom up, set each metal leg on the threads, and spin each nut on by finger until it hits metal.
  • Finish tightening with the screwdriver only after all nuts are hand-seated to prevent crooked binding and stripping.
  • Success check: Each metal leg sits flush with no “daylight” gap, and tightening feels smooth instead of gritty/jammed.
  • If it still fails… Loosen everything, reseat the leg flat, and restart with finger-tight first (tool comes last).
• Q: Why does the 5.5" Mighty Hoop Fixture feel stuck on the FreeStyle Arm, and how do I separate it safely?
  A: A tight friction fit on new parts is common; use straight pull/push force and do not twist.
  • Grip the metal FreeStyle Arm firmly with one hand.
  • Pull up on the yellow fixture while pushing down on the metal arm at the same time.
  • Cycle the connection a few times to reduce initial tightness.
  • Success check: The fixture releases with a clean “pop” and no stress marks or warped feel from twisting.
  • If it still fails… Stop twisting, reset your grip for straight up/down force, and try again with controlled pressure.
• Q: How do I stop the HoopMaster FreeStyle Arm from rocking on the Portable Mounting Base when using a 5.5" Mighty Hoop Fixture?
  A: Reseat the FreeStyle Arm so the alignment pin is engaged before tightening the black wing nut.
  • Remove the wing nut, lift the arm, and place it back down carefully.
  • Align the small pin on the base with the matching hole in the metal arm.
  • Wiggle the arm lightly before tightening to confirm it is seated.
  • Success check: The arm sits “solid like a rock” with zero wobble, and the wing nut tightens down smoothly.
  • If it still fails… Lift and reseat again; rocking almost always indicates the pin is not in the hole.
• Q: What safety precautions should new users follow when assembling a 5.5" Mighty Hoop Starter Kit with magnetic hoops?
  A: Treat the magnets and tools like pinch-and-puncture hazards—slow down and keep fingers out of danger zones.
  • Keep fingers away from hoop edges during closure because neodymium magnets snap together with high force.
  • Keep magnetic hoops at least 6 inches away from pacemakers/insulin pumps, and away from phones, credit cards, and screens.
  • Use the correct screwdriver size and controlled pressure to prevent slipping and hand injury during base assembly.
  • Success check: The hoop closes without fingers near the pinch point, and screws tighten without cam-out/slip.
  • If it still fails… Pause the setup, restage parts on a clean table, and reposition hands before attempting the snap or tightening again.
• Q: When should a shop upgrade from technique changes to magnetic frames or a multi-needle embroidery machine like SEWTECH if hooping becomes a bottleneck?
  A: Upgrade in layers: optimize setup first, then upgrade hooping tools if wrists/time are the problem, and upgrade to a multi-needle platform like SEWTECH if the machine speed becomes the limiter.
  • Level 1 (technique): Standardize station position and fixture grid placement so every garment repeats without re-measuring.
  • Level 2 (tooling): Move to magnetic hoops/frames when hooping causes wrist fatigue, slowdowns, or frequent hoop marks and re-hoops.
  • Level 3 (capacity): Consider a multi-needle machine like SEWTECH when hooping is fast but production waits on stitch time—especially on repeated runs.
  • Success check: The machine spends more time stitching and less time waiting, and placement stays repeatable job-to-job.
  • If it still fails… Track where minutes are lost (hooping vs stitching) for a few orders, then choose the upgrade that removes the true constraint.
