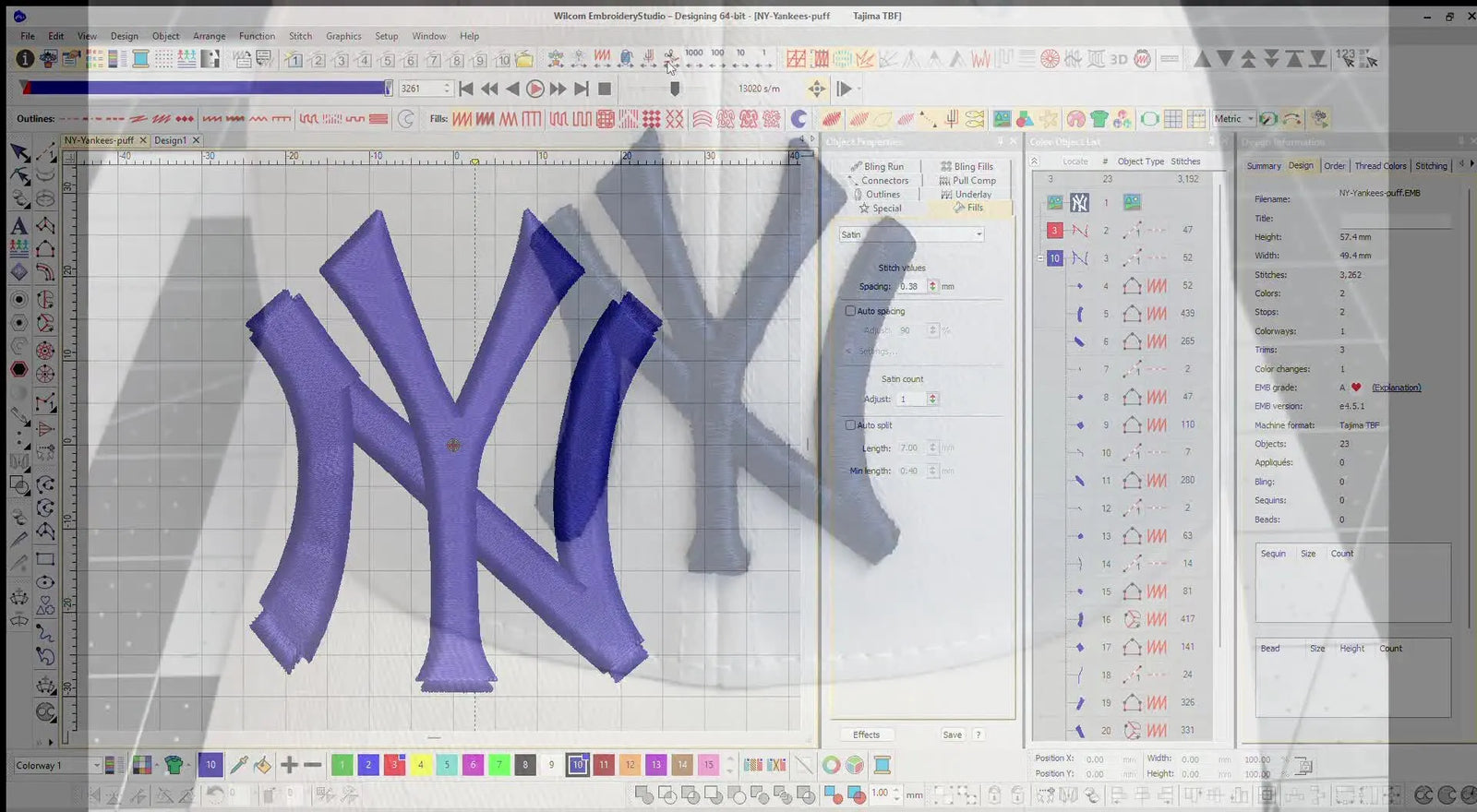

From Blueprint to a Clean 3D Puff NY Hat: Wilcom Density, Capping, and Overlap Tricks That Save You Re-Stitches

3D Puff Embroidery on Hats: The Ultimate Field Guide to "Clean & Crisis-Free" Digitizing

3D puff on hats is the "Mount Everest" of embroidery skills. When done successfully, it looks effortless, premium, and commands a high price point. But let’s be honest about the learning curve: it can be brutally unforgiving.

If you have ever watched your machine perforate a piece of foam into jagged confetti, seen corners explode into bulky messes, or watched a satin column "fight" an intersection until the needle breaks, you are not alone.

This guide rebuilds the workflow of digitizing a classic New York Yankees-style "NY" for 3D puff in Wilcom, but we are going deeper than the software buttons. I will overlay 20 years of shop-floor experience onto this tutorial, adding the sensory checks, safety margins, and "why didn't anyone tell me that" details that prevent wasted hats.

The Calm-Down Moment: Visualizing the "Messy Middle"

First, a psychological safety check. 3D foam embroidery is supposed to look bold and high-profile, but the process looks rough mid-way. Foam edges, tiny "crumbs," and slightly uneven corners are normal during the run.

Do not panic if your hat looks chaotic halfway through.

• Normal: Small flakes of foam around needle penetrations.
• Not Normal: The needle "chopping" the foam completely, create a hole.
• Not Normal: The satin stitches sinking so deep they disappear.

A lot of viewers asked to buy the file or get it in DST for testing. While that is a compliment, the bigger win is learning the architecture. If you understand the structure, you can fix a client's logo at 9 PM when support lines are closed.

The Blueprint: Structure Beats Luck (Placement → Tack Down → Satin)

The video starts with a hand-drawn blueprint over the hat image: arrows, segment numbers, and a plan to break the logo into logical sewing pieces.

This is not busywork. In professional embroidery, we call this Cognitive Chunking. You are breaking a complex problem into safe, manageable parts. This prevents the two classic cap disasters:

1. The "Trap": Digitizing a beautiful shape that stitches in a physically impossible order (causing puckering).
2. The "Crush": Forgetting that foam has height, changing how stitches sit.

In the tutorial’s plan, the structure is the "Holy Trinity" of puff:

1. Placement Stitch: A flat run to show you where to lay the foam.
2. Tack Down Stitch: A loose framework to hold the foam in place.
3. Main Satin: The high-density cover stitch.


The "Hidden" Prep: Before You Touch Wilcom

If you want your digitizing choices to match real-world results, prep like you are going to stitch today.

Prep Checklist (The "Hidden Consumables"):

• Foam Specs: Confirm density and thickness. The tutorial uses 3mm dense foam (gunold). Pro-Tip: If you use soft craft foam, your stitches will sink. Stick to dense embroidery foam.
• Thread Color: Match your foam color to your thread color whenever possible. The video shows Navy thread on a White cap. This is high-stakes; any gap will show.
• Needle Check: Use a Sharp 75/11 or 80/12. Ballpoint needles can tear foam rather than piercing it cleanly.
• Adhesion: Have a can of temporary spray adhesive or masking tape ready to hold the foam during the tack down.
• Cleanup Tools: A heat gun (not a hair dryer) and precision seam rippers.

If you are building this for production, decide now: are you making one hat, or fifty? If you are running production, efficiency matters. Terms like hooping station for machine embroidery are your gateways to understanding efficient production; consistent placement at the station means your digitizing alignment holds true for every single hat in the order.

The "Golden Numbers": Wilcom Density 0.18 mm + Capping 0.25 mm

In the video, the creator calls out two specific settings in Wilcom. These are your anchors.

• Density for 3D Puff: 0.18 mm
• Capping Density: 0.25 mm


Interpreting the Data for Your Machine

Numbers without context are dangerous. Here is what those settings physically do to your hat:

• 0.18 mm Density: This is very tight. Normal flat satin is usually 0.40mm. We essentially double the stitch count to cover the foam.
  • Sensory Check 1: When stitching, you should hear a dull "thud" sound as the needle penetrates foam. If you hear a high-pitched tearing sound, your specific machine might be running too fast for this density. sweet spot for beginners: Slow your machine down to 600-700 SPM (Stitches Per Minute) with this density to keep the needle cool.
• 0.25 mm Capping: This controls the density at the ends of the satin columns (the tips). We loosen it slightly compared to the body to prevent the needle from cutting the foam at the delicate edges.

Note on Units: If you use software that speaks in "Points" (like Tajima formats), 0.18mm is roughly 1.8 points. If you use "Stitches Per Inch" (SPI), you are looking at very high numbers. Stick to the video’s metrics as your baseline source of truth.

The "Overlap" Crisis: Solving Bulky Corners

The tutorial spends time on intersections: objects crossing, satin columns connecting, and the need for blending.

This is where most puff logos fail. Beginners tend to "butt" shapes up against each other. On foam, this creates a canyon where the foam pushes out.

The Physics of the Problem:

• Compression: Foam squishes.
• Push/Pull: The stitch shoves the foam outward.
• Stacking: If you overlap too much, you get a "hard bullet" spot that can break needles.

The video’s solution is to manage overlaps intentionally and use Corner Caps.

Why "Capping" Shapes Matters

A viewer asked why the caps are shaped with shorter width and circular cutouts. The creator replied that this method minimizes puff sticking out.

Think of a "Cap" object like a lid on a jar. It seals the raw edge of the satin column so the foam cannot escape.

• Visual Check: A good cap blends into the main column.
• Tactile Check: Run your finger over the intersection. It should feel smooth, not like a raised speed bump.

Trace First, Sequence Later: The "Manual Tracing" Discipline

At the tracing stage, the creator makes a crucial point: Don't obsess over sequence while tracing. Focus on the geometry first.

When placing nodes in Wilcom (or Hatch/Embrilliance), think like a needle:

1. Where will the satin "roll"? Satin stitches have a grain, like wood.
2. Where is the exit? Ensure your path doesn't trap the machine in a dead end, requiring a trim. Trims on foam are risky because the thread tail can get lost in the puff.


Setup Checklist (The "Pre-Flight" Inspection)

Before you run a simulation, stop. Do not trust your memory.

Mandatory Setup Checklist:

• [ ] Layer Check: Is the Placement stitch first, followed clearly by Tack Down, then Satin?
• [ ] Tie-Ins: Are your starts and stops buried inside the shape? (Visible knots on 3D foam look terrible).
• [ ] Capping Check: Do all open ends of your letters (like the tips of the 'N' and 'Y') have a capping object?
• [ ] Density Confirmation: Have you manually verified the 0.18mm spacing in Object Properties?
• [ ] Pathing: Does the design flow logically to minimize trims?

If you are teaching staff and using hooping for embroidery machine technique videos, add this checklist to their training manual. It separates operators from craftsmen.

The Simulation: The "Time Machine" Method

The video runs a Slow Redraw (Simulation) to verify starting points and sequencing.

In my shop, we look for "The Dance."

• Does the machine movement look erratic?
• Is it jumping from left to right unnecessarily?
• Rule of Thumb: If the simulation looks inefficient, the machine will vibrate, causing registration errors on the cap.

The file’s final specs shown are 3200 stitches at 2.25 inches tall. This is a heavy file for its size—exactly what we want for puff.

The Stitch-Out Reality: The "White Cap" Challenge

The finished example is a Navy logo on a White cap.

Why this is the ultimate test: White canvas creates maximum contrast.

• Shadows: Any gap in the thread shows the dark shadow of the foam hole.
• Bleed: Any navy lint shows on the white cap.
• Foam: Dark foam bits on a white cap are impossible to hide.

If your result looks clean on white, you have mastered the skill.

Cleanup: The Art of the Finish (Seam Ripper + Heat)

The stitch-out is done, but the hat isn't finished. You likely see small "hairy" bits of foam poking out.

The Protocol:

1. The "Poke": Use the tip of a seam ripper (or a specific poking tool) to gently shove stubborn foam bits back under the satin stitching.
2. The "Shrink": Use a Heat Gun to shrink the remaining micro-fuzz.


Warning: Physical Safety
A seam ripper is razor-sharp. When pushing foam, angle the tool away from your fabric and away from the thread. One slip can slice your satin column, destroying the hat instantly. Never "dig" blindly.

Warning: Heat Gun Danger
Heat guns are not hair dryers; they can reach 1000°F (500°C).
* Do not hold it in one spot. Keep it moving.
* Do not use high heat on polyester caps (they will melt/glaze).
* Do not overheat the thread (it can snap or lose sheen).
* Test your heat distance on a ruined cap first.

Troubleshooting: When Good Plans Go Bad

Even with perfect digitizing, machines have moods. Here is a diagnostic table for common issues mentioned in the comments.

A commenter mentioned issues with the Ricoma MT-1502. Multi-needle machines have different thread paths. If you see looping, check your Active Feed or tension knobs. Puff requires tighter top tension than flat embroidery because the thread must "slice" into the foam.

Decision Tree: Stabilizer & Hooping Strategy

The video focuses on caps, but viewers asked about performance fabrics. Here is how to make the right choice every time.

Stabilizer Decision Tree:

• IF creating a Structured Cap (Buckram front):
  • Use: Tearaway backing (2 layers) + 3mm Foam.
  • Why: The cap provides the stability; backing adds crispness.
• IF creating an Unstructured "Dad Hat":
  • Use: Heavy Cap Backing (Cutaway style) + 3mm Foam.
  • Why: The hat is floppy; the backing must build the "wall" for the embroidery.
• IF embroidering Performance Knits/Polos (Commenter Question):
  • Use: 2 Layers of No-Show Mesh (Cutaway) + Solvy Topper.
  • Strategy: Digitize Center-Out to push the fabric wave away from the design.

If you struggle with "Hoop Burn" (the ring mark left on fabric), you might be over-tightening traditional hoops. This is where researching a cap hoop for brother embroidery machine or generic equivalents becomes vital—understanding your frame's mechanics helps you apply the right pressure without damage.

The "Pain to Profit" Upgrade Path

You have mastered the digitizing. Now, the bottleneck shifts to your hands and your clock.

When should you upgrade your tools? Use this logic:

Level 1: The "Hobbyist" Constraint

• Pain: Hooping is slow, wrists hurt, and alignment varies by 1/4 inch every time.
• Solution: Use a basic hoop master embroidery hooping station or similar jig. Uniformity is the first step to professionalism.

Level 2: The "Side Hustle" Bottleneck

• Pain: You are rejecting orders because you can't hoop thick jackets or difficult bags. Traditional plastic hoops pop off.
• tool Upgrade: Magnetic Hoops (SEWTECH).
  • Why: Magnets adjust automatically to thickness. They hold tight without the "screw-tightening" struggle.
  • Search Intent: Many professionals search for how to use magnetic embroidery hoop when they realize standard hoops are killing their efficiency on thick items like Carhartt jackets. These terms usually lead to the solution of magnetic frames.
  • Benefit: Faster changeovers, no hoop burn, better grip on puff designs.

Warning: Magnetic Hoop Safety
Modern magnetic hoops use industrial Neodymium magnets.
* Pinch Hazard: They snap shut with extreme force. Keep fingers clear of the edge.
* Medical Device: Keep at least 6 inches away from pacemakers and insulin pumps.
* Electronics: Keep away from credit cards and phone screens.

Level 3: The "Production" Scale

• Pain: Changing 5 colors on a single needle machine takes longer than the embroidery itself.
• Upgrade: Multi-Needle Machine (SEWTECH/Ricoma/etc).
• Why: You set it, walk away, and it finishes the job. This is the only way to make money on team cap orders.

Operation Checklist (Final Go/No-Go)

Before you commit to the real hat, run this final physical check on the machine.

Operation Checklist:

• [ ] Presser Foot Height: Is it adjustable? For 3D foam (3mm), set it slightly higher (approx 2mm-3mm) so it doesn't drag the foam, but low enough to hold the cap stable.
• [ ] Thread Path: Is the thread creating a "snap" when pulled? (Tension should be tight).
• [ ] Bobbin: Do you have a full bobbin? (Running out of bobbin thread in the middle of a 3D puff satin is a nightmare to fix).
• [ ] Alignment: Is the design centered strictly on the seam?

Final Word: 3D Puff is 50% Art (Digitizing) and 50% Engineering (Stabilizers, Tensions, Hoops). Don't be discouraged if your first attempt looks like a "bad hair day." Record your settings, use the 0.18mm / 0.25mm baseline, and trust the simulation.

If you want to speed up the learning curve, consider tools like magnetic embroidery hoops to remove the variable of "bad hooping" from the equation, letting you focus purely on the embroidery quality. Now, go stitch something bold.

FAQ

• Q: What consumables must be prepared before digitizing 3D puff hat embroidery in Wilcom (3mm dense foam, needle, adhesive, heat gun)?
  A: Prepare the exact foam, a sharp needle, temporary adhesion, and cleanup tools before opening Wilcom, because these items change the real stitch result.
  • Confirm foam: Use dense 3mm embroidery foam (soft craft foam often sinks and looks flat).
  • Swap needle: Install a Sharp 75/11 or 80/12 (avoid ballpoint on foam).
  • Stage adhesion + cleanup: Keep temporary spray adhesive or masking tape, seam ripper/poking tool, and a heat gun ready.
  • Success check: During stitching, the foam should stay positioned under the tack down and not shift or lift at corners.
  • If it still fails: Re-check that foam thickness/density matches the test assumptions and replace the needle again (foam dulls needles fast).
• Q: Which stitch order should a 3D puff cap design follow (Placement Stitch → Tack Down Stitch → Main Satin) to avoid foam shifting and messy edges?
  A: Use the fixed 3-step structure—Placement first, Tack Down second, Main Satin last—so the foam is located, locked, then fully covered.
  • Run placement: Stitch a flat run line to show exactly where to place the foam.
  • Secure with tack down: Stitch a loose framework to hold the foam before any dense satin starts.
  • Cover with satin: Stitch the high-density satin last to fully cap the foam.
  • Success check: Mid-run, small foam flakes are normal, but the foam should not be “chopped” into a hole and the satin should not disappear into the foam.
  • If it still fails: Check digitizing for missing capping at open ends and verify the satin density settings.
• Q: What Wilcom density settings are a safe starting point for 3D puff hats (0.18 mm density and 0.25 mm capping), and how should machine speed be adjusted?
  A: Start at 0.18 mm satin density with 0.25 mm capping, and slow the machine to reduce heat and tearing risk.
  • Set density: Confirm 0.18 mm spacing in Object Properties for the main satin.
  • Set capping: Use 0.25 mm at satin tips/ends to reduce foam cutting at edges.
  • Slow down: Run about 600–700 SPM as a beginner when using this tight density.
  • Success check: The needle penetration should sound like a dull “thud” into foam, not a high-pitched tearing sound.
  • If it still fails: Inspect the needle eye for foam residue buildup and replace the needle; then re-test at the slower speed.
• Q: How can 3D puff embroidery bulky corners and intersections be reduced using intentional overlap control and corner capping?
  A: Reduce stacking and add proper caps at intersections so foam cannot escape and the crossing feels smooth.
  • Reduce overlap: Avoid piling multiple satin layers on the same corner “bullet” spot.
  • Add corner caps: Cap open ends and intersections so the raw foam edge is sealed under stitching.
  • Blend intentionally: Shape caps to minimize foam pushing out at the crossing.
  • Success check: Run a finger across the intersection; it should feel smooth, not like a raised speed bump.
  • If it still fails: Re-evaluate the overlap amount in digitizing and ensure every open end has a dedicated capping object.
• Q: What should be checked in Wilcom Slow Redraw simulation for 3D puff hat digitizing to prevent inefficient stitching and registration errors?
  A: Use Slow Redraw to verify logical pathing, minimal trims, and stable flow before committing to a real cap.
  • Watch the flow: Confirm the design does not jump left-to-right unnecessarily.
  • Minimize trims: Avoid trims on foam when possible because thread tails can get lost in the puff.
  • Verify starts/stops: Ensure tie-ins and tie-offs are buried inside shapes.
  • Success check: The simulated movement should look smooth and efficient; erratic “dancing” usually shows up as vibration and registration problems on the cap.
  • If it still fails: Re-path the objects to stitch in a more continuous order and re-run the simulation.
• Q: What are the safest cleanup steps for removing 3D puff foam fuzz on hats using a seam ripper and a heat gun without damaging satin stitches?
  A: Use a controlled “poke then shrink” cleanup, and treat both the seam ripper and heat gun as high-risk tools.
  • Poke safely: Gently push stubborn foam bits back under the satin with the seam ripper tip, angling away from fabric and thread (do not dig blindly).
  • Shrink carefully: Use a heat gun (not a hair dryer) to shrink micro-fuzz, keeping it moving and testing distance first.
  • Avoid damage: Do not hold heat in one spot; avoid high heat on polyester caps to prevent melting/glazing.
  • Success check: The edge should look clean with minimal visible foam hairs, and the satin column should remain uncut and continuous.
  • If it still fails: Stop and reassess—continuing to scrape or overheat can permanently slice stitches or distort the cap material.
• Q: How should a 3D puff embroidery workflow be upgraded when cap hooping is inconsistent or slow (Level 1 technique → Level 2 magnetic hoops → Level 3 multi-needle machine)?
  A: Upgrade in layers: fix repeatability first, then reduce hooping friction, then scale production with multi-needle equipment.
  • Level 1 (technique): Add a hooping station/jig to standardize placement and reduce alignment variation.
  • Level 2 (tool): Use magnetic hoops when thick or difficult items cause standard hoops to slip, pop off, or create hoop burn.
  • Level 3 (capacity): Move to a multi-needle machine when color changes on a single-needle machine become the main time bottleneck for cap orders.
  • Success check: Placement becomes repeatable hat-to-hat, hoop marks decrease, and rejections from shifting/poor grip drop noticeably.
  • If it still fails: Re-check hooping tightness on the cap driver strap and confirm the cap is tight against the needle plate before changing equipment.
