From Blank Screen to a Clean Heart Appliqué: Baby Lock Destiny IQ Designer Roses + Star Motif (Without the Usual Hooping Headaches)

If IQ Designer has ever made you hesitate—because you’re worried you’ll tap the wrong icon, ruin a hooping, or waste fabric—take a breath. We are going to treat this heart appliqué project not as a gamble, but as a controlled engineering process. It requires just one built-in shape, one background fill, and one outline motif.

Below, I have slowed the workflow down into clear checkpoints. My goal is to maximize your "Time to Success" while eliminating the fear of the unknown.

Calm the Panic: IQ Designer is a Shape-Builder, Not a Digitizer

When my students first sit in front of a Baby Lock Destiny, they freeze. They think they need to be graphic designers. You don't.

Kim’s approach works because it uses Closed Systems. You aren't importing risky external files; you are using the machine’s internal geometry. Your mission is simple:

1. Create Container: Place a heart.
2. Fill Container: Flood it with the Roses pattern (#004).
3. Seal Edges: Add a Star motif outline.
4. Fabricate: Stitch as a raw-edge appliqué.


The “Hidden” Prep: Physics Before Digital

Embroidery is 80% physics and 20% stitching. If your foundation (stabilizer + fabric) is weak, the best digital design will pucker.

The "Pillow Panel" Formula:

• Base Fabric: Cotton/Poly blend (needs structure).
• Stabilizer: Heavy Cutaway (2.5 - 3.0 oz). Do not use Tearaway here; the dense fill of the roses will perforate it, causing the design to separate from the fabric.
• Adhesion: Temporary Spray Adhesive (like KK100 or 505) or a glue stick.
• Needle: Size 75/11 Sharp or Universal. Ballpoints can deflect on crisp cotton.

Warning: Mechanical Safety. Keep fingers, curved scissors, and loose sleeves at least 4 inches away from the needle bar during operation. Never reach under the presser foot while the machine is "Live" (green button lit).

Prep Checklist: The "Go/No-Go" Gauge

• Consumable Check: heavy cutaway cut 2 inches larger than the hoop on all sides.
• Adhesion Test: Lift the fabric; the stabilizer should stick to the back without falling off.
• Needle Check: Run your fingernail down the needle tip. If it catches, throw it away. Install a fresh 75/11.
• Thread Path: Bobbin is wound with 60wt Bobbin Fill (not sewing thread). Top thread is seated in the tension discs (floss check).


Tap the Right Door: Entering the Workspace

On the Destiny startup screen, select IQ Designer.

• Visual Check: You should see a gridded background.
• Mental Mode: You are now in "Construction Mode," not "Stitch Mode."


Build the Heart: Using Built-In Primitives

Kim uses the standard library to guarantee a perfect vector shape.

1. Tap Shapes.
2. Select the Hearts/Nature category.
3. Choose the standard heart.
4. Press OK.

• Success Metric: A thin, red wireframe heart appears centered on your screen.


Make the Roses “Bloom”: The Flood-Fill Technique

This is the number one failure point for beginners: Tapping the canvas before selecting properties.

The Correct Sequence:

1. Select Tool First: Tap the Fill Cup (Region Property) icon.
2. Select Properties: Choose pattern #004 (Roses) and a Pink color.
3. Verify: Look at the icon in the top left. Does it show a pink square with a pattern?
4. Execute: ONLY now, tap inside the heart wireframe.

• Sensory Check (Visual): The inside of the heart turns from empty to a textured pink fill.

Many users struggle here because they don't understand the physical requirements of the design. When researching hooping for embroidery machine technique, remember: heavy fills like this rose pattern exert "pull force" that distorts fabric. This is why we bonded the stabilizer earlier.

Get a Crisp Edge: The Line Property Cup

We need a decorative border to cover the raw edge of our appliqué fabric later.

1. Select Tool: Tap the Line Cup (Line Property).
2. Select Properties: Choose the Star motif, Violet color.
3. Expert Setting: If available, ensure the Line Width is at least 3.0mm. Anything narrower may not cover your fabric cut lines.
4. Execute: Tap the outline of the heart.

• Sensory Check (Auditory): Listen for a sharp "Beep."
• Troubleshooting: If you don't hear the beep, you missed the wireframe. Use the stylus for precision.


The Pre-Flight Check: Specs Verification

Kim moves through Next → Preview → OK. Do not blindly press "Set." Read the data on the screen.

Data Verification:

• Hoop Size: Confirmed 200 x 300 mm (or your machine's equivalent).
• Stitch Count: approx. 7776 stitches. (If it says 20,000, your density is too high—go back and adjust).
• Dimensions: 5.96" x 6.52". Ensure this fits your physical pillow panel.


Hooping: The "Drum Skin" Standard

This is where the battle is won or lost.

1. Lay it flat: Place layout on the outer hoop.
2. Press: Push the inner hoop down.
3. Tighten: Tighten the screw.
4. The Tactile Test: Run your fingers over the fabric. It should feel smooth and taut, like a drum skin. If you pull on the fabric, it should barely deflect.

The "Slide Support" Protocol: When inserting the hoop into the machine, support the back of the embroidery arm with your left hand while sliding the hoop on with your right.

• Why? The stepper motors are precise but delicate. Forcing the hoop can misalign the carriage, leading to registration errors later.

The Upgrade Path: Solving "Hoop Burn"

If you find yourself constantly re-hooping to get the tension right, or if the hoop leaves permanent "burn marks" on delicate fabrics, this is a hardware limitation. Many professionals resolve this by upgrading to magnetic hoops for babylock embroidery machines. These use powerful magnets to clamp fabric instantly without the friction of an inner ring, reducing strain on your wrists and the fabric.

Warning: Magnet Safety. Magnetic hoops generate strong fields. Pinch Hazard: Keep fingers clear when magnets snap together. Medical: Keep at least 6 inches away from pacemakers. Data: Keep away from credit cards and smartphones.

Precision Placement: The Green Crosshair

1. Identify the Green Crosshair on the LCD screen (this represents the current needle position).
2. Place your appliqué scrap (Light Pink) over the corresponding area in the hoop.
3. Secure: Use a light mist of temporary spray adhesive on the back of the scrap so it doesn't flutter during the travel stitch.

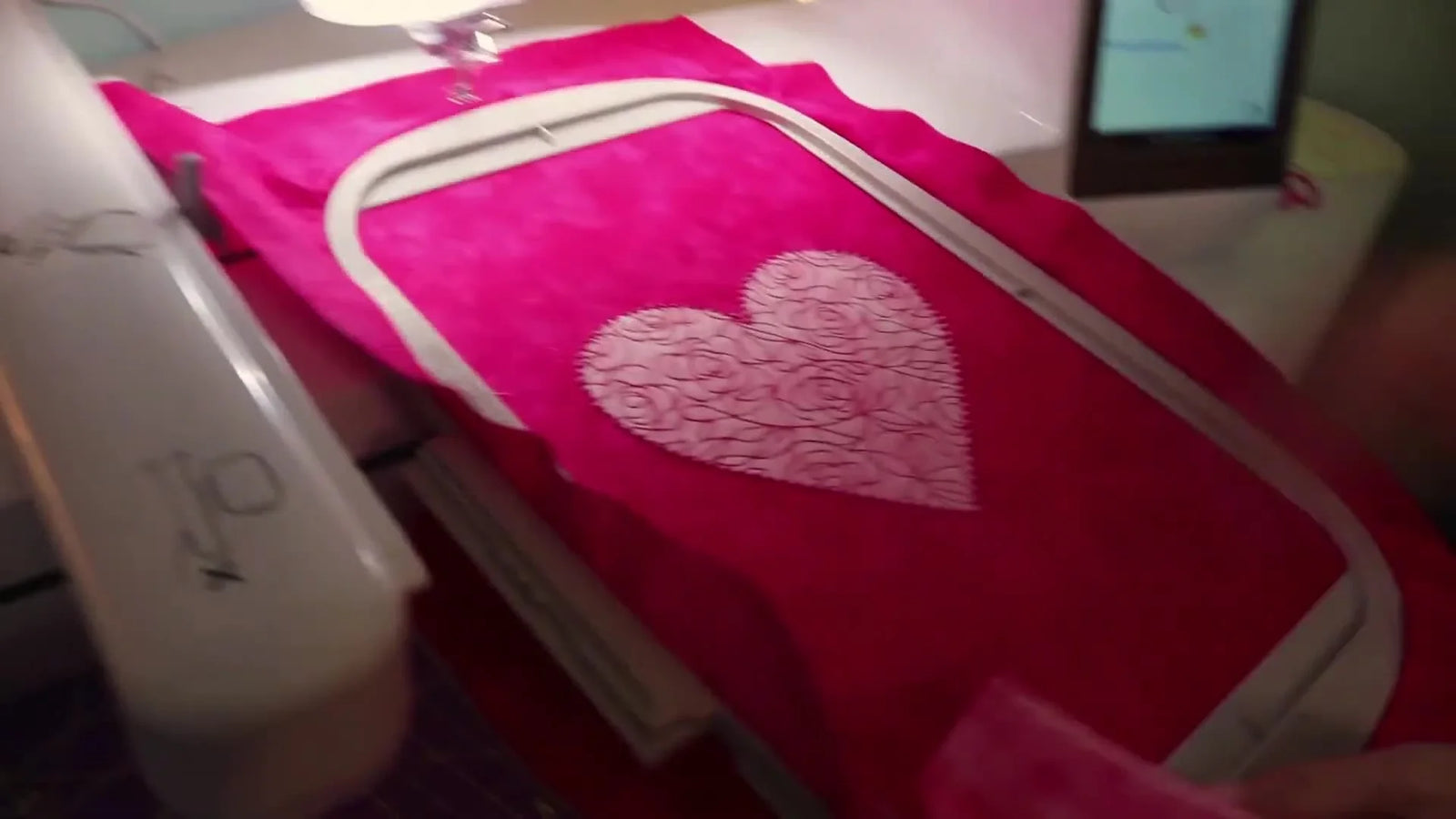

Stitching Phase 1: The Fill

Press the green "Start" button.

• Speed Recommendation: For the first layer, reduce your machine speed to 600 SPM (Stitches Per Minute). This prevents the fabric from flagging (bouncing) and ensures the fill lies flat.
• Observation: Watch the first 100 stitches. If the bobbin thread pulls to the top (white specks on pink), stop immediately and check your top tension.


The Surgical Trim: Technique over Force

The machine stops. Now you must trim the excess appliqué fabric.

1. Don't Unhoop: Leaving the hoop attached ensures perfect alignment for the next step. (Only remove the hoop if you are physically unable to reach).
2. The Tool: Use Double-Curved Scissors (often called "Appliqué Scissors").
3. The Action: Place the "bill" of the scissors flat against the stabilizer. Glide the blades; don't chop. Cut as close to the stitching as possible (1-2mm) without cutting the stitches.


Stitching Phase 2: The Motif Finish

Press Start again to sew the Star Motif.

• Function: This satin-style stitch will encapsulate the raw edge you just trimmed.
• Quality Check: If the stars are not covering the raw edge, your trimming wasn't close enough, or your stabilizer was too loose.


The Final Reveal: Back Trimming

Remove the hoop. Flip it over. Trim the Cutaway stabilizer around the heart, leaving about 1/4 inch margin. Sensory Check: The heart area should feel stiff and supported, while the rest of the pillow fabric remains soft.

If you plan to make 50 of these for a craft fair, traditional hoops will slow you down. Repeatedly screwing and unscrewing frames causes "embroiderer's wrist." This is the logical trigger to invest in embroidery magnetic hoops. They allow you to hoop a new garment in under 5 seconds, doubling your production output per hour.

Decision Tree: Fabric vs. Strategy

Follow this logic path to determine your setup.

Quick Fixes: Symptom $\rightarrow$ Solution

Operation Checklist: The Finish Line

• Start Point: Green crosshair aligns with scrap fabric.
• Placement Stitch: Ran smoothly at ~600 SPM.
• Trim: Fabric trimmed to 1-2mm from stitch line. No base fabric cut.
• Cover Stitch: Motif fully encapsulates the raw edge.
• Cleanup: Jump stitches trimmed; stabilizer trimmed on back.

By mastering this workflow, you move from "guessing" to "manufacturing." If you find your volume increasing, tools like the hoop master embroidery hooping station or upgrading to a multi-needle platform like SEWTECH will be your next step in professionalizing your studio.

FAQ

• Q: On a Baby Lock Destiny IQ Designer heart appliqué, what stabilizer and needle prevent puckering with the Roses fill pattern (#004)?
  A: Use heavy cutaway (2.5–3.0 oz) with a fresh 75/11 Sharp or Universal needle as the safe baseline for this dense fill.
  • Choose heavy cutaway at least 2 inches larger than the hoop on all sides.
  • Bond fabric to stabilizer using temporary spray adhesive (KK100/505) or a glue stick before hooping.
  • Replace the needle if a fingernail test catches on the tip; install a new 75/11.
  • Success check: the stitched heart area feels firm/supported and the fabric stays flatter instead of rippling.
  • If it still fails: re-check that tearaway was not used and confirm the fabric is truly bonded (not just layered).
• Q: In Baby Lock Destiny IQ Designer, why does the Roses fill not apply inside the heart when using the Fill Cup (Region Property) tool?
  A: Select the Fill Cup and its properties first, then tap inside the heart wireframe—tapping the canvas too early is the common mis-step.
  • Tap the Fill Cup (Region Property) icon before touching the design area.
  • Set pattern #004 (Roses) and select the Pink color, then verify the top-left icon shows a pink patterned fill.
  • Tap only inside the red heart wireframe to execute the fill.
  • Success check: the heart interior changes from empty to a textured pink fill on-screen.
  • If it still fails: re-select the heart object and repeat the tool → properties → tap sequence using a stylus for accuracy.
• Q: In Baby Lock Destiny IQ Designer, how do you apply the Star motif outline using the Line Cup and know you tapped the heart outline correctly?
  A: Use the Line Cup (Line Property), choose the Star motif and Violet, then tap directly on the heart wireframe until the machine gives a confirmation beep.
  • Tap Line Cup (Line Property) first, then select Star motif and Violet color.
  • Set line width to at least 3.0 mm if the option is available so the edge will cover later trimming.
  • Tap precisely on the heart outline (wireframe); use the stylus if your finger misses.
  • Success check: you hear a sharp “beep” and the outline displays as applied to the heart edge.
  • If it still fails: zoom in (if available) and tap the wireframe again—missing the wireframe will not register.
• Q: What is the “drum skin” hooping standard for a Baby Lock Destiny 200 × 300 mm hoop, and how do you confirm hooping tension is correct?
  A: Hoop the fabric smooth and taut like a drum skin—tight enough to resist deflection without ripples.
  • Lay fabric flat on the outer hoop, press the inner hoop down evenly, then tighten the screw.
  • Run fingers across the hooped surface to feel for slack, bubbles, or ripples.
  • Support the back of the embroidery arm with one hand while sliding the hoop in to avoid forcing the carriage.
  • Success check: the fabric feels smooth and taut, and a light pull barely deflects the surface.
  • If it still fails: re-hoop with bonded stabilizer (spray/glue) and consider a magnetic hoop if hoop burn or repeated re-hooping keeps happening.
• Q: What should a Baby Lock Destiny user check first when “bird nests” form under the needle plate during this appliqué stitch-out?
  A: Re-thread the top thread completely because a missed tension disc is the most common cause of bird nesting.
  • Raise the presser foot (to open tension discs), then re-thread the entire top path carefully.
  • Floss the thread into the tension path to ensure it seats between the discs.
  • Confirm bobbin is 60 wt bobbin fill (not regular sewing thread) and is installed correctly.
  • Success check: the next stitches form cleanly without a thread wad building under the plate.
  • If it still fails: stop and inspect for thread caught around the needle area and verify the thread path again from spool to needle.
• Q: On a Baby Lock Destiny appliqué fill, what does white bobbin thread showing on top mean, and what is the fastest fix?
  A: Stop and check top tension and bobbin seating—white specks on the pink fill usually indicate a tension mismatch or bobbin not seated in the tension spring.
  • Watch the first ~100 stitches and stop immediately when white bobbin dots appear on top.
  • Re-seat the bobbin in the bobbin case tension spring; you should feel slight resistance when pulling the thread (like pulling a hair).
  • Re-check that the top thread is seated in the tension discs (do a quick “floss check”).
  • Success check: the pink top thread covers the surface cleanly with no white speckling.
  • If it still fails: re-thread the top completely and restart at a controlled speed (about 600 SPM for the first layer).
• Q: What mechanical safety rules should be followed when running a Baby Lock Destiny during trimming and stitch-out of an appliqué?
  A: Keep hands and tools well away from the needle bar and never reach under the presser foot while the machine is live (green button lit).
  • Keep fingers, curved scissors, and loose sleeves at least 4 inches away from the needle bar during operation.
  • Wait until the machine is fully stopped before positioning fabric scraps or preparing to trim.
  • Trim appliqué fabric without unhooping when possible, but only when hands can stay clear of the needle area.
  • Success check: trimming and handling happen with the machine stopped, and hands never pass under the presser foot while “live.”
  • If it still fails: pause the machine earlier and reposition your body/lighting so trimming can be done safely without reaching into the needle zone.
• Q: What magnetic hoop safety precautions should be used when switching from standard hoops to magnetic hoops for embroidery production?
  A: Treat magnetic hoops as a pinch and medical/data hazard—keep fingers clear, keep away from pacemakers, and keep magnets away from cards/phones.
  • Keep fingers out of the closing path when magnets snap together (pinch hazard).
  • Maintain at least 6 inches distance from pacemakers.
  • Keep magnetic hoops away from credit cards and smartphones to reduce risk of damage.
  • Success check: the fabric clamps instantly without hoop burn or repeated screw-tightening, and hands remain clear during closure.
  • If it still fails: slow down the hooping motion and reposition the fabric first, then bring magnets together in a controlled way rather than letting them slam.
