Master Texture in PE-Design Next: The Ultimate Guide to Emboss & Engrave

Start a new file. Click a menu. It’s grayed out.

For a digitizer, nothing spikes cortisol levels faster than the software silently refusing to cooperate. In PE-Design Next, the Emboss/Engrave tool is notorious for this. It feels like a gatekeeper saying "No," but it’s actually a logic gate waiting for the right input.

This isn’t just a button-pushing tutorial. We are going to deconstruct the "Free-Hand Embossing" method taught by Kathleen McKee, but we are going to layer it with 20 years of production floor reality. You will learn not just how to click the buttons, but why the physics of thread interact with these tools, and how to stabilize your fabric so these dense textures don’t warp your final product.

We will cover the "Elephant Knee" wrinkle trick, manual punch testing, and the dreaded Text Emboss workflow that trips up 90% of beginners.

The “Don’t Panic” Primer: Why PE-Design Next Emboss/Engrave Feels Hidden (But Isn’t)

PE-Design Next introduced the Emboss/Engrave icon in the Edit Tab (near Stamp). It behaves differently than standard digitizing tools.

The Mental Shift: Standard digitizing is "drawing with thread." Embossing is "sculpting existing thread."

You aren't turning a line into stitches. You are using a line (the "cutter") to force a background area (the "clay") to change its stitch direction or density.

The Golden Rule of Selection: For the software to calculate this math, it needs two specific inputs selected simultaneously:

1. The Pattern: The line or outline object you drew.
2. The Canvas: The background fill or satin object.

If you only select the line, the software grays out the option because it has nothing to emboss onto.

The “Hidden” Prep Pros Do First: Set Up PE-Design Next So You’re Not Fighting the UI

Before we touch the mouse to the canvas, we need to set up for precision. Texture digitizing requires "Micro-Control." If your points are sloppy, your sew-out will look like a thread nest, not a wrinkle.

The Professional Setup: Kathleen suggests using the Quick Access Toolbar. If you are doing a production run of textured patches, moving the Curved Open Line and Ungroup tools to your top bar saves you roughly 3 seconds per action. Over a 50-logo day, that’s 20 minutes of saved life.

Prep Checklist (Do this BEFORE digitizing):

• Visual Check: Ensure you have a background object (Tatami fill or Satin) already created.
• Zoom Factor: Zoom in to at least 400-500%. You need to see the grid.
• Tool Location: Locate Home tab → Line Region tools.
• Target Location: Locate Edit tab → Emboss/Engrave (Note: distinct from the "Region Sew" attributes).
• Physical Check: If you are planning to sew this later, check your needle. A dull needle on dense embossed fills creates "bird nests." Use a fresh 75/11 Sharp or Ballpoint (depending on fabric).


Draw Wrinkles That Look Real: Using the Curved Open Line Tool on a Fill Stitch (Elephant Knees)

Let's start with the "Wrinkle Trick." We want to add knee creases to a filled elephant design without adding bulk.

1. Select the Tool

Navigate to Home tab → Line Region tools → Curved Open Line. Why this tool? Natural wrinkles are organic. Straight lines look like scars; curved lines look like skin.

2. The "Click-and-Drag" Rhythm

On the elephant’s knee, create the curve.

• Left Click: Places a pivot point.
• Double Click: Ends the line.

Sensory Check: As you draw, imagine the fabric flow. Don't make the curves too tight (hairpin turns). Tight curves in digitizing force the machine to slow down and place stitches dangerously close together, risking a hole in the fabric. Keep curves gentle.

Pro Tip: You can start and end your line outside the fill area. The software will only apply the effect where the line overlaps the fill.

The Make-or-Break Move: Multi-Select with Ctrl So the Effect Actually Applies

This is the cognitive friction point. If the menu is gray, stop and look at your Selection Window (on the left side of PE-Design).

1. Click the Line you just drew.
2. Press and hold the Ctrl key on your keyboard.
3. Click the Background Fill object.

Success Indicator: You should see the selection handles (black boxes) appearing around both objects. If you only see handles on one, you missed the click.

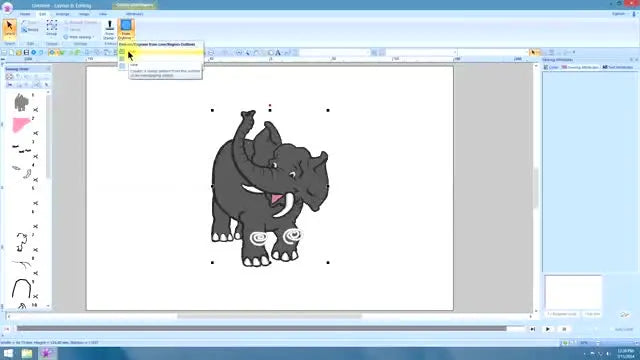

Turn a Sketch into Texture: Applying “Line Mode” in the Emboss/Engrave Tool

With the binary selection active (Line + Background):

1. Go to the Edit Tab.
2. Click the Emboss/Engrave icon.
3. Select Line Mode (or the specific effect you desire).

Visual Confirmation: The solid black vector line you drew should disappear. In its place, the stitch simulation on the background fill should shift, showing a ridge or a valley.

The “Edit Stamp” Reality Check: Why You Can’t Click the Line Anymore (And How to Still Adjust It)

Once you apply the effect, the line is no longer a "line." It has been consumed by the fill stats. This confuses beginners who try to click the wrinkle to move it.

The Fix: You must use the Edit Stamp tool.

1. Select the Edit Stamp icon (usually visually distinct with a small arrow).
2. Click the fill area. You will see a red "Ghost Outline" of your original curve.
3. Adjust: You can now grab the red handles to rotate, widen, or move the emboss effect.

Safety Interval: Do not make the embossed area too narrow. If the width of the emboss effect is less than 1mm, the texture will be invisible on lofty fabrics like towels or fleece.

Warning: Physical Safety
When editing stamp patterns or testing dense fills, always keep your fingers clear of the needle bar during the test sew. Dense patterns can cause needle deflection (bending), leading to shattered needles. Always wear eye protection when watching a test sew close-up.

Manual Punch + Emboss/Engrave: The Fastest Way to Test Effects Before You Risk a Real Design

Kathleen demonstrates a "Manual Punch" test. This is industry best practice. Never try a new technique on a finished jacket back.

The "Swatch" Method

1. Create a square or circle using Manual Punch.
2. Set it to a standard fill (Density: 4.5 lines/mm is a safe start).
3. Draw zig-zags over it and apply different Emboss/Engrave settings.
4. Sew it out on scrap fabric similar to your final project.




Why we test: On-screen previews are perfect. Real thread has volume. An embossed line that looks crisp on a 4K monitor might disappear completely into a terry cloth towel.

Engrave vs Emboss vs Line: Pick the Mode That Matches the Look (and the Stitch Risk)

The software gives you three primary options. Here is how they translate to physical reality:

1. Line Mode

• What it is: Places a row of running/triple stitches over the fill.
• Best for: Cartoon outlines, defining edges.
• Risk: Low.

2. Engrave

• What it is: The "Stamped" look. The stitches split to create a valley.
• Best for: Subtle textures, "debossed" leather looks.
• Risk: Medium. If background density is too loose (<4.0 lines/mm), the fabric color will peek through the gap.

3. Emboss

• What it is: The "Raised" look. Stitches curve over the line to create a ridge.
• Best for: 3D effects, reptile skin, monogram details.
• Risk: High. This adds significant stitch count and tension to the fabric.






Crucial Production Insight: Embossing and Engraving manipulate the fabric tension. If you are using standard plastic hoops on slick nylon or stretchy knits, the "pull" of these dense textures will warp your circle into an oval (the "Pull Compensation" problem).

• Level 1 Fix: Use two layers of Cutaway stabilizer (crisscrossed).
• Level 2 Fix: Use machine embroidery hoops that are reliable. However, traditional screw-tightening hoops often struggle to hold consistent tension around the perimeter.
• Level 3 Fix (The Pro Option): This is why commercial shops use magnetic embroidery hoops. The magnetic force clamps the fabric evenly across the entire frame without the "tug-and-screw" distortion. If you are fighting puckering on embossed designs, the issue is often your hoop, not your file.

The Text Trap: Why Emboss/Engrave Is Grayed Out on Standard Text (and the Exact Fix)

This is the most common support ticket. You type "HELLO," try to emboss it into a background, and... nothing.

The Physics of Fonts: Built-in text in PE-Design is "Keyboard Lettering" (dynamic blocks). Emboss requires "Outline Data" (vectors). They are different languages.

The Conversion Workflow

1. Select your text.
2. Right-Click or go to Attributes.
3. Select Convert to Outline.
   • Note: The text is now a "shape," meaning you can no longer fix typos by typing. Check your spelling first!
4. Ungroup: The text is still a single block. Go to the Home tab and click Ungroup.




Now, every letter is an island.

1. Select Letter "E".
2. Hold Ctrl.
3. Select Background.
4. Apply Emboss.
5. Repeat for "N", "G", etc.


Why one by one? If you Group-Select all letters and the background, the software tries to calculate one massive mathematical operation and often fails or produces weird artifacts. Doing it per letter grants you granular control over the look.

The “One Letter at a Time” Rule: How to Keep Embossed Text Clean and Professional

When you process letters individually, you can audit the density.

Density Danger Zone: If your letter is small (under 1cm), and you apply a heavy Emboss, you are forcing hundreds of stitches into a tiny space.

• Auditory Check: Listen to your machine. If it sounds like it is hammering in one spot (Thump-Thump-Thump), stop immediately. You are building a "bulletproof" knot that can break the needle or grab the bobbin case.

For small text, choose Engrave or Line. Save Emboss for large, bold fonts.

Setup Checklist (Pre-Export)

Before you save that .PES file or send it to your machine, run this mental flight check:

• Text Conversion: Did I convert text to outline and ungroup?
• Selection: Did I Ctrl-Select both the pattern and the background?
• Density Check: Is the background fill density at least 4.5 lines/mm? (Too loose = sloppy emboss).
• Size Check: Is the embossed detail at least 1.5mm wide? (Smaller details vanish on knits).
• Hoop Check: Do I have the right hoop for this density?

Troubleshooting the Two Most Common Failures

Symptom 1: The Menu is Grayed Out

• Likely Cause: You selected a Group, or Text, or only one object.
• The Fix: Ungroup everything. Convert text to outline. Click Object A, Hold Ctrl, Click Object B.

Symptom 2: The Emboss is Invisible on the Fabric

• Likely Cause: Background density is too low, or fabric nap (fluff) is too high.
• The Fix: Increase background density (e.g., from 4.5 to 5.0 lines/mm). Use a water-soluble topping (Solvy) to hold the nap down.

A Digitizer’s Decision Tree: Choosing Stabilizer (and Hooping Strategy) for Embossed/Engrave Texture

Your digital file is only 50% of the equation. The other 50% is how you hold the fabric. Textured fills create stress (push/pull).

Scenario A: High-Stress / Stretchy Fabric (Performance Polos)

• Stabilizer: Heavy Cutaway (2.5oz or 3.0oz). No Tearaway.
• Hooping: Must be drum-tight. If you see wrinkles when you pull the fabric, the emboss will distort.
• Tool: A specific hooping station for embroidery ensures you apply even tension every single time, which is critical for geometric embossed patterns.

Scenario B: High-Loft Fabric (Fleece/Towels)

• Stabilizer: Tearaway (for back) + Water Soluble Topping (on top).
• Hooping: Do not crush the nap.
• Tool: This is where an embroidery magnetic hoop shines. It holds the thick towel firmly without leaving "hoop burn" (the crushed ring mark) that traditional plastic hoops leave behind.

Warning: Magnetic Field Safety
Magnetic embroidery hoops use industrial-strength Neodymium magnets. They are incredibly strong.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical: Keep away from pacemakers.
3. Electronics: Keep away from credit cards and machine screens.

The “Why” Behind the Look: Density, Underlay, and Why Texture Can Fail on Real Fabric

If you find that your embossed designs are constantly puckering the fabric, you have hit the limit of your current setup. There are three ways to solve this:

1. Reduce Density: Lighten the stitch load (compromises the look).
2. Better Stabilization: Use fusing/spray adhesive (adds time/mess).
3. Mechanical Stability: Upgrade to Magnetic Hoops or professional clamping systems.

Commercial shops prioritize #3 because it solves the problem without slowing down the workflow.

Comment Corner: Clipart vs. Digitizing

A viewer asked: "Can I just take a JPEG and auto-digitize this?"

The Expert Answer: Auto-digitizing rarely handles Emboss/Engrave logic correctly. It interprets shadows as color changes, not texture. To get the "Kathleen McKee" look, you must manually trace the vector lines. It takes 5 minutes longer but saves 30 minutes of thread-break troubleshooting later.

Operation Checklist (The Final "Go/No-Go")

• Bobbin: Is it full? Texture fills eat thread.
• Needle: Is it fresh? Burrs cause snags in dense areas.
• Stabilizer: Is it Cutaway (for knits) or Tearaway (for woven)?
• Hooping: Tap the fabric. Does it sound like a drum?
• Speed: Slow Down. For your first test of a heavy emboss, drop your machine speed to 600-700 SPM. Let the machine digest the data.

The Upgrade Path That Actually Makes Sense: From “Cool Effect” to Repeatable Production

Mastering the Emboss/Engrave tool in PE-Design Next is a gateway skill. It teaches you about density, push/pull, and object relationships.

However, if you find yourself falling in love with these high-end, heavy-texture designs, you will quickly outgrow "hobby" constraints.

• If you struggle with hoop burn: It’s time to investigate terms like magnetic embroidery hoop to save your garments.
• If you struggle with thread breaks on dense fills: Your single-needle machine might be struggling with the friction.
• If you want to sell these: Production requires speed. The SEWTECH ecosystem—from industrial-grade magnetic frames to multi-needle behemoths—is designed to take complex files like these and run them effortlessly, all day long.

Start with the software skills you learned today. Perfect the "Ctrl-Click." But respect the physics of the machine, and upgrade your tools when the frustration outweighs the fun.

FAQ

• Q: Why is the PE-Design Next Emboss/Engrave button grayed out when using the Edit tab on a wrinkle line and a fill?
  A: In PE-Design Next, Emboss/Engrave activates only when both the cutter line object and the background fill/satin object are selected at the same time.
  • Select the Curved Open Line (the wrinkle line) first.
  • Hold Ctrl and then click the background Tatami fill (or Satin) object.
  • Confirm both objects show selection handles before clicking Edit tab → Emboss/Engrave.
  • Success check: the black vector line disappears and the stitch simulation on the fill changes direction to form a ridge/valley.
  • If it still fails: ungroup objects (and if text is involved, convert text to outline, then ungroup) and try the Ctrl multi-select again.
• Q: Why can’t PE-Design Next select or move the wrinkle line after applying the Emboss/Engrave effect in Line Mode, Engrave, or Emboss?
  A: This is normal in PE-Design Next—after applying Emboss/Engrave, the line is “consumed” into the fill, so edits must be done with Edit Stamp.
  • Click Edit Stamp (not the normal Select tool).
  • Click the fill area to reveal the red “ghost outline” of the original curve.
  • Drag the red handles to reposition/rotate/adjust the embossed effect.
  • Success check: the red outline moves, and the simulated texture moves with it on the fill.
  • If it still fails: re-check that you are clicking the fill area (not empty space) and that the emboss width is not extremely narrow (very thin effects can become hard to see).
• Q: How do I keep PE-Design Next embossed texture visible on towels or fleece when the Engrave/Emboss effect disappears in real stitch-out?
  A: For high-loft fabrics, the quickest fix is adding a water-soluble topping and ensuring the background fill is not too loose.
  • Increase the background fill density slightly (the blog’s safe start is 4.5 lines/mm, and going up (e.g., to 5.0 lines/mm) can help).
  • Add a water-soluble topping on top of the towel/fleece to hold the nap down during stitching.
  • Keep embossed features wide enough to read on loft (the blog warns very narrow embossing can vanish; aim for at least 1–1.5 mm so it doesn’t disappear into nap).
  • Success check: after tearing/washing away topping, the ridge/valley lines are still readable from normal viewing distance, not only under bright light.
  • If it still fails: sew a small swatch test first and compare different Emboss vs Engrave vs Line settings before committing to the full design.
• Q: Why is PE-Design Next Emboss/Engrave grayed out when embossing PE-Design Next Keyboard Lettering text onto a background fill, and what is the exact fix?
  A: PE-Design Next requires outline/vector objects for Emboss/Engrave, so Keyboard Lettering must be converted to outlines and ungrouped before processing.
  • Select the text and choose Convert to Outline (double-check spelling first because editing as text is no longer available afterward).
  • Use Ungroup so each letter becomes its own object.
  • Apply Emboss/Engrave one letter at a time by Ctrl-selecting the letter + the background fill.
  • Success check: each letter emboss applies cleanly without odd artifacts, and the effect previews per-letter rather than trying to calculate one massive operation.
  • If it still fails: avoid group-selecting all letters with the background; repeat letter-by-letter for stability and control.
• Q: How do I run a PE-Design Next Manual Punch swatch test to check Emboss/Engrave settings before stitching a real jacket back?
  A: The fastest low-risk method is a small Manual Punch fill swatch, then test multiple cutter lines and Emboss/Engrave modes on scrap fabric.
  • Create a simple square/circle using Manual Punch and apply a standard fill (the blog’s safe starting point is 4.5 lines/mm).
  • Draw a few zig-zag or curved open lines across the swatch and apply different Line / Engrave / Emboss settings.
  • Stitch the swatch on scrap that matches the final fabric (same stretch/loft) and use the same stabilizer plan.
  • Success check: the swatch shows clearly different texture behaviors (ridge/valley/outline) without puckering or distortion.
  • If it still fails: adjust background density upward slightly or switch to topping for high-loft fabric, then re-test before editing the real design.
• Q: What needle and speed setup should be used to reduce bird nests and needle stress when sewing dense PE-Design Next Emboss/Engrave textures?
  A: Use a fresh needle and slow the machine down for the first heavy emboss test to prevent thread nests and needle deflection.
  • Install a fresh 75/11 Sharp or Ballpoint (choose based on fabric type, and follow the machine manual if it specifies otherwise).
  • Slow down for first tests (the blog recommends 600–700 SPM for heavy emboss trials).
  • Stop immediately if the machine sounds like it is hammering in one spot (“Thump-Thump-Thump”), especially on small letters or tight areas.
  • Success check: stitching sounds steady (not pounding), and the underside does not show a growing knot/bird nest during the test.
  • If it still fails: reduce the effect (use Engrave/Line for small text), and re-run a swatch test before committing to production.
• Q: What safety precautions are required when test sewing PE-Design Next dense emboss fills and when using magnetic embroidery hoops with strong neodymium magnets?
  A: Keep hands away from the needle area during dense tests, and treat magnetic embroidery hoops as pinch-hazard industrial magnets.
  • Keep fingers clear of the needle bar during test sew-outs; dense fills can cause needle deflection and needle breakage.
  • Wear eye protection when watching close-up test stitches on dense patterns.
  • Keep fingers out of the “snap zone” when closing magnetic hoops to avoid pinches.
  • Success check: you can complete a test stitch-out without reaching near the needle path and without any finger contact during magnetic hoop closure.
  • If it still fails: stop and reset the work area—magnetic hoops must be kept away from pacemakers and away from items like credit cards and sensitive electronics/screens.
